Model Whirlpool MDE26CSACL ELECTRIC DRYER – Common Parts & Diagrams
10 - HEATER (A0 SERIES)

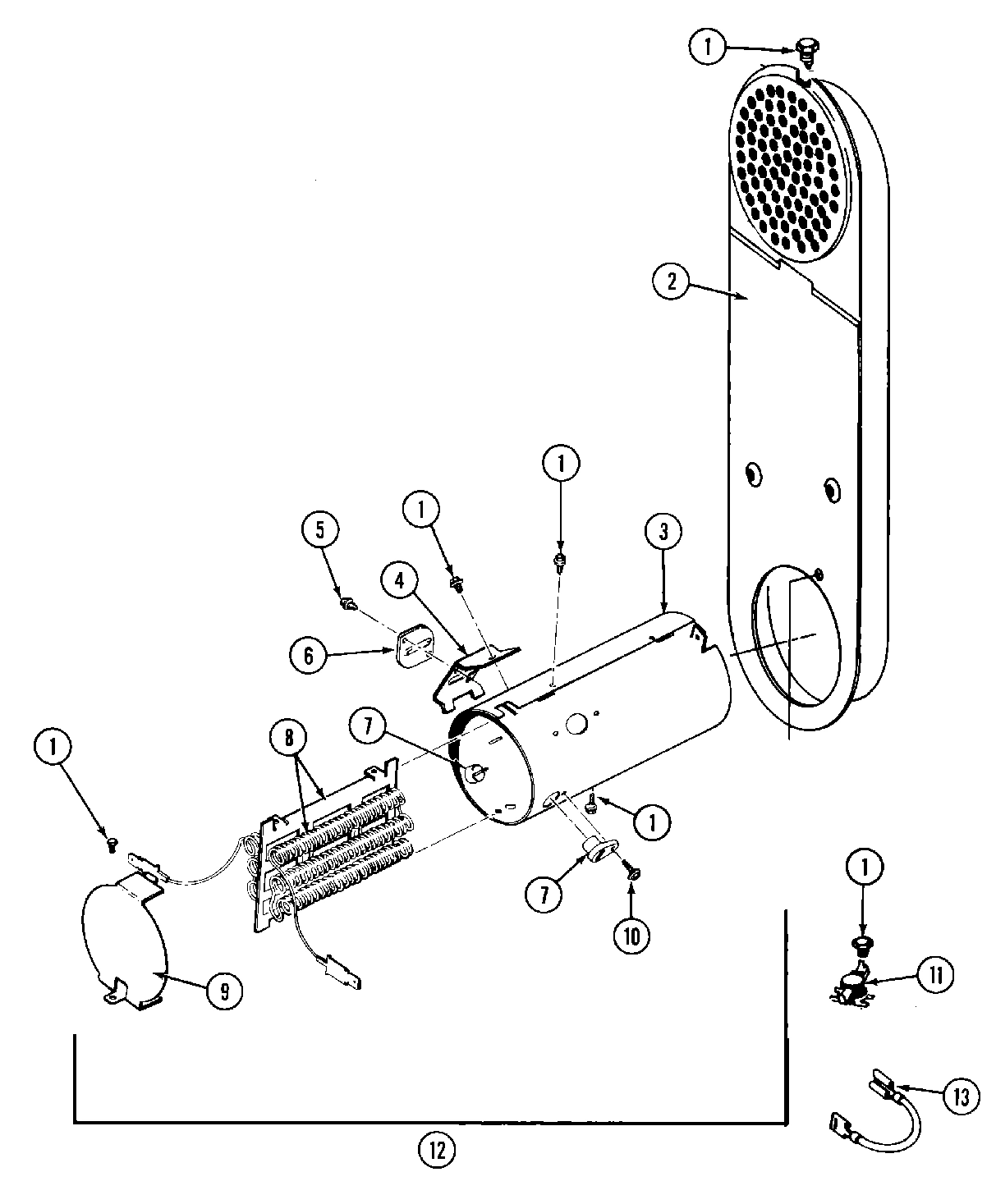

07 - HEATER (A3 SERIES)

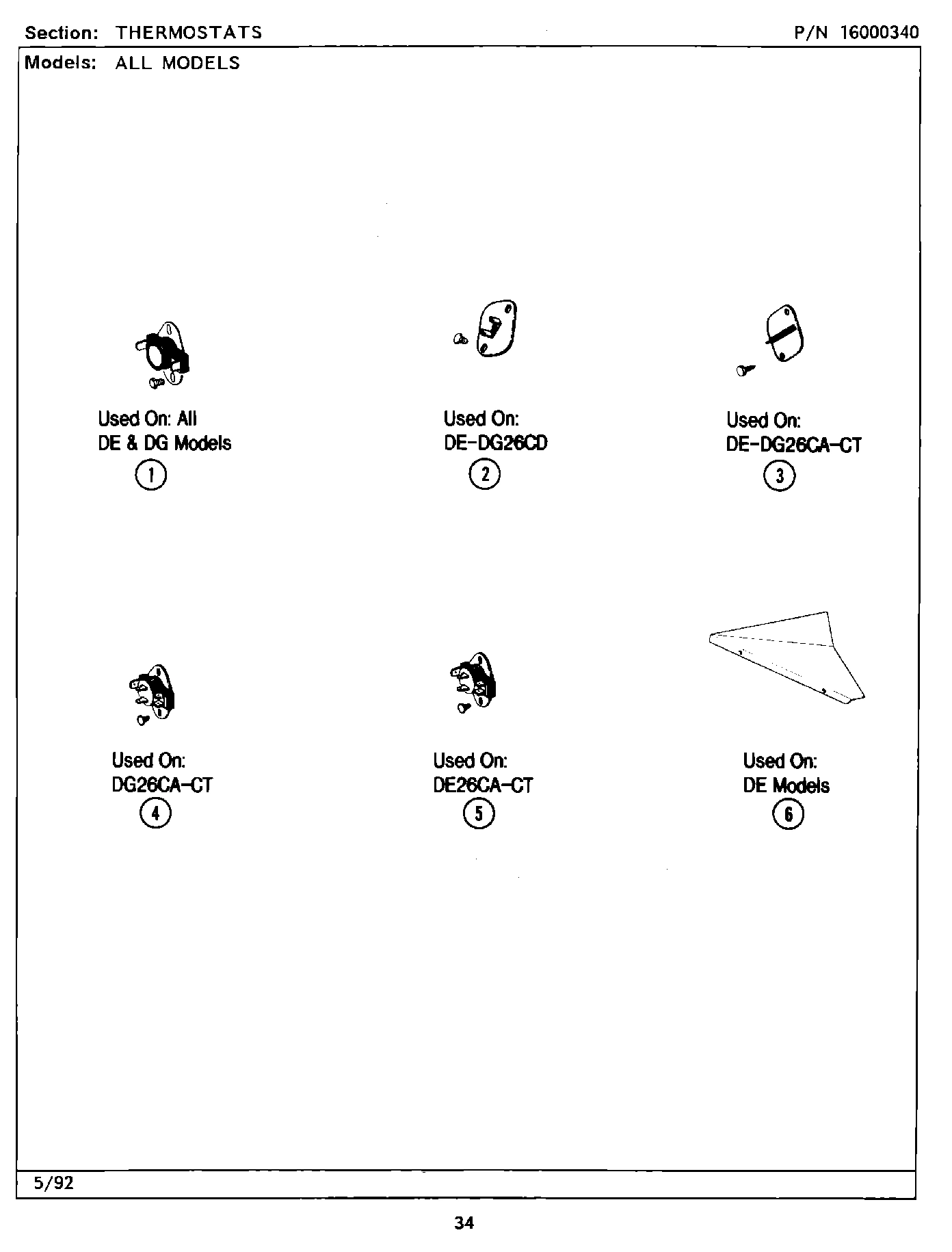

09 - THERMOSTATS

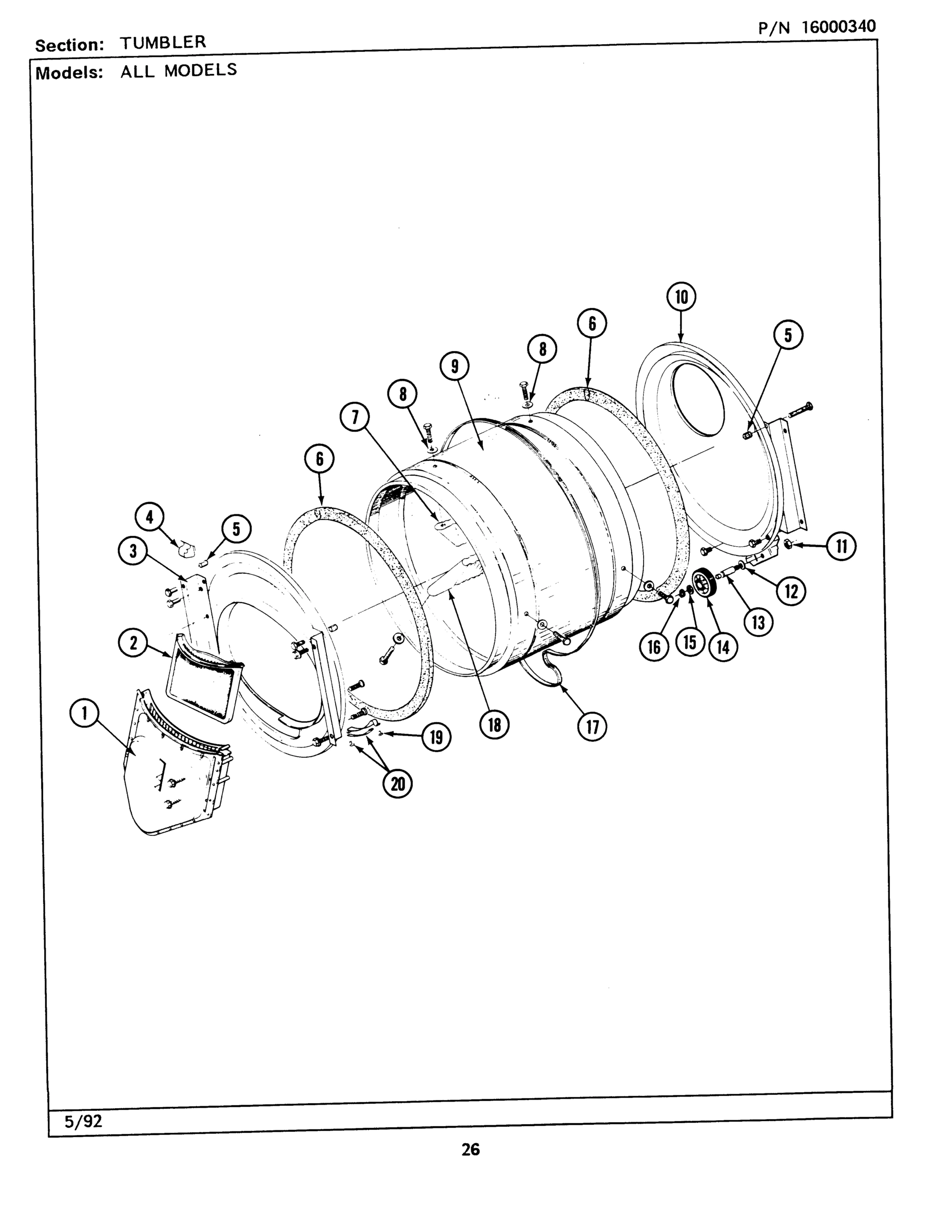

06 - TUMBLER

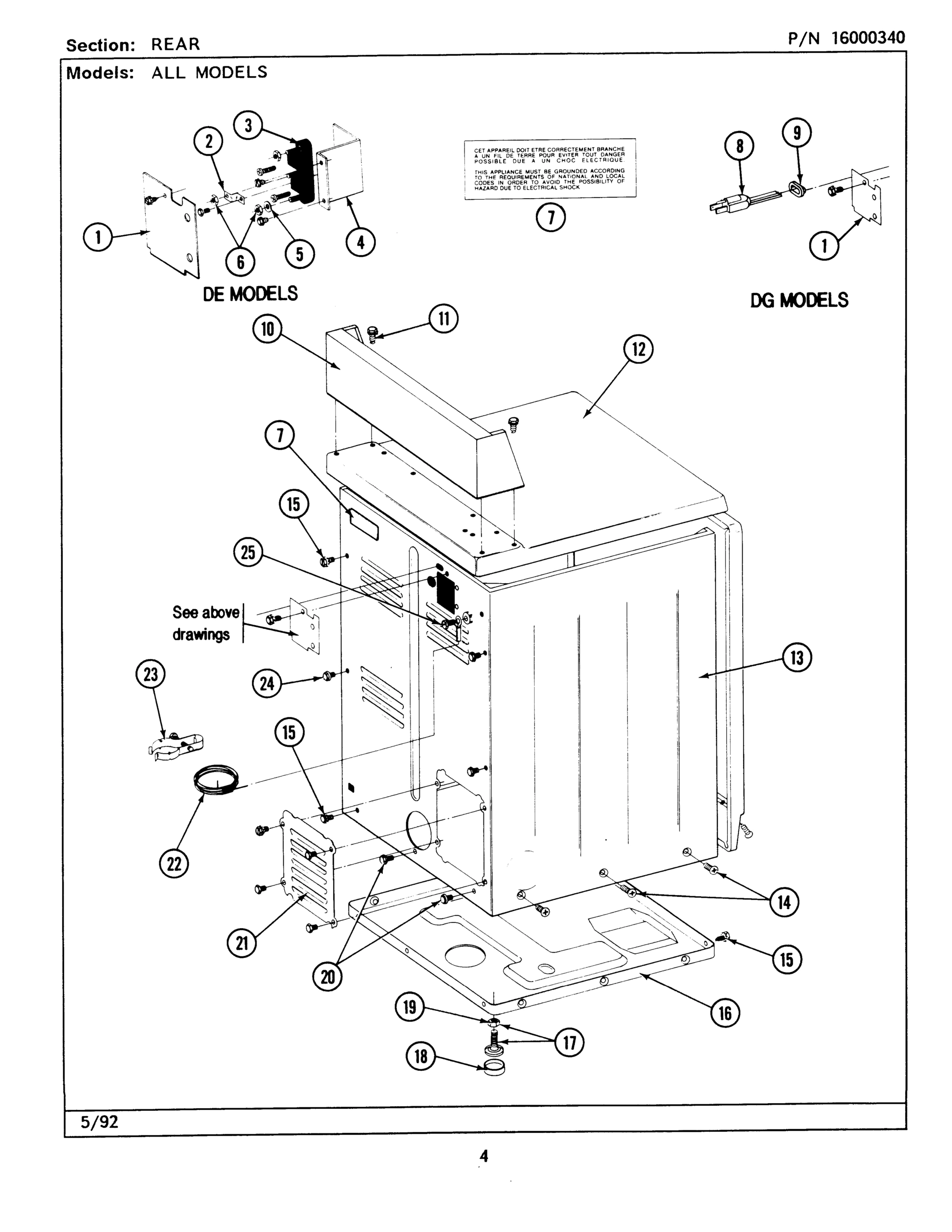

02 - REAR

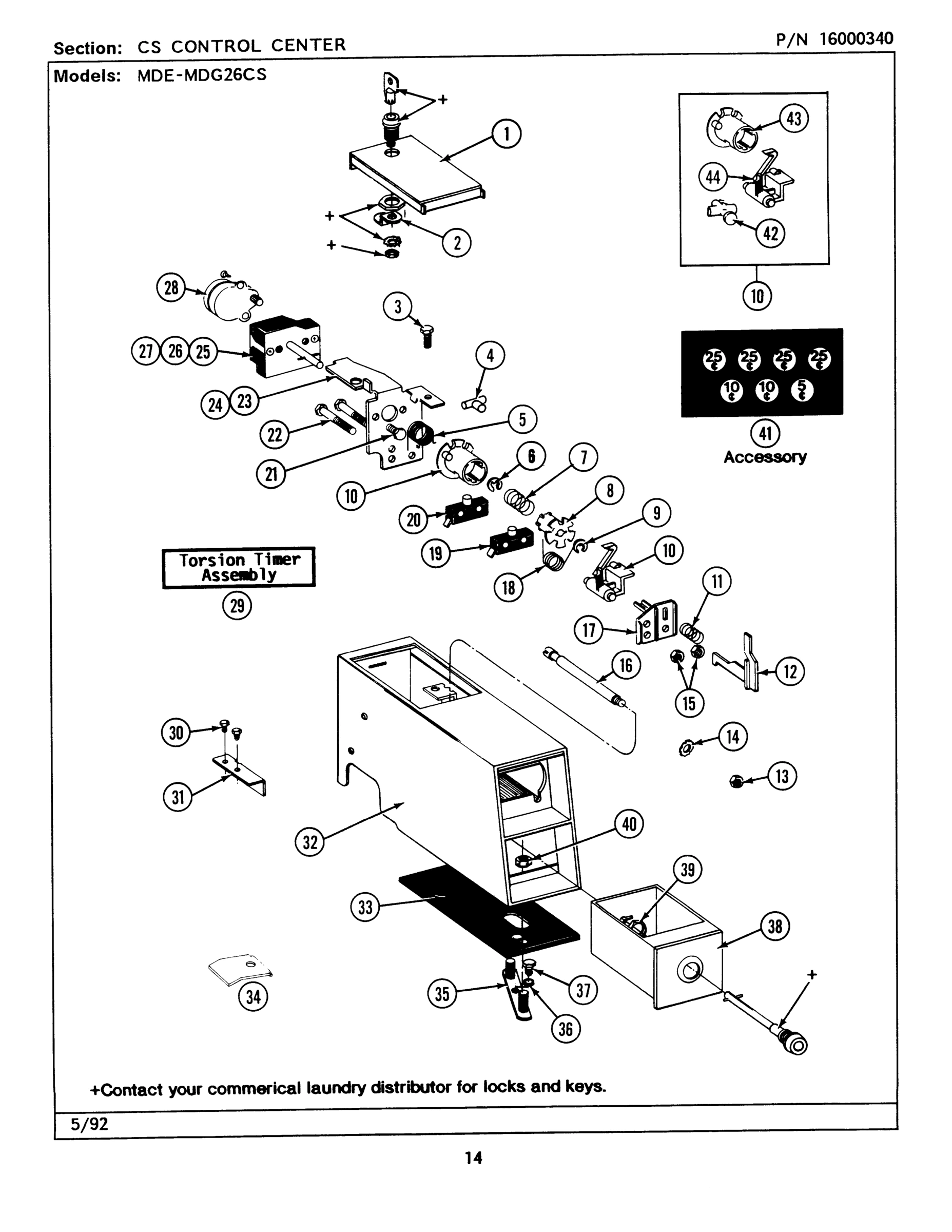

04 - CS CONTROL CENTER

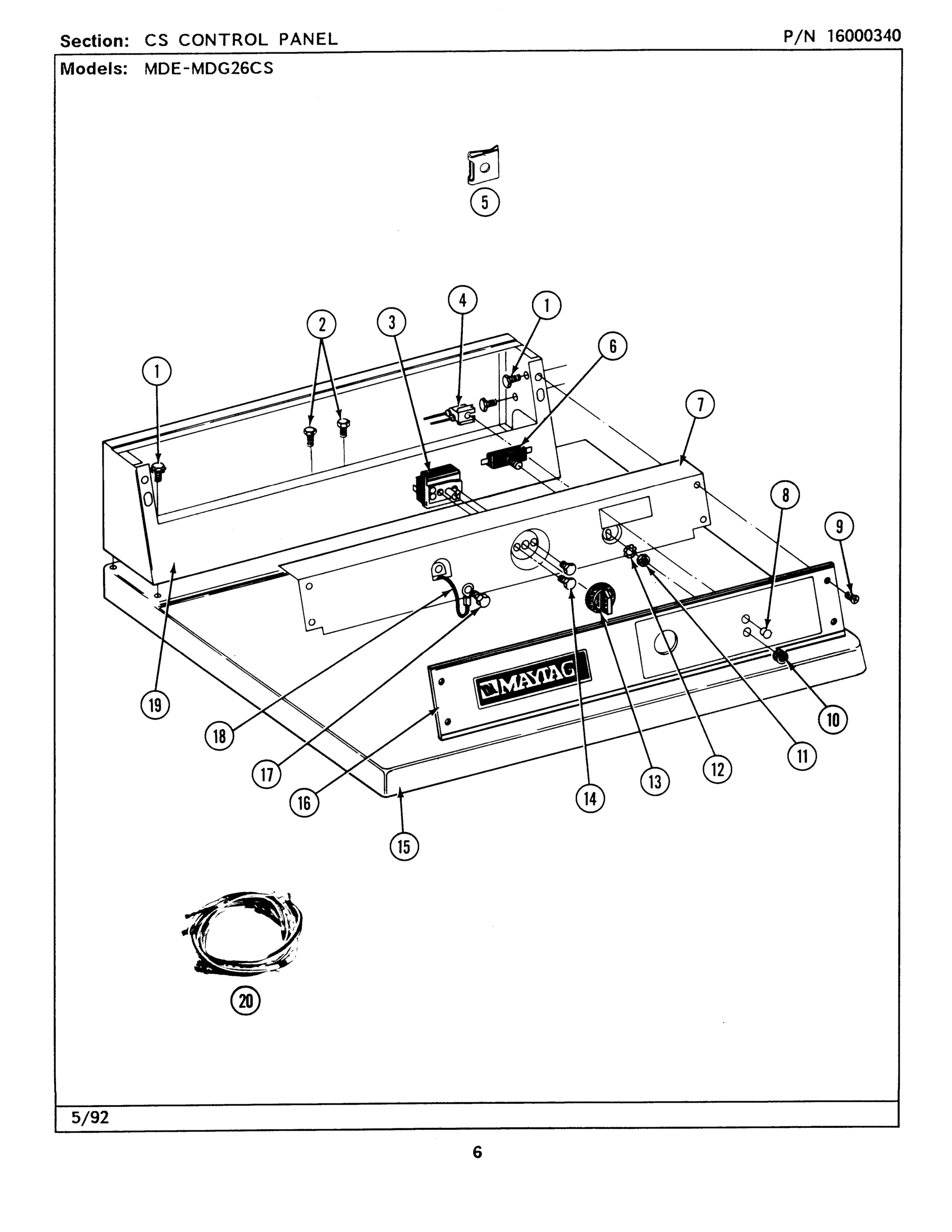

03 - CONTROL PANEL (CS)

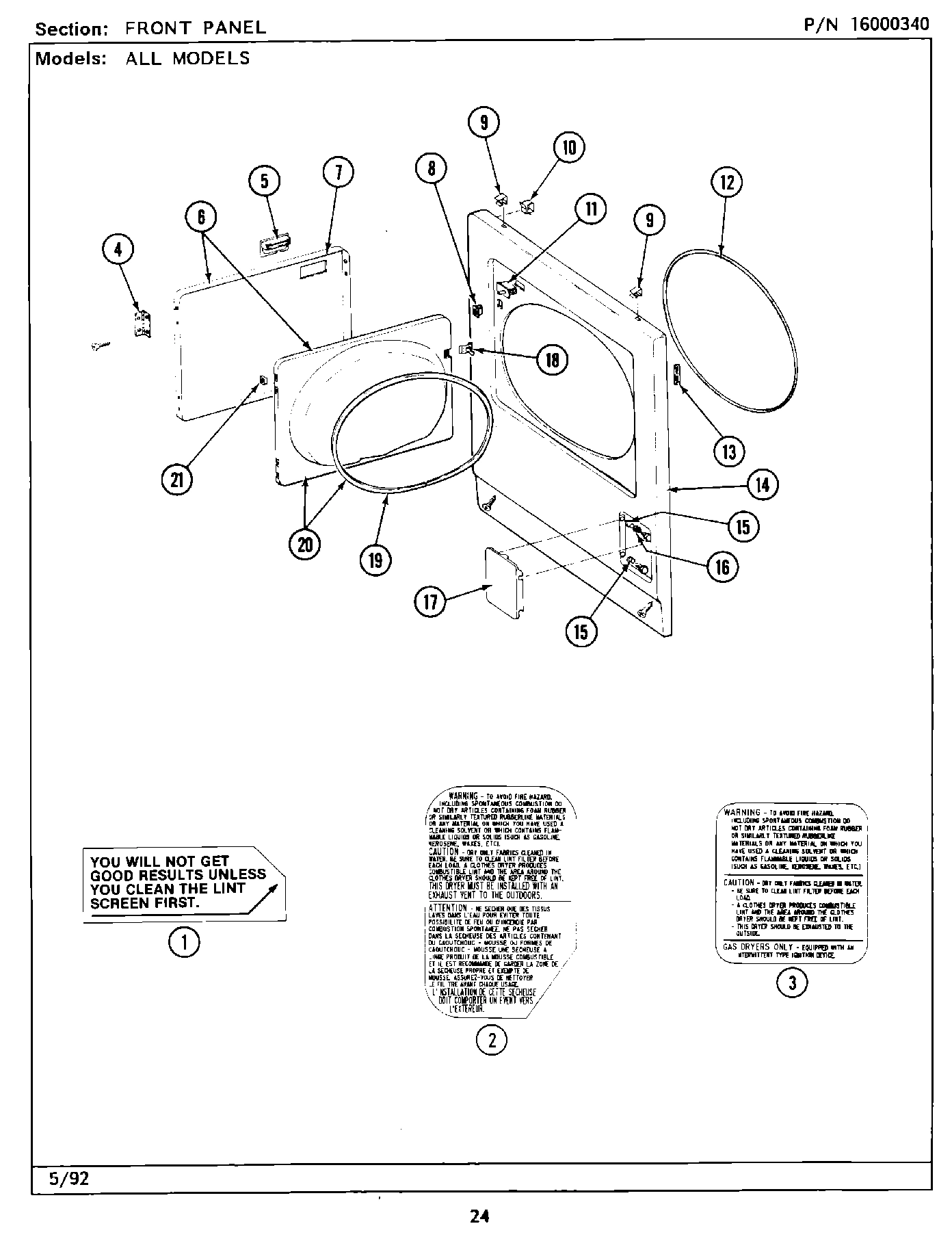

05 - FRONT PANEL

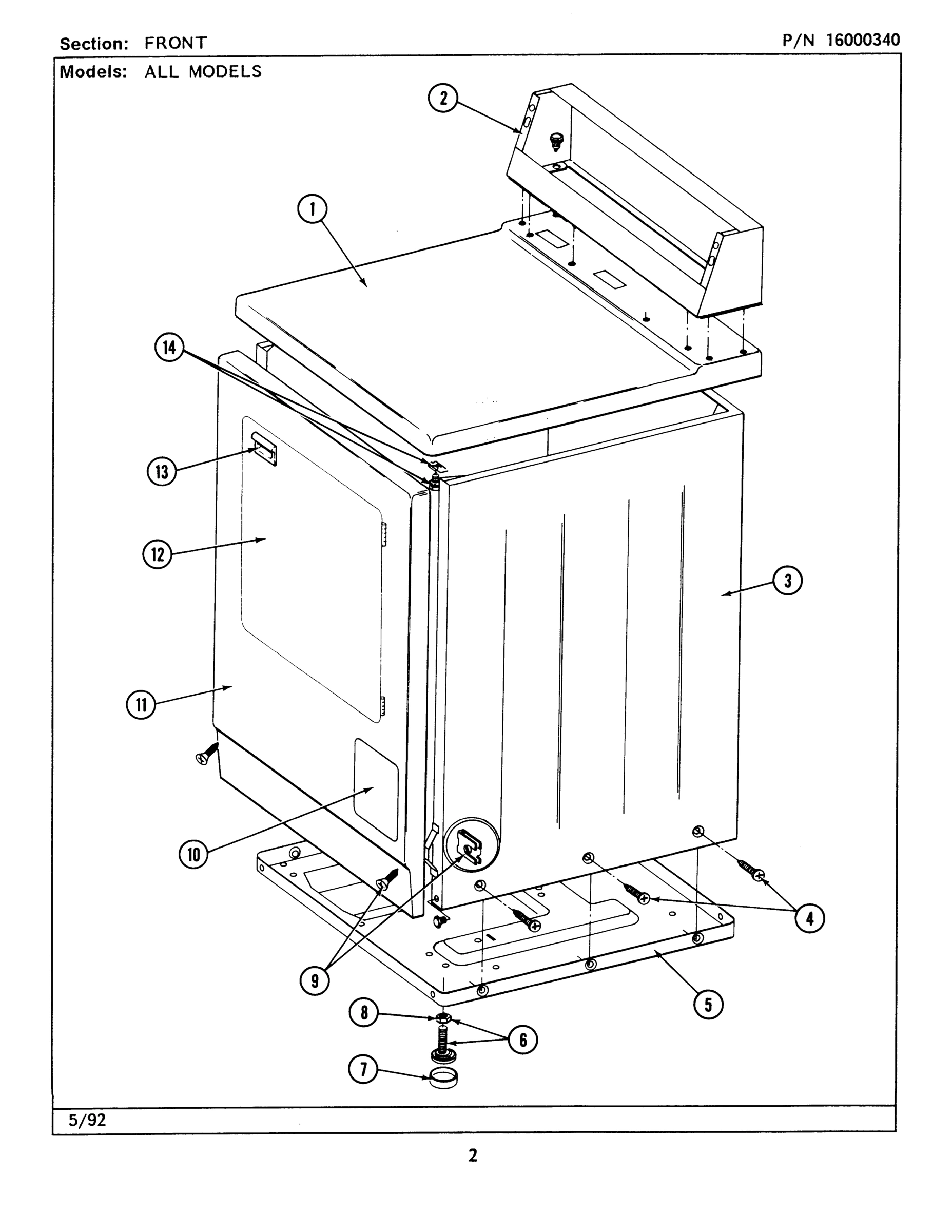

01 - FRONT

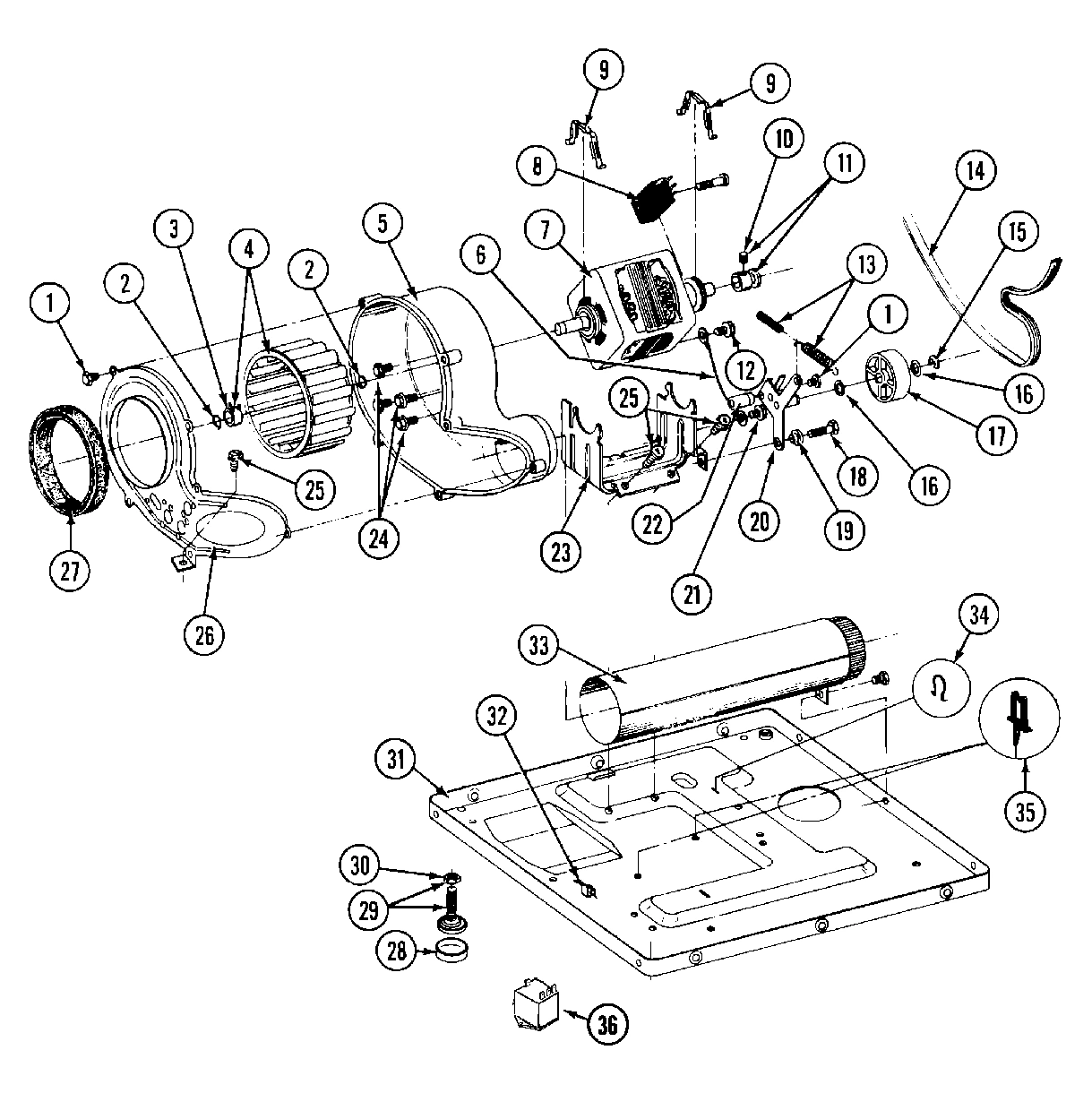

08 - MOTOR DRIVE, BLOWER & BASE FRAME
Common parts from model Whirlpool MDE26CSACL ELECTRIC DRYER
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
001
(ALM) WPL 203188L Contact Us For Availability
001
(H. WHEAT) WPL 203188M Contact Us For Availability
001
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
001
TOP COVER ASSY. (WHT) WPL 307104 Contact Us For Availability
002
THERMISTOR TEMP. CONTROL PART NOT USED. MDE/G WPL 306056 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
002
STRAP, GROUND WPL Y312184 Contact Us For Availability
002
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
003
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
003
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
003
PART NOT USED WPL 314942 Contact Us For Availability
004
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMP PART NOT USED. MDG26CT WPL 306966 Contact Us For Availability
004
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
004
TIME ADJUSTMENT PEG WPL 314335 Contact Us For Availability
004
INDICATOR LAMP WPL Y305396 Contact Us For Availability
004
HINGE WPL 307099 Contact Us For Availability
004
SCREW WPL Y314062 Contact Us For Availability
005
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
005
THERMOSTAT, MULTI-TEMP PART NOT USED. MDE26CT WPL 306967 Contact Us For Availability
005
RETURN SPRING WPL 314331 Contact Us For Availability
005
FASTENER WPL 215003 Contact Us For Availability
006
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
006
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
006
E CLIP WPL Y312270 Contact Us For Availability
006
DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability
006
WIRE, GROUND WPL 901220 Contact Us For Availability
007
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
LABEL, ELECTRICAL INSTR. PART NOT USED-GAS MO WPL 214519 Contact Us For Availability
007
BACK-UP PLATE (WHT) WPL 314912 Contact Us For Availability
007
PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
POWER CORD PART NOT USED-GAS MODELS ONLY WPL 302521 Contact Us For Availability
008
CORD, POWER (CANADA) (ELECTRIC MODELS - 240V) WPL 305168 Contact Us For Availability
008
DRIVER FOR INDEX WHEEL WPL 314330 Contact Us For Availability
008
No.3-3358-8 & 3-3358-9 WPL 306207 Contact Us For Availability
008
SWITCH, MOTOR PRODUCTION No.3-3358-2, 3-3358- WPL Y303877 Contact Us For Availability
008
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- WPL Y303879 Contact Us For Availability
009
SHIELD, RADIANT WPL 314999 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
009
GROMMET, CORD PART NOT USED-GAS MODELS ONLY WPL 211881 Contact Us For Availability
009
LOCK RING, TIMER SHAFT WPL 211790 Contact Us For Availability
009
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
010
TORSION-TIMER KIT WPL 306104 Contact Us For Availability
010
KNURLED NUT WPL Y312702 Contact Us For Availability
010
PART NOT USED. (DG ONLY) WPL 302542 Contact Us For Availability
010
PART NOT USED. (DG ONLY) WPL 302542L Contact Us For Availability
010
PART NOT USED. (DG ONLY) WPL 302542M Contact Us For Availability
010
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
011
INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability
011
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
011
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
012
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
DOOR ASSY. COMPLETE (WHT) WPL 308061 Contact Us For Availability
013
MOUNTING BRACKET WPL 315046 Contact Us For Availability
013
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
013
HANDLE (WHT) WPL 314946 Contact Us For Availability
013
(ALM) WPL 314972 Contact Us For Availability
013
TWIN FASTENER WPL Y313907 Contact Us For Availability
013
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
014
LOCK WASHER WPL 910387 Contact Us For Availability
014
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
015
TOP COVER ASSY. (WHT) WPL 307105 Contact Us For Availability
015
SCREW PART NOT USED WPL 212949 Contact Us For Availability
015
PART NOT USED WPL 312301 Contact Us For Availability
016
BOLT, LOCKING WPL 215559 Contact Us For Availability
016
SLEEVE, ACCESS PANEL STUD PART NOT USED WPL 312369 Contact Us For Availability
017
SWITCH & SLIDER BRACKET WPL 314339 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
ACTUATOR SPRING WPL 314332 Contact Us For Availability
018
WIRE, GROUND WPL 205810 Contact Us For Availability
019
WIRE TERMINAL WPL 210745 Contact Us For Availability
019
BYPASS SWITCH, MOTOR WPL 305798 Contact Us For Availability
019
DOOR SEAL WPL 314935 Contact Us For Availability
020
BYPASS SWITCH, HEATER WPL Y305799 Contact Us For Availability
020
WIRE HARNESS, MAIN WPL Y308297 Contact Us For Availability
020
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
CLIP, DOOR LINER (OUTER PNL) WPL Y313910 Contact Us For Availability
023
SUPPORT, MOTOR WPL NLA Contact Us For Availability
023
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
023
TIMER MOUNTING BRACKET WPL 314333 Contact Us For Availability
024
SCREW WPL Y310632 Contact Us For Availability
025
SCREW----NA WPL Y313561 Contact Us For Availability
025
TIMER WPL 305796 Contact Us For Availability
026
TIMER (CANADA) PART NOT USED WPL 305813 Contact Us For Availability
026
COVER, BLOWER WPL 314778 Contact Us For Availability
027
WIRE HARNESS, TIMER WPL 305800 Contact Us For Availability
028
TIMER MOTOR RPR WPL 305870 Contact Us For Availability
029
TORSION TIMER ASSY. COMPLETE WPL 305797 Contact Us For Availability
031
BASE ASSY. WPL Y303361 Contact Us For Availability
031
BRACKET, COIN SLIDE WPL 314334 Contact Us For Availability
032
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
032
COIN METER ASSY (WHT) WPL 206956 Contact Us For Availability
032
(ALM) WPL 206956L Contact Us For Availability
032
(H. WHEAT) WPL 206956M Contact Us For Availability
033
GASKET, METER CASE WPL 214660 Contact Us For Availability
033
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
034
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
035
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
036
WASHER WPL 910309 Contact Us For Availability
036
RELAY, HEATER WPL 306199 Contact Us For Availability
038
COIN BOX (WHT) WPL 205423 Contact Us For Availability
038
(ALM) WPL 205423L Contact Us For Availability
038
(H. WHEAT) WPL 205423M Contact Us For Availability
041
COINAGE DECAL WPL 214648 Contact Us For Availability
043
INDEX WHEEL WPL 314546 Contact Us For Availability
044
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
× ![]()
