Model Whirlpool MDE11MNACW ELECTRIC DRYER – Common Parts & Diagrams

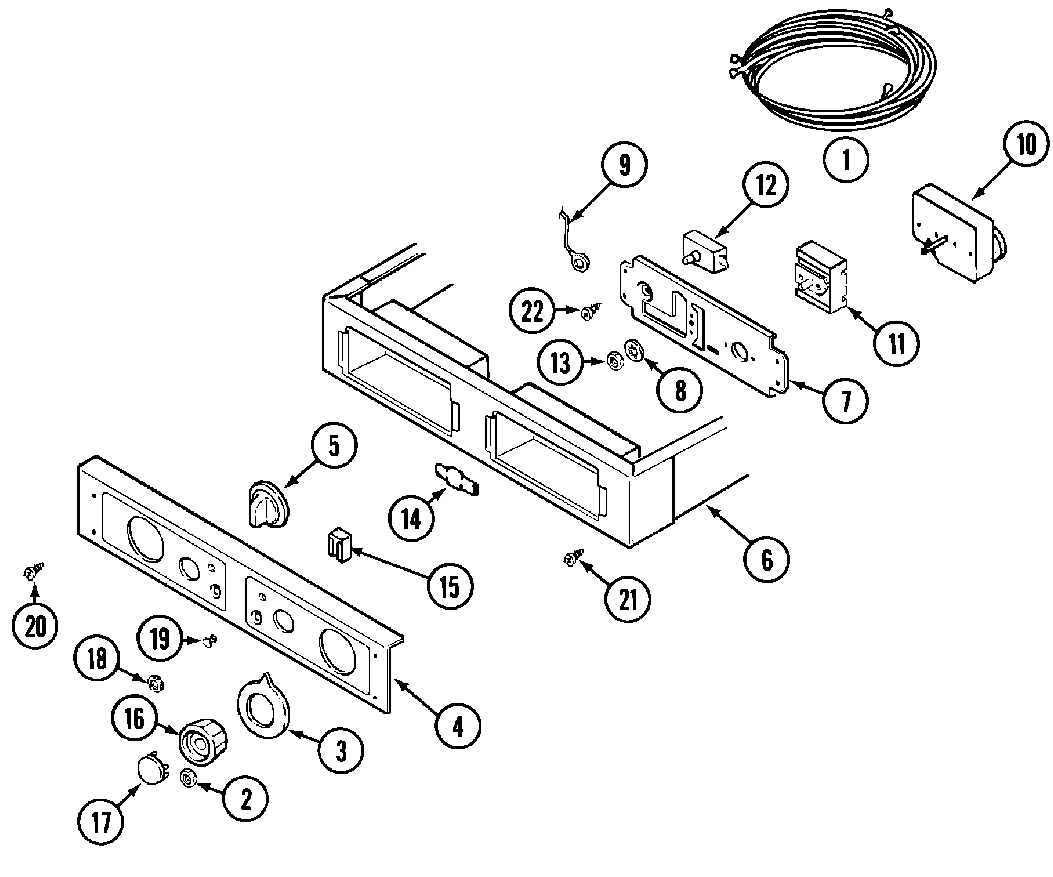

01 - CONTROL PANEL & SUPPORT ASSY.
05 - TUMBLER
02 - FRONT
04 - REAR
06 - HEATER
07 - MOTOR DRIVE
03 - DOOR
Common parts from model Whirlpool MDE11MNACW ELECTRIC DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001016 Contact Us For Availability
001
SCREW WPL Y314062 Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
002
INLET DUCT ASSEMBLY WPL 308503 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
003
DOOR (WHT) WPL 33001240 Contact Us For Availability
003
COVER, TERMINAL WPL Y312905 Contact Us For Availability
003
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
004
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
004
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
005
STOP, CABLE WPL 910768 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
006
SCREW, SUPPORT WPL 314663 Contact Us For Availability
006
STRAP, GROUND WPL Y312184 Contact Us For Availability
007
SCREW, HOUSING COVER WPL Y313561 Contact Us For Availability
007
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
007
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
008
BRACKET, TERMINAL WPL Y312904 Contact Us For Availability
008
HEATER SUB-ASSEMBLY (208V) (W/1, 3, 7 & 10) WPL 307187 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) WPL 306967 Contact Us For Availability
008
WIRE HARNESS, THERMOSTAT WPL 33001306 Contact Us For Availability
009
GROUND WIRE WPL 205810 Contact Us For Availability
009
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
009
SHIELD, RADIANT WPL 314999 Contact Us For Availability
010
TIMER RPR WPL Y307296 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
011
(CANADA) WPL 308217 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
SWITCH, CYCLE SELECTOR WPL 307253 Contact Us For Availability
012
WASHER, BAFFLE SCREW WPL 314158 Contact Us For Availability
013
NUT, START SWITCH WPL Y312706 Contact Us For Availability
013
TUMBLER WPL 33001108 Contact Us For Availability
013
TOP COVER ASSEMBLY (WHT) WPL 33001161 Contact Us For Availability
013
TOP COVER ASSEMBLY (WHT) WPL 33001165 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
CONNECTOR, WIRE WPL Y201110 Contact Us For Availability
014
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
016
CLIP, INNER DOOR SCREW WPL Y313910 Contact Us For Availability
017
CLIP, CABINET SCREW WPL NLA Contact Us For Availability
017
SCREW & CLIP ASSEMBLY WPL 204439 Contact Us For Availability
018
KNURLED NUT, START SWITCH WPL Y312702 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
018
PANEL, INNER DOOR (W/SEAL) WPL 33001243 Contact Us For Availability
019
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
021
SCREW, MOUNTING BRACKET WPL 910186 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
024
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
024
SCREW, CLAMP WPL 313122 Contact Us For Availability
030
WIRE, GROUND WPL 901220 Contact Us For Availability
033
BASE ASSEMBLY (LWR) WPL 306530 Contact Us For Availability
033
(UPR) WPL Y307482 Contact Us For Availability
039
RETAINER, WIRE HARNESS WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
WPL 315122 WPL 315122 Contact Us For Availability
043
WPL Y310632 WPL Y310632 Contact Us For Availability
× ![]()
