Model Whirlpool LG5751XFW0 GAS DRYER – Common Parts & Diagrams

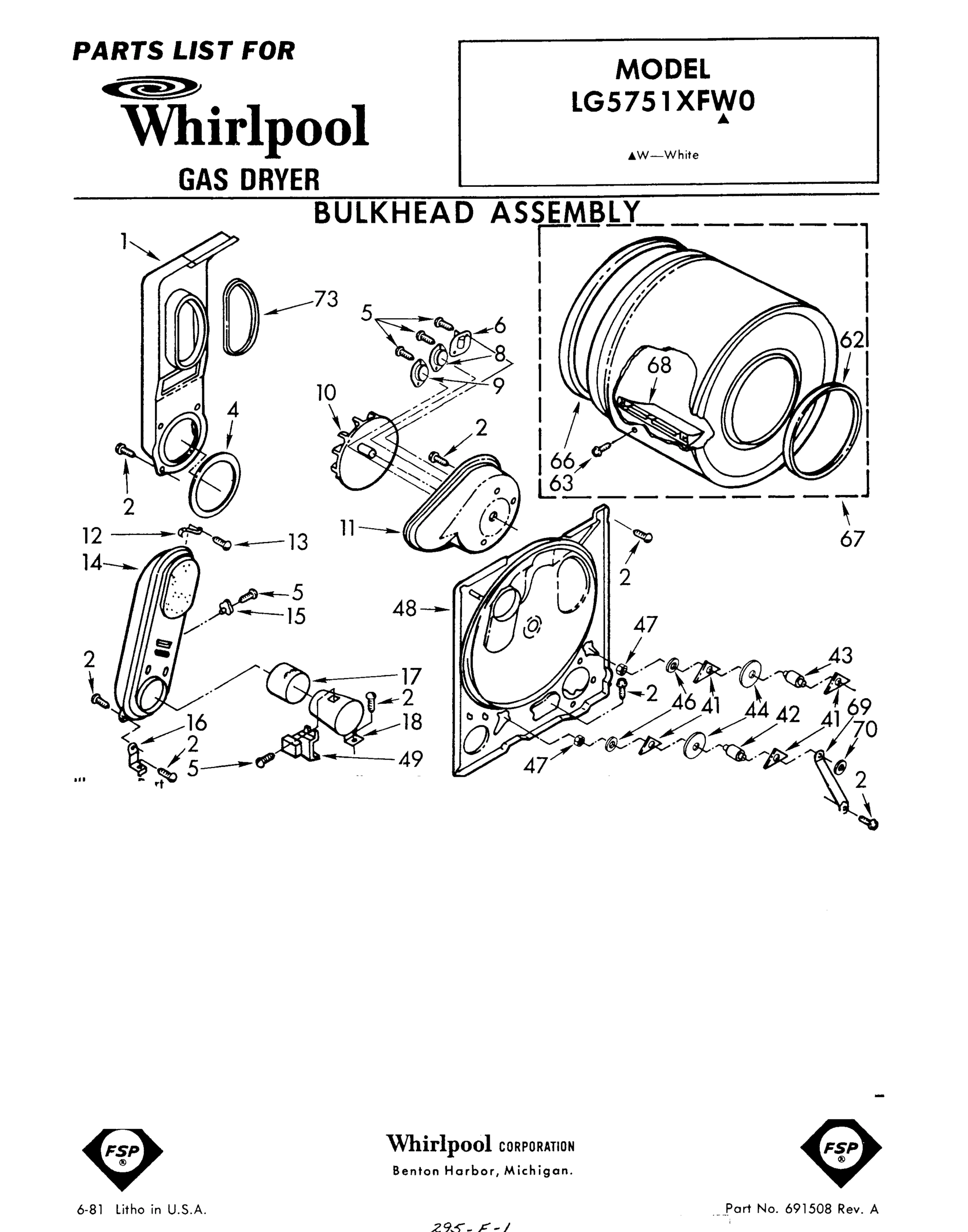

01 - BULKHEAD

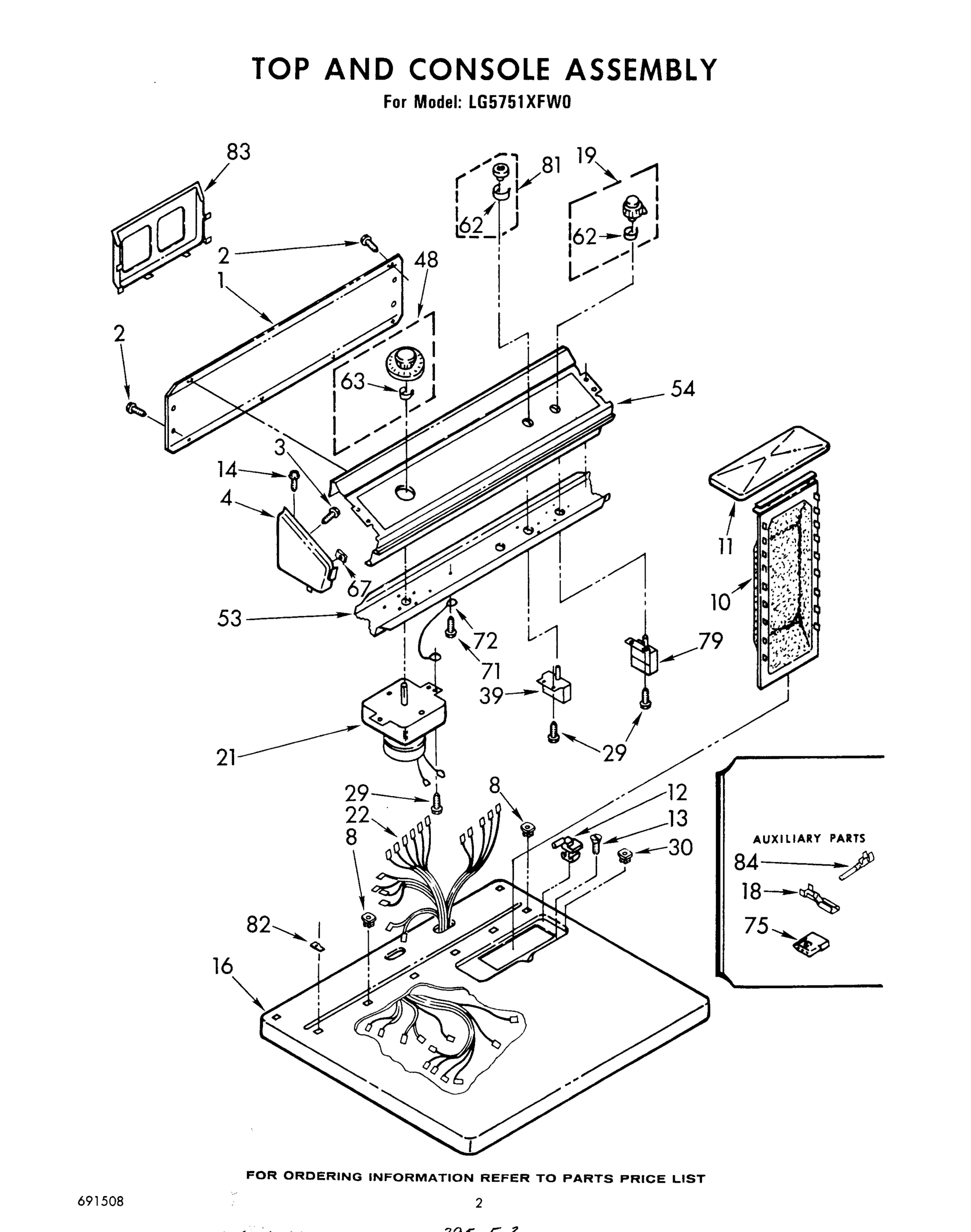

02 - TOP AND CONSOLE, LITERATURE AND OPTIONAL

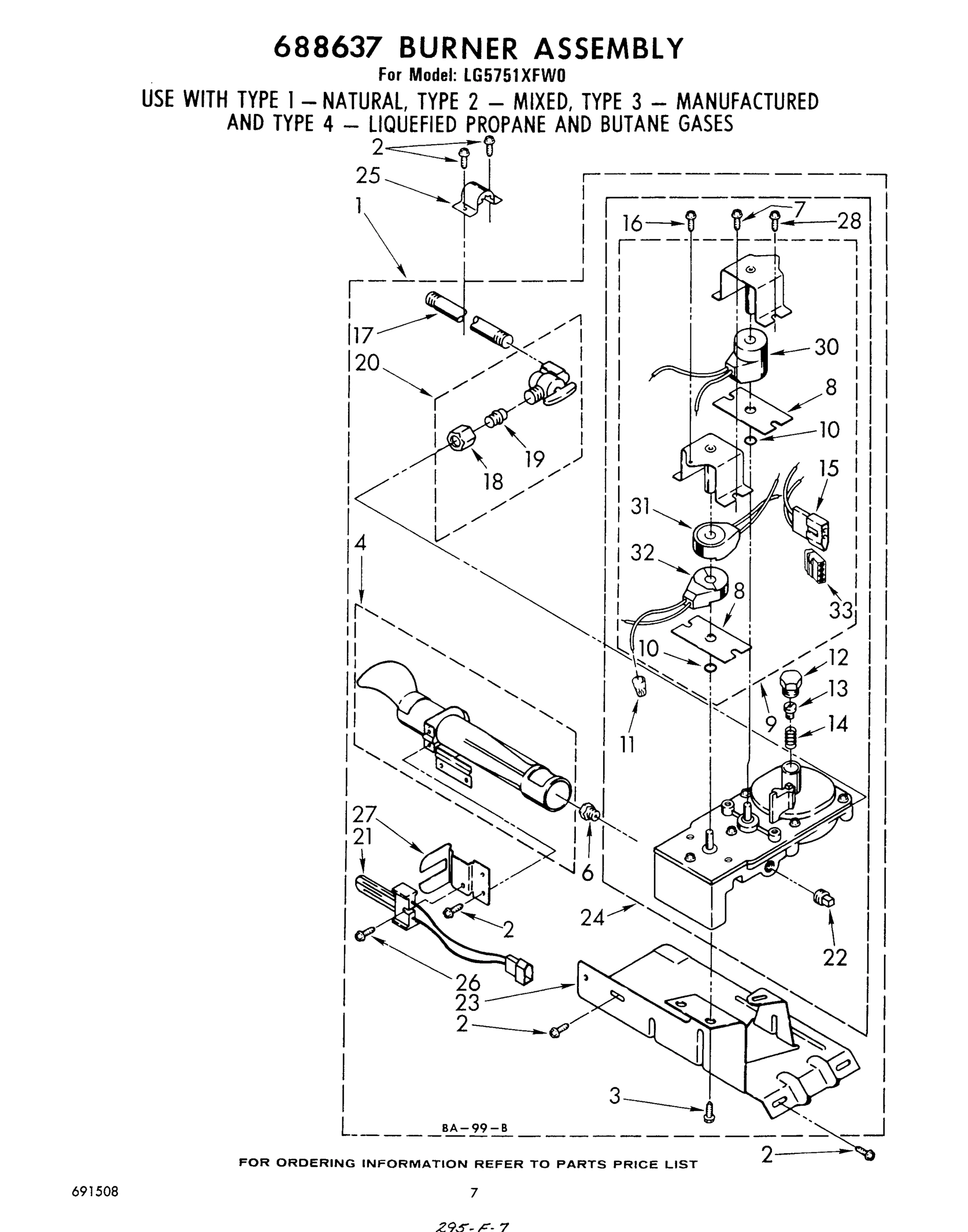

05 - 688637 BURNER

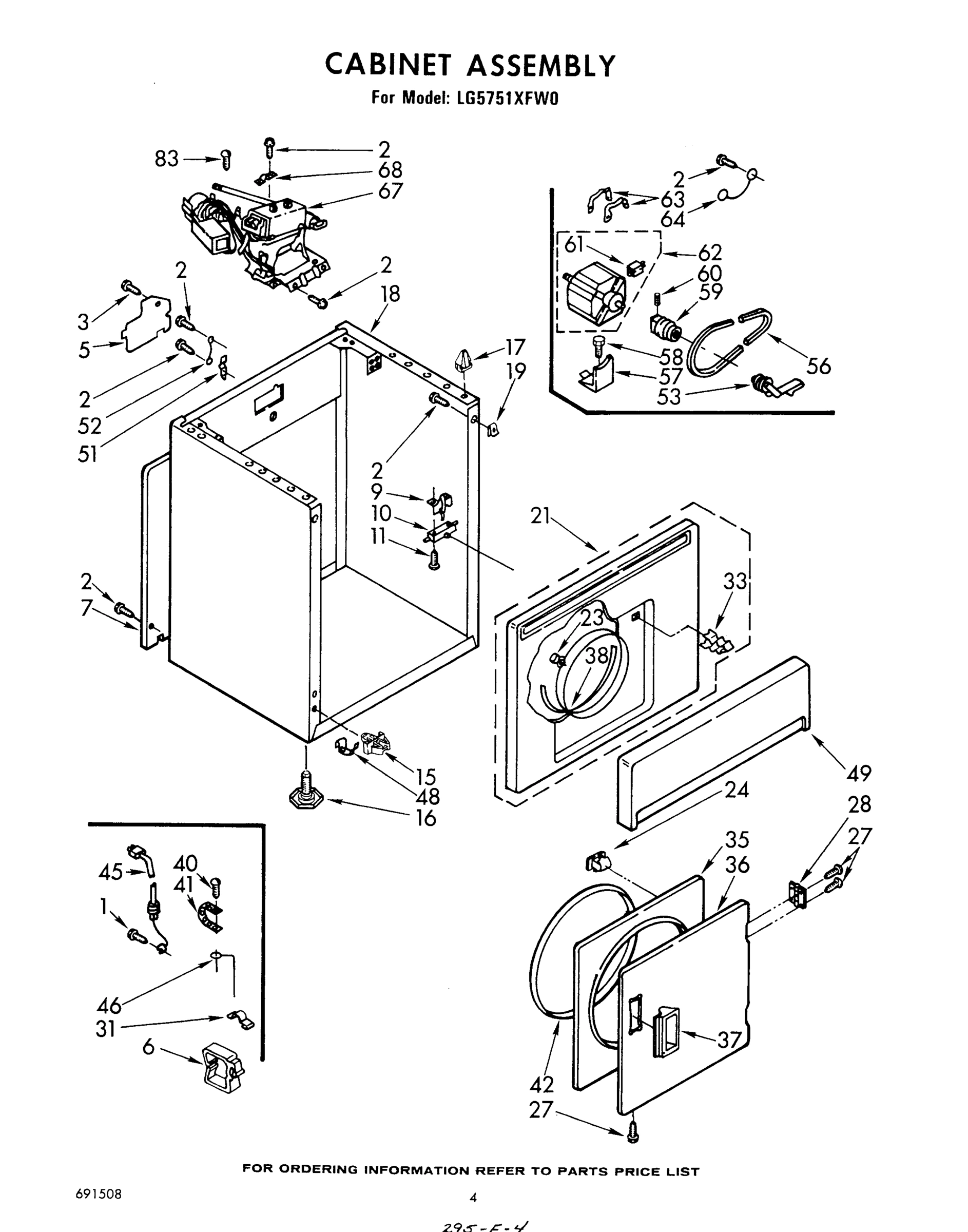

03 - CABINET

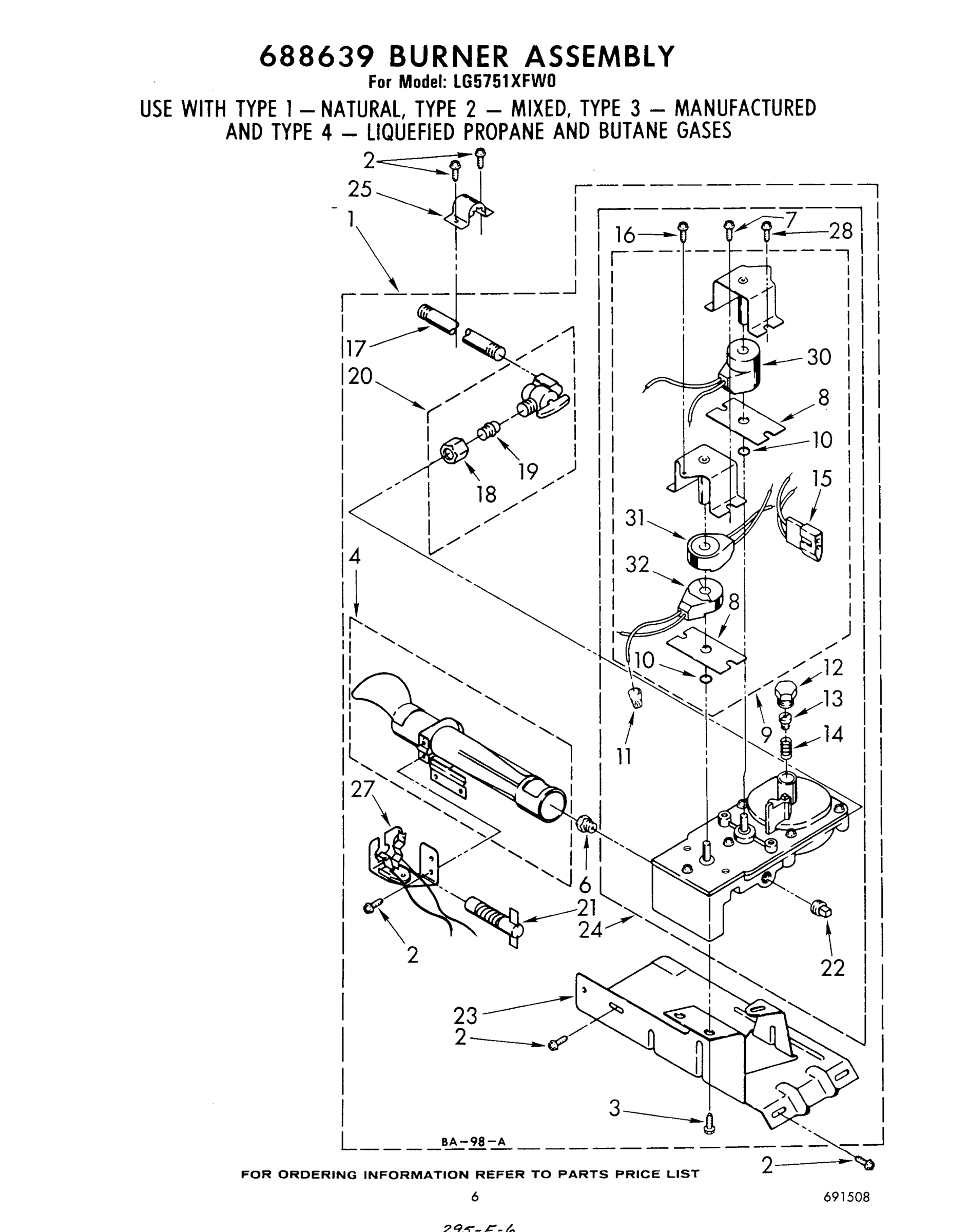

04 - 688639 BURNER
Common parts from model Whirlpool LG5751XFW0 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
1
Burner Assembly, 60 Hz. (Type 1, 2 & 3) (Whit WPL 688639 Contact Us For Availability
6
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
6
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
6
Clip, Harness Retainer WPL 688412 Contact Us For Availability
7
Panel, Rear WPL 347736 Contact Us For Availability
8
Nut, Push-In (2) WPL 358473 Contact Us For Availability
8
Plate (2) WPL 338869 Contact Us For Availability
9
BURNER-GAS WPL 685947 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
10
Ring, ``O`` (2) WPL 296302 Contact Us For Availability
11
Connector, Wire (3) WPL 340140 Contact Us For Availability
12
Screw, Leak Limiter WPL 338868 Contact Us For Availability
13
Screw, Regulator Adjustment WPL 99996 Contact Us For Availability
14
Spring, Regulator WPL 339226 Contact Us For Availability
15
Thermostat, High Limit 205$FF2$so$FF1F (96$FF WPL 341196 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
16
Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability
17
Pipe, Gas Supply WPL 233273 Contact Us For Availability
18
Nut, Compression WPL 233076 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
20
Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability
21
Upper Front Panel Assembly (White) WPL 348394 Contact Us For Availability
22
Harness, Wiring WPL 690320 Contact Us For Availability
23
Baseplate WPL 338455 Contact Us For Availability
24
BURNER-GAS WPL 688631 Contact Us For Availability
24
Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability
27
Screw WPL 689791 Contact Us For Availability
28
Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability
30
Coil Assembly (Main) WPL 348376 Contact Us For Availability
31
Coil Assembly (Hold) WPL 348375 Contact Us For Availability
32
Coil Assembly (Assist) WPL 348374 Contact Us For Availability
32
Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability
33
Receptacle, 2 Way WPL 717252 Contact Us For Availability
39
Switch, Push-To-Start WPL 346364 Contact Us For Availability
39
(Alternate) WPL 692021 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Strap, Ground WPL 22965 Contact Us For Availability
46
Wire, Ground WPL 364089 Contact Us For Availability
48
Timer Knob Assembly WPL 690200 Contact Us For Availability
49
Panel, Toe (White) WPL 337833 Contact Us For Availability
52
Wire, Ground WPL 340025 Contact Us For Availability
53
Bracket, Control WPL 359708 Contact Us For Availability
54
Panel, Control WPL 688347 Contact Us For Availability
60
Set Screw WPL 690046 Contact Us For Availability
62
Clip WPL 90015 Contact Us For Availability
64
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
67
Clip, ``U`` (4) WPL 98084 Contact Us For Availability
67
Burner As WPL 688637 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability
79
Switch, Air Heat WPL 348687 Contact Us For Availability
81
Button, Push-to-Start WPL 346219 Contact Us For Availability
82
Stop, Push-In (2) WPL 358472 Contact Us For Availability
83
Rack, Literature WPL 357645 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
84
Instructions, Wiring WPL 230082 Contact Us For Availability
84
Wire, Adapter (4`` Long) WPL 299663 Contact Us For Availability
84
Wire, Adapter (4-1/2 `` Long) WPL 299669 Contact Us For Availability
84
Supplement, Installation Instructions WPL 340704 Contact Us For Availability
84
Harness, Wiring WPL 349849 Contact Us For Availability
84
Leveler (Thinner) WPL 350941 Contact Us For Availability
84
Instructions, Installation WPL 687011 Contact Us For Availability
84
Instructions, Installation WPL 688644 Contact Us For Availability
84
Guide, Dryer WPL 688898 Contact Us For Availability
84
Use & Care Guide WPL 691259 Contact Us For Availability
84
List, Service Parts WPL 691508 Contact Us For Availability
84
WPL 799351 WPL 799351 Contact Us For Availability
× ![]()
