Model Whirlpool LER4624BN0 ELECTRIC DRYER – Common Parts & Diagrams
02 - SECTION
01 - SECTION
03 - SECTION

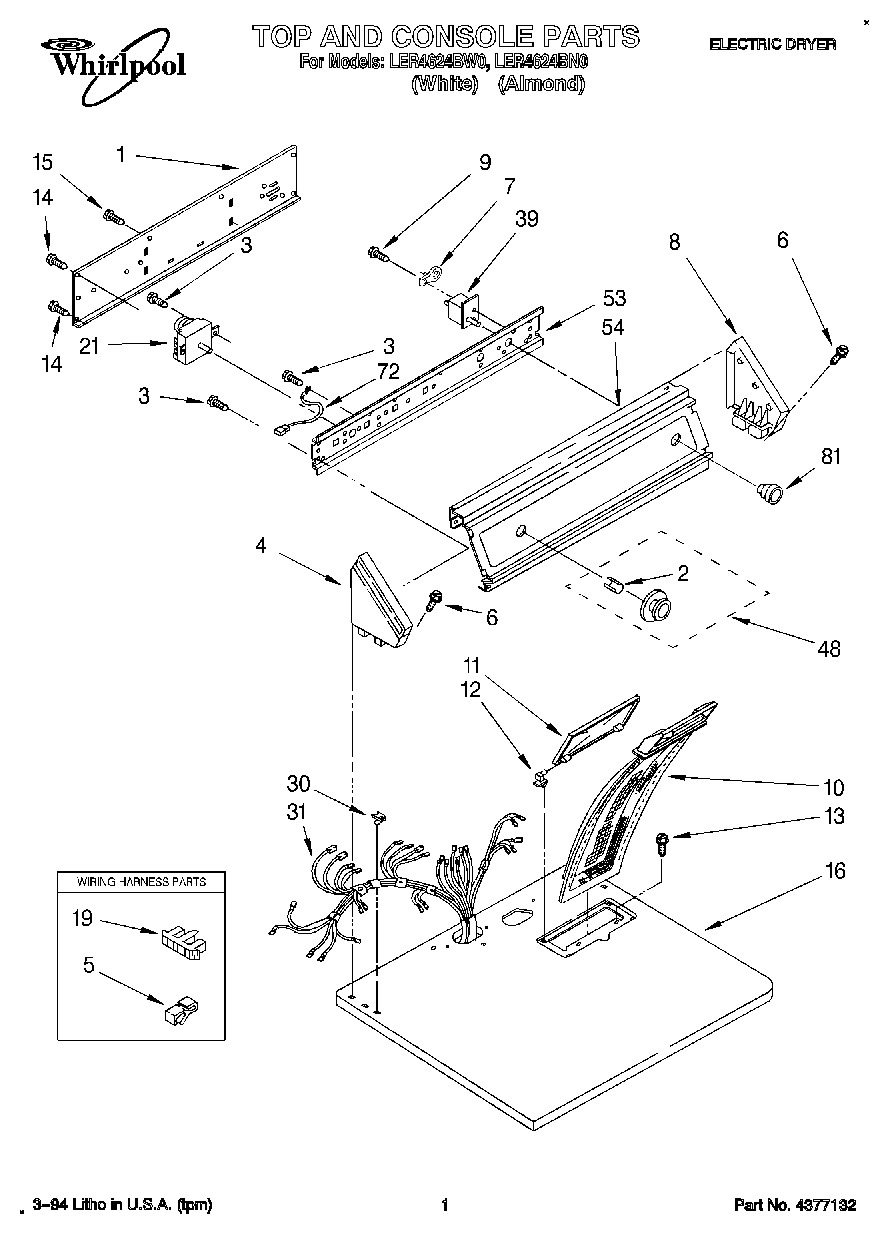

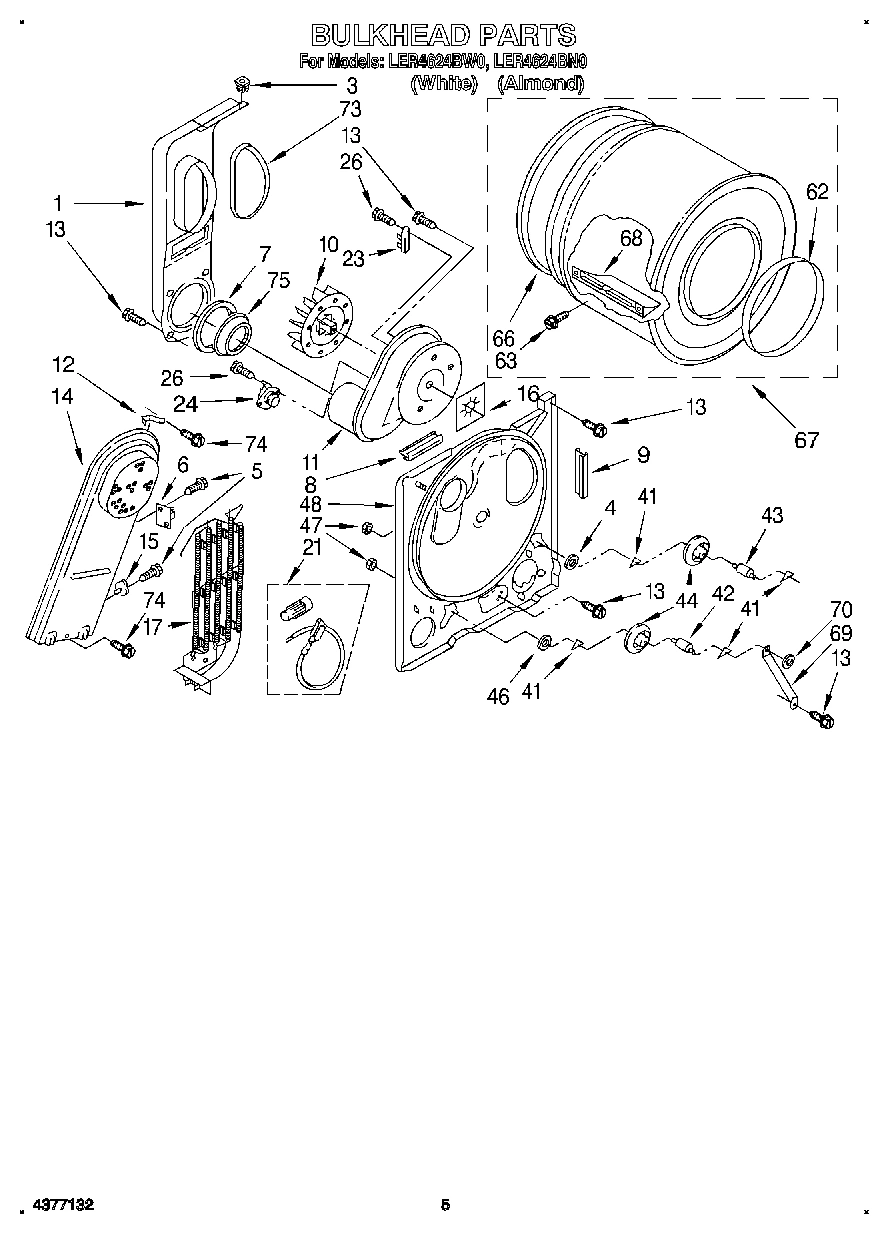

Common parts from model Whirlpool LER4624BN0 ELECTRIC DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
4
Cable, Door (2) WPL 230131 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 3358531 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 3358532 Contact Us For Availability
5
Clip, Retainer WPL 689180 Contact Us For Availability
8
Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability
8
Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
14
Box, Heater WPL 695547 Contact Us For Availability
16
Top (White) WPL 3396022 Contact Us For Availability
16
Top (Almond) WPL 3396023 Contact Us For Availability
16
Seal, Blower Shaft WPL 3392123 Contact Us For Availability
19
Connector, Timer WPL 3397269 Contact Us For Availability
28
Hinge, Door (R.H.) WPL 238456 Contact Us For Availability
31
Harness, Wiring WPL 3396646 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
42
GUIDE WPL 337182 Contact Us For Availability
42
Guide, Cable (R.H.) WPL 337183 Contact Us For Availability
48
Bulkhead WPL 685775 Contact Us For Availability
53
Bracket, Control WPL 3396293 Contact Us For Availability
54
Panel, Control (White) WPL 3397192 Contact Us For Availability
54
Panel, Control (Almond) WPL 3397193 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
81
Knob, Push To Start WPL 3396160 Contact Us For Availability
× ![]()
