Model Whirlpool LE8600XWW0 ELECTRIC DRYER – Common Parts & Diagrams

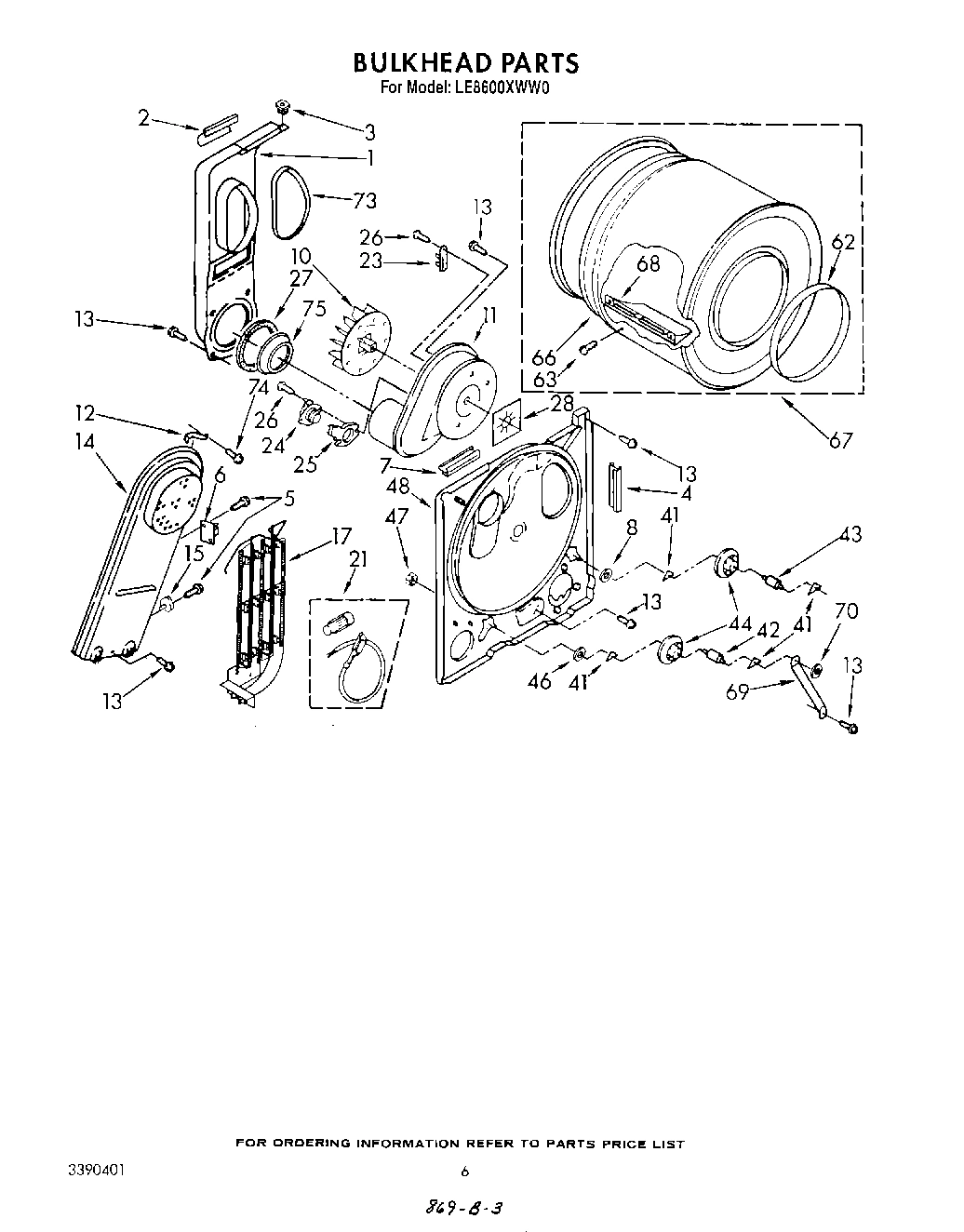

04 - SECTION

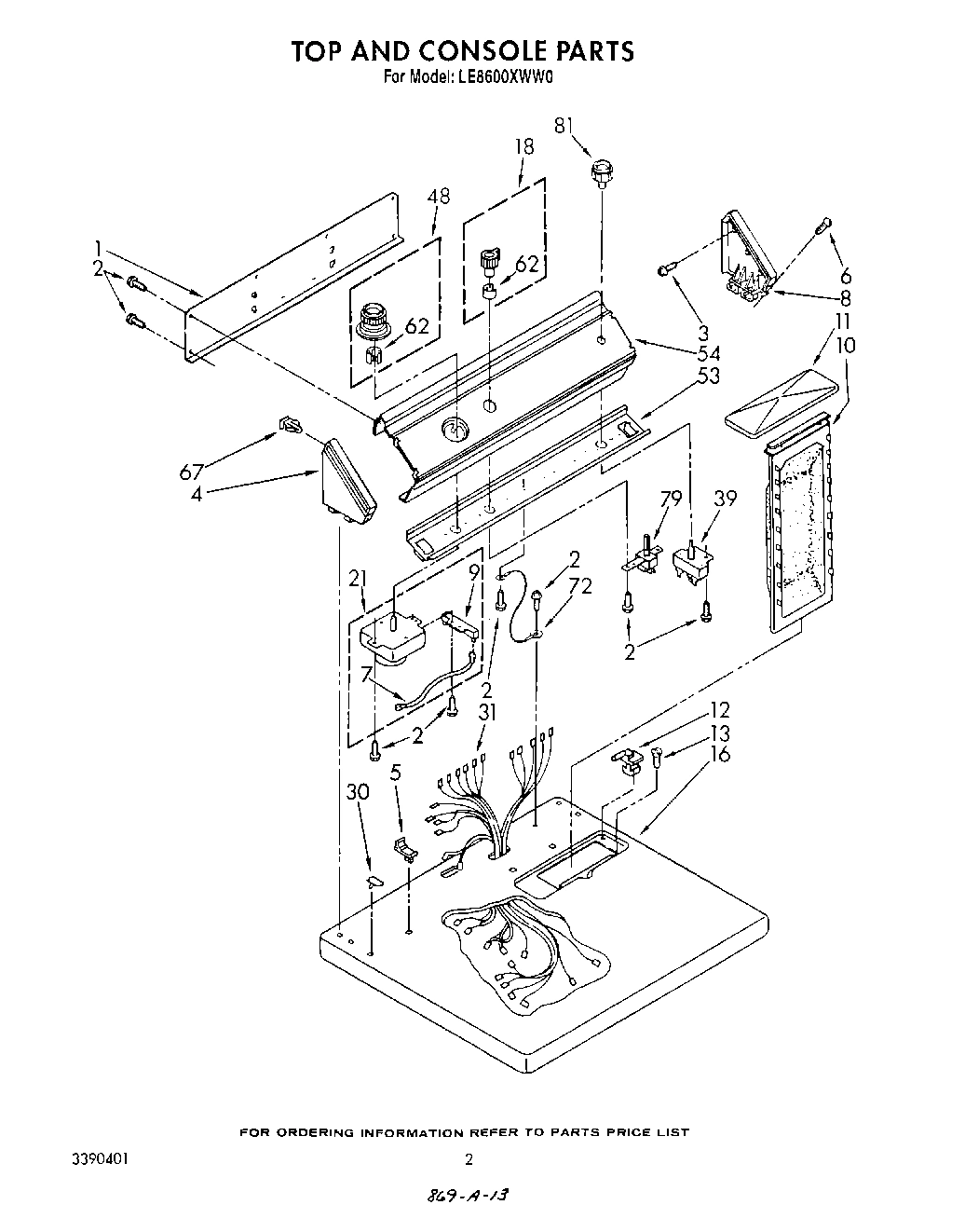

02 - SECTION

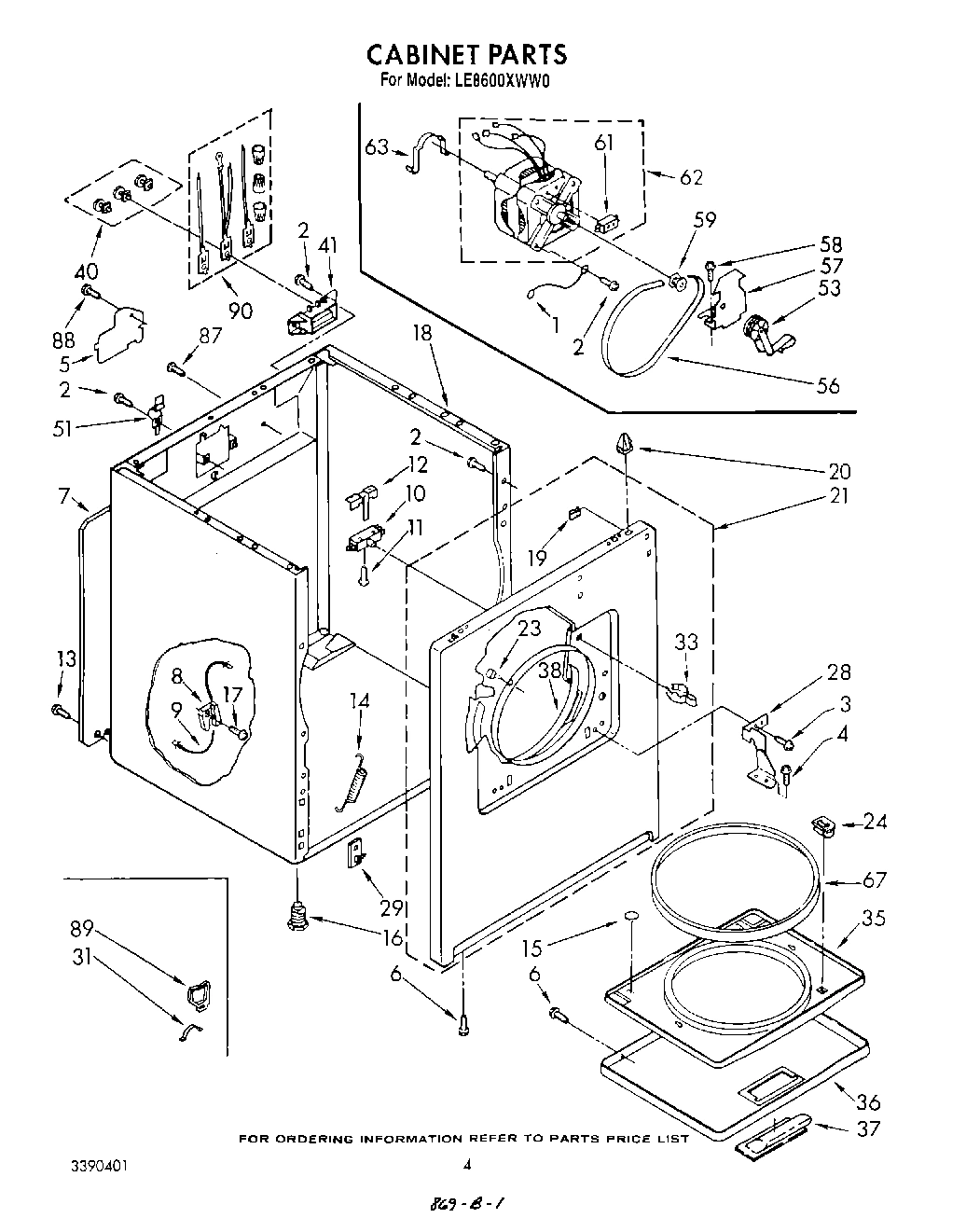

03 - SECTION

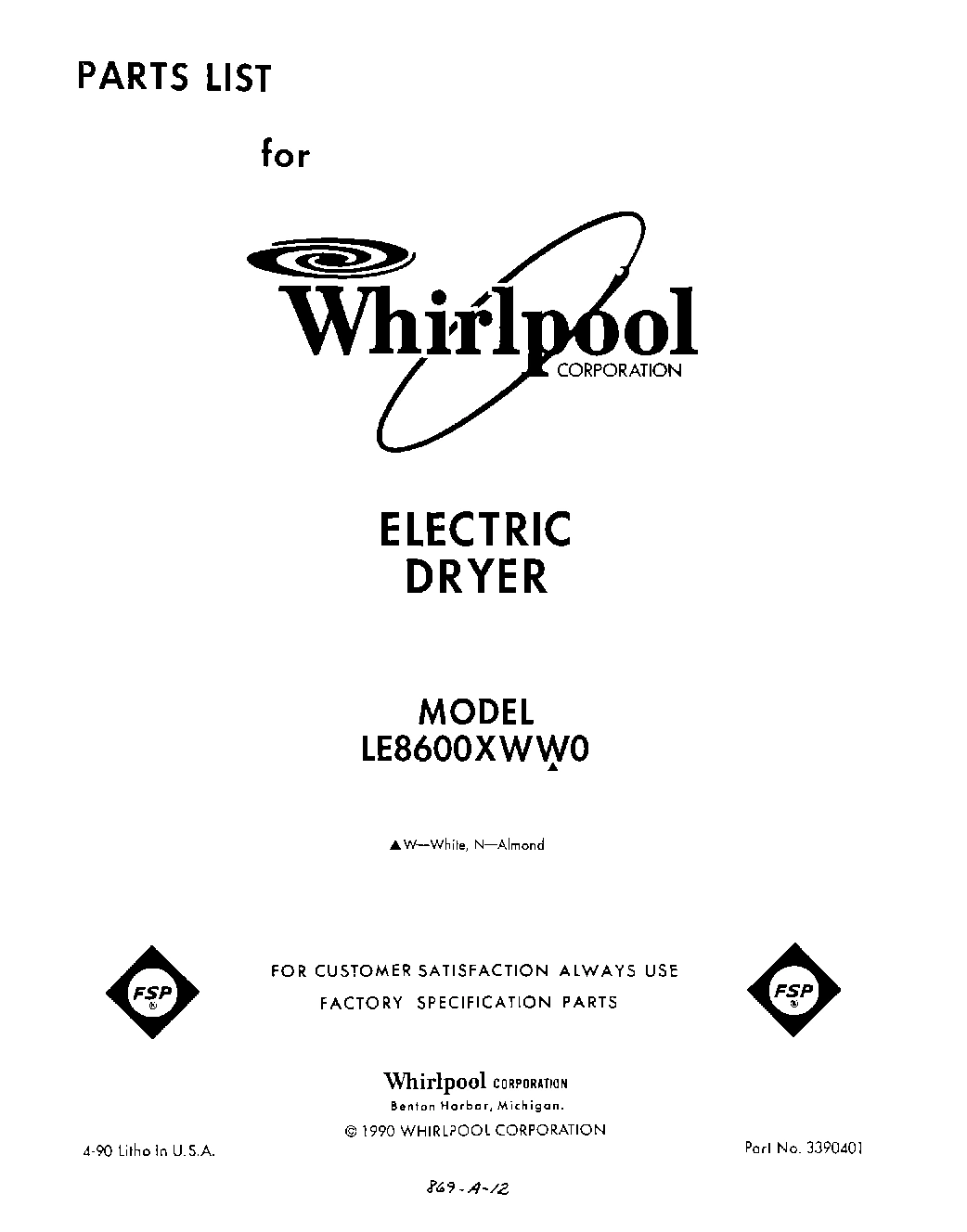

01 - SECTION
Common parts from model Whirlpool LE8600XWW0 ELECTRIC DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Dishwasher WPL LIT677967 Contact Us For Availability
Ice Maker (In Refrigerator) WPL LIT677971 Contact Us For Availability
Guide, Dryer WPL LIT693849 Contact Us For Availability
1
Panel, Rear Console WPL 386367 Contact Us For Availability
1
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
4
Cap, End (L.H.) WPL 63789 Contact Us For Availability
5
Stop, Push-In WPL 358472 Contact Us For Availability
6
Screw, 8-18 WPL 64211 Contact Us For Availability
7
Wire, Jumper WPL 696098 Contact Us For Availability
7
Panel, Rear WPL 346368 Contact Us For Availability
8
GUIDE WPL 337182 Contact Us For Availability
8
Guide, Cable (R.H.) WPL 337183 Contact Us For Availability
8
Cap, End. (R.H.) WPL 63795 Contact Us For Availability
9
Cable, Door (2) WPL 230131 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
16
Top (White) WPL 695507 Contact Us For Availability
16
Top (Almond) WPL 695508 Contact Us For Availability
18
Control Knob, Temperature WPL 386635 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
18
Cabinet (Almond) WPL 690848 Contact Us For Availability
21
Timer & Resistor (60 Hz.) WPL 696881 Contact Us For Availability
21
Full Front Panel Assembly (White) WPL 337464 Contact Us For Availability
21
Full Front Panel Assembly (Almond) WPL 689525 Contact Us For Availability
25
Heater, Thermostat WPL 61894 Contact Us For Availability
28
Hinge, Door (R.H.) WPL 238456 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
31
Harness, Wiring WPL 3388066 Contact Us For Availability
35
Door, Rear WPL 695953 Contact Us For Availability
36
Door, Front (White) WPL 348737 Contact Us For Availability
36
Door, Front (Almond) WPL 689485 Contact Us For Availability
37
Handle, Door (Almond) WPL 690271 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
48
Timer Knob Assembly WPL 3387900 Contact Us For Availability
53
Bracket, Control WPL 386627 Contact Us For Availability
54
Panel, Control WPL 3387995 Contact Us For Availability
67
Clip, Push-On (4) WPL 689559 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
79
Switch, Temperature WPL 694720 Contact Us For Availability
81
Knob, Push-To-Start WPL 3387894 Contact Us For Availability
89
Clip, Retainer WPL 688412 Contact Us For Availability
× ![]()
