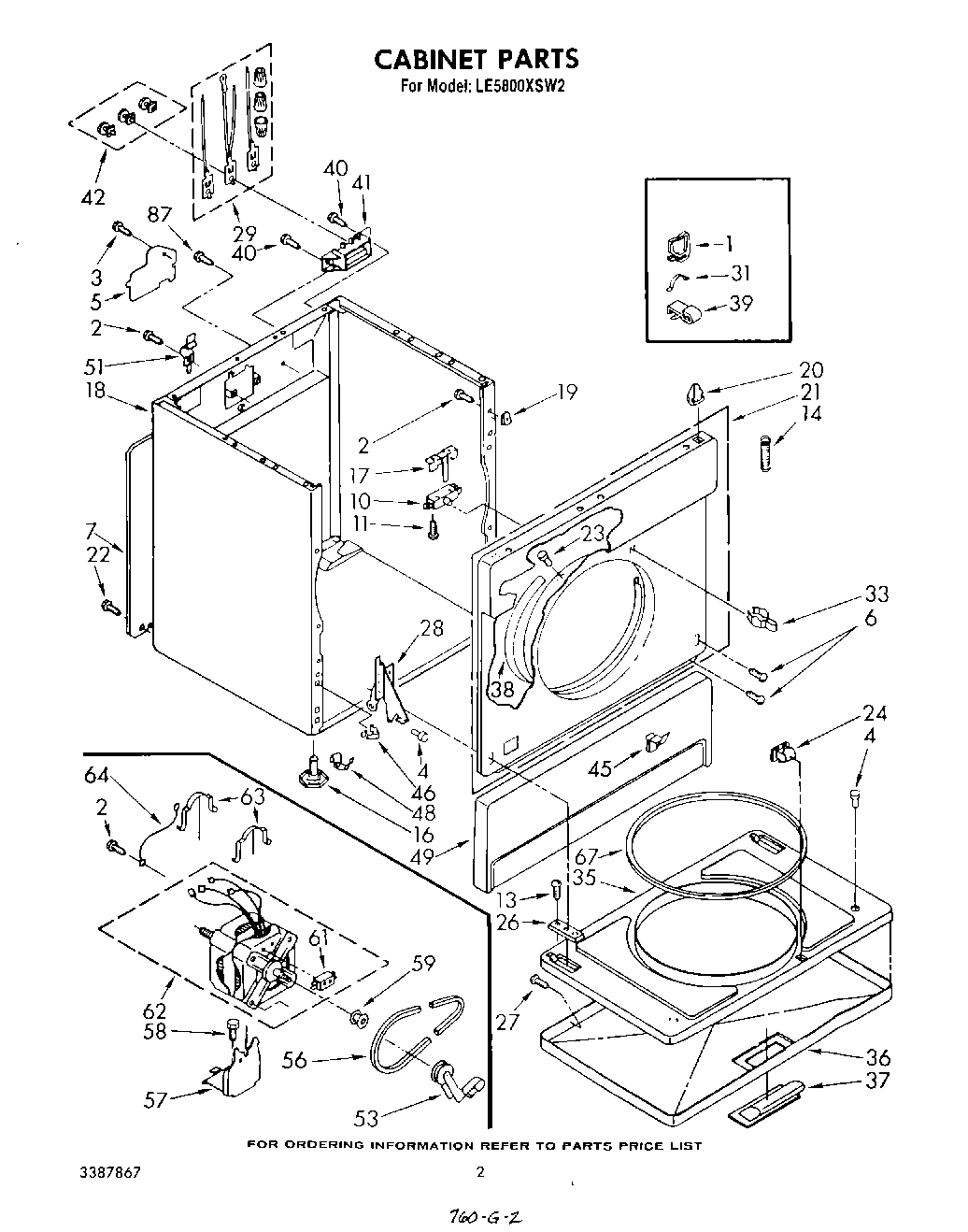

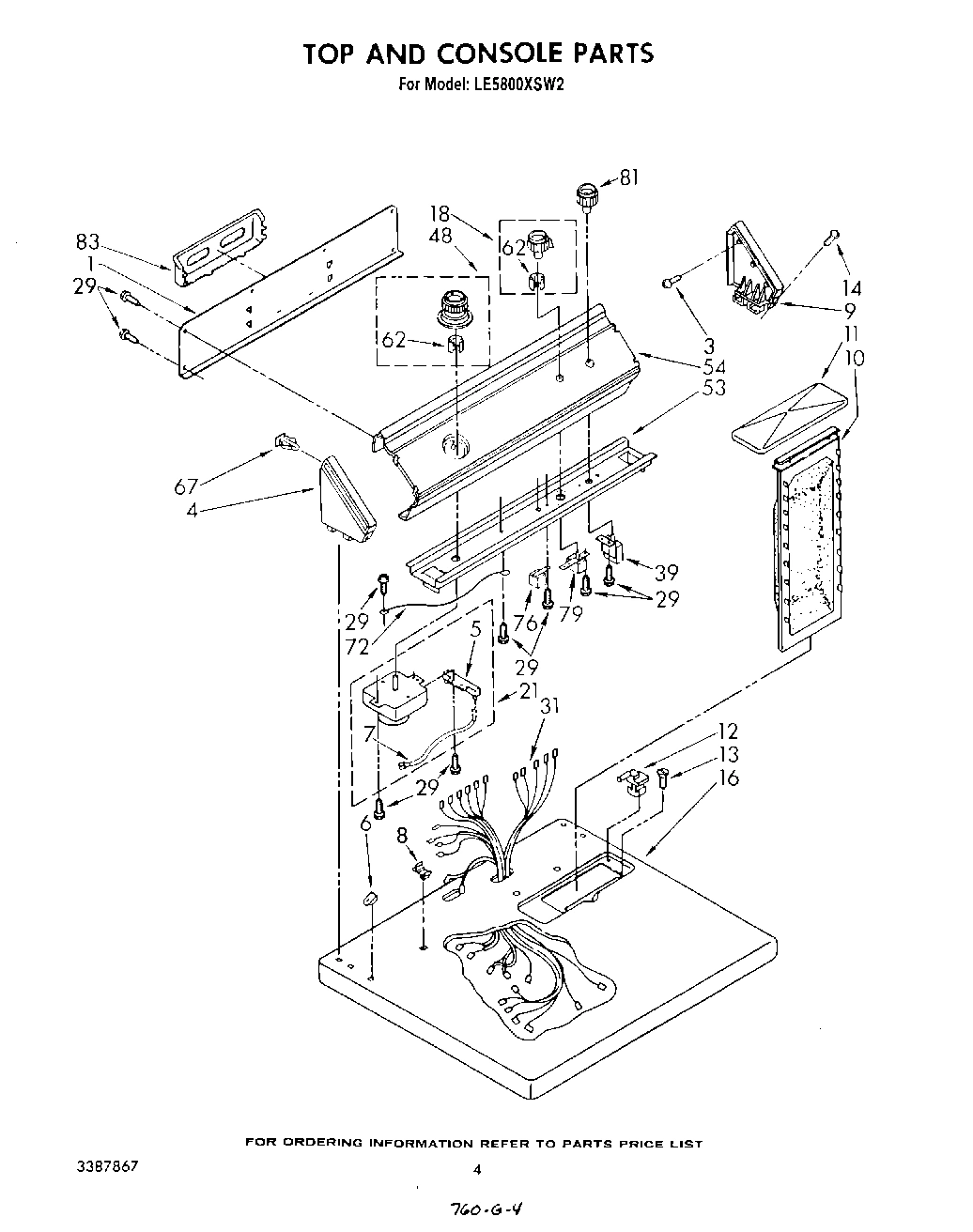

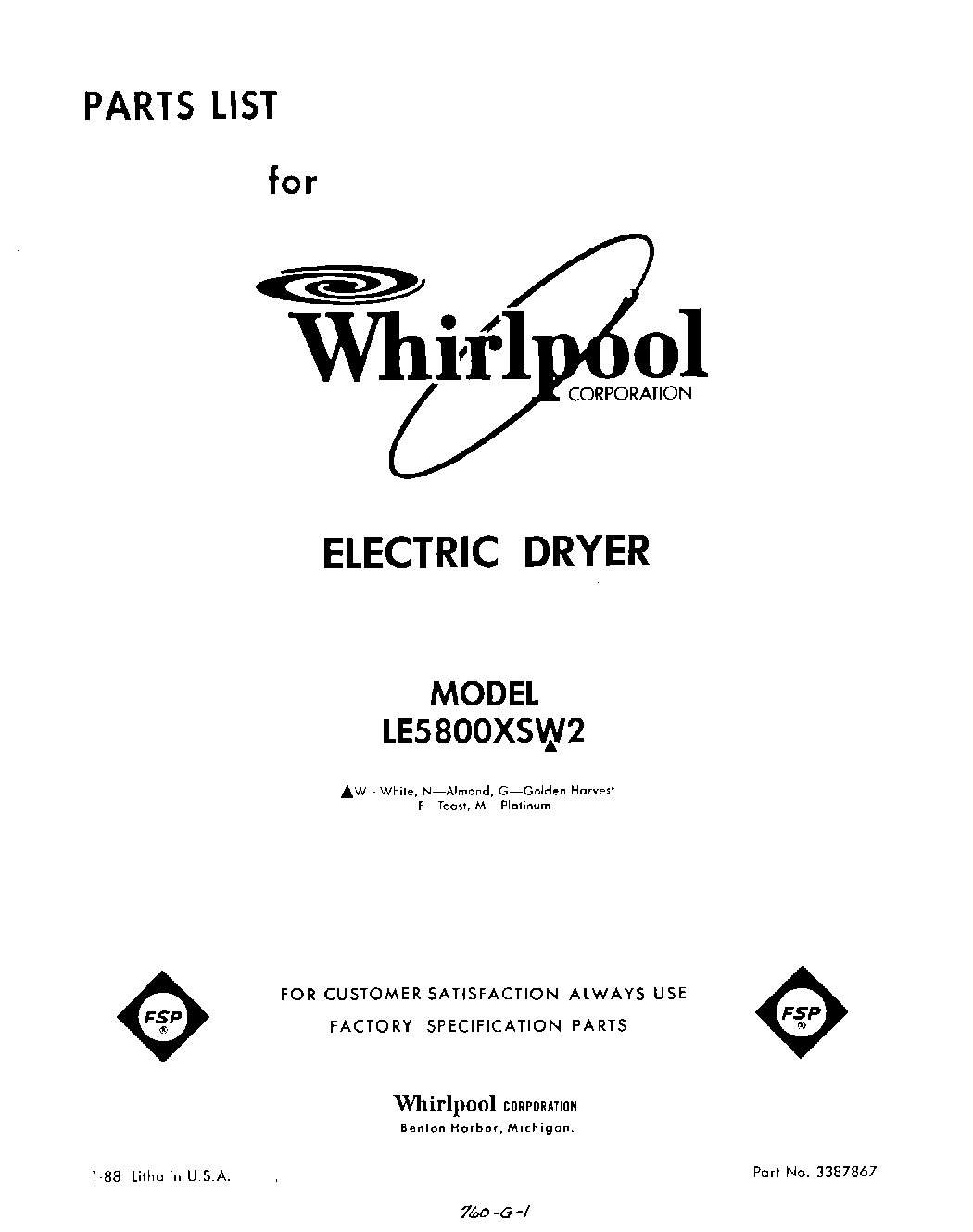

Model Whirlpool LE5800XSW2 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3387867 WPL LIT3387867 Contact Us For Availability

WPL LIT3389444 WPL LIT3389444 Contact Us For Availability

WPL LIT3390211 WPL LIT3390211 Contact Us For Availability

WPL LIT677813 WPL LIT677813 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

WPL LIT677821 WPL LIT677821 Contact Us For Availability

WPL LIT677967 WPL LIT677967 Contact Us For Availability

WPL LIT677971 WPL LIT677971 Contact Us For Availability

WPL LIT693849 WPL LIT693849 Contact Us For Availability

1

Panel, Rear Console WPL 386367 Contact Us For Availability

1

Lint Chute WPL 686215 Contact Us For Availability

2

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.67

3

98460 Whirlpool Nut Backorder WPL 98460 $8.89

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

279872 Whirlpool Resistor In Stock WPL 279872 $52.99

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

6

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.63

6

Stop, Push-In WPL 358473 Contact Us For Availability

7

279769 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 279769 $42.70

7

Wire, Jumper WPL 696098 Contact Us For Availability

8

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

8

Nut, Push-In (2) WPL 358472 Contact Us For Availability

9

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

10

SCREEN WPL 339392 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $5.99

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

14

Screw, End Cap WPL 64211 Contact Us For Availability

14

Box, Heater WPL 695547 Contact Us For Availability

15

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $51.83

Heater, Thermostat WPL 61894 Contact Us For Availability

Top (White) WPL 695507 Contact Us For Availability

Top (Almond) WPL 695508 Contact Us For Availability

Top (Golden Harvest) WPL 695509 Contact Us For Availability

Top (Toast) WPL 695510 Contact Us For Availability

Top (Platinum) WPL 695511 Contact Us For Availability

17

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $42.78

18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.99

18

Knob, Temperature Selector WPL 386635 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Seal, Blower WPL 694630 Contact Us For Availability

20

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

21

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

21

Timer & Resistor Assembly, 60 Hz. WPL 695760 Contact Us For Availability

22

Alert, Lint WPL 690981 Contact Us For Availability

23

Hose, Differential WPL 686577 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $14.02

28

Hinge, R.H. WPL 687905 Contact Us For Availability

29

279318 Whirlpool Terminal In Stock WPL 279318 $46.99

31

Harness, Wiring WPL 697061 Contact Us For Availability

36

Door, Front (Platinum) WPL 695035 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $65.89

Handle, Door (Almond) WPL 690271 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 690274 Contact Us For Availability

Handle, Door (Toast) WPL 695014 Contact Us For Availability

Handle, Door (Platinum) WPL 695015 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

39

Clip, Harness (Door Switch Leads) WPL 689180 Contact Us For Availability

39

Switch, Push To Start WPL 348314 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $33.61

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

42

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.53

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

45

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

45

WPL 341776 WPL 341776 Contact Us For Availability

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

46

WPL 342601 WPL 342601 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

48

Timer Knob & Dial Assembly WPL 3387900 Contact Us For Availability

48

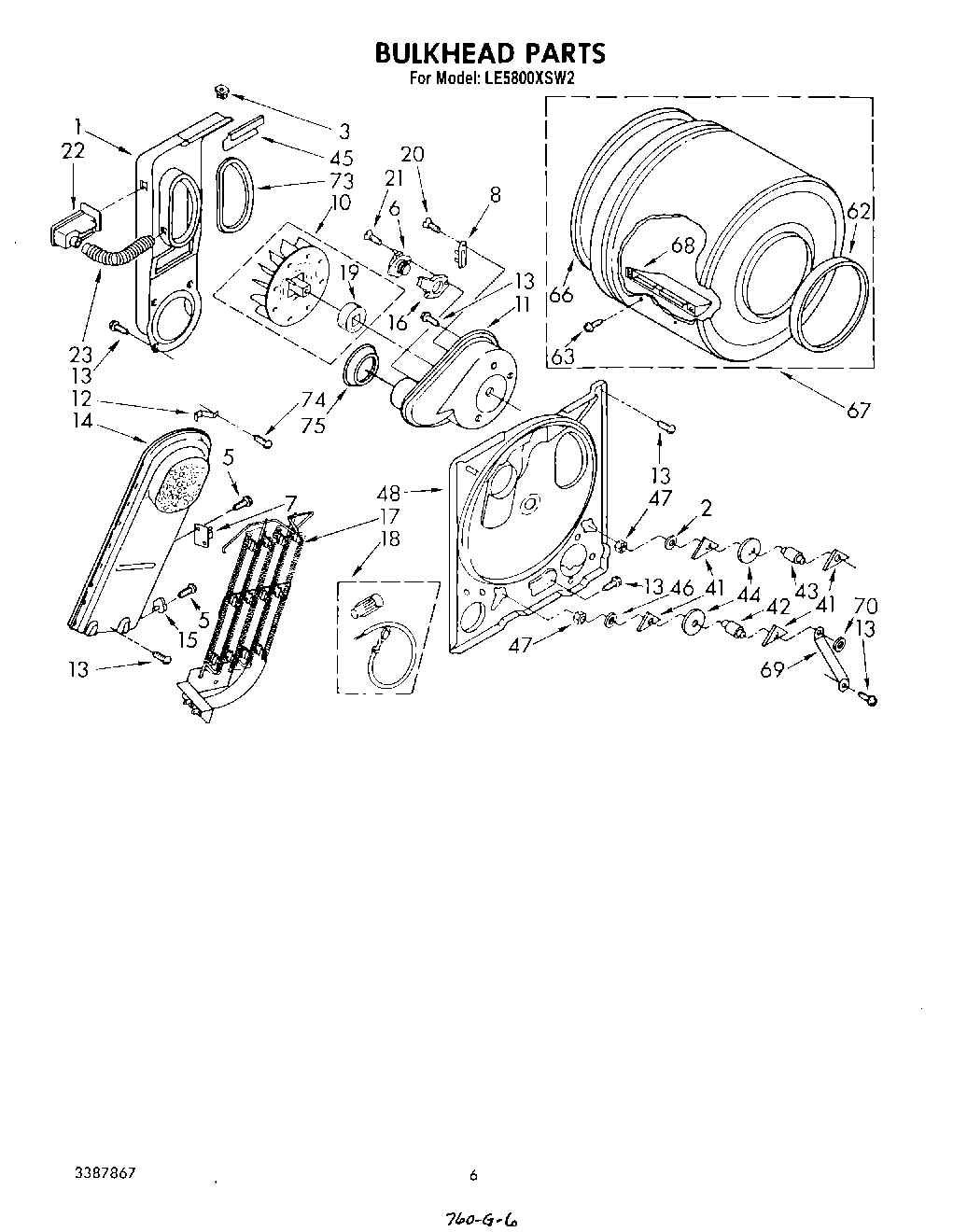

Bulkhead WPL 685775 Contact Us For Availability

WPL 692427 WPL 692427 Contact Us For Availability

WPL 692428 WPL 692428 Contact Us For Availability

WPL 692431 WPL 692431 Contact Us For Availability

WPL 695142 WPL 695142 Contact Us For Availability

WPL 695143 WPL 695143 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.82

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

53

Bracket, Control WPL 386627 Contact Us For Availability

54

Panel, Control WPL 3387692 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $15.75

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

58

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.99

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $80.86

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $46.99

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $241.06

67

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $77.54

67

Nut, Push-In (4) WPL 689559 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

79

Switch, Rotary (Temperature Selector) WPL 696321 Contact Us For Availability

81

Knob, Push-To-Start WPL 3387894 Contact Us For Availability

83

Rack, Literature WPL 63020 Contact Us For Availability
