Model Whirlpool LE5650XMW1 ELECTRIC DRYER – Common Parts & Diagrams

PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
Wire, Splicing 240 Volt
Wire, Splicing 240 Volt WPL 299885 Contact Us For Availability
View on Model
Leveler (Thinner)
Leveler (Thinner) WPL 350941 Contact Us For Availability
View on Model
Use & Care Guide
Use & Care Guide WPL LIT3387087 Contact Us For Availability
View on Model

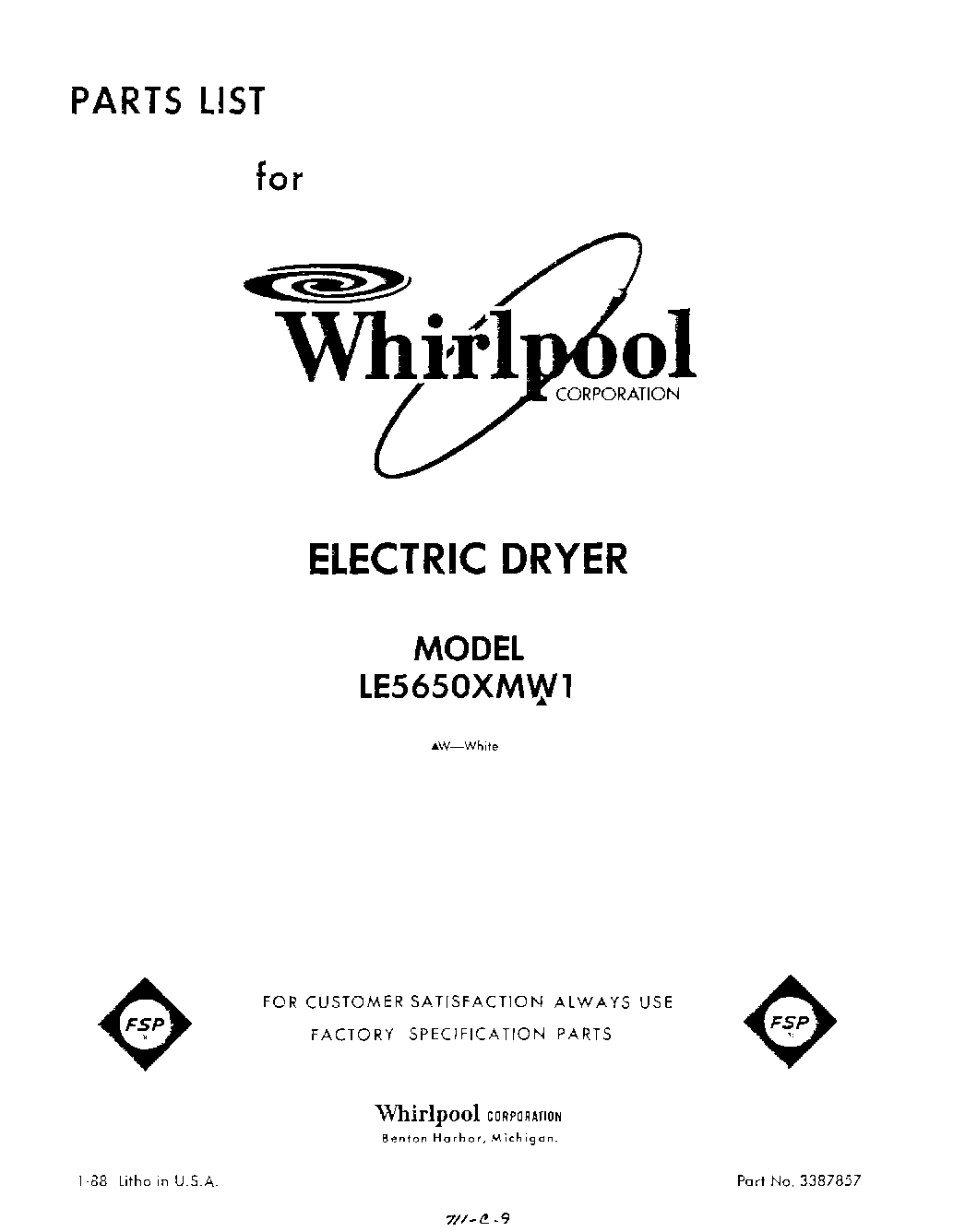

List, Service Parts
List, Service Parts WPL LIT3387857 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT3389444 Contact Us For Availability
View on Model
Automatic Washer (Belt Drive)
Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability
View on Model
Dryer
Dryer WPL LIT677818 Contact Us For Availability
View on Model
Compactor
Compactor WPL LIT677821 Contact Us For Availability
View on Model
Dishwasher
Dishwasher WPL LIT677967 Contact Us For Availability
View on Model
Ice Maker (In Refrigerator)
Ice Maker (In Refrigerator) WPL LIT677971 Contact Us For Availability
View on Model
Guide, Dryer
Guide, Dryer WPL LIT693849 Contact Us For Availability
View on Model

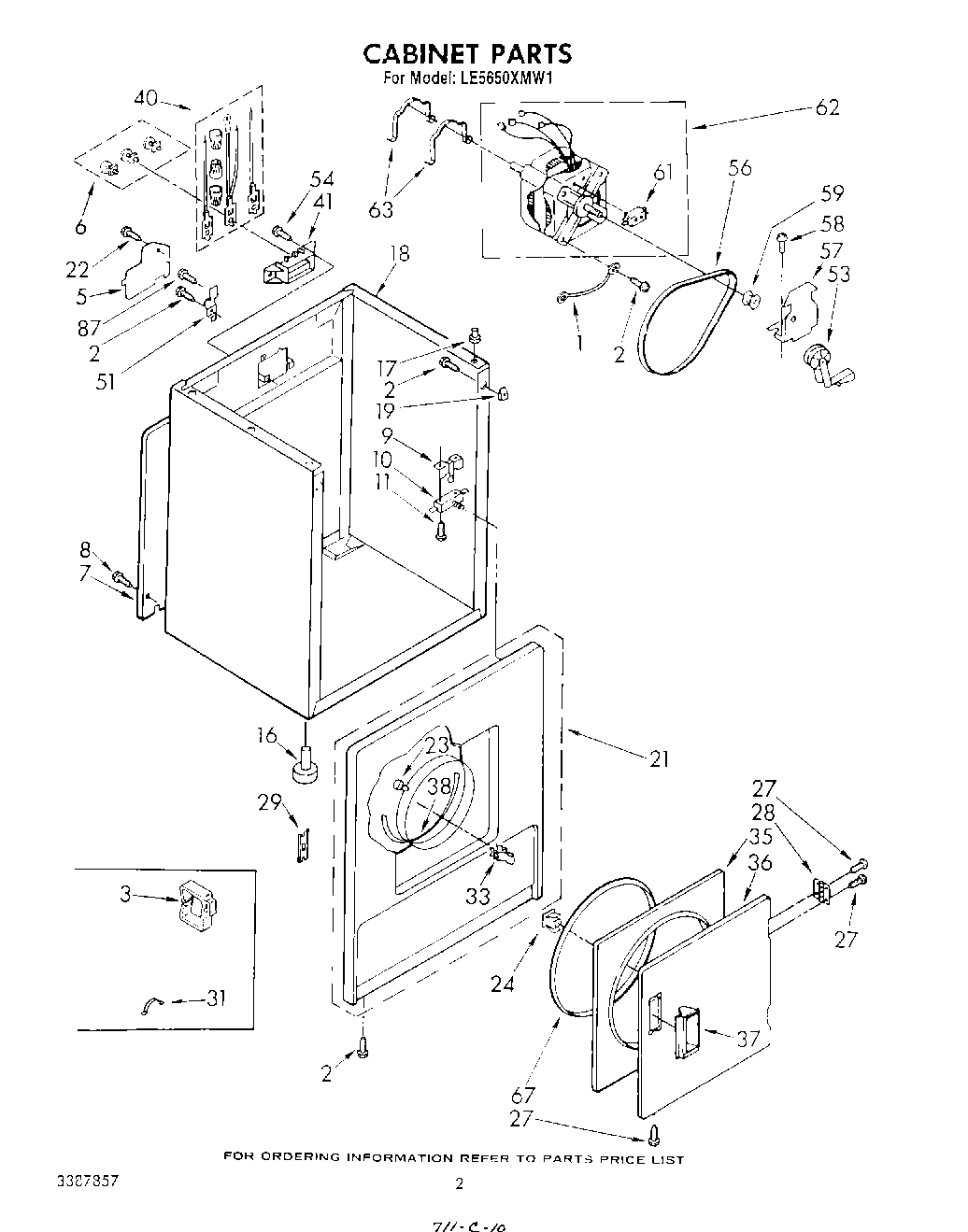

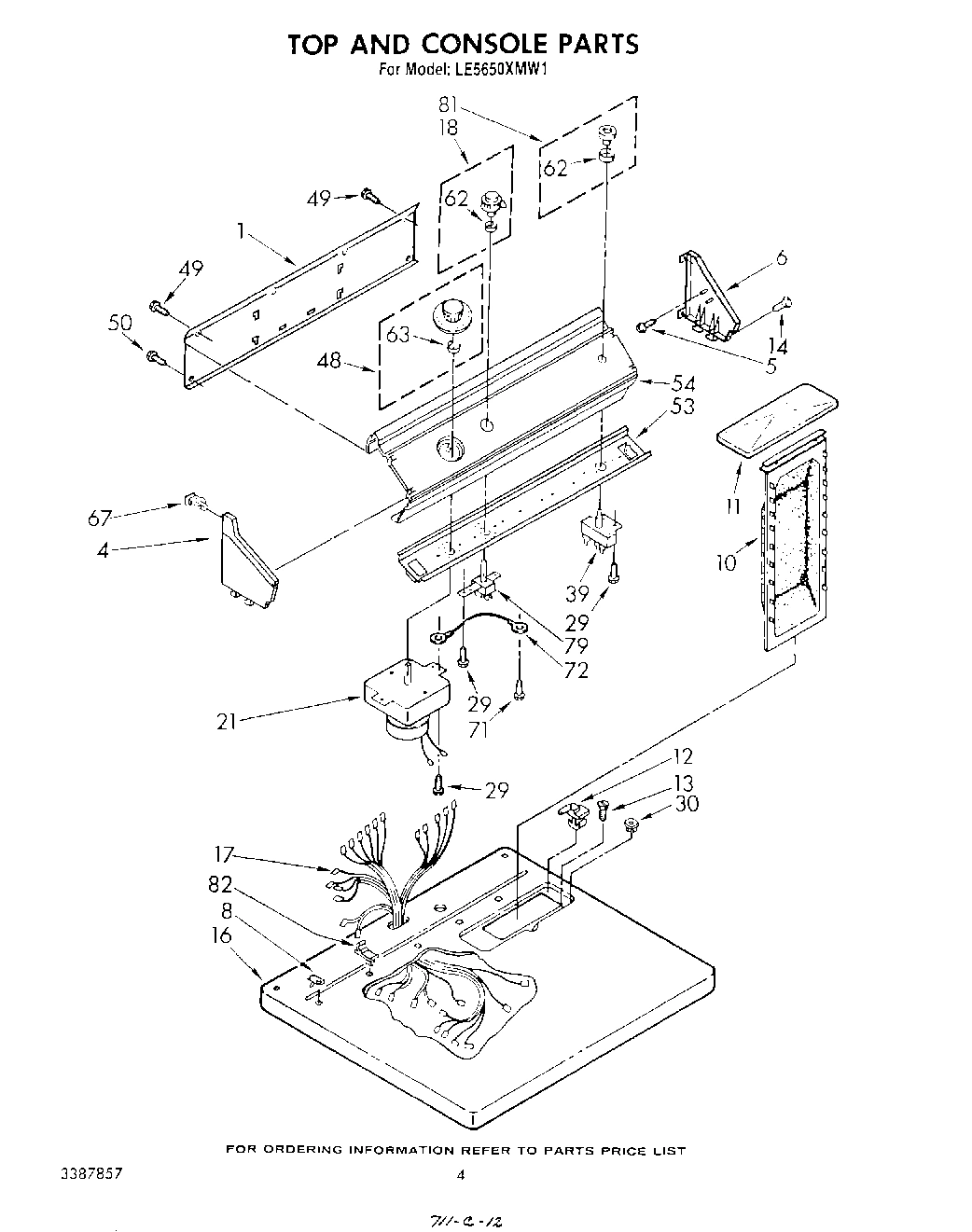

1
Panel, Rear Console
Panel, Rear Console WPL 358470 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (White)
Cap, End (L.H.) (White) WPL 375333 Contact Us For Availability
View on Model
5
Screw, 8-18 (4)
Screw, 8-18 (4) WPL 355326 Contact Us For Availability
View on Model
6
Cap, End (R.H.) (White)
Cap, End (R.H.) (White) WPL 375337 Contact Us For Availability
View on Model
8
Nut, Push-In (2)
Nut, Push-In (2) WPL 358473 Contact Us For Availability
View on Model
10
SCREEN
SCREEN WPL 339392 Contact Us For Availability
View on Model
11
Housing, Blower
Housing, Blower WPL 695081 Contact Us For Availability
View on Model
11
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
14
Box, Heater
Box, Heater WPL 695547 Contact Us For Availability
View on Model
14
Screw, 8-18 x 1 (2)
Screw, 8-18 x 1 (2) WPL 358225 Contact Us For Availability
View on Model
16
top (white)
top (white) WPL 688479 Contact Us For Availability
View on Model
17
Harness, Electric Wiring
Harness, Electric Wiring WPL 3388070 Contact Us For Availability
View on Model
18
Control Knob, Temperature
Control Knob, Temperature WPL 690292 Contact Us For Availability
View on Model
21
Seal, Blower
Seal, Blower WPL 694630 Contact Us For Availability
View on Model
21
Timer Assembly, 60 Hz.
Timer Assembly, 60 Hz. WPL 687950 Contact Us For Availability
View on Model
24
Heater, Thermostat
Heater, Thermostat WPL 61894 Contact Us For Availability
View on Model
39
Switch, Push-To-Start (Alt.)
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
View on Model
39
Switch, Push-To-Start
Switch, Push-To-Start WPL 660936 Contact Us For Availability
View on Model
39
Switch, Push-To-Start (Alt.)
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
View on Model
48
Bulkhead
Bulkhead WPL 685775 Contact Us For Availability
View on Model
48
Timer Knob
Timer Knob WPL 690200 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 359708 Contact Us For Availability
View on Model
54
Panel, Console
Panel, Console WPL 688350 Contact Us For Availability
View on Model
62
Clip
Clip WPL 90015 Contact Us For Availability
View on Model
63
Screw, 11-16 x 7/8
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
View on Model
67
Nut, Push-In (4)
Nut, Push-In (4) WPL 689559 Contact Us For Availability
View on Model
69
Bracket, Support
Bracket, Support WPL 348945 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
79
Switch, Temperature
Switch, Temperature WPL 694720 Contact Us For Availability
View on Model
81
Button, Push-to-Start
Button, Push-to-Start WPL 346219 Contact Us For Availability
View on Model
82
Stop, Push-In (2)
Stop, Push-In (2) WPL 358472 Contact Us For Availability
View on Model
