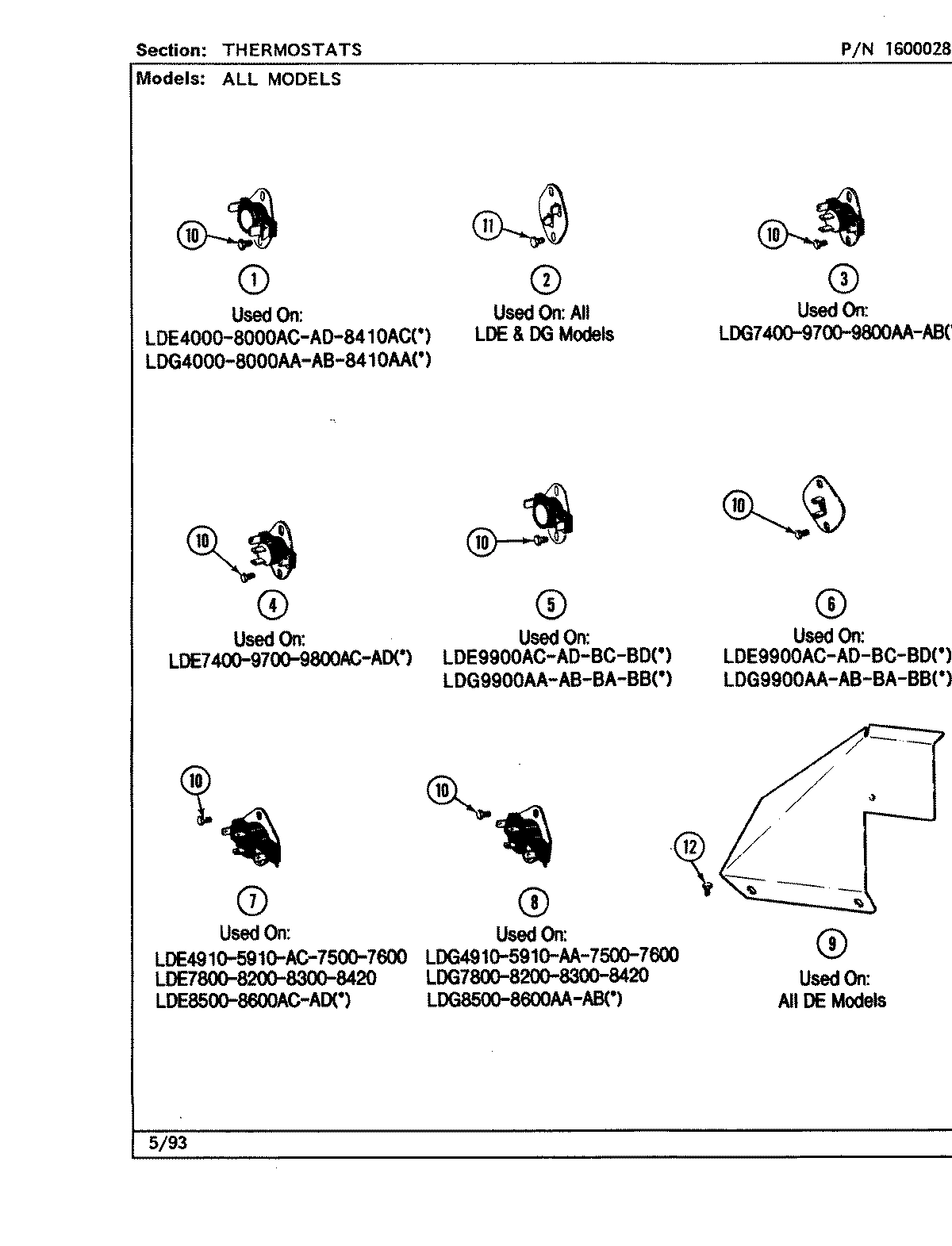

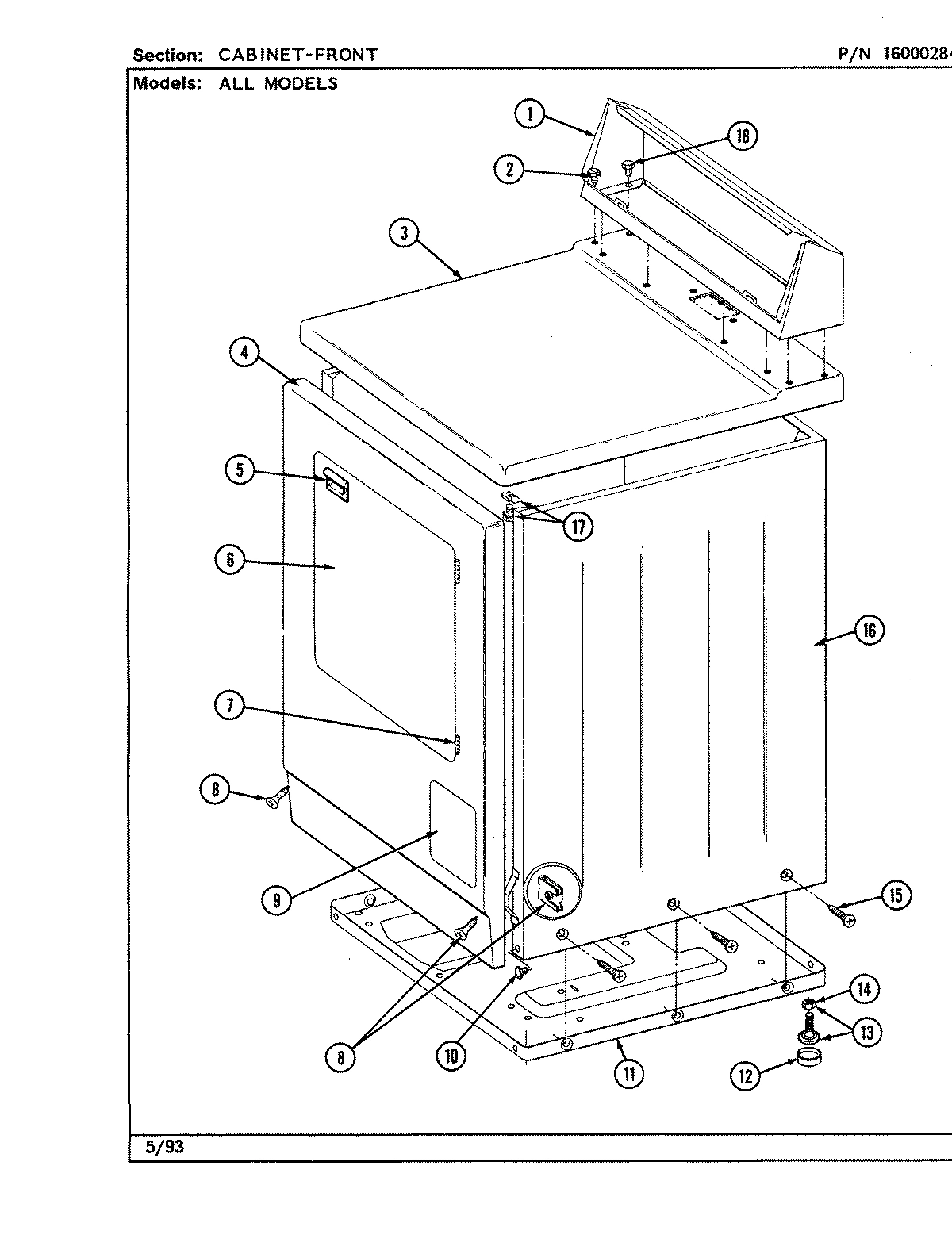

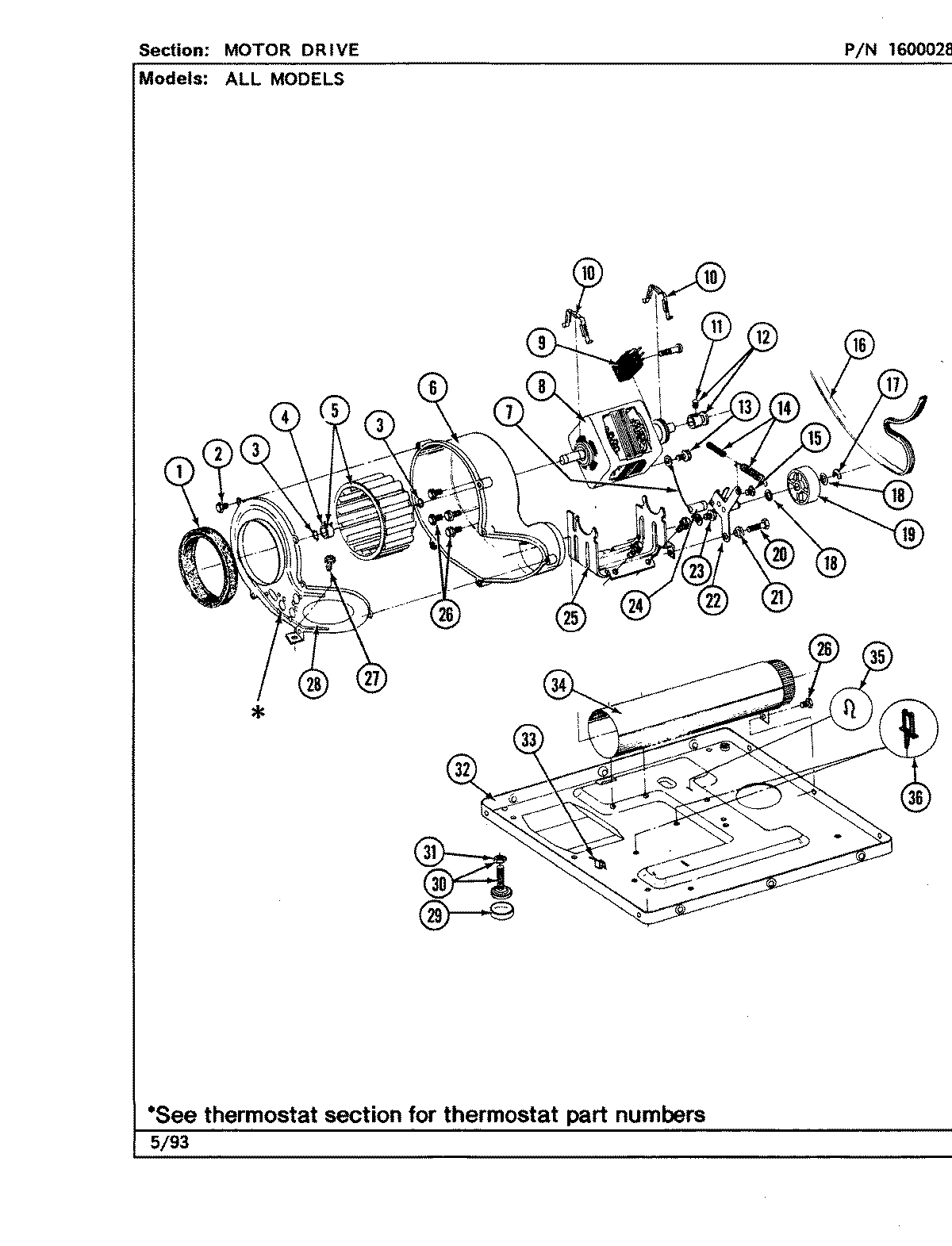

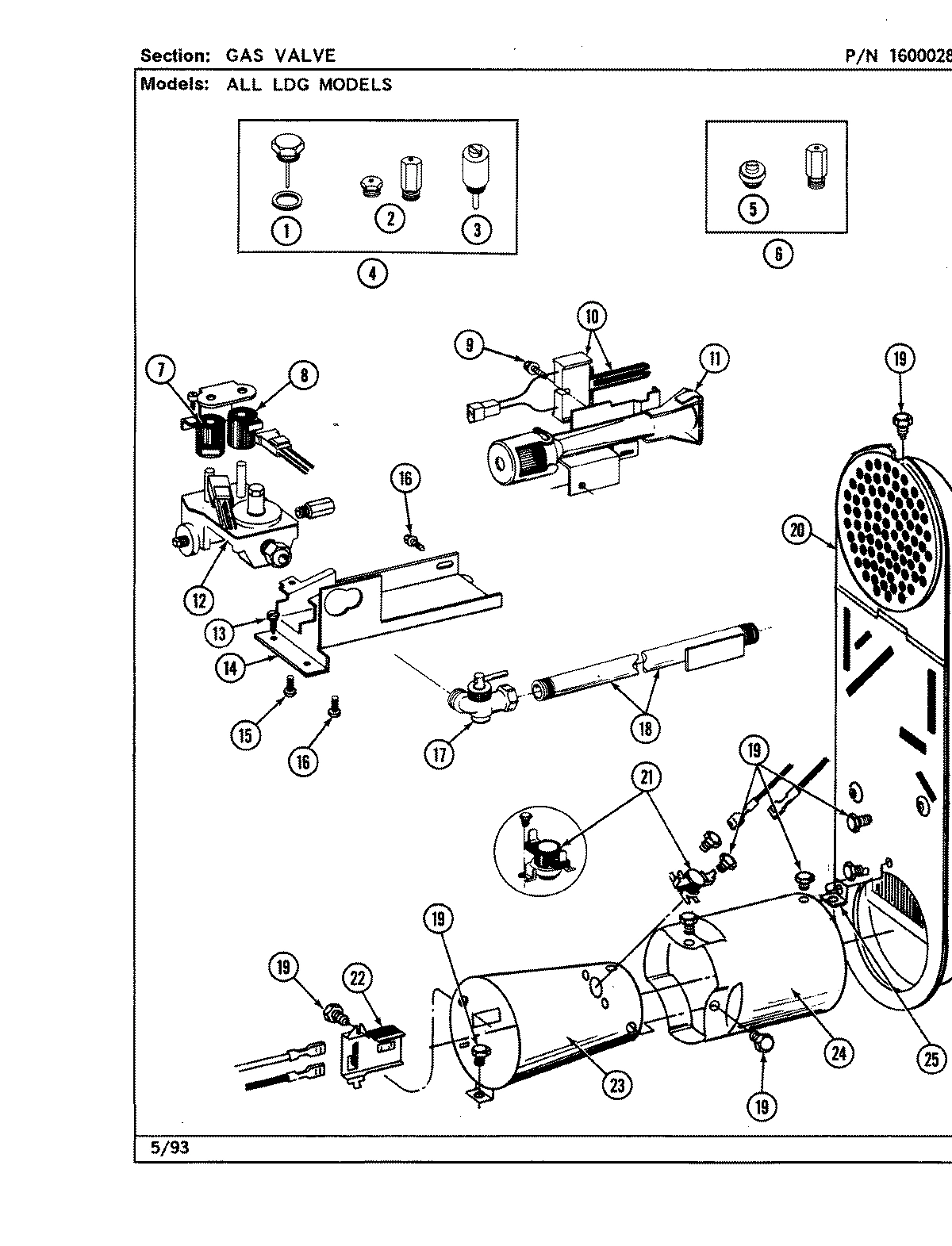

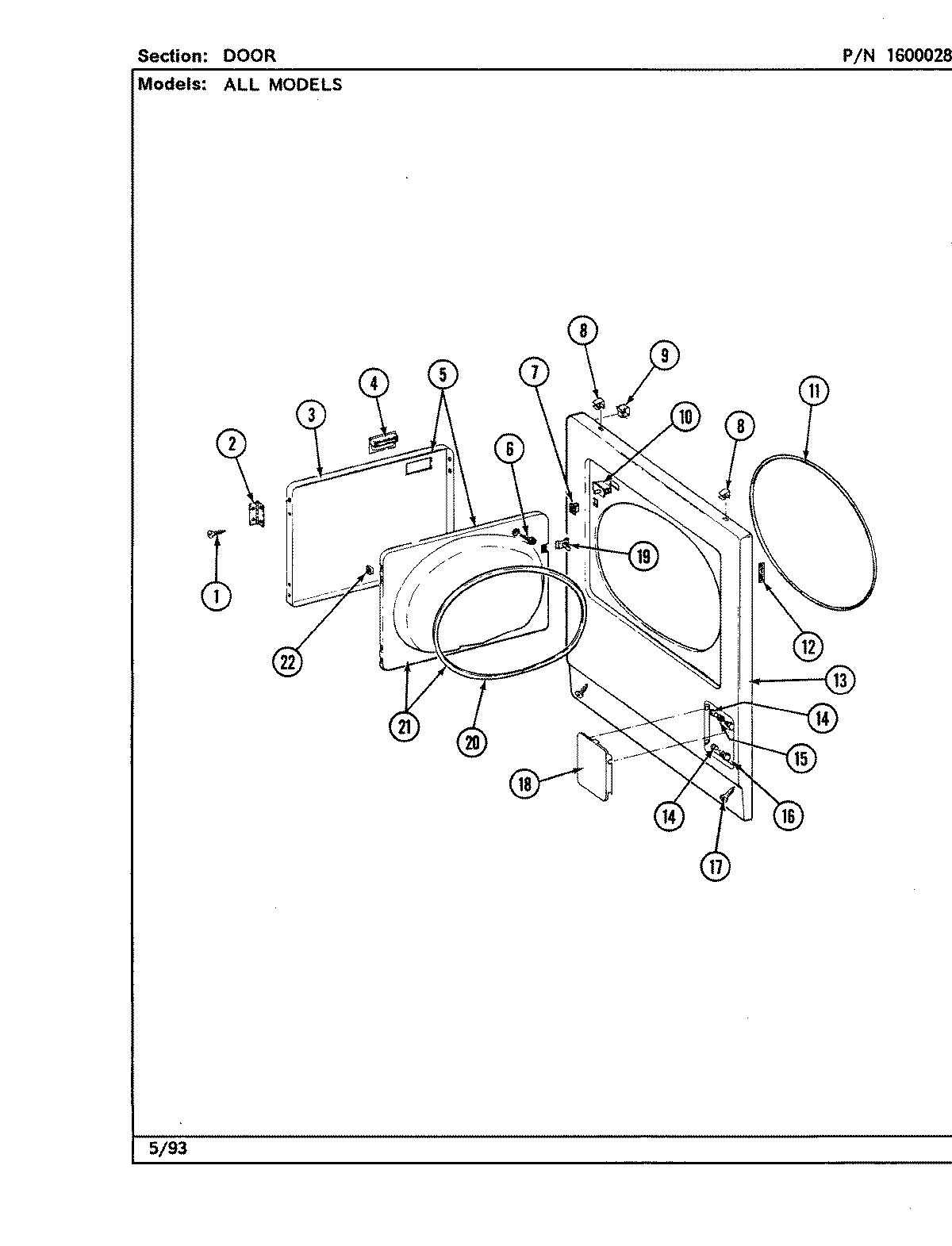

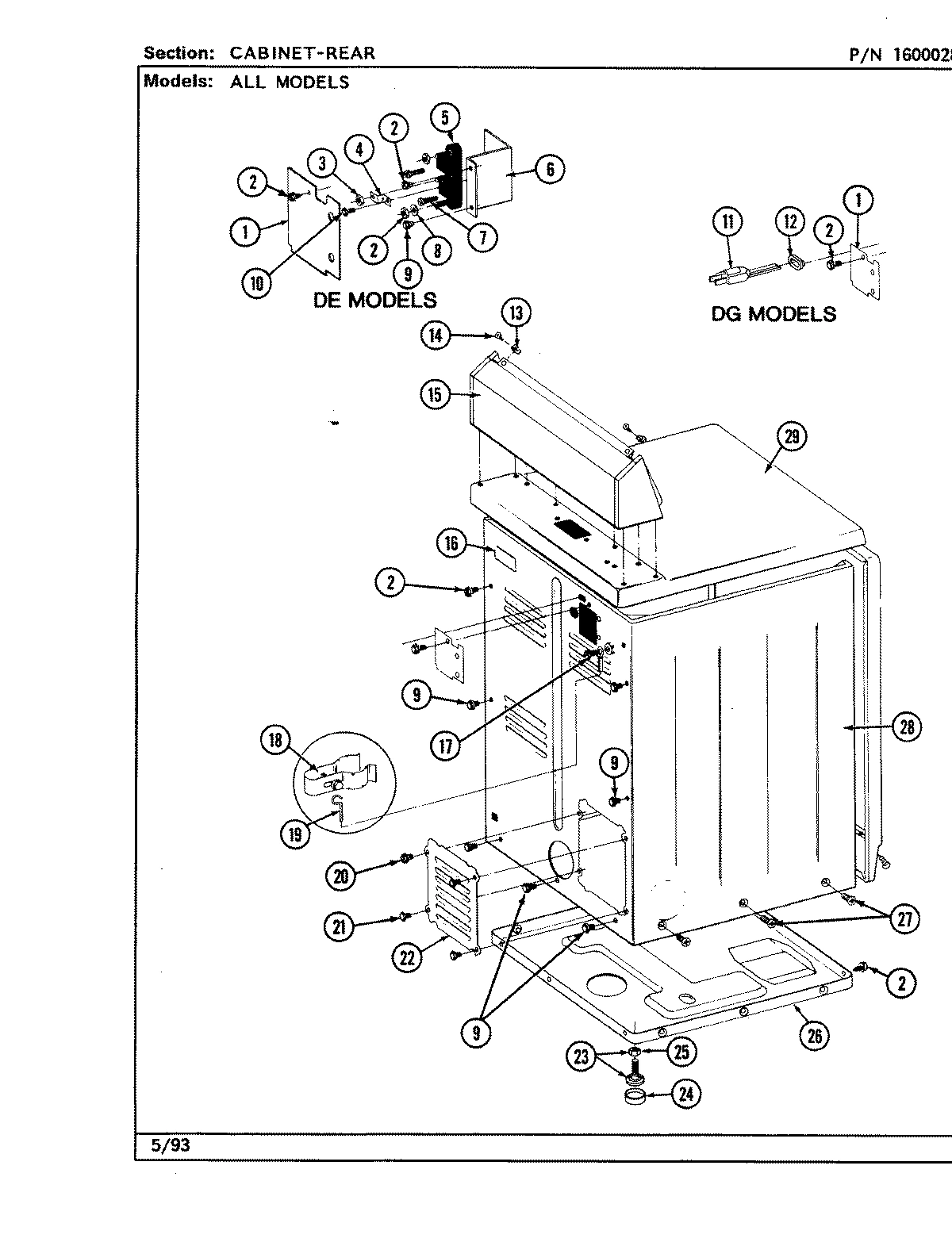

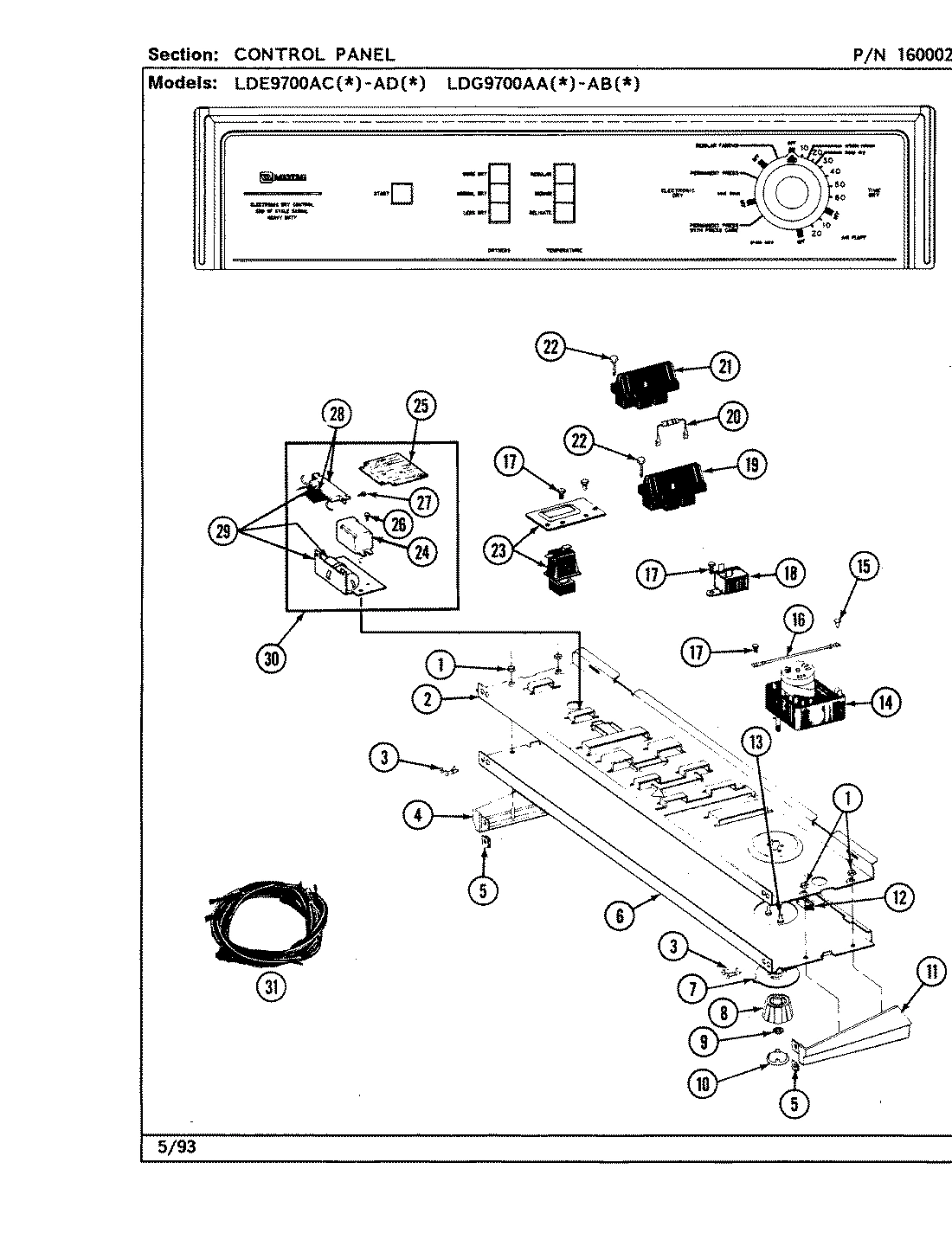

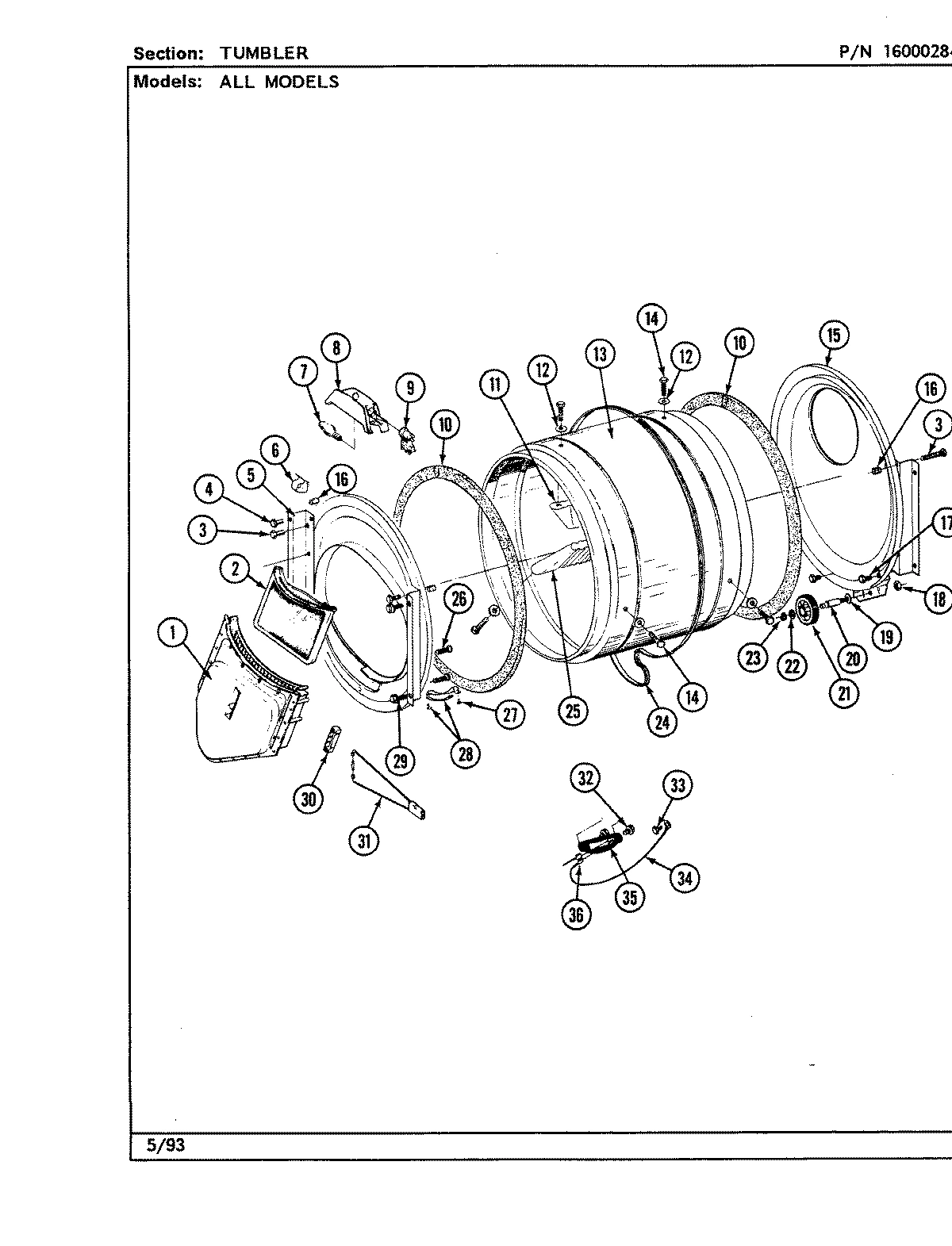

Model Whirlpool LDG9700AAW GAS DRYER – Common Parts &amp; Diagrams

1

COVER, TERMINAL WPL Y312905 Contact Us For Availability

1

CONSOLE (WHT) WPL Y305193 Contact Us For Availability

1

SCREW WPL Y314062 Contact Us For Availability

1

DUCT, OUTLET ASSY. WPL Y307112 Contact Us For Availability

1

PALNUT, END CAP WPL 214872 Contact Us For Availability

1

SCREW ASSM - BLUE BLOCK OPE WPL 302810 Contact Us For Availability

2

WP306604 Whirlpool Cut-off In Stock WPL WP306604 $20.71

2

LINT SCREEN WPL 307213 Contact Us For Availability

2

BACK UP PLATE WPL 314184 Contact Us For Availability

2

MAIN BURNER ORIFICE KIT-LPG WPL 305861 Contact Us For Availability

3

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

3

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $24.56

3

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

3

TOP COVER ASSY WPL 307104 Contact Us For Availability

3

SCREW WPL 313764 Contact Us For Availability

3

PLUG, BLOCKING (LPG REGULATOR) WPL 306184 Contact Us For Availability

4

MAL9000AXX Whirlpool LP Gas Conversion Kit In Stock WPL MAL9000AXX $43.50

4

STRAP, GROUND WPL Y312184 Contact Us For Availability

4

PANEL, FRONT (WHT) WPL 308000 Contact Us For Availability

4

FRONT PANEL WPL Y307998 Contact Us For Availability

4

END CAP LH WPL 207215 Contact Us For Availability

5

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.35

5

Y303836 Whirlpool Dryer Blower Wheel In Stock WPL Y303836 $27.73

5

THERMOSTAT, LIMIT WPL 307200 Contact Us For Availability

5

BLOCK, TERMINAL WPL 400008 Contact Us For Availability

5

HANDLE WHITE WPL 314946 Contact Us For Availability

5

TUMBLER FRONT W/SEAL WPL 307117 Contact Us For Availability

5

TUMBLE FRONT ASSY W/SEAL WPL 307311 Contact Us For Availability

5

FASTENER, END CAP WPL 214894 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

WP33002924 Whirlpool LP Conversion Gas In Stock WPL WP33002924 $57.79

6

HOUSING, BLOWER WPL Y312893 Contact Us For Availability

6

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

6

THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability

6

BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability

6

PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability

6

DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability

6

CONTROL PANEL WPL 307320 Contact Us For Availability

7

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

7

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

7

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.67

7

HINGE WPL 307099 Contact Us For Availability

7

DIAL SKIRT WPL 315042 Contact Us For Availability

8

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

8

WP307250 Whirlpool Thermostat In Stock WPL WP307250 $55.16

8

SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability

8

ENCLOSURE, LIGHT WPL 314955 Contact Us For Availability

8

KNOB, TIMER WPL 315041 Contact Us For Availability

9

W10155650 Whirlpool Nut Backorder WPL W10155650 $8.89

9

SWITCH, MOTOR WPL Y303877 Contact Us For Availability

9

SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability

9

COVER, THERMOSTAT WPL 315122 Contact Us For Availability

9

ACCESS DOOR-WHITE WPL 302542 Contact Us For Availability

9

HOLDER, LIGHT WPL 307097 Contact Us For Availability

9

SCREW WPL 304971 Contact Us For Availability

4391996 Whirlpool Dryer Flat Igniter In Stock WPL 4391996 $22.45

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

WP314820 Whirlpool Felt Seal In Stock WPL WP314820 $24.34

WP489483 Whirlpool Screw Backorder WPL WP489483 $7.61

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

SCREW WPL Y310632 Contact Us For Availability

CAP, KNOB WPL 215821 Contact Us For Availability

WP33002793 Whirlpool Burner Assembly Backorder WPL WP33002793 $132.39

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

BASE ASSY. WPL Y303361 Contact Us For Availability

POWER CORD WPL 302521 Contact Us For Availability

SEAL, FRONT PANEL WPL 314937 Contact Us For Availability

BAFFLE (SHORT) WPL 314803 Contact Us For Availability

END CAP RH WPL 207216 Contact Us For Availability

WP306176 Whirlpool Gas Valve In Stock WPL WP306176 $233.35

PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability

GROMMET, CORD WPL 211881 Contact Us For Availability

TWIN FASTENER WPL Y313907 Contact Us For Availability

WASHER WPL 314158 Contact Us For Availability

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

SCREW----NA WPL Y313561 Contact Us For Availability

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability

TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

SCREW WPL Y310759 Contact Us For Availability

IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability

BUSHING FOR ACCESS STUD WPL 312301 Contact Us For Availability

TIMER WPL Y307404 Contact Us For Availability

BRACKET, GAS VALVE WPL 314566 Contact Us For Availability

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

WPW10116751 Whirlpool Screw Backorder WPL WPW10116751 $4.82

SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability

BACK, TUMBLER (W/SEAL) WPL Y307114 Contact Us For Availability

BACK, TUMBLER (W/SEAL) WPL Y308544 Contact Us For Availability

LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability

CABINET (WHT) WPL 307124 Contact Us For Availability

SCREW WPL 212949 Contact Us For Availability

COVER, THREAD WPL 313915 Contact Us For Availability

GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $5.02

SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability

SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $94.27

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability

PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability

19

WP33001305 Whirlpool Door Strike Assembly Backorder WPL WP33001305 $1.77

19

WP6-3037050 Whirlpool Idler Pulley In Stock WPL WP6-3037050 $18.21

19

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

DOOR SEAL WPL 314935 Contact Us For Availability

RESISTOR, MED TEMP GAS WPL 306917 Contact Us For Availability

INLET DUCT ASSY. WPL 307119 Contact Us For Availability

INLET DUCT ASSY. WPL Y308504 Contact Us For Availability

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

WP303395 Whirlpool Thermostat In Stock WPL WP303395 $33.27

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $7.92

DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability

TEMP CONTROL SWITCH 3 BUTTON WPL 307304 Contact Us For Availability

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

WP6-3033630 Whirlpool Dryer Idler Arm Assembl In Stock WPL WP6-3033630 $56.49

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

COVER, ACCESS WPL Y312951 Contact Us For Availability

LABEL, INSTRUCTION WPL 314941 Contact Us For Availability

LABEL, INSTRUCTION CANADA WPL 315441 Contact Us For Availability

CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

SWITCH PUSH TO START WPL 307305 Contact Us For Availability

CONE, COMBUSTION WPL Y303368 Contact Us For Availability

CONE, COMBUSTION WPL Y308548 Contact Us For Availability

WPW10116756 Whirlpool Spacer Backorder WPL WPW10116756 $33.58

WPY312959 Whirlpool Dryer Drum Belt In Stock WPL WPY312959 $23.84

RELAY WPL 307899 Contact Us For Availability

CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability

33001004 Whirlpool Baffle In Stock WPL 33001004 $71.41

SUPPORT, MOTOR WPL 312897 Contact Us For Availability

PC BOARD WPL Y307896 Contact Us For Availability

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

26

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

26

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

27

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

27

CAP FOR TIMER KNOB WPL 213077 Contact Us For Availability

27

SCREW FOR CAUTION PLATE----NA WPL 311863 Contact Us For Availability

28

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

28

COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability

28

WIRE HARNESS WPL 307422 Contact Us For Availability

29

EDGE BOARD CONNECTOR WPL 307897 Contact Us For Availability

30

SWITCH HOUSING WPL 315020 Contact Us For Availability

30

ELECTRONIC CONTROL WPL 307898 Contact Us For Availability

REED SWITCH ASSY WPL 307206 Contact Us For Availability

GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability

WIRE HARNESS WPL 307308 Contact Us For Availability

MANUAL, USE & CARE WPL 315080 Contact Us For Availability

34

EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability

34

SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability

35

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

35

SENSOR ASSEMBLY WITH SCREWS WPL 304997 Contact Us For Availability

36

RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability

36

RECEPTACLE, SENSOR GROUND WIRE WPL Y312658 Contact Us For Availability
