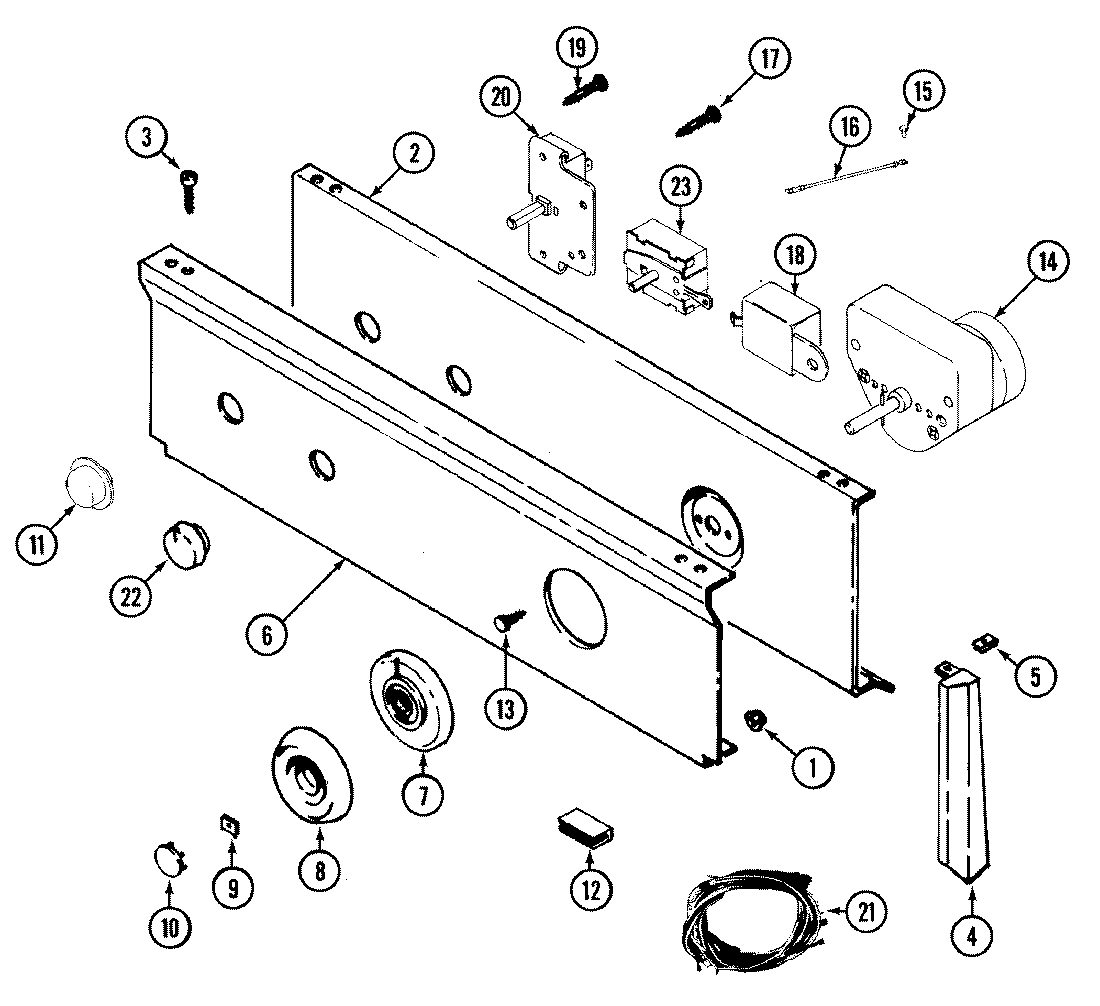

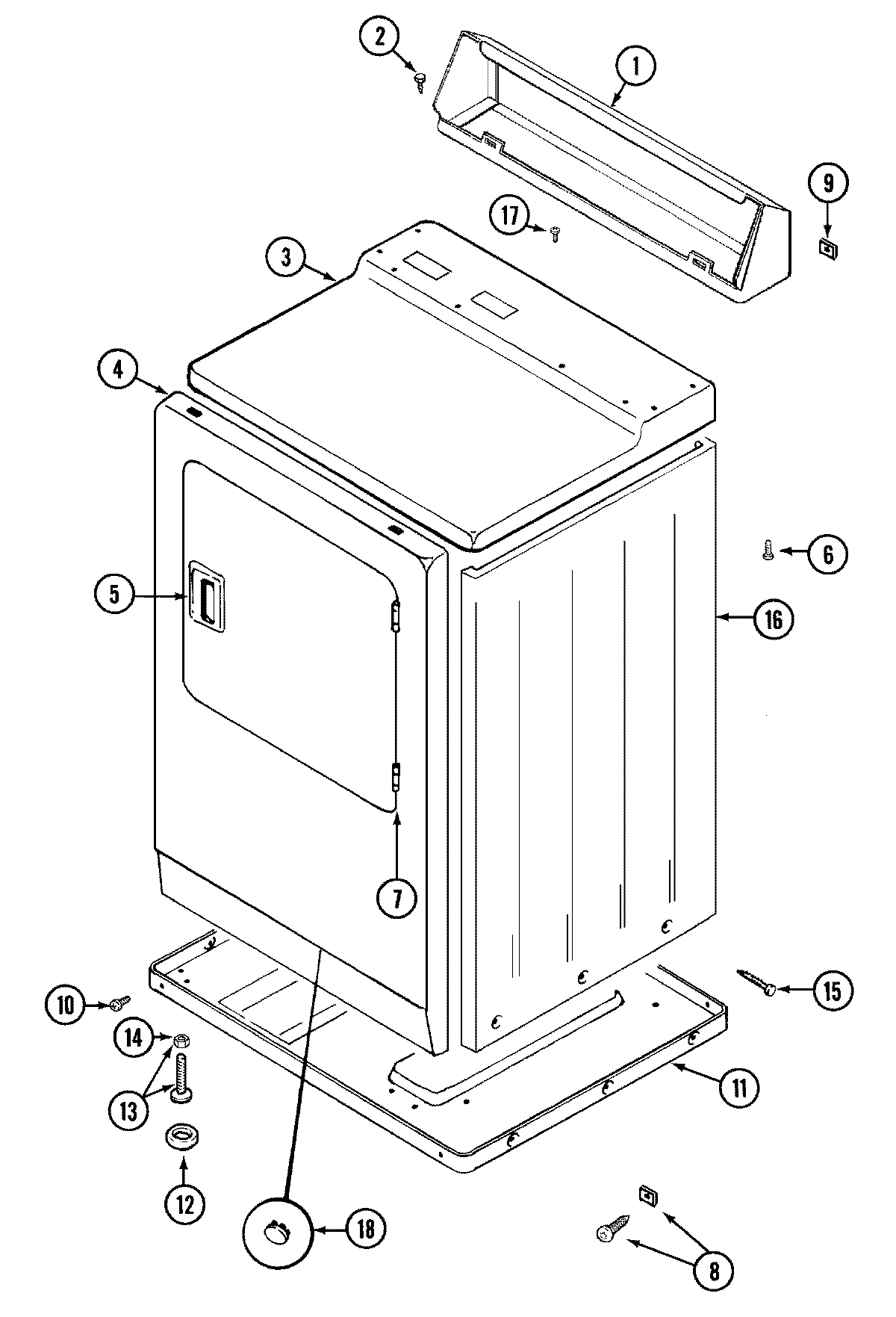

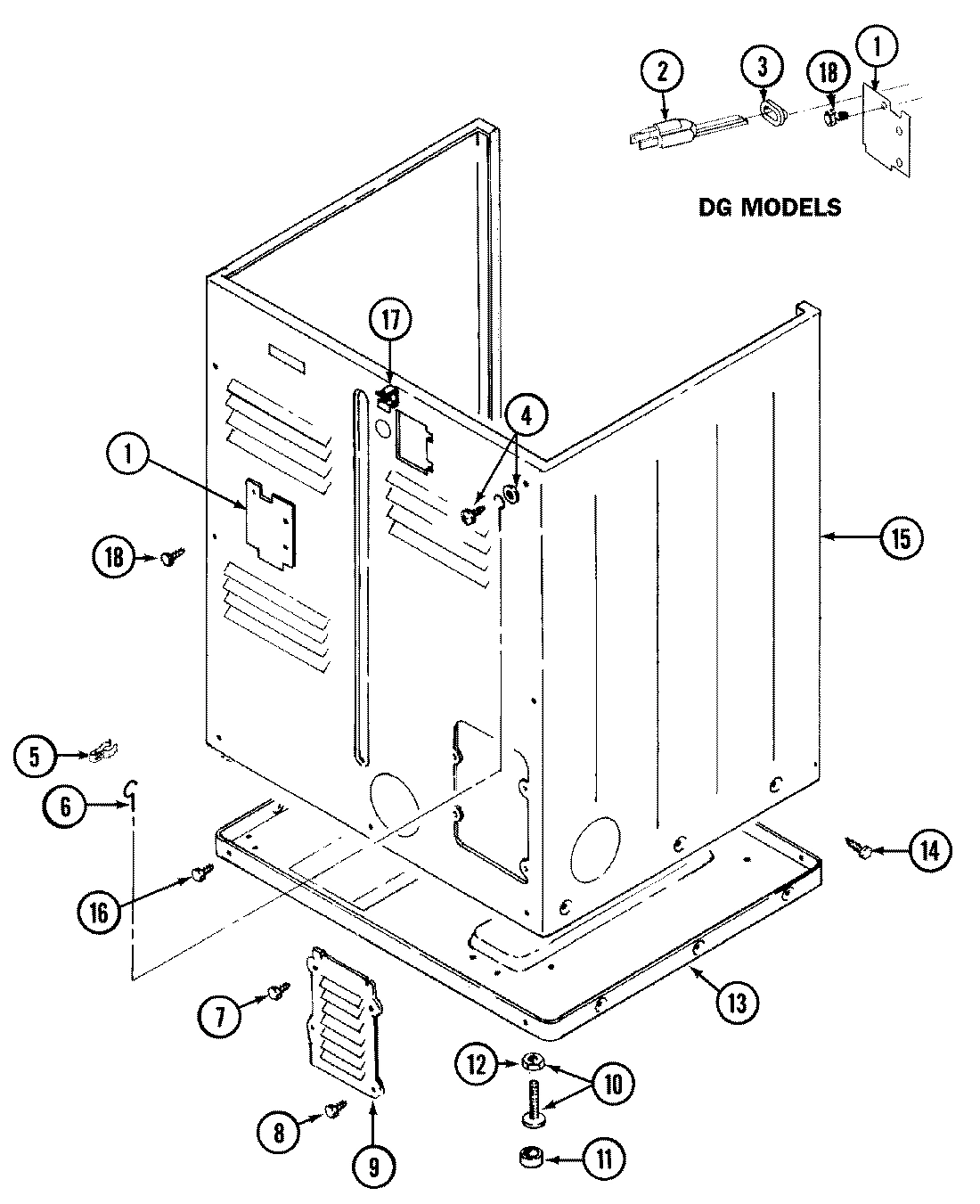

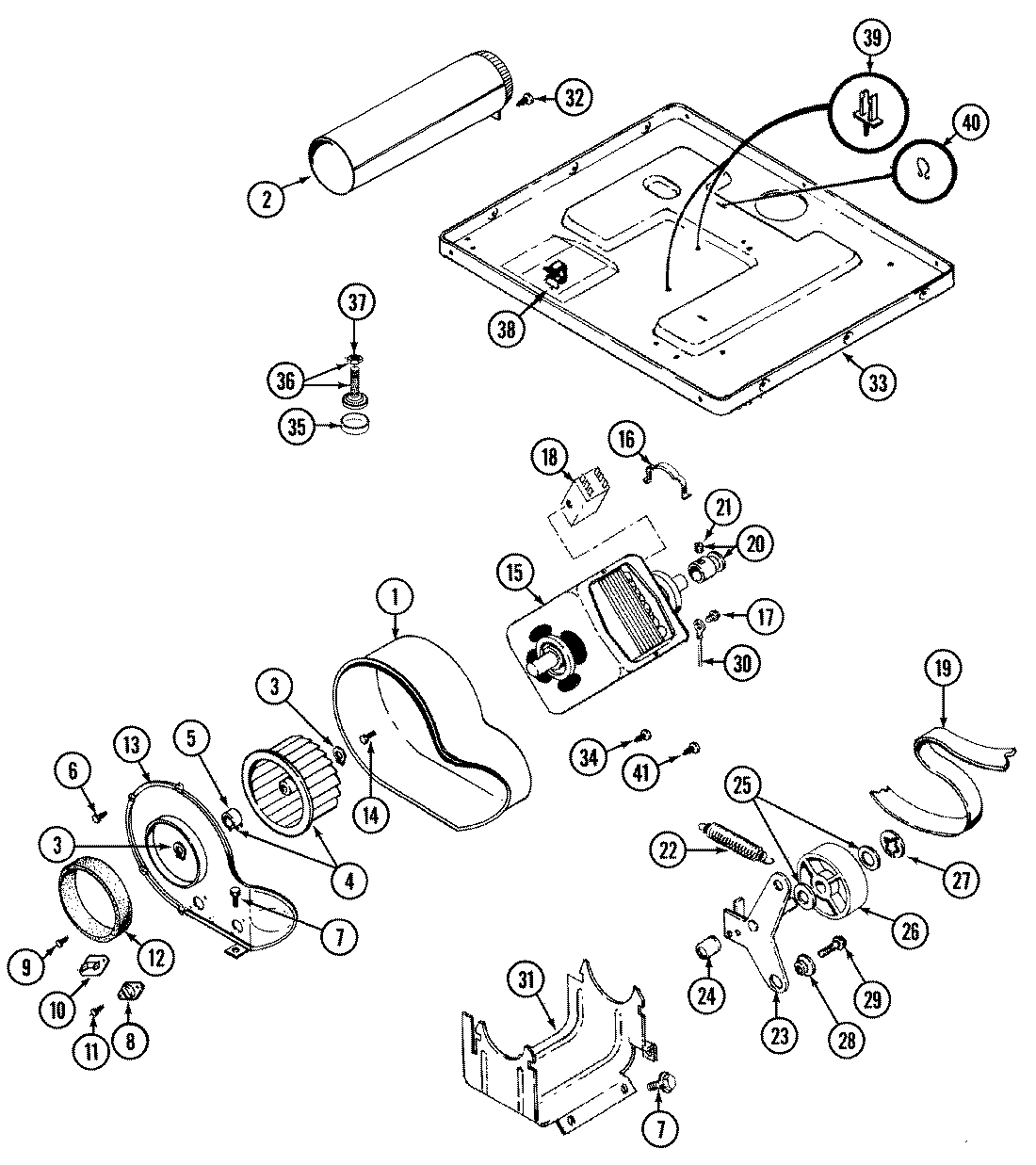

Model Whirlpool LDG8404ABE GAS DRYER – Common Parts &amp; Diagrams

1

HOUSING, BLOWER WPL Y312893 Contact Us For Availability

1

COVER, TERMINAL WPL Y312905 Contact Us For Availability

1

SCREW WPL Y314062 Contact Us For Availability

1

PALNUT, END CAP WPL 214872 Contact Us For Availability

1

CONSOLE (WHT) WPL Y305193 Contact Us For Availability

2

WP33002924 Whirlpool LP Conversion Gas In Stock WPL WP33002924 $57.79

2

CORD, POWER WPL 33001246 Contact Us For Availability

2

PLATE, SUPPORT WPL 33001237 Contact Us For Availability

2

EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability

3

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

3

GROMMET, CORD WPL 211881 Contact Us For Availability

3

DOOR (WHT) WPL 33001240 Contact Us For Availability

3

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

3

SCREW WPL 304971 Contact Us For Availability

3

COVER, TOP (WHT) WPL 33001165 Contact Us For Availability

4

4391996 Whirlpool Dryer Flat Igniter In Stock WPL 4391996 $22.45

4

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

4

Y303836 Whirlpool Dryer Blower Wheel In Stock WPL Y303836 $27.73

4

PANEL, FRONT (WHT) WPL 33001242 Contact Us For Availability

4

END CAP, CTRL. PNL. (LT-WHT) WPL 22001289 Contact Us For Availability

4

END CAP, CTRL. PNL. (RT-WHT) WPL 22001291 Contact Us For Availability

4

CAP, END (RT-WHT) WPL 22001564 Contact Us For Availability

4

CAP, END (LT-WHT) WPL 22001565 Contact Us For Availability

5

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

5

WP33002793 Whirlpool Burner Assembly Backorder WPL WP33002793 $132.39

5

HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability

5

CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability

5

SEAL, DOOR WPL 33001131 Contact Us For Availability

5

FASTENER, END CAP WPL 214894 Contact Us For Availability

6

WP306176 Whirlpool Gas Valve In Stock WPL WP306176 $233.35

6

PANEL, CONTROL (WHT) WPL 33001065 Contact Us For Availability

6

SCREW WPL 214354 Contact Us For Availability

7

SCREW----NA WPL Y313561 Contact Us For Availability

7

HINGE, DOOR WPL 33001230 Contact Us For Availability

7

SKIRT, TIMER DIAL (WHT) WPL 33001183 Contact Us For Availability

8

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

8

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

8

WP307250 Whirlpool Thermostat In Stock WPL WP307250 $55.16

8

SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability

8

KNOB, TIMER (WHT) WPL 33001255 Contact Us For Availability

9

W10155650 Whirlpool Nut Backorder WPL W10155650 $8.89

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

9

COVER, ACCESS WPL Y312951 Contact Us For Availability

9

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

WP306604 Whirlpool Cut-off In Stock WPL WP306604 $20.71

CAP, TIMER KNOB (WHT) WPL 216250 Contact Us For Availability

BRACKET, GAS VALVE WPL 314566 Contact Us For Availability

11

BASE ASSY. WPL Y303361 Contact Us For Availability

11

SEAL, FRONT PANEL WPL 314937 Contact Us For Availability

11

BUTTON (WHT) WPL 33001185 Contact Us For Availability

WPY312901 Whirlpool Blow Seal In Stock WPL WPY312901 $46.55

WASHER WPL 314158 Contact Us For Availability

SCREW, PLASTIC WPL 33001172 Contact Us For Availability

NUT, SPEED WPL 33001173 Contact Us For Availability

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

13

DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability

13

SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability

13

COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

WPY308254 Whirlpool Timer In Stock WPL WPY308254 $251.08

SCREW WPL Y310759 Contact Us For Availability

PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

W10410999 Whirlpool Dryer Drive Motor In Stock WPL W10410999 $130.21

BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability

COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

COVER, THREAD WPL 313915 Contact Us For Availability

GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability

CABINET (WHT) WPL 33001159 Contact Us For Availability

CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability

INLET DUCT ASSY. WPL Y308504 Contact Us For Availability

17

WP303395 Whirlpool Thermostat In Stock WPL WP303395 $33.27

17

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability

DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability

BUZZER WPL Y308205 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability

SWITCH, MOTOR WPL Y303877 Contact Us For Availability

SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability

WP33001305 Whirlpool Door Strike Assembly Backorder WPL WP33001305 $1.77

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WPY312959 Whirlpool Dryer Drum Belt In Stock WPL WPY312959 $23.84

CONE, COMBUSTION WPL Y308548 Contact Us For Availability

20

SWITCH, PUSH TO START WPL 33001232 Contact Us For Availability

20

CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability

20

PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

HARNESS, WIRE WPL 33001126 Contact Us For Availability

WIRE HARNESS, MAIN WPL 33001352 Contact Us For Availability

HARNESS, WIRE WPL 33001547 Contact Us For Availability

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

22

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

22

KNOB ASSY. (WHT) WPL 22001268 Contact Us For Availability

22

IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability

23

WP6-3033630 Whirlpool Dryer Idler Arm Assembl In Stock WPL WP6-3033630 $56.49

23

SWITCH, TEMP. (3 POSITIONS) WPL 33001228 Contact Us For Availability

24

WPW10116756 Whirlpool Spacer Backorder WPL WPW10116756 $33.58

24

MANUAL, USE & CARE (FRENCH) WPL 33001266 Contact Us For Availability

25

33001004 Whirlpool Baffle In Stock WPL 33001004 $71.41

25

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

26

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

26

WP6-3037050 Whirlpool Idler Pulley In Stock WPL WP6-3037050 $18.21

27

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

28

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $7.92

29

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

31

SUPPORT, MOTOR WPL 312897 Contact Us For Availability

32

SCREW WPL Y310632 Contact Us For Availability

33

BASE WPL Y305084 Contact Us For Availability

36

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

37

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

38

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

39

RETAINER, WIRE WPL 315471 Contact Us For Availability

40

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

41

WPW10116751 Whirlpool Screw Backorder WPL WPW10116751 $4.82

NI

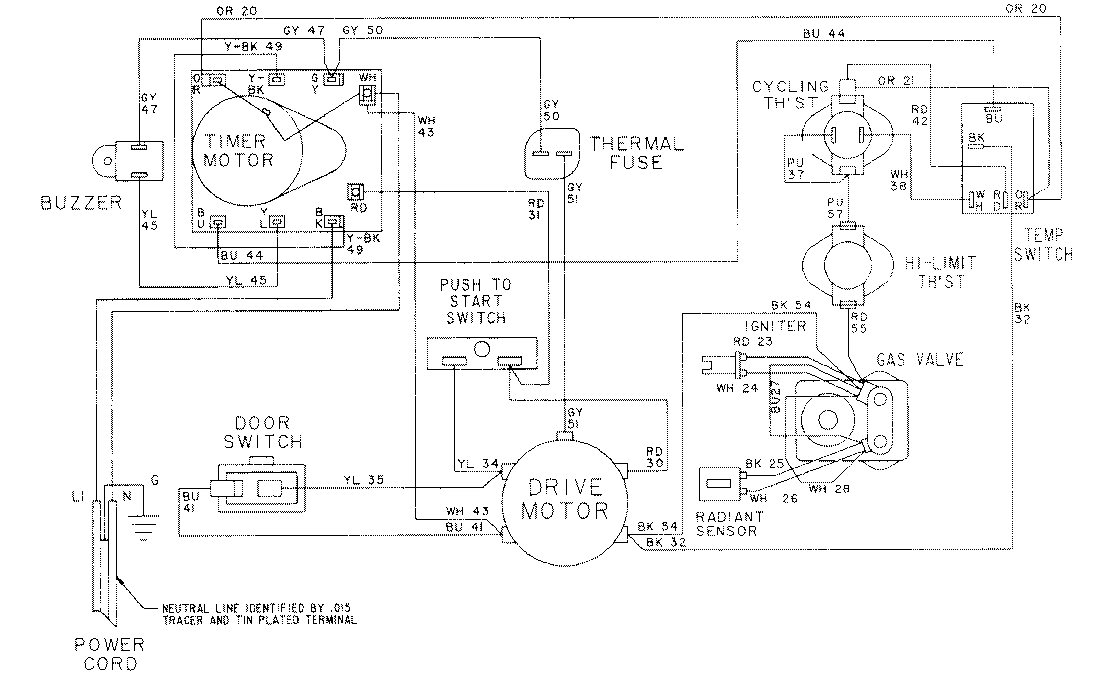

WIRING INFORMATION WPL 15001029 Contact Us For Availability

NI

WIRING INFORMATION WPL 15001568 Contact Us For Availability
