Model Whirlpool LDG22CT GAS DRYER – Common Parts & Diagrams

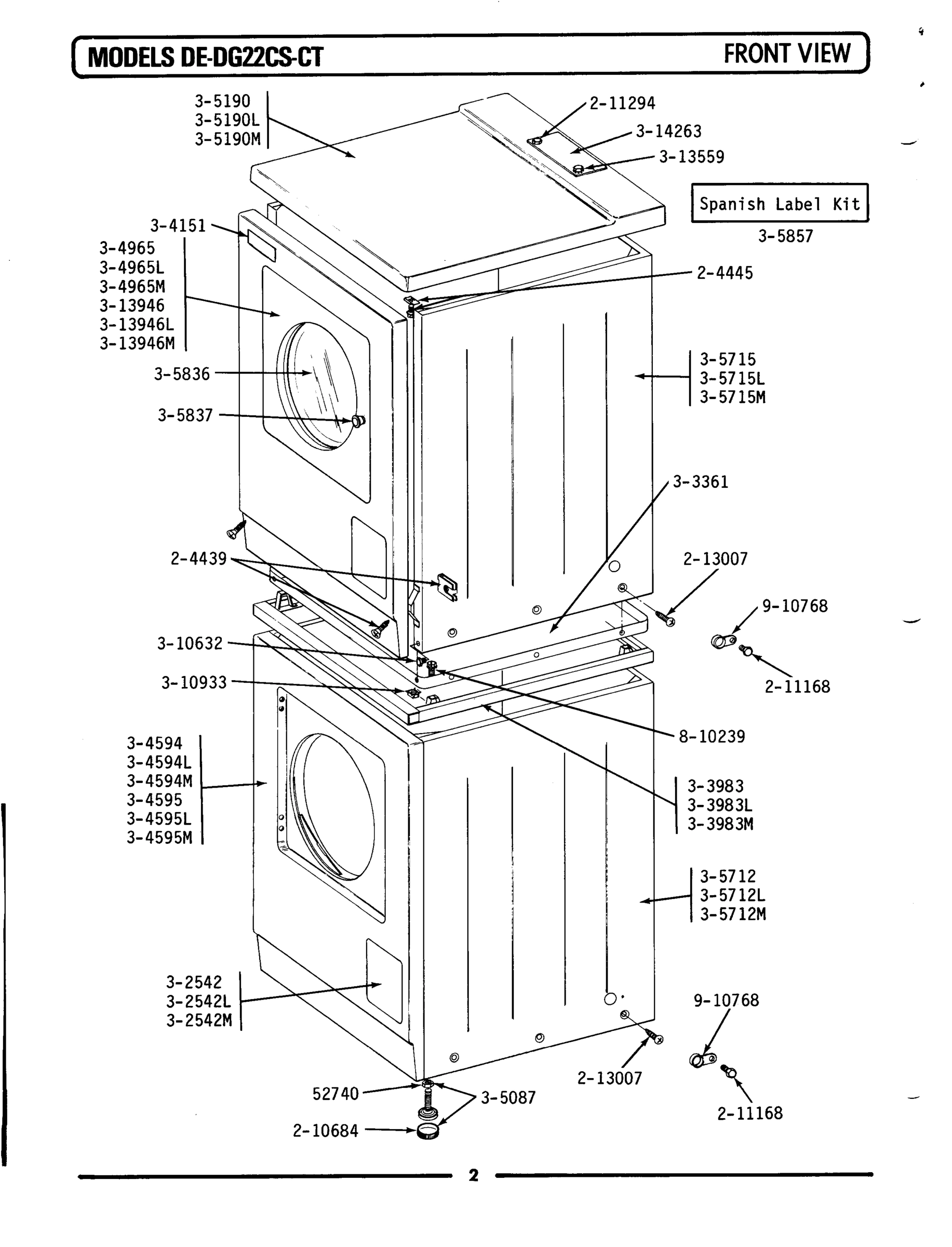

01 - FRONT VIEW

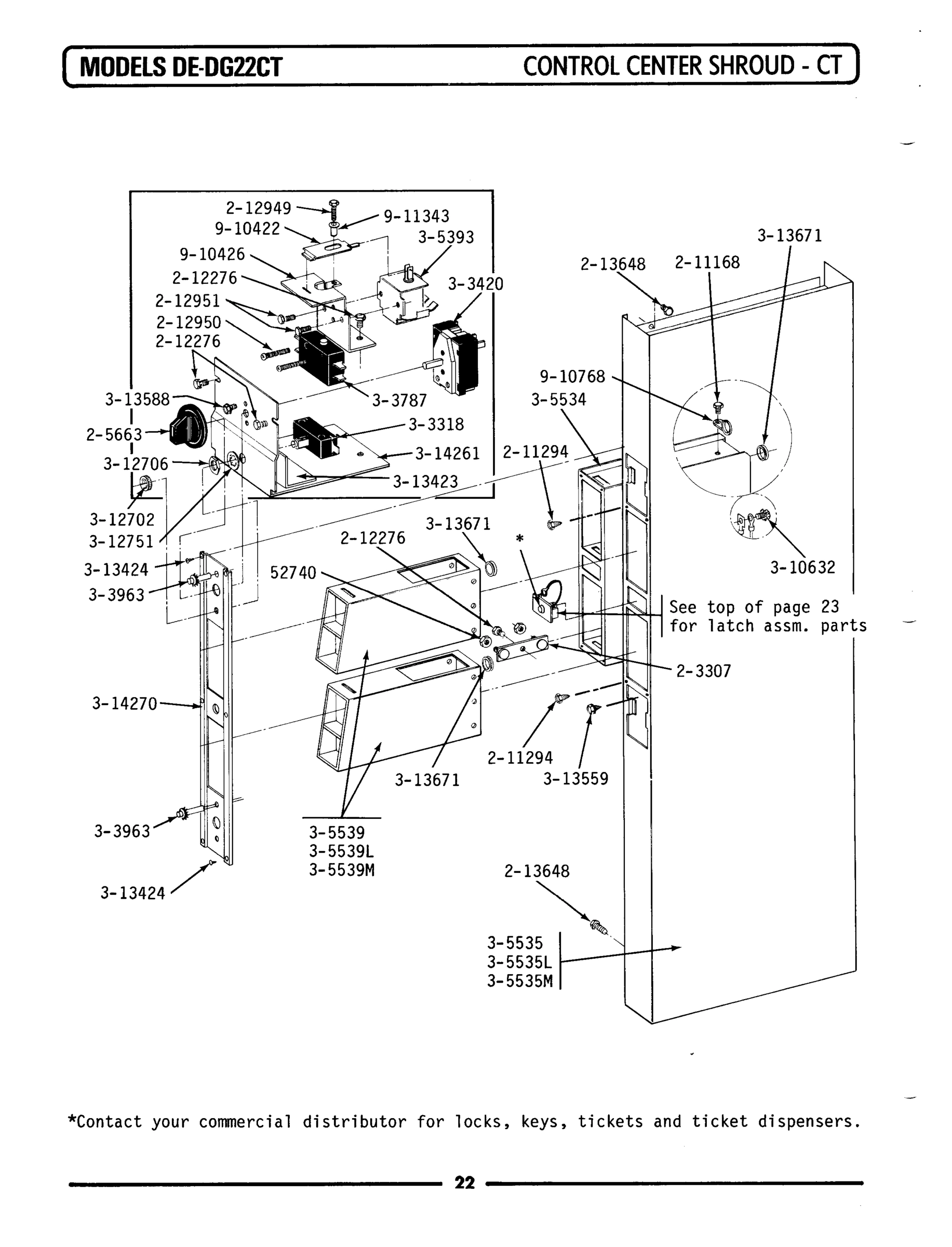

03 - CONTROL CENTER SHROUD

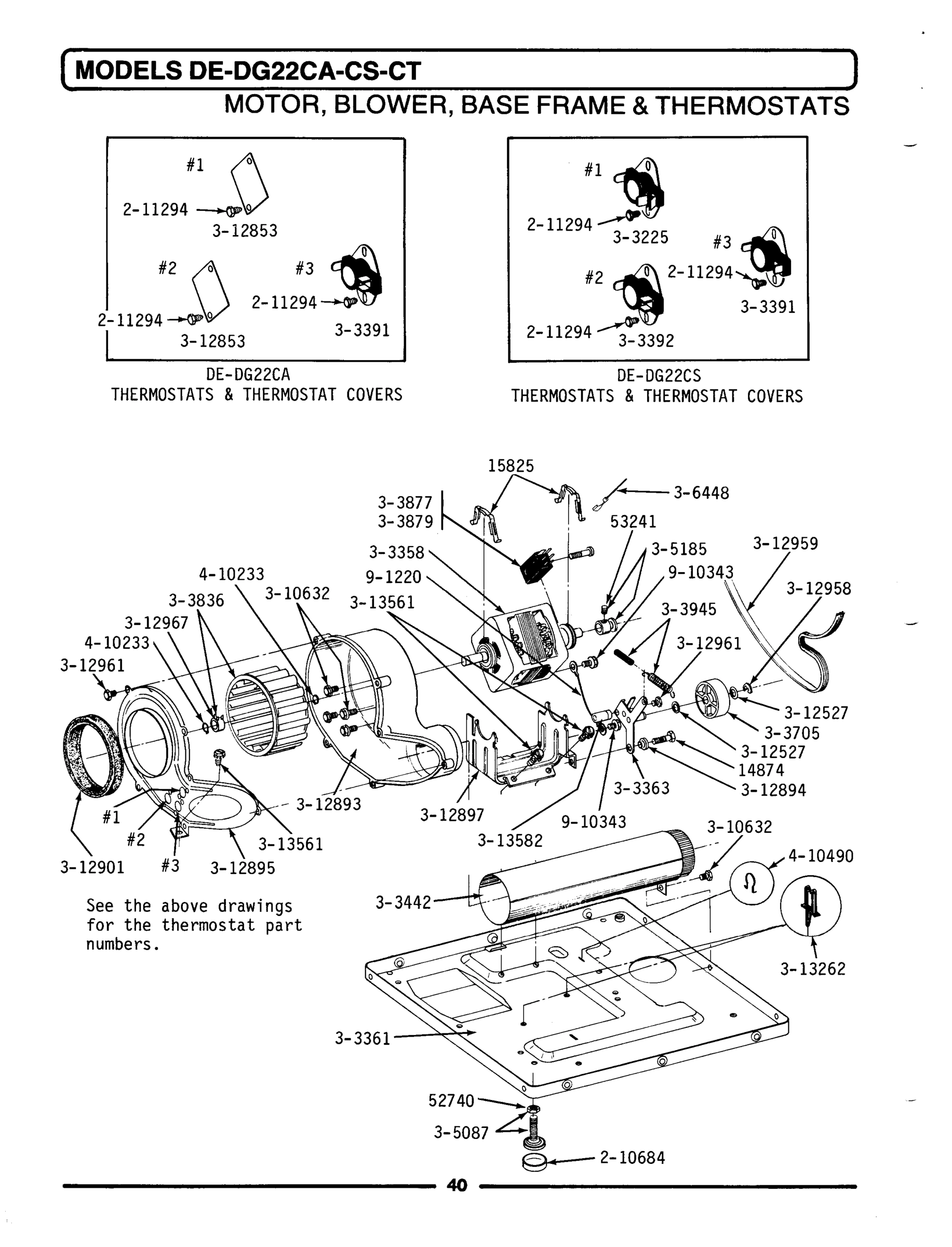

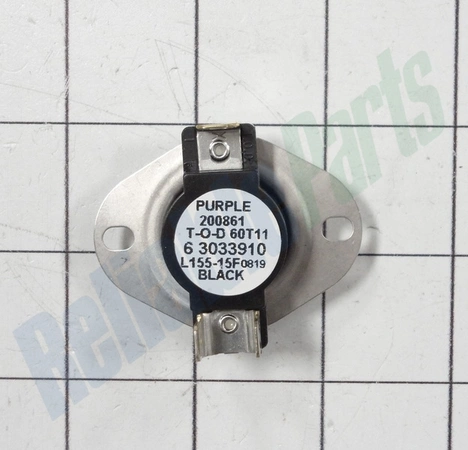

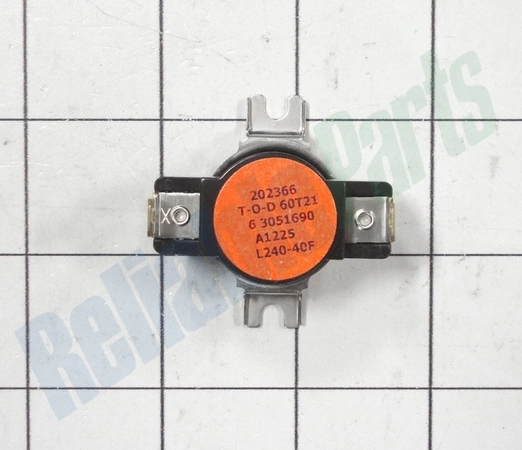

10 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

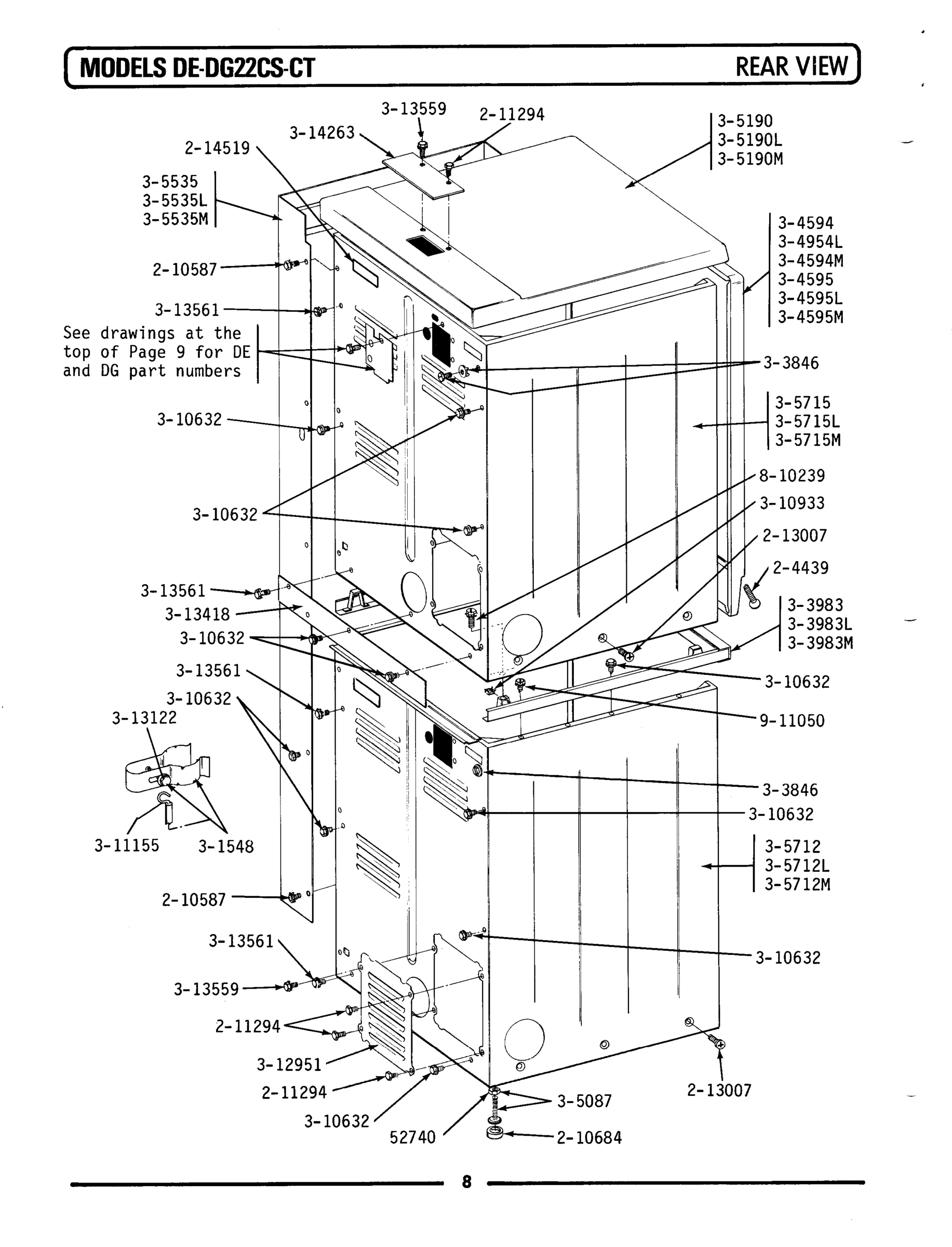

02 - REAR VIEW

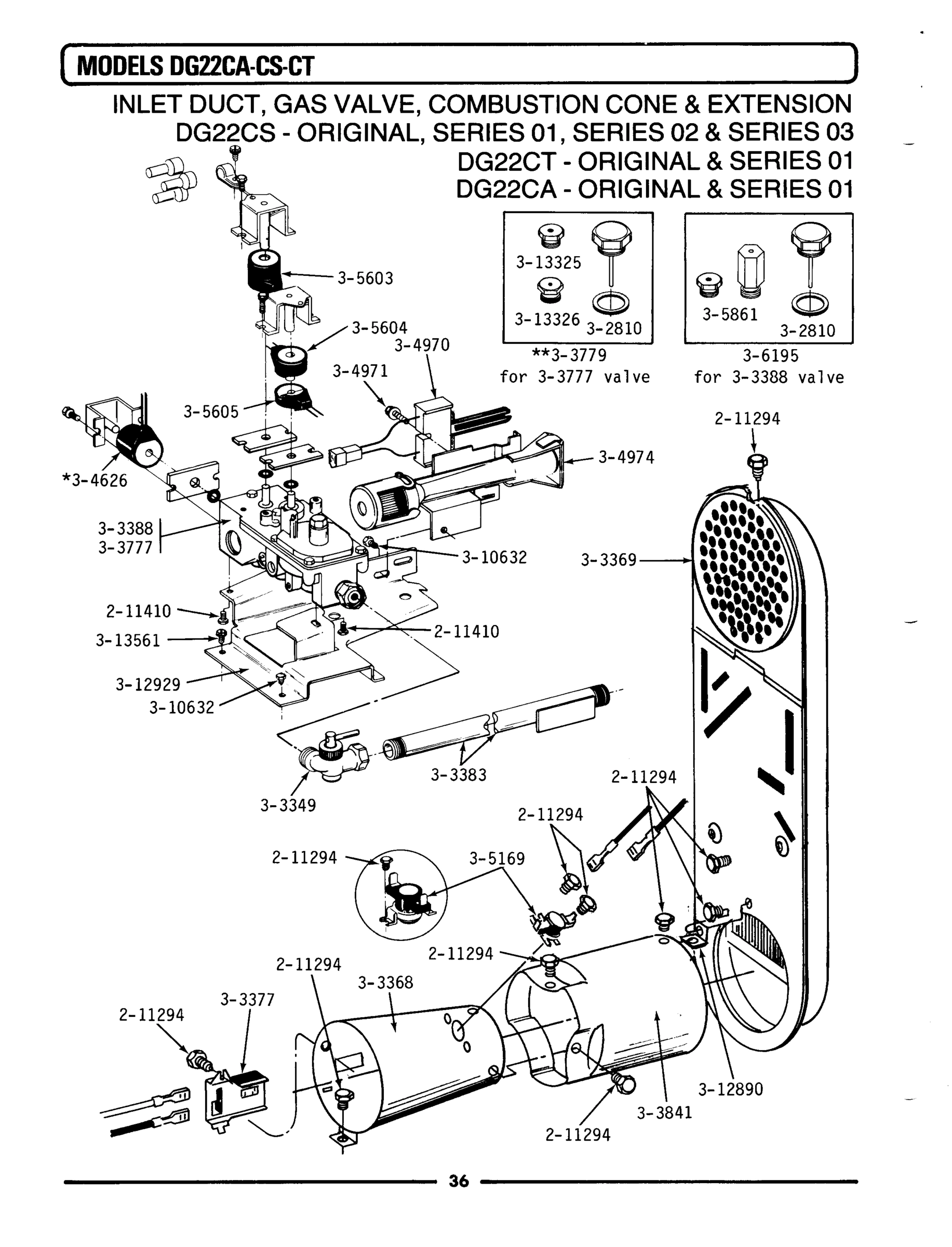

09 - INLET DUCT, GAS VALVE & COMBUSTION CONE

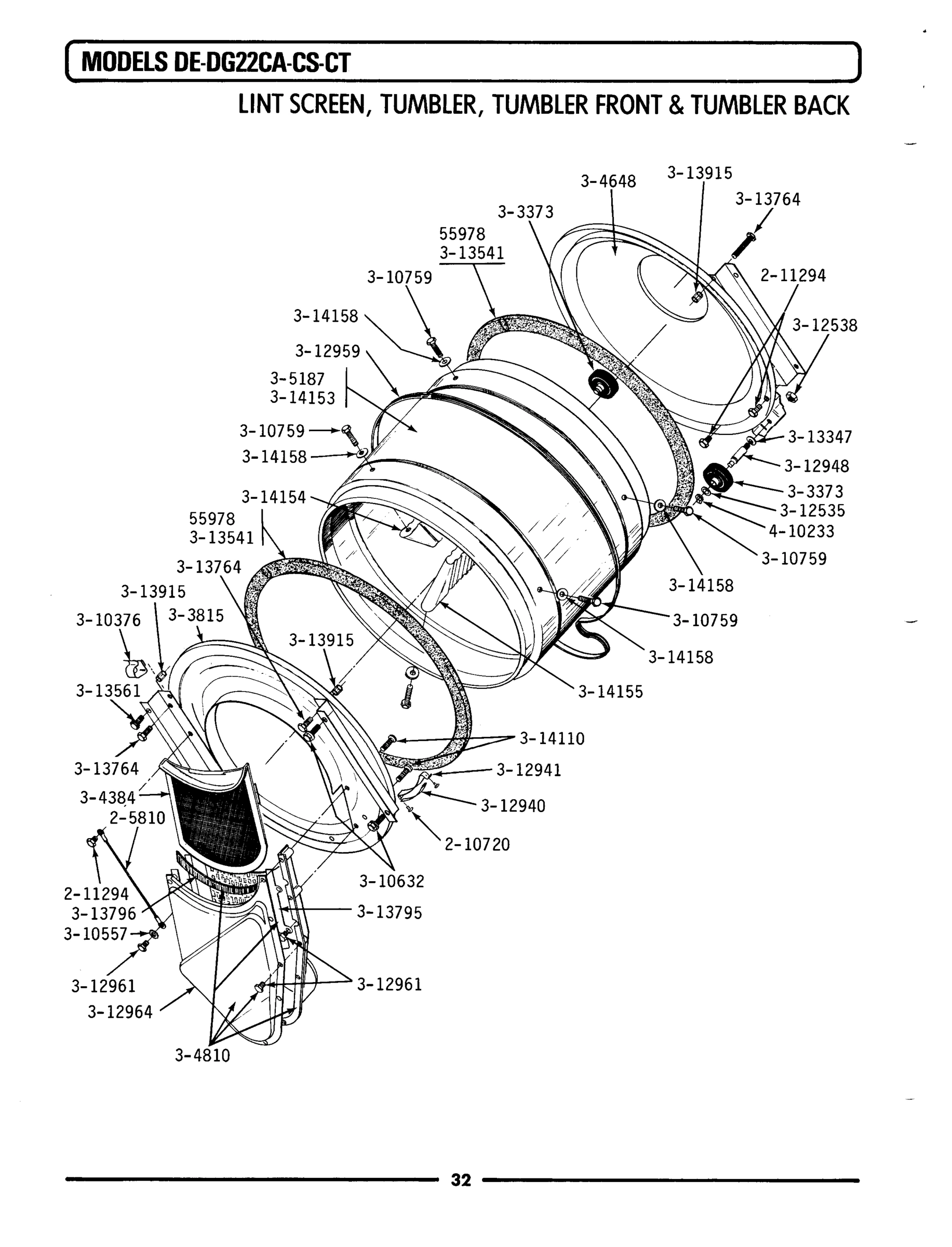

07 - LINT SCREEN, TUMBLER (FRONT & BACK)

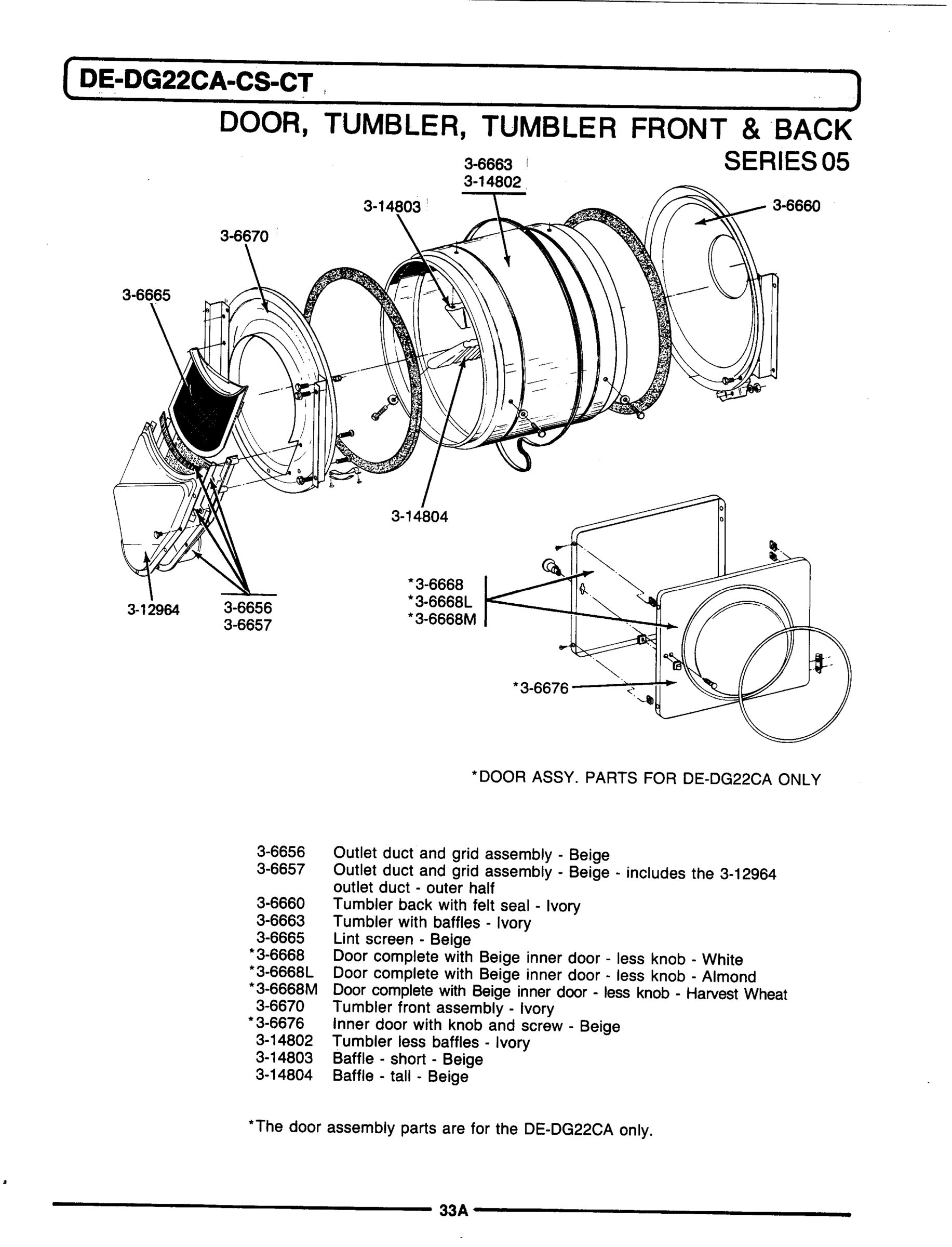

08 - DOOR, TUMBLER, TUMBLER FRONT & BACK

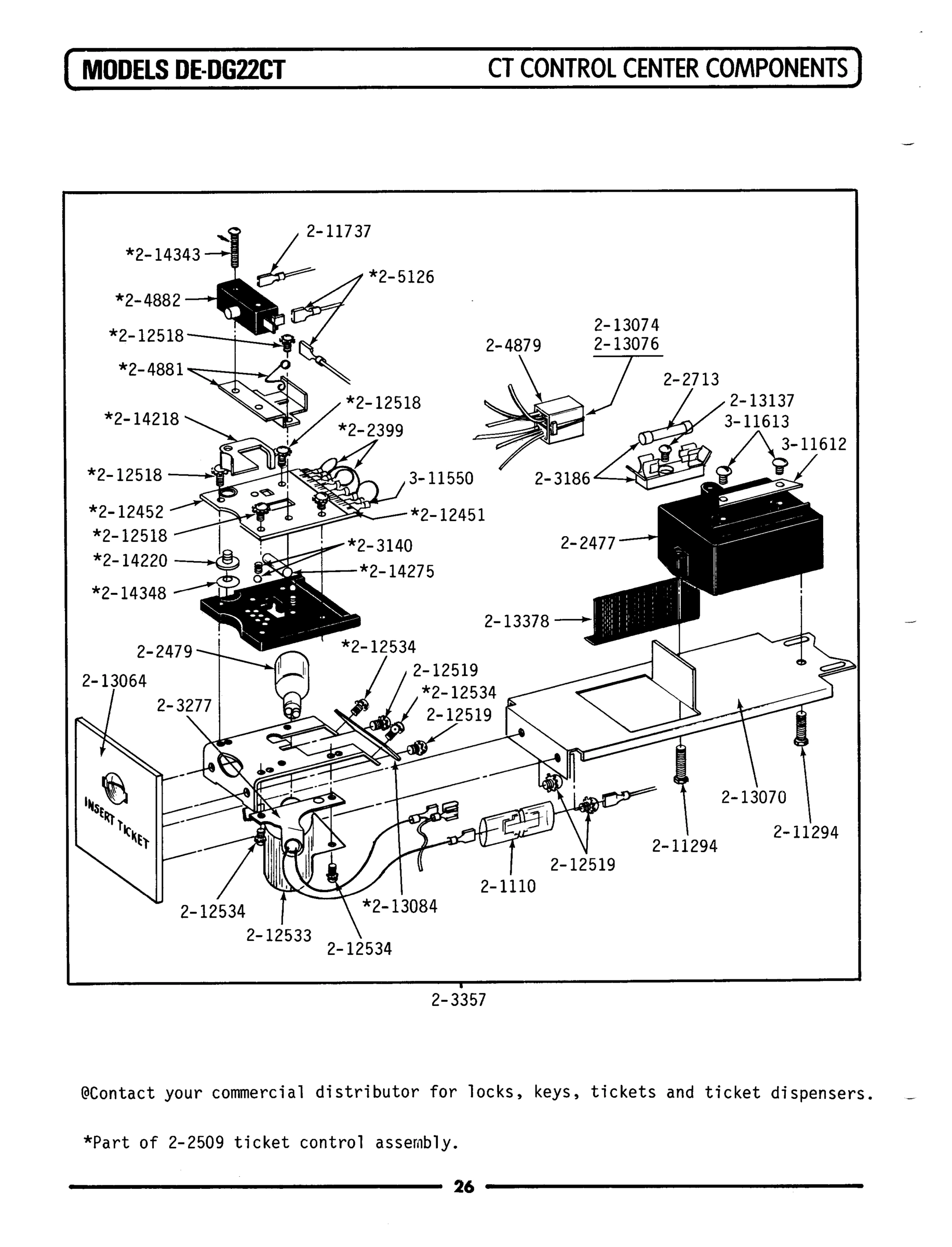

05 - CONTROL CENTER COMPONENTS

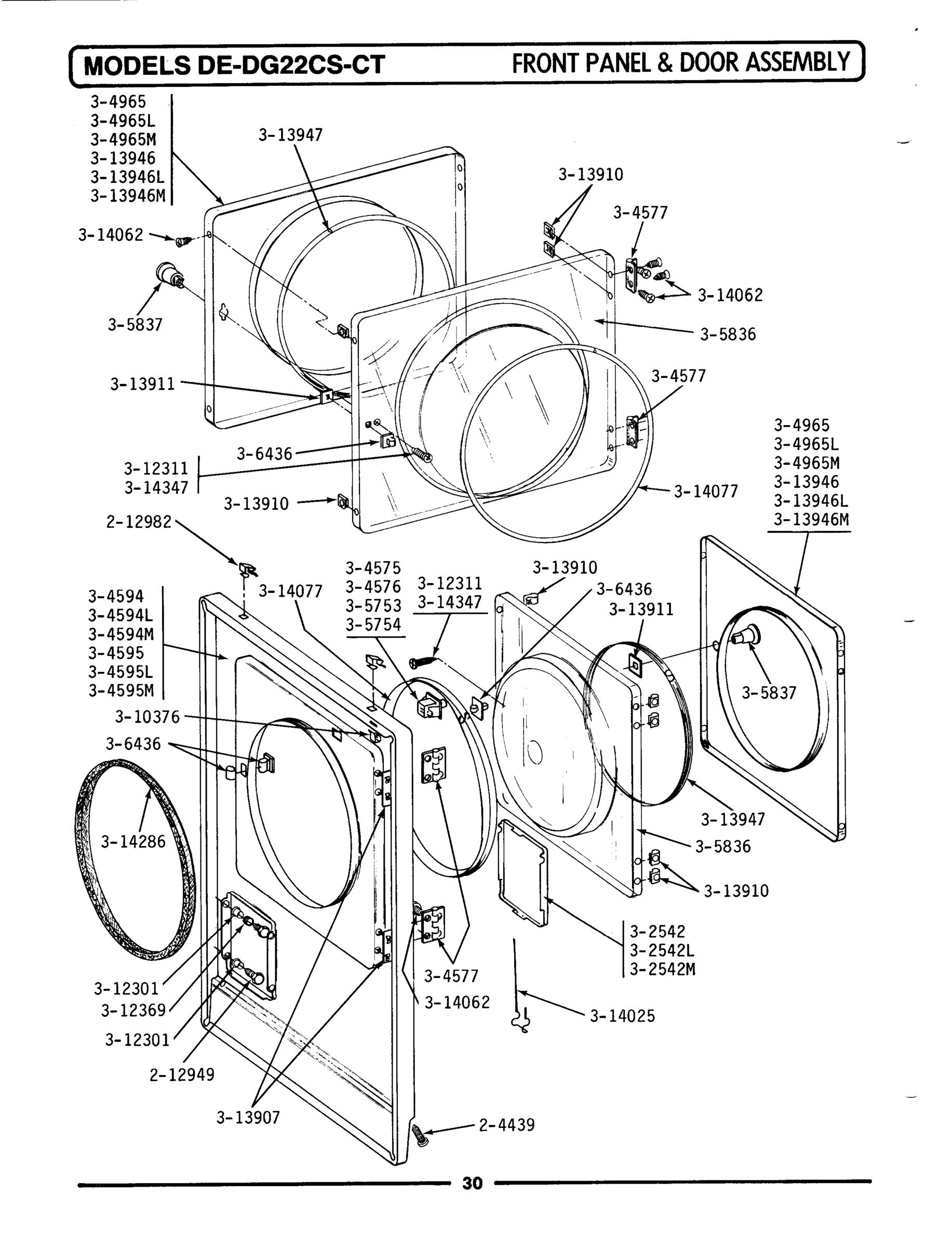

06 - FRONT PANEL & DOOR ASSEMBLY

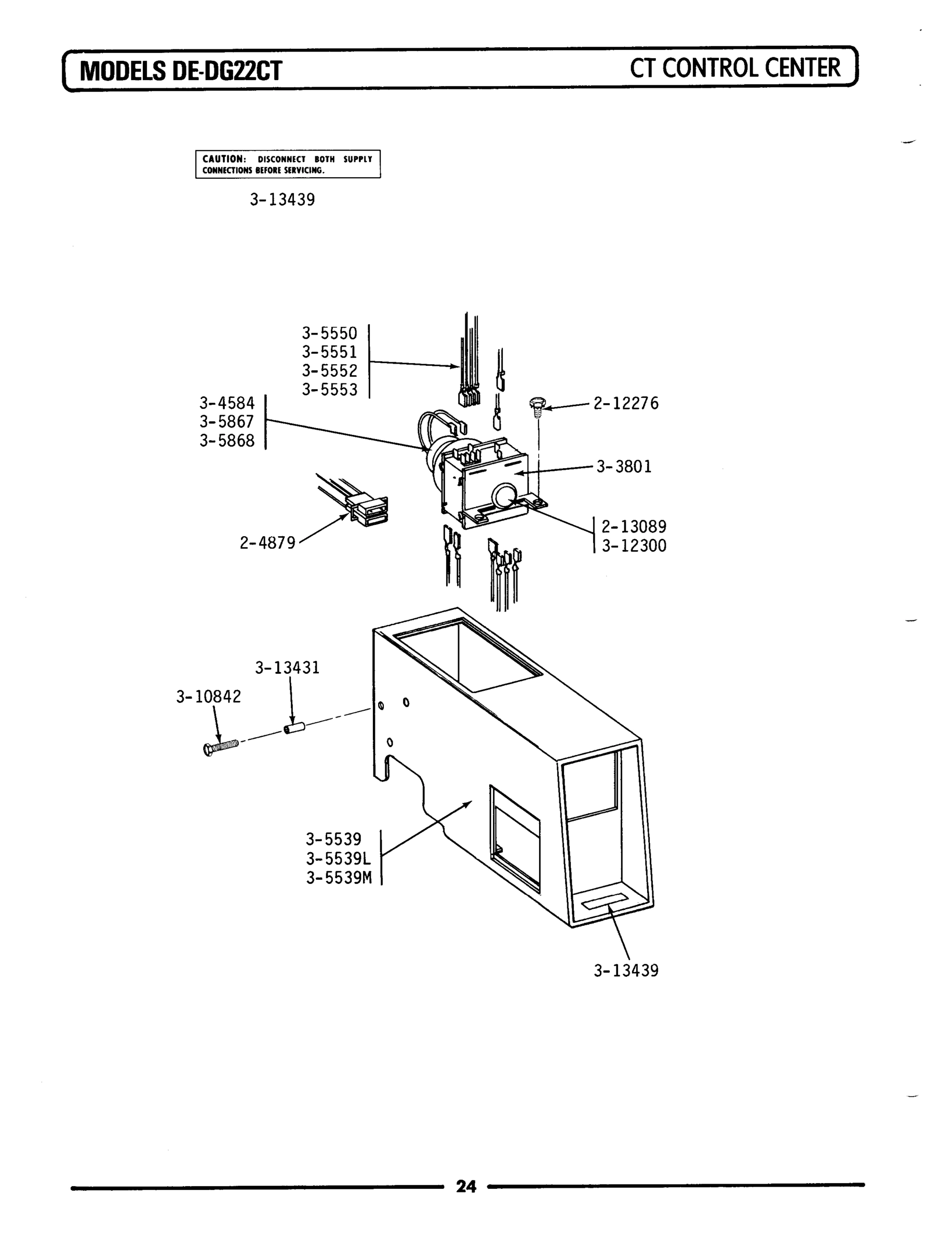

04 - CONTROL CENTER

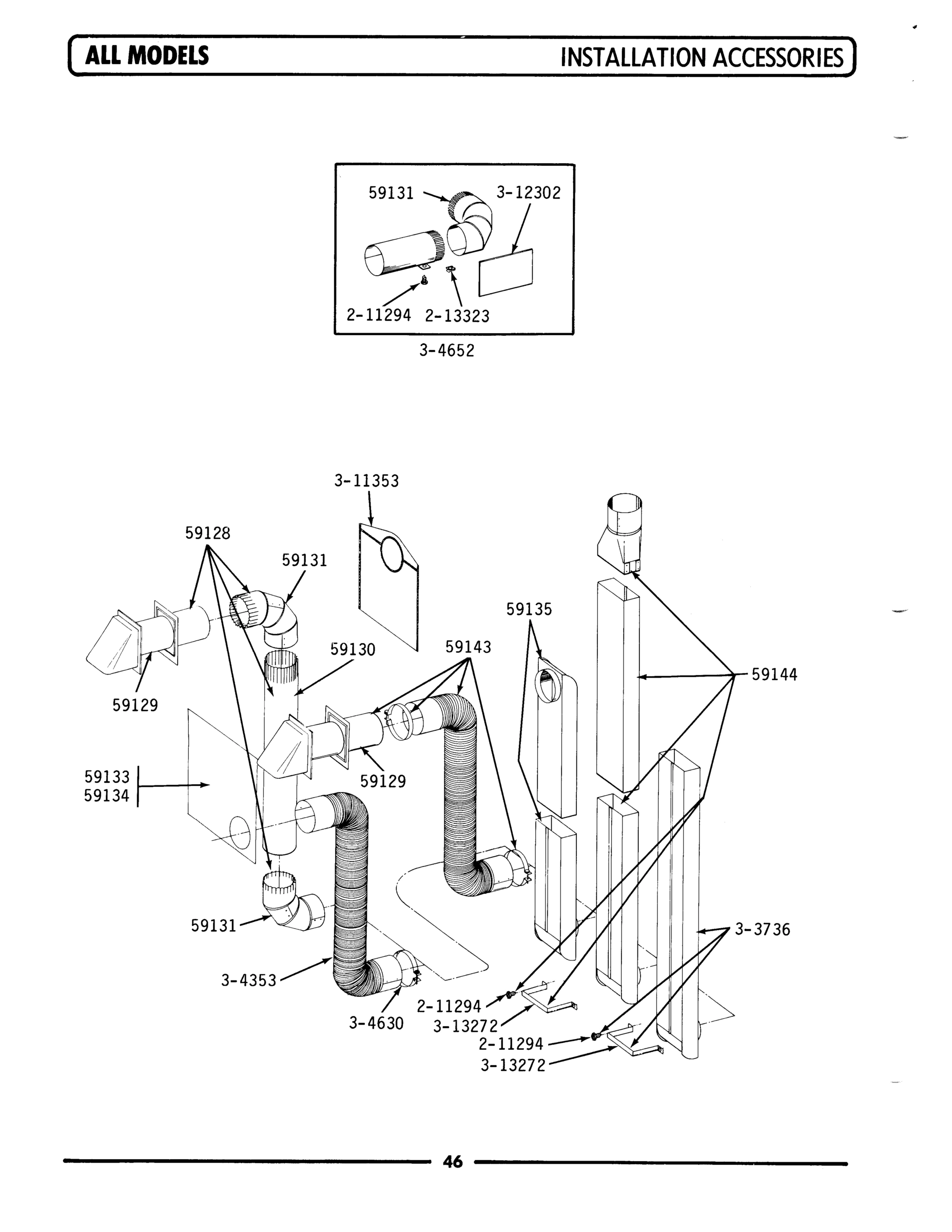

11 - INSTALLATION ACCESSORIES
Common parts from model Whirlpool LDG22CT GAS DRYER
001
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
001
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
001
OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability
001
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
002
SCREW WPL 212949 Contact Us For Availability
002
WIRE, GROUND WPL 205810 Contact Us For Availability
002
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
003
KNOB, SELECTOR SWITCH WPL 205663 Contact Us For Availability
003
TUMBLER BACK WPL Y306660 Contact Us For Availability
003
ELECTRONIC CONTROL WPL 202477 Contact Us For Availability
003
KNOB, TIMER WPL 213089 Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
004
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
004
LAMP, TICKET CONTROL WPL 202479 Contact Us For Availability
004
TIMER W/KNOB & PIN WPL Y303801 Contact Us For Availability
005
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
005
TICKET CONTROL WPL 202509 Contact Us For Availability
005
STANDARD 4`` VENT KIT WPL Y059128 Contact Us For Availability
006
GROMMET, CORD WPL 211881 Contact Us For Availability
006
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
006
TUMBLER FRONT----SUB WPL Y303815 Contact Us For Availability
006
DOOR WPL Y306668 Contact Us For Availability
006
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
007
INLET DUCT ASSEMBLY (DG) WPL Y303369 Contact Us For Availability
007
CONTACT BALL KIT WPL 203140 Contact Us For Availability
007
PIPE, VENTING WPL Y059130 Contact Us For Availability
008
BASE ASSY. WPL Y303361 Contact Us For Availability
008
DOOR COMPLETE (WHT) WPL 304965 Contact Us For Availability
008
LABEL, ELECTRICAL INSTR. WPL 214519 Contact Us For Availability
008
TUMBLER BACK W/SEAL WPL Y304648 Contact Us For Availability
008
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
009
SCREW, RELAY SWITCH (BRKT) WPL 212950 Contact Us For Availability
009
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
009
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
009
OUTLET DUCT ASSEMBLY---S WPL Y304810 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
010
SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability
010
POWER CORD WPL 302521 Contact Us For Availability
010
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
010
TUMBLER W/BAFFLES WPL 305187 Contact Us For Availability
010
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
010
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
011
CONVERSION KIT (NAT.TO LP) WPL Y303779 Contact Us For Availability
011
SCREW WPL Y310842 Contact Us For Availability
011
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
012
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
012
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
012
WASHER WPL 310557 Contact Us For Availability
012
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
012
GROOV-PIN WPL Y312300 Contact Us For Availability
012
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
013
SCREW WPL Y310632 Contact Us For Availability
013
SWITCH ASSEMBLY W/HEX NUT WPL Y303318 Contact Us For Availability
013
SIDE COIL WPL Y304626 Contact Us For Availability
013
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
013
SWITCH, TICKET CONTROL WPL 204882 Contact Us For Availability
014
SCREW WPL Y310759 Contact Us For Availability
014
SELECTOR SWITCH WPL Y303420 Contact Us For Availability
014
CONVERSION KIT-LPG TO NAT. WPL Y304672 Contact Us For Availability
014
INSTRUCTION LABEL WPL Y313439 Contact Us For Availability
015
TOP COVER (WHT) WPL Y305190 Contact Us For Availability
015
SWITCH, RELAY WPL Y303787 Contact Us For Availability
015
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
015
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
016
INDICATOR LIGHT WPL 303963 Contact Us For Availability
016
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
016
SCREW WPL 304971 Contact Us For Availability
016
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
017
GROUND WIRE, LATCH WPL Y303981 Contact Us For Availability
017
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
017
BEARING PAD F/TUMBLER FRONT WPL 312940 Contact Us For Availability
017
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
018
SOLENOID, RELAY ASSEMBLY WPL 305393 Contact Us For Availability
018
CIRCUIT BOARD WPL 212452 Contact Us For Availability
018
TWIN FASTENER WPL Y313907 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
019
VAULT ASSEMBLY WPL 305534 Contact Us For Availability
019
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
019
SECONDARY COIL WPL 305603 Contact Us For Availability
019
CLIP, DOOR LINER (OUTER PNL) WPL Y313910 Contact Us For Availability
019
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
020
FASTENER WPL 310933 Contact Us For Availability
020
HOLDING COIL WPL 305604 Contact Us For Availability
020
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
020
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
021
SHIELD, HEAT LAMP WPL 212533 Contact Us For Availability
021
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
021
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
022
DOOR PANEL (WHT) WPL Y313946 Contact Us For Availability
022
BRACKET, EXHAUST DEFLECTOR WPL NLA Contact Us For Availability
022
MAIN BURNER ORIFICE KIT-NAT WPL 305860 Contact Us For Availability
022
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
023
KNURLED NUT WPL Y312702 Contact Us For Availability
023
COVER,THERMOSTAT OPENING WPL Y312853 Contact Us For Availability
023
GASKET, WINDOW WPL Y313947 Contact Us For Availability
024
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
024
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
024
LATCH, ACCESS DOOR WPL Y314025 Contact Us For Availability
025
SCREW----NA WPL Y313561 Contact Us For Availability
025
STRAP, GROUND WPL Y312184 Contact Us For Availability
025
PIN RECEPTACLE, PLUG WPL 213074 Contact Us For Availability
025
SCREW WPL Y314062 Contact Us For Availability
026
COVER, BLOWER WPL Y312895 Contact Us For Availability
026
DOOR SEAL WPL 314077 Contact Us For Availability
027
COVER, TERMINAL WPL Y312905 Contact Us For Availability
027
GUIDE, LINT SCREEN WPL Y313795 Contact Us For Availability
028
COVER, ACCESS WPL Y312951 Contact Us For Availability
028
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
028
LINT SEAL WPL Y313796 Contact Us For Availability
029
PLATE, LATCH WPL 313428 Contact Us For Availability
029
SCREW, BAFFLE (TUMBLER) WPL 313122 Contact Us For Availability
029
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
030
SWITCH LEVER WPL 214218 Contact Us For Availability
031
TUMBLER No. WPL Y314153 Contact Us For Availability
031
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
032
GROMMET, CONTROL CENTER WPL Y313671 Contact Us For Availability
032
ROLLER, CAM WPL 214275 Contact Us For Availability
033
SWITCH & RELAY BRACKET WPL Y314261 Contact Us For Availability
033
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
034
CONTROL PANEL WPL 314270 Contact Us For Availability
034
WASHER WPL 314158 Contact Us For Availability
035
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
036
COVER, CIRCUIT BOARD WPL 311612 Contact Us For Availability
037
CABLE STRAP, HARNESS (BASE) WPL 910768 Contact Us For Availability
037
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
037
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
038
WIRE, GROUND WPL 901220 Contact Us For Availability
× ![]()
