Model Whirlpool LDE27CT ELECTRIC DRYER – Common Parts & Diagrams

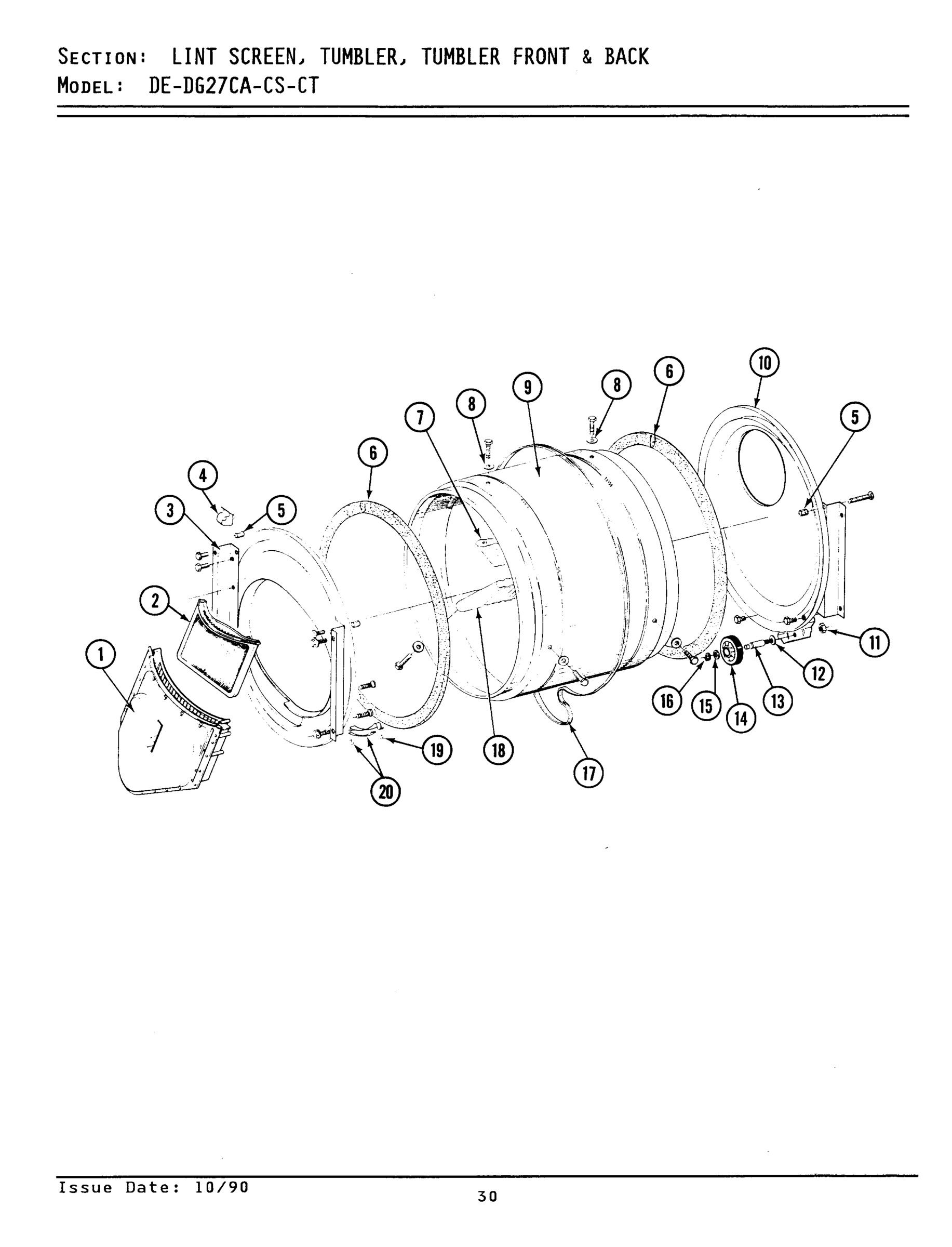

01 - LINT SCREEN, TUMBLER (FRONT & BACK)

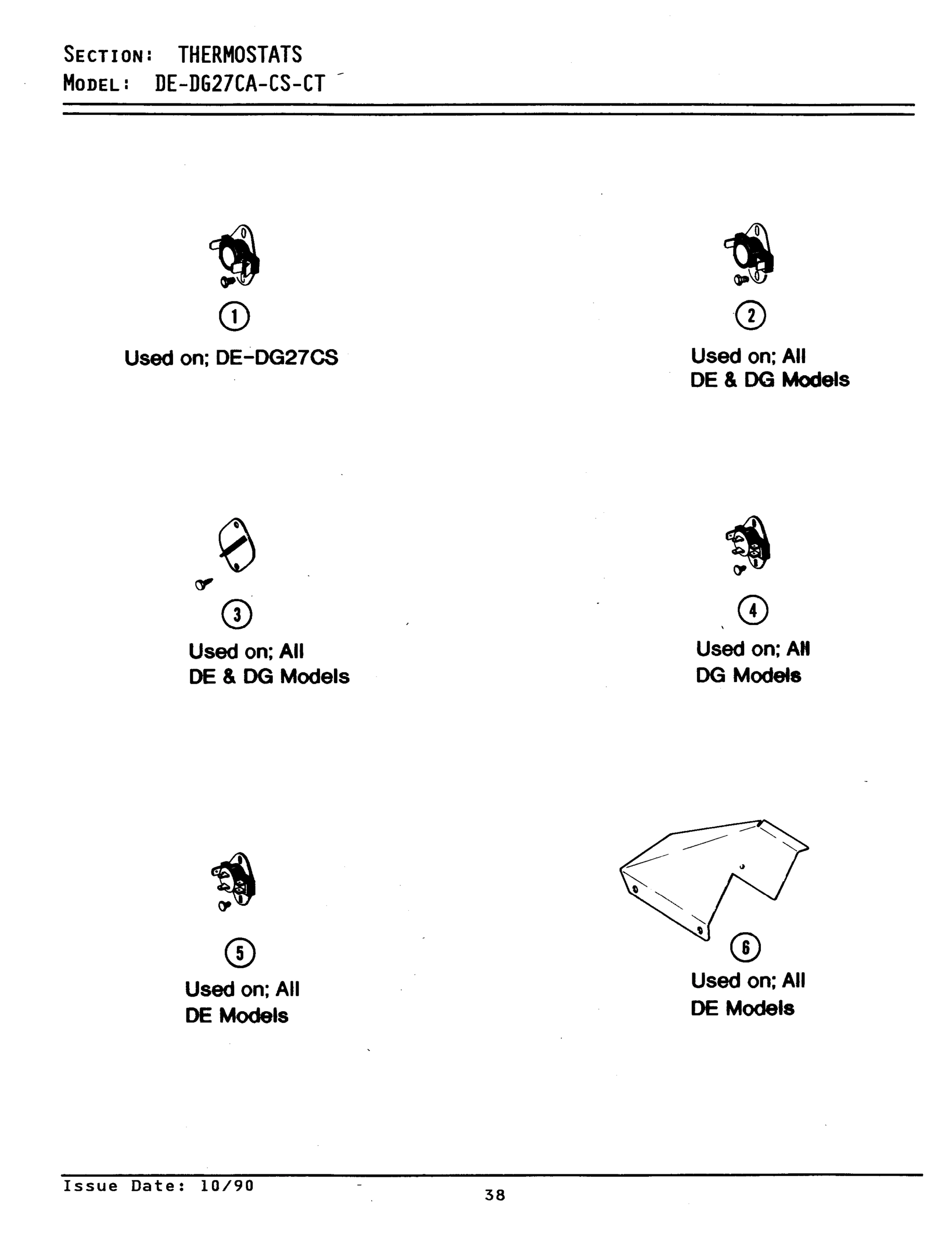

04 - THERMOSTATS

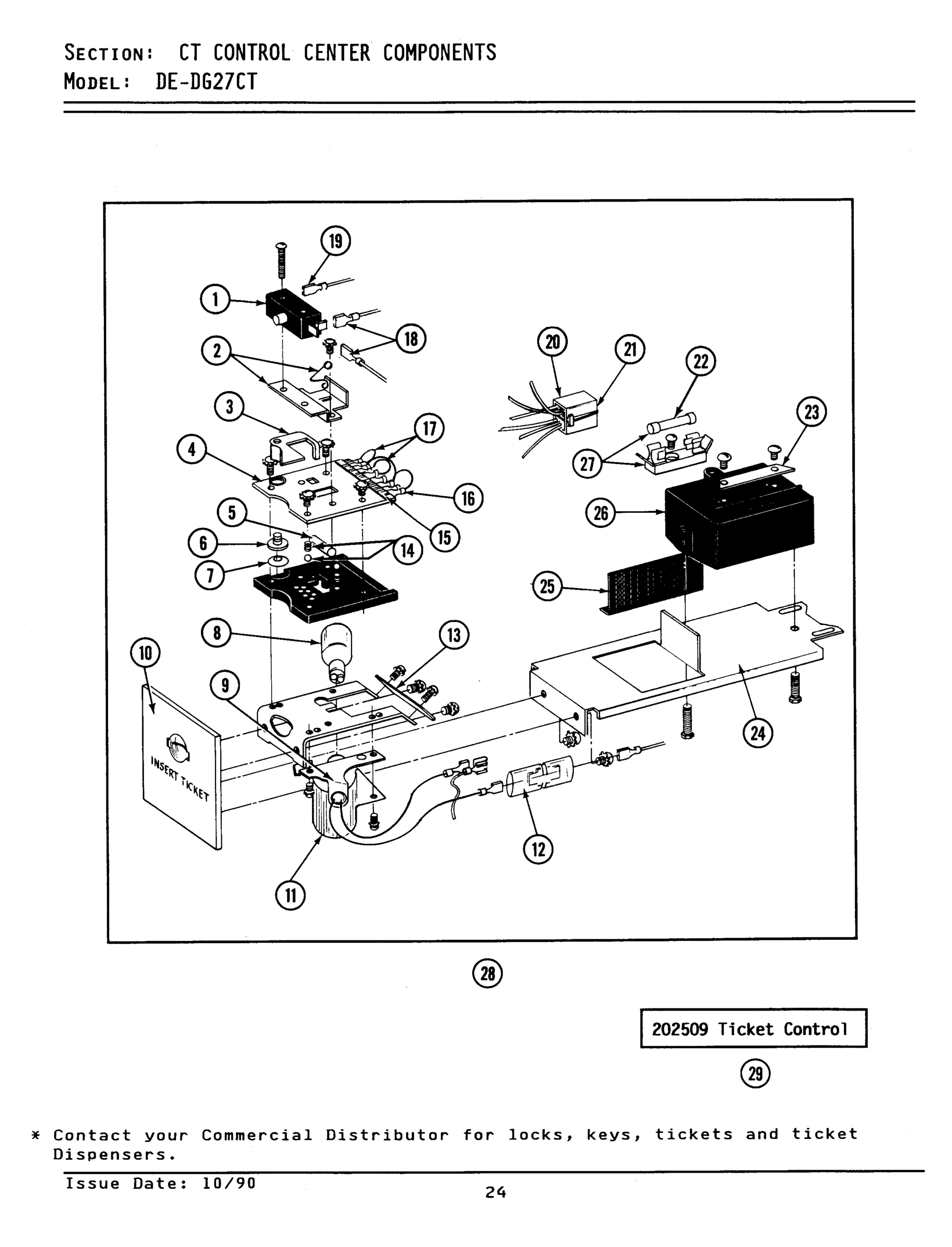

11 - CONTROL CENTER COMPONENTS

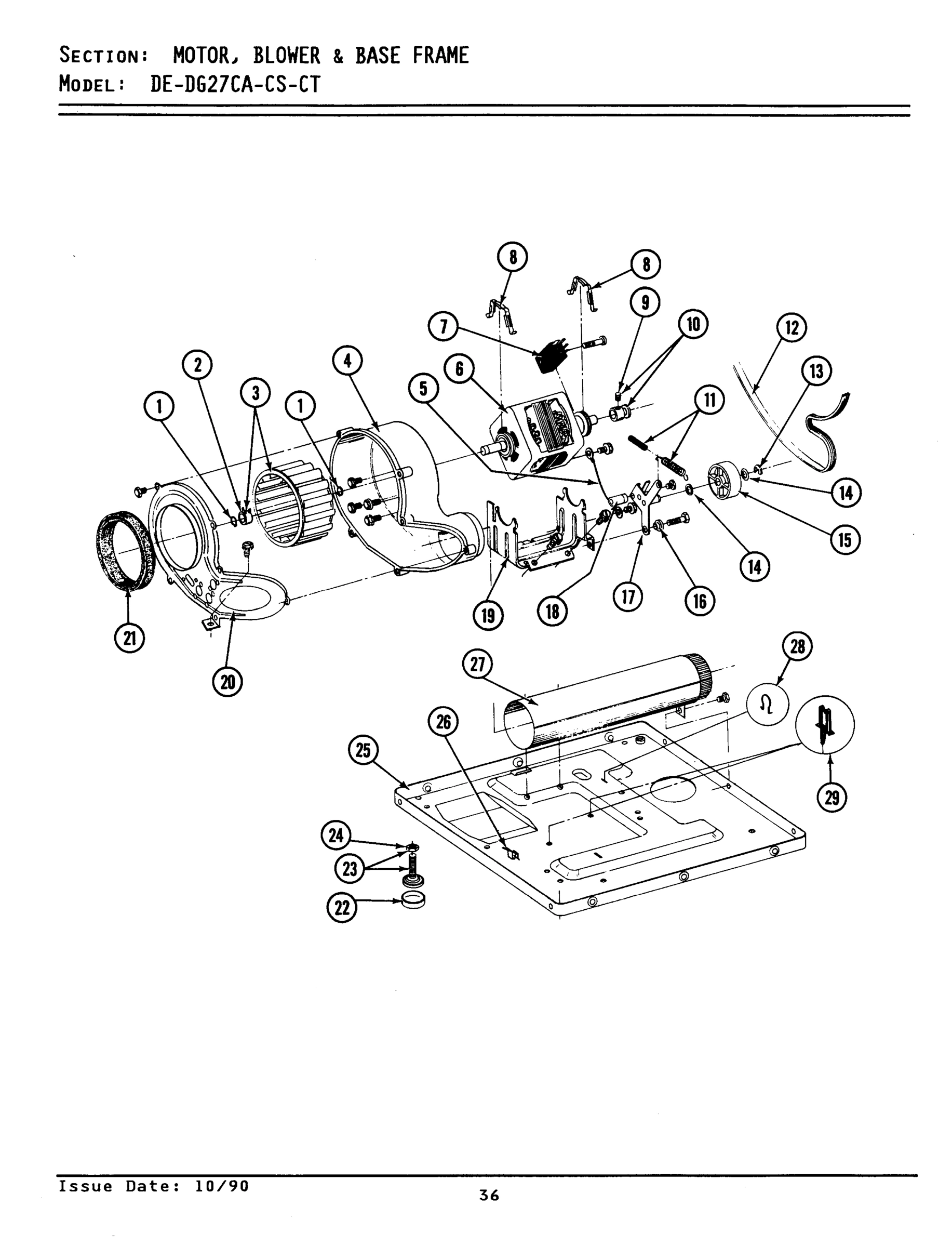

03 - MOTOR, BLOWER & BASE FRAME

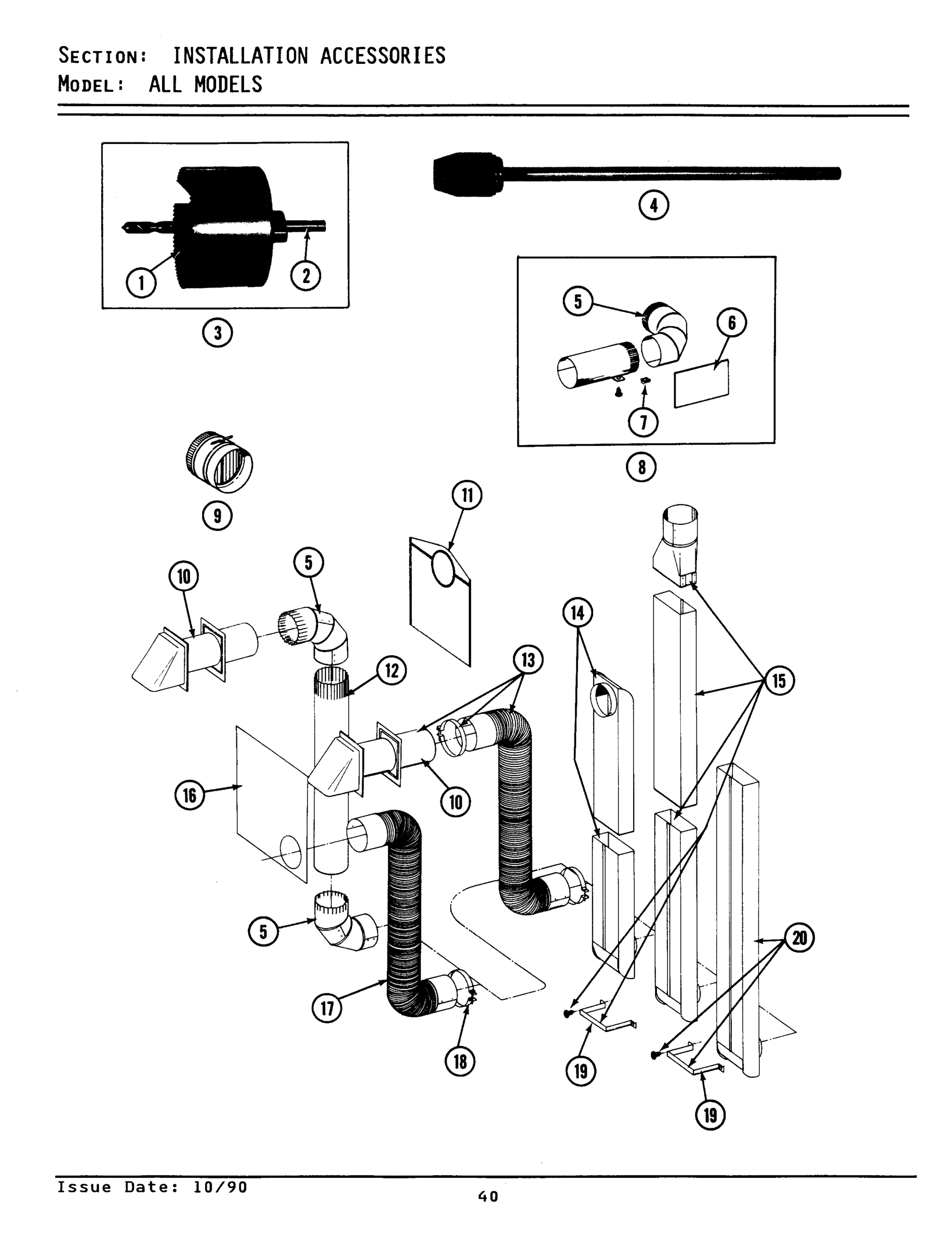

05 - INSTALLATION ACCESSORIES

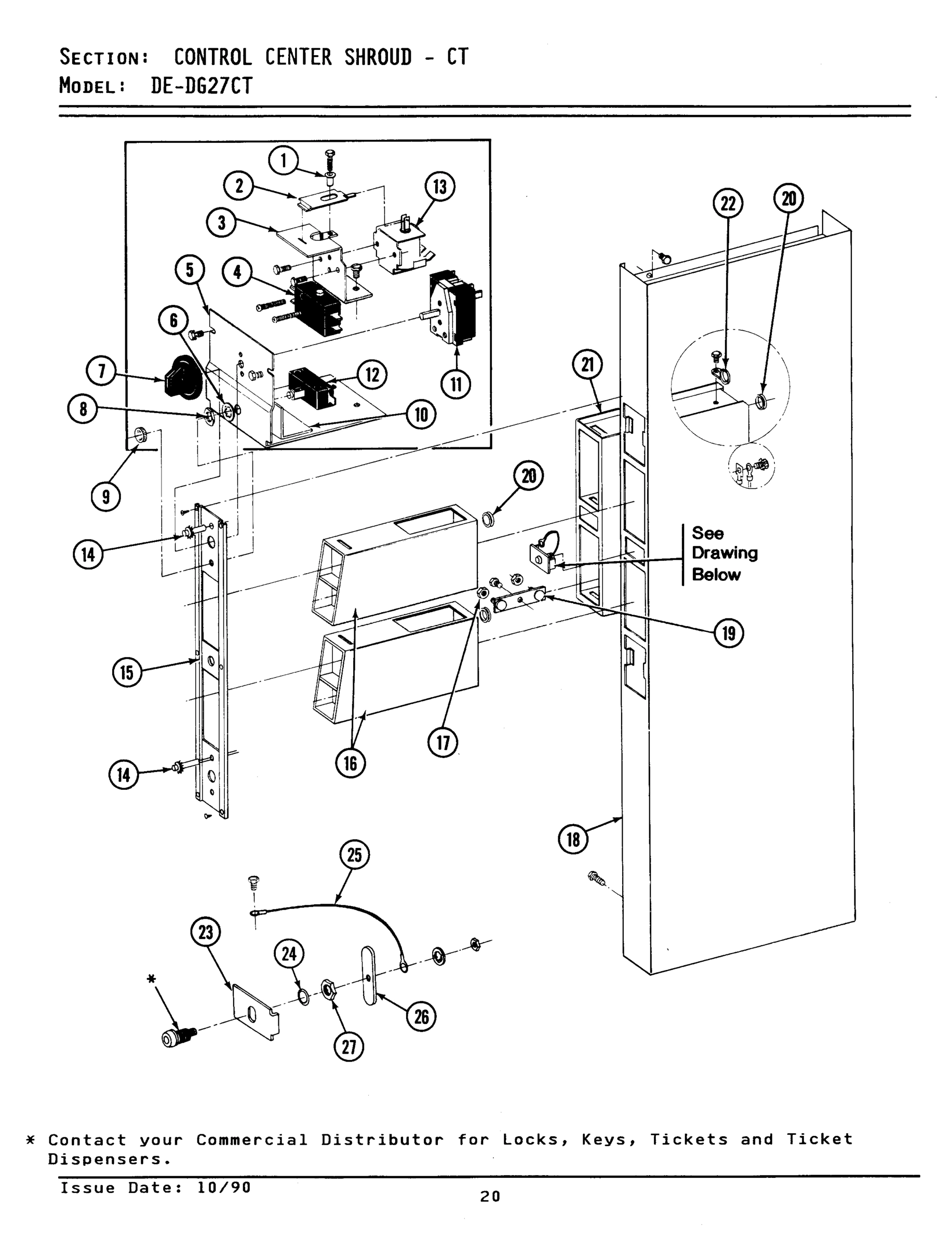

09 - CONTROL CENTER SHROUD

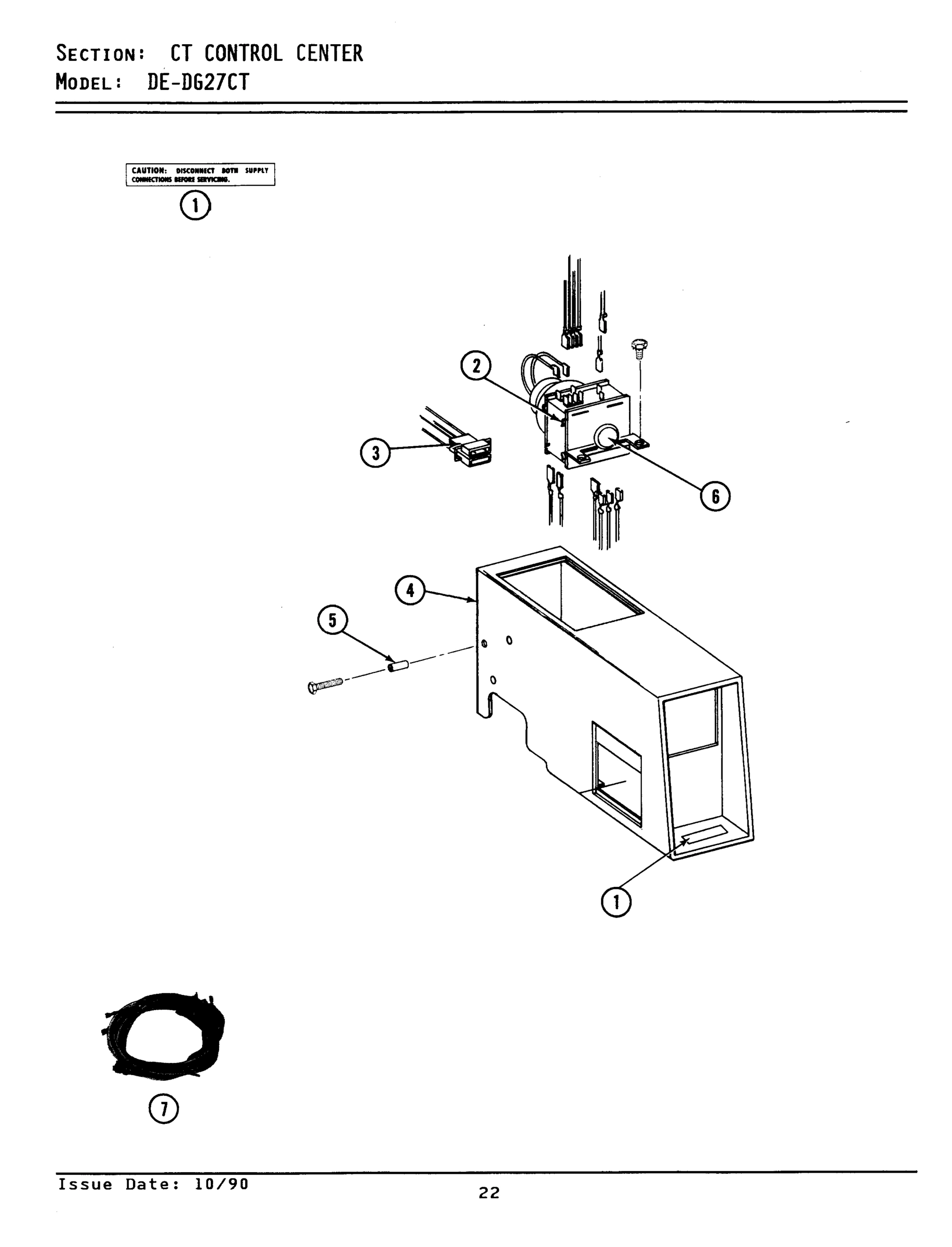

10 - CONTROL CENTER

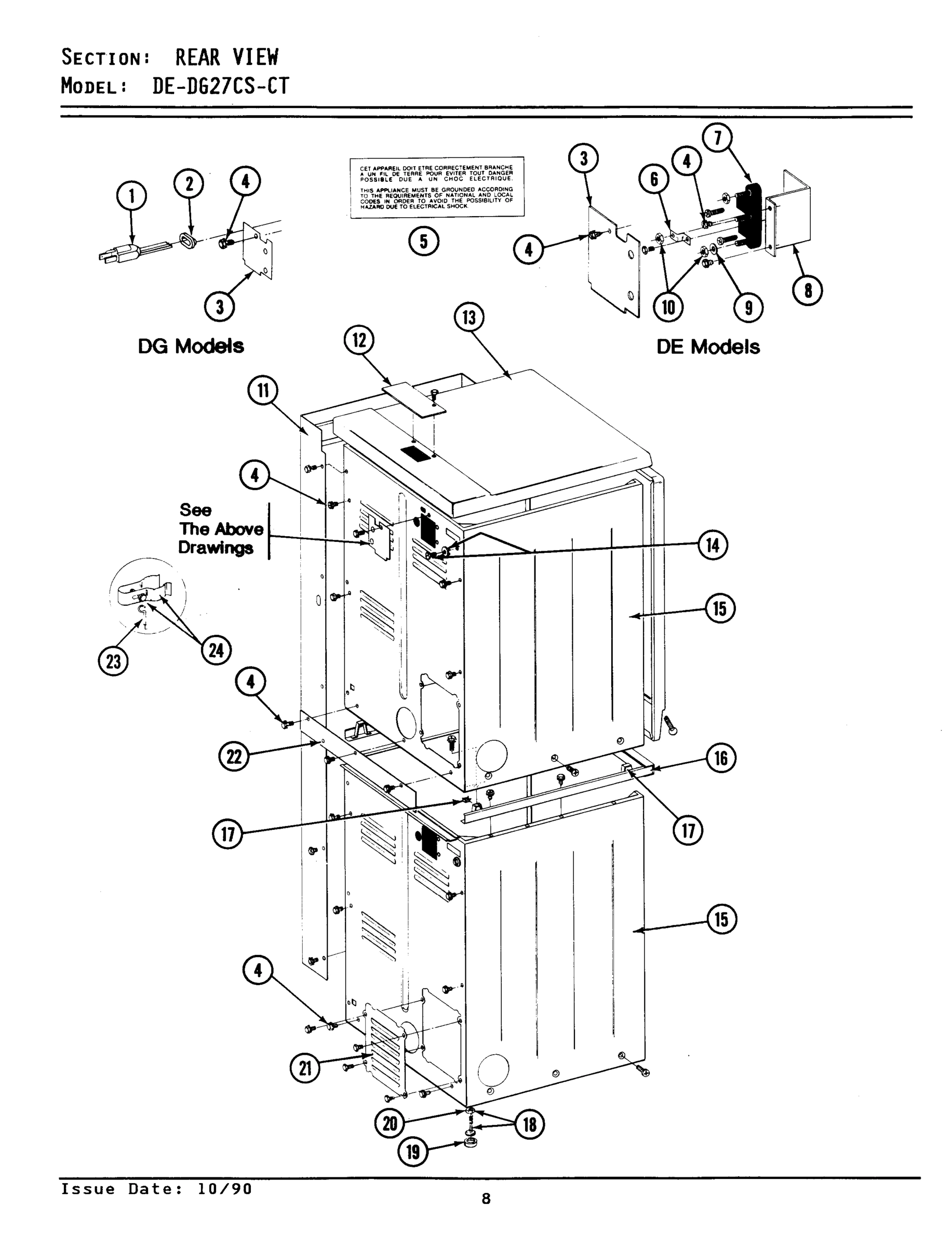

07 - REAR VIEW

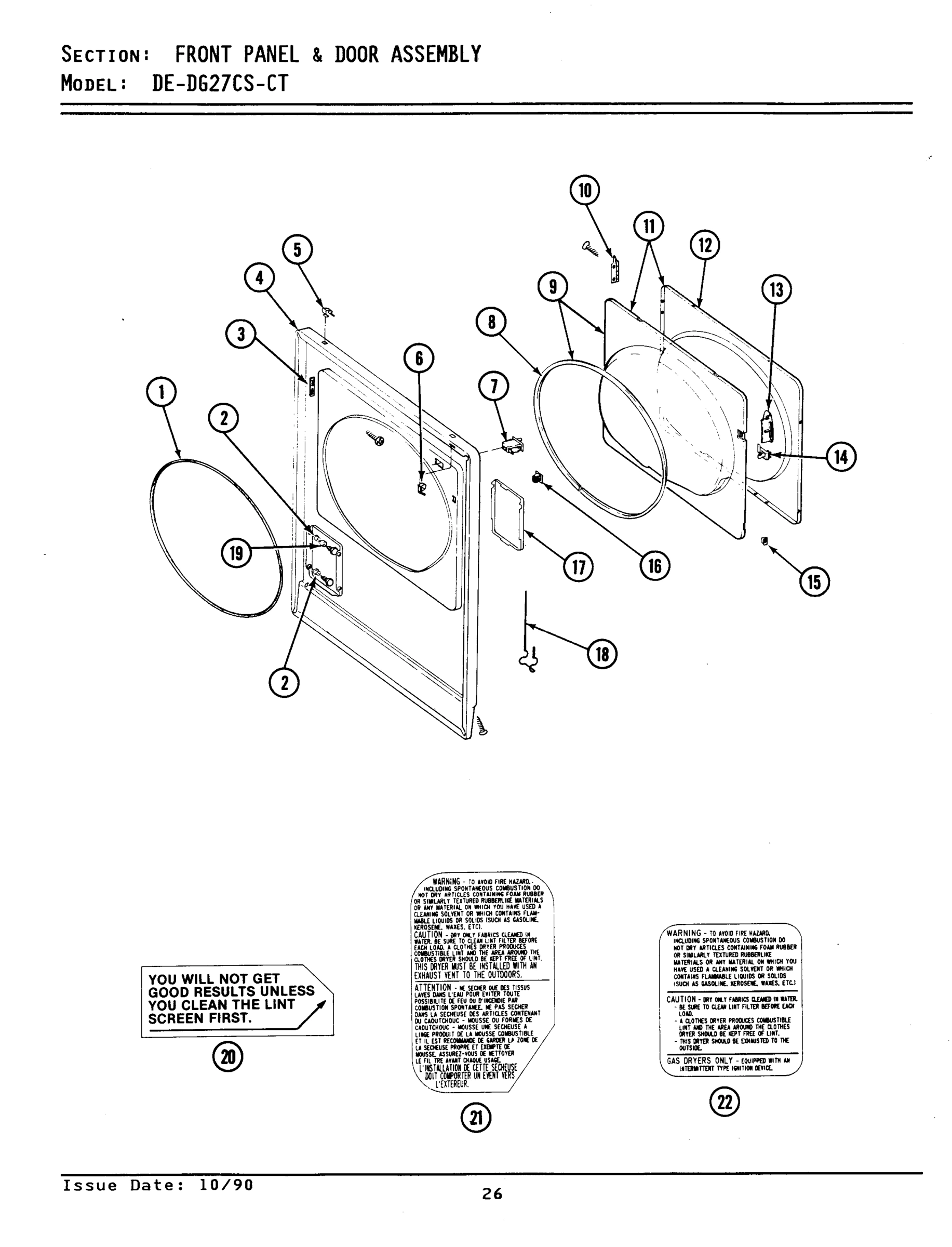

08 - FRONT PANEL & DOOR ASSEMBLY

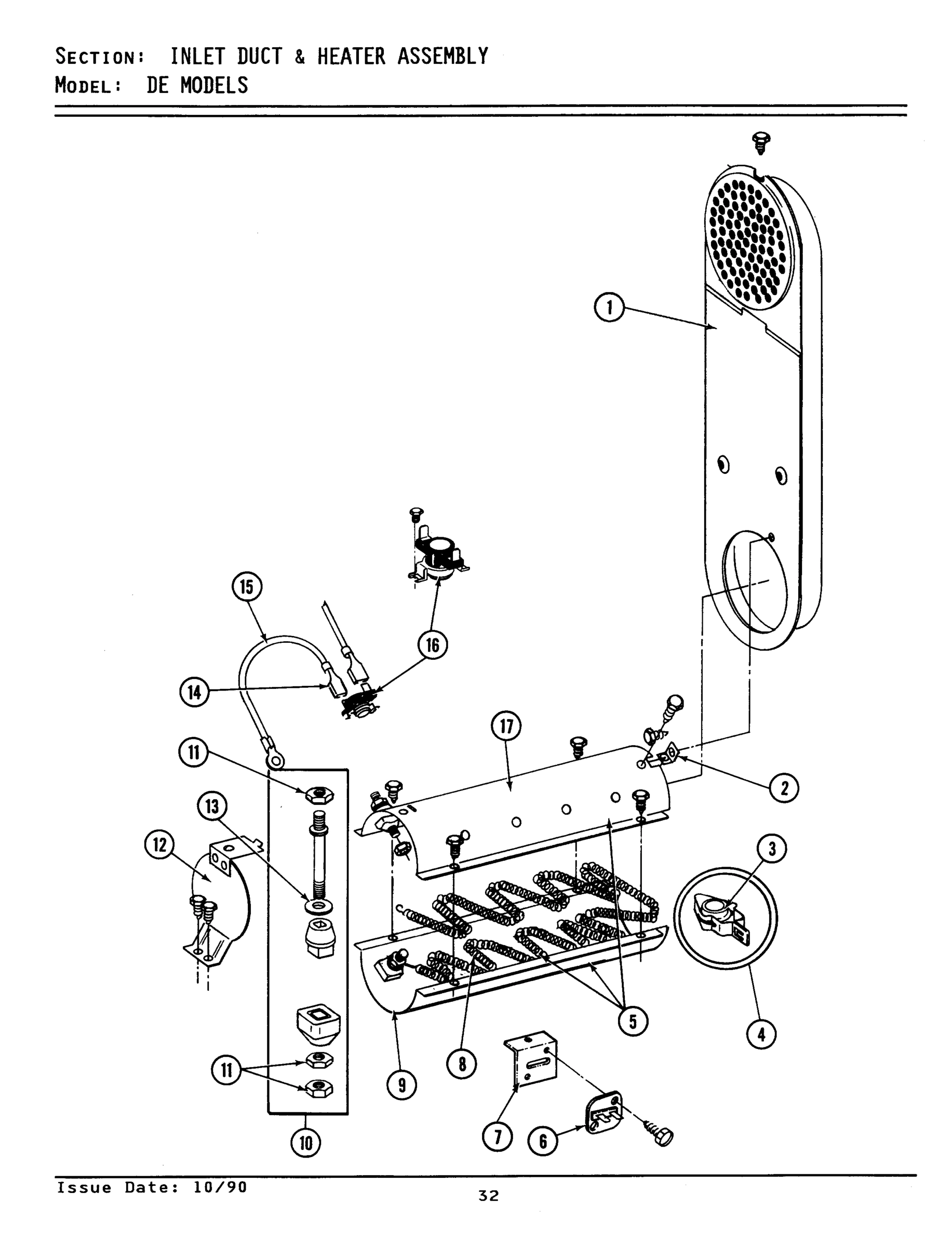

02 - INLET DUCT & HEATER ASSEMBLY

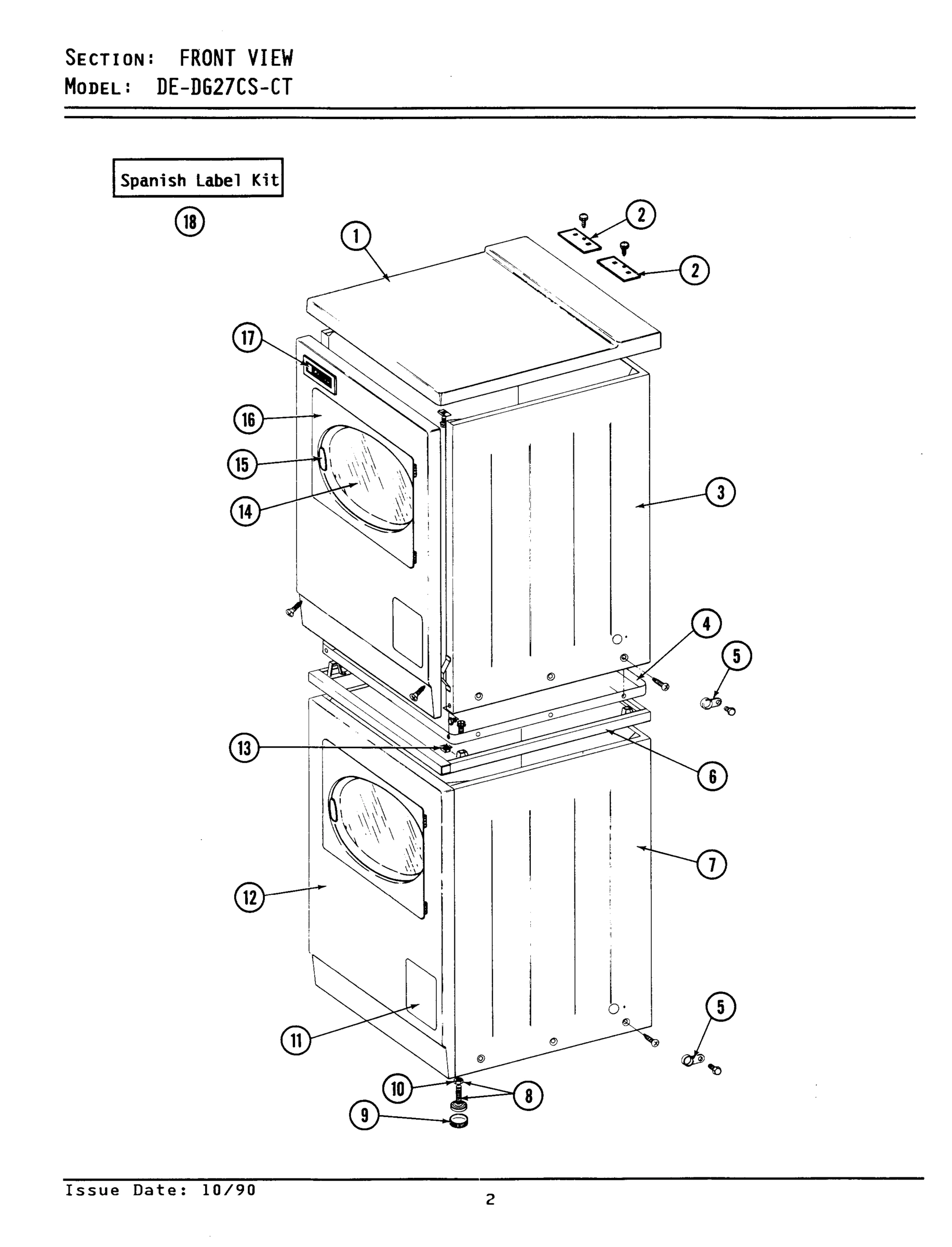

06 - FRONT VIEW
Common parts from model Whirlpool LDE27CT ELECTRIC DRYER
001
SWITCH FOR TICKET CONTROL WPL 204882 Contact Us For Availability
001
INSTRUCTION LABEL WPL Y313439 Contact Us For Availability
001
PART NOT USED WPL 302521 Contact Us For Availability
001
TOP COVER ASSY WPL 307104 Contact Us For Availability
001
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
002
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
002
TIMER WITH KNOB AND PIN WPL 307142 Contact Us For Availability
002
PART NOT USED WPL 211881 Contact Us For Availability
002
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
003
SWITCH LEVER WPL 214218 Contact Us For Availability
003
SCREW WPL 212949 Contact Us For Availability
003
COVER, TERMINAL WPL Y312905 Contact Us For Availability
003
TWIN FASTENER WPL Y313907 Contact Us For Availability
003
INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability
003
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
004
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
004
PART NOT USED WPL 306966 Contact Us For Availability
004
SCREW----NA WPL Y313561 Contact Us For Availability
004
CIRCUIT BOARD WPL 212452 Contact Us For Availability
004
BASE ASSY. WPL Y303361 Contact Us For Availability
004
SCREW, RELAY SWITCH TO BRKT WPL 212950 Contact Us For Availability
004
SWITCH FOR RELAY WPL Y303787 Contact Us For Availability
004
SCREW WPL 314663 Contact Us For Availability
005
THERMOSTAT, MULTI-TEMP WPL 306967 Contact Us For Availability
005
ROLLER FOR CAM WPL 214275 Contact Us For Availability
005
WIRE, GROUND WPL 901220 Contact Us For Availability
005
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
005
SWITCH AND RELAY BRACKET WPL Y314261 Contact Us For Availability
005
CABLE STRAP-HARNESS TO BASE WPL 910768 Contact Us For Availability
005
SCREW WPL Y310842 Contact Us For Availability
005
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
005
HEATER ASSY 240V WPL 307470 Contact Us For Availability
005
HEATER ASSY 208V WPL 307471 Contact Us For Availability
006
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
006
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
006
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
006
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
006
KNOB FOR TIMER WPL 213089 Contact Us For Availability
006
GROOV-PIN WPL Y312300 Contact Us For Availability
006
STRAP, GROUND WPL Y312184 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
PROD. No.3-3358-8 & No.3-3358-9 WPL 306207 Contact Us For Availability
007
SWITCH, MOTOR PROD.No.3-3358-2, No.3-3358-4 & WPL Y303877 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 WPL Y303879 Contact Us For Availability
007
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
007
KNOB FOR SELECTOR SWITCH WPL 205663 Contact Us For Availability
007
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
007
CABINET, LOWER (WHITE) WPL 307125 Contact Us For Availability
007
MOUNTING BRACKET WPL 315046 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
LAMP FOR TICKET CONTROL WPL 202479 Contact Us For Availability
008
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
008
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
008
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
008
DOOR SEAL WPL 314935 Contact Us For Availability
008
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
009
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
009
KNURLED NUT WPL Y312702 Contact Us For Availability
009
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
010
HINGE WPL 307099 Contact Us For Availability
010
SCREW WPL Y314062 Contact Us For Availability
011
SHIELD FOR HEAT LAMP WPL 212533 Contact Us For Availability
011
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
011
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
011
SWITCH CYCLE SEL WPL 307253 Contact Us For Availability
012
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
012
PIPE, VENTING WPL Y059130 Contact Us For Availability
012
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
012
DOOR W/WIN CUT OUT OUTER WHT WPL 314967 Contact Us For Availability
012
HEATER SHIELD WPL 304124 Contact Us For Availability
013
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
013
SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability
013
SOLENOID FOR RELAY ASSEMBLY WPL 305393 Contact Us For Availability
013
FASTENER WPL 310933 Contact Us For Availability
014
CONTACT BALL KIT WPL 203140 Contact Us For Availability
014
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
014
INDICATOR LIGHT WPL 303963 Contact Us For Availability
014
INNER DOOR WPL 308069 Contact Us For Availability
014
WIRE TERMINAL WPL 210745 Contact Us For Availability
015
VAULT PANEL WPL 315037 Contact Us For Availability
015
HANDLE, DOOR (WHITE) WPL 314939 Contact Us For Availability
015
HANDLE, DOOR (ALMOND) WPL 314974 Contact Us For Availability
015
HANDLE, DOOR (HARVEST WHEAT) WPL 314975 Contact Us For Availability
015
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
016
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
016
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
017
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
SPANISH LABEL KIT WPL NLA Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
018
PART NOT USED WPL Y314025 Contact Us For Availability
019
PART NOT USED WPL 312369 Contact Us For Availability
020
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
020
GROMMET FOR CONTROL CENTER WPL Y313671 Contact Us For Availability
020
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
021
PIN RECEPTACLE FOR PLUG WPL 213074 Contact Us For Availability
021
VAULT ASSEMBLY WPL 305534 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
022
SCREW WPL Y310632 Contact Us For Availability
023
COVER FOR CIRCUIT BOARD WPL 311612 Contact Us For Availability
023
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
024
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
024
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
025
GROUND WIRE FOR LATCH WPL Y303981 Contact Us For Availability
026
ELECTRONIC CONTROL WPL 202477 Contact Us For Availability
027
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
028
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
029
TICKET CONTROL WPL 202509 Contact Us For Availability
029
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
× ![]()
