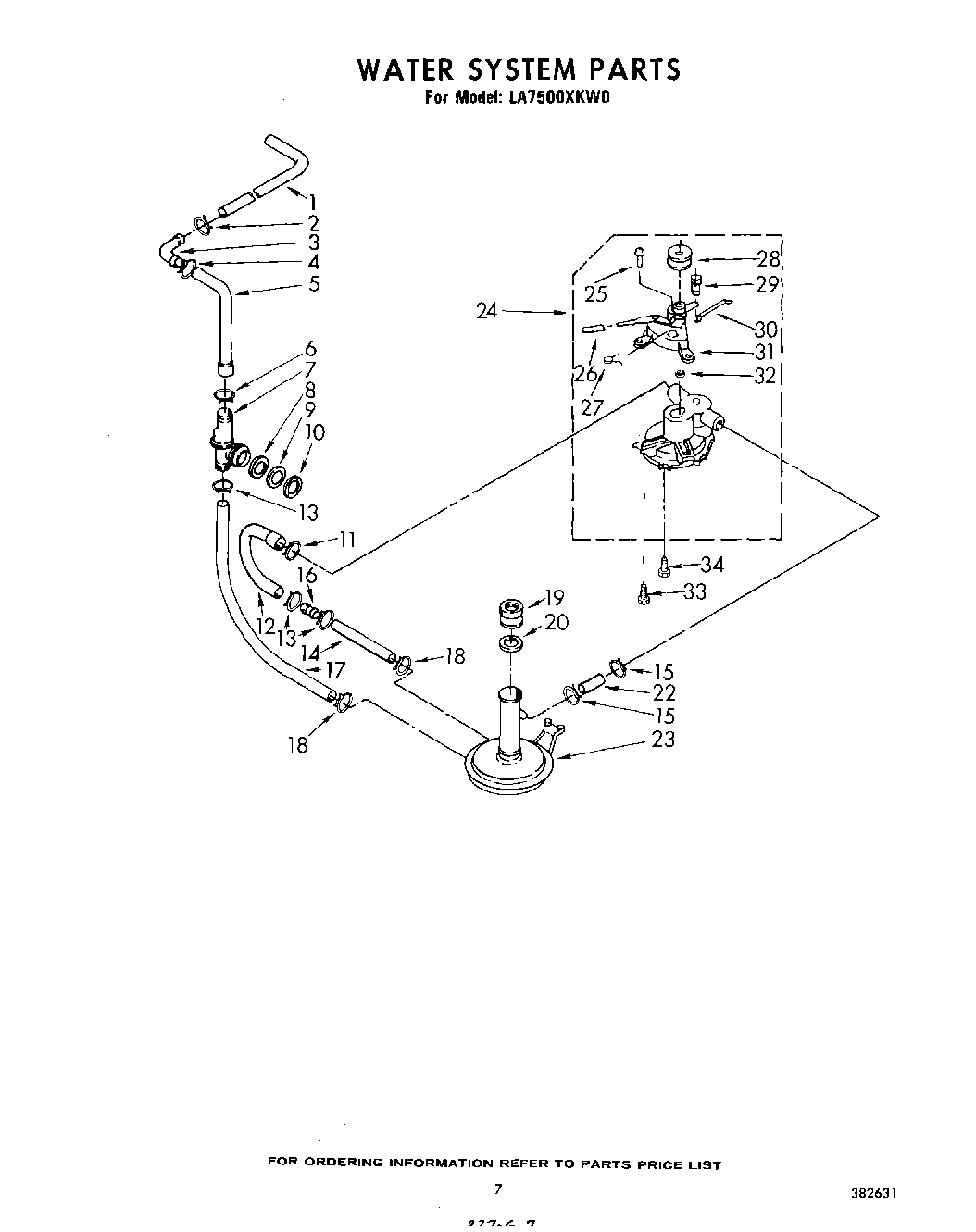

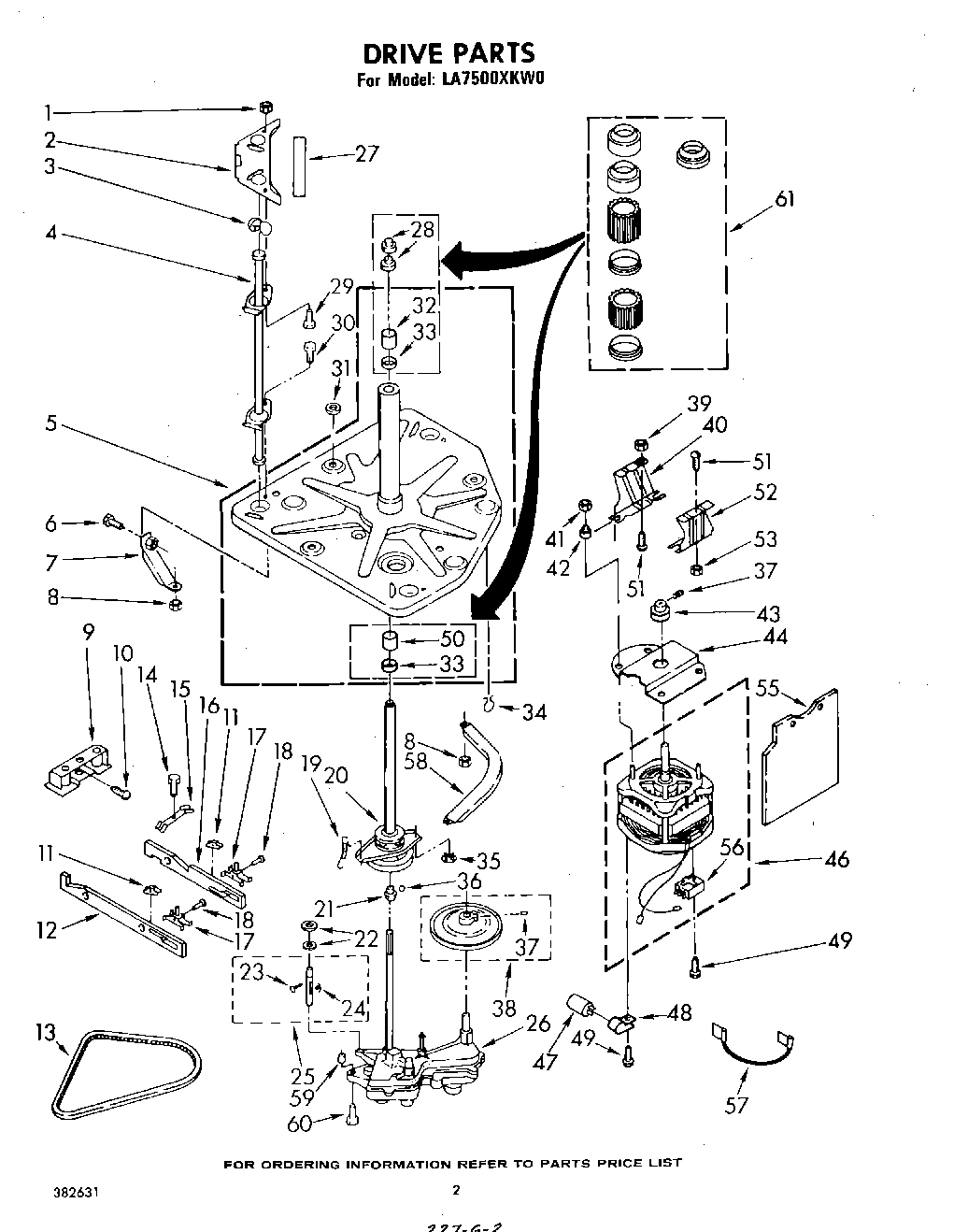

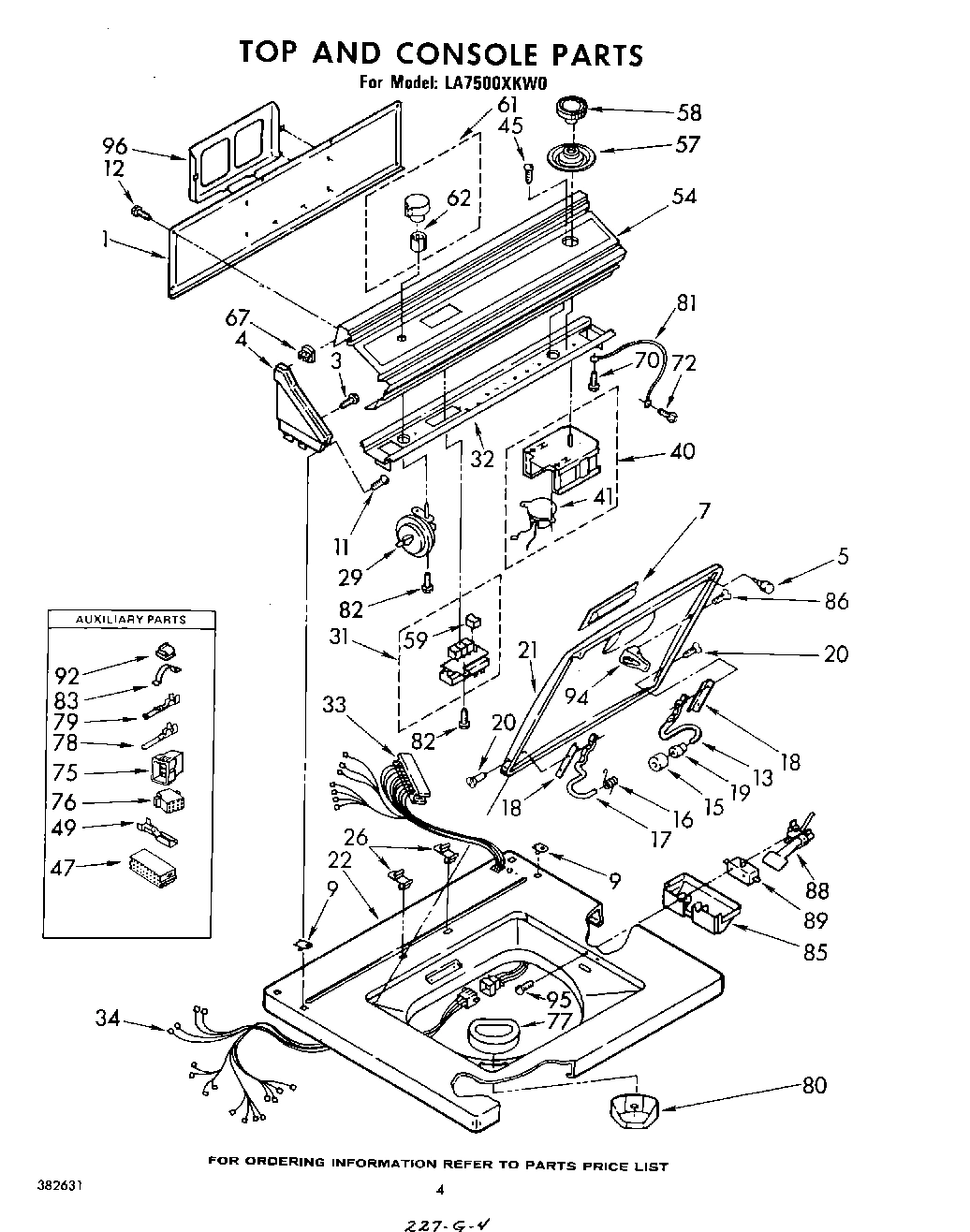

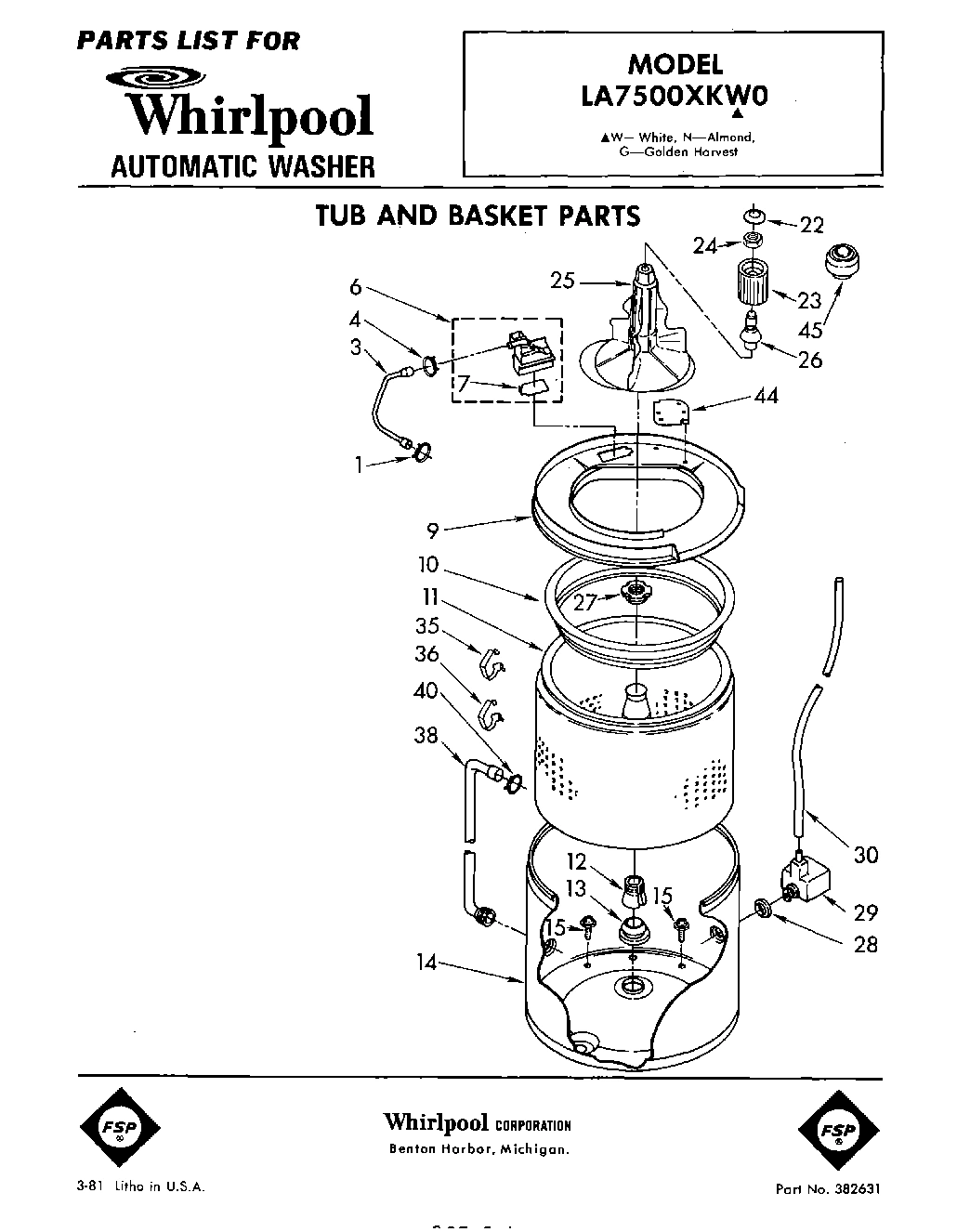

Model Whirlpool LA7500XKW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

1

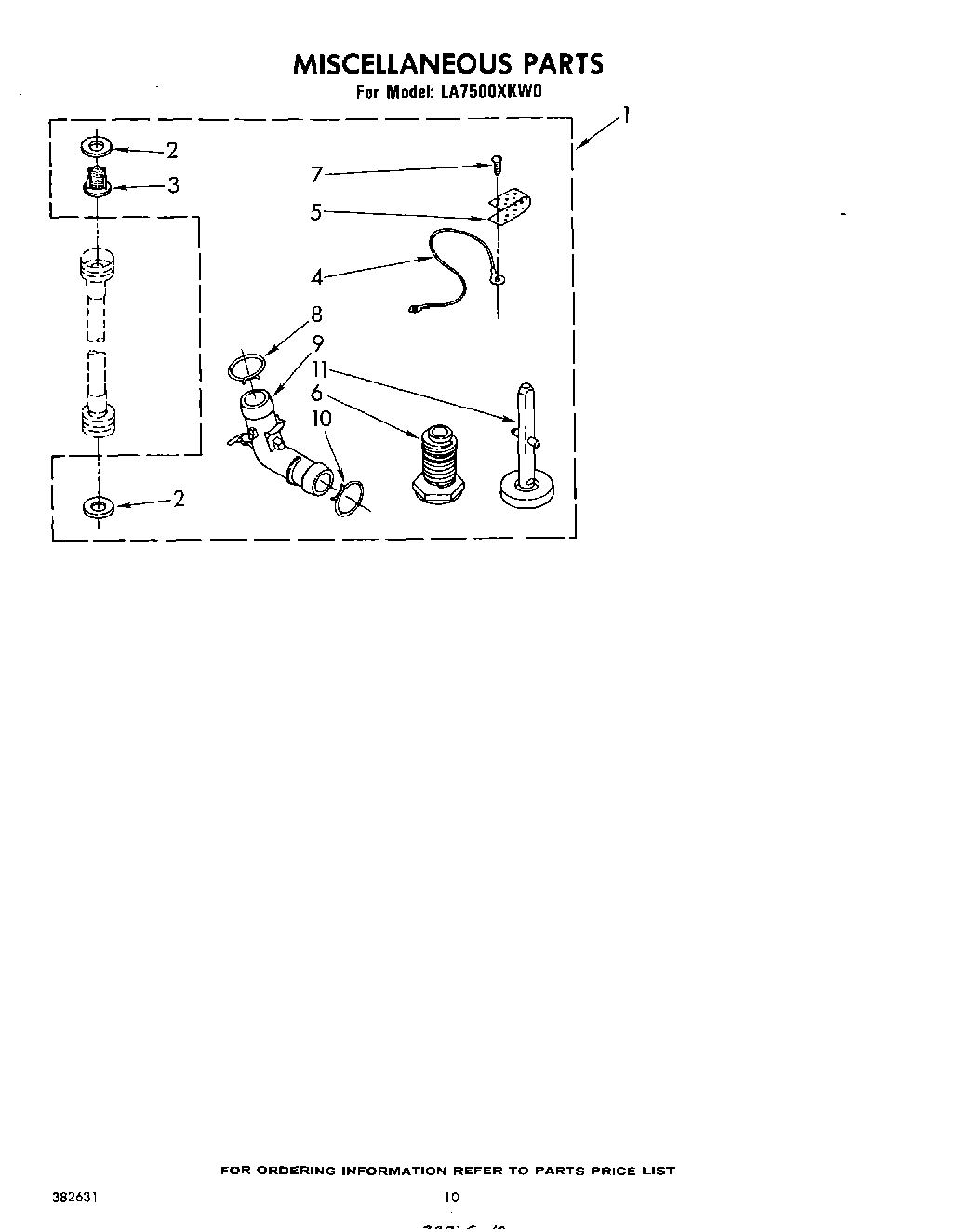

Miscellaneous Parts Bag WPL 375962 Contact Us For Availability

1

Panel, Rear Console WPL 359372 Contact Us For Availability

1

Hose, Gooseneck WPL 96865 Contact Us For Availability

2

Cover, Rear Gusset (2) WPL 352143 Contact Us For Availability

2

Cover, Front Gusset WPL 353230 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

Wire, Ground WPL 364089 Contact Us For Availability

4

Rod, Suspension (3) WPL 359678 Contact Us For Availability

4

Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability

4

Cap, End L.H. (White) WPL 375309 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability

4

Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability

4

Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability

5

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

5

Strap, Ground WPL 22965 Contact Us For Availability

5

Baseplate & Centerpost WPL 359721 Contact Us For Availability

5

Hose WPL 96816 Contact Us For Availability

6

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

6

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

6

Inlet, Water WPL 366072 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

7

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

7

Handle, Lid (White) WPL 379884 Contact Us For Availability

7

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

7

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

7

Valve, Side Check WPL 88677 Contact Us For Availability

8

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $7.72

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

8

Washer, Rubber WPL 92235 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

9

Connector, Hose WPL 95440 Contact Us For Availability

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Ring, Tub (Includes Illus. 44) WPL 381971 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

9

Washer, Fiber WPL 92232 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

Seal, Tub Ring WPL 355850 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

Nut, Spanner WPL 92229 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

Basket WPL 359705 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Guide, Laundry WPL 358770 Contact Us For Availability

Sheet, Installation Instructions WPL 372847 Contact Us For Availability

Label, Energy Guide WPL 382282 Contact Us For Availability

Instructions, Operating WPL 382607 Contact Us For Availability

List, Repair Parts WPL 382631 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

Screw, 8-18 WPL 358225 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

Cam, Bar Spin WPL 354838 Contact Us For Availability

Panel, Rear WPL 85279 Contact Us For Availability

Hose WPL 355152 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

WP95405 Whirlpool Belt In Stock WPL WP95405 $30.67

Clamp, Hose WPL 272857 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

Tub WPL 359665 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

Hose, Pump To Filter WPL 356167 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

Spring, Brake WPL 94726 Contact Us For Availability

Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability

Bumper, Lid Hinge WPL 91605 Contact Us For Availability

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Spring, Lid (L.H.) WPL 92398 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

Plunger WPL 84866 Contact Us For Availability

Hinge, L.H. WPL 91099 Contact Us For Availability

Hose WPL 355151 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

Rivet WPL 354959 Contact Us For Availability

Plate, Gusset (2) WPL 356459 Contact Us For Availability

19

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

19

Spring, Brake Yoke WPL 17261 Contact Us For Availability

19

Hose WPL 93553 Contact Us For Availability

20

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

20

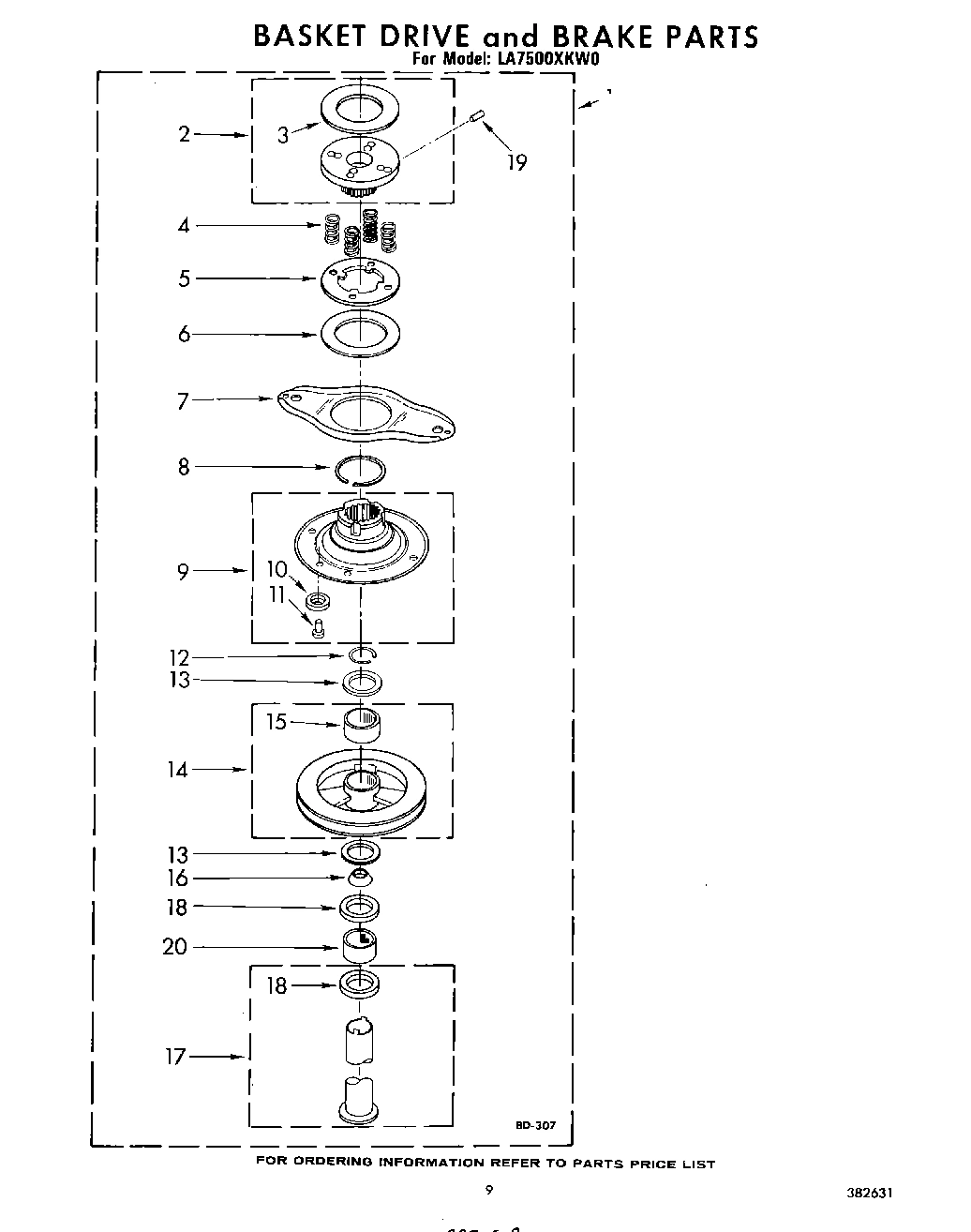

Basket Drive & Brake (For Further Breakdown R WPL 359699 Contact Us For Availability

20

Clamp, Hose WPL 9421321 Contact Us For Availability

Support, Spin Tube WPL 358586 Contact Us For Availability

Lid (White) WPL 379969 Contact Us For Availability

Lid (Almond) WPL 379970 Contact Us For Availability

Lid (Golden Harvest) WPL 379973 Contact Us For Availability

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $4.55

Insert, Agitator Cap WPL 358774 Contact Us For Availability

Top (White) WPL 380283 Contact Us For Availability

Top (Almond) WPL 380284 Contact Us For Availability

Top (Golden Harvest) WPL 380287 Contact Us For Availability

Hose, Pump To Manifold WPL 92231 Contact Us For Availability

23

Cap, Agitator WPL 356863 Contact Us For Availability

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Manifold & Filter Assembly WPL 363358 Contact Us For Availability

24

350365 Whirlpool Dryer Washer Water Pump, 2-P Backorder WPL 350365 $125.99

24

Nut, Lock WPL 357732 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

Agitator Assembly WPL 358370 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

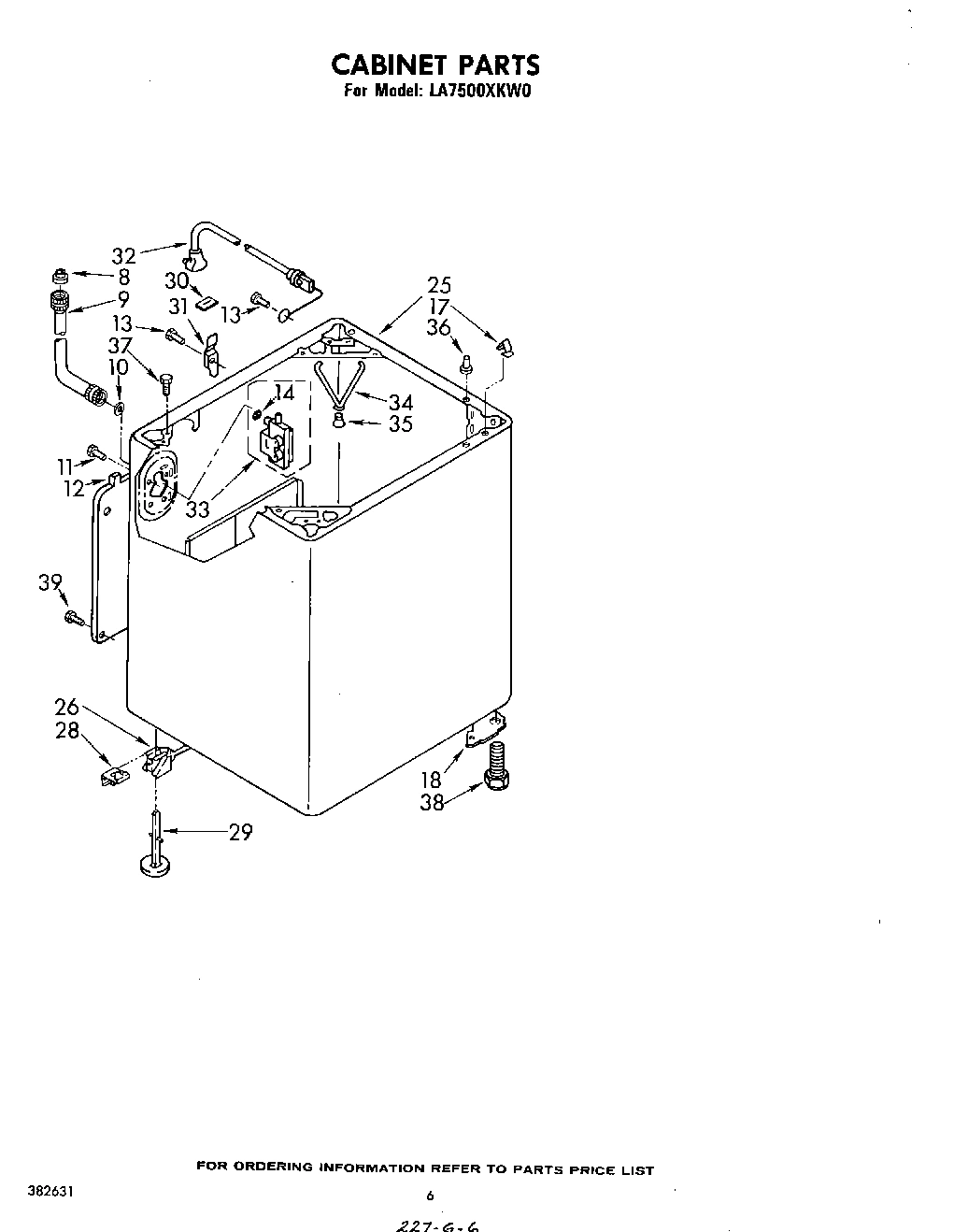

Cabinet (White) WPL 379101 Contact Us For Availability

Cabinet (Almond) WPL 379102 Contact Us For Availability

Cabinet (Golden Harvest) WPL 379105 Contact Us For Availability

WP359364 Whirlpool Clip In Stock WPL WP359364 $4.96

Stud & Washer Assembly WPL 369516 Contact Us For Availability

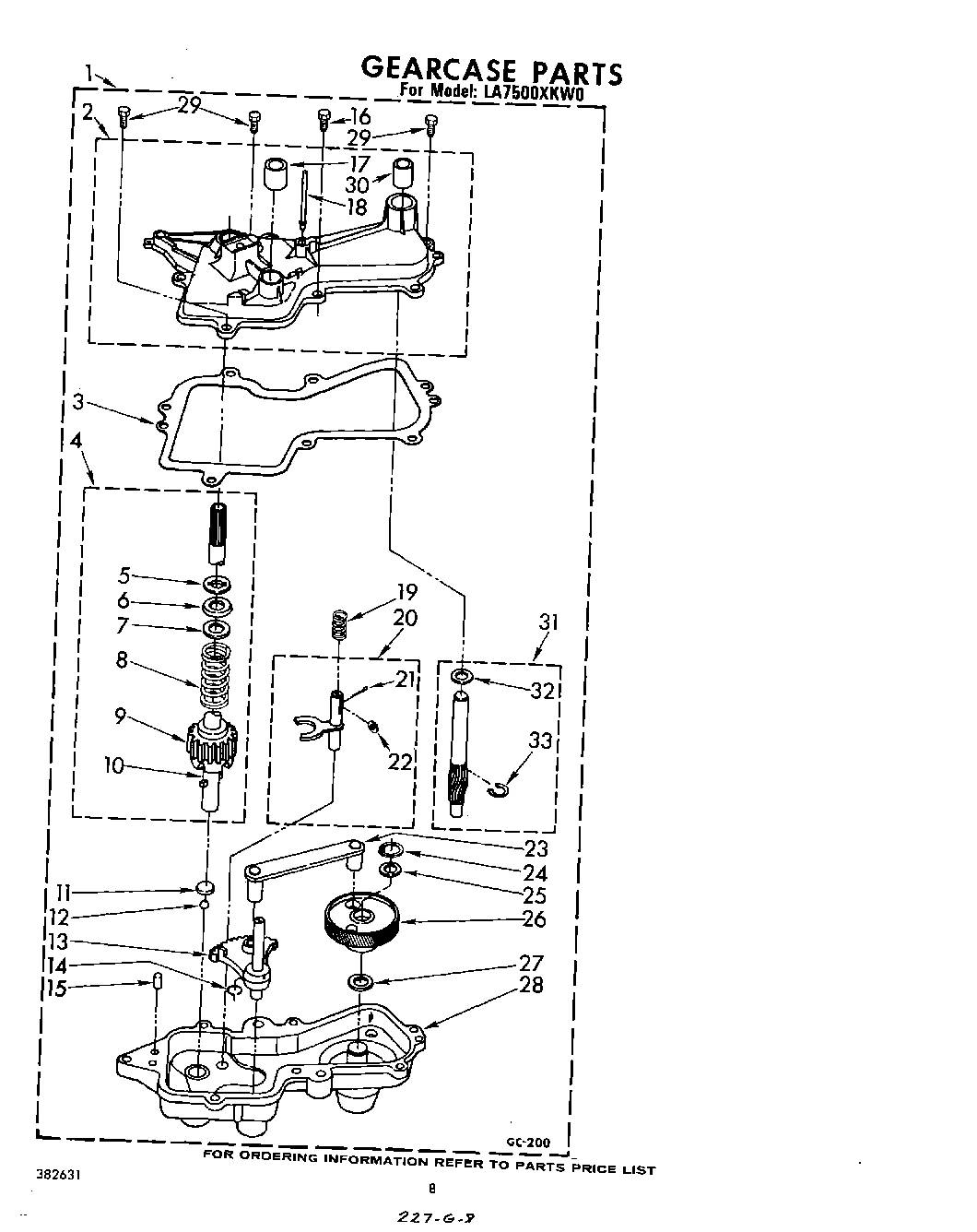

Gearcase For Further Breakdown Refer To Page WPL 358483 Contact Us For Availability

Stop, Push-In Top (2) WPL 358472 Contact Us For Availability

Sleeve WPL 96175 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

27

Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability

27

Spring, Toggle WPL 96266 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

Seal WPL 351830 Contact Us For Availability

Leveling Link Assembly WPL 359059 Contact Us For Availability

Pulley WPL 16113 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $8.99

Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

Switch, Water Level WPL 359711 Contact Us For Availability

Lever, Valve WPL 355538 Contact Us For Availability

18849 Whirlpool Pad Backorder WPL 18849 $13.10

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

Rod, Connecting WPL 96264 Contact Us For Availability

Pinion, Drive WPL 84467 Contact Us For Availability

Gasket, Tub (7) WPL 17235 Contact Us For Availability

Switch, Water Temperature WPL 358553 Contact Us For Availability

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

Block, Bearing WPL 87290 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

Washer, Drive Pinion WPL 16024 Contact Us For Availability

Bracket, Control WPL 359707 Contact Us For Availability

Cord, Power (120 Volt) WPL 92667 Contact Us For Availability

Wick, Oil WPL 96265 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

386011 Whirlpool Screw Backorder WPL 386011 $30.26

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

Harness, Console WPL 359325 Contact Us For Availability

Valve, Mixing (Alternate) (Serviced Only As C WPL 358971 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $12.46

Harness, Base WPL 358116 Contact Us For Availability

Spring, Snubber WPL 357977 Contact Us For Availability

Screw, 5/16-18 x 1-3/8 WPL 355612 Contact Us For Availability

35

Clip, Tub Ring (1) WPL 359689 No Longer Available

35

Snubber WPL 358336 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Clip, Tub Ring (1) WPL 359690 No Longer Available

36

Ball WPL 358585 Contact Us For Availability

36

Locator, Top (2) WPL 98669 Contact Us For Availability

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

38

Hose, Dispenser WPL 352978 Contact Us For Availability

38

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

40

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

40

Timer Assembly, 60 Hz. (Mallory (Alternate)) WPL 380265 Contact Us For Availability

40

Timer Assembly, 60 Hz. (C.C.A. (Alternate)) WPL 380269 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

41

Motor, Timer (60 Hz.) (Use W/C.C.A. Timer) WPL 362681 Contact Us For Availability

41

Motor, Timer (60 Hz.) (Use W/Mallory Timer) WPL 365941 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

Pulley, Motor WPL 92216 Contact Us For Availability

44

Plate, Snubber WPL 355852 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

45

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

45

Dispenser, Rinse WPL 88932 Contact Us For Availability

46

Motor (Emerson) (Alternate) 60 Hz. WPL 357822 Contact Us For Availability

46

Motor (General Electric) (Alternate) 60 Hz. WPL 370653 Contact Us For Availability

47

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

47

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

48

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

49

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

49

Terminal, Female WPL 352088 Contact Us For Availability

50

WPL 354195 WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

Panel, Control WPL 382416 Contact Us For Availability

55

WPL 359719 WPL 359719 Contact Us For Availability

56

WPL 359642 WPL 359642 Contact Us For Availability

56

WPL 362738 WPL 362738 Contact Us For Availability

57

WPL 370950 WPL 370950 Contact Us For Availability

57

Dial, Timer WPL 359254 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

58

Knob, Timer WPL 359206 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

59

Push Button (4) WPL 301008 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

61

WPL 285134 WPL 285134 Contact Us For Availability

61

Knob Assembly, Water Level WPL 690301 Contact Us For Availability

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

67

Clip, End Cap (4) WPL 689559 Contact Us For Availability

75

Cap, Terminal ( WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

77

WPL 352821 WPL 352821 Contact Us For Availability

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

80

WPL 352827 WPL 352827 Contact Us For Availability

81

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $59.13

82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

83

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

86

WPL 354975 WPL 354975 Contact Us For Availability

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

92

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

94

WPL 357633 WPL 357633 Contact Us For Availability

95

WPL 354764 WPL 354764 Contact Us For Availability

96

WPL 357645 WPL 357645 Contact Us For Availability
