Model Whirlpool LA7005XPW0 AUTOMATIC WASHER – Common Parts & Diagrams

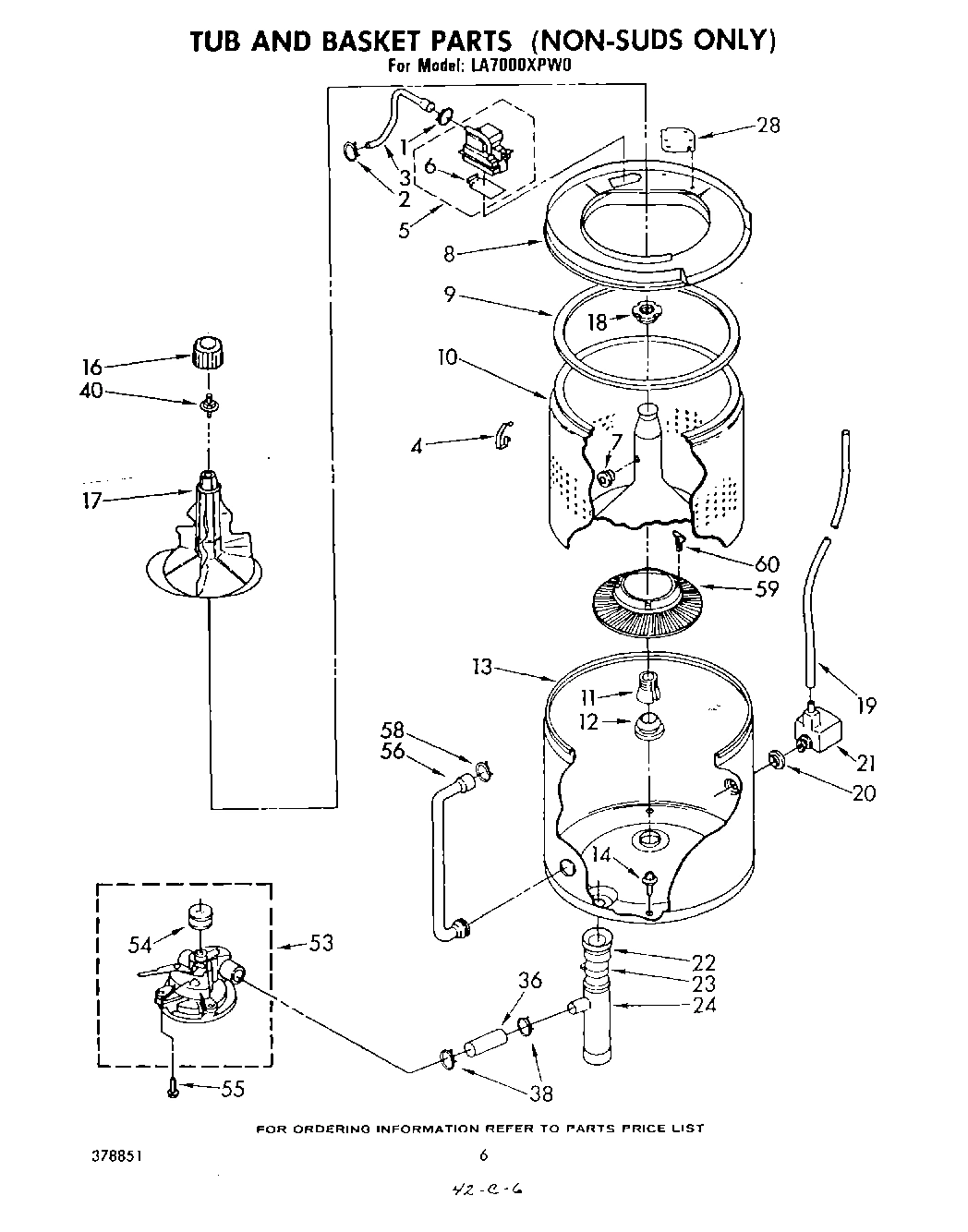

05 - TUB AND BASKET (NON-SUDS)

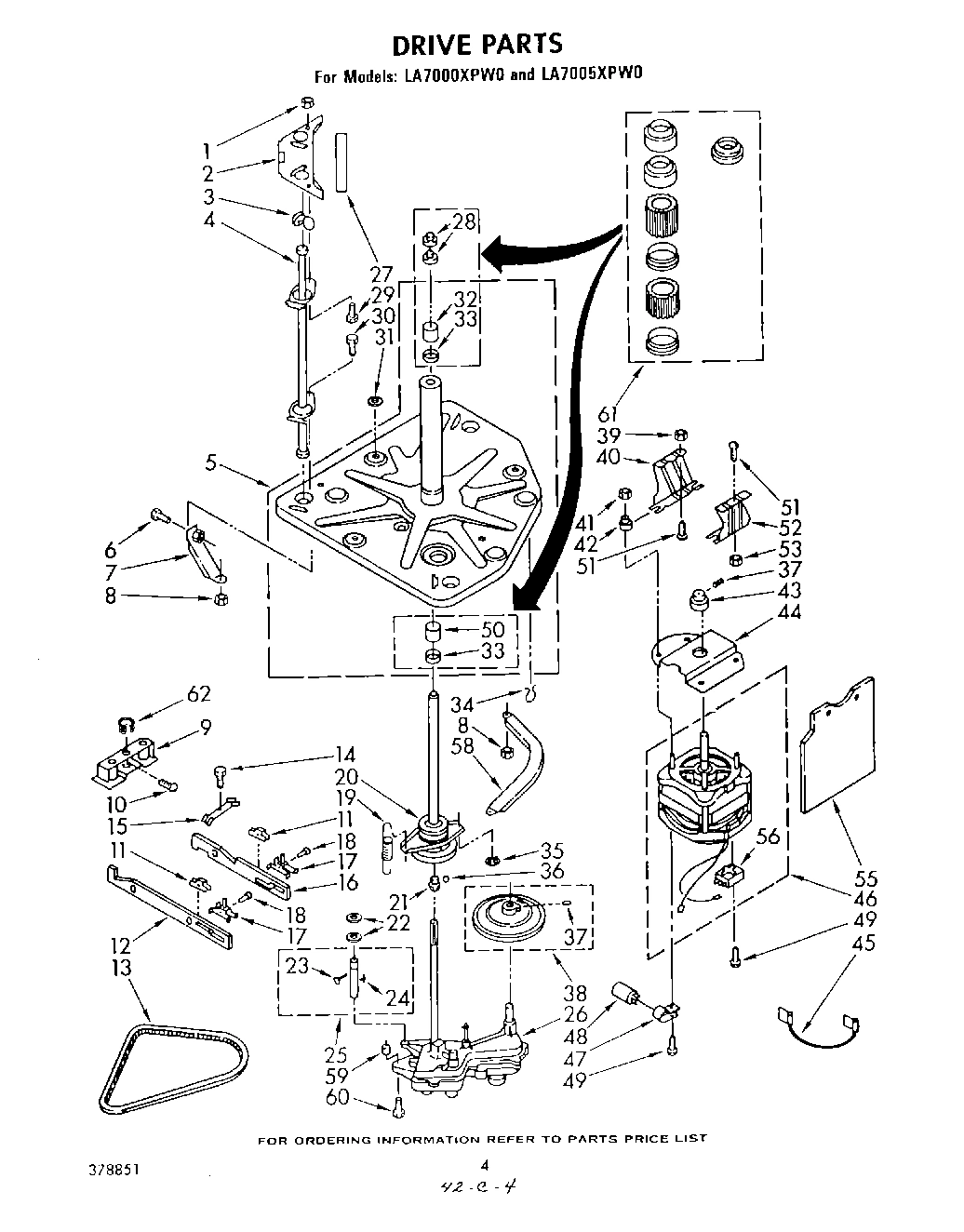

03 - DRIVE

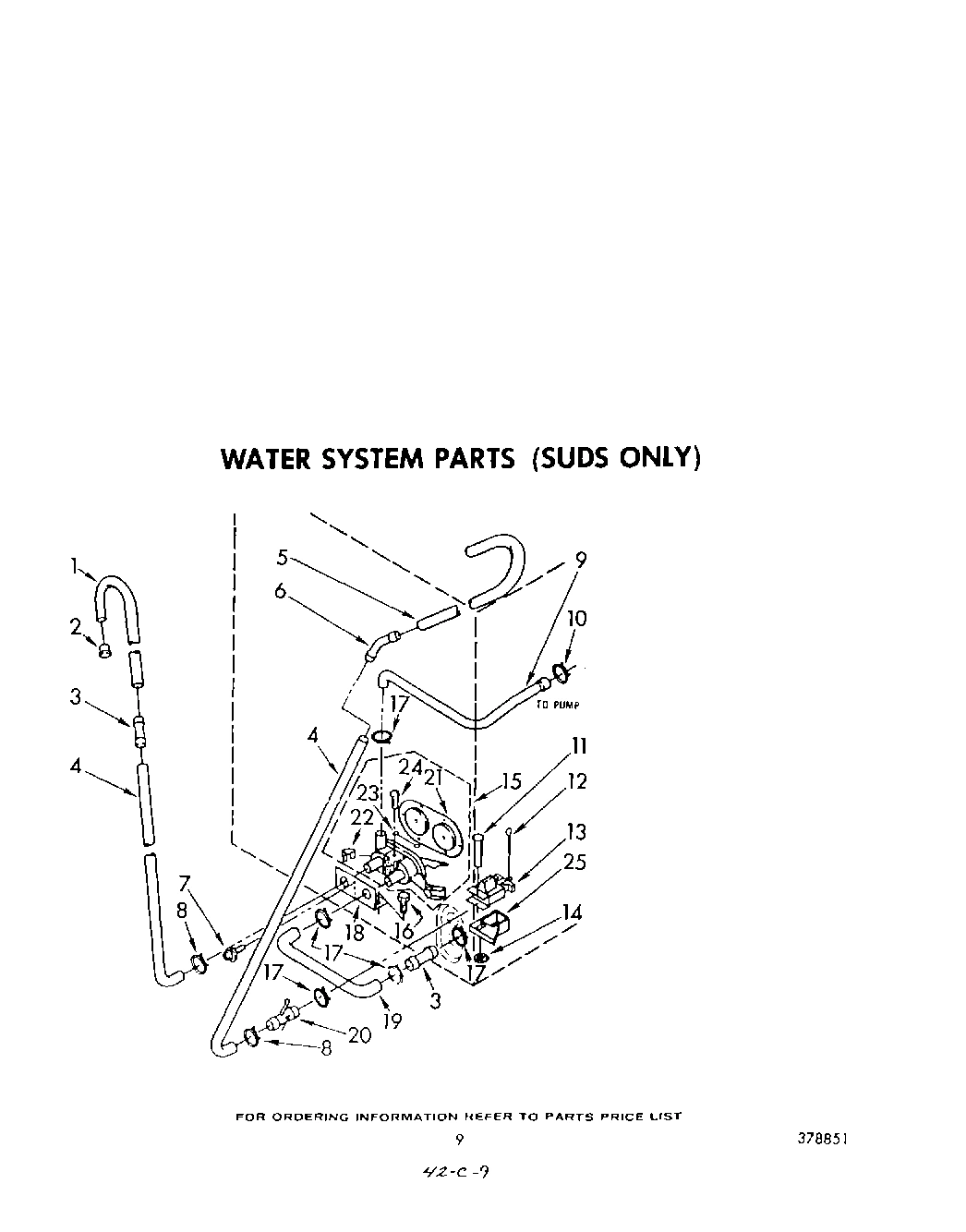

07 - WATER SYSTEM

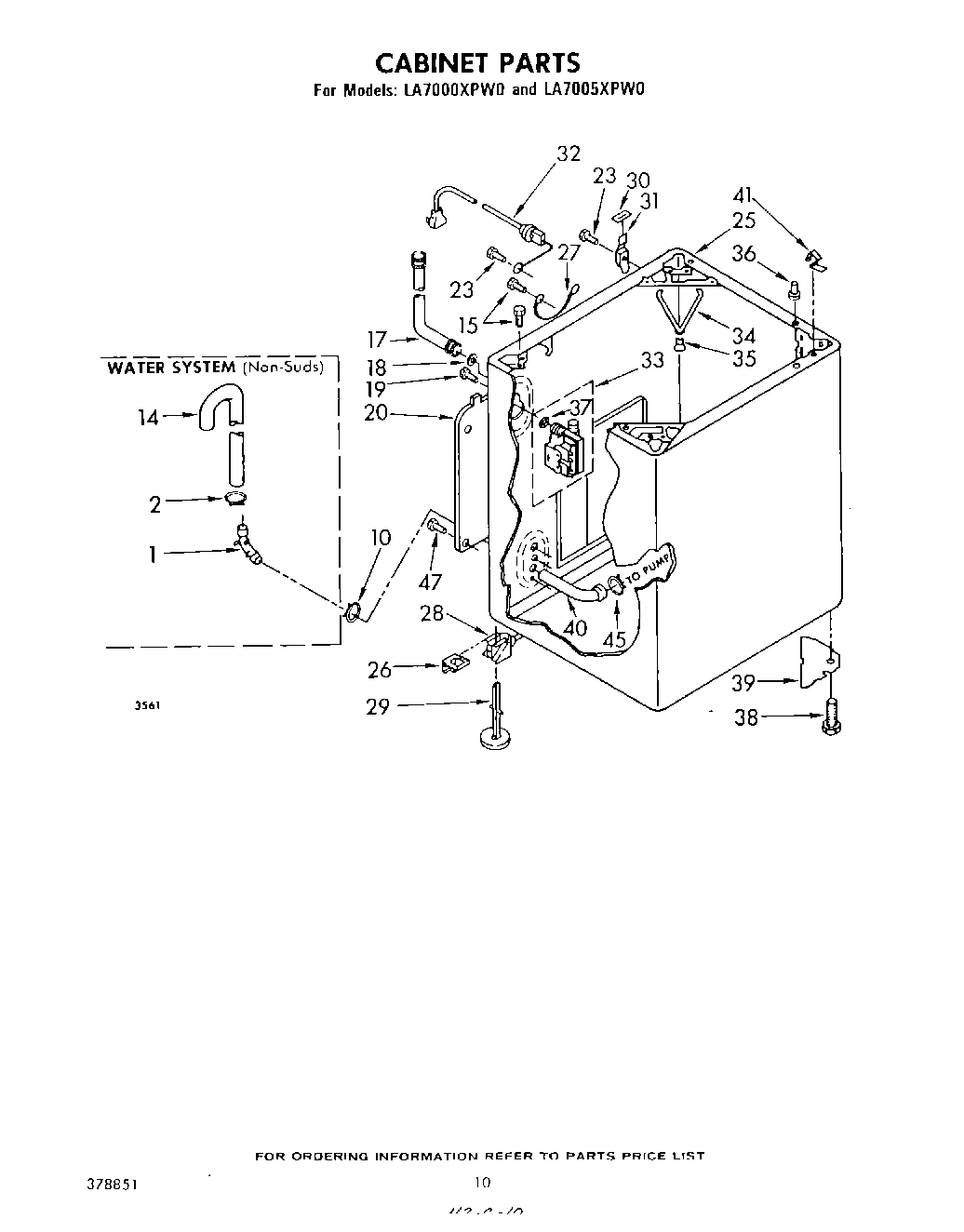

08 - CABINET

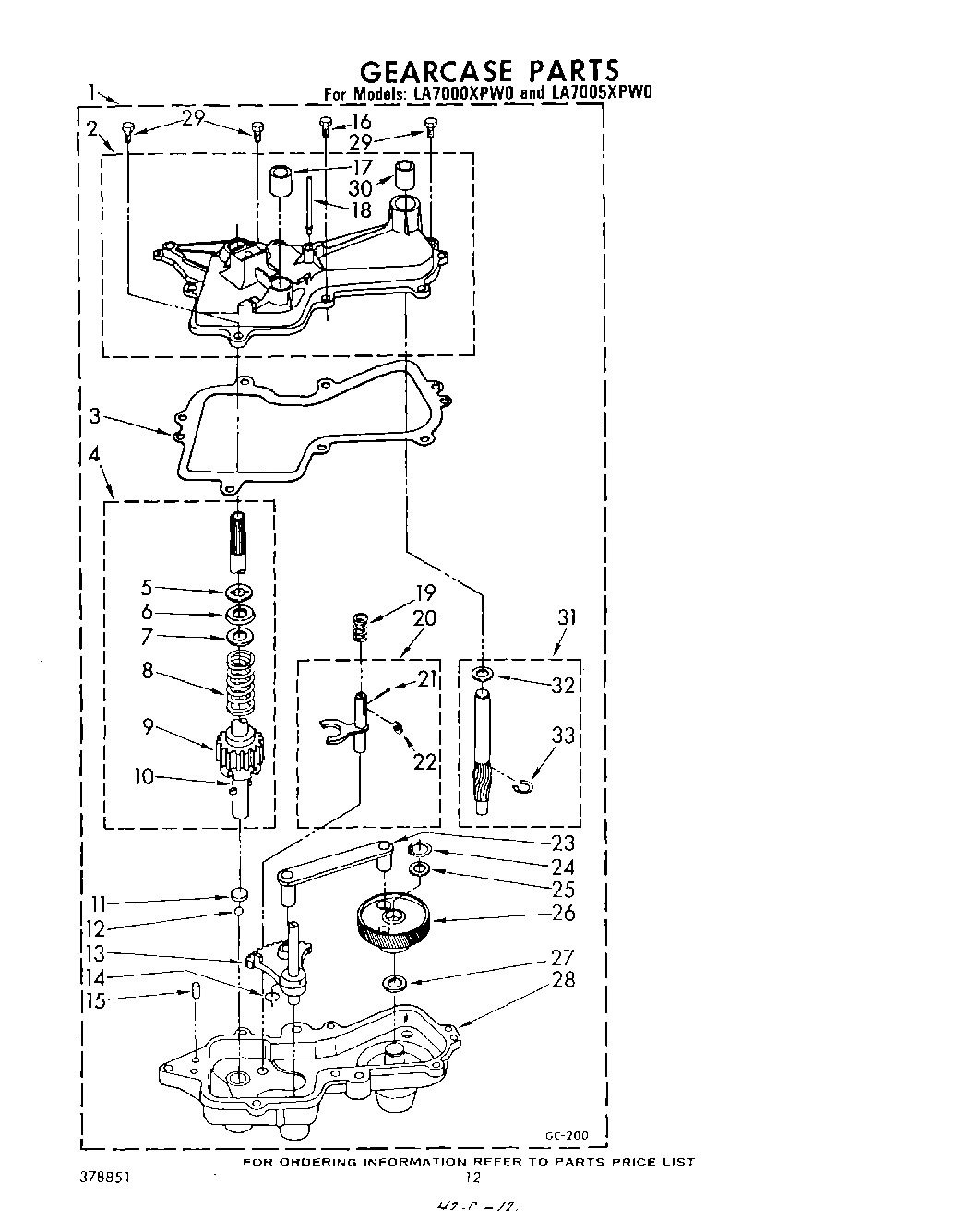

10 - GEARCASE

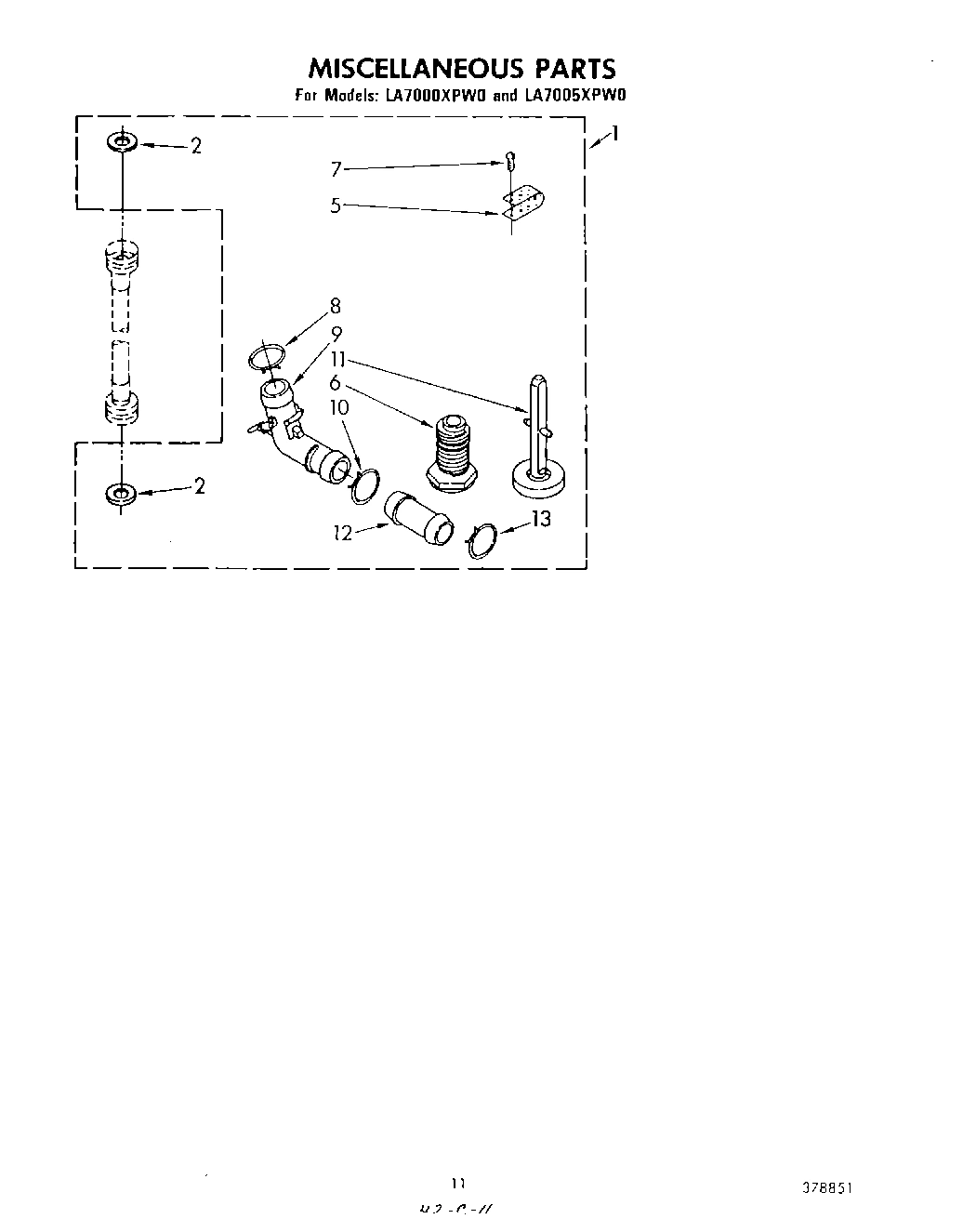

09 - MISCELLANEOUS , LITERATURE AND OPTIONAL

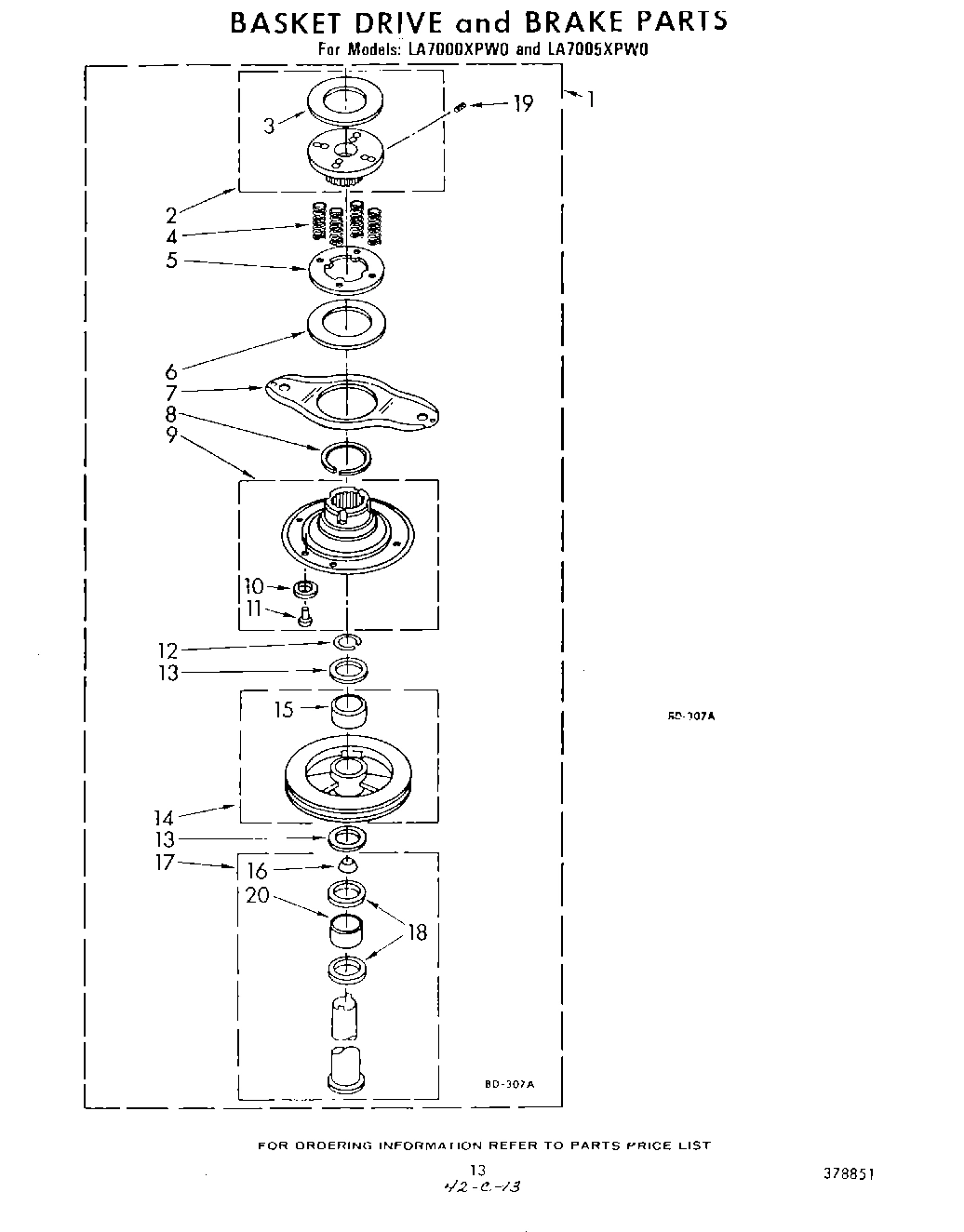

11 - BASKET DRIVE AND BRAKE

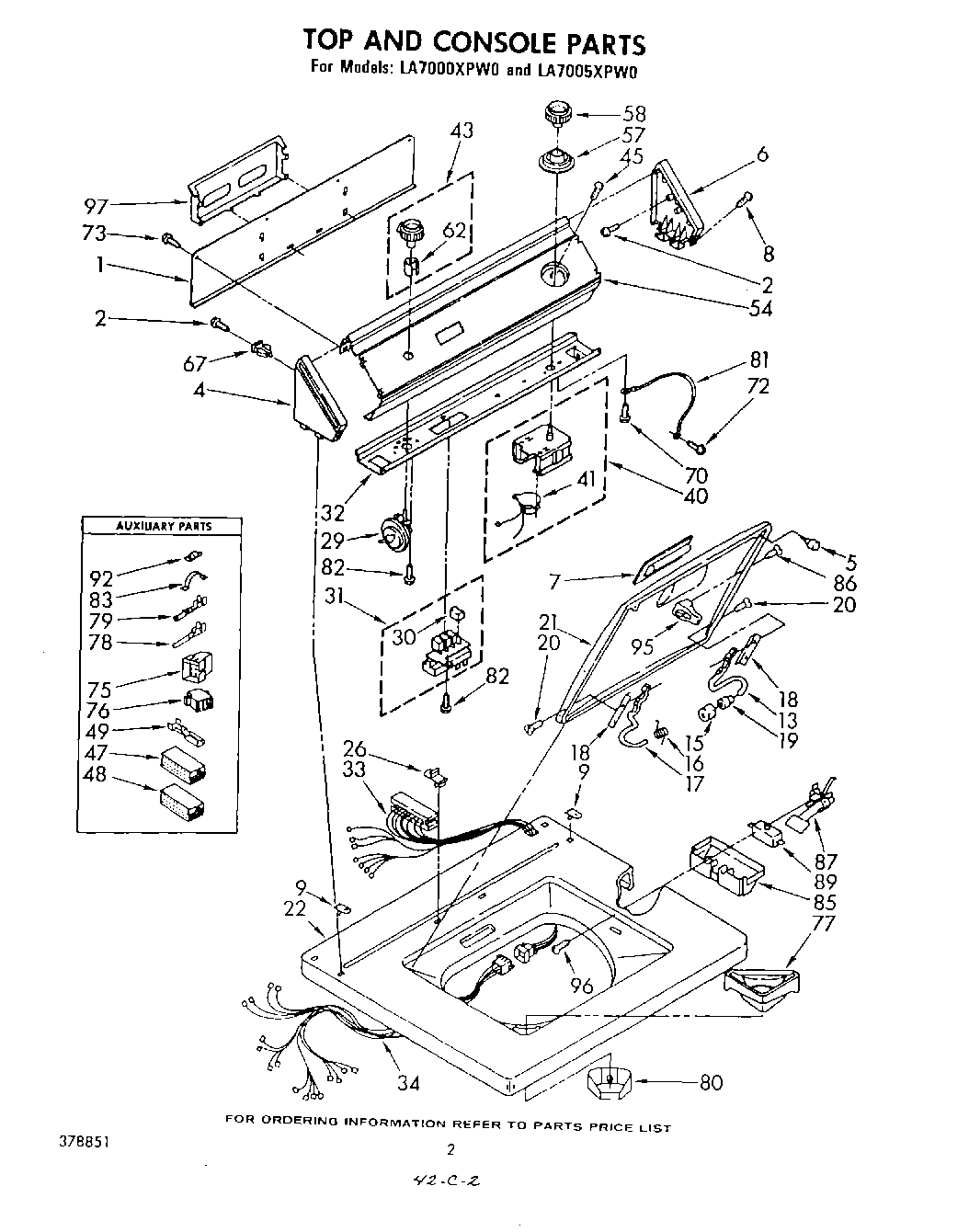

02 - TOP AND CONSOLE

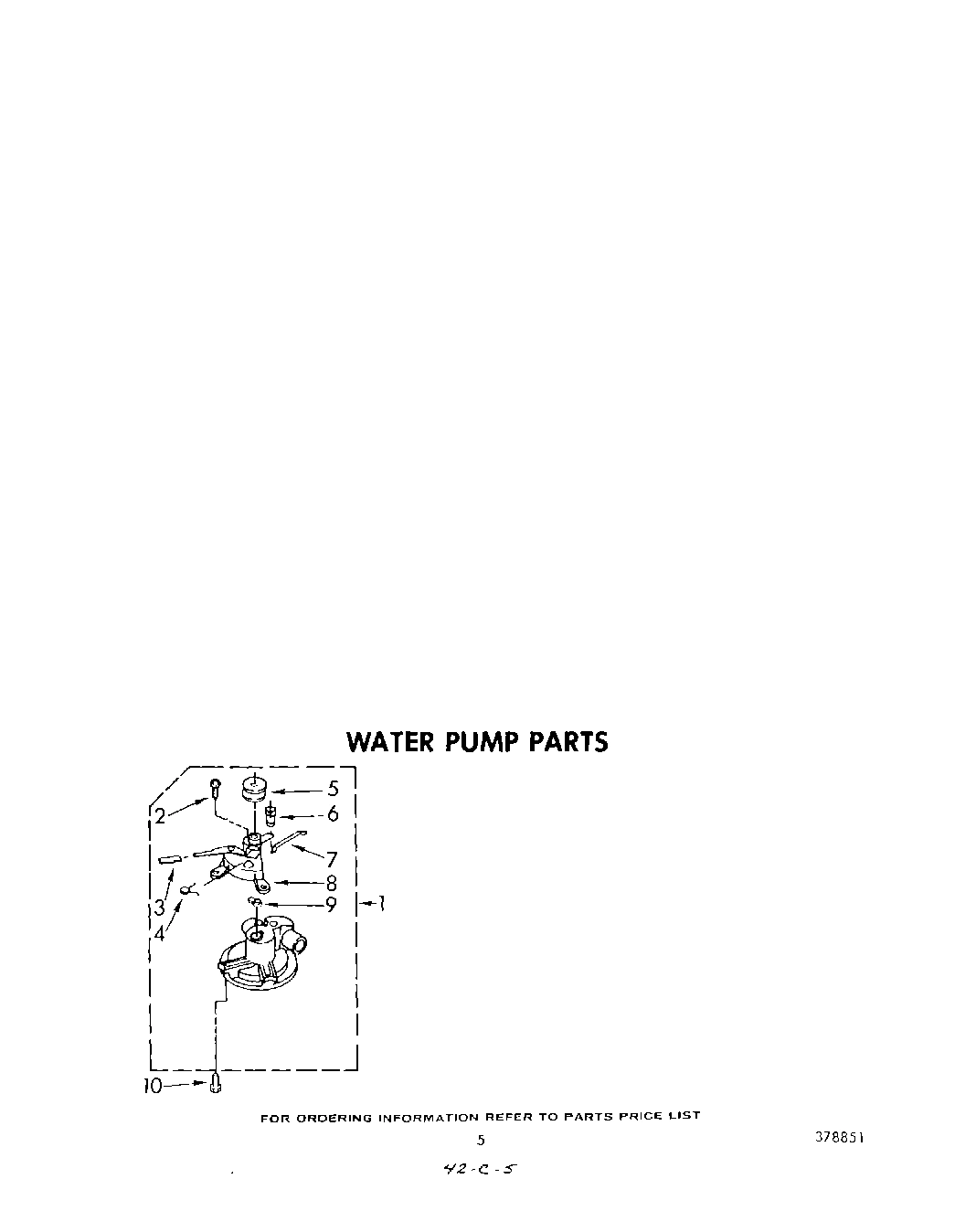

04 - WATER PUMP

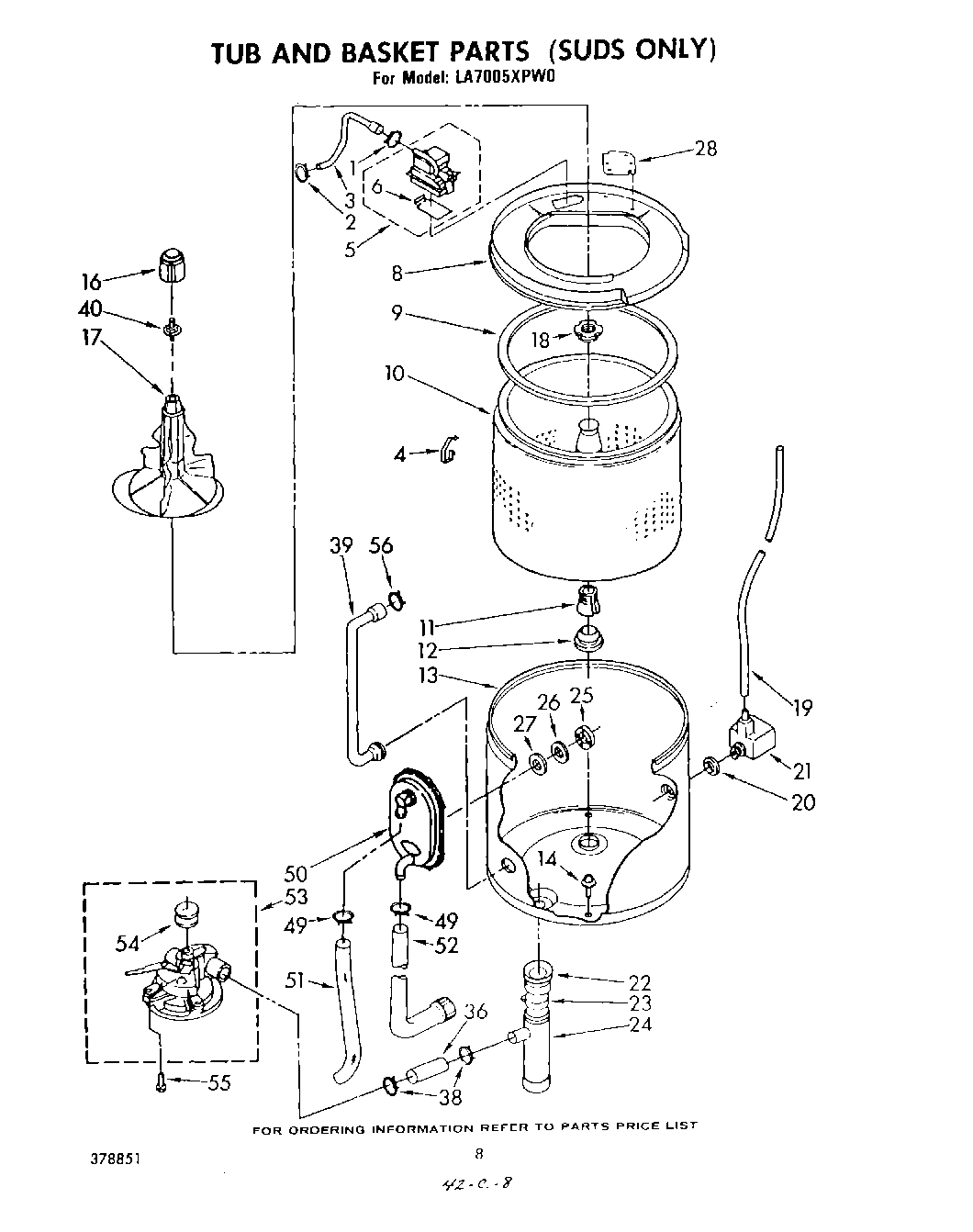

06 - TUB AND BASKET (SUDS)
Common parts from model Whirlpool LA7005XPW0 AUTOMATIC WASHER
1
Hose, Suds Discharge WPL 91273 Contact Us For Availability
1
Gearcase (Complete) WPL 358483 Contact Us For Availability
1
Miscellaneous Parts Bag (Suds) WPL 375975 Contact Us For Availability
1
Miscellaneous Parts Bag (Non-Suds) WPL 375976 Contact Us For Availability
1
Basket Drive & Brake WPL 359699 Contact Us For Availability
1
Panel, Rear Console WPL 386367 Contact Us For Availability
1
Pump, Complete (Non Suds) WPL 383957 Contact Us For Availability
2
Strainer, Hose WPL 352833 Contact Us For Availability
2
Cover, Gearcase WPL 367552 Contact Us For Availability
2
Drum, Brake (Upper) WPL 350522 Contact Us For Availability
2
Screw, End Cap To Bracket WPL 355326 Contact Us For Availability
3
Gasket, Gearcase WPL 95089 Contact Us For Availability
3
Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability
3
Sleeve WPL 96175 Contact Us For Availability
3
Hose, Water Inlet WPL 356349 Contact Us For Availability
4
Shaft, Agitator WPL 362642 Contact Us For Availability
4
Spring, Basket Drive (Green) (4) WPL 354275 Contact Us For Availability
4
Cap, End (L.H.) WPL 63789 Contact Us For Availability
4
Spring, Toggle WPL 96266 Contact Us For Availability
4
Clip, Tub Ring (4) WPL 359763 Contact Us For Availability
5
Ring, Retainer WPL 352430 Contact Us For Availability
5
Strap, Ground WPL 22965 Contact Us For Availability
5
Drum, Brake (Lower) WPL 97664 Contact Us For Availability
5
Inlet, Water WPL 366072 Contact Us For Availability
6
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
6
Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability
6
Cap, End. (R.H.) WPL 63795 Contact Us For Availability
6
Lever, Valve WPL 355538 Contact Us For Availability
6
Flapper WPL 355584 Contact Us For Availability
7
Screw & Washer WPL 190575 Contact Us For Availability
7
Shield, Agitator Spring WPL 94276 Contact Us For Availability
7
Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability
7
Yoke, Brake WPL 92903 Contact Us For Availability
7
Handle, Lid (White) WPL 379884 Contact Us For Availability
7
Handle, Lid (Almond) WPL 379885 Contact Us For Availability
7
Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability
7
Handle, Lid (Toast) WPL 379890 Contact Us For Availability
7
Handle, Lid (Platinum) WPL 379891 Contact Us For Availability
7
Rod, Connecting WPL 96264 Contact Us For Availability
8
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
8
Ring, Snap WPL 16049 Contact Us For Availability
8
Screw, End Cap Mounting WPL 64211 Contact Us For Availability
8
Bearing Block Assembly WPL 383750 Contact Us For Availability
8
Ring, Tub (Includes Illus. 28) WPL 381971 Contact Us For Availability
9
Connector, Hose WPL 95440 Contact Us For Availability
9
Nut, Push-In (2) WPL 358473 Contact Us For Availability
9
Hose, Pump To Two-Way Valve WPL 357189 Contact Us For Availability
9
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
9
Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability
9
Wick, Oil WPL 96265 Contact Us For Availability
9
Seal, Tub Ring WPL 383553 Contact Us For Availability
10
Shaft, Agitator WPL 362098 Contact Us For Availability
10
Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability
10
Basket WPL 384024 Contact Us For Availability
11
Rivet WPL 359089 Contact Us For Availability
11
Eyelet (3) WPL 98281 Contact Us For Availability
12
Pin, Cotter (1/8 x 3/4) WPL 90228 Contact Us For Availability
13
Solenoid, Two-Way Valve WPL 86798 Contact Us For Availability
13
Gear, Sector WPL 75073 Contact Us For Availability
13
Golden Harvest WPL 261890 Contact Us For Availability
13
Toast WPL 285365 Contact Us For Availability
13
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
13
Leveler (Thinner) WPL 350941 Contact Us For Availability
13
List, Repair Parts WPL 378851 Contact Us For Availability
13
Sheet, Installation Instructions (Suds) WPL 383980 Contact Us For Availability
13
Sheet, Installation Instructions (Non-Suds) WPL 383981 Contact Us For Availability
13
Guide, Laundry WPL 385238 Contact Us For Availability
13
Label, Energy Guide (Non-$FLSuds) WPL 386197 Contact Us For Availability
13
Label, Energy Guide (Suds) WPL 386220 Contact Us For Availability
13
Guide, Use & Care WPL 386894 Contact Us For Availability
13
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
13
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
13
Washer, Thrust (2) WPL 353320 Contact Us For Availability
13
Tub WPL 359668 Contact Us For Availability
14
Ring, Retainer WPL 52083 Contact Us For Availability
14
Pulley, Basket Drive WPL 359697 Contact Us For Availability
14
Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability
15
Spring, Brake WPL 94726 Contact Us For Availability
15
Valve, Two-Way WPL 359634 Contact Us For Availability
15
Pin, Dowel WPL 5018 Contact Us For Availability
15
Bearing, Drive Pulley WPL 16033 Contact Us For Availability
15
Bumper, Lid Hinge WPL 91605 Contact Us For Availability
16
Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability
16
Spring, Lid (L.H.) WPL 92398 Contact Us For Availability
16
Agitator Cap Assembly WPL 358431 Contact Us For Availability
17
Bearing, Gear Fork WPL 96853 Contact Us For Availability
17
Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability
17
Hinge, Lid (L.H.) WPL 91099 Contact Us For Availability
17
Agitator & Insert WPL 383951 Contact Us For Availability
18
Bracket WPL 357191 Contact Us For Availability
18
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
19
Hose, Two-Way Valve To Connector WPL 97784 Contact Us For Availability
19
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
19
Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability
20
Seal, Air Dome WPL 351830 Contact Us For Availability
20
Connector, Hose WPL 357334 Contact Us For Availability
20
Panel, Rear (Suds) WPL 357335 Contact Us For Availability
20
Panel, Rear (Non-Suds) WPL 85279 Contact Us For Availability
20
Fork, Agitator Gear WPL 80398 Contact Us For Availability
20
Spacer, Agitator Shaft WPL 356937 Contact Us For Availability
21
Diaphragm WPL 358317 Contact Us For Availability
21
Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability
21
Lid (White) WPL 382802 Contact Us For Availability
21
Lid (Almond) WPL 382803 Contact Us For Availability
21
Lid (Toast) WPL 382804 Contact Us For Availability
21
Lid (Platinum) WPL 382805 Contact Us For Availability
21
Lid (Golden Harvest) WPL 382806 Contact Us For Availability
21
Air Dome Assembly WPL 360804 Contact Us For Availability
22
Clip, Retainer (8) WPL 96262 Contact Us For Availability
22
Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability
22
Top (White) WPL 386319 Contact Us For Availability
22
Top (Almond) WPL 386320 Contact Us For Availability
22
Top (Toast) WPL 386321 Contact Us For Availability
22
Top (Platinum) WPL 386322 Contact Us For Availability
22
Top (Golden Harvest) WPL 386323 Contact Us For Availability
22
Hose, Tub Outlet WPL 93553 Contact Us For Availability
23
Strap, Ground WPL 358343 Contact Us For Availability
23
Rod, Connecting WPL 76577 Contact Us For Availability
23
Clamp, Hose WPL 9421321 Contact Us For Availability
24
Ring, Retaining WPL 95082 Contact Us For Availability
24
Manifold Assembly WPL 84091 Contact Us For Availability
25
Shield, Two-Way Valve WPL 359096 Contact Us For Availability
25
Cabinet (White) WPL 384793 Contact Us For Availability
25
Cabinet (Almond) WPL 384794 Contact Us For Availability
25
Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability
25
Cabinet (Toast) WPL 386477 Contact Us For Availability
25
Cabinet (Platinum) WPL 386478 Contact Us For Availability
25
Washer, Retainer WPL 95083 Contact Us For Availability
25
Nut, Spanner WPL 92229 Contact Us For Availability
26
Gear, Main Drive WPL 353397 Contact Us For Availability
26
Stop, Push-In Top WPL 358472 Contact Us For Availability
26
Washer, Fiber WPL 92232 Contact Us For Availability
27
Wire, Ground WPL 364089 Contact Us For Availability
27
Washer, Thrust WPL 363362 Contact Us For Availability
27
Washer, Rubber WPL 92235 Contact Us For Availability
28
Leveling Link Assembly WPL 359059 Contact Us For Availability
28
Gearcase WPL 362906 Contact Us For Availability
28
Plate, Snubber WPL 355852 Contact Us For Availability
29
Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability
29
Switch, Water Level WPL 359711 Contact Us For Availability
30
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
30
Pushbutton (4) WPL 386934 Contact Us For Availability
31
Hinge, R.H. WPL 18775 Contact Us For Availability
31
Hinge, L.H. WPL 92657 Contact Us For Availability
31
Pinion, Drive WPL 84467 Contact Us For Availability
31
Switch, Water Temperature WPL 386935 Contact Us For Availability
32
Cord, Power (120 Volt) WPL 92667 Contact Us For Availability
32
Washer, Drive Pinion WPL 16024 Contact Us For Availability
32
Bracket, Control WPL 386364 Contact Us For Availability
33
Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability
33
Valve, Mixing (Alt.) (Serviced Only As Comple WPL 358971 Contact Us For Availability
33
Valve, Mixing WPL 660749 Contact Us For Availability
33
Ring, Retainer WPL 90094 Contact Us For Availability
33
Harness, Console (Non-Suds) WPL 387264 Contact Us For Availability
33
Harness, Console (Suds) WPL 387265 Contact Us For Availability
34
Spring, Snubber WPL 357977 Contact Us For Availability
34
Harness, Base (Non-Suds) WPL 358116 Contact Us For Availability
34
Harness, Base (Suds) WPL 386837 Contact Us For Availability
35
Snubber WPL 358336 Contact Us For Availability
35
Retainer, Brake Yoke WPL 356444 Contact Us For Availability
36
Ball WPL 358585 Contact Us For Availability
36
Locator, Top (2) WPL 98669 Contact Us For Availability
36
Hose, Pump To Manifold WPL 92231 Contact Us For Availability
37
Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability
38
Pulley, Main Drive WPL 360840 Contact Us For Availability
39
Plate, Gusset (2) WPL 356459 Contact Us For Availability
40
Bracket, Motor Mounting WPL 85286 Contact Us For Availability
40
Hose, Pump Discharge WPL 358560 Contact Us For Availability
40
Timer Assembly (60HZ) (Non Suds) (C.C.A.) (Al WPL 386883 Contact Us For Availability
40
Timer Assembly (60HZ) (Non Suds) Timer Assemb WPL 386884 Contact Us For Availability
40
Timer Assembly (60HZ) (Non Suds) (Mallory) (A WPL 386886 Contact Us For Availability
40
Timer Motor (Use W/Mallory Timer) WPL 63491 Contact Us For Availability
40
Timer Assembly (60HZ) (Non Suds) WPL 660992 Contact Us For Availability
40
Stud & Seal, Agitator WPL 358440 Contact Us For Availability
41
Nut (4) WPL 98023 Contact Us For Availability
41
Timer Motor, 60 Hz. (Use W/C.C.A. Timer) WPL 63493 Contact Us For Availability
42
Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability
43
Pulley, Motor (60 Hz.) WPL 92216 Contact Us For Availability
43
Knob Assembly, Water Level WPL 386631 Contact Us For Availability
44
Shield, Motor (Upper) WPL 356217 Contact Us For Availability
45
Harness, Jumper WPL 370950 Contact Us For Availability
45
Clamp, Hose WPL 272857 Contact Us For Availability
46
Motor, 60 Hz. (Alt.) (Emerson) WPL 357822 Contact Us For Availability
46
Motor, 60 Hz. (Alt.) (General Electric WPL 370653 Contact Us For Availability
46
WPL 660604 WPL 660604 Contact Us For Availability
48
WPL 352090 WPL 352090 Contact Us For Availability
49
WPL 352088 WPL 352088 Contact Us For Availability
49
Clamp, Hose WPL 353096 Contact Us For Availability
50
WPL 354195 WPL 354195 Contact Us For Availability
50
Filter WPL 368772 Contact Us For Availability
51
WPL 98537 WPL 98537 Contact Us For Availability
51
Hose, Filter Drain (Upper) WPL 359798 Contact Us For Availability
52
WPL 93549 WPL 93549 Contact Us For Availability
52
Hose, Filter Drain (Lower) WPL 357052 Contact Us For Availability
53
WPL 95721 WPL 95721 Contact Us For Availability
54
WPL 64113 WPL 64113 Contact Us For Availability
54
WPL 64114 WPL 64114 Contact Us For Availability
54
Pulley, Pump WPL 359630 Contact Us For Availability
55
WPL 359719 WPL 359719 Contact Us For Availability
56
Hose, Bleach Dispenser WPL 352978 Contact Us For Availability
56
WPL 359642 WPL 359642 Contact Us For Availability
56
WPL 362738 WPL 362738 Contact Us For Availability
57
WPL 387183 WPL 387183 Contact Us For Availability
58
WPL 351499 WPL 351499 Contact Us For Availability
58
WPL 351500 WPL 351500 Contact Us For Availability
58
WPL 386570 WPL 386570 Contact Us For Availability
59
WPL 16062 WPL 16062 Contact Us For Availability
60
WPL 90877 WPL 90877 Contact Us For Availability
61
WPL 285134 WPL 285134 Contact Us For Availability
67
WPL 689559 WPL 689559 Contact Us For Availability
75
WPL 94612 WPL 94612 Contact Us For Availability
76
WPL 94611 WPL 94611 Contact Us For Availability
77
WPL 352821 WPL 352821 Contact Us For Availability
80
WPL 352827 WPL 352827 Contact Us For Availability
86
WPL 354975 WPL 354975 Contact Us For Availability
87
WPL 370959 WPL 370959 Contact Us For Availability
95
WPL 357633 WPL 357633 Contact Us For Availability
96
WPL 354764 WPL 354764 Contact Us For Availability
97
WPL 63020 WPL 63020 Contact Us For Availability
× ![]()
