Model Whirlpool LA5580XMW0 AUTOMATIC WASHER – Common Parts & Diagrams

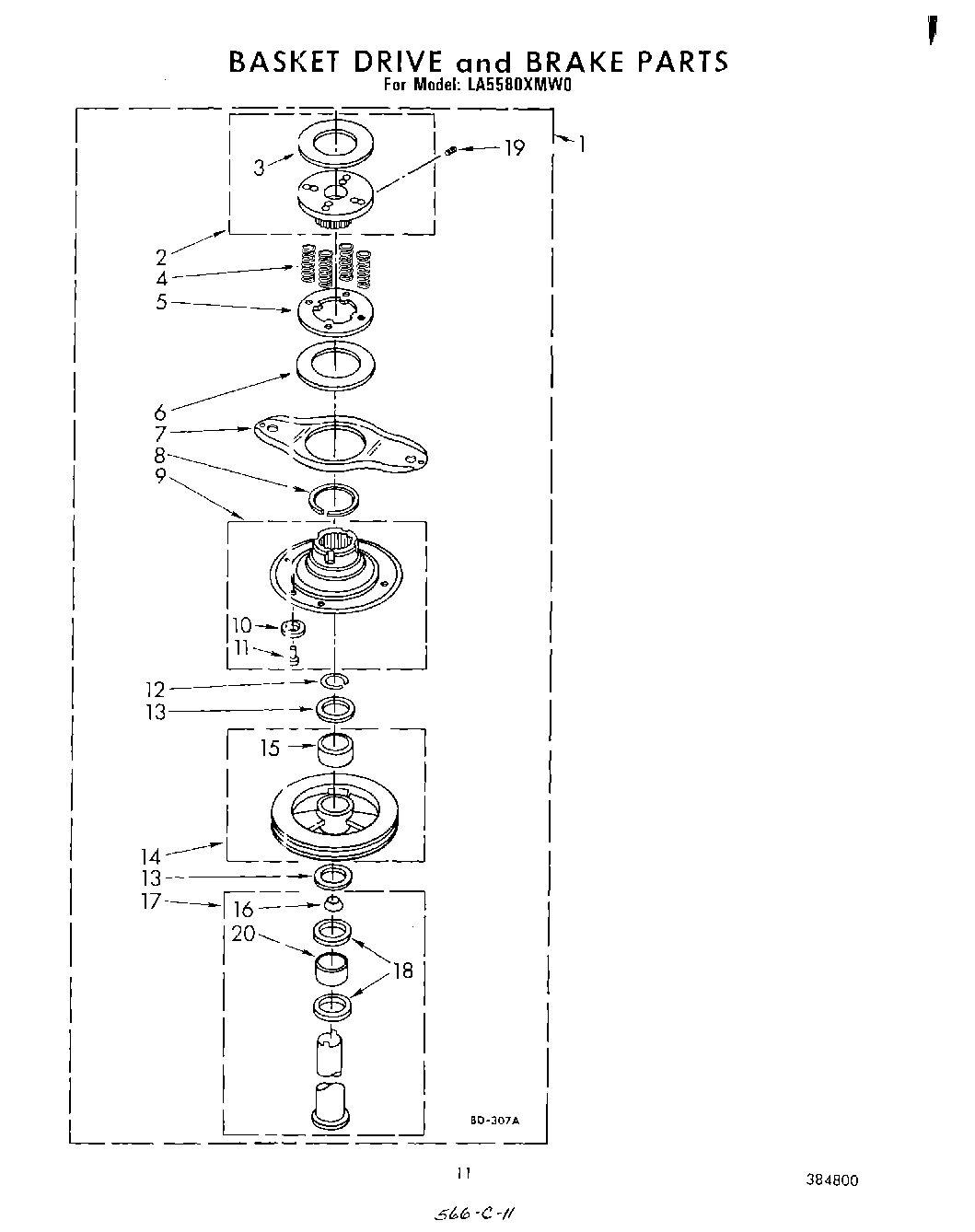

08 - BASKET DRIVE AND BRAKE
02 - TOP AND CONSOLE
03 - DRIVE
05 - CABINET
07 - GEARCASE
04 - TUB AND BASKET
06 - MISCELLANEOUS , LITERATURE AND OPTIONAL
Common parts from model Whirlpool LA5580XMW0 AUTOMATIC WASHER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Instructions, Installation WPL LIT378953 Contact Us For Availability
Guide, Use & Care WPL LIT383170 Contact Us For Availability
List, Service Parts WPL LIT384800 Contact Us For Availability
Guide, Laundry WPL LIT385238 Contact Us For Availability
Label, Energy Guide WPL LIT386170 Contact Us For Availability
Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability
Dryer WPL LIT677818 Contact Us For Availability
Compactor WPL LIT677821 Contact Us For Availability
Dishwasher WPL LIT677967 Contact Us For Availability
Ice Maker (In Refrigerator) WPL LIT677971 Contact Us For Availability
1
Gearcase (Complete) WPL 358483 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 375976 Contact Us For Availability
2
Cover, Gusset (3) WPL 352143 Contact Us For Availability
2
Cover, Gearcase WPL 367552 Contact Us For Availability
3
Gasket, Gearcase WPL 95089 Contact Us For Availability
3
Ball, Suspension (6) WPL 91073 Contact Us For Availability
3
Hose, Water Inlet WPL 356349 Contact Us For Availability
4
Rod, Suspension (3) WPL 359678 Contact Us For Availability
4
Shaft, Agitator WPL 362642 Contact Us For Availability
5
Baseplate & Centerpost WPL 359722 Contact Us For Availability
5
Strap, Ground WPL 22965 Contact Us For Availability
6
Seal, Agitator Shaft WPL 92814 Contact Us For Availability
6
Inlet, Water WPL 366072 Contact Us For Availability
7
Brace, Baseplate WPL 353301 Contact Us For Availability
7
Shield, Agitator Spring WPL 94276 Contact Us For Availability
7
Flapper WPL 355584 Contact Us For Availability
7
Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability
8
Nut, 5/16-24 WPL 96101 Contact Us For Availability
8
Spring, Agitator Shaft WPL 92815 Contact Us For Availability
8
Plate, Snubber WPL 355852 Contact Us For Availability
9
Connector, Hose WPL 95440 Contact Us For Availability
9
Nut, Push-In (2) WPL 358473 Contact Us For Availability
9
Magnet WPL 359997 Contact Us For Availability
9
Gear, Agitator Shaft WPL 355469 Contact Us For Availability
9
Ring & Filter, Tub (Includes Illus. 8 & 41) WPL 381978 Contact Us For Availability
10
Screw, Taper End WPL 16135 Contact Us For Availability
10
Shaft, Agitator WPL 362098 Contact Us For Availability
10
Seal, Tub Ring WPL 383553 Contact Us For Availability
11
Guide, Cam Bar WPL 95462 Contact Us For Availability
11
Basket WPL 384024 Contact Us For Availability
12
Cam, Bar Spin WPL 354838 Contact Us For Availability
12
Panel, Rear WPL 85279 Contact Us For Availability
13
Gear, Sector WPL 75073 Contact Us For Availability
14
Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability
14
Ring, Retainer WPL 52083 Contact Us For Availability
14
Tub WPL 384074 Contact Us For Availability
15
Spring, Brake WPL 94726 Contact Us For Availability
15
Hose, Pump Discharge WPL 358560 Contact Us For Availability
15
Pin, Dowel WPL 5018 Contact Us For Availability
15
Screw & Washer, Tub (4) WPL 370571 Contact Us For Availability
16
Cam, Agitator & Pump WPL 18642 Contact Us For Availability
16
Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability
17
Plunger WPL 84866 Contact Us For Availability
17
Bearing, Gear Fork WPL 96853 Contact Us For Availability
17
Hose, Tub Outlet WPL 93553 Contact Us For Availability
18
Rivet WPL 354959 Contact Us For Availability
18
Plate, Gusset (2) WPL 356459 Contact Us For Availability
18
Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability
18
Clip, Hose WPL 9421321 Contact Us For Availability
19
Spring, Brake Yoke WPL 17261 Contact Us For Availability
19
Wire, Ground WPL 364089 Contact Us For Availability
19
Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability
19
Manifold WPL 84091 Contact Us For Availability
20
Basket Drive & Brake (For Further Breakdown R WPL 359699 Contact Us For Availability
20
Fork, Agitator Gear WPL 80398 Contact Us For Availability
20
Hose, Pump To Sump WPL 92231 Contact Us For Availability
21
Support, Spin Tube WPL 358586 Contact Us For Availability
21
Pin, Gear Fork Shaft WPL 90532 Contact Us For Availability
22
Top (Almond) WPL 384019 Contact Us For Availability
22
Top (Golden Harvest) WPL 384022 Contact Us For Availability
22
Top (Toast) WPL 386489 Contact Us For Availability
22
Top (Platinum) WPL 386490 Contact Us For Availability
22
Roller, Gear Fork Shaft WPL 92119 Contact Us For Availability
23
Rod, Connecting WPL 76577 Contact Us For Availability
23
Cap, Agitator WPL 359990 Contact Us For Availability
24
Ring, Retaining WPL 95082 Contact Us For Availability
25
Shaft, Basket Clutch WPL 359460 Contact Us For Availability
25
Cabinet (White) WPL 384793 Contact Us For Availability
25
Cabinet (Almond) WPL 384794 Contact Us For Availability
25
Cabinet (Golden Harvest) WPL 384797 Contact Us For Availability
25
Cabinet (Toast) WPL 386477 Contact Us For Availability
25
Cabinet (Platinum) WPL 386478 Contact Us For Availability
25
Washer, Retainer WPL 95083 Contact Us For Availability
25
Agitator WPL 383951 Contact Us For Availability
26
Gear, Main Drive WPL 353397 Contact Us For Availability
26
Stud & Seal, Agitator WPL 358440 Contact Us For Availability
27
Pad, Gusset Cover (6) WPL 352434 Contact Us For Availability
28
Seal WPL 351830 Contact Us For Availability
28
Leveling Link Assembly WPL 359059 Contact Us For Availability
28
Gearcase WPL 362906 Contact Us For Availability
29
Switch,\ Water\ Level WPL 385053 Contact Us For Availability
29
Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability
29
Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability
29
Bolt, Snubber (1) WPL 353770 Contact Us For Availability
29
Bolt, 5/16-24 x 1-1/8 (3) WPL 356512 Contact Us For Availability
29
Air Dome Assembly WPL 360804 Contact Us For Availability
30
Bolt, 5/16-24 WPL 98048 Contact Us For Availability
30
Bearing, Drive Pinion WPL 354513 Contact Us For Availability
31
Switch, Water Temperature WPL 660746 Contact Us For Availability
31
Switch, Water Temperature (Alt.) WPL 358934 Contact Us For Availability
31
Switch, Water Temperature (Alt.) WPL 358935 Contact Us For Availability
31
Gasket, Tub (7) WPL 17235 Contact Us For Availability
31
Hinge, R.H. WPL 18775 Contact Us For Availability
31
Hinge, L.H. WPL 92657 Contact Us For Availability
31
Pinion, Drive WPL 84467 Contact Us For Availability
31
Clip, Tub Ring (4) WPL 359763 Contact Us For Availability
32
Bracket, Control WPL 359708 Contact Us For Availability
32
Cord, Power (120 Volt) WPL 92667 Contact Us For Availability
32
Washer, Drive Pinion WPL 16024 Contact Us For Availability
33
Valve, Mixing (Alt.) WPL 358277 Contact Us For Availability
33
Harness, Console WPL 359327 Contact Us For Availability
33
Valve, Mixing (Alt.) (Serviced Only As Comple WPL 358971 Contact Us For Availability
33
Valve, Mixing WPL 660749 Contact Us For Availability
33
Ring, Retainer WPL 90094 Contact Us For Availability
33
Bracket, Hose WPL 358339 Contact Us For Availability
34
Harness, Cabinet WPL 358116 Contact Us For Availability
34
Spring, Snubber WPL 357977 Contact Us For Availability
35
Snubber WPL 358336 Contact Us For Availability
35
Retainer, Brake Yoke WPL 356444 Contact Us For Availability
36
Ball WPL 358585 Contact Us For Availability
36
Locator, Top (2) WPL 98669 Contact Us For Availability
37
Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability
38
Pulley, Main Drive WPL 360840 Contact Us For Availability
40
Use W/C.C.A. Timer WPL 362681 Contact Us For Availability
40
Motor, Timer (60 Hz.) (Use WPL 365941 Contact Us For Availability
40
WPL 385328 WPL 385328 Contact Us For Availability
40
WPL 385331 WPL 385331 Contact Us For Availability
40
WPL 660971 WPL 660971 Contact Us For Availability
40
Bracket, Motor Mounting WPL 85286 Contact Us For Availability
40
Plug, Cabinet WPL 354179 Contact Us For Availability
40
Latch WPL 357249 Contact Us For Availability
41
Nut (4) WPL 98023 Contact Us For Availability
41
Filter WPL 359785 Contact Us For Availability
42
Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability
42
Screw (2) WPL 176360 Contact Us For Availability
43
WPL 690297 WPL 690297 Contact Us For Availability
43
Pulley, Motor WPL 92216 Contact Us For Availability
43
Retainer WPL 357250 Contact Us For Availability
44
Shield, Motor (Upper) WPL 356217 Contact Us For Availability
44
Spring WPL 94403 Contact Us For Availability
45
Hose, Pump To Filter WPL 357343 Contact Us For Availability
46
Motor, 60 Hz. (Alt.) (Emerson) WPL 357822 Contact Us For Availability
46
Motor, 60 Hz. (Alt.) (General Electric) WPL 370653 Contact Us For Availability
46
Motor, 60 Hz. WPL 660604 Contact Us For Availability
46
Pump Assembly WPL 357729 Contact Us For Availability
48
WPL 352090 WPL 352090 Contact Us For Availability
48
Sleeve WPL 96175 Contact Us For Availability
49
WPL 352088 WPL 352088 Contact Us For Availability
49
Spring, Toggle WPL 96266 Contact Us For Availability
50
WPL 354195 WPL 354195 Contact Us For Availability
50
Pulley, Pump WPL 359630 Contact Us For Availability
51
WPL 98537 WPL 98537 Contact Us For Availability
51
Lever, Valve WPL 355538 Contact Us For Availability
52
WPL 93549 WPL 93549 Contact Us For Availability
52
Rod, Connecting WPL 96264 Contact Us For Availability
53
WPL 95721 WPL 95721 Contact Us For Availability
53
Bearing Block Assembly WPL 383750 Contact Us For Availability
54
WPL 384771 WPL 384771 Contact Us For Availability
54
Wick, Oil WPL 96265 Contact Us For Availability
55
WPL 359719 WPL 359719 Contact Us For Availability
56
WPL 359642 WPL 359642 Contact Us For Availability
56
WPL 362738 WPL 362738 Contact Us For Availability
57
WPL 359254 WPL 359254 Contact Us For Availability
57
WPL 370950 WPL 370950 Contact Us For Availability
58
WPL 359206 WPL 359206 Contact Us For Availability
58
WPL 351499 WPL 351499 Contact Us For Availability
58
WPL 351500 WPL 351500 Contact Us For Availability
59
WPL 16062 WPL 16062 Contact Us For Availability
60
WPL 90877 WPL 90877 Contact Us For Availability
61
WPL 285134 WPL 285134 Contact Us For Availability
61
WPL 690300 WPL 690300 Contact Us For Availability
67
WPL 689559 WPL 689559 Contact Us For Availability
75
WPL 94612 WPL 94612 Contact Us For Availability
76
WPL 94611 WPL 94611 Contact Us For Availability
86
WPL 354975 WPL 354975 Contact Us For Availability
88
WPL 370959 WPL 370959 Contact Us For Availability
95
WPL 357645 WPL 357645 Contact Us For Availability
96
WPL 357633 WPL 357633 Contact Us For Availability
97
WPL 354764 WPL 354764 Contact Us For Availability
98
WPL 357695 WPL 357695 Contact Us For Availability
× ![]()
