Model Whirlpool KUDM24SEWH5 – Common Parts &amp; Diagrams

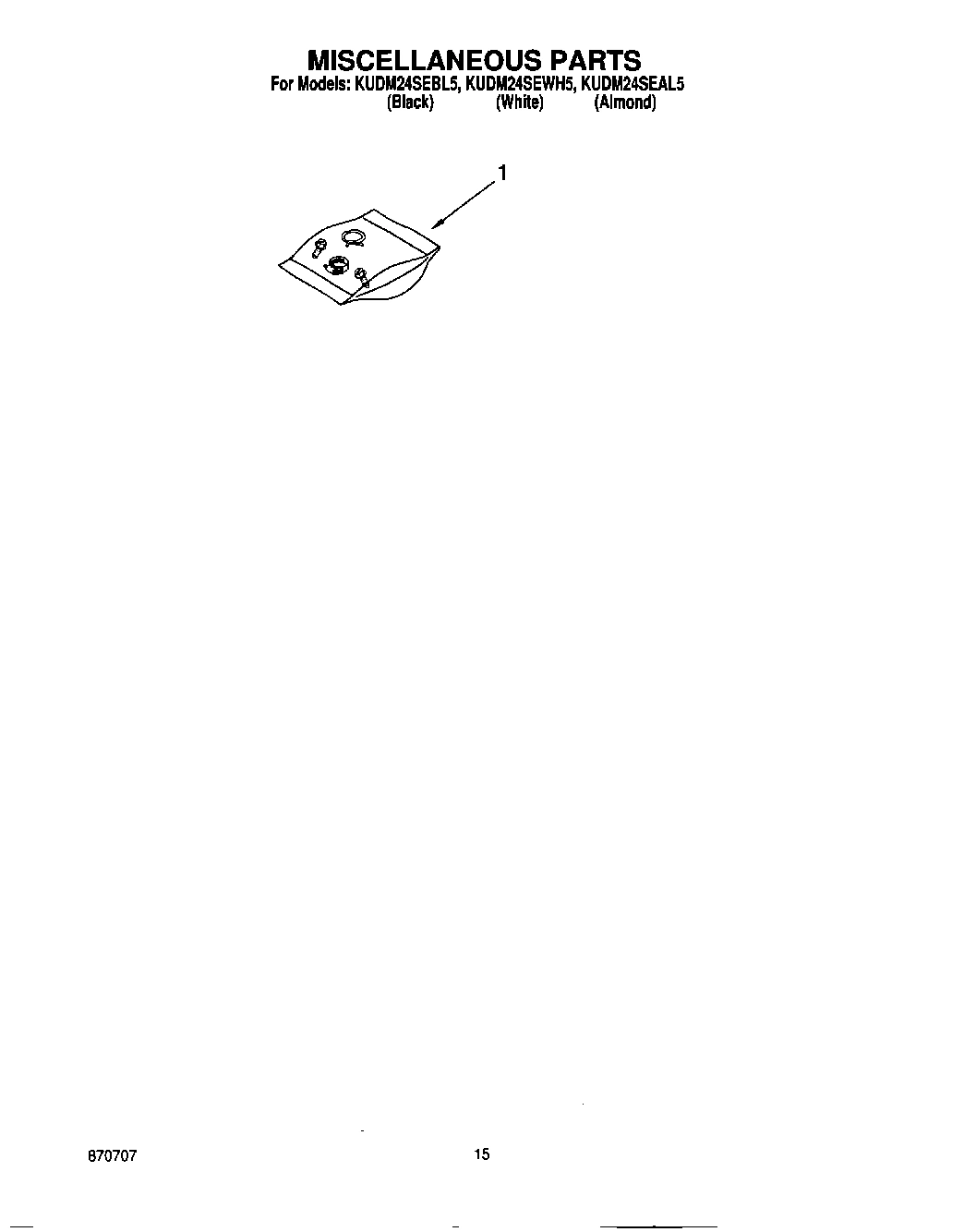

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $11.99

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $36.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

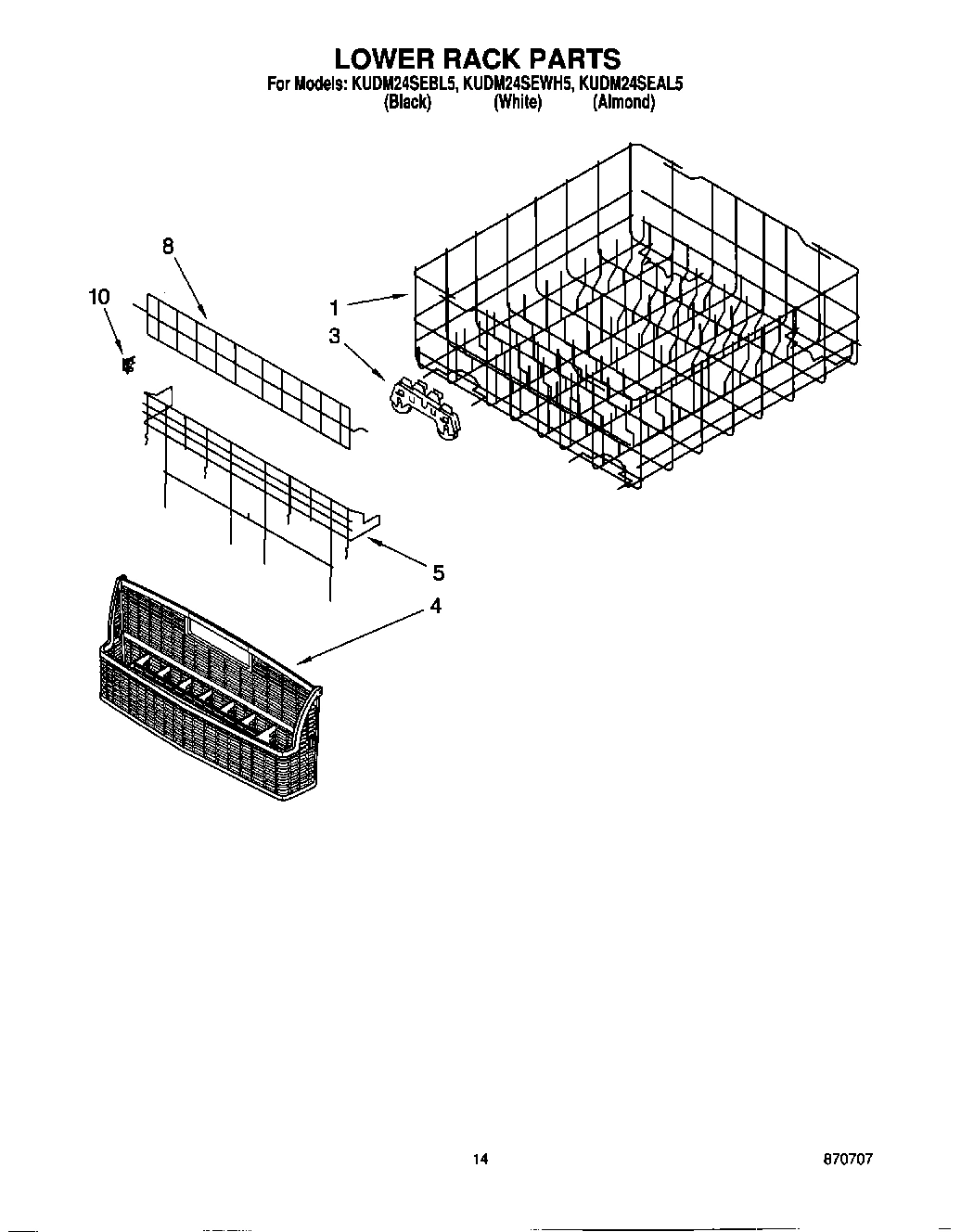

W10134647 Whirlpool Lower Dish Rack Backorder WPL W10134647 $274.61

1

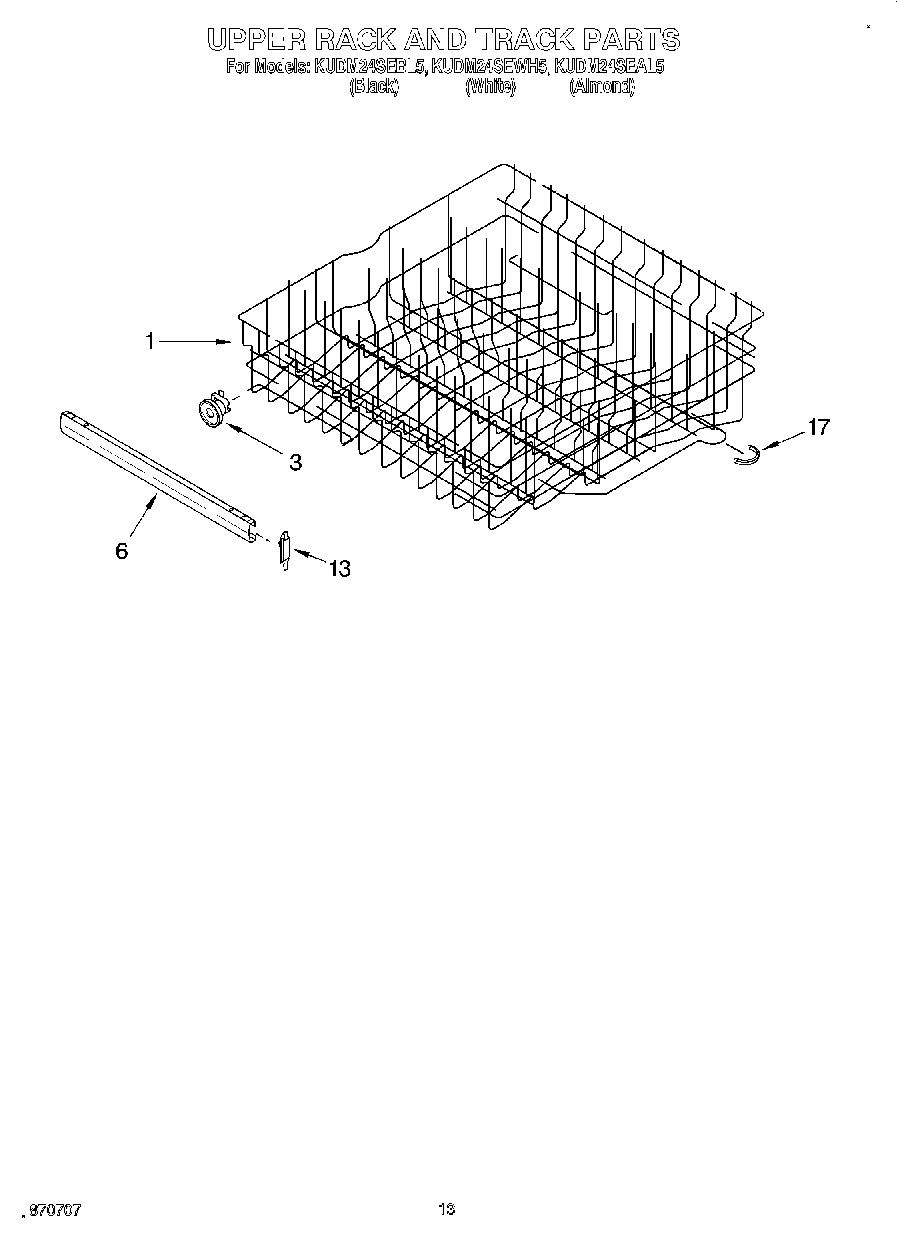

WPW10253040 Whirlpool Dishwasher Dish Rack In Stock WPL WPW10253040 $286.99

1

Cap, Dispenser WPL 9743399 Contact Us For Availability

1

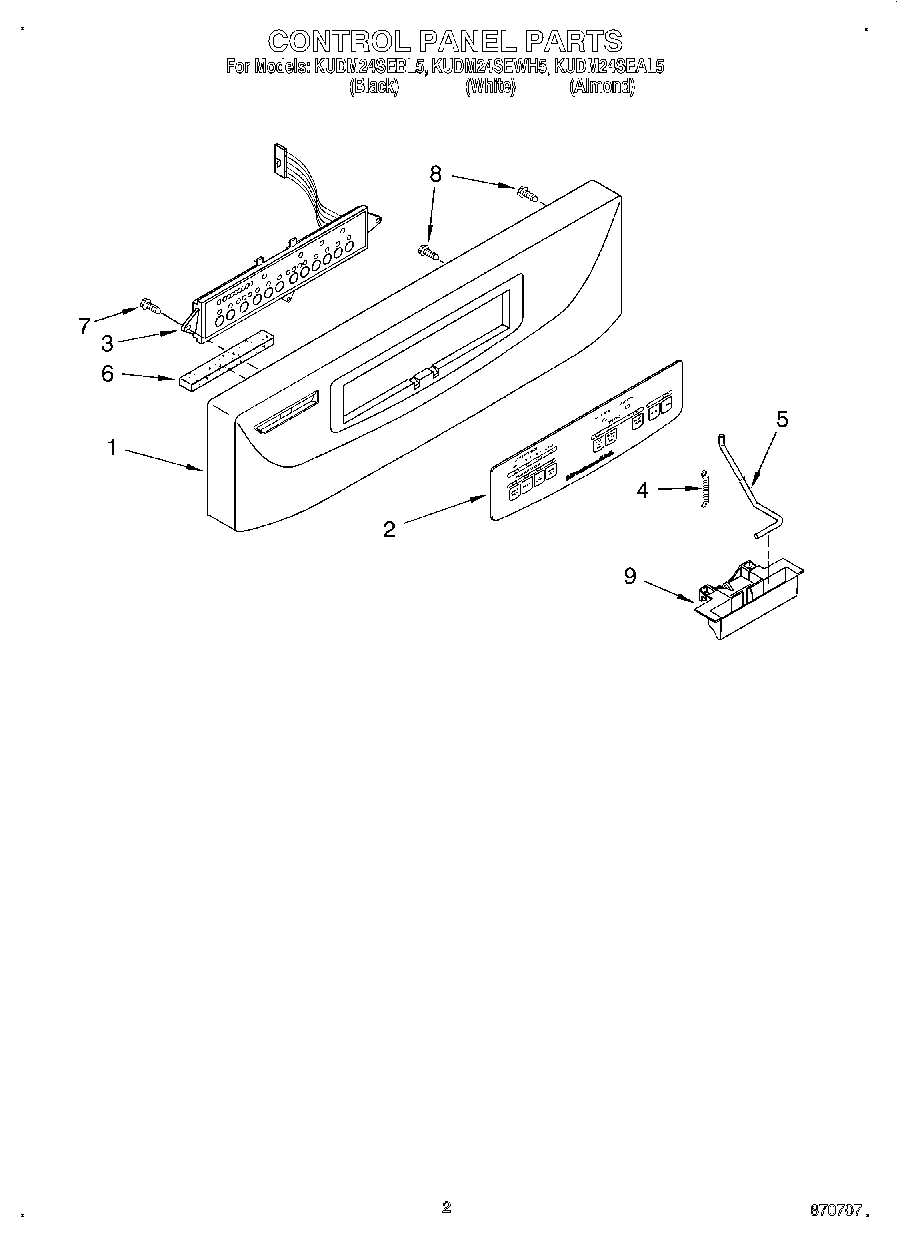

Console (Also order Item No.2) (White Model) WPL 9743592 Contact Us For Availability

1

Console (Also order Item No.2) (Black Model) WPL 9743591 Contact Us For Availability

1

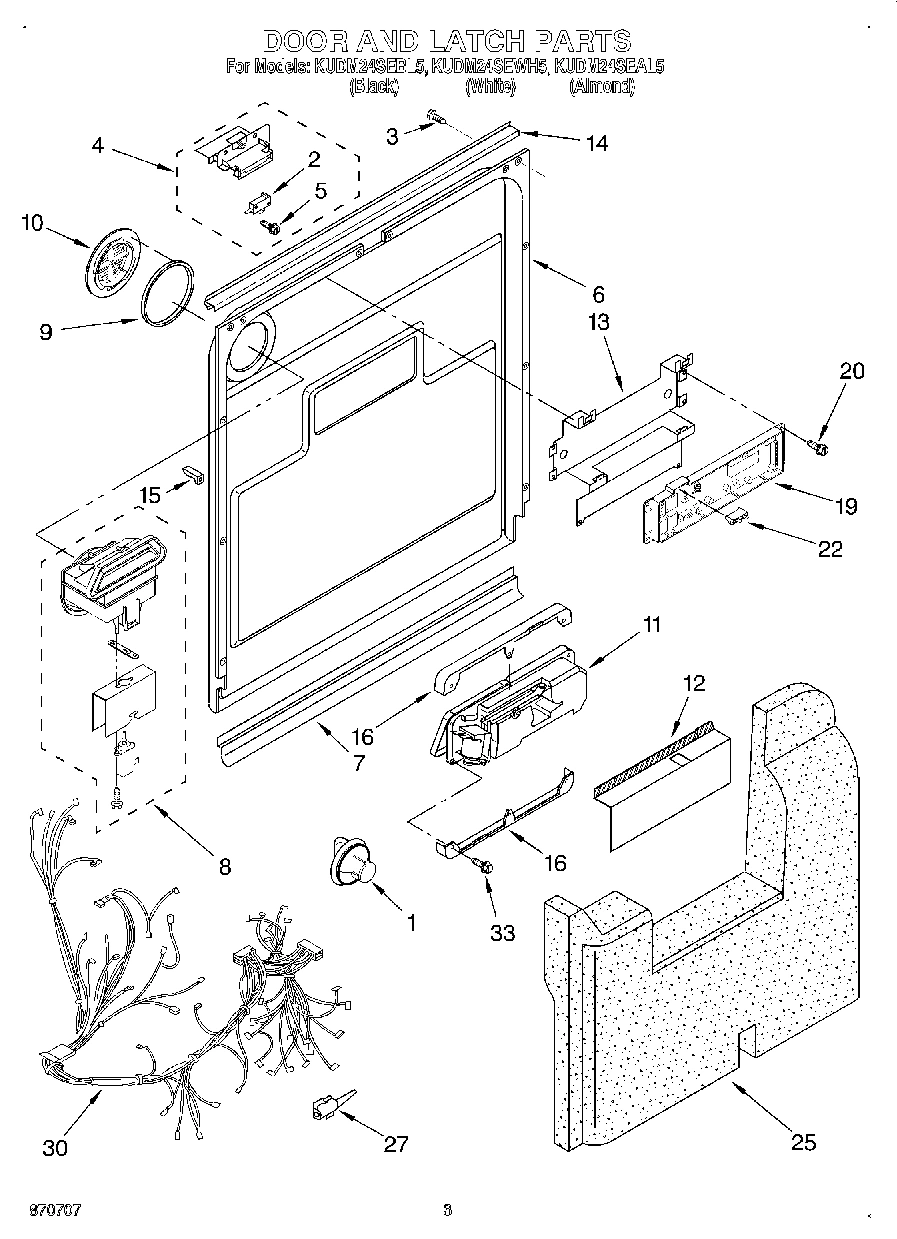

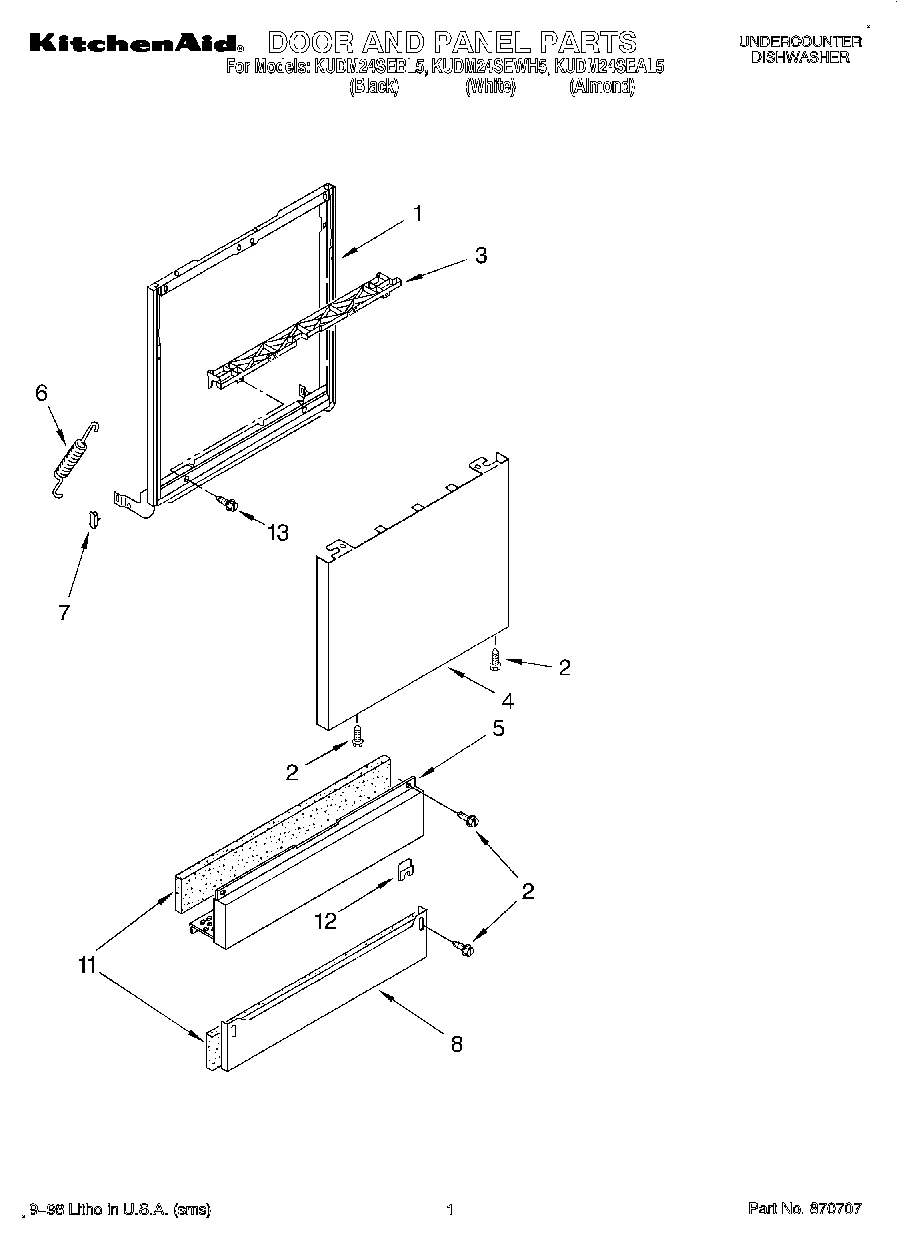

Door Frame WPL 9743028 Contact Us For Availability

1

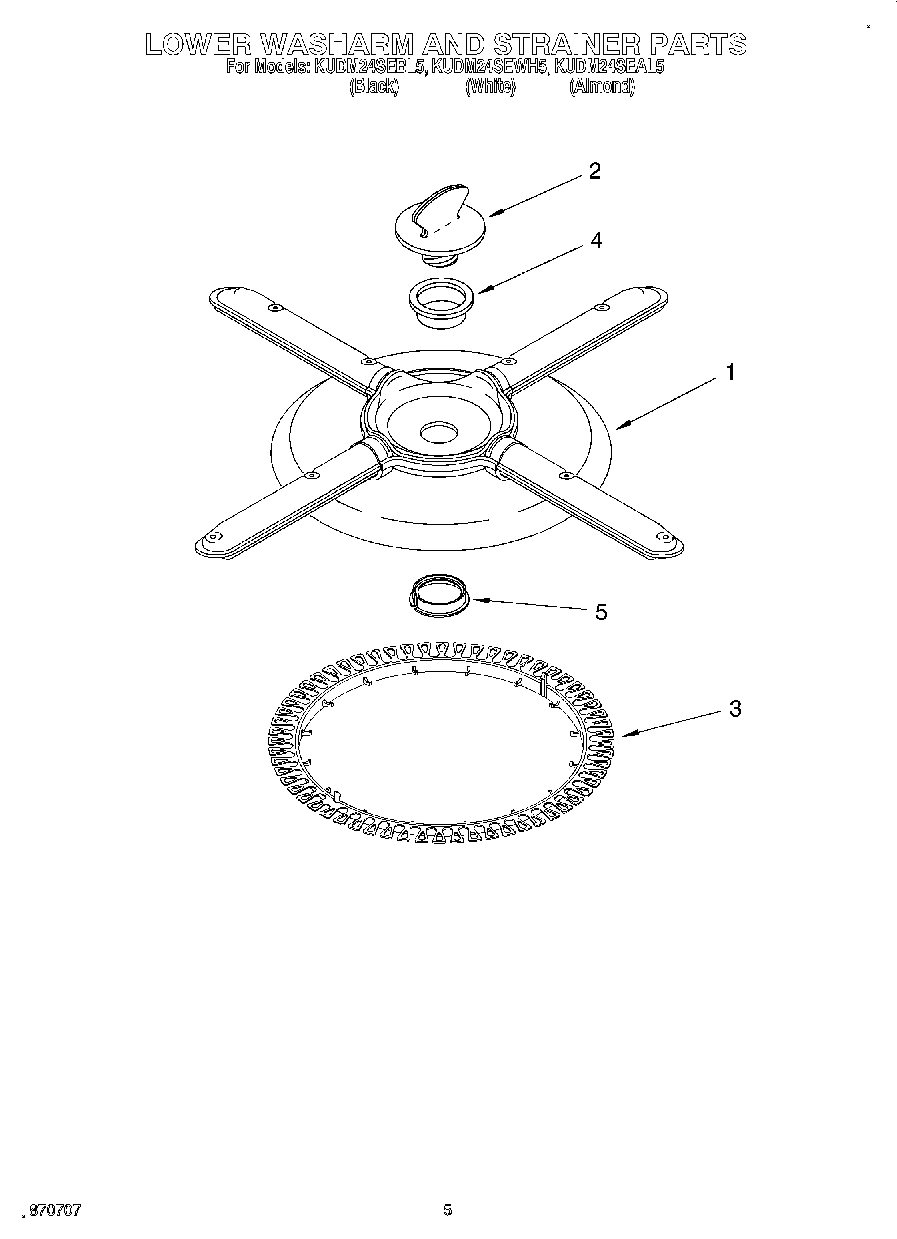

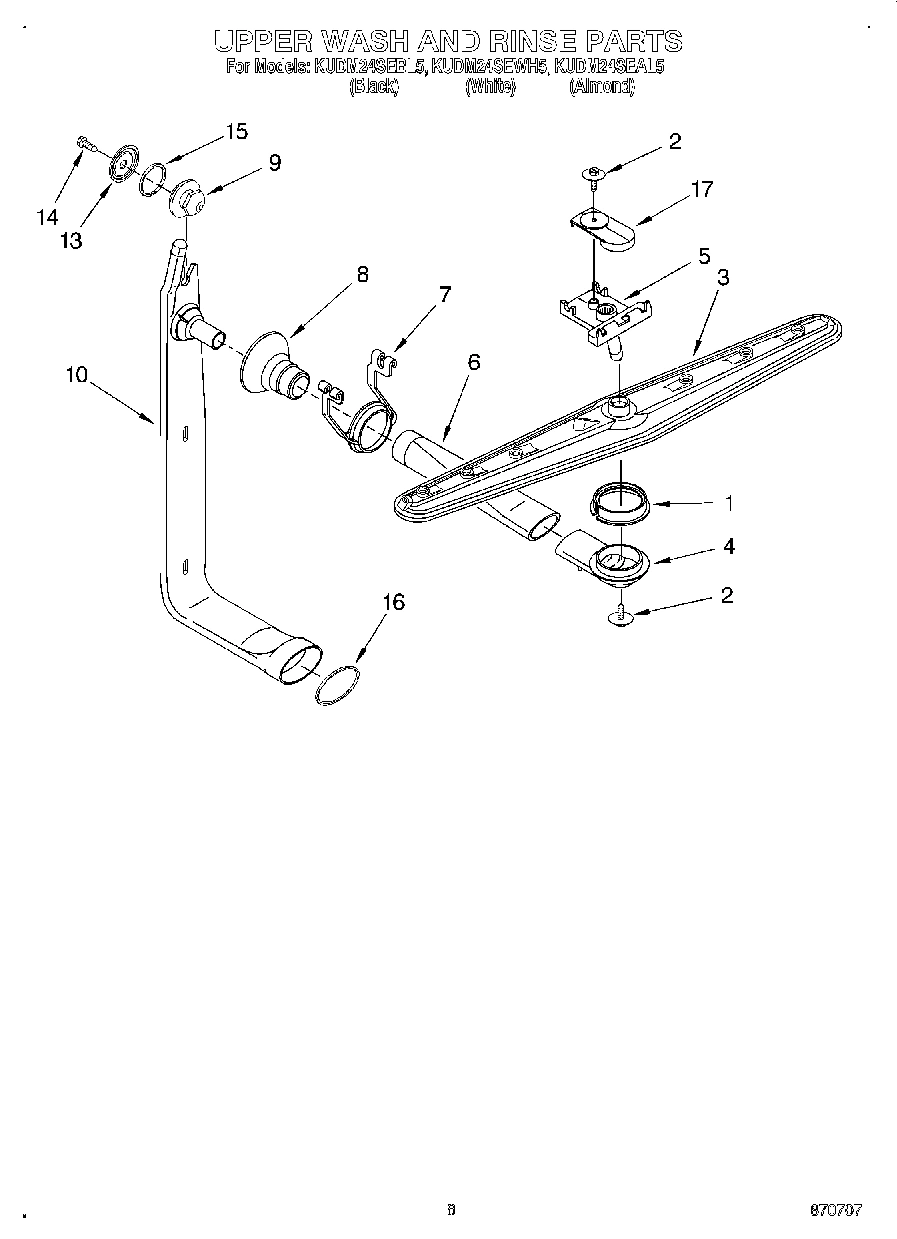

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

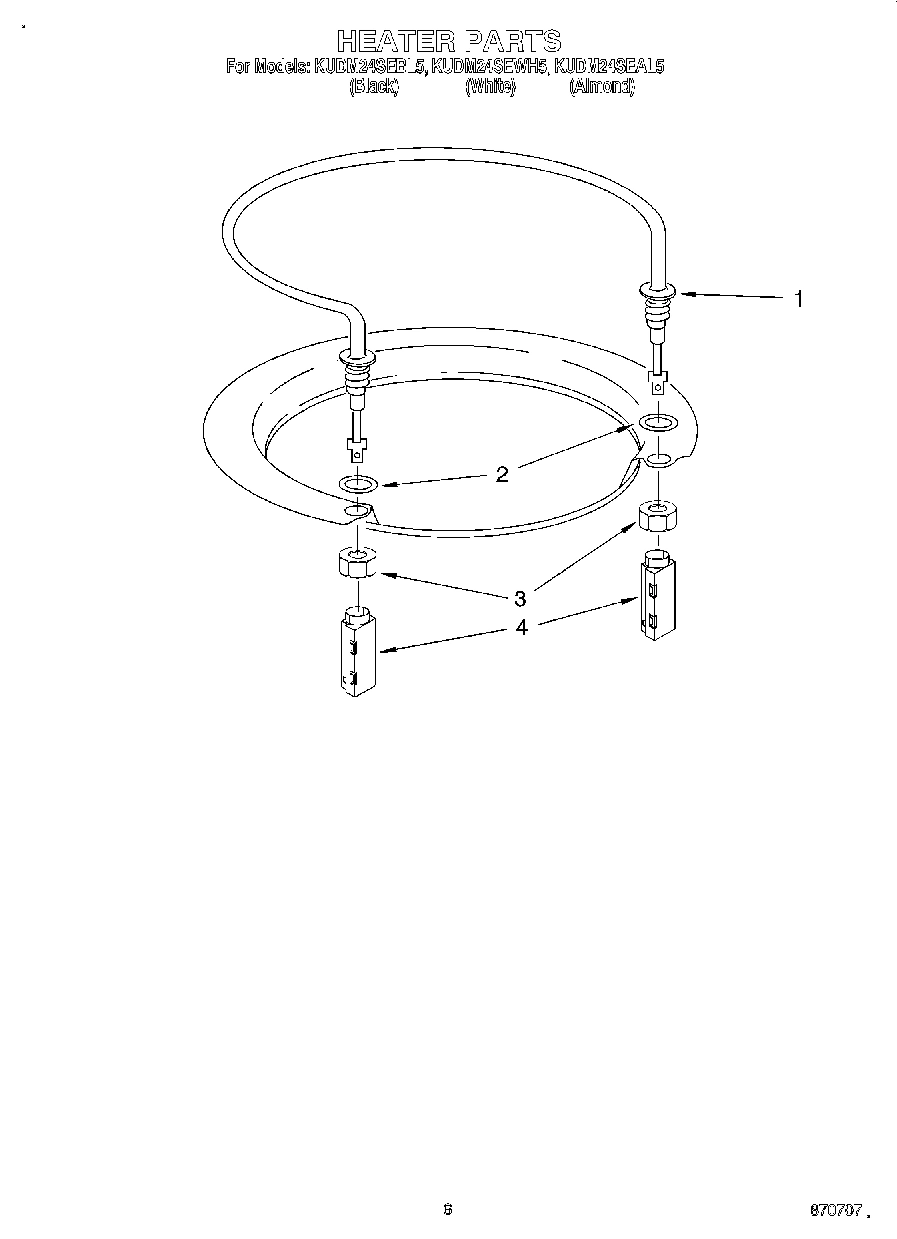

Heater Element Assembly (Also Includes Item 2 WPL 9743495 Contact Us For Availability

1

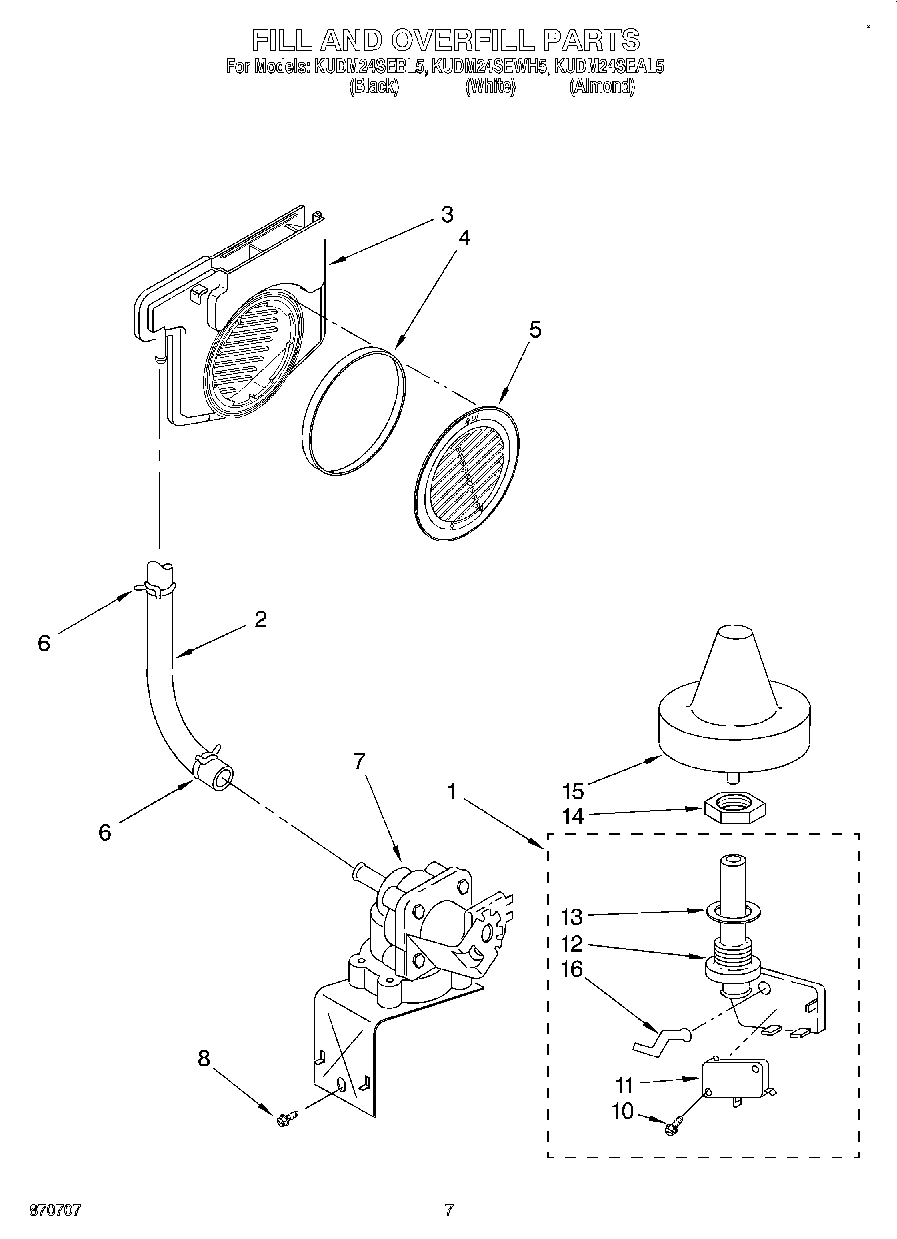

Control, Overfill Assembly (Also Order Item 1 WPL 9741999 Contact Us For Availability

1

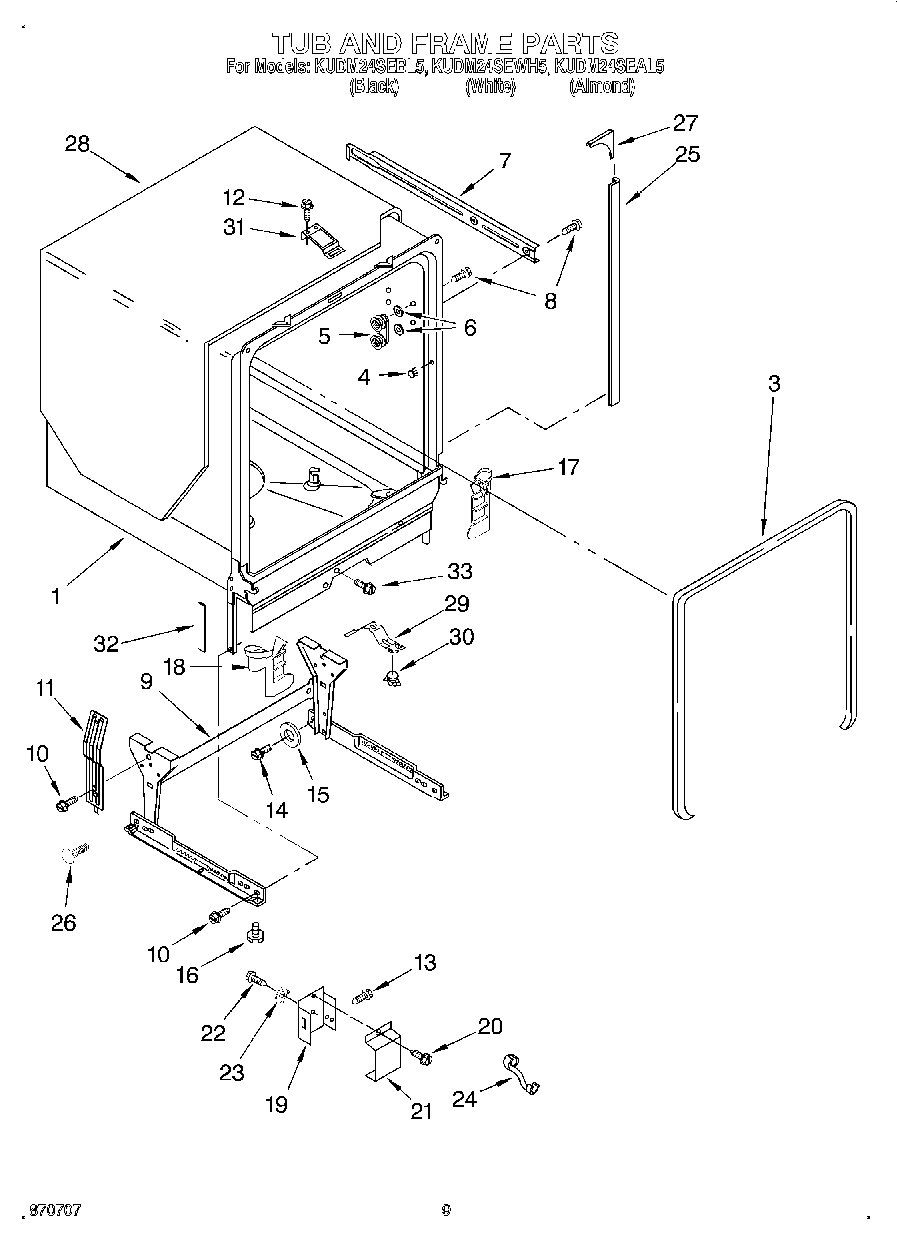

Tub Assembly WPL 9743798 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.52

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.91

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $4.75

2

Hose, Inlet WPL 9742727 Contact Us For Availability

2

Switch WPL 3369325 Contact Us For Availability

3

WP8268807 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8268807 $8.80

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

3

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $3.91

3

Door Seal WPL 9743590 Contact Us For Availability

3

Wheel & Transport Assembly WPL 8051252 Contact Us For Availability

3

Nut, Heater Element WPL 9743039 Contact Us For Availability

3

Water Inlet Assembly (Includes Items 4 & 5) WPL 9742783 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $6.37

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $13.99

4

Gasket WPL 9742787 Contact Us For Availability

4

Spring, Handle WPL 9743573 Contact Us For Availability

4

Panel Front (White Model) WPL 3379376 Contact Us For Availability

4

Panel Front (Black Model) WPL 3379375 Contact Us For Availability

4

Basket, Silverware WPL 9742853 Contact Us For Availability

4

Latch Assembly (Includes Item 2) WPL 9743978 Contact Us For Availability

4

Pod, Terminal Heater WPL 9743166 Contact Us For Availability

4

Plug Tub (2) WPL 9742788 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $11.74

5

Link, Handle WPL 9743572 Contact Us For Availability

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Extension, Side Wall WPL 9743536 Contact Us For Availability

5

Bezel, Inlet WPL 9742786 Contact Us For Availability

6

675808 Whirlpool Dishwasher Middle Spray Arm In Stock WPL 675808 $32.84

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $63.60

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $8.99

6

Inner Door Mastic Assembly (Also Includes Ite WPL 9742353 Contact Us For Availability

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $6.62

7

WP3378186 Whirlpool Dishwasher Holder In Stock WPL WP3378186 $22.85

7

WP719929 Whirlpool Dishwasher Check Ball Backorder WPL WP719929 $6.64

7

Fill Valve Assembly WPL 9743559 Contact Us For Availability

7

Tub Stiffener WPL 3378056 Contact Us For Availability

8

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $4.82

8

Cupshelf WPL 3377419 Contact Us For Availability

8

Vent Assembly (Also Order Item 9) WPL 9742770 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle In Stock WPL WP9743903 $90.98

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Filter Assembly WPL 9742968 Contact Us For Availability

9

Connector (Includes Items 13, 14 & 15) WPL 9743473 Contact Us For Availability

9

Rear Support Assembly WPL 9743149 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $6.99

Feed Tube Assembly WPL 9742950 Contact Us For Availability

Screw WPL 3400404 Contact Us For Availability

Deflector, Vent (Also Order Item 9) WPL 9742780 Contact Us For Availability

11

WPW10616003 Whirlpool Dishwasher Dispenser As Backorder WPL WPW10616003 $230.50

11

Switch, Overfill Control WPL 9743413 Contact Us For Availability

11

Connector Tub To Brace WPL 9742610 Contact Us For Availability

12

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

12

Shield, Dispenser WPL 9743450 Contact Us For Availability

12

Standpipe, Overfill WPL 9741997 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $24.03

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $36.85

Track Stop (4) WPL 3379941 Contact Us For Availability

Washer WPL 9743475 Contact Us For Availability

Bracket, Controls WPL 9742623 Contact Us For Availability

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $4.82

Seal, Console/door WPL 9744164 Contact Us For Availability

Screw (2) WPL 3370389 Contact Us For Availability

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

Wheel, Leg WPL 302819 Contact Us For Availability

Gasket, Connector WPL 9743474 Contact Us For Availability

Guide, Door WPL 9743487 Contact Us For Availability

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $57.34

Gasket, Pump WPL 717000 Contact Us For Availability

Seal, Tube WPL 9742953 Contact Us For Availability

Bracket, Dispenser (2) WPL 9743486 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

17

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $56.99

17

WP8268812 Whirlpool Dishwasher Mounting Assem In Stock WPL WP8268812 $9.99

17

Protector, Sprayarm Guard WPL 9742999 Contact Us For Availability

19

Control, Electronic WPL 8051136 Contact Us For Availability

19

Terminal Box WPL 3378131 Contact Us For Availability

20

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

20

Screw WPL 3369138 Contact Us For Availability

21

Cover, Terminal Box WPL 300068 Contact Us For Availability

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $4.82

22

Fuse Thermal Electronic WPL 9743451 Contact Us For Availability

23

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $4.82

24

Relief, Strain WPL 3370307 Contact Us For Availability

25

Sound Absorber WPL 9742397 Contact Us For Availability

25

Trim Strip, Tub WPL 9743460 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $17.99

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $10.13

27

Corner Trim, Tub WPL 9742789 Contact Us For Availability

28

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $17.77

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $39.26

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $17.99

30

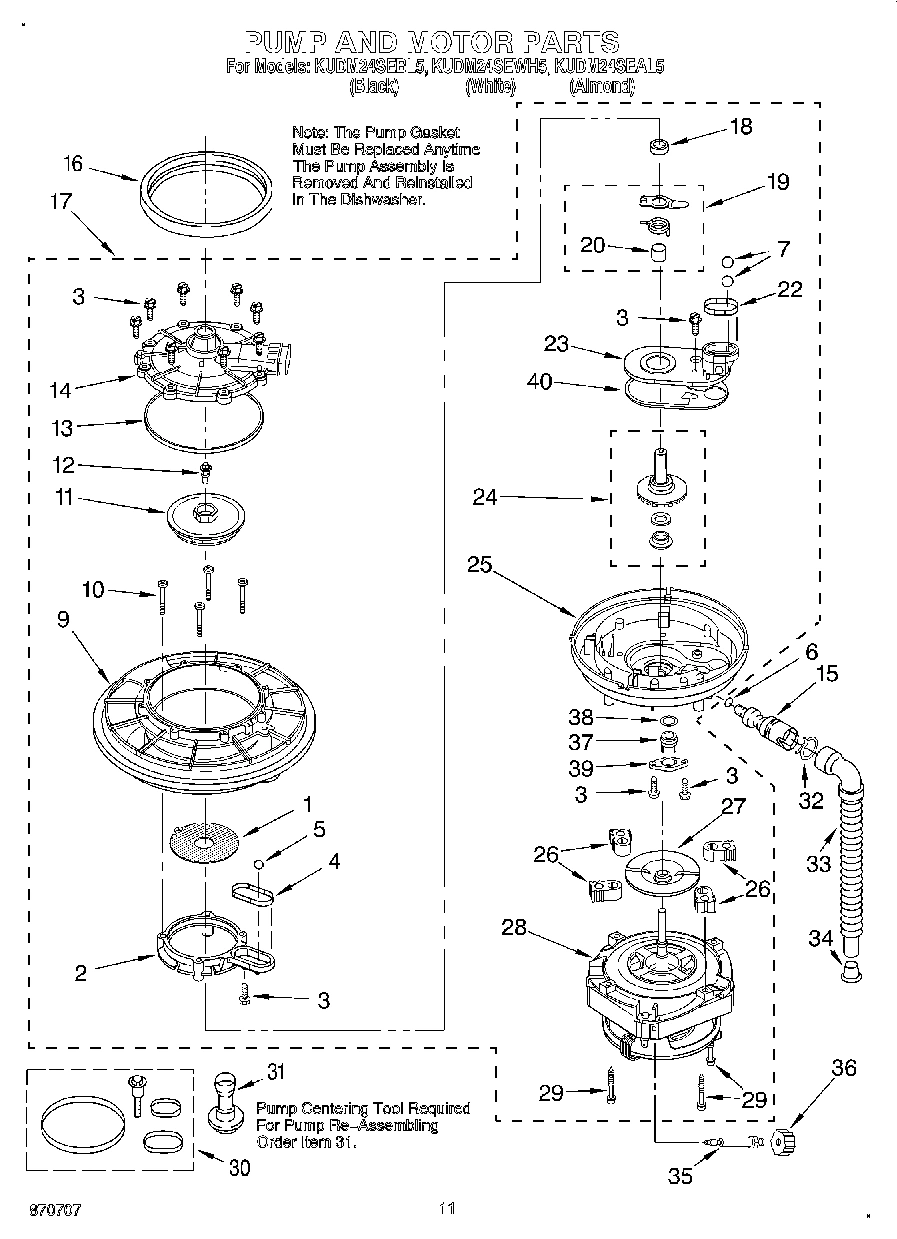

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

30

Wiring Harness, Main WPL 9743981 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Strike, Latch WPL 9742722 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

32

Pad, Friction WPL 9743406 Contact Us For Availability

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $58.88

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

33

Screw (6) WPL 3400700 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $6.55

38

Seal, O-Ring WPL 3376723 Contact Us For Availability

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $4.82
