Model Whirlpool KTRW22KHBT00 – Common Parts & Diagrams

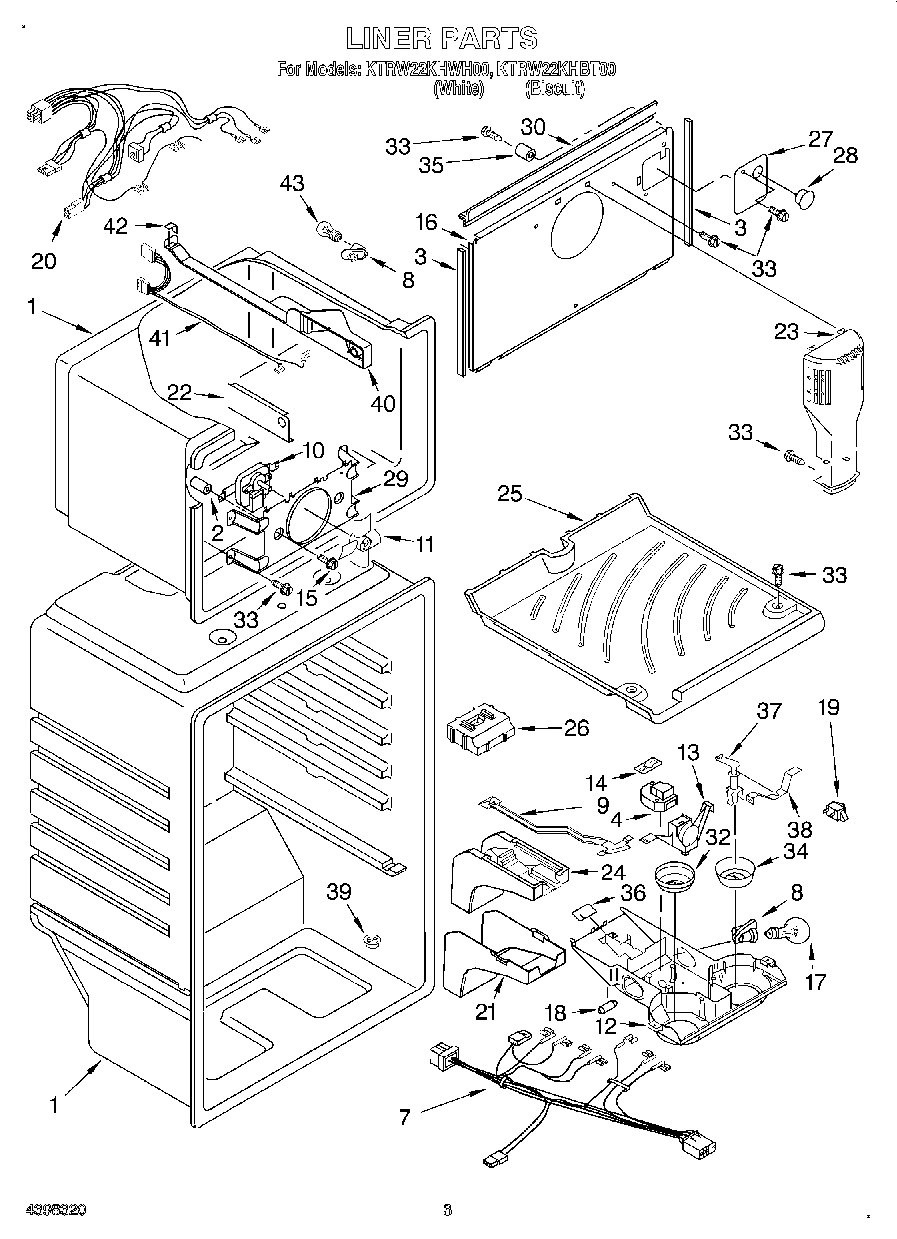

02 - LINER

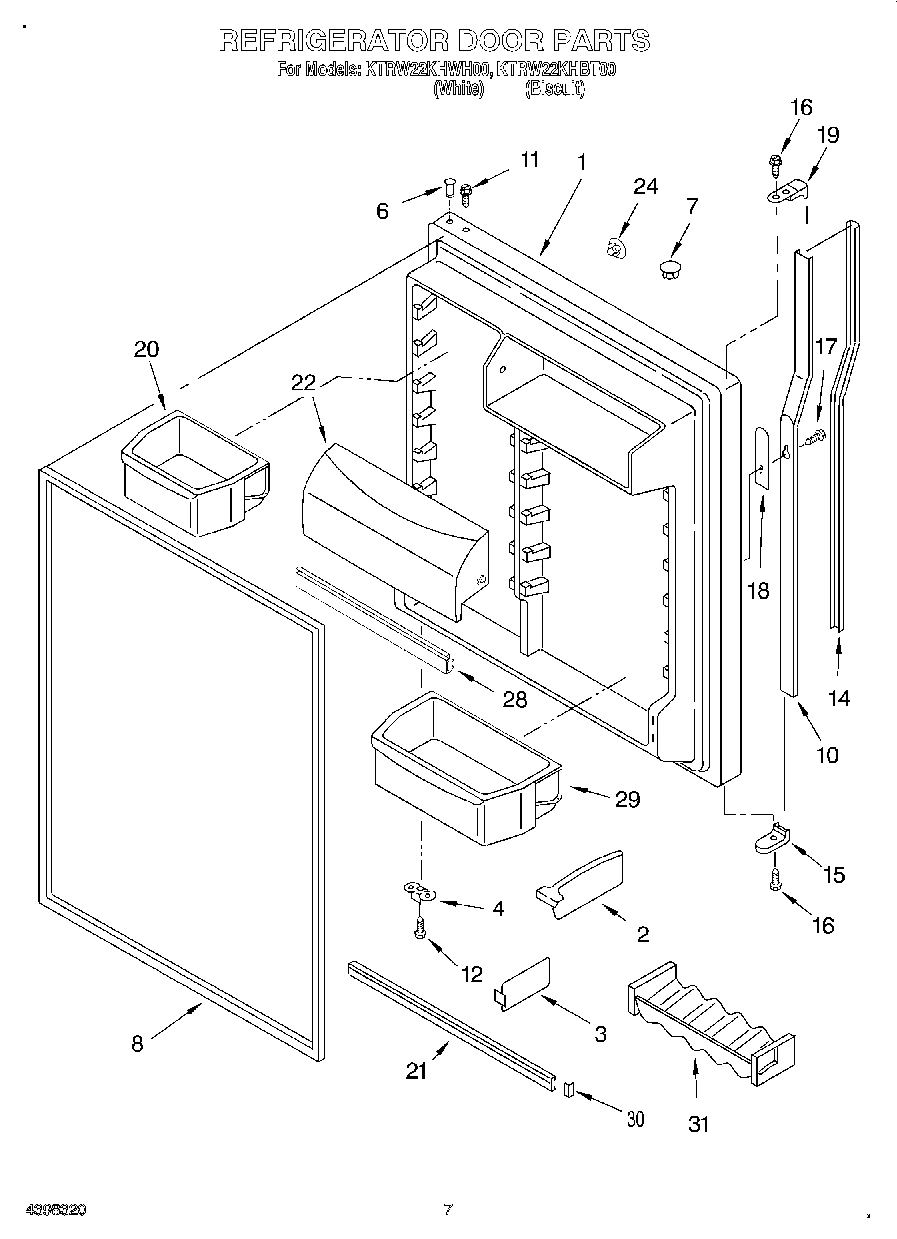

04 - REFRIGERATOR DOOR

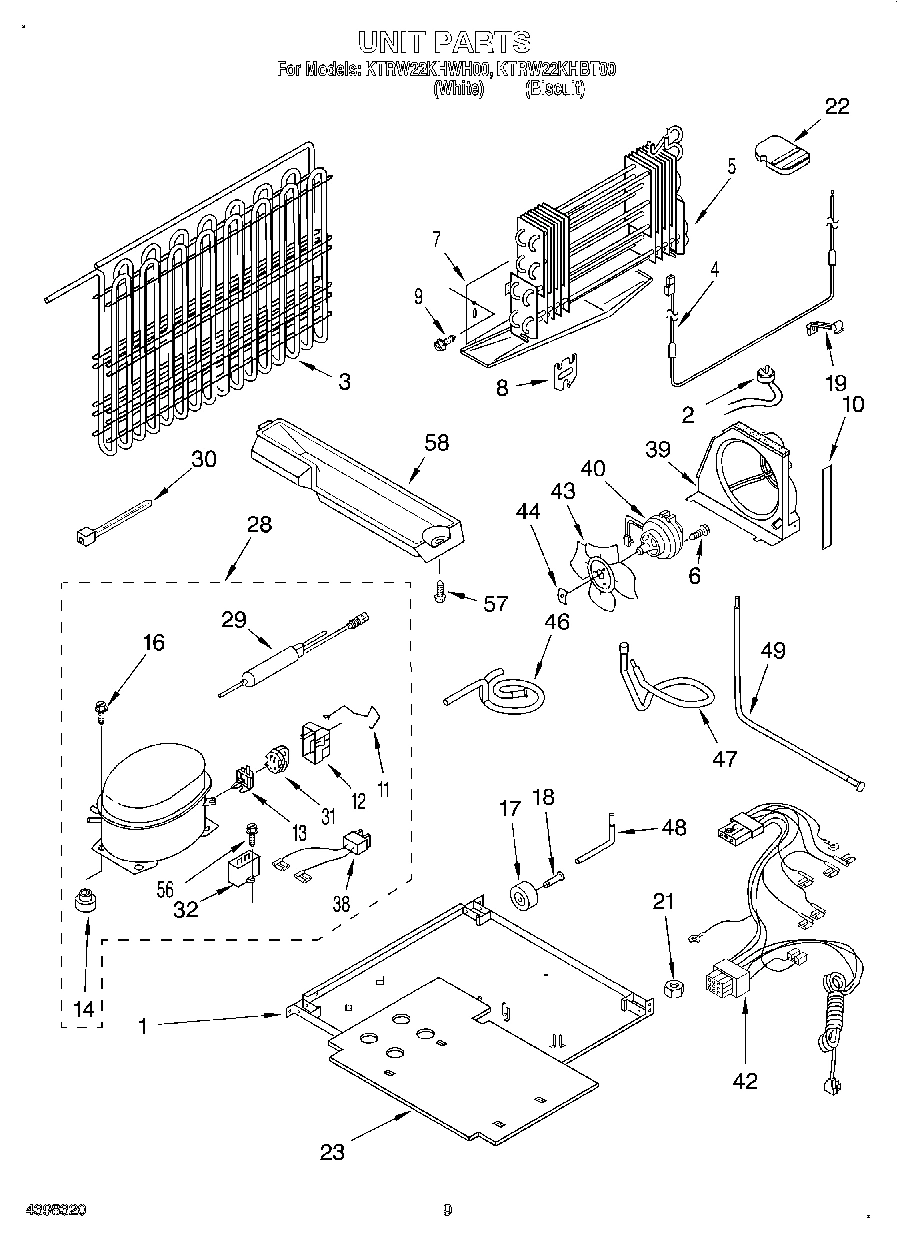

05 - UNIT

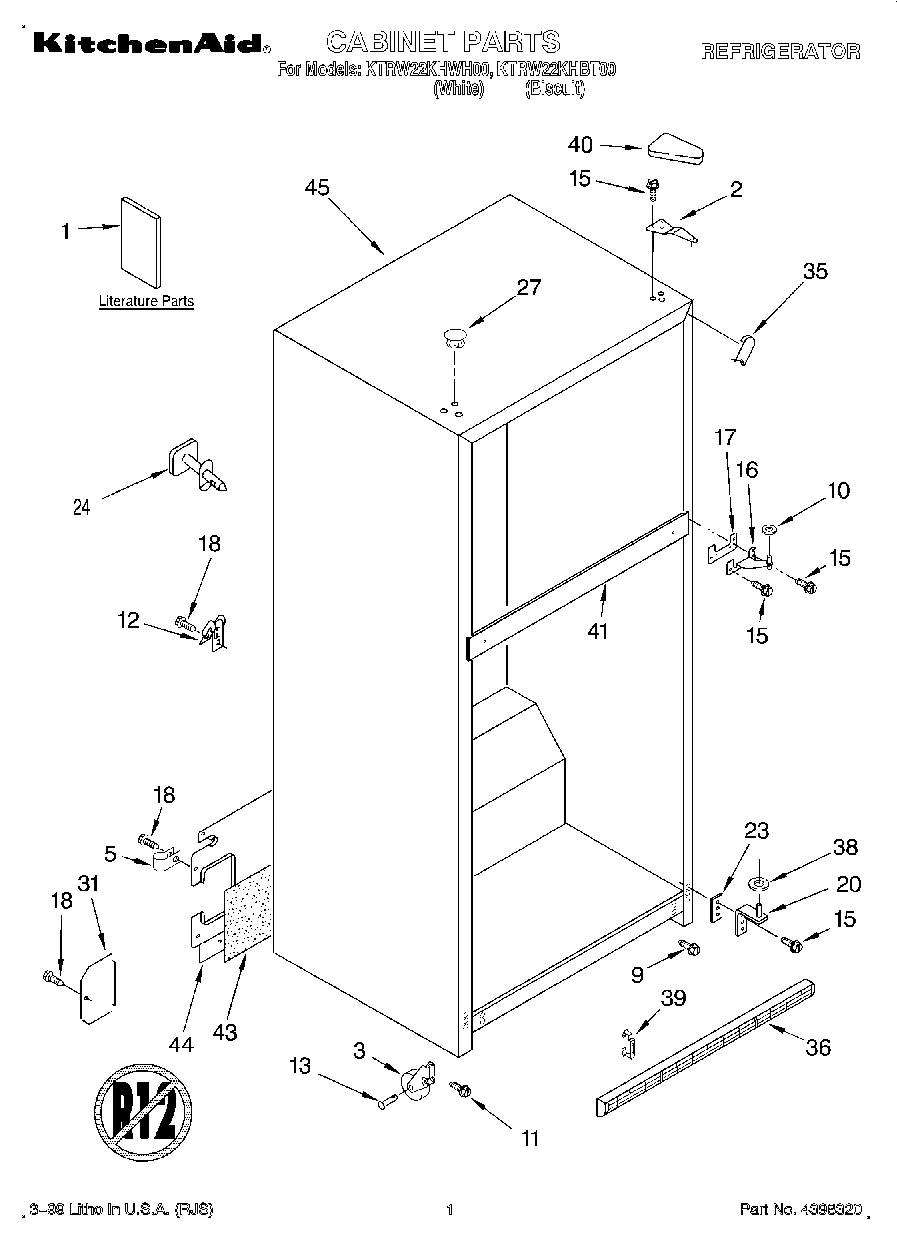

01 - CABINET, LITERATURE

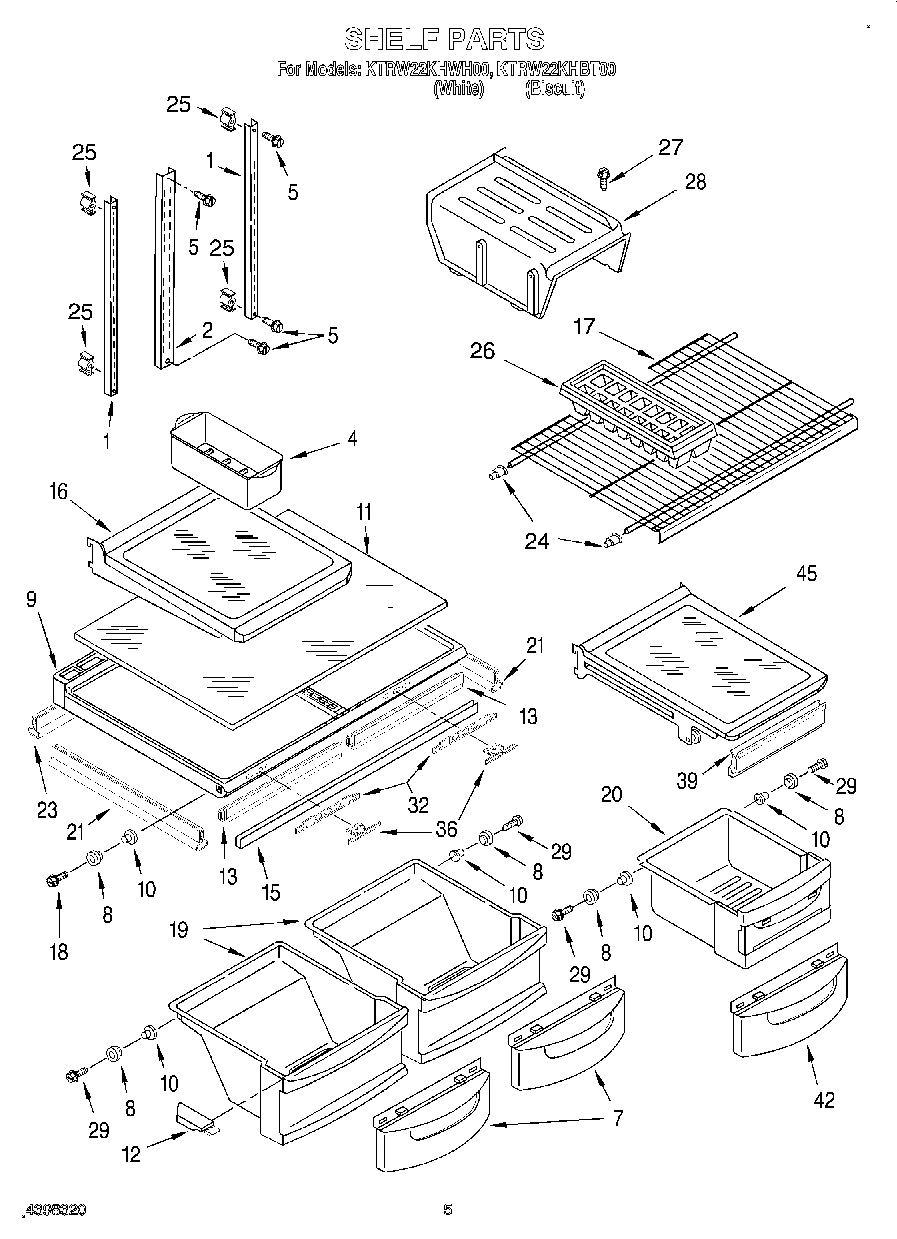

03 - SHELF

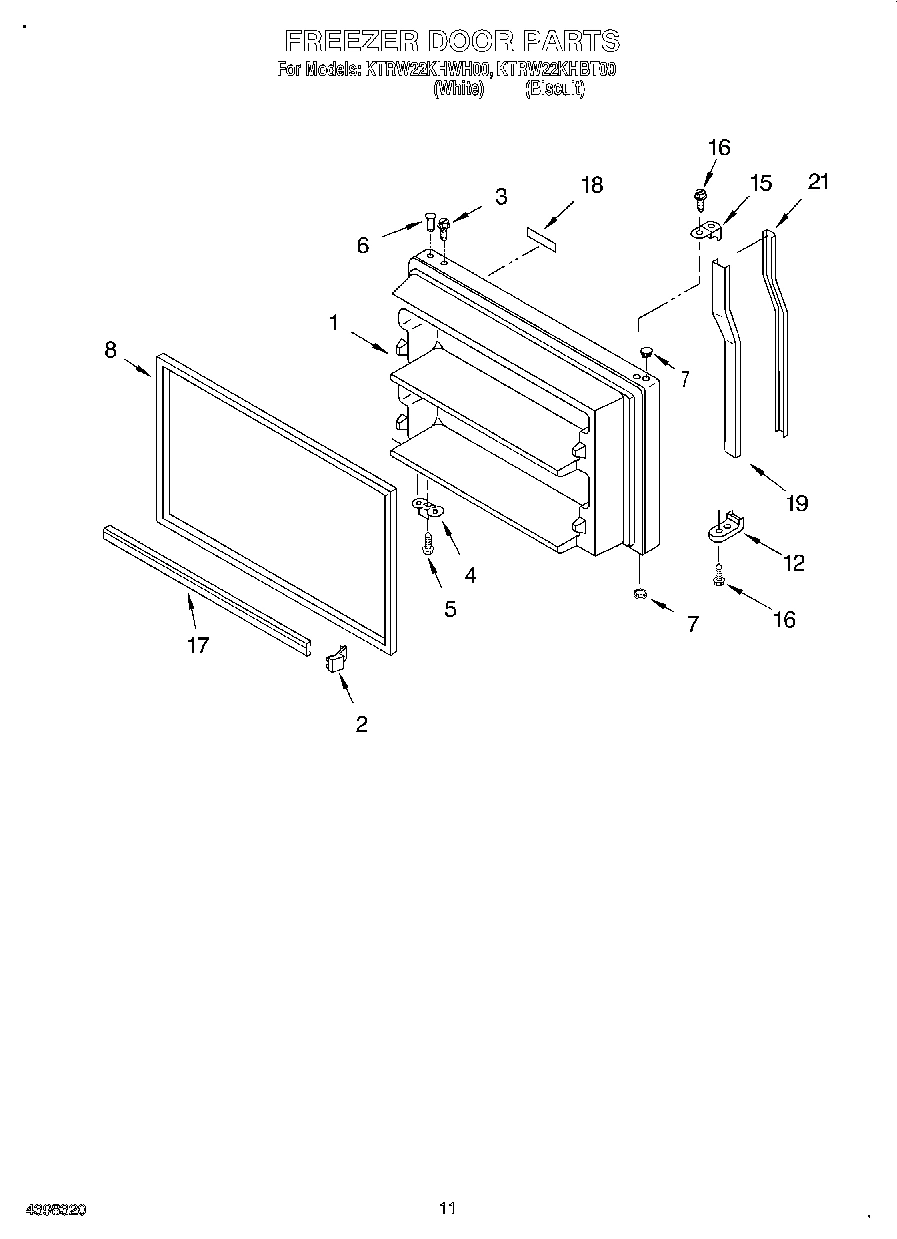

06 - FREEZER DOOR, OPTIONAL
Common parts from model Whirlpool KTRW22KHBT00
1
Service & Wiring Sheet WPL LIT2195481 Contact Us For Availability
1
Use & Care Guide WPL LIT2200941 Contact Us For Availability
1
Energy Label WPL LIT2204790 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2202822 Contact Us For Availability
1
Freezer Door (Includes No.8) (White) WPL 2183862 Contact Us For Availability
1
Freezer Door (Includes No.8) (Biscuit) WPL 2200928 Contact Us For Availability
2
Shelf, Ladder Center WPL 2202821 Contact Us For Availability
7
Window WPL 2175373 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
9
Screw WPL 489462 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198761 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Endcap, Handle (White) WPL 2195995W Contact Us For Availability
12
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
12
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
12
Endcap, Handle (Biscuit) WPL 2195995T Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability
15
Endcap (White) WPL 2195994W Contact Us For Availability
15
Endcap (Biscuit) WPL 2195994T Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174030 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Nameplate (White) WPL 2188149 Contact Us For Availability
18
Nameplate (Biscuit) WPL 2200935 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2175433 Contact Us For Availability
19
Insert, Retainer (Biscuit) WPL 2195992T Contact Us For Availability
19
Insert, Retainer (White) WPL 2195992W Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2175448 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
Insert, Handle (White) WPL 2195984 Contact Us For Availability
21
Insert, Handle (Biscuit) WPL 2200933 Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
22
Torx Key WPL 1117510 Contact Us For Availability
22
Featurepak (Includes 2, 17. See also Shelf Pa WPL 2199050 Contact Us For Availability
22
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
WPL 799832 WPL 799832 Contact Us For Availability
22
WPL 799833 WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI113069A Contact Us For Availability
26
Air Diffuser, Top WPL 2204690 Contact Us For Availability
27
Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Shelf, Ice Tray WPL 2183995 Contact Us For Availability
29
Bin, Door Shelf WPL 2171062 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Biscuit) WPL 2201020 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI113070A Contact Us For Availability
42
Wire Assy. Unit WPL 2200629 Contact Us For Availability
42
Window, Meat Pan WPL 2175445 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200778 Contact Us For Availability
44
Cover, Unit WPL 2200508 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
