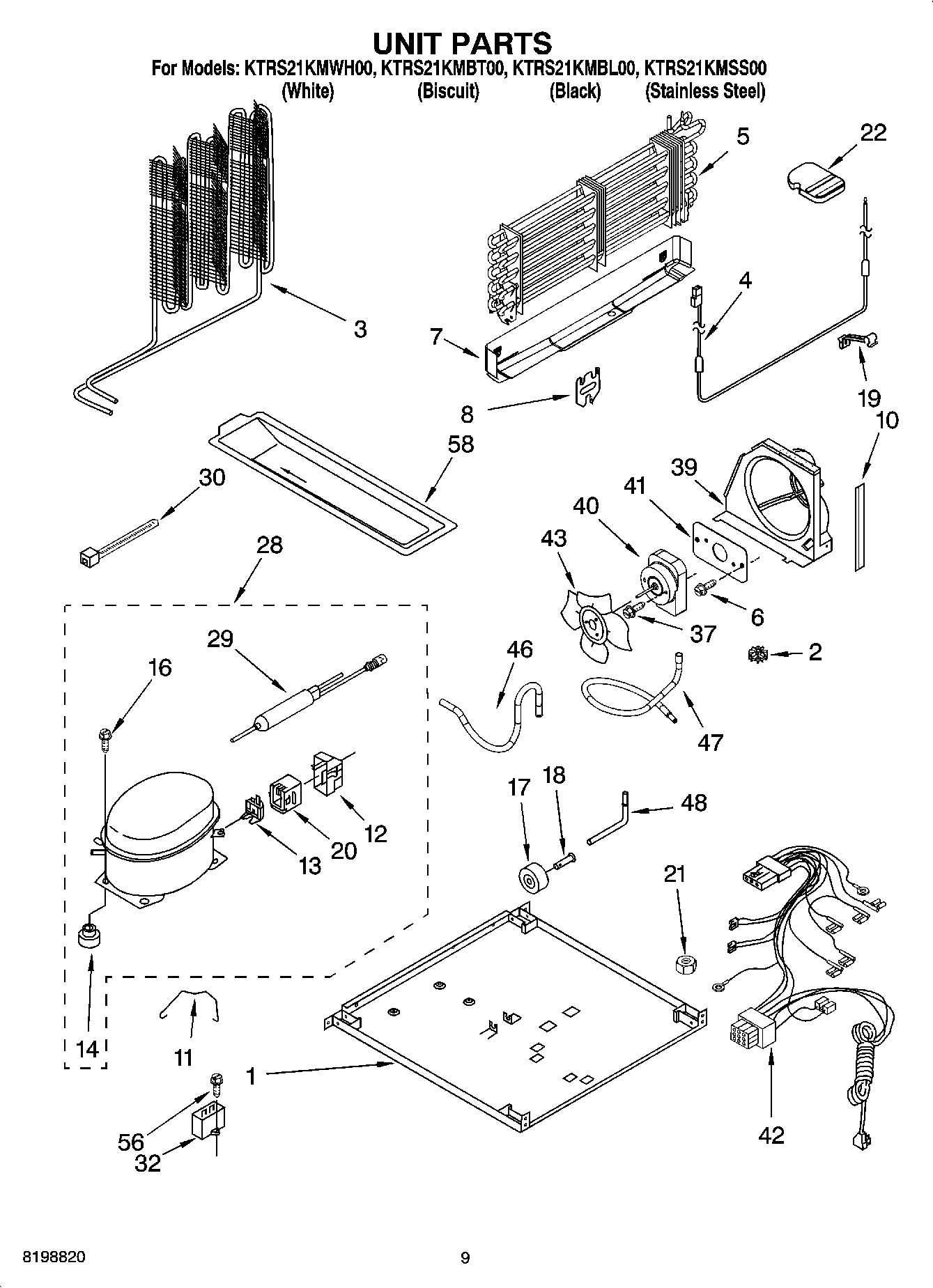

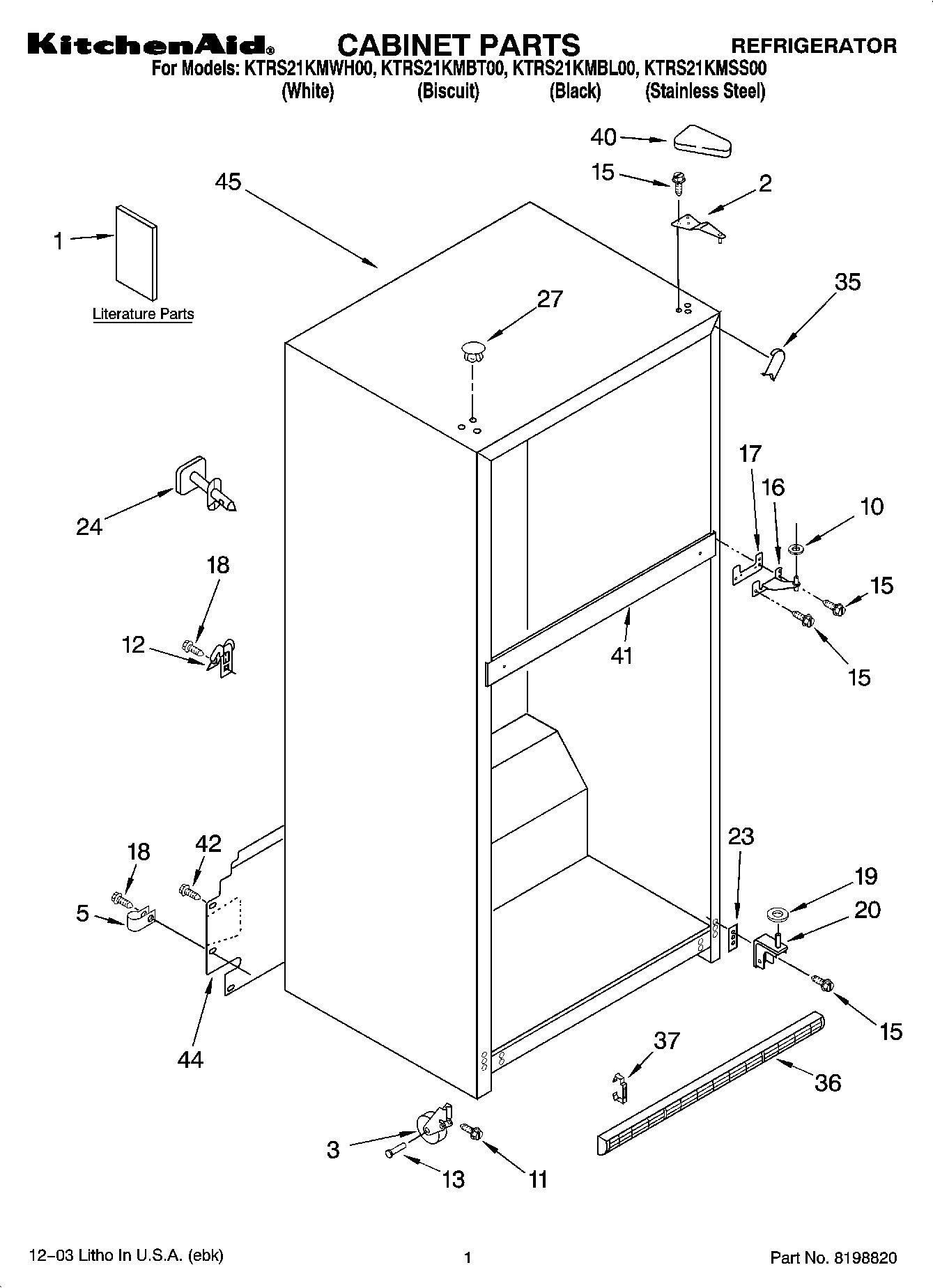

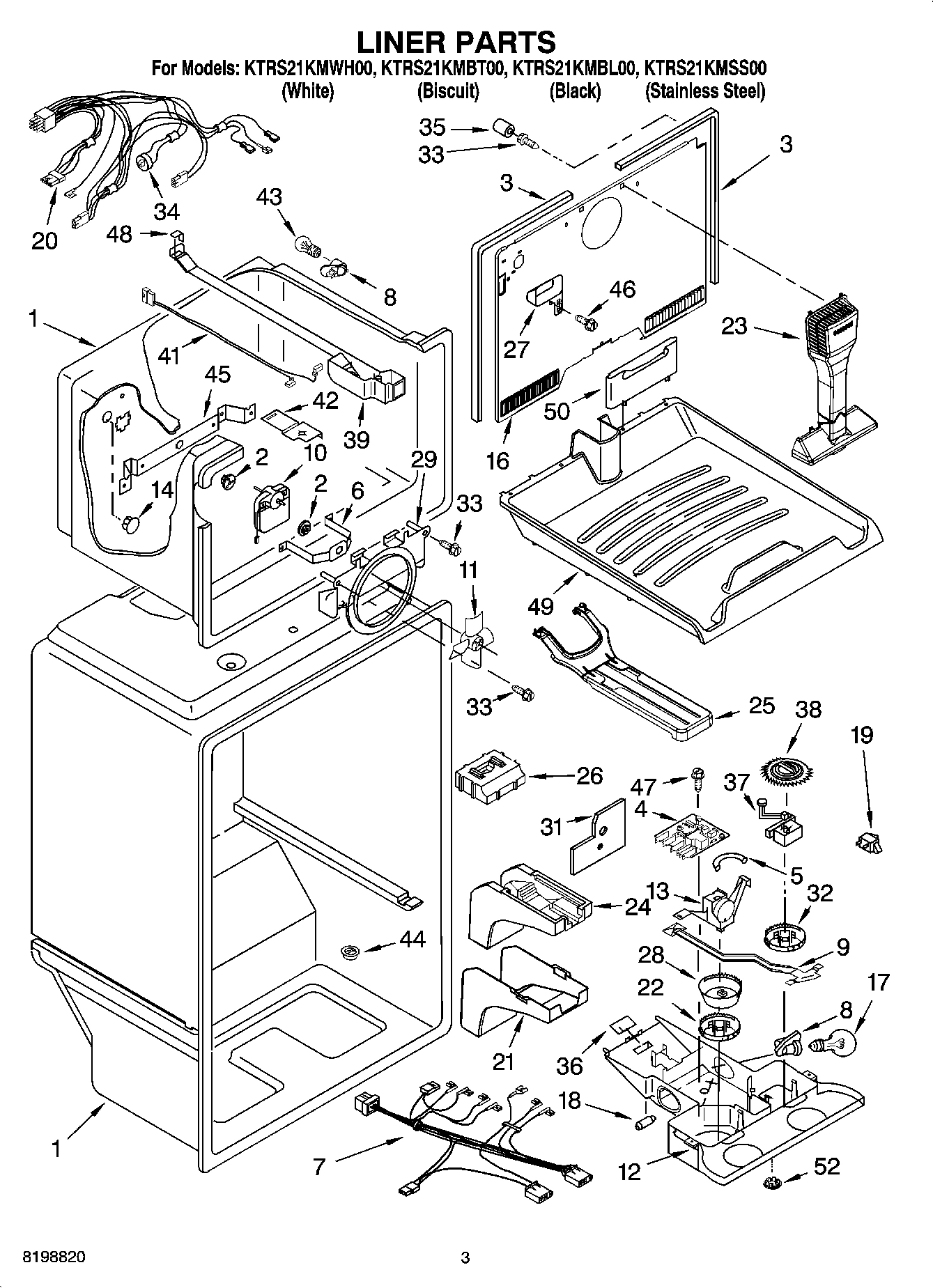

Model Whirlpool KTRS21KMBL00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

Plate, Unit Mounting WPL 2225596 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2225409 Contact Us For Availability

1

Literature Parts (Customer Quick Tips) WPL LIT2225415 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2225762 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2301766 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI112215A Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $84.99

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $30.99

2

Grommet WPL 531933 Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $16.47

3

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

3

Condenser WPL 2214960 Contact Us For Availability

4

WP2304099-includeCORE Whirlpool WP2304099 Ref Backorder WPL WP2304099-includeCORE $260.62

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $106.48

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

5

Thermostat Tube Barrier (FC) WPL 2212485 Contact Us For Availability

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $5.99

6

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Wire Assy. Control Box WPL 2187352 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

Damper, Air (Slide) WPL 2212413 Contact Us For Availability

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $5.99

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $49.76

Eyelet, Roller WPL 2174478 Contact Us For Availability

Extension, Air Baffle WPL 2163780 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

11

Strap WPL 2255199 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

Endcap (White) WPL 2195994W Contact Us For Availability

Control Box WPL 2213193 Contact Us For Availability

13

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $40.99

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

13

Thermostat Assembly (Includes Items 5, 18, & WPL 2204984 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

14

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $49.58

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $3.52

16

Cover, Evaporator WPL 2254262 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $14.57

Trim, Door WPL 2159292 Contact Us For Availability

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

18

Weight, Thermal WPL 2200831 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

Clip, Heater WPL 2182338 Contact Us For Availability

Endcap (White) WPL 2195995W Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $5.99

20

Wire Assembly, Freezer Compartment WPL 2187690 Contact Us For Availability

20

Start-Device Combination (Start Relay for Ove WPL 2255968 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Nut (Not Serviced) WPL ARI112216A Contact Us For Availability

22

Sopport WPL 2201185 Contact Us For Availability

22

Knob, Thermostat WPL 2205094 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $71.14

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $4.55

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

Fitting, Water Tube (Not Serviced) WPL ARI112212A Contact Us For Availability

25

Retainer, Freezer Floor WPL 2225473 Contact Us For Availability

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $11.61

Cover, Hole WPL 2205003 Contact Us For Availability

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

28

W10309989 Whirlpool Refrigerator Compressor In Stock WPL W10309989 $407.84

28

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $45.03

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

29

Bracket, Fan Motor WPL 2218696 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

31

Shield, heat WPL 2204639 Contact Us For Availability

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

32

Knob, Damper WPL 2204951 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

34

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $20.53

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $15.52

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.84

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $6.69

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $6.17

Grille (White) WPL 2254313 Contact Us For Availability

Grille (Biscuit) WPL 2254316 Contact Us For Availability

Button, Humidity Control WPL 2174253 Contact Us For Availability

Grille (Black) WPL 2254315 Contact Us For Availability

37

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.51

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

37

Control, Freezer WPL 2204991 Contact Us For Availability

38

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

39

Gasket, Front WPL 2174396 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

39

Housing Base WPL 2201153 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $11.82

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $89.49

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.53

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

Plate WPL 2301979 Contact Us For Availability

Rail Center (Not Serviced) WPL ARI112213A Contact Us For Availability

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

42

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $209.77

42

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $14.99

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $13.99

44

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

44

Cover, Unit WPL 2202884 Contact Us For Availability

45

Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI112214A Contact Us For Availability

45

Bracket, Evap. Fan, Rear WPL 2214976 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $62.23

46

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $8.39

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $70.20

47

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $49.60

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2225476 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

52

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

8201826 Whirlpool Refrigerator Evaporator Tra Backorder WPL 8201826 $100.75

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI112217A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI112218A Contact Us For Availability
