Model Whirlpool KTRS19KKWH00 REFRIGERATOR – Common Parts & Diagrams

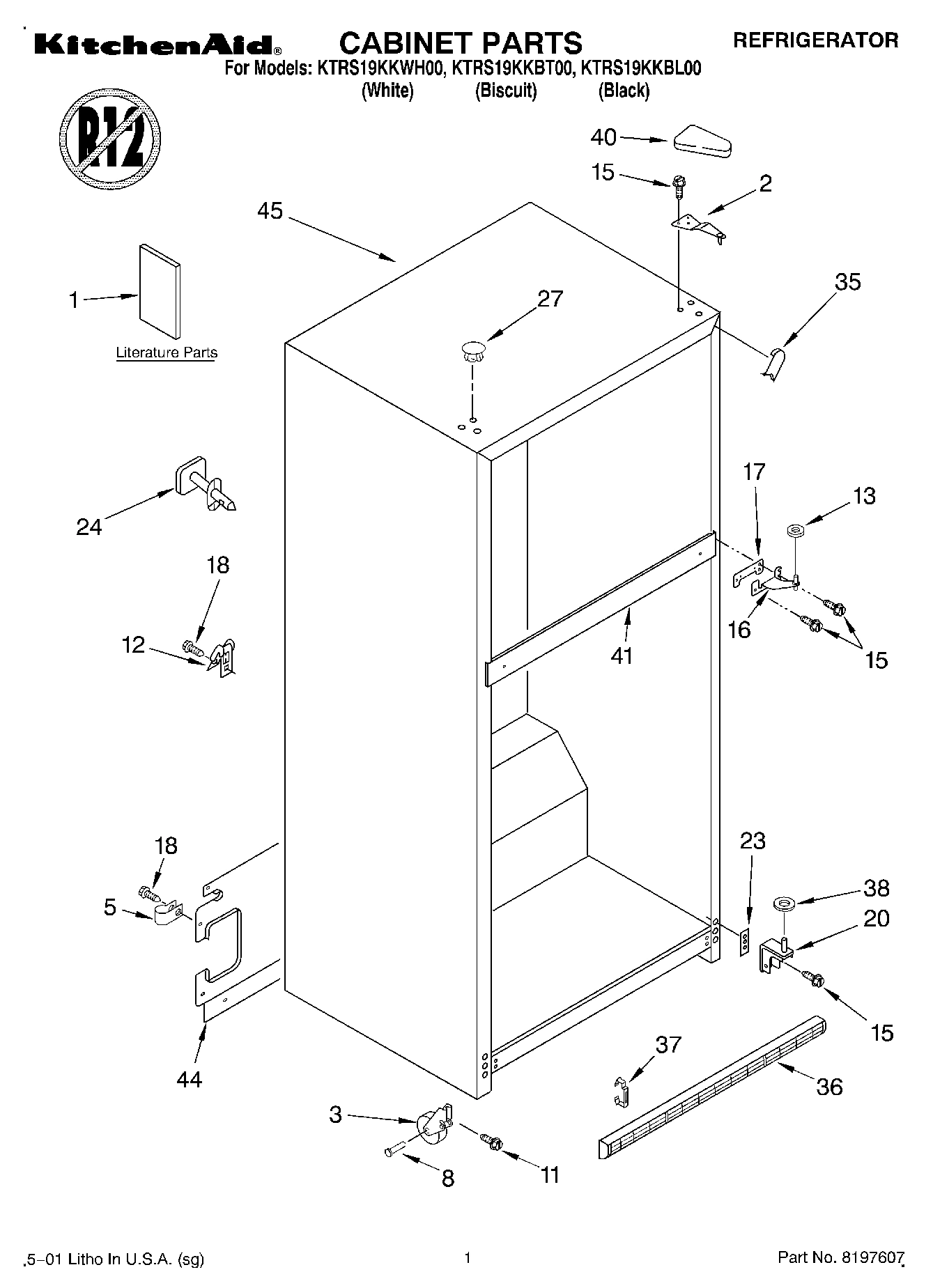

01 - CABINET, LITERATURE

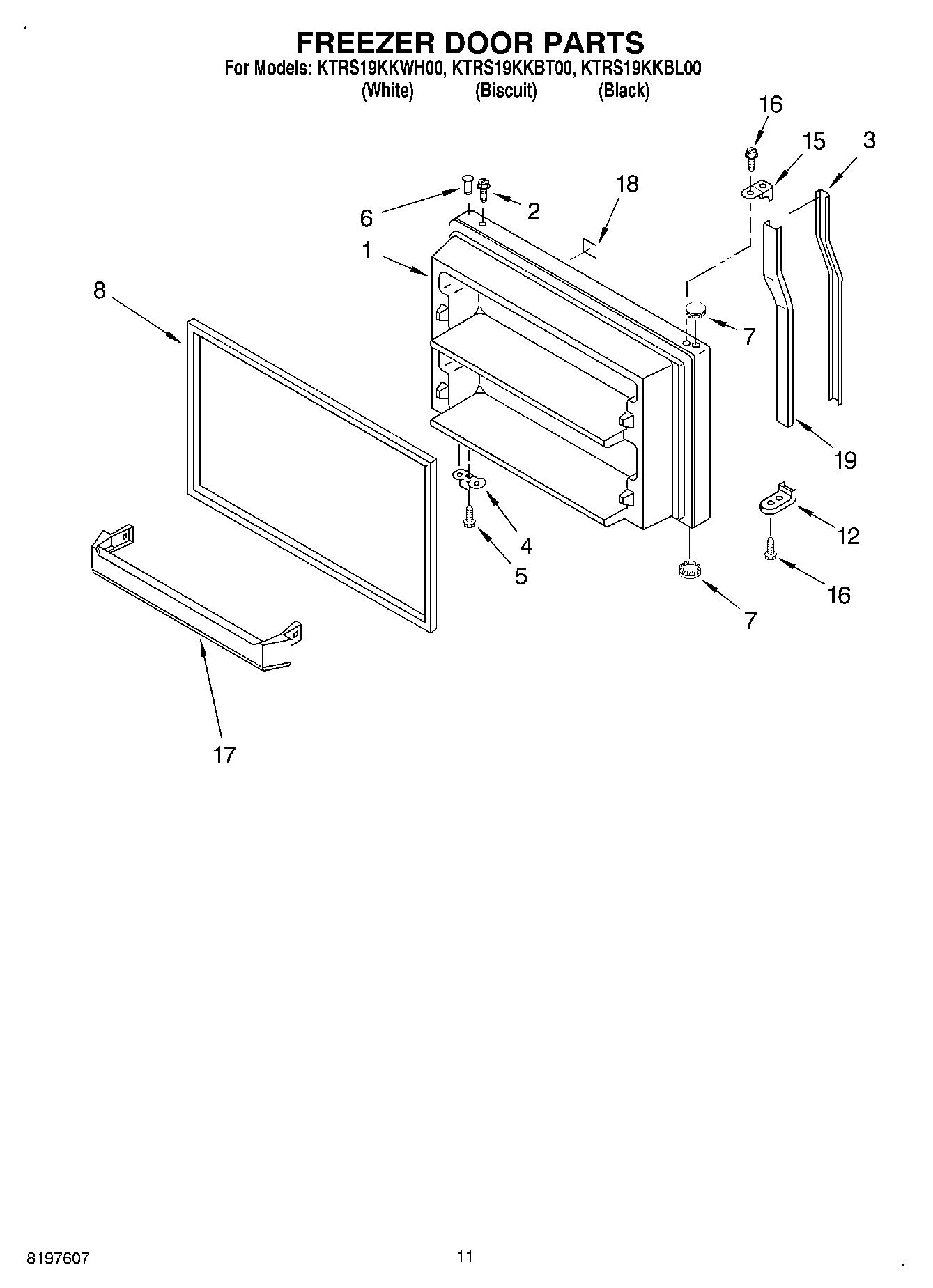

06 - FREEZER DOOR, OPTIONAL

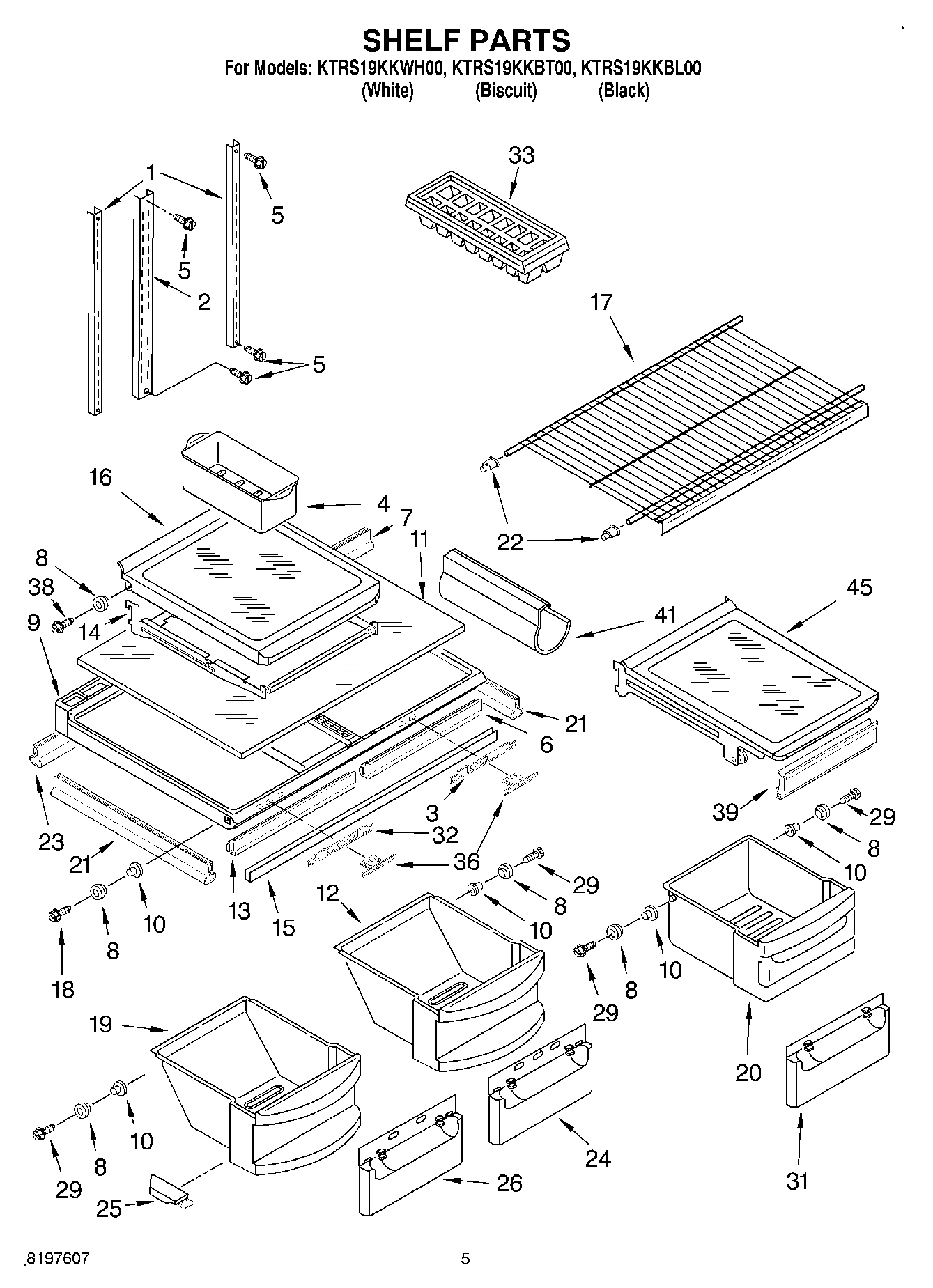

03 - SHELF

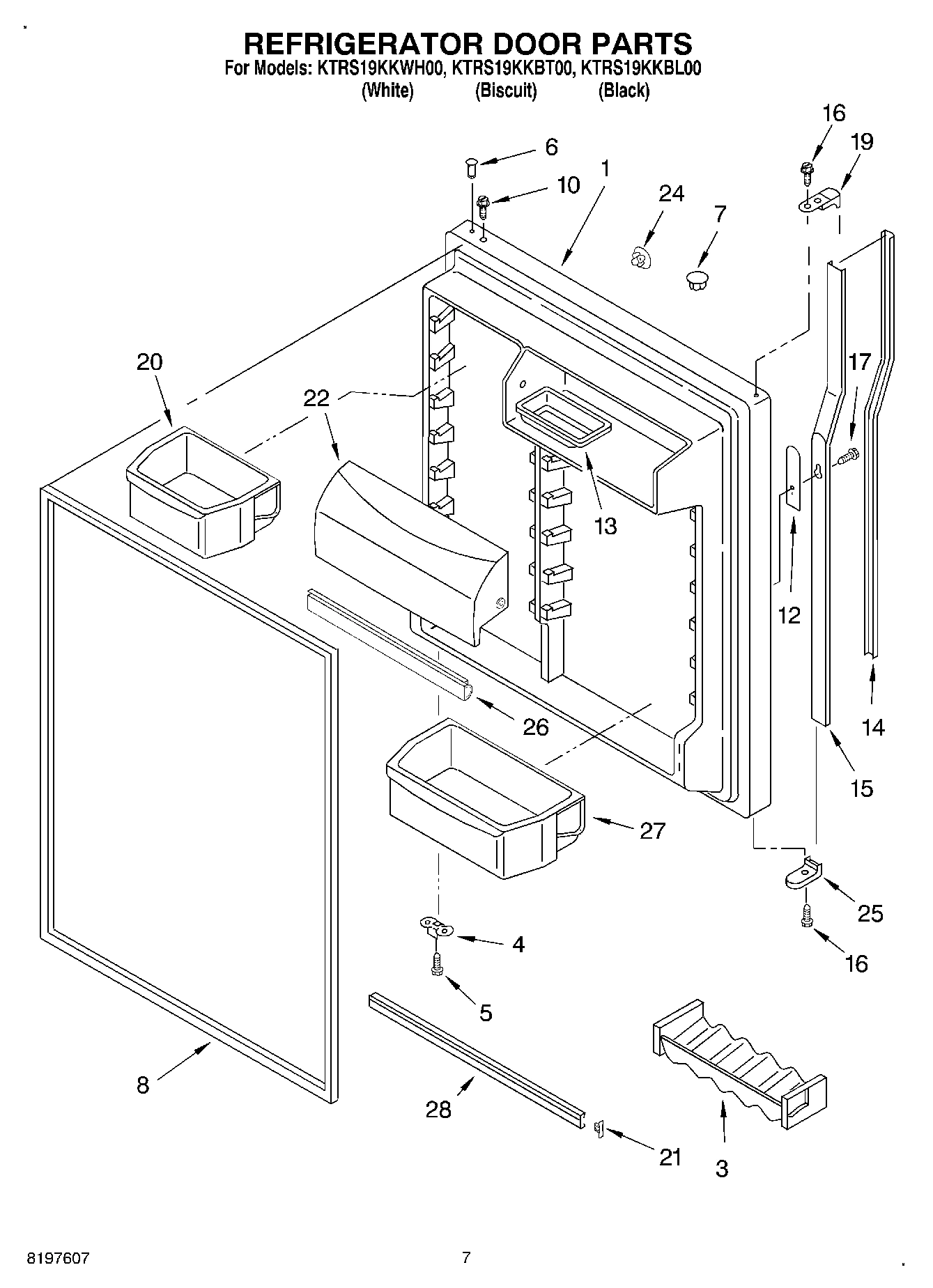

04 - REFRIGERATOR DOOR

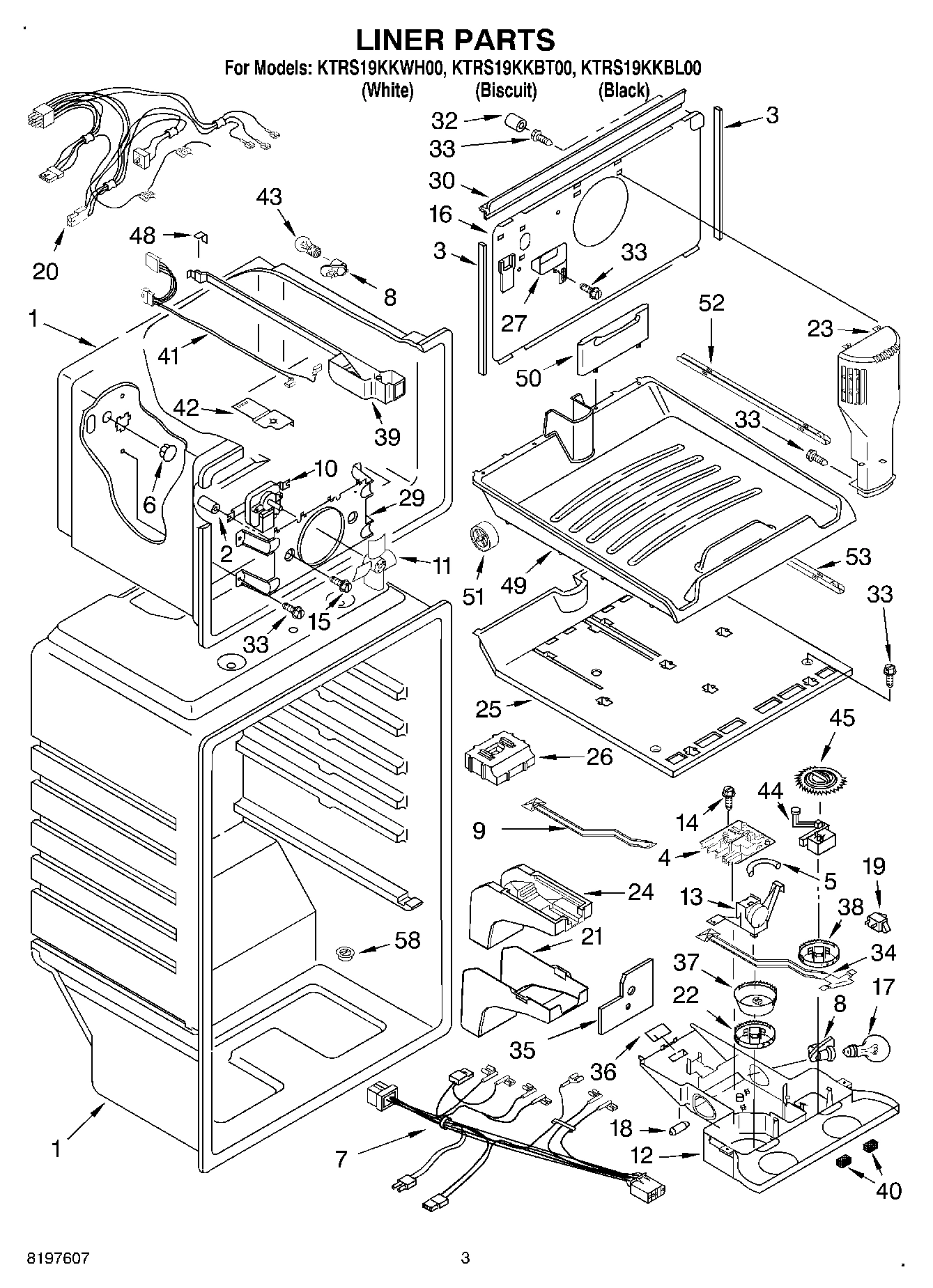

02 - LINER

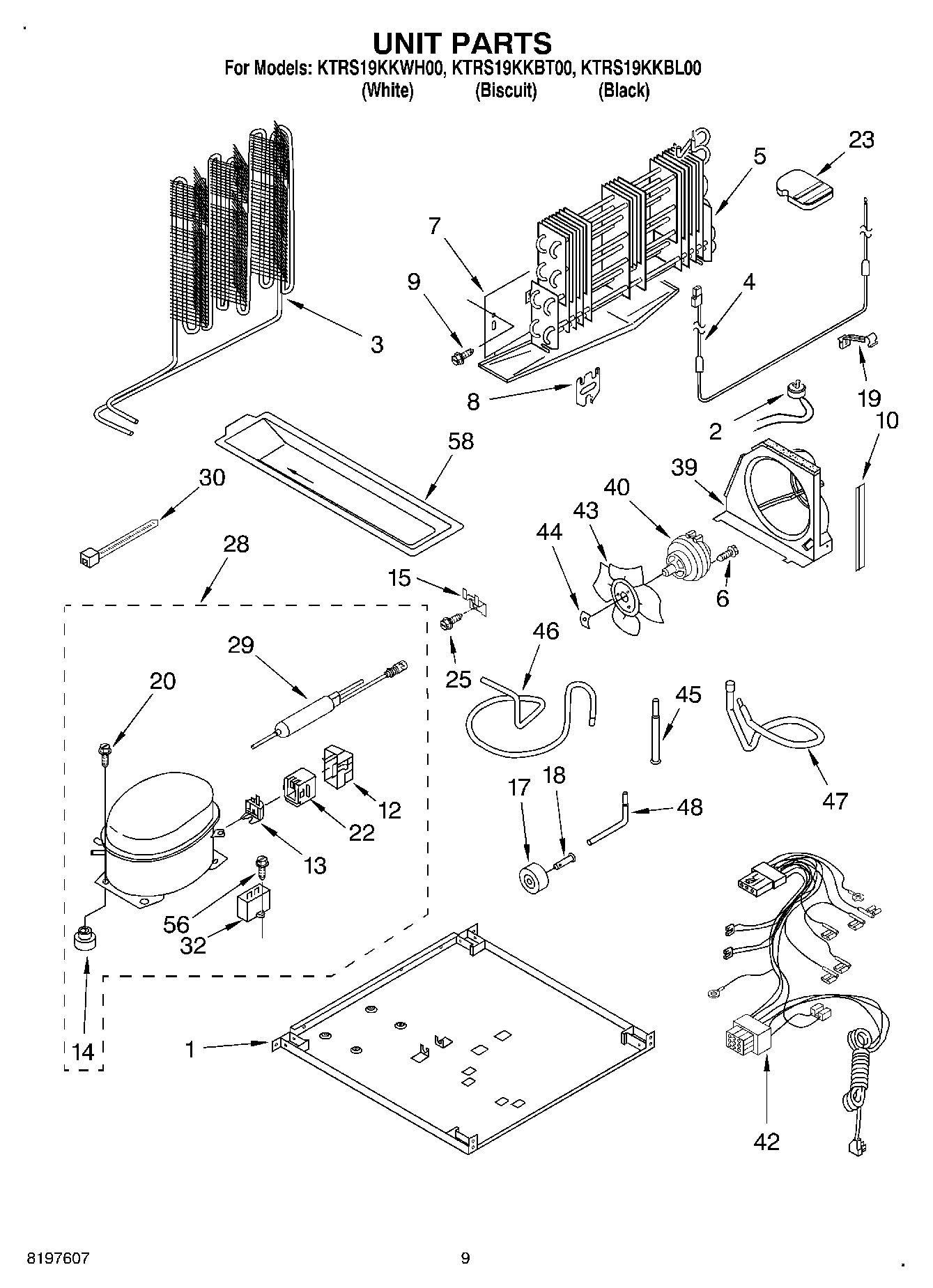

05 - UNIT
Common parts from model Whirlpool KTRS19KKWH00 REFRIGERATOR
1
Refrigerator Door (White) WPL 2183866 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2200616 Contact Us For Availability
1
Refrigerator Door (Biscuit) WPL 2205131 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI111688A Contact Us For Availability
1
Plate, Unit Mounting WPL 2205341 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Beverage Holder WPL 2193409 Contact Us For Availability
5
Thermostat Tube Barrier WPL 2212485 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Wire Assy. Control Box WPL 2187352 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
12
Spacer, Door Handle WPL 2188146 Contact Us For Availability
12
Control Box WPL 2213193 Contact Us For Availability
13
Tray, Butter WPL 2165792 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2204984 Contact Us For Availability
14
Insert, Handle (Black) WPL 2188155 Contact Us For Availability
14
Insert, Handle (White) WPL 2195986 Contact Us For Availability
14
Insert, Handle (Biscuit) WPL 2200932 Contact Us For Availability
15
Endcap (White) WPL 2195994W Contact Us For Availability
15
Retainer, Insert (Black) WPL 2188222B Contact Us For Availability
15
Retainer, Insert (Biscuit) WPL 2188222T Contact Us For Availability
15
Retainer, Insert (White) WPL 2188222W Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Retaining Clip, Capacitor WPL 2166683 Contact Us For Availability
16
Cover-Evaporator WPL 2201173 Contact Us For Availability
17
Screw WPL 3400873 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
WPL 876029 WPL 876029 Contact Us For Availability
19
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
19
WPL 799344 WPL 799344 Contact Us For Availability
19
Torx Key WPL 1117510 Contact Us For Availability
19
Endcap (White) WPL 2195995W Contact Us For Availability
19
End Cap (Black) WPL 2195995B Contact Us For Availability
19
Endcap (Biscuit) WPL 2195995T Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2187301 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Knob, Thermostat WPL 2205094 Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2201184 Contact Us For Availability
25
Endcap, Bottom (Black) WPL 2188132 Contact Us For Availability
25
Endcap, Bottom (White) WPL 2195990 Contact Us For Availability
25
Endcap, Bottom (Biscuit) WPL 2200930 Contact Us For Availability
25
Freezer Floor WPL 2204746 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
34
Air Damper WPL 2212413 Contact Us For Availability
35
Shield, heat WPL 2204639 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
38
Knob, Damper WPL 2204951 Contact Us For Availability
39
Housing Base WPL 2201152 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Air Seal, Foam WPL 2205055 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187281 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
42
Wire Assy. Unit WPL 2187358 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Control, Freezer WPL 2204991 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability
45
Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability
45
Tube, Transition WPL 2212603 Contact Us For Availability
47
Tube, Suction WPL 2219514 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189429 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
58
Evap. Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
