Model Whirlpool KTRP19KGAL01 REFRIGERATOR – Common Parts & Diagrams
03 - SHELF

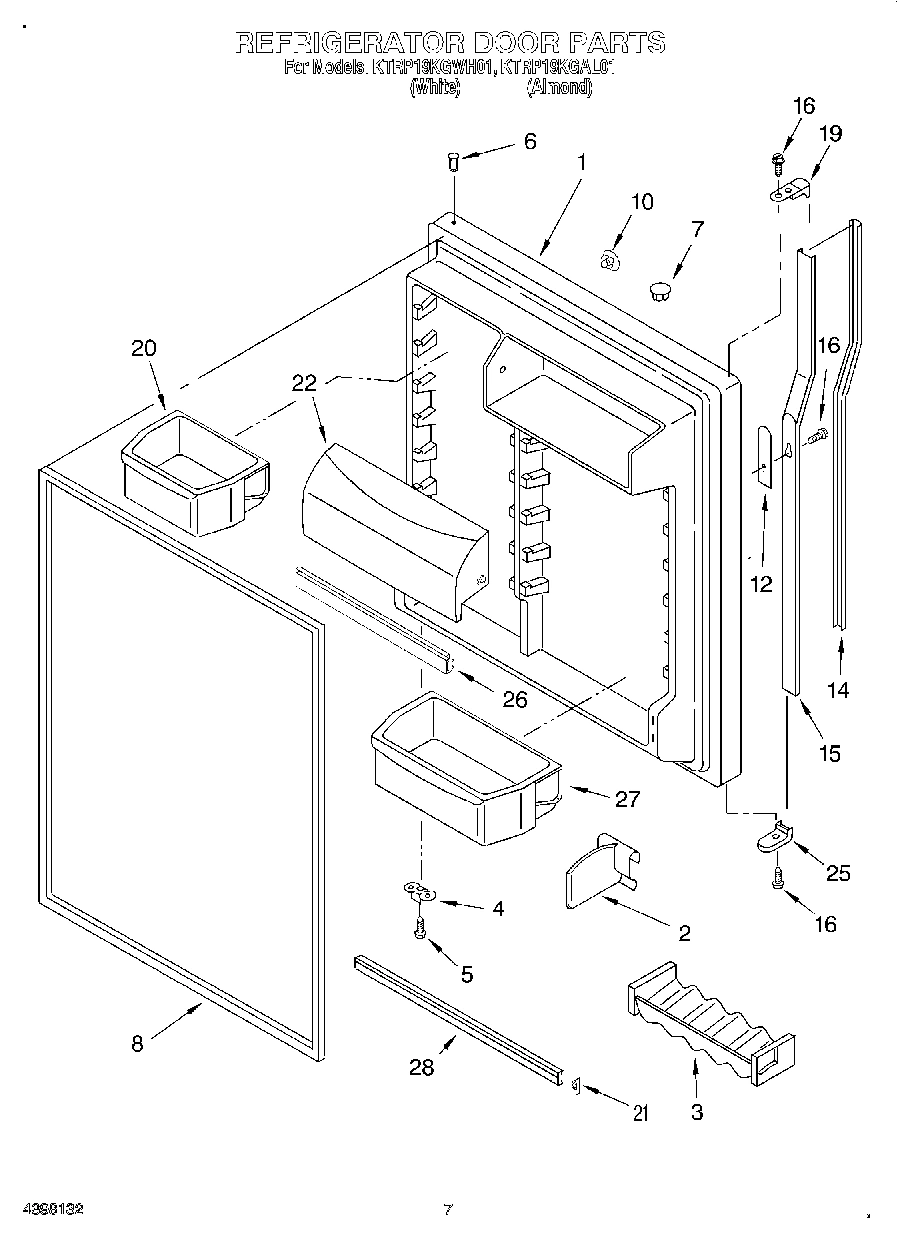

04 - REFRIGERATOR DOOR

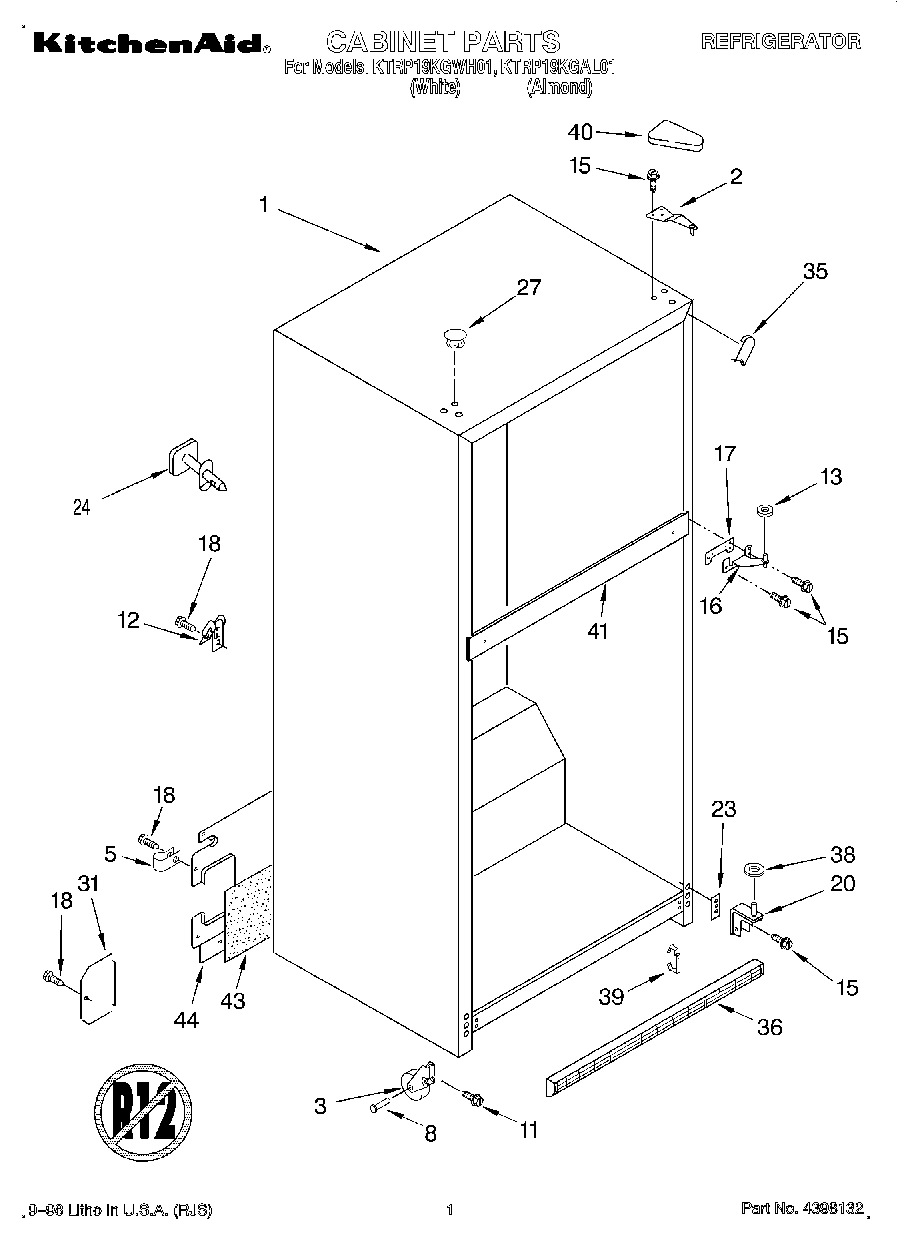

01 - CABINET

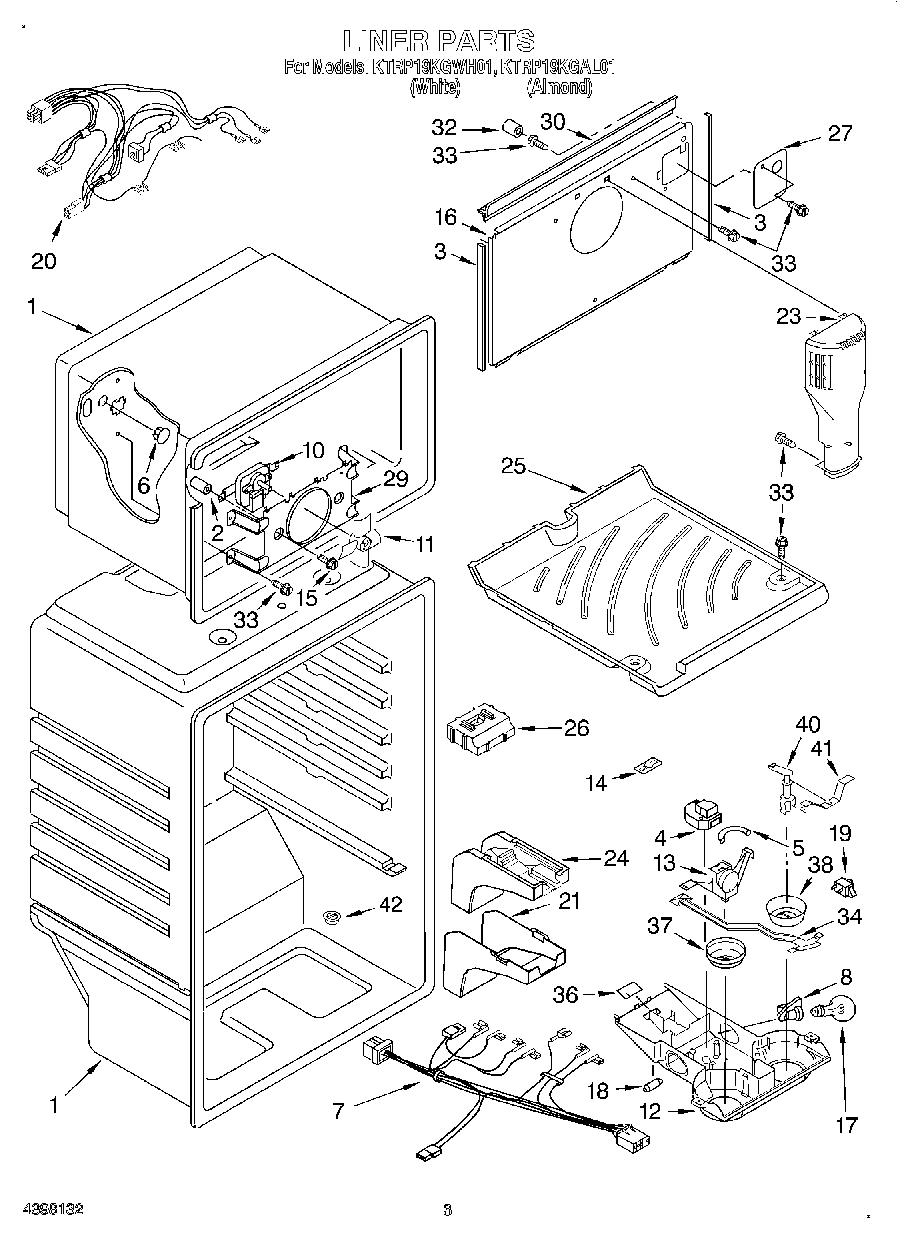

02 - LINER

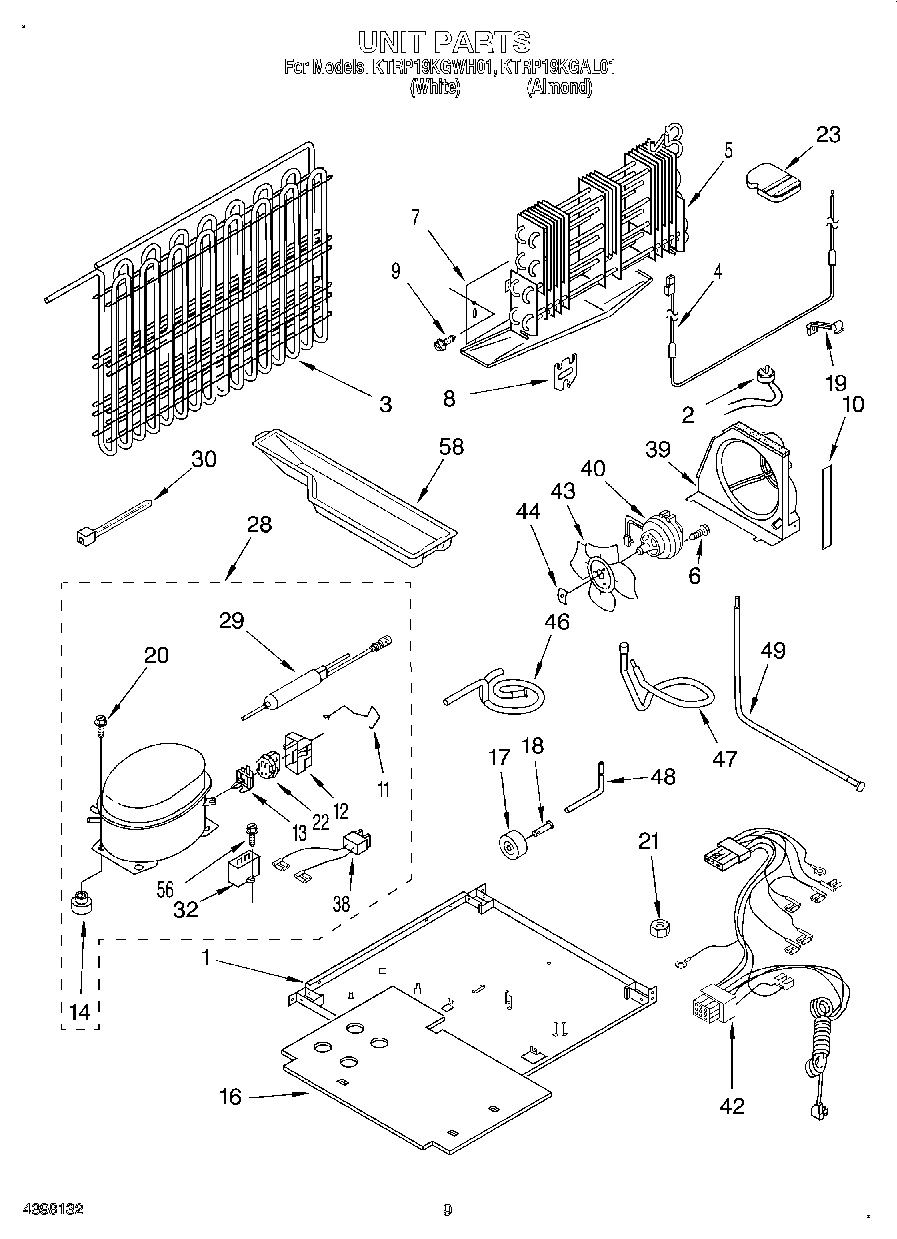

05 - UNIT

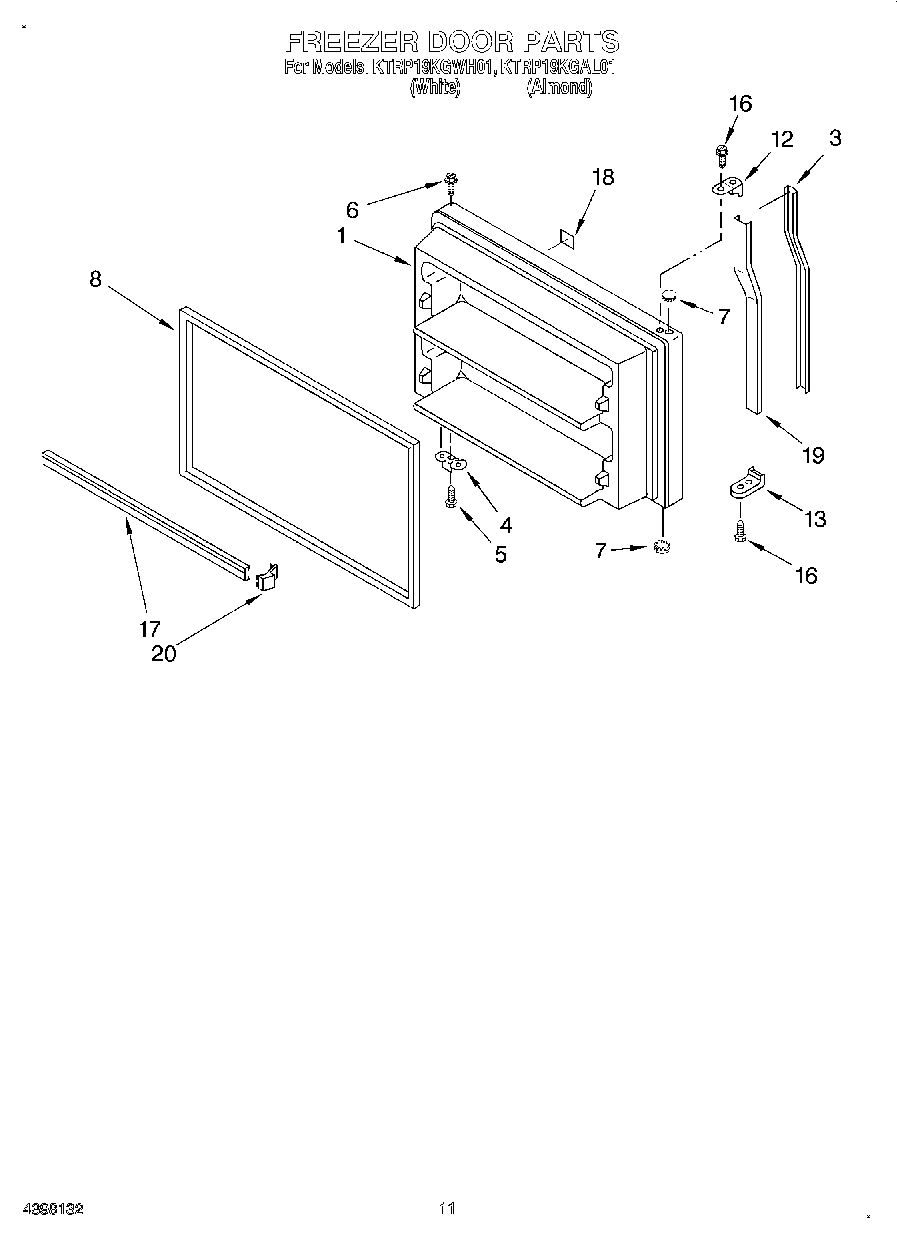

06 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool KTRP19KGAL01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2195481 WPL LIT2195481 Contact Us For Availability
WPL LIT2199010 WPL LIT2199010 Contact Us For Availability
WPL LIT2199061 WPL LIT2199061 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI110816A Contact Us For Availability
1
Plate, Unit Mounting WPL 2188168 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (White) WPL 2183860 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Almond) WPL 2183861 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
3
Insert, Handle (White) WPL 2195984 Contact Us For Availability
3
Insert, Handle (Almond) WPL 2195985 Contact Us For Availability
4
Timer, Defrost WPL 2199008 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Wire Assy. Control Box WPL 2200632 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Clamp (Production Only) WPL 943322 Contact Us For Availability
12
Endcap (White) WPL 2195994W Contact Us For Availability
12
Control Box WPL 2200820 Contact Us For Availability
12
Cover (Service Only) WPL 1105055 Contact Us For Availability
12
Endcap (Almond) WPL 2195994N Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2200830 Contact Us For Availability
13
Endcap (Almond) WPL 2195995N Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
16
Cover, Unit WPL 2198740 Contact Us For Availability
17
Trim-Door (2) WPL 2195946 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
18
Nameplate (White) WPL 2188149 Contact Us For Availability
18
Nameplate (Almond) WPL 2188150 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Endcap (White) WPL 2195995W Contact Us For Availability
19
Insert, Retainer (Almond) WPL 2195992N Contact Us For Availability
19
Insert, Retainer (White) WPL 2195992W Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI110817A Contact Us For Availability
22
Relay (See Overload) WPL ARI110818A Contact Us For Availability
23
Shim WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Support Block WPL 2176302 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
30
Support WPL 2189314 Contact Us For Availability
34
Air Damper WPL 2179858 Contact Us For Availability
38
Knob, Damper WPL 2176297 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
Post, Damper WPL 2179859 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI110815A Contact Us For Availability
41
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
42
Wire Assy. Unit WPL 2200629 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Insulation WPL 2200777 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Door Reversal Instructions WPL 2180007 Contact Us For Availability
100
FeaturePak (Includes 17,20) Also see Ref. Dr. WPL 2199044 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN WPL 799832 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
