Model Whirlpool KTRC22KKWH00 REFRIGERATOR – Common Parts & Diagrams

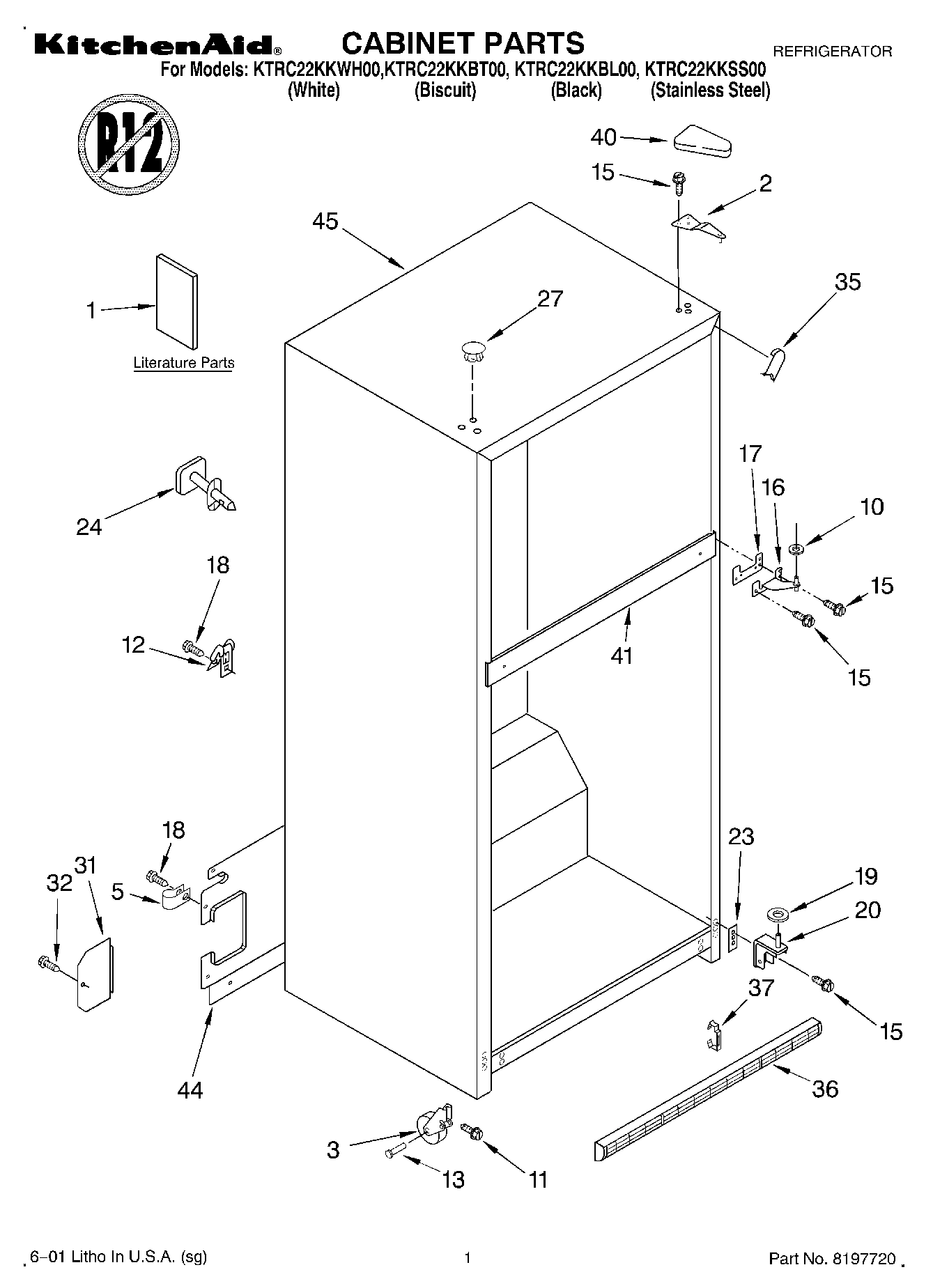

01 - CABINET, LITERATURE

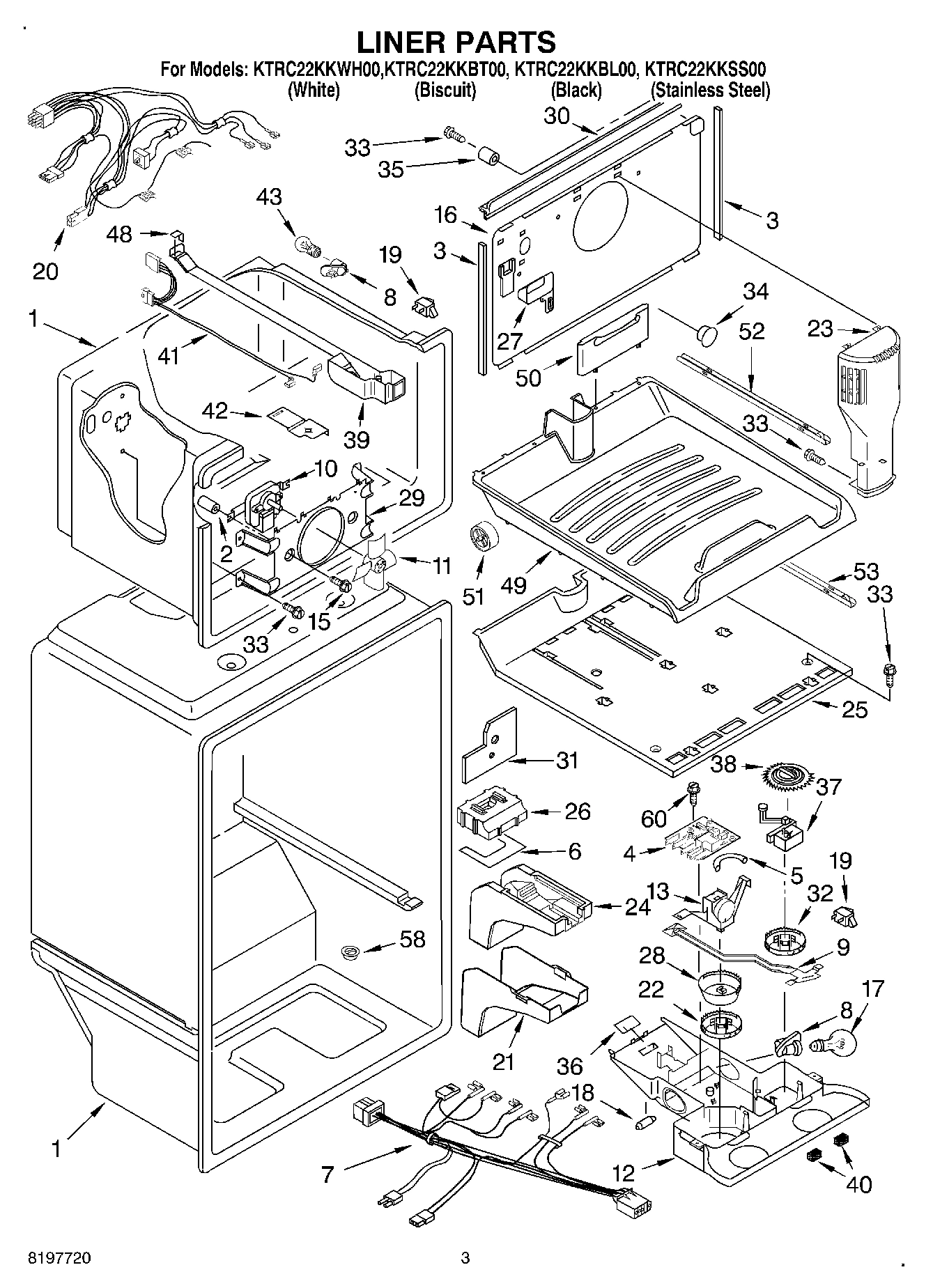

02 - LINER

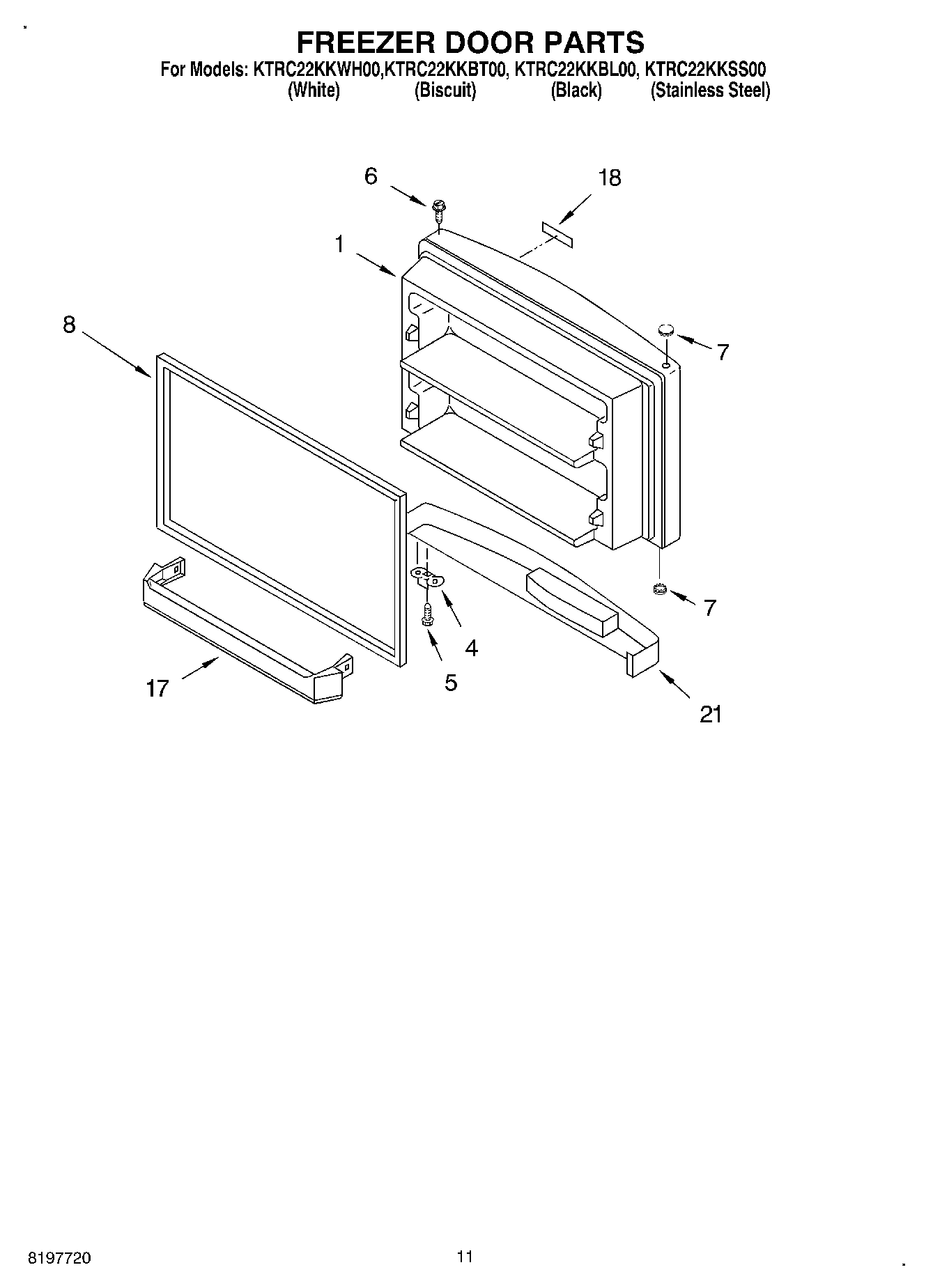

06 - FREEZER DOOR, OPTIONAL

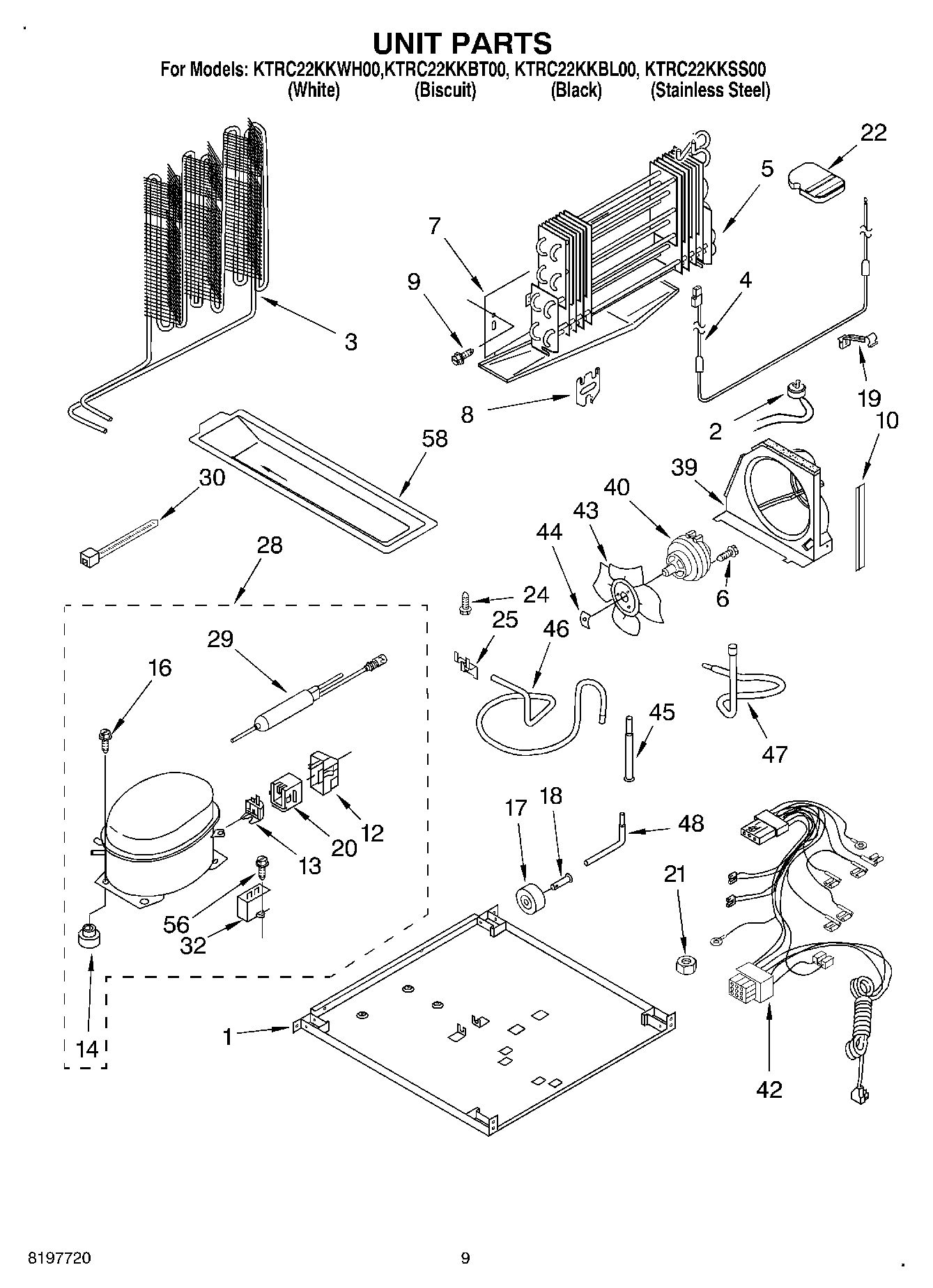

05 - UNIT

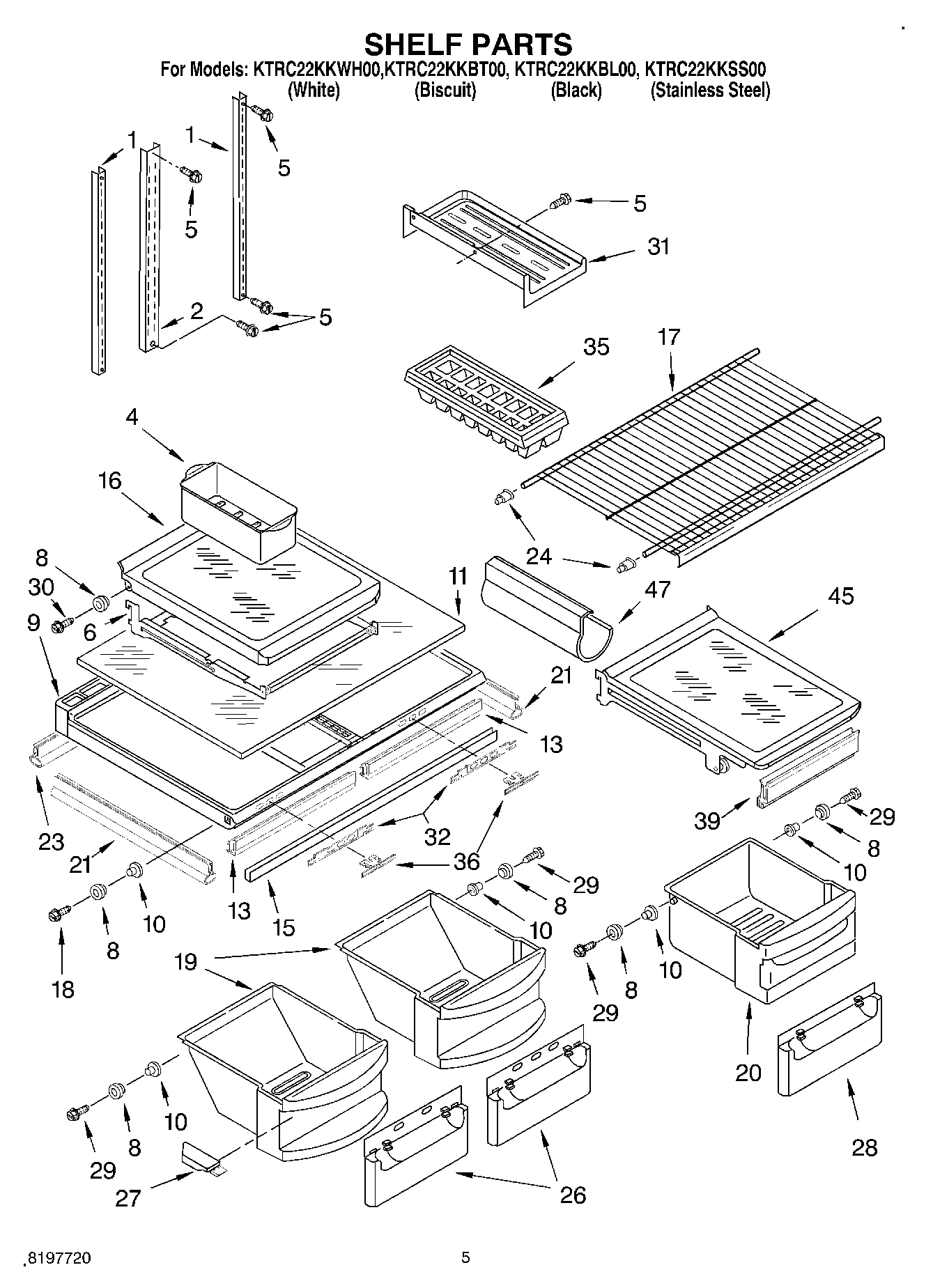

03 - SHELF

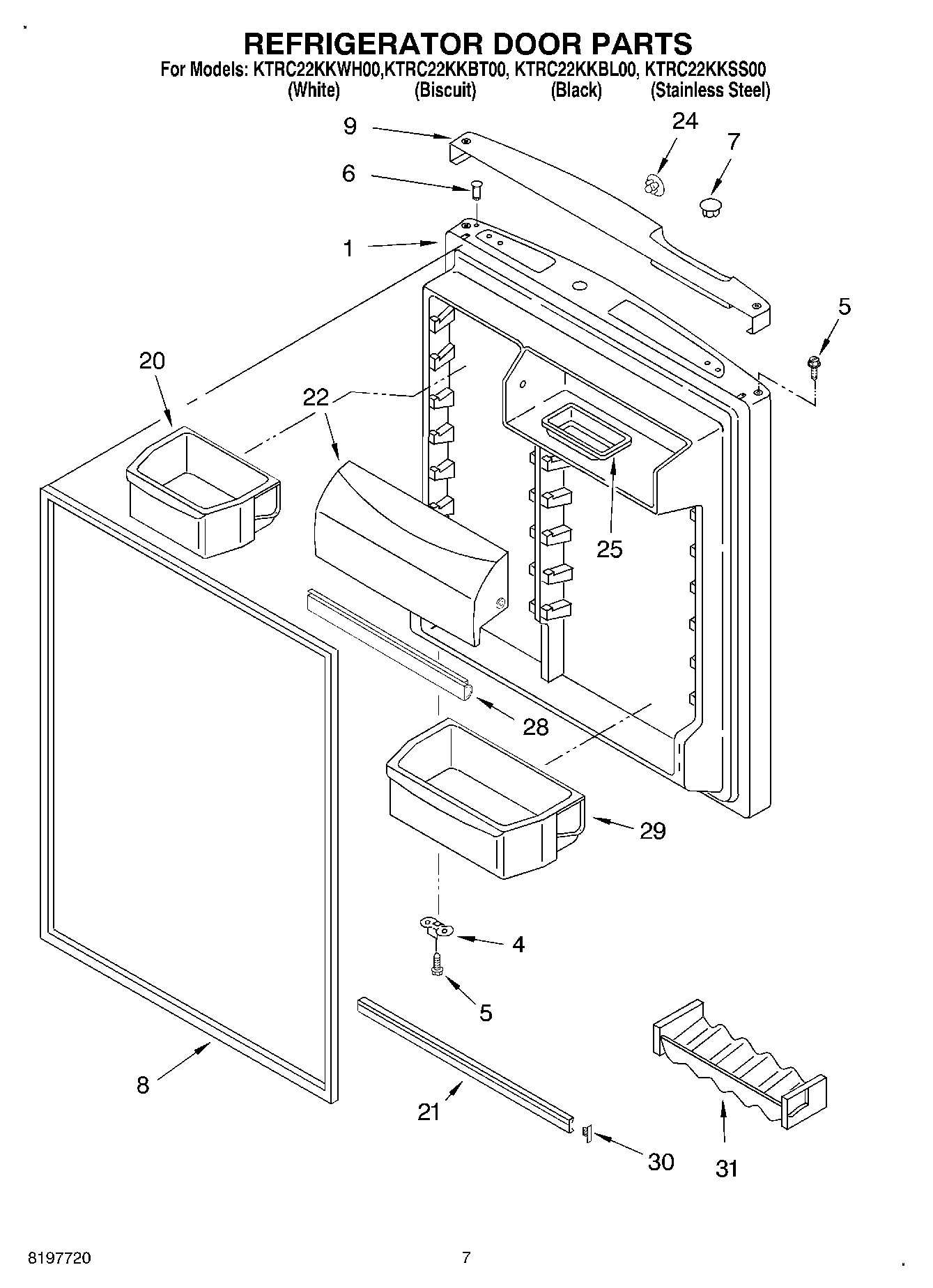

04 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTRC22KKWH00 REFRIGERATOR
1
Plate, Unit Mounting WPL 2205340 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2210522 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2205214 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bis WPL 2205215 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2205217 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Sta WPL 2212418 Contact Us For Availability
2
Shelf, Ladder Center WPL 2202821 Contact Us For Availability
5
Evaporator Assy. WPL 2195390 Contact Us For Availability
6
Frame Assembly, Cantilever WPL 2174014 Contact Us For Availability
7
Wire Assy. Control Box WPL 2187352 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
8
Roller & Tread Assembly WPL 2188212 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2210583 Contact Us For Availability
9
Endcap (White) WPL 2213333 Contact Us For Availability
9
Endcap (Biscuit) WPL 2213334 Contact Us For Availability
9
Endcap (Black) WPL 2213336 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability
17
Trim, Door WPL 2159292 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Nameplate (Biscuit) WPL 2212761 Contact Us For Availability
18
Nameplate (Black) WPL 2212762 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2188283 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2188289 Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
WPL 876029 WPL 876029 Contact Us For Availability
21
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
21
PAINT, BULK (1 Q WPL 799344 Contact Us For Availability
21
Torx Key WPL 1117510 Contact Us For Availability
21
End Cap (White) WPL 2213328 Contact Us For Availability
21
End Cap (Biscuit) WPL 2213329 Contact Us For Availability
21
End Cap (Black) WPL 2213331 Contact Us For Availability
21
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
21
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
21
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
21
WPL 799832 WPL 799832 Contact Us For Availability
21
WPL 799833 WPL 799833 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI110115A Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
22
Support WPL 2201185 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
24
Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability
24
Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability
24
Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability
25
Clip, Capacitator WPL 2166683 Contact Us For Availability
25
Tray, Butter WPL 2165792 Contact Us For Availability
26
Air Diffuser, Top WPL 2204690 Contact Us For Availability
26
Window, Crisper WPL 2188276 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
27
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
27
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
28
Window, Meat Pan WPL 2188278 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability
30
Screw WPL 489439 Contact Us For Availability
31
Shelf, Ice Tray WPL 2212770 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
42
Wire Assy. Unit WPL 2187358 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
45
Tube, Transition WPL 2212603 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability
47
Tube, Suction WPL 2219514 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
58
Evap. Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
