Model Whirlpool KTRC22KKBT00 REFRIGERATOR – Common Parts & Diagrams
03 - SHELF
01 - CABINET, LITERATURE

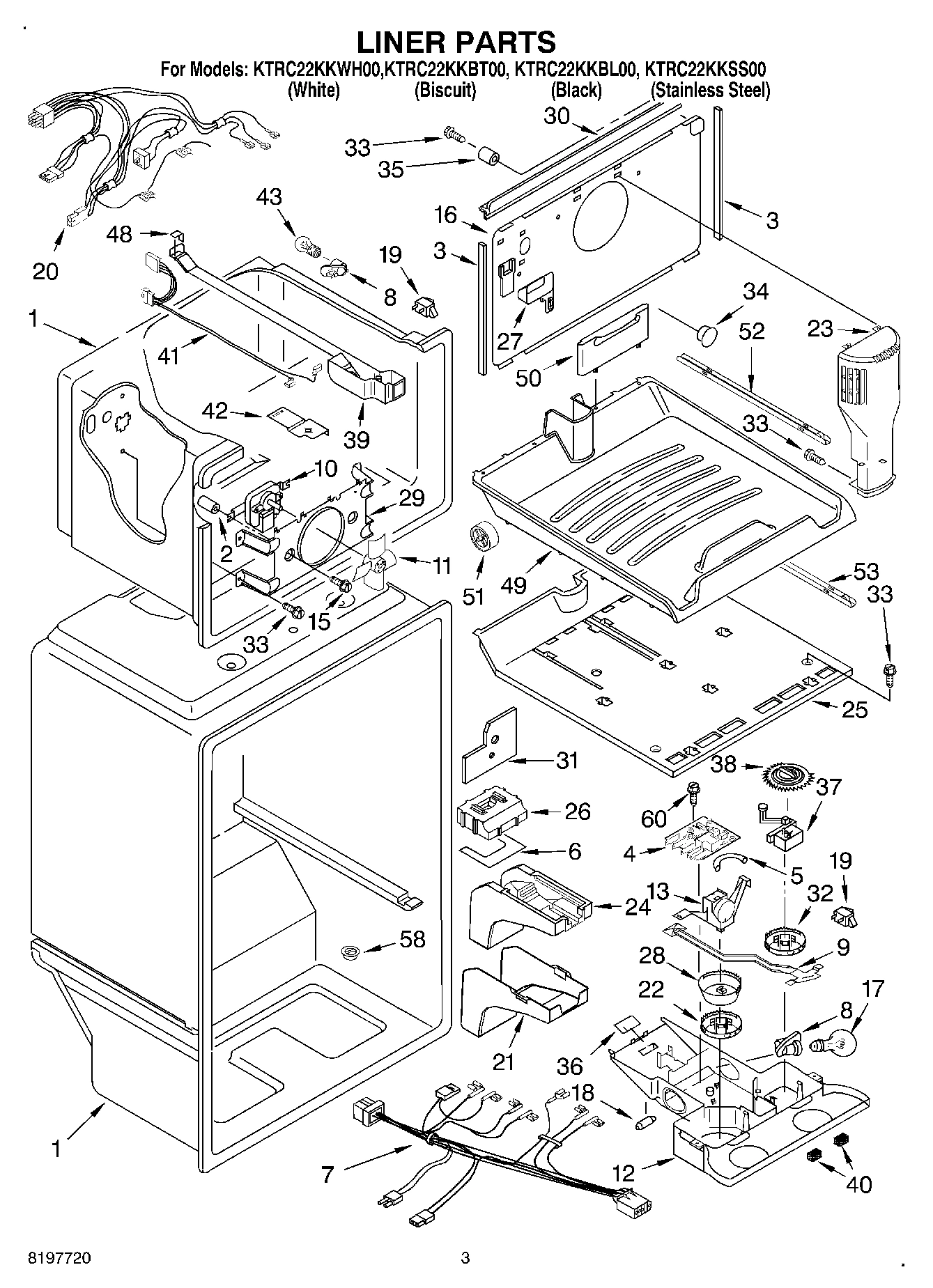

02 - LINER

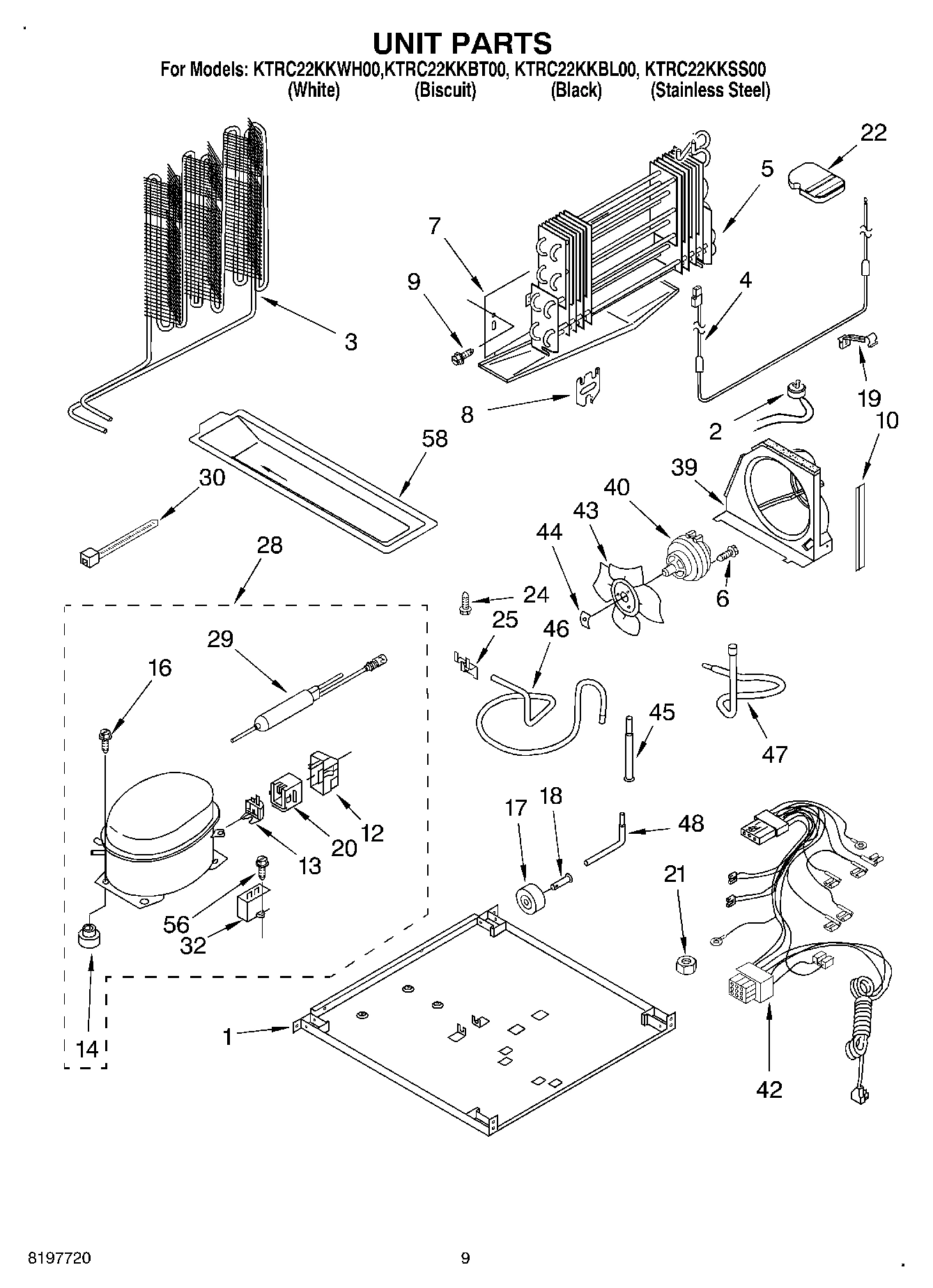

05 - UNIT

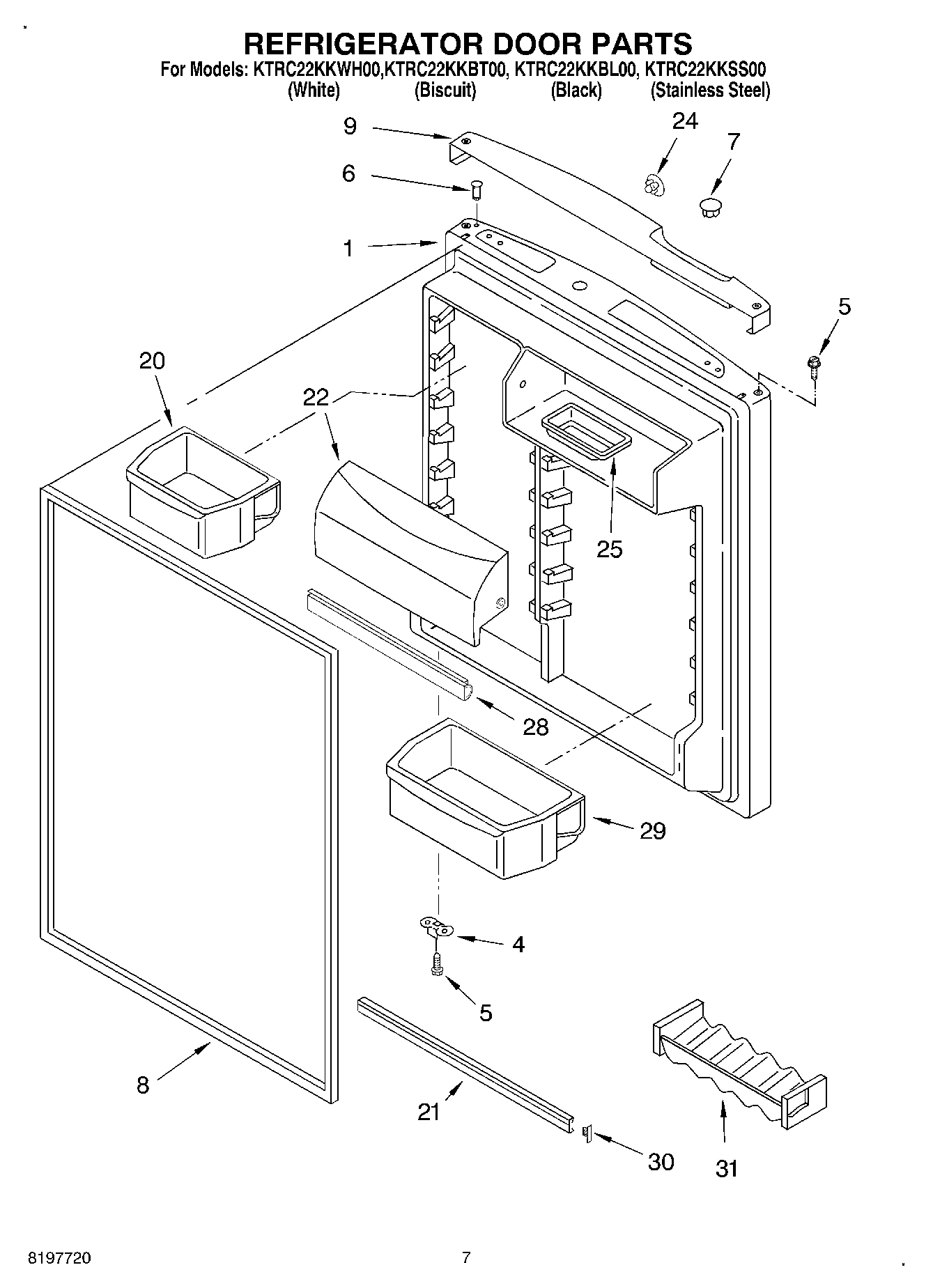

04 - REFRIGERATOR DOOR
06 - FREEZER DOOR, OPTIONAL
Common parts from model Whirlpool KTRC22KKBT00 REFRIGERATOR
1
Plate, Unit Mounting WPL 2205340 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Whi WPL 2205214 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bis WPL 2205215 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Bla WPL 2205217 Contact Us For Availability
1
Refrigerator Door (Includes No.6 & No.8) (Sta WPL 2212418 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (White) WPL 2202520 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Biscuit) WPL 2204854 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Black) WPL 2204856 Contact Us For Availability
1
Freezer Door (Includes No.6 & No.8) (Stainles WPL 2212419 Contact Us For Availability
5
Evaporator Assy. WPL 2195390 Contact Us For Availability
7
Wire Assy. Control Box WPL 2187352 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Endcap (White) WPL 2213333 Contact Us For Availability
9
Endcap (Biscuit) WPL 2213334 Contact Us For Availability
9
Endcap (Black) WPL 2213336 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
17
Trim, Door WPL 2159292 Contact Us For Availability
18
Nameplate (White) WPL 2212760 Contact Us For Availability
18
Nameplate (Biscuit) WPL 2212761 Contact Us For Availability
18
Nameplate (Black) WPL 2212762 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
WPL 876029 WPL 876029 Contact Us For Availability
21
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
21
PAINT, BULK (1 Q WPL 799344 Contact Us For Availability
21
Torx Key WPL 1117510 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI110069A Contact Us For Availability
21
End Cap (White) WPL 2213328 Contact Us For Availability
21
End Cap (Biscuit) WPL 2213329 Contact Us For Availability
21
End Cap (Black) WPL 2213331 Contact Us For Availability
21
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
21
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
21
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
21
WPL 799832 WPL 799832 Contact Us For Availability
21
WPL 799833 WPL 799833 Contact Us For Availability
22
Support WPL 2201185 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability
24
Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability
24
Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability
25
Clip, Capacitator WPL 2166683 Contact Us For Availability
25
Tray, Butter WPL 2165792 Contact Us For Availability
26
Air Diffuser, Top WPL 2204690 Contact Us For Availability
27
Cover, Hole WPL 2205003 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Control, Freezer WPL 2204991 Contact Us For Availability
38
Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability
39
Housing Base WPL 2201153 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
40
Air Seal, Foam WPL 2205055 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187280 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
42
Wire Assy. Unit WPL 2187358 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
45
Tube, Transition WPL 2212603 Contact Us For Availability
47
Tube, Suction WPL 2219514 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189449 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
58
Evap. Tray WPL 2210451 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
