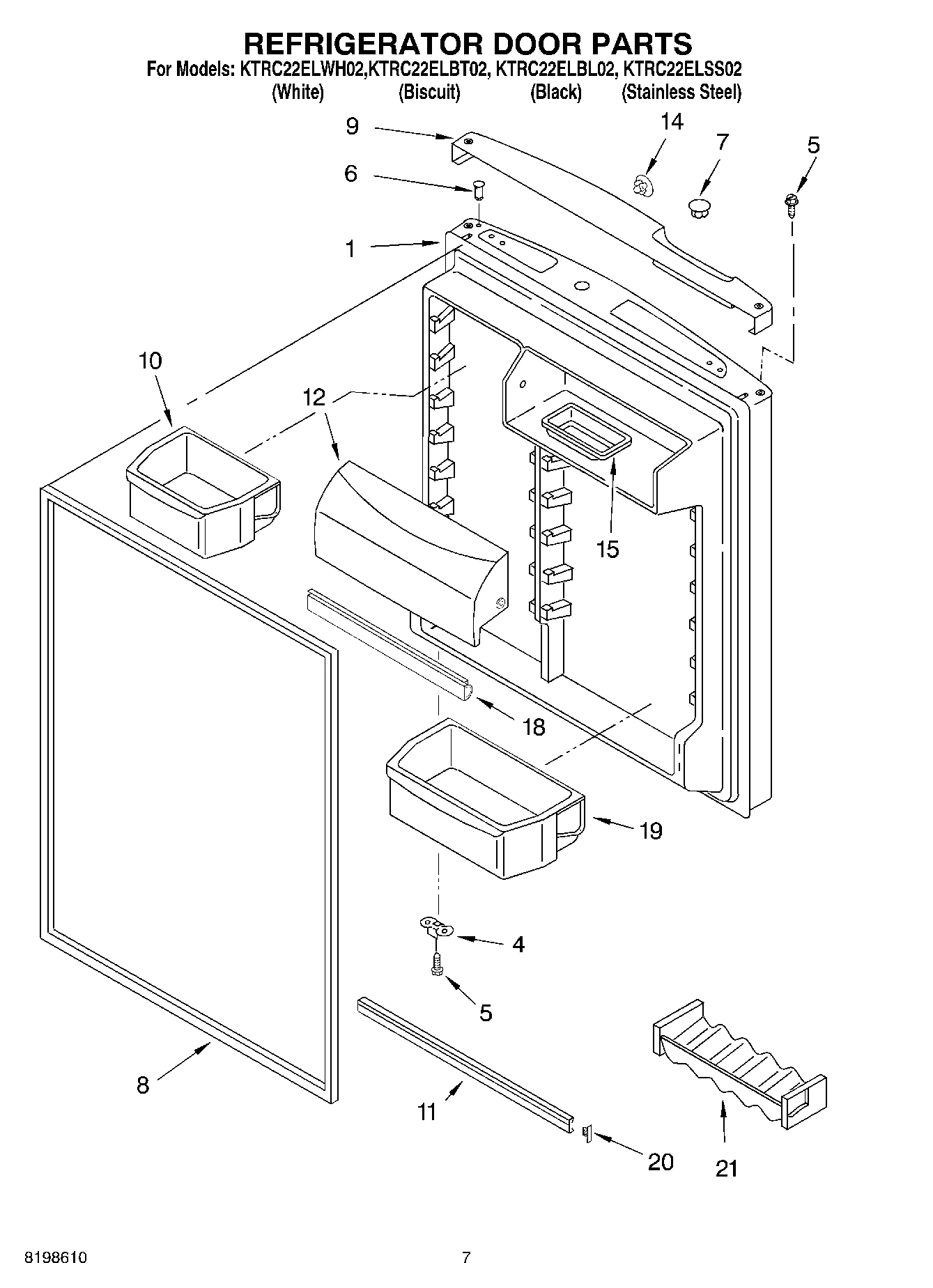

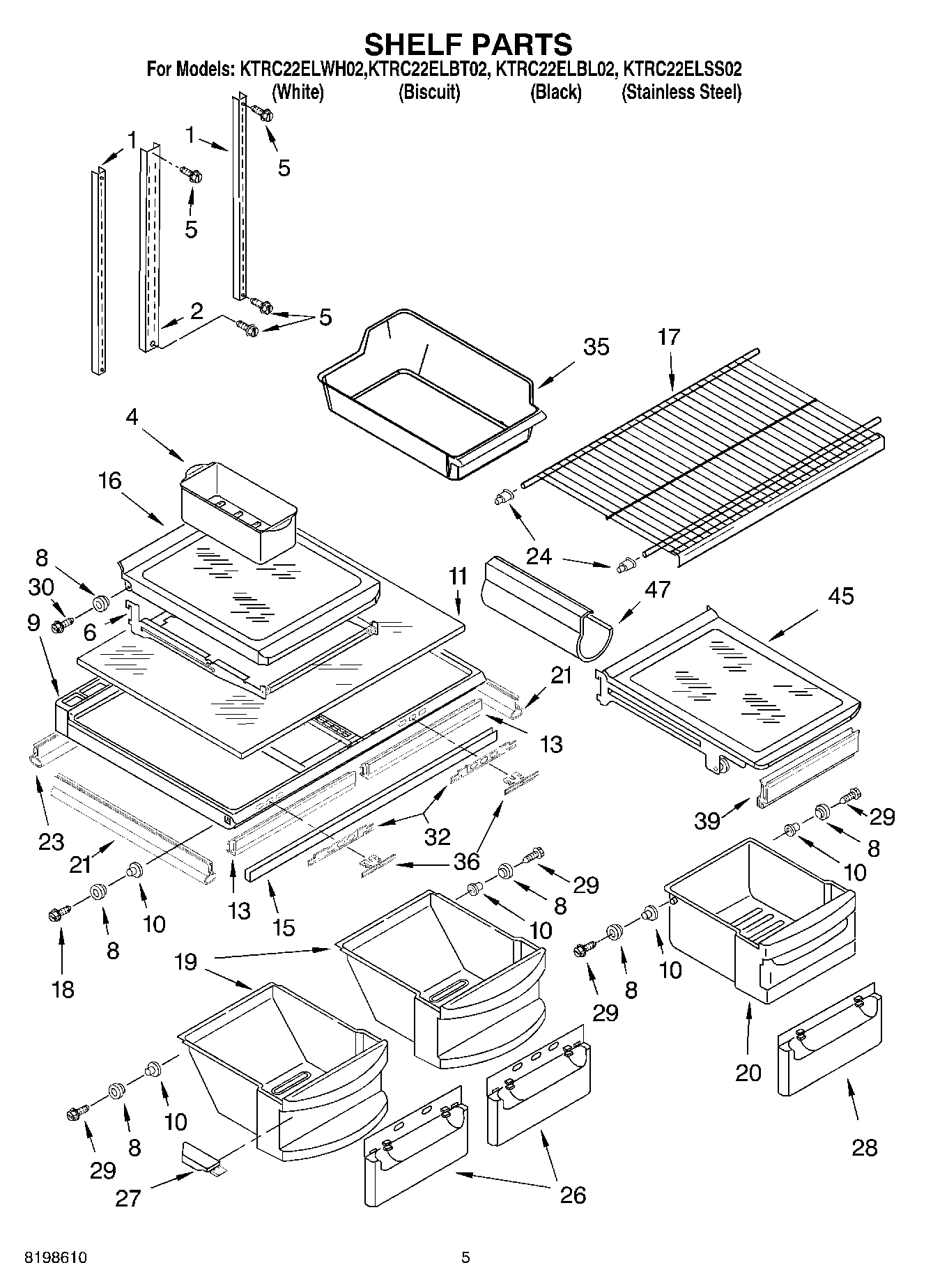

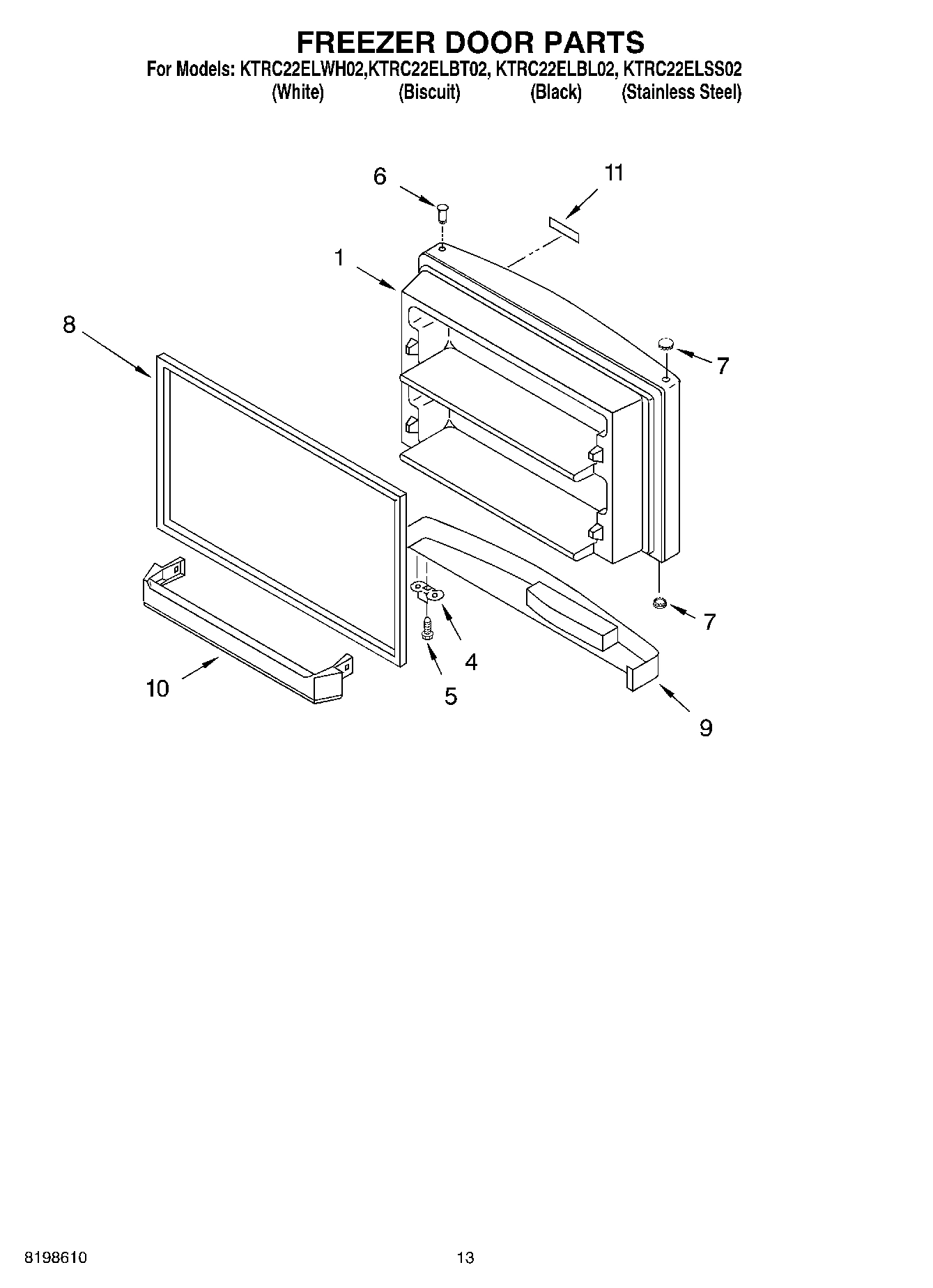

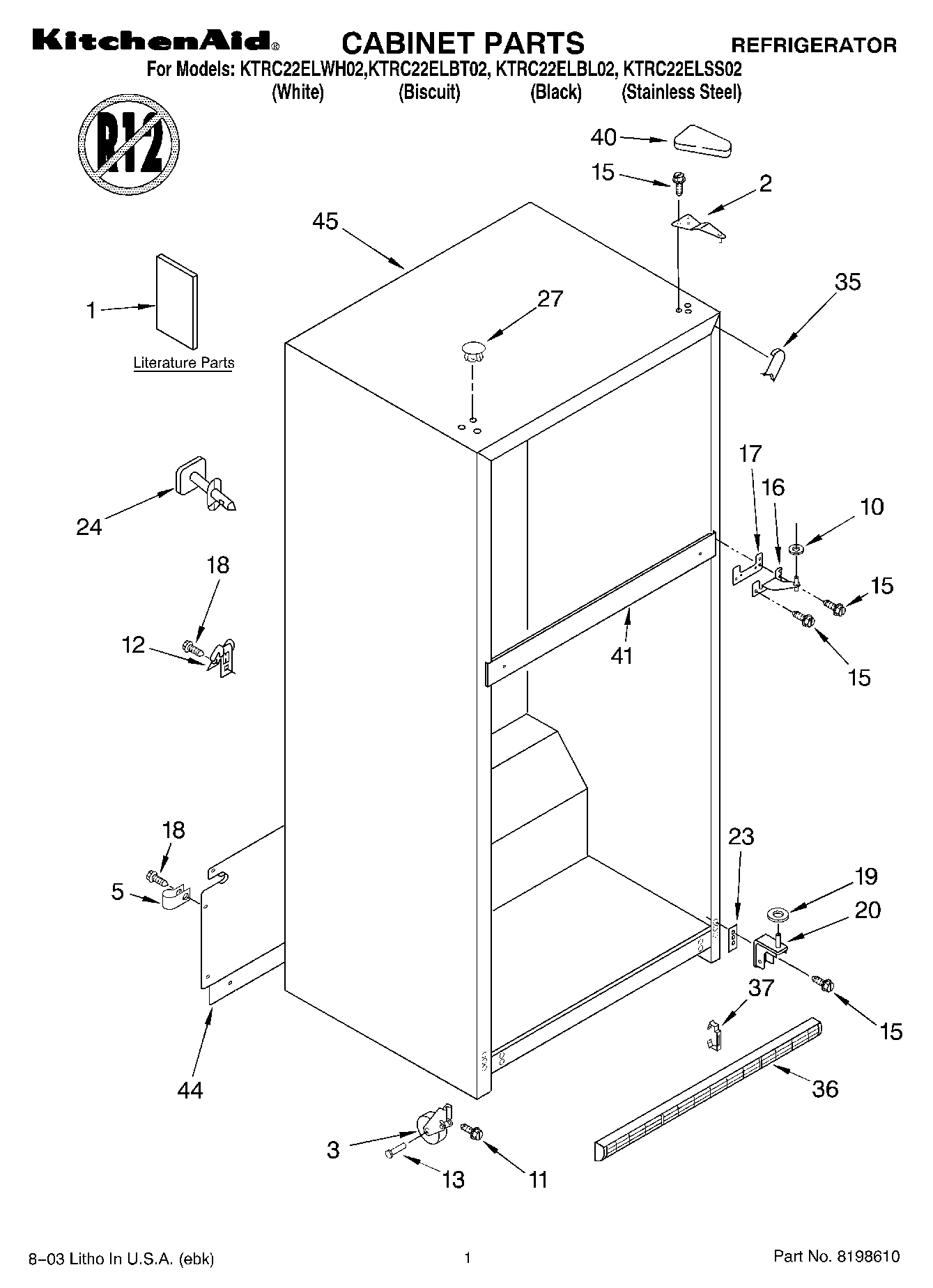

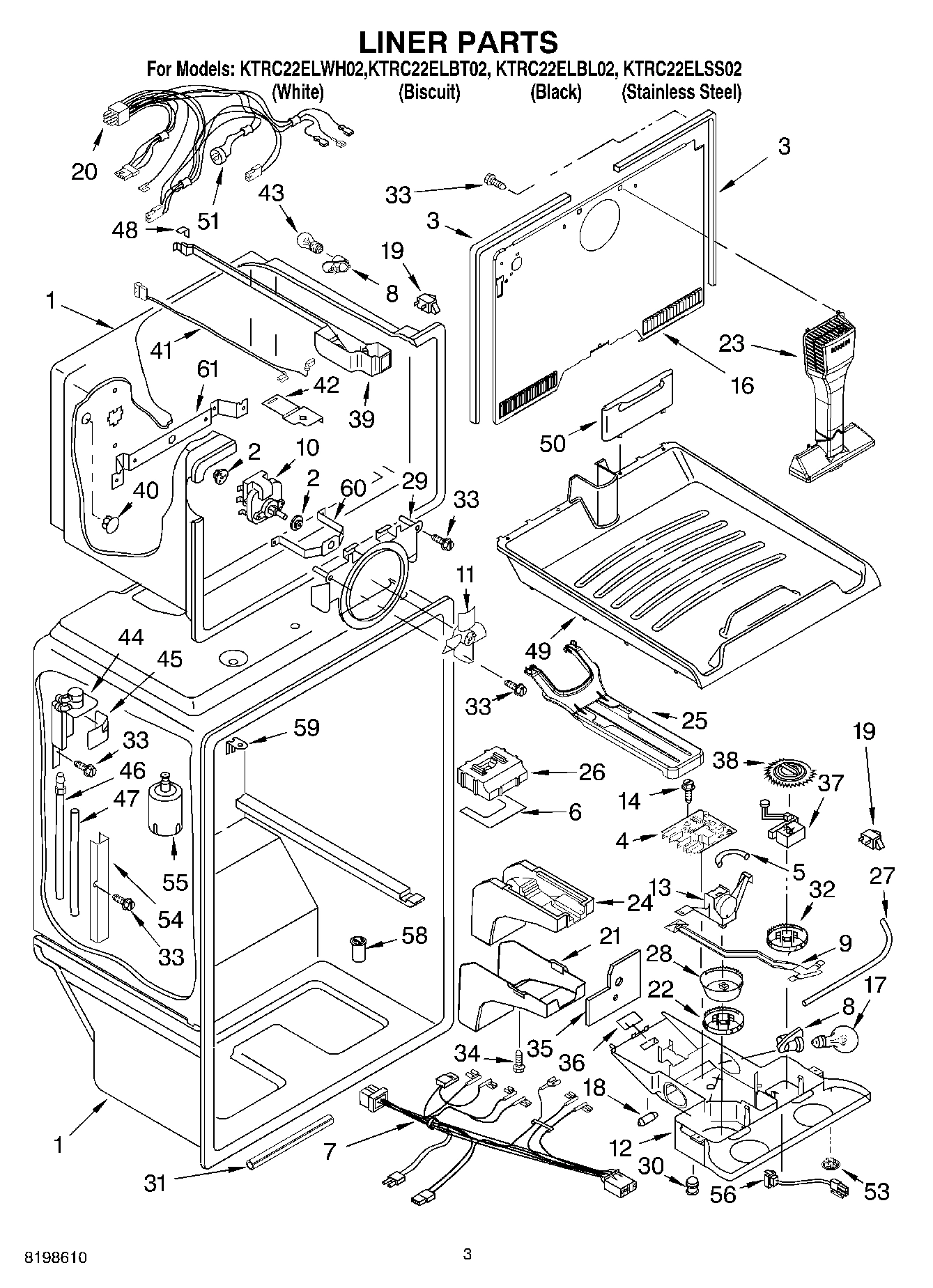

Model Whirlpool KTRC22ELSS02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

1

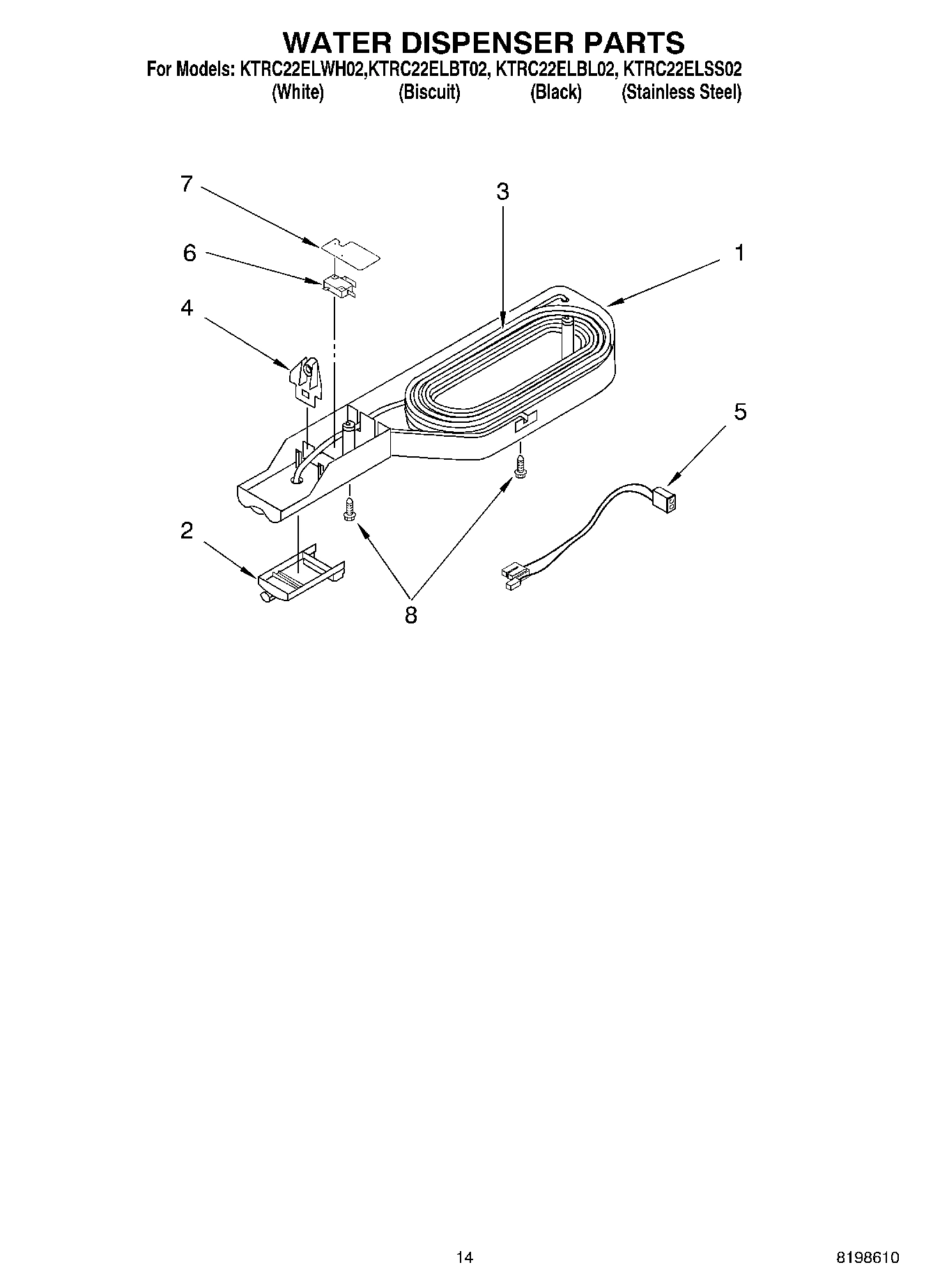

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

Plate, Unit Mounting WPL 2225596 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI109762A Contact Us For Availability

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $30.99

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $16.47

3

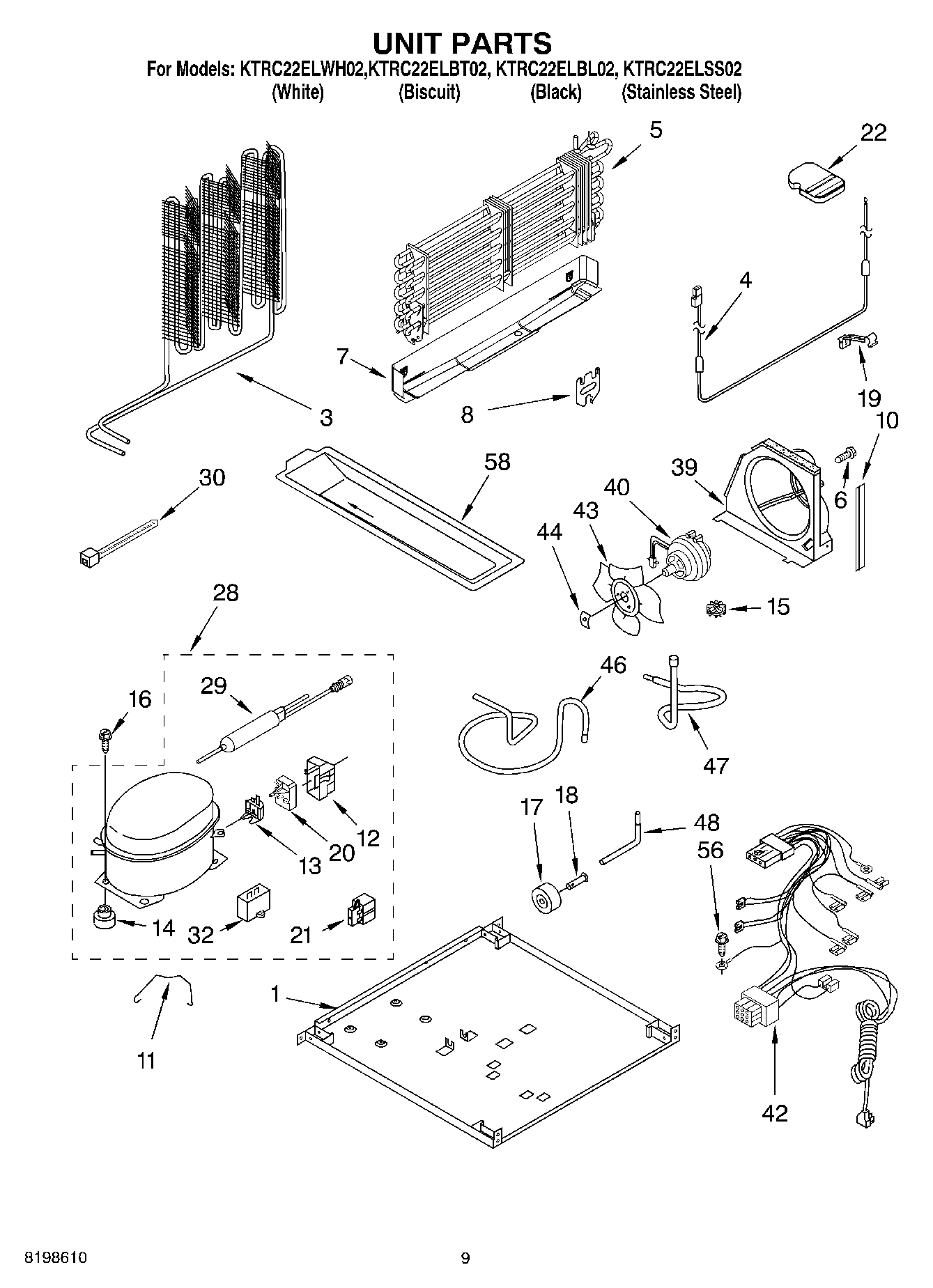

Condenser WPL 2214960 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $106.48

4

Flange, Tube WPL 2210523 Contact Us For Availability

4

Adaptive Defrost Control/P.C. Board Combinati WPL 2213493 Contact Us For Availability

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

6

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $8.39

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

6

Seal, Air Diffuser WPL 2179834 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Wire Assembly Control Box WPL 2187448 Contact Us For Availability

8

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $112.65

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $253.50

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

Handle (White) WPL 2213333 Contact Us For Availability

9

Handle (Biscuit) WPL 2213334 Contact Us For Availability

9

Handle (Black) WPL 2221628 Contact Us For Availability

9

Damper, Air (Slide) WPL 2212413 Contact Us For Availability

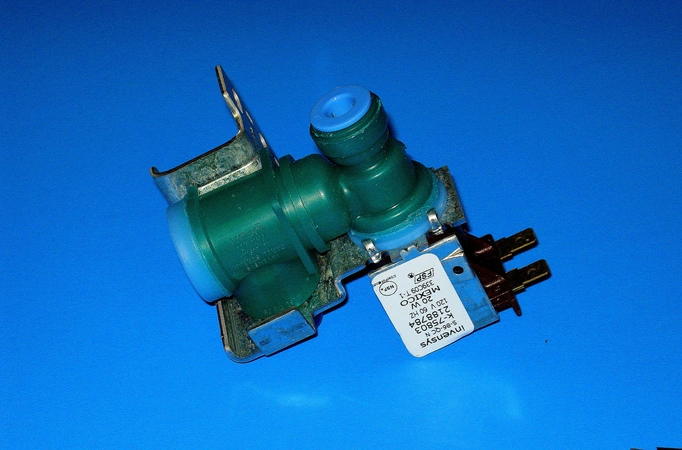

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $49.76

WPW10498990 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10498990 $108.49

Eyelet, Roller WPL 2174478 Contact Us For Availability

Trim, Door WPL 2159292 Contact Us For Availability

Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability

Extension, Air Baffle WPL 2163780 Contact Us For Availability

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $8.05

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $46.99

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

12

Door, Compartment WPL 2218122 Contact Us For Availability

12

Control Box WPL 2218670 Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

13

WP2214067 Whirlpool Refrigerator Overload Rel Backorder WPL WP2214067 $90.86

13

Thermostat Assembly (Includes Item 5) WPL 2225663 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

Hole Plug, Handle (White) WPL 2204837 Contact Us For Availability

Hole Plug, Handle (Biscuit) WPL 2204838 Contact Us For Availability

Hole Plug, Handle (Black) WPL 2204840 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

15

Butter, Dish WPL 2165792 Contact Us For Availability

15

Grommet WPL 531933 Contact Us For Availability

16

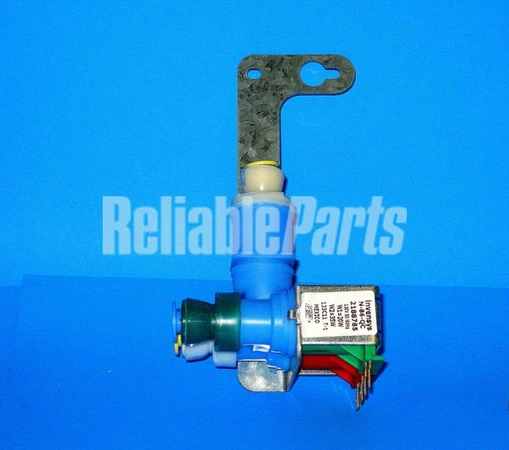

WP2188785 Whirlpool Water Inlet Valve Backorder WPL WP2188785 $168.54

16

Cover, Evaporator WPL 2254262 Contact Us For Availability

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $14.57

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

Weight, Thermal WPL 2200831 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Clip, Heater WPL 2182338 Contact Us For Availability

Bin, Door Shelf (1) WPL 2171062 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $90.99

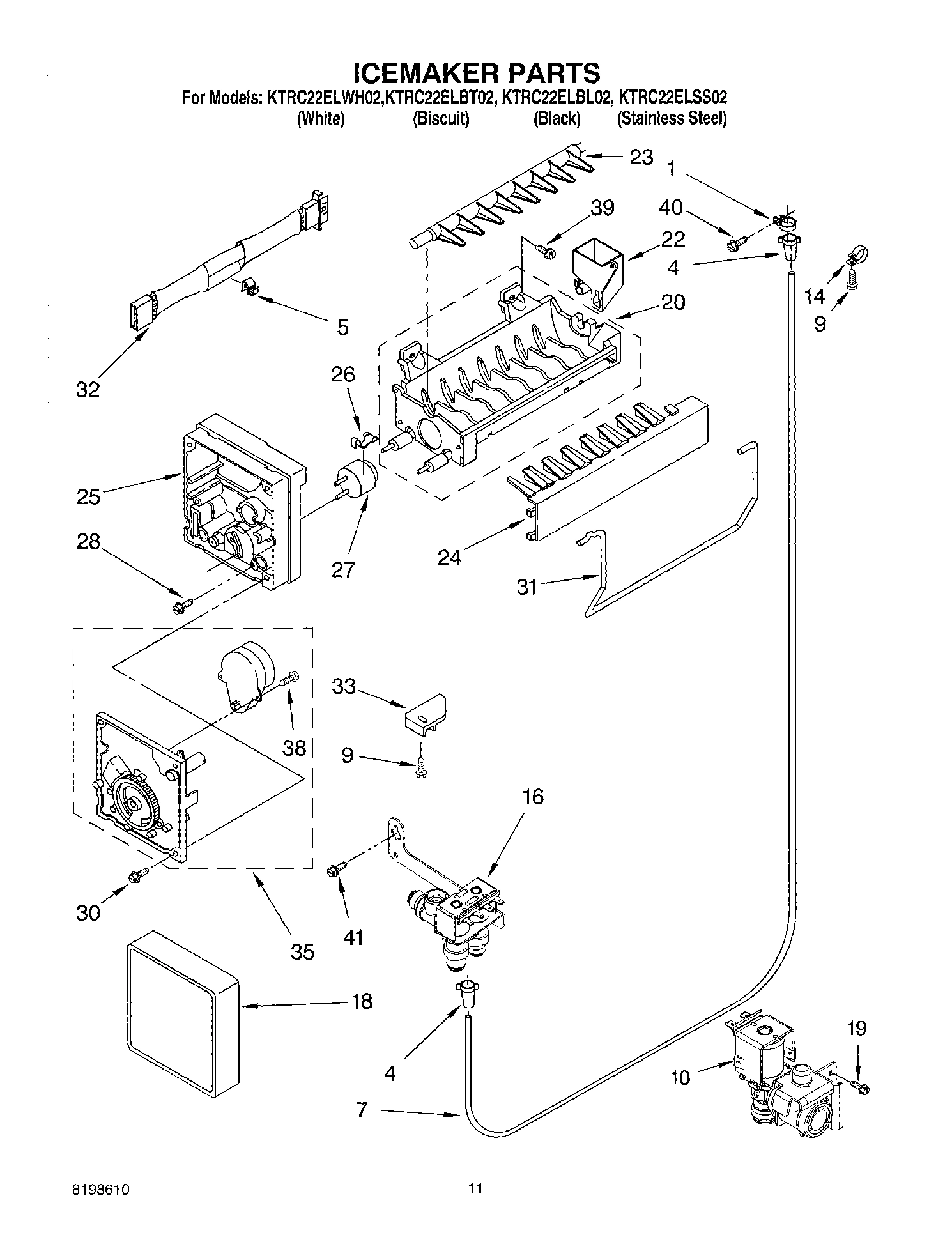

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Wire Assembly, Freezer Compartment WPL 2187690 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Beverage Holder WPL 2193409 Contact Us For Availability

21

Relay WPL 2183454 Contact Us For Availability

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

22

Support WPL 2201185 Contact Us For Availability

22

Knob, Thermostat WPL 2205094 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $71.14

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

24

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

25

Retainer, Freezer Floor WPL 2225473 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

27

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $395.99

28

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $45.03

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

29

Bracket, Fan Motor WPL 2218696 Contact Us For Availability

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

30

Cover, Light Lens WPL 2213495 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $57.65

31

Insulation, Water Tube WPL 2214981 Contact Us For Availability

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $88.98

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

32

Knob, Damper WPL 2204951 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

35

Shield, heat WPL 2204639 Contact Us For Availability

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $6.17

36

Grille (White) WPL 2254313 Contact Us For Availability

36

Grille (Biscuit) WPL 2254316 Contact Us For Availability

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

37

Control, Freezer WPL 2204991 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

Gear Wheel, Freezer Control WPL 2204992 Contact Us For Availability

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

39

Air Baffle WPL 2198921 Contact Us For Availability

39

Housing Base WPL 2201153 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $11.82

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $165.99

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

41

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

41

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

42

Wire Assembly Unit WPL 2187385 Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $14.99

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

44

Bracket Assembly, Water Filter WPL 2210510 Contact Us For Availability

45

Cover, Filter WPL 2210504 Contact Us For Availability

46

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

47

Tube, Suction WPL 2225237 Contact Us For Availability

47

Tube, Filter Inlet WPL 2210518 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $49.60

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

Pullout, Freezer Floor WPL 2225476 Contact Us For Availability

50

REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability

51

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $20.53

53

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

54

Co WPL 2210521 Contact Us For Availability

55

WPL 2213384 WPL 2213384 Contact Us For Availability

56

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

8201826 Whirlpool Refrigerator Evaporator Tra Backorder WPL 8201826 $100.75

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI109763A Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI109764A Contact Us For Availability

59

WPL 2210563 WPL 2210563 Contact Us For Availability

60

WPL 2214979 WPL 2214979 Contact Us For Availability

61

WPL 2214976 WPL 2214976 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
