Model Whirlpool KTRC18KXWH30 – Common Parts & Diagrams
02 - LINER
04 - SHELF, LIT/OPTIONAL

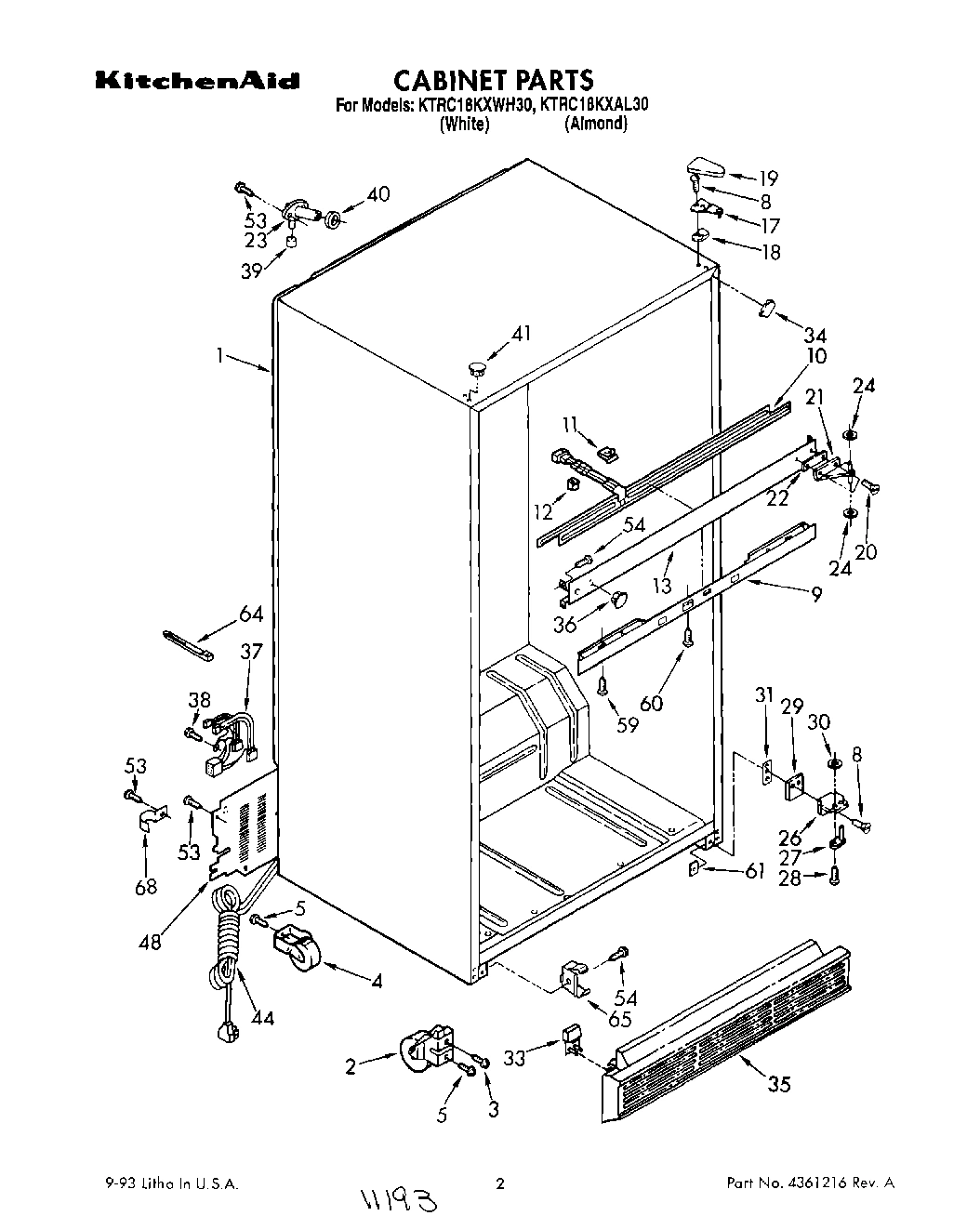

01 - CABINET

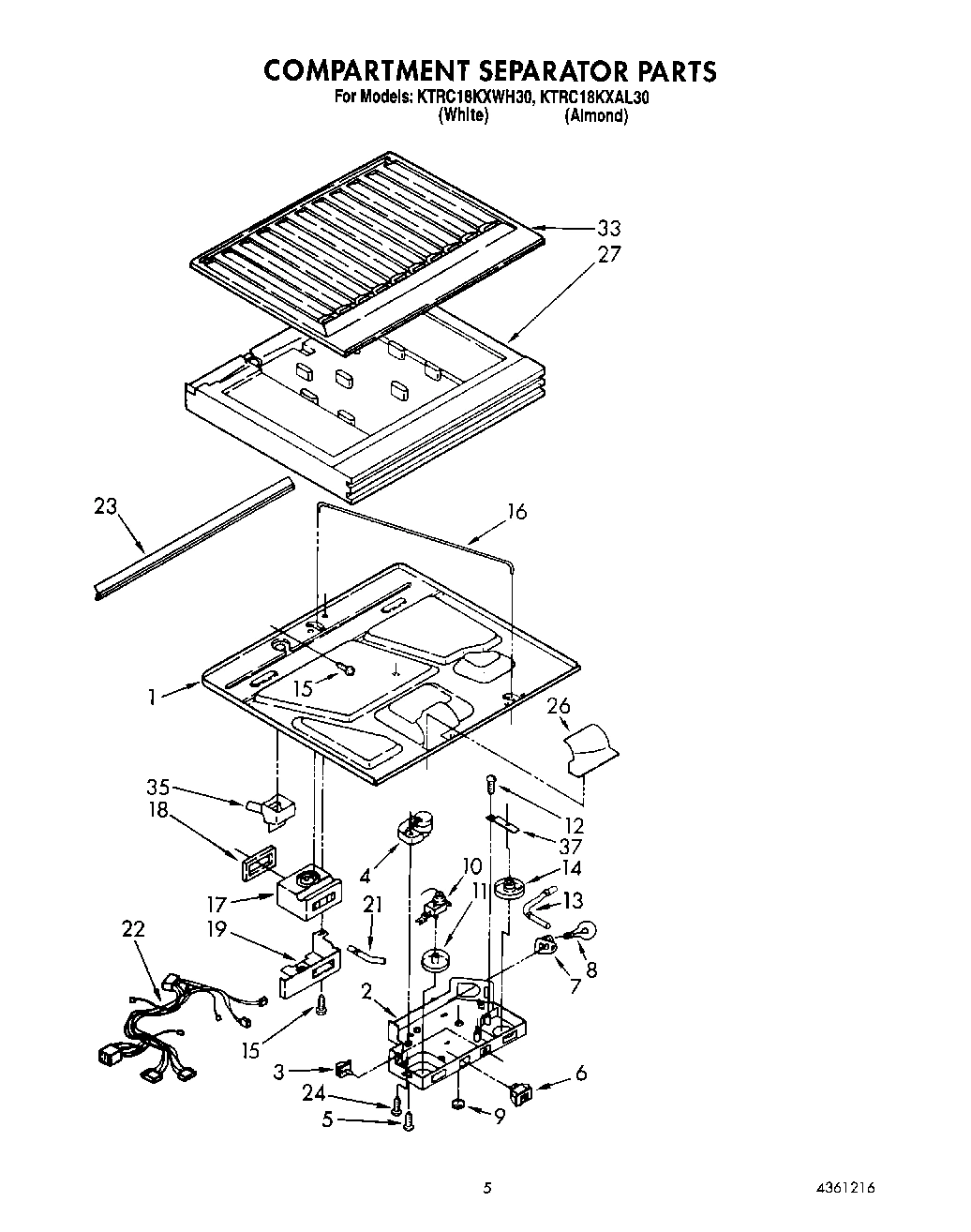

03 - COMPARTMENT SEPARATOR

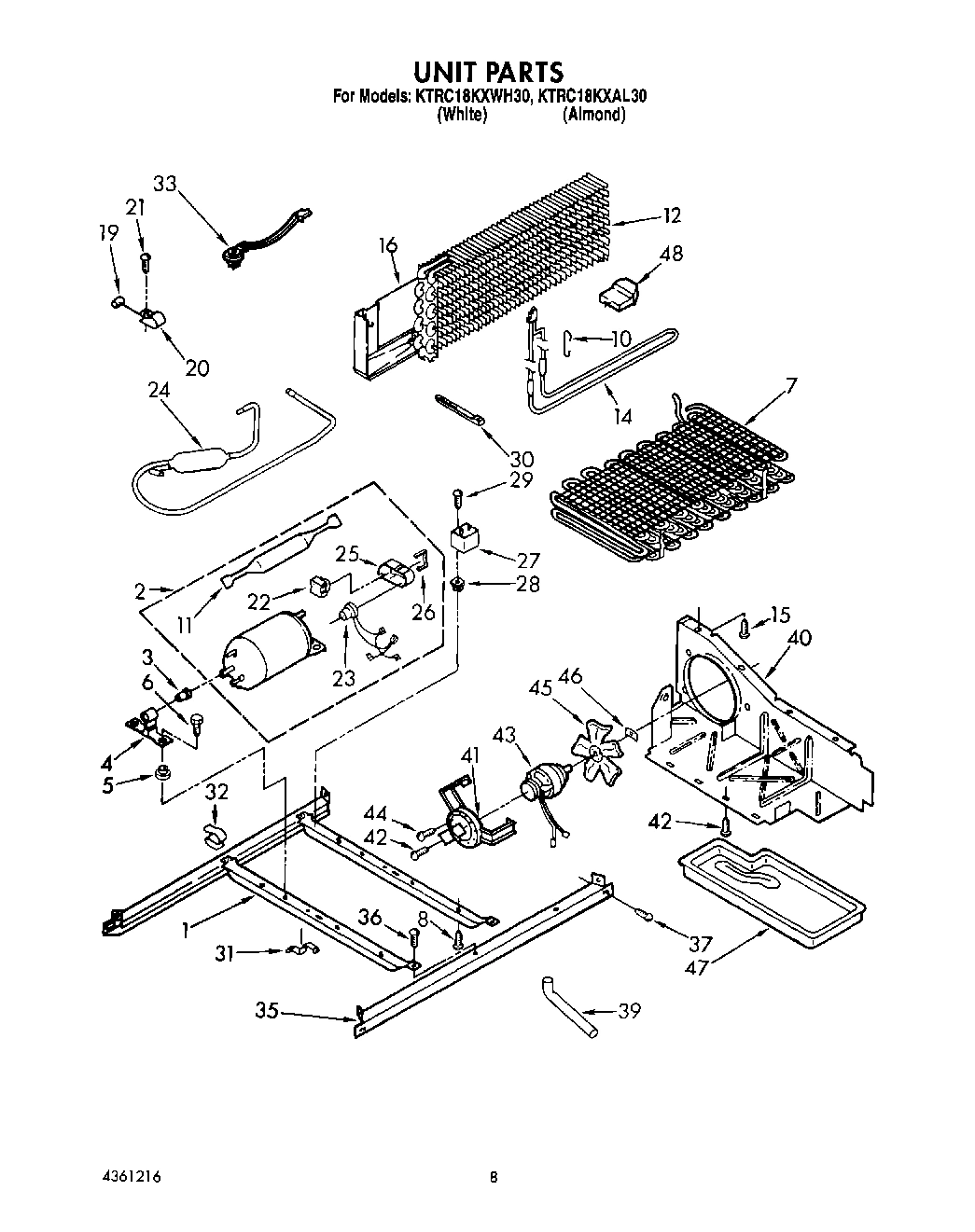

05 - UNIT

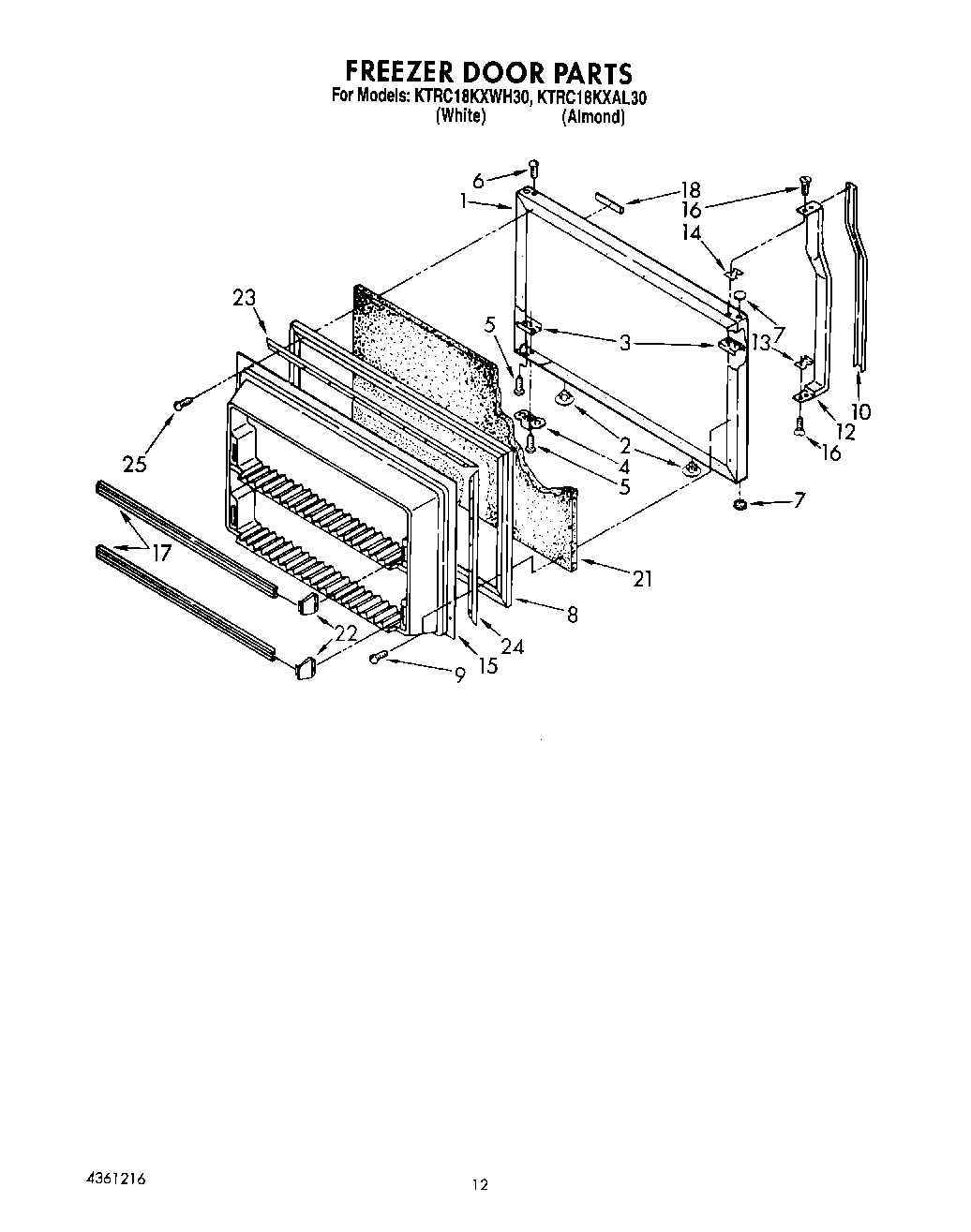

07 - FREEZER DOOR

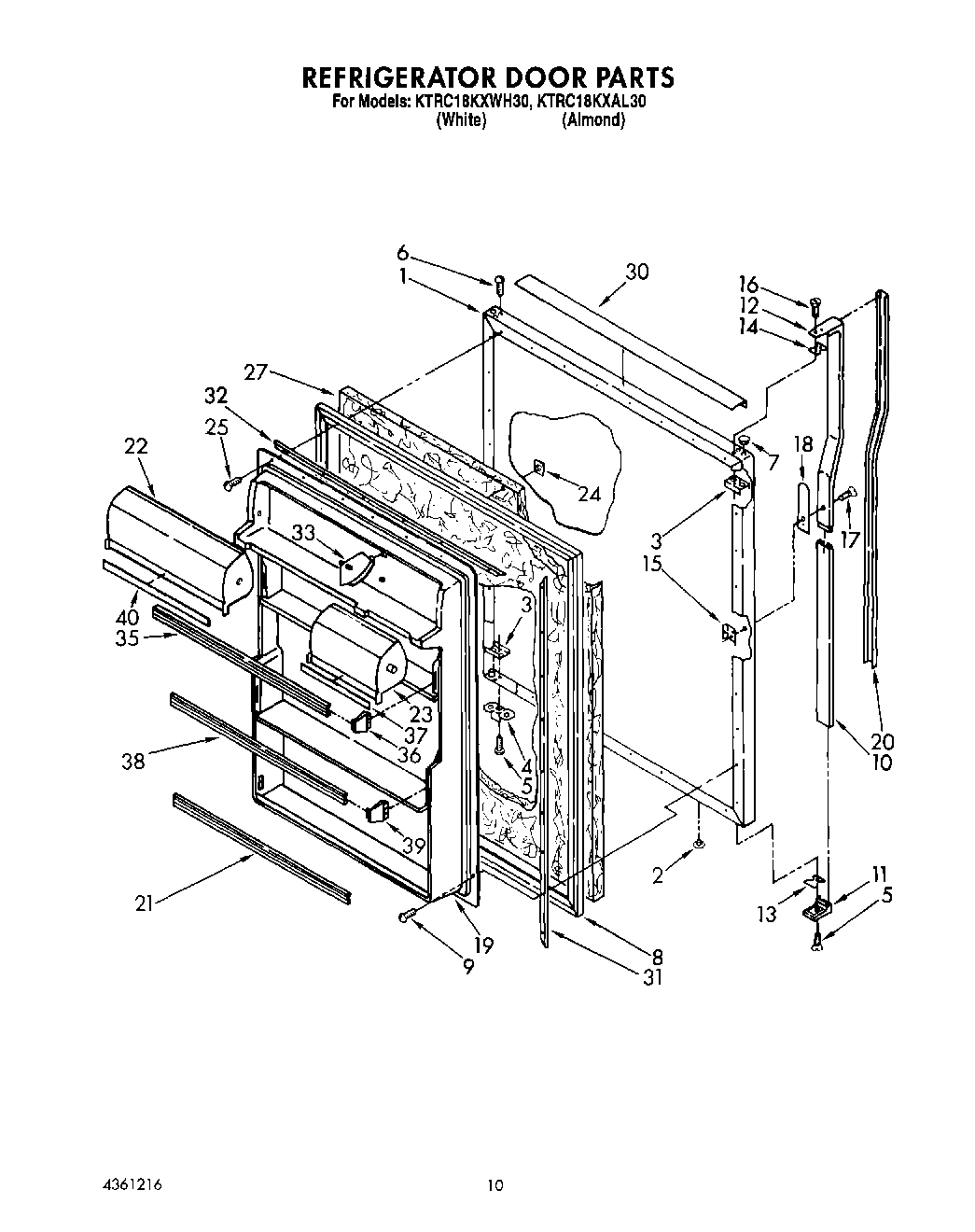

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTRC18KXWH30
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI109048A Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
1
Unit, Frame WPL 1116619 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1116586 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1116589 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
2
Compressor KIt Includes Items (11, 22, 23, 25 WPL 4318241 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw (4) WPL 488454 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
6
Switch, Toggle WPL 938213 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Screw WPL 489327 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125888 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125889 Contact Us For Availability
9
Control, Front Cover WPL 1126275 Contact Us For Availability
10
Heater, Mullion WPL 2154064 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
10
Insert, Handle (White) WPL 1125693 Contact Us For Availability
10
Insert, Handle (Almond) WPL 1125694 Contact Us For Availability
10
Retainer, Insert WPL 1125879 Contact Us For Availability
11
Clip, Mullion (3) WPL 2149060 Contact Us For Availability
11
Knob, Thermostat WPL 1125831 Contact Us For Availability
11
Handle End Cap WPL 1107236 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Evaporator Assembly WPL 2153977 Contact Us For Availability
12
Handle Assembly WPL 1107238 Contact Us For Availability
12
Handle Assembly WPL 1107230 Contact Us For Availability
13
Center Rail (White) WPL 1116540 Contact Us For Availability
13
Center Rail (Almond) WPL 1116543 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Shim, End Cap WPL 1107229 Contact Us For Availability
14
Knob, Air Control WPL 1125832 Contact Us For Availability
14
Heater, Defrost WPL 2154737 Contact Us For Availability
14
Spacer, Handle WPL 1107192 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157416 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 1126363 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Dampener (2) WPL 2149670 Contact Us For Availability
19
Interior Door Panel WPL 1118123 Contact Us For Availability
20
Tube Clamp (2) WPL 510716 Contact Us For Availability
20
Insert, Handle (White) WPL 1125877 Contact Us For Availability
20
Insert, Handle (Almond) WPL 1125878 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Light, Bar WPL 1105476 Contact Us For Availability
21
Trim, Door Shelf WPL 1125857 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Relay (See Overload) WPL ARI109050A Contact Us For Availability
22
Compartment Door, Utility WPL 1126234 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1116566 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2149994 Contact Us For Availability
23
Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability
23
Compartment Door, Butter WPL 1126233 Contact Us For Availability
24
Shelf, Full Cantilever WPL 1126186 Contact Us For Availability
24
Muffler & Tube Assembly WPL 2154033 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Gasket, Shelf WPL 1126192 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
26
Glass, Full Shelf WPL 1126193 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2148563 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Retainer, Shelf WPL 1118119 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Front, Pan WPL 1125852 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Slide, Front WPL 1125853 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
30
Divider WPL 1125542 Contact Us For Availability
30
Trim, Door WPL 1126013 Contact Us For Availability
31
Shelf, Ice Tray WPL 1125543 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Clip, Unit Cover WPL 548744 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
32
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
32
Screw (6) WPL 489268 Contact Us For Availability
32
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
32
WPL 799833 WPL 799833 Contact Us For Availability
32
WPL 978883 WPL 978883 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
32
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1116570 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
35
Grille (White) WPL 1125664 Contact Us For Availability
35
Grille (Almond) WPL 1125669 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
35
Trim, Shelf WPL 1125866 Contact Us For Availability
36
Hole Plug (4) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (4) (Almond) WPL 1129063 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Trim, Compartment WPL 2148588 Contact Us For Availability
38
Trim, Shelf WPL 1117944 Contact Us For Availability
39
Drain Extension WPL 2154118 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
40
Trim, Compartment Door WPL 1121186 Contact Us For Availability
40
Trimless Glass (Black (R.H.)) WPL 4318300 Contact Us For Availability
40
Trimless Glass (Black) WPL 4318301 Contact Us For Availability
40
Trimless Glass (Woodgrain) WPL 4318302 Contact Us For Availability
40
Trimless Glass (White (R.H.)) WPL 4318310 Contact Us For Availability
40
Trimless Glass (Almond (R.H.)) WPL 4318311 Contact Us For Availability
40
Trimless Glass (Black WPL 4318413 Contact Us For Availability
40
WPL 4318427 WPL 4318427 Contact Us For Availability
40
WPL 4318428 WPL 4318428 Contact Us For Availability
40
WPL 4318429 WPL 4318429 Contact Us For Availability
41
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2154110 Contact Us For Availability
42
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
Cover, Unit WPL 1116613 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
48
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
