Whirlpool KTRA19ELBT01 Refrigerator Parts List

1

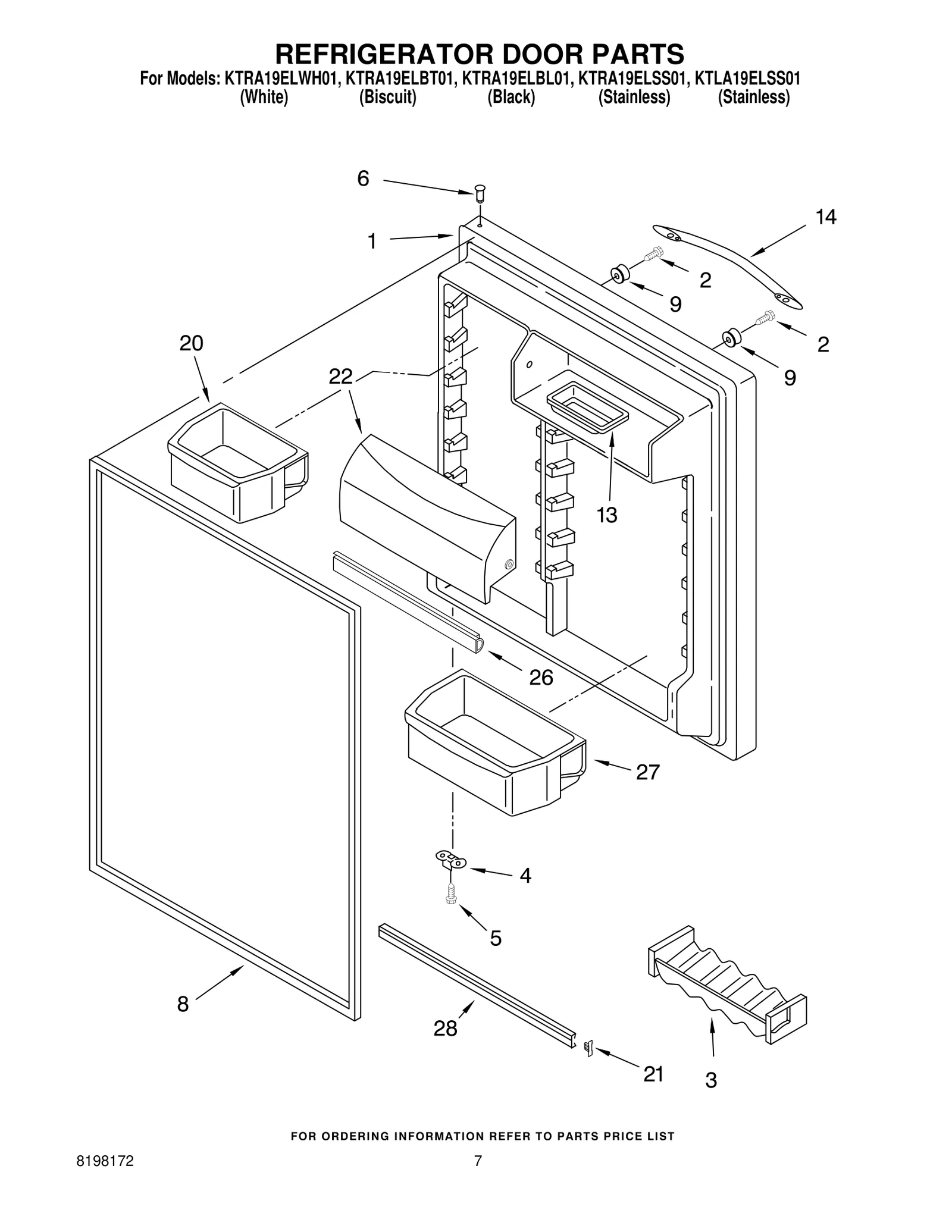

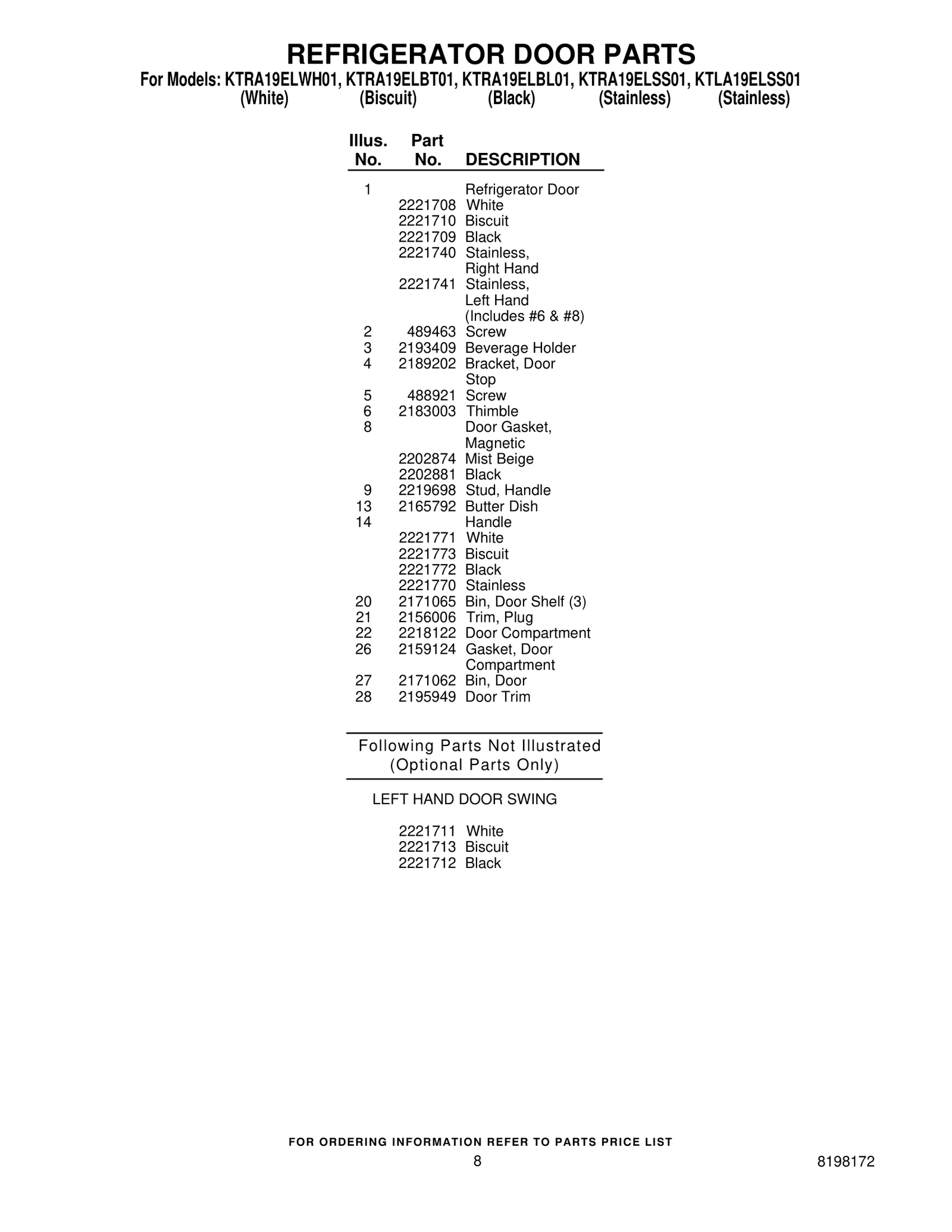

Refrigerator Door — White WPL 2221708 Contact Us For Availability

View on Model

1

Refrigerator Door — Biscuit WPL 2221710 Contact Us For Availability

View on Model

1

Refrigerator Door — Black WPL 2221709 Contact Us For Availability

View on Model

1

Stainless, Right Hand WPL 2221740 Contact Us For Availability

View on Model

1

Stainless, Left Hand WPL 2221741 Contact Us For Availability

View on Model

1

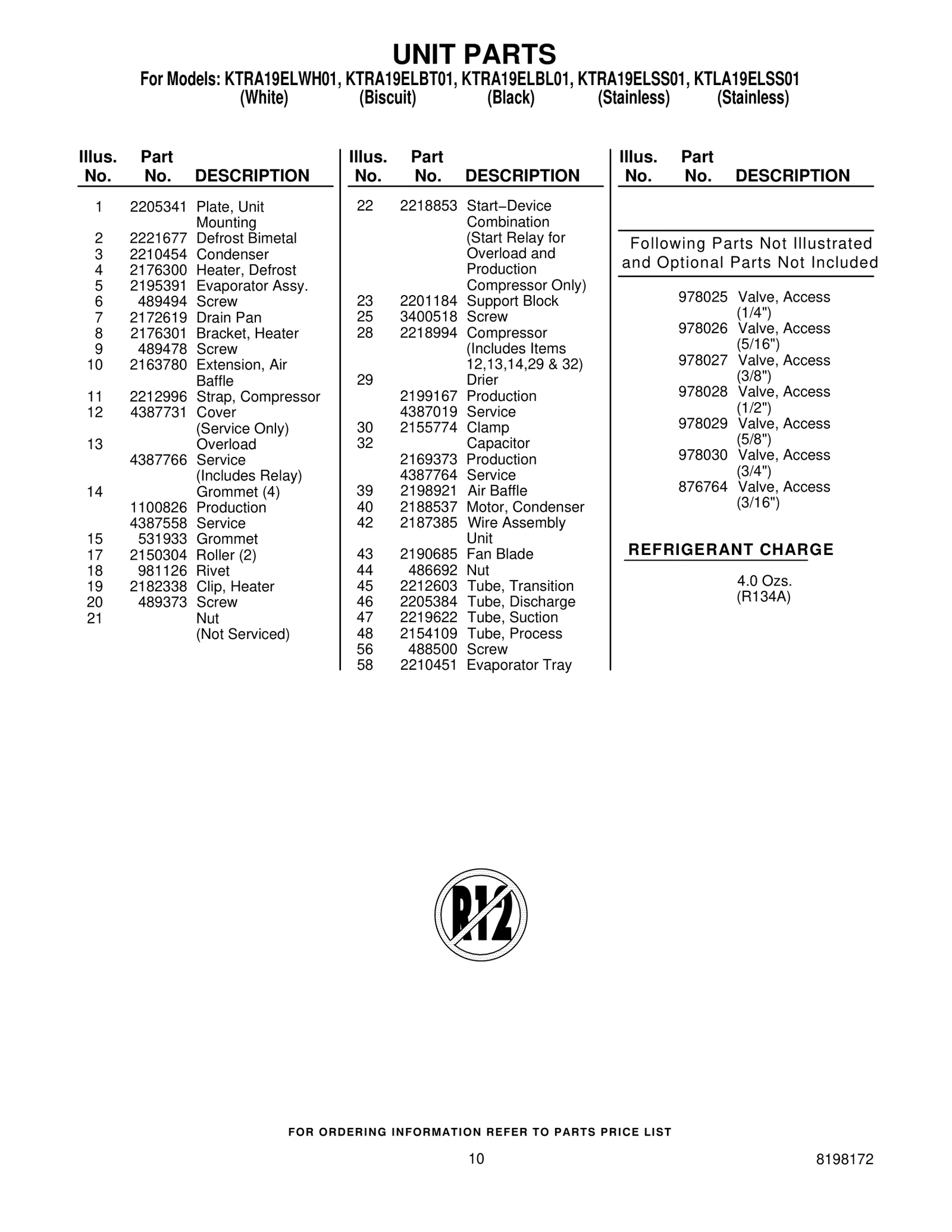

Plate, Unit Mounting WPL 2205341 Contact Us For Availability

View on Model

1

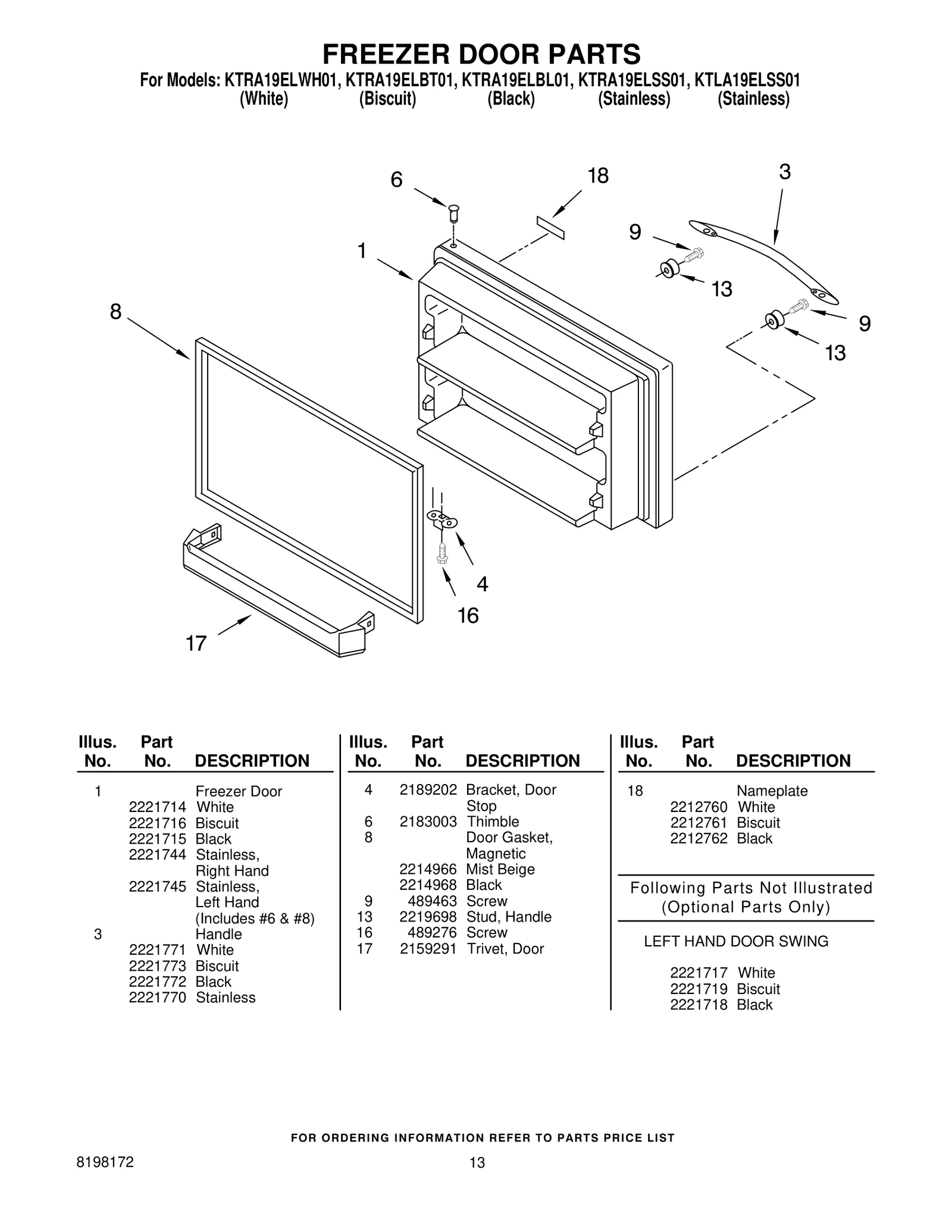

Freezer Door — White WPL 2221714 Contact Us For Availability

View on Model

1

Freezer Door — Biscuit WPL 2221716 Contact Us For Availability

View on Model

1

Freezer Door — Black WPL 2221715 Contact Us For Availability

View on Model

1

Stainless, Right Hand WPL 2221744 Contact Us For Availability

View on Model

1

Stainless, Left Hand WPL 2221745 Contact Us For Availability

View on Model

1

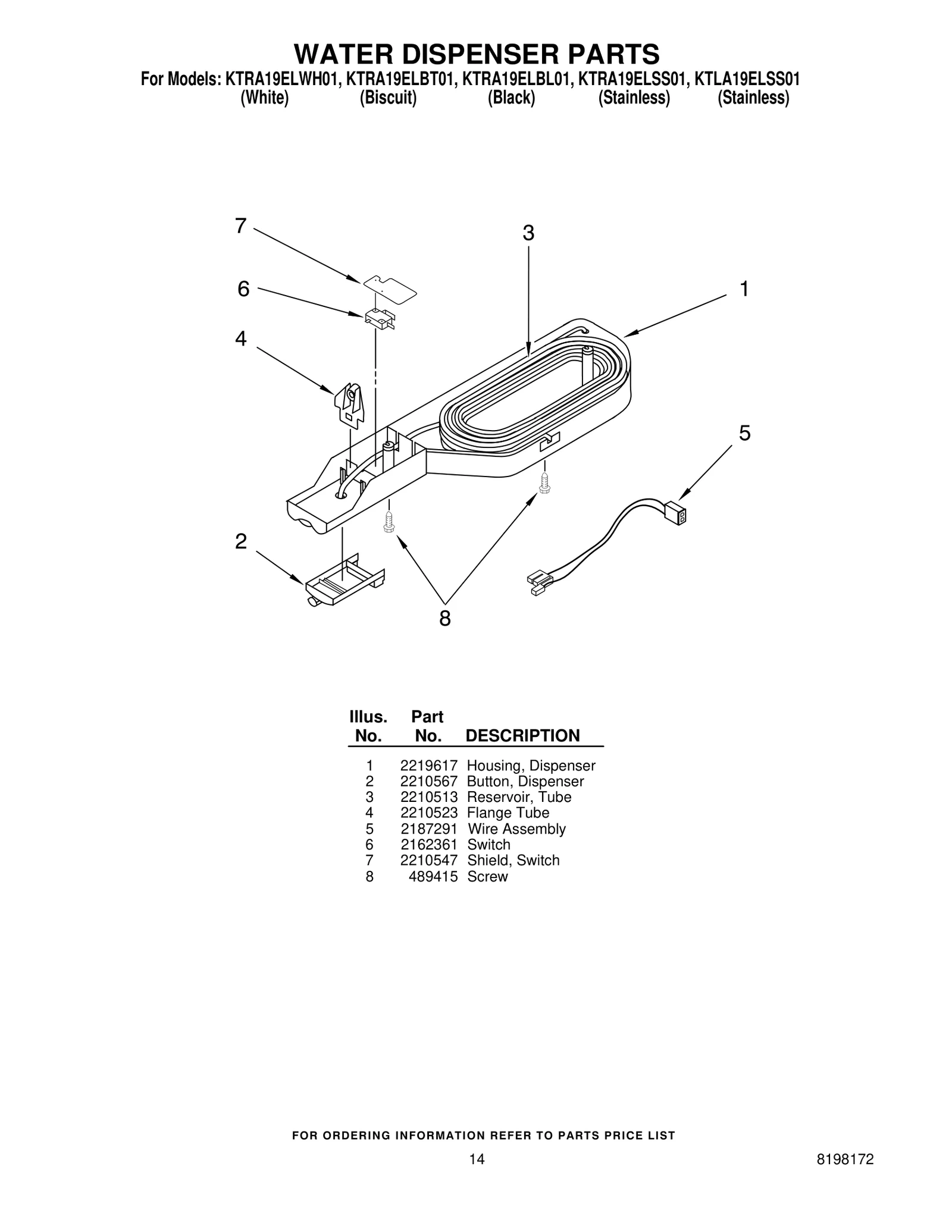

Housing, Dispenser WPL 2219617 Contact Us For Availability

View on Model

2

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $26.89

View on Model

2

Button, Dispenser WPL 2210567 Contact Us For Availability

View on Model

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.65

View on Model

3

Beverage Holder WPL 2193409 Contact Us For Availability

View on Model

3

Handle — White WPL 2221771 Contact Us For Availability

View on Model

3

Handle — Biscuit WPL 2221773 Contact Us For Availability

View on Model

3

Handle — Black WPL 2221772 Contact Us For Availability

View on Model

3

Handle — Stainless WPL 2221770 Contact Us For Availability

View on Model

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

View on Model

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $9.42

View on Model

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $72.54

View on Model

4

Flange Tube WPL 2210523 Contact Us For Availability

View on Model

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

View on Model

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

View on Model

5

Evaporator Assy. WPL 2195391 Contact Us For Availability

View on Model

5

Wire Assembly WPL 2187291 Contact Us For Availability

View on Model

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $13.13

View on Model

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.53

View on Model

6

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

View on Model

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

View on Model

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $17.24

View on Model

7

Drain Pan WPL 2172619 Contact Us For Availability

View on Model

7

Shield, Switch WPL 2210547 Contact Us For Availability

View on Model

8

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $111.95

View on Model

8

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $89.78

View on Model

8

2177304 Whirlpool Refrigerator FIP Gasket Backorder WPL 2177304 $214.37

View on Model

8

2177305 Whirlpool Refrigerator Door FIP Gaske In Stock WPL 2177305 $154.94

View on Model

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

View on Model

8

W11594405 Whirlpool Axle In Stock WPL W11594405 $9.85

View on Model

8

Bracket, Heater WPL 2176301 Contact Us For Availability

View on Model

9

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

View on Model

10

WPW10498990 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10498990 $101.30

View on Model

10

Eyelet, Roller WPL 2174478 Contact Us For Availability

View on Model

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

View on Model

11

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $8.05

View on Model

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $45.89

View on Model

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

View on Model

11

For Models: KTRA19ELWH01, KTRA19ELBT01, KTRA1 WPL N/S Contact Us For Availability

View on Model

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $69.36

View on Model

13

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $34.39

View on Model

13

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $7.53

View on Model

13

Butter Dish WPL 2165792 Contact Us For Availability

View on Model

14

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

View on Model

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

View on Model

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.10

View on Model

15

Grommet WPL 531933 Contact Us For Availability

View on Model

16

WP2188785 Whirlpool Water Inlet Valve In Stock WPL WP2188785 $179.86

View on Model

16

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

View on Model

17

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $92.46

View on Model

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

View on Model

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.13

View on Model

17

Trivet, Door WPL 2159291 Contact Us For Availability

View on Model

18

WPW10272364 Whirlpool Refrigerator Screw Backorder WPL WPW10272364 $6.83

View on Model

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

View on Model

18

Nameplate — White WPL 2212760 Contact Us For Availability

View on Model

18

Nameplate — Biscuit WPL 2212761 Contact Us For Availability

View on Model

18

Nameplate — Black WPL 2212762 Contact Us For Availability

View on Model

18

Nameplate — White WPL 2221717 Contact Us For Availability

View on Model

18

Nameplate — Biscuit WPL 2221719 Contact Us For Availability

View on Model

18

Nameplate — Black WPL 2221718 Contact Us For Availability

View on Model

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

View on Model

19

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

View on Model

19

Clip, Heater WPL 2182338 Contact Us For Availability

View on Model

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

View on Model

20

Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability

View on Model

21

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $7.04

View on Model

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

View on Model

22

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

View on Model

22

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $97.24

View on Model

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

View on Model

22

Door Compartment WPL 2218122 Contact Us For Availability

View on Model

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

View on Model

23

Shim WPL 2172743 Contact Us For Availability

View on Model

23

Air Tower WPL 2182340 Contact Us For Availability

View on Model

23

Support Block WPL 2201184 Contact Us For Availability

View on Model

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

View on Model

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $87.86

View on Model

25

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $8.39

View on Model

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

View on Model

25

Cap, Crisper Pan — Left Side WPL 2174259 Contact Us For Availability

View on Model

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

View on Model

26

Window, Crisper Pan WPL 2188276 Contact Us For Availability

View on Model

26

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

View on Model

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

View on Model

27

Bin, Door WPL 2171062 Contact Us For Availability

View on Model

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

View on Model

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $331.47

View on Model

28

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $60.49

View on Model

28

White WPL 2221711 Contact Us For Availability

View on Model

28

Biscuit WPL 2221713 Contact Us For Availability

View on Model

28

Black WPL 2221712 Contact Us For Availability

View on Model

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $29.43

View on Model

29

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

View on Model

29

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

View on Model

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

View on Model

30

Bracket Evap. Fan, Front WPL 2214979 Contact Us For Availability

View on Model

31

WP627792 Whirlpool Refrigerator Shut Off Arm In Stock WPL WP627792 $61.68

View on Model

31

Window, Meat Pan WPL 2188277 Contact Us For Availability

View on Model

32

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $95.20

View on Model

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $95.20

View on Model

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $130.74

View on Model

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $45.27

View on Model

32

Slide, Humidity WPL 2174257 Contact Us For Availability

View on Model

33

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $33.06

View on Model

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $22.41

View on Model

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

View on Model

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

View on Model

36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

View on Model

36

Button, Humidity Control WPL 2174253 Contact Us For Availability

View on Model

37

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $48.18

View on Model

37

Clip, Grille WPL 2189356 Contact Us For Availability

View on Model

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

View on Model

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $7.54

View on Model

38

Screw WPL 489439 Contact Us For Availability

View on Model

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

View on Model

39

Gasket, Front WPL 2174394 Contact Us For Availability

View on Model

39

Air Baffle WPL 2198921 Contact Us For Availability

View on Model

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $11.82

View on Model

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $142.80

View on Model

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

View on Model

41

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

View on Model

42

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

View on Model

42

Wire Assembly Unit WPL 2187385 Contact Us For Availability

View on Model

43

Fan Blade WPL 2190685 Contact Us For Availability

View on Model

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

View on Model

45

Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability

View on Model

45

Tube, Transition WPL 2212603 Contact Us For Availability

View on Model

46

Tube, Discharge WPL 2205384 Contact Us For Availability

View on Model

47

Tube, Suction WPL 2219622 Contact Us For Availability

View on Model

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $53.08

View on Model

50

Rear Fence, Pull− Out Freezer Floor WPL 2198768 Contact Us For Availability

View on Model

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

View on Model

58

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

View on Model

58

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

View on Model

58

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

View on Model

58

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

View on Model

58

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $66.62

View on Model

58

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

View on Model

58

Evaporator Tray Following Parts Not Illustrat WPL 2210451 Contact Us For Availability

View on Model

58

Valve, Access WPL 978029 Contact Us For Availability

View on Model

58

Valve, Access WPL 978028 Contact Us For Availability

View on Model

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $108.21

View on Model

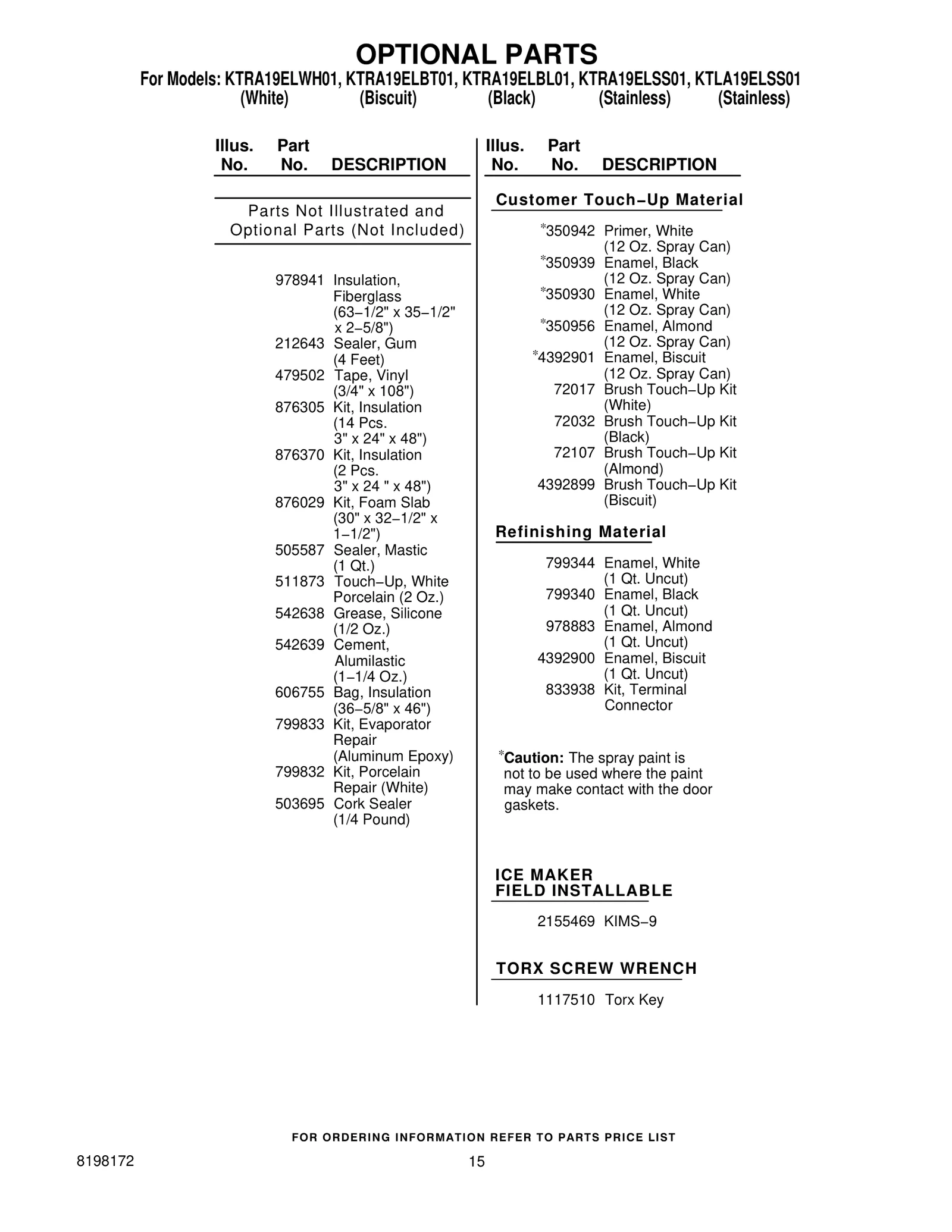

OPT-2

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

View on Model

OPT-3

Tape, Vinyl WPL 479502 Contact Us For Availability

View on Model

OPT-4

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

View on Model

OPT-6

Kit, Foam Slab WPL 876029 Contact Us For Availability

View on Model

OPT-7

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

View on Model

OPT-8

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

View on Model

OPT-9

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

View on Model

OPT-10

Cement, WPL 542639 Contact Us For Availability

View on Model

OPT-11

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

View on Model

OPT-12

Kit, Evaporator WPL 799833 Contact Us For Availability

View on Model

OPT-13

Kit, Porcelain WPL 799832 Contact Us For Availability

View on Model

OPT-14

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

View on Model

OPT-15

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

View on Model

OPT-16

285006 Whirlpool Spray In Stock WPL 285006 $52.65

View on Model

OPT-17

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

View on Model

OPT-18

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

View on Model

OPT-19

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

View on Model

OPT-20

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

View on Model

OPT-21

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

View on Model

OPT-22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

View on Model

OPT-23

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

View on Model

OPT-24

Enamel, White WPL 799344 Contact Us For Availability

View on Model

OPT-25

Enamel, Black WPL 799340 Contact Us For Availability

View on Model

OPT-26

Enamel, Almond WPL 978883 Contact Us For Availability

View on Model

OPT-27

Enamel, Biscuit WPL 4392900 Contact Us For Availability

View on Model

OPT-28

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

View on Model

OPT-29

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $103.56

View on Model

OPT-30

Torx Key WPL 1117510 Contact Us For Availability

View on Model

Model Whirlpool KTRA19ELBT01 Refrigerator – Common Parts & Diagrams

Common parts from model Whirlpool KTRA19ELBT01 Refrigerator

Search result for :

Help

Customer Service

Company

Model Whirlpool KTRA19ELBT01 Refrigerator – Common Parts & Diagrams

Common parts from model Whirlpool KTRA19ELBT01 Refrigerator

Search result for :

Be the First to Know

Help

Customer Service

Company
