Model Whirlpool KTLS22QDAL01 – Common Parts & Diagrams

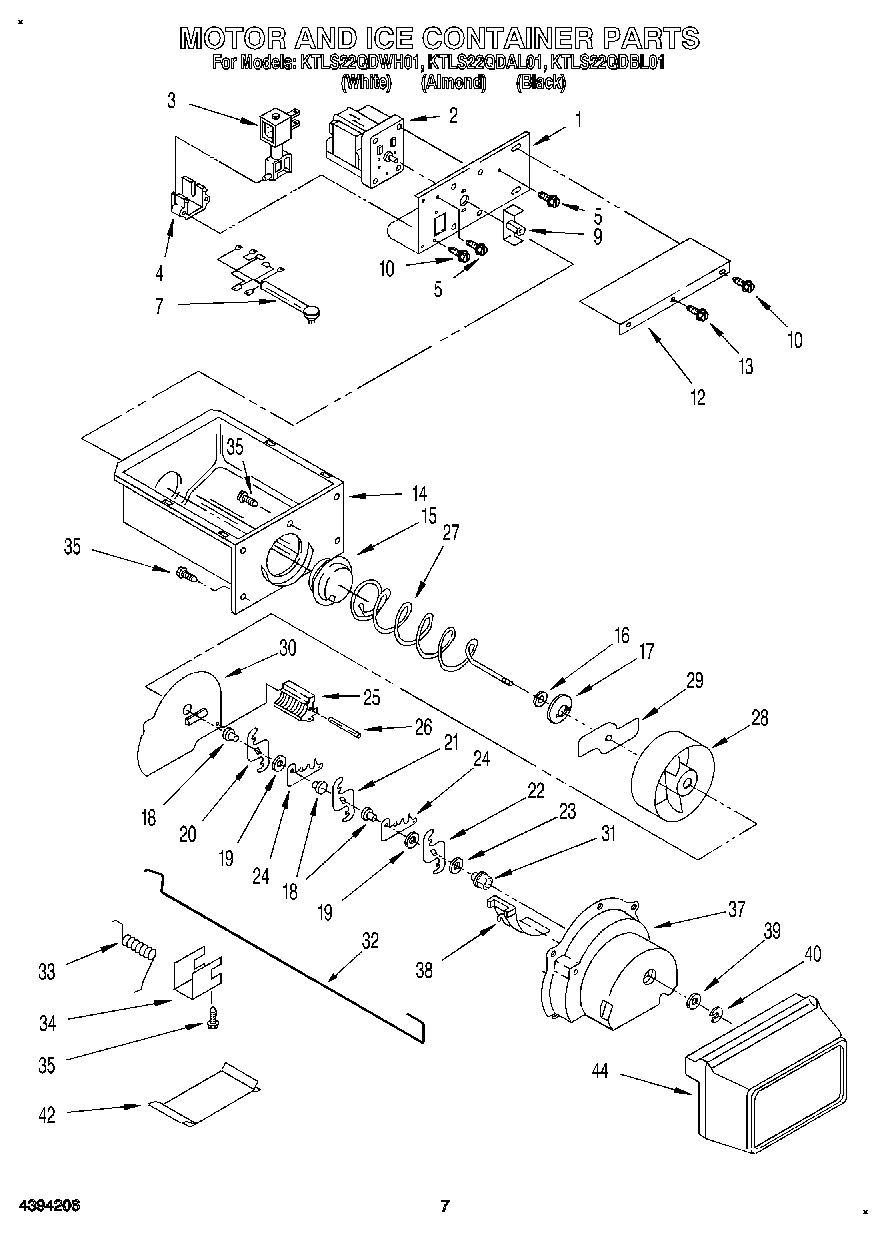

04 - MOTOR AND ICE CONTAINER

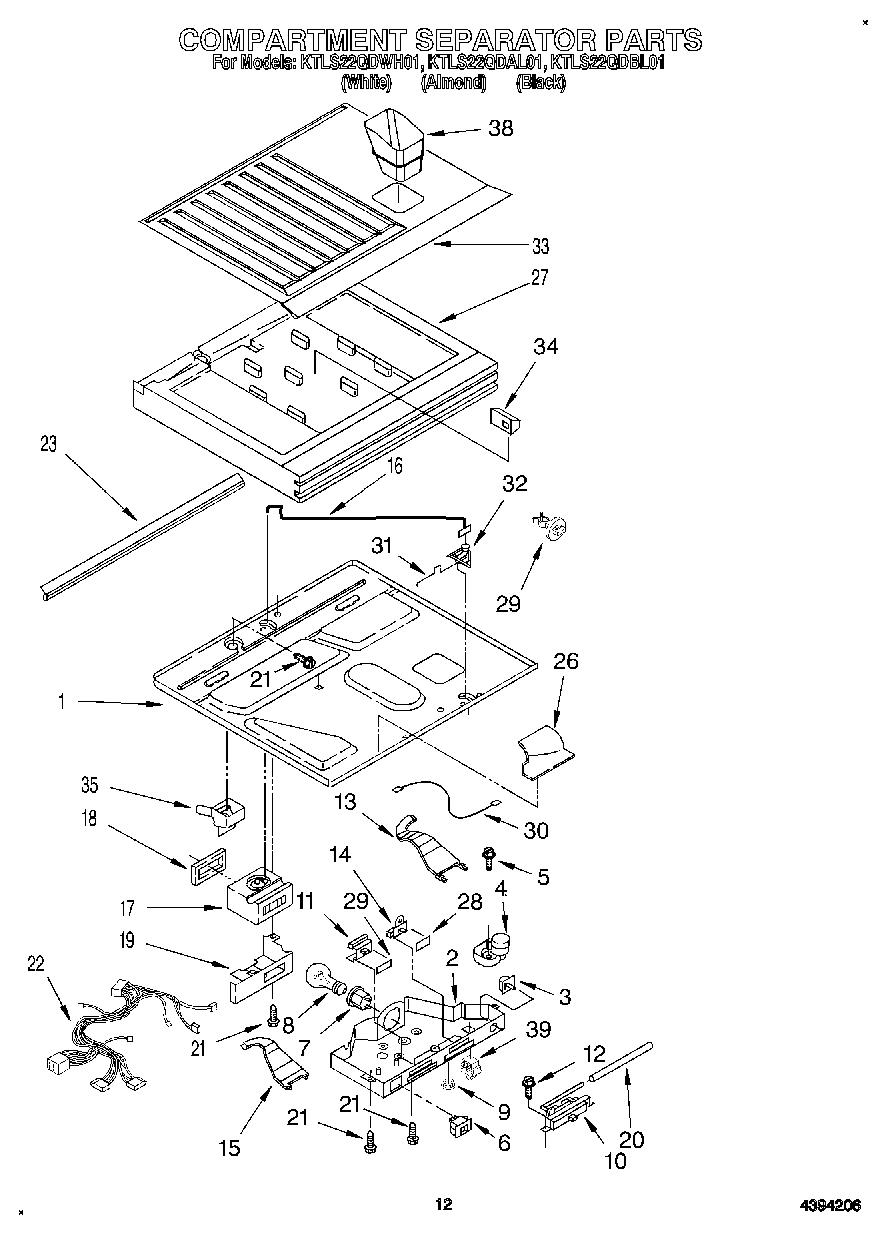

07 - COMPARTMENT SEPARATOR

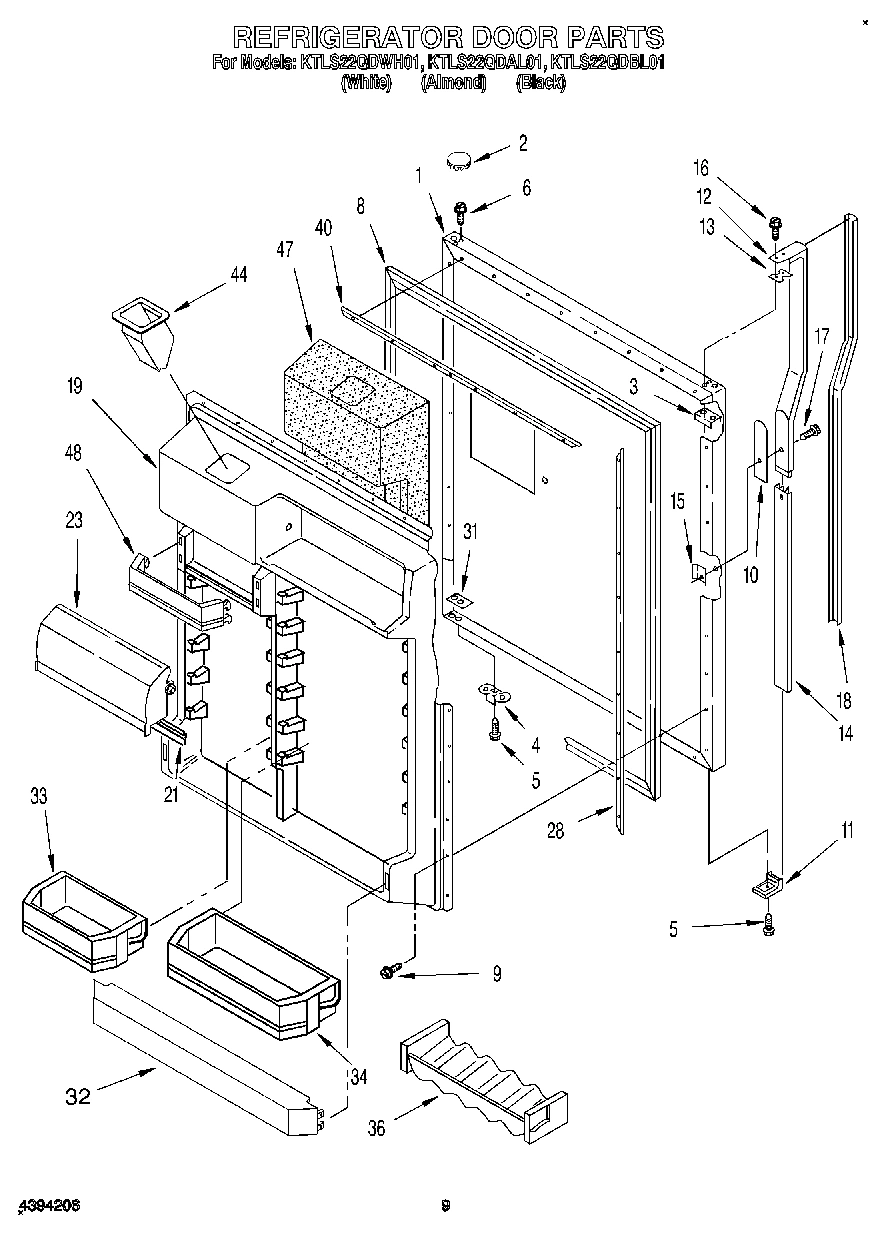

05 - REFRIGERATOR DOOR

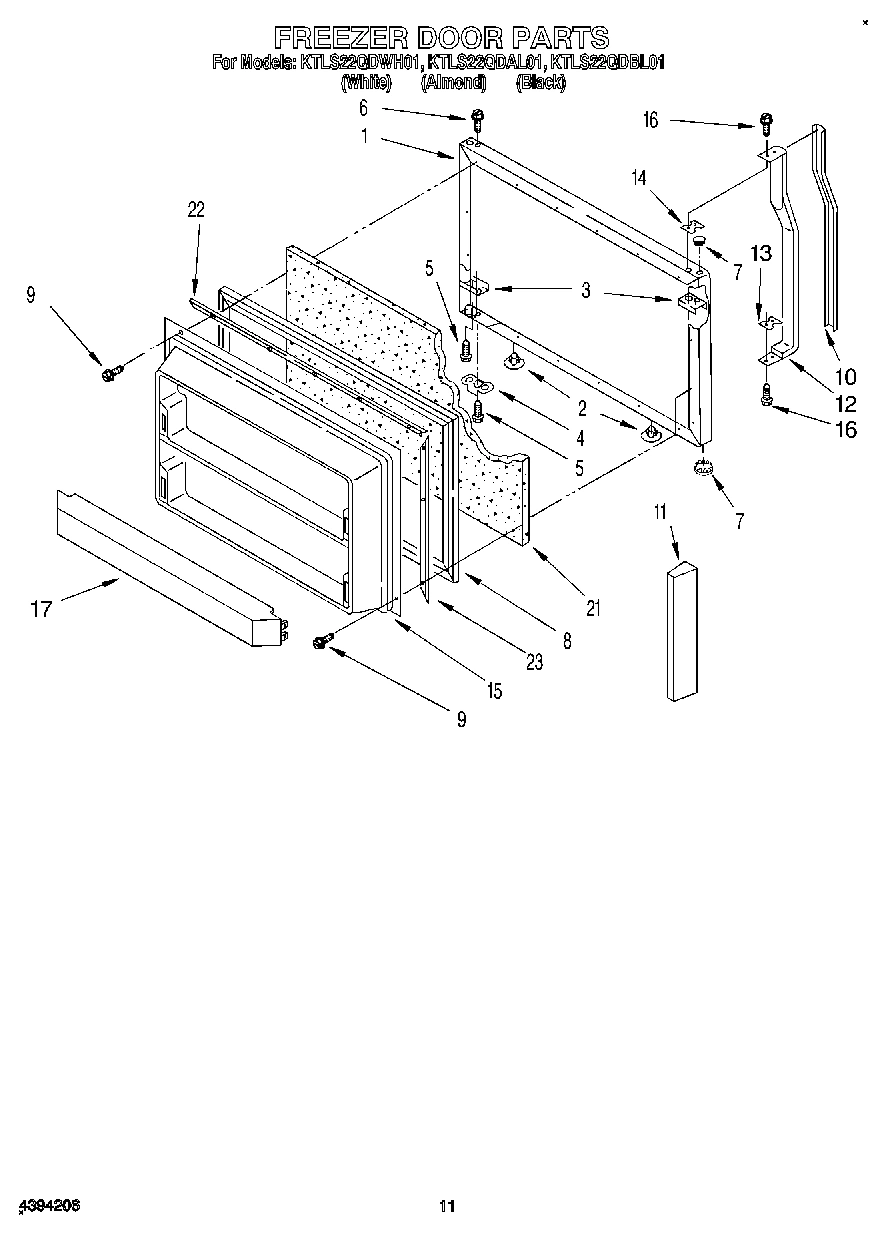

06 - FREEZER DOOR

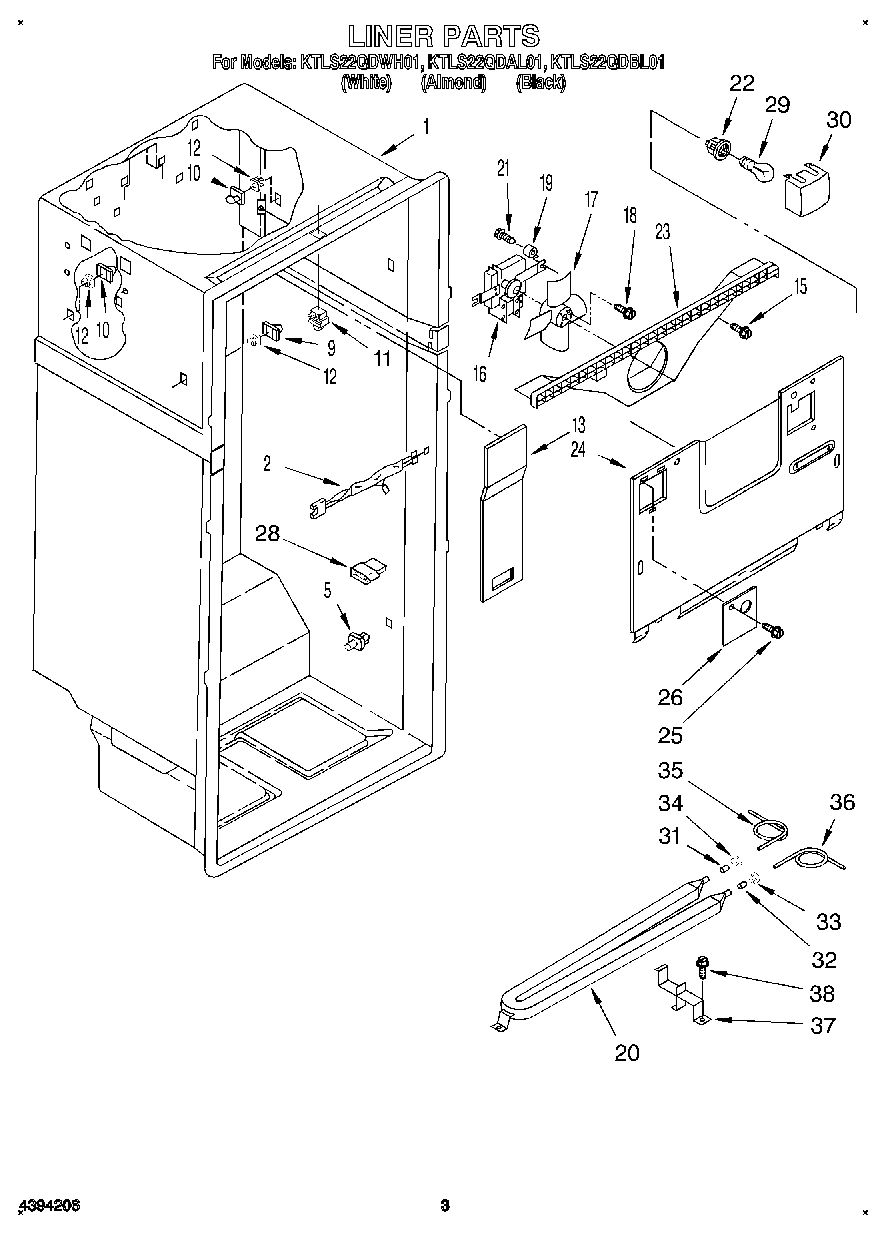

02 - LINER

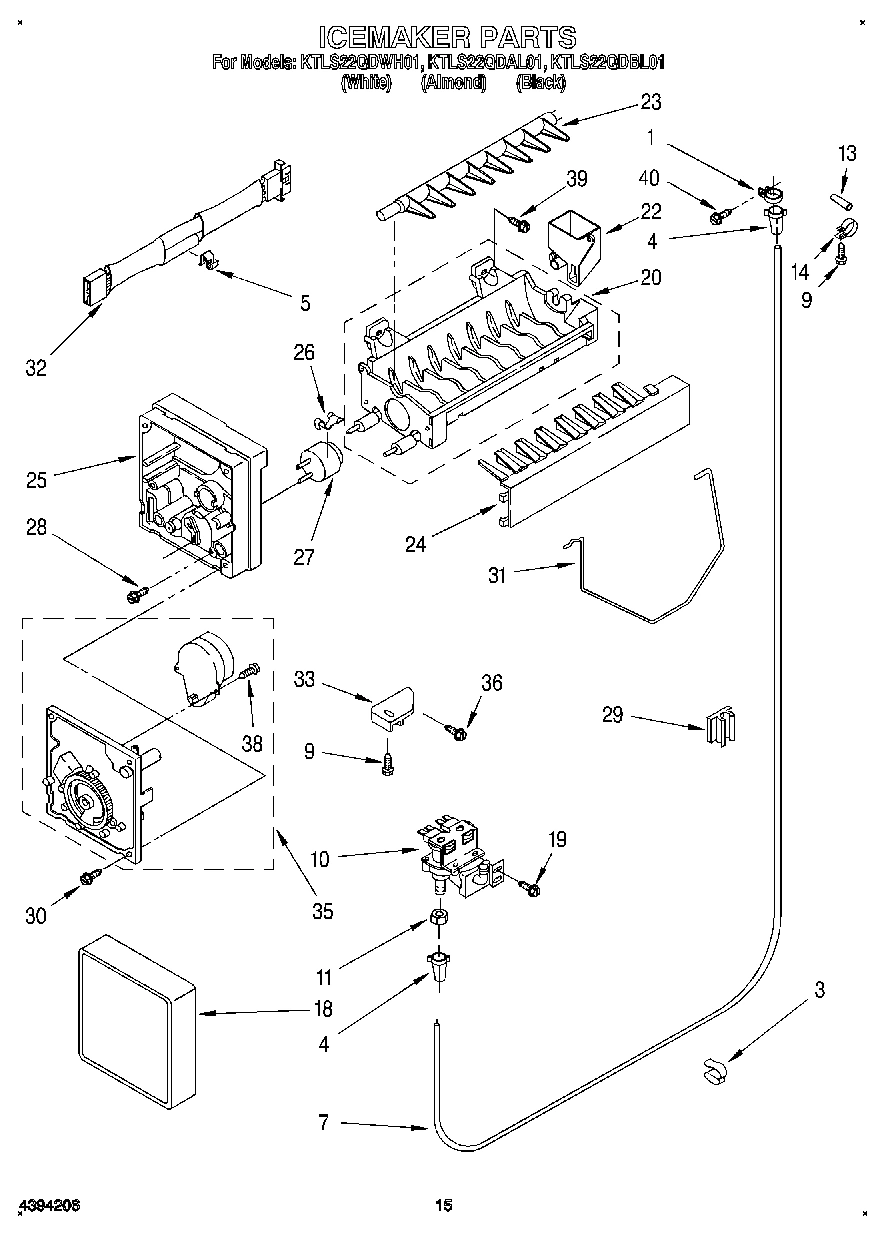

09 - ICEMAKER

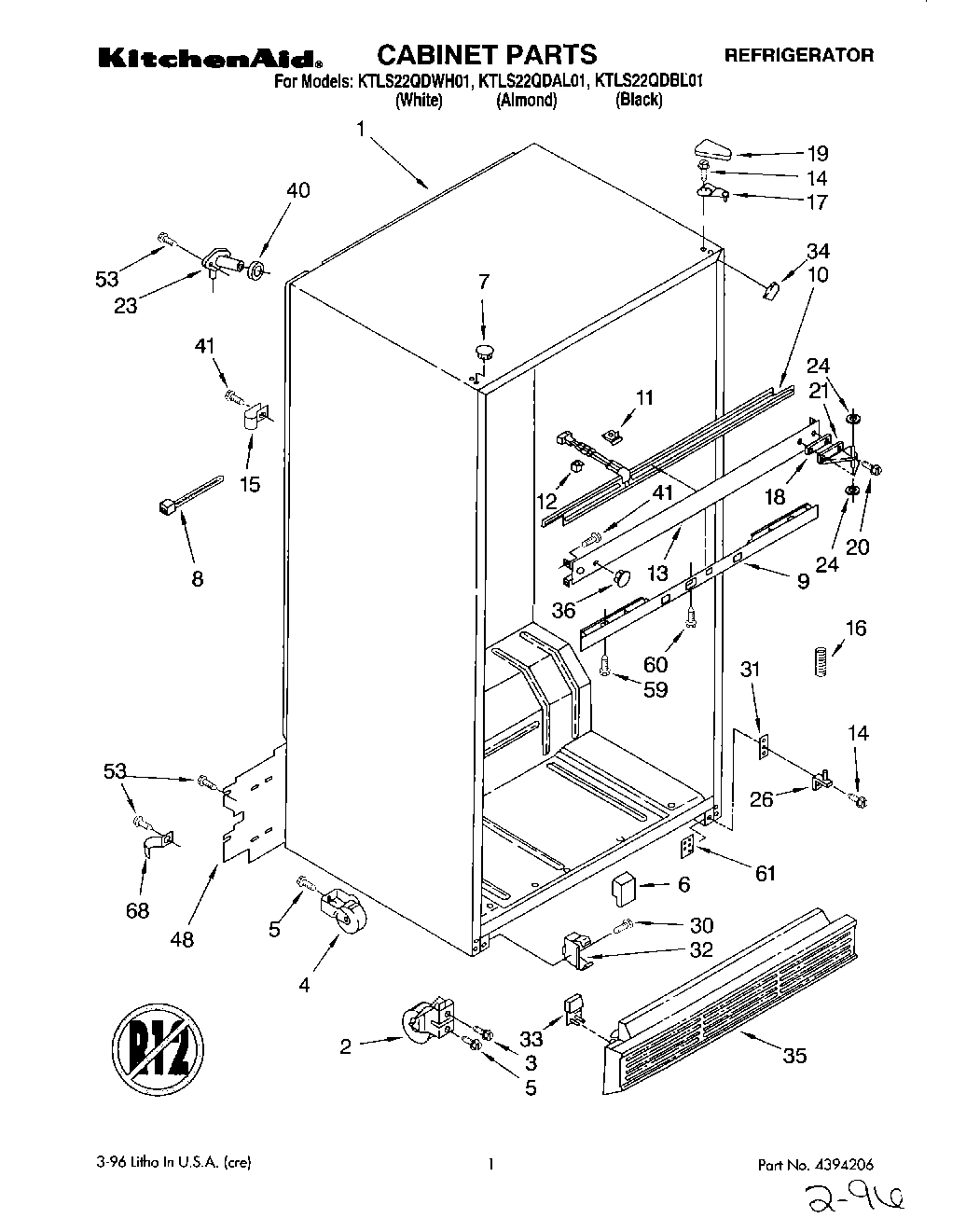

01 - CABINET

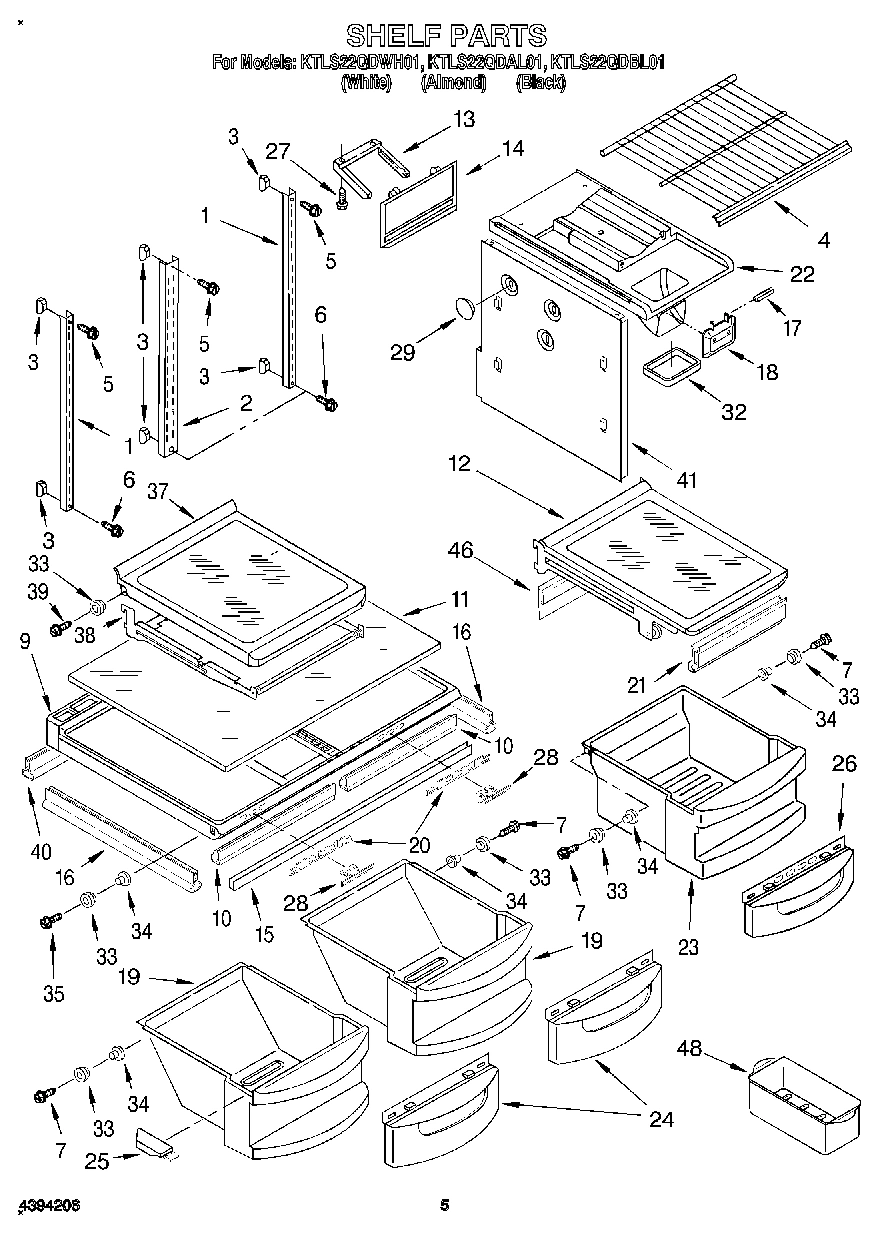

03 - SHELF

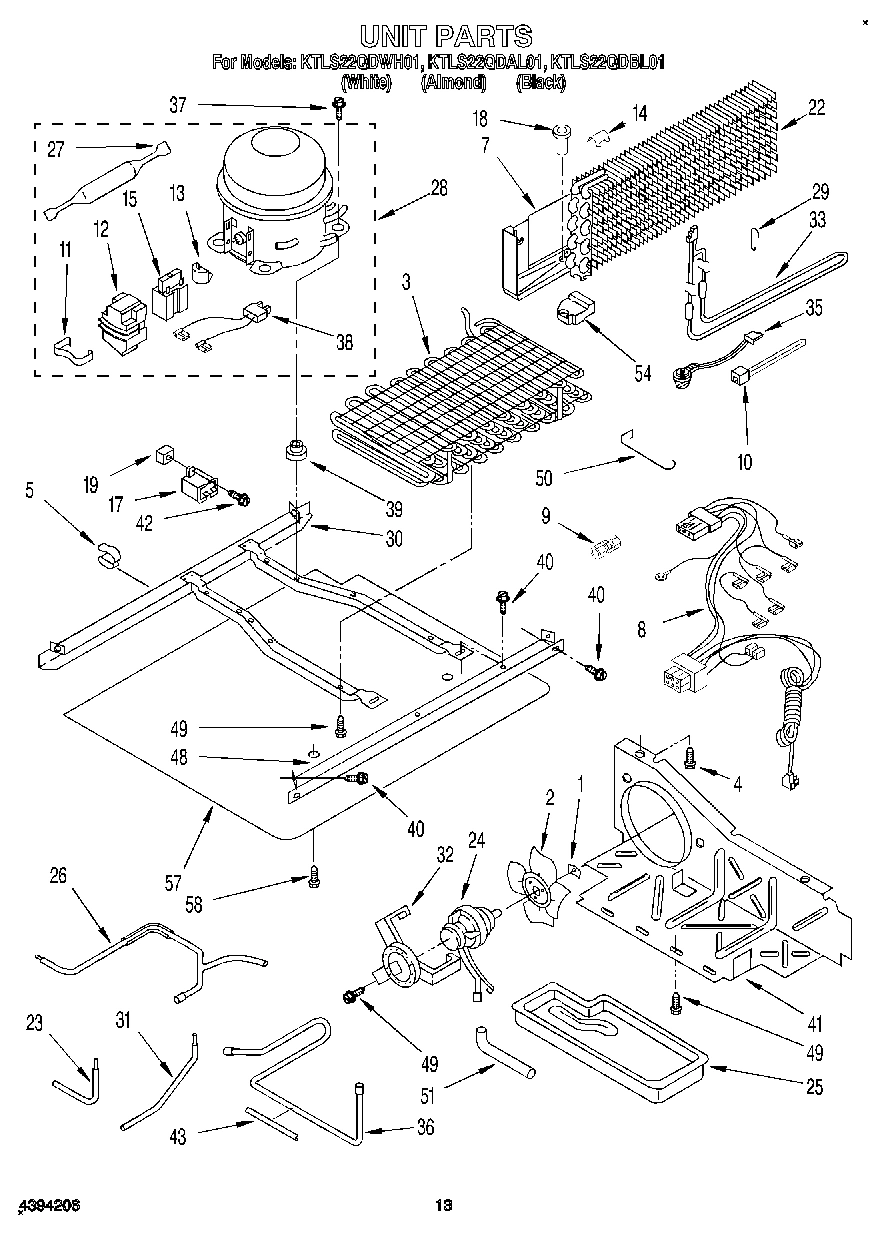

08 - UNIT

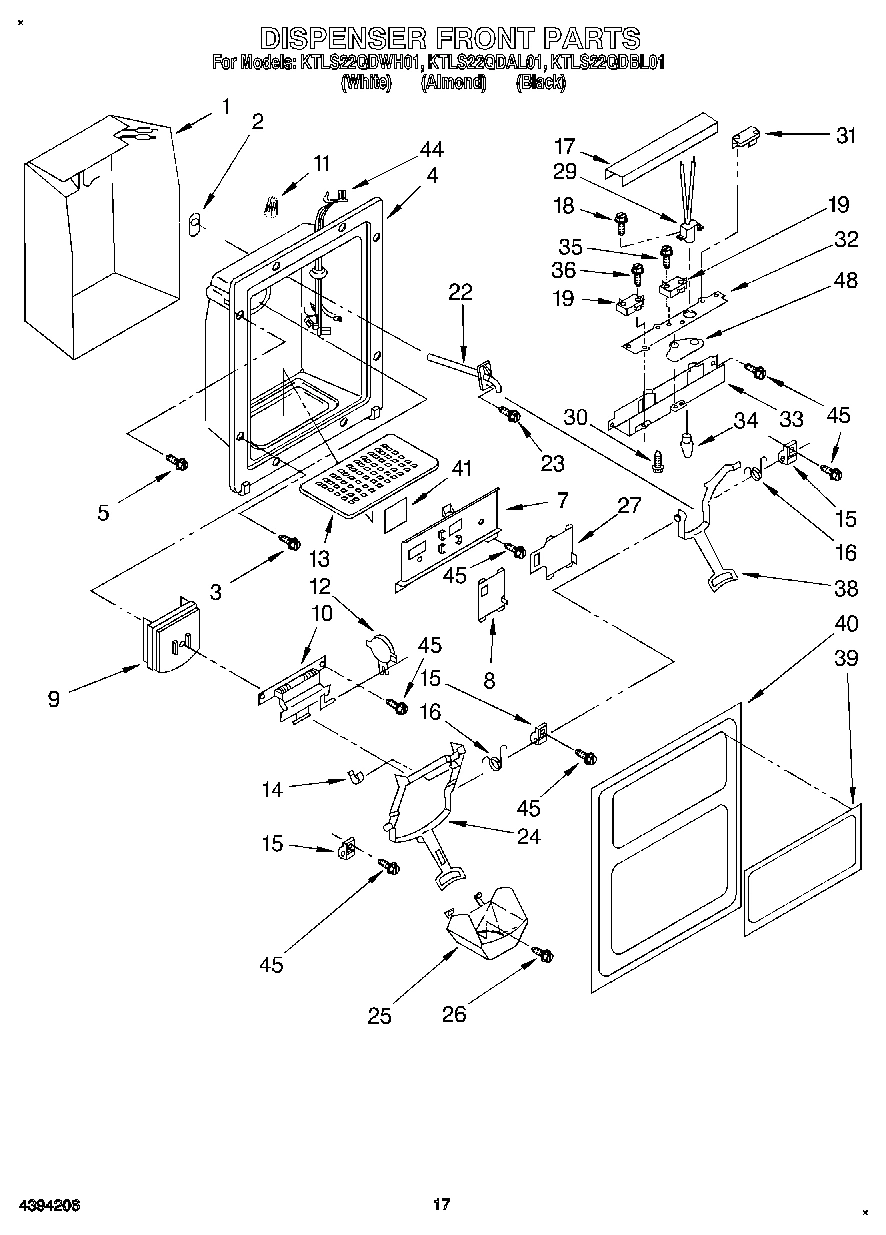

10 - DISPENSER FRONT, LIT/OPTIONAL
Common parts from model Whirlpool KTLS22QDAL01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2173946 WPL LIT2173946 Contact Us For Availability
WPL LIT2176905 WPL LIT2176905 Contact Us For Availability
WPL LIT2180034 WPL LIT2180034 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161870 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI108436A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI108435A Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Heater, Dispenser WPL 2149097 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
3
Clip WPL 934011 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Insert, Tube WPL 1129177 Contact Us For Availability
4
Shelf, Freezer (2) WPL 2160695 Contact Us For Availability
4
Housing, Dispenser (Black) WPL 1107943 Contact Us For Availability
4
Housing, Dispenser (White) WPL 1124715 Contact Us For Availability
4
Housing, Dispenser (Almond) WPL 1125969 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Clip, Wire (2) WPL 2155658 Contact Us For Availability
6
Insert WPL 2176796 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Wire Assembly WPL 2176988 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 2179541 Contact Us For Availability
9
Pan Cover & Roller Assembly WPL 2174130 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2147167 Contact Us For Availability
10
Insert, Handle (White) WPL 2161540 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161541 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161867 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
11
Dike, Door (2) WPL 1125577 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174142 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Wire Connector WPL 2160754 Contact Us For Availability
12
Handle WPL 2161517 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
12
Spacer (2) WPL 2149077 Contact Us For Availability
12
Pan Shelf & Roller Assembly WPL 2173902 Contact Us For Availability
13
Grille, Overflow (For Black Model) WPL 983900 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Shim WPL 2151813 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Center Rail WPL 2179453 Contact Us For Availability
13
Slide-Ice Compartment Door WPL 1115380 Contact Us For Availability
13
Grille, Overflow (For White Model) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (For Almond Model) WPL 1126121 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Interior Door Panel WPL 1117940 Contact Us For Availability
15
Relay (See Overload) WPL ARI108437A Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Spring WPL 983659 Contact Us For Availability
16
Gasket, Pan Cover (Side) WPL 2179252 Contact Us For Availability
17
Trivet, Door (2) WPL 2171358 Contact Us For Availability
17
Roll Pin WPL 489395 Contact Us For Availability
17
Capacitor WPL 2154565 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
18
Shim WPL 1123517 Contact Us For Availability
18
Door-Platform WPL 2160613 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
19
Grommet (4) WPL 531933 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2179228 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
20
Reservoir-Water WPL 2160600 Contact Us For Availability
20
Slide, Humidity WPL 2174257 Contact Us For Availability
21
Gasket, Door Utility WPL 2183037 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Gasket-Front WPL 2174398 Contact Us For Availability
22
Retainer, Gasket WPL 1122552 Contact Us For Availability
22
Platform-Ice Container WPL 2160612 Contact Us For Availability
22
Evaporator WPL 2153979 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Meat Pan Assy. WPL 2179232 Contact Us For Availability
24
Evaporator Cover WPL 2160648 Contact Us For Availability
24
Window, Crisper Pan WPL 2174064 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 1124719 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 1125973 Contact Us For Availability
24
Lever, Ice Dispenser (Black) WPL 1127420 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2172813 Contact Us For Availability
26
Window, Meat Pan WPL 2174085 Contact Us For Availability
26
Tube, Discharge WPL 2162475 Contact Us For Availability
26
Screw (Stainless) WPL 488892 Contact Us For Availability
26
Screw (Black) WPL 489197 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Housing Plug WPL 2154491 Contact Us For Availability
28
Button, Humidity Control WPL 2174253 Contact Us For Availability
29
Anchor-Screw I/M WPL 2160621 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
32
Gasket-Platform WPL 2160615 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Nut, Compression WPL 1129179 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Roller WPL 2174388 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Eyelet, Roller WPL 2174478 Contact Us For Availability
34
Nut, Compression WPL 1108005 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
35
Grille (White) WPL 2169057 Contact Us For Availability
35
Grille (Almond) WPL 2169058 Contact Us For Availability
35
Grille (Black) WPL 2169059 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Tube, Water WPL 2160794 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Bracket, Reservoir WPL 2168550 Contact Us For Availability
37
Shelf, Spillguard WPL 2174016 Contact Us For Availability
38
Screw WPL 488280 Contact Us For Availability
38
Frame & Roller Assembly WPL 2174017 Contact Us For Availability
38
Lever, W WPL 2177148 Contact Us For Availability
38
WPL 2177151 WPL 2177151 Contact Us For Availability
38
WPL 2177152 WPL 2177152 Contact Us For Availability
39
Screw WPL 489414 Contact Us For Availability
39
Screw WPL 489439 Contact Us For Availability
39
WPL 2174336 WPL 2174336 Contact Us For Availability
39
WPL 2174337 WPL 2174337 Contact Us For Availability
39
WPL 2174338 WPL 2174338 Contact Us For Availability
40
Gasket, Pan Cover-Rear WPL 2179216 Contact Us For Availability
40
WPL 2179384 WPL 2179384 Contact Us For Availability
40
WPL 2179385 WPL 2179385 Contact Us For Availability
40
WPL 2179386 WPL 2179386 Contact Us For Availability
41
Support Wall I/M WPL 2160619 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
44
Ice Chute WPL 2160684 Contact Us For Availability
44
WPL 2147166 WPL 2147166 Contact Us For Availability
46
Gasket-Rear WPL 2179564 Contact Us For Availability
47
Insulation, Dispenser WPL 2160683 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
48
WPL 876029 WPL 876029 Contact Us For Availability
48
WPL 479502 WPL 479502 Contact Us For Availability
48
WPL 799344 WPL 799344 Contact Us For Availability
48
Trivet, Door WPL 2171372 Contact Us For Availability
48
Cover, Unit WPL 2183166 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
WPL 2172757 WPL 2172757 Contact Us For Availability
48
WPL 542639 WPL 542639 Contact Us For Availability
48
WPL 799833 WPL 799833 Contact Us For Availability
48
WPL 978883 WPL 978883 Contact Us For Availability
51
Drain Extension WPL 2183033 Contact Us For Availability
54
Support-Evaporator (R.S.) WPL 2174769 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2174770 Contact Us For Availability
57
Cover-Unit Btm. WPL 2160505 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
