KSUP25QDBL05

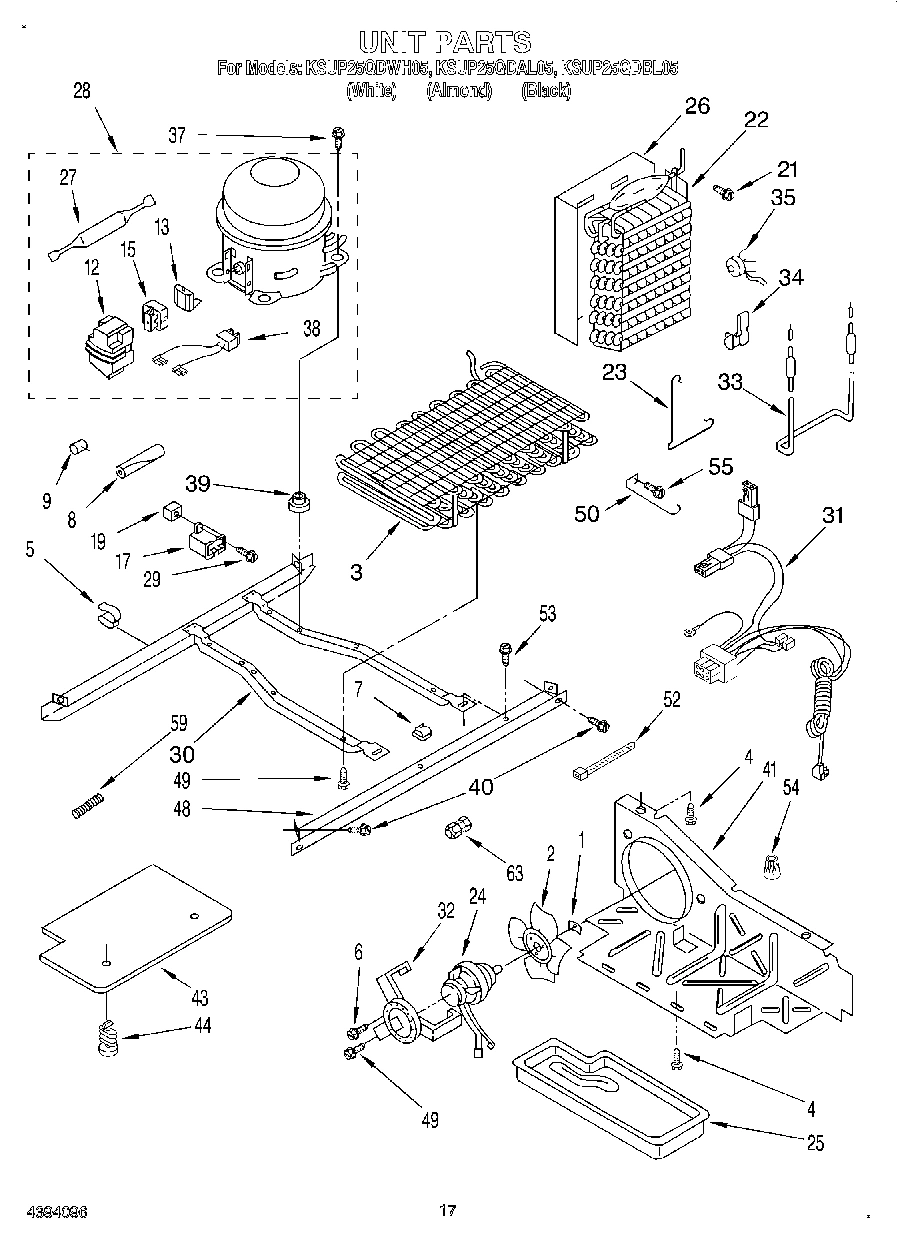

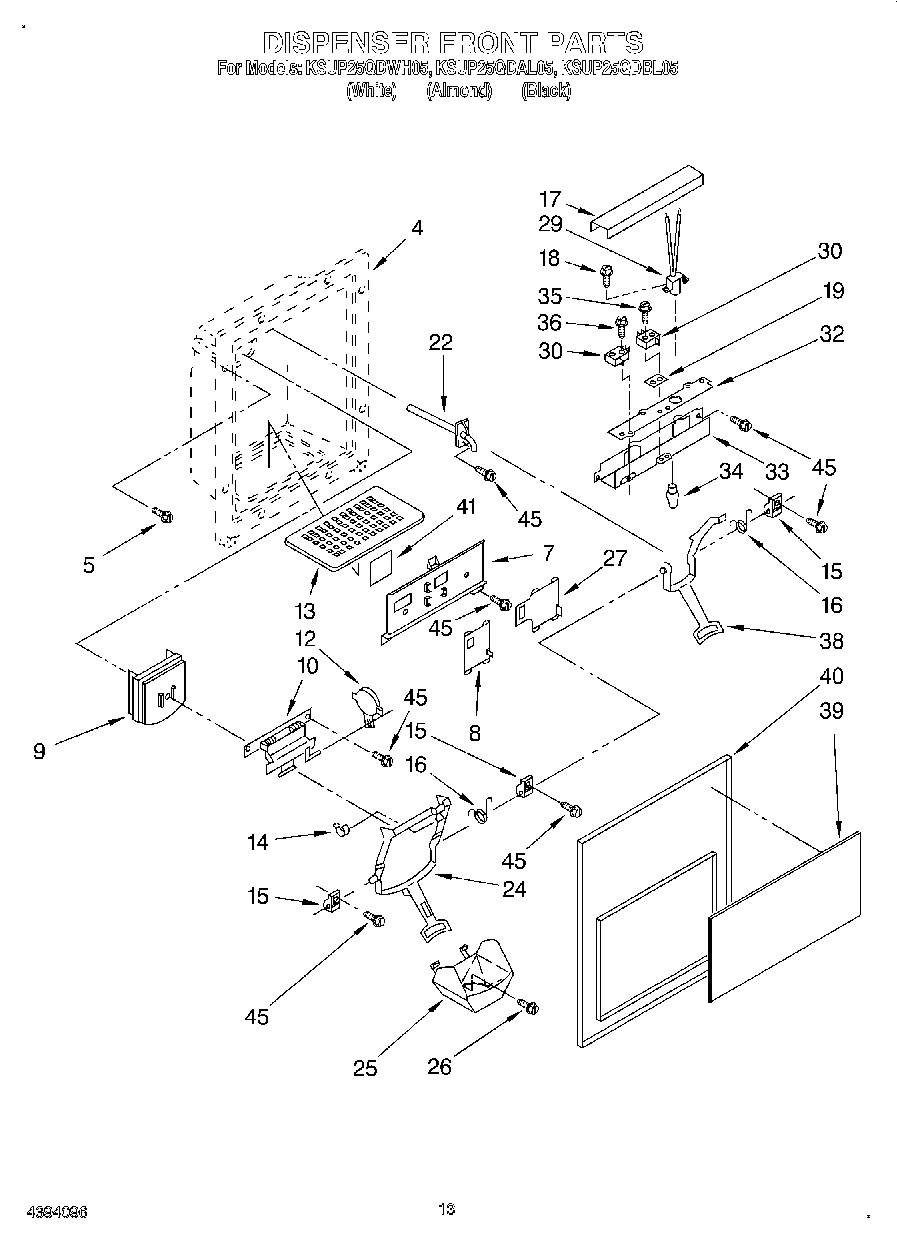

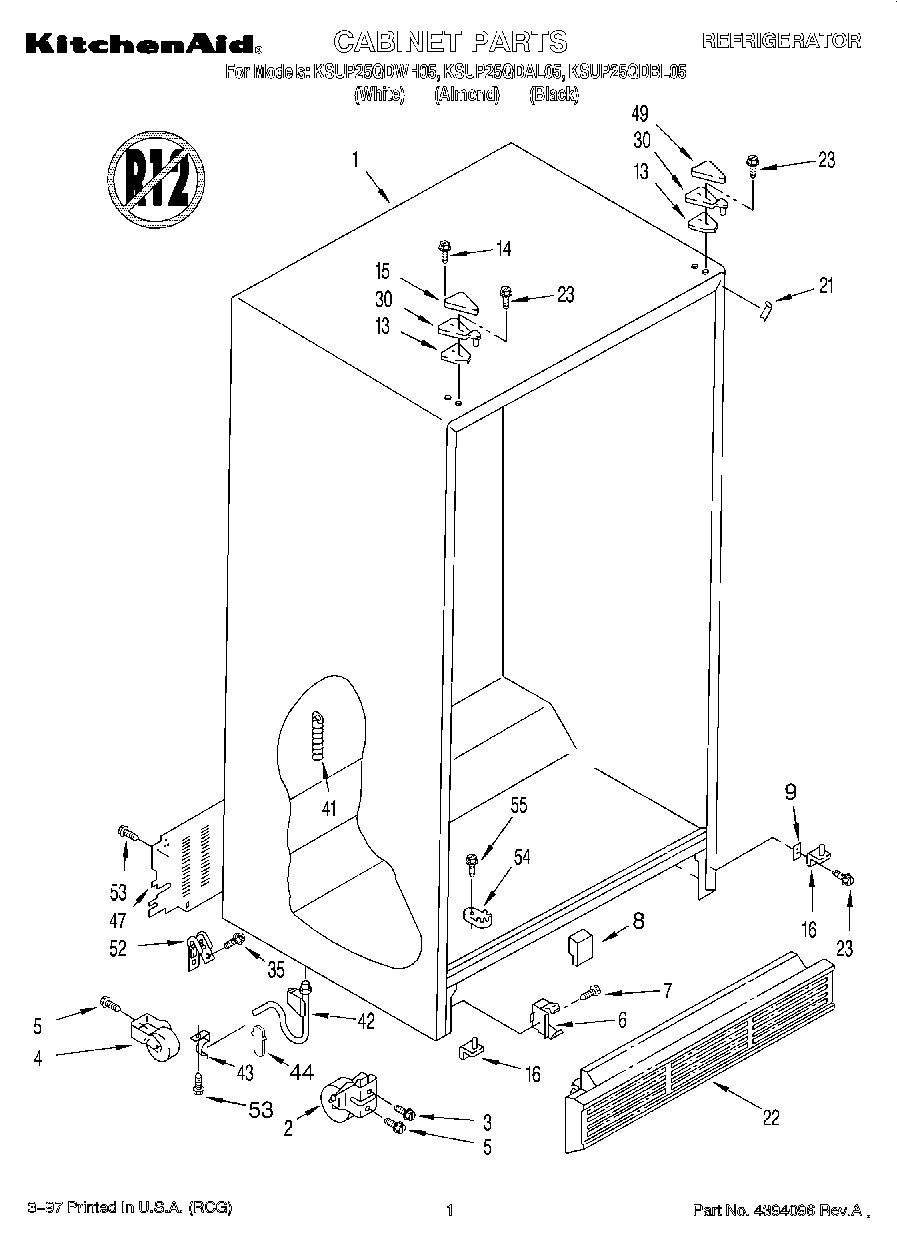

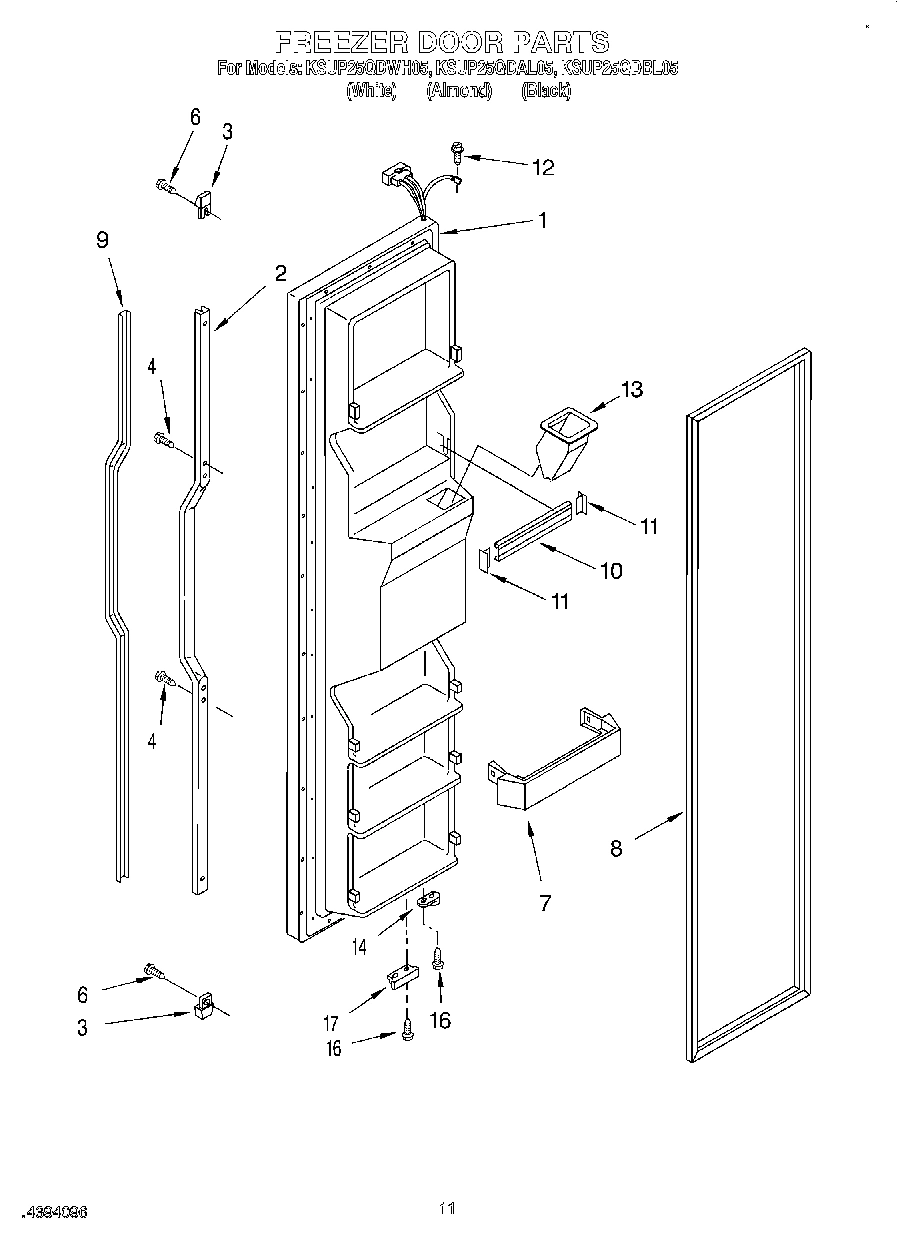

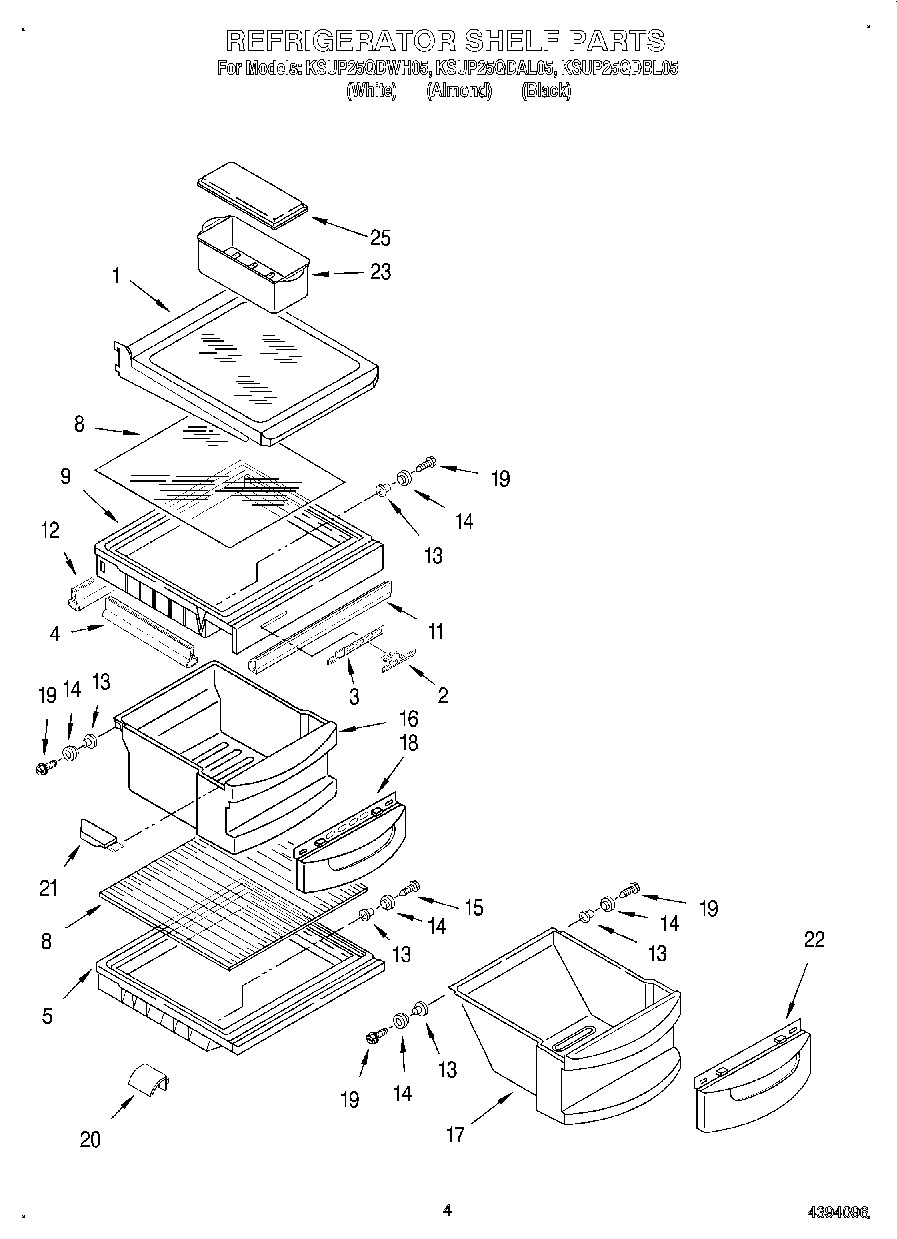

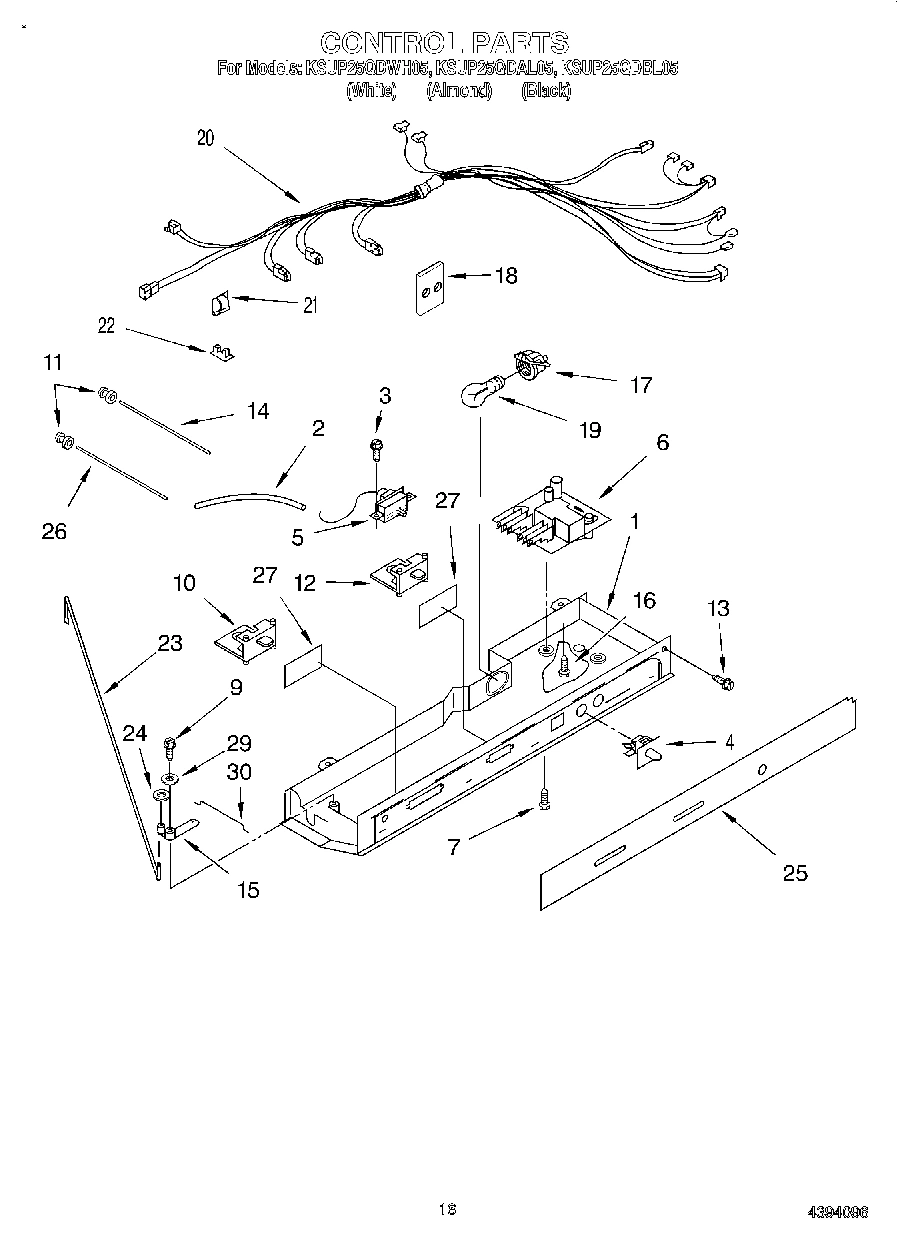

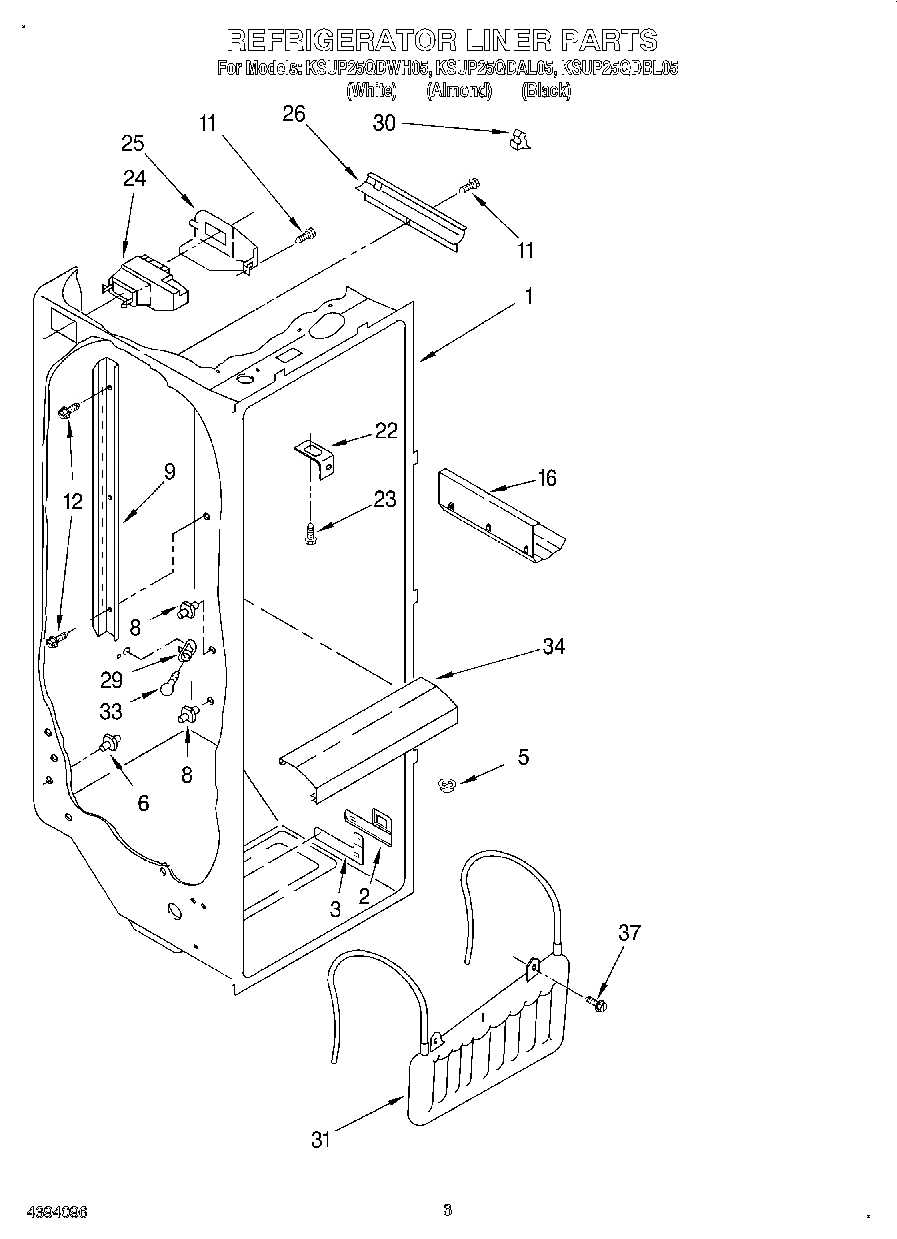

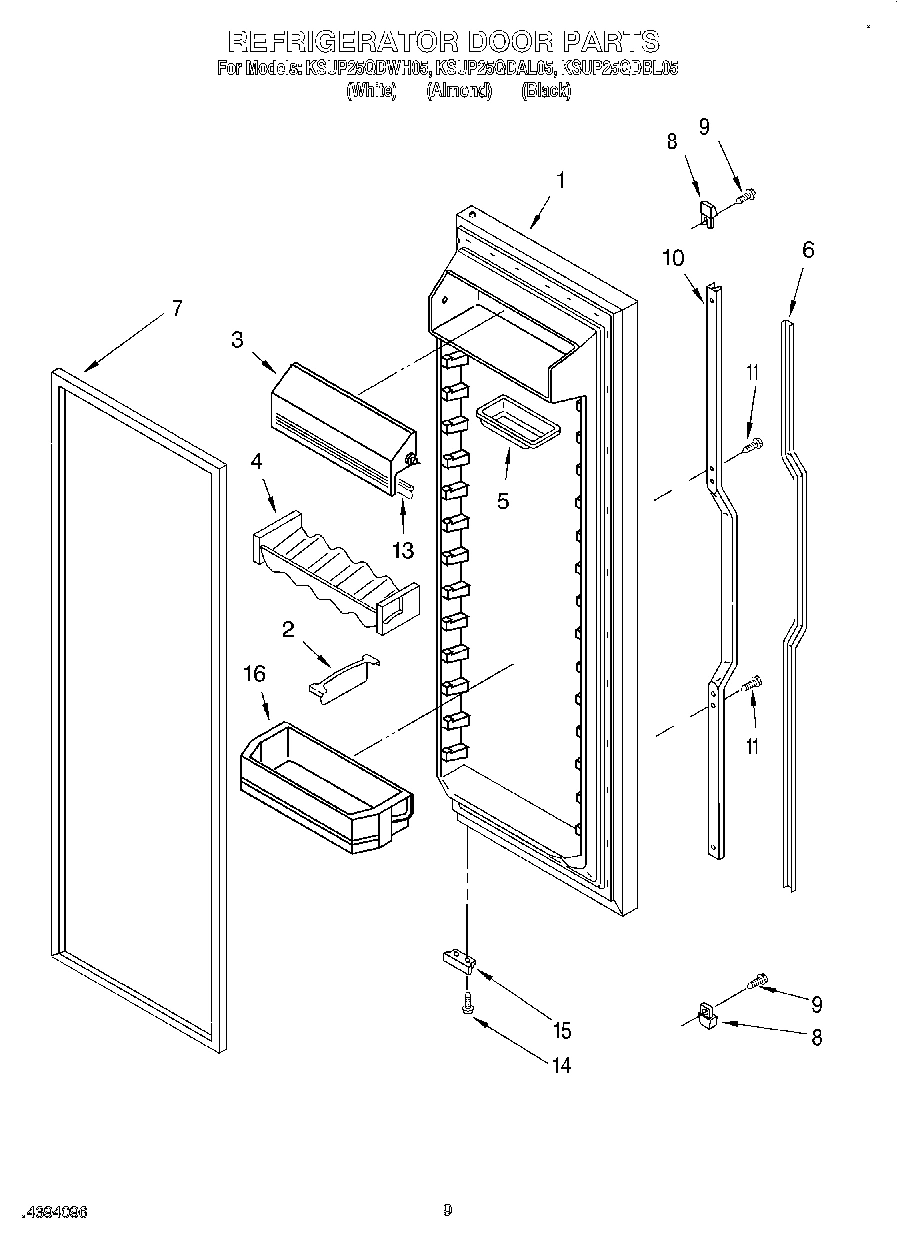

Model KSUP25QDBL05 – Common Parts & Diagrams

Common parts from model KSUP25QDBL05

WP486692 Whirlpool Refrigerator Nut

WP486692 Whirlpool Refrigerator Nut Out of Stock WPL WP486692 $5.47

WP2155590 Whirlpool Refrigerator Retainer

WP2155590 Whirlpool Refrigerator Retainer Out of Stock WPL WP2155590 $4.50

2182757 Whirlpool Refrigerator Slide

2182757 Whirlpool Refrigerator Slide Out of Stock WPL 2182757 $49.08

WP2152713 Whirlpool Refrigerator Solenoid

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $143.56

WP2171713 Whirlpool Refrigerator Ice Door

WP2171713 Whirlpool Refrigerator Ice Door In Stock WPL WP2171713 $43.62

WP488878 Whirlpool Refrigerator Tube Clamp

WP488878 Whirlpool Refrigerator Tube Clamp Out of Stock WPL WP488878 $7.13

WP2149705 Whirlpool Refrigerator Door Switch

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.72

2171846 Whirlpool Refrigerator Release Valve

2171846 Whirlpool Refrigerator Release Valve Out of Stock WPL 2171846 $15.96

WP2161491 Whirlpool Crisper Drawer Cover

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $119.74

WP628379 Whirlpool Refrigerator Clip

WP628379 Whirlpool Refrigerator Clip Out of Stock WPL WP628379 $6.84

WP2155013 Whirlpool Refrigerator Clip

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.47

2159075 Whirlpool Door Gasket /Seal

2159075 Whirlpool Door Gasket /Seal In Stock WPL 2159075 $162.49

2159083 Whirlpool Door Gasket

2159083 Whirlpool Door Gasket In Stock WPL 2159083 $249.20

2159074 Whirlpool Door Gasket /Seal

2159074 Whirlpool Door Gasket /Seal In Stock WPL 2159074 $243.76

2159082 Whirlpool Freezer Door Gasket (Black)

2159082 Whirlpool Freezer Door Gasket (Black) In Stock WPL 2159082 $236.81

WP1106508 Whirlpool Refrigerator Gasket

WP1106508 Whirlpool Refrigerator Gasket Out of Stock WPL WP1106508 $6.13

WP2169142 Whirlpool Fan Blade

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $15.22

WP489399 Whirlpool Refrigerator Screw

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $4.50

2181741 Whirlpool Refrigerator Slide

2181741 Whirlpool Refrigerator Slide Out of Stock WPL 2181741 $56.44

W10845583 Whirlpool Refrigerator Track

W10845583 Whirlpool Refrigerator Track Out of Stock WPL W10845583 $71.54

W10845585 Whirlpool Refrigerator Track

W10845585 Whirlpool Refrigerator Track Out of Stock WPL W10845585 $79.42

WP2176759 Whirlpool Refrigerator Grommet

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.47

WP2156006 Whirlpool Refrigerator Shelf Trim E

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $7.18

WP2174267 Whirlpool Refrigerator Wire Shelf

WP2174267 Whirlpool Refrigerator Wire Shelf Out of Stock WPL WP2174267 $66.03

WP489463 Whirlpool Refrigerator Screw

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.50

WP627018 Whirlpool Refrigerator Nut

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $6.81

2161466 Whirlpool Refrigerator Slide

2161466 Whirlpool Refrigerator Slide Out of Stock WPL 2161466 $15.96

WP1120581 Whirlpool Refrigerator Mechanism

WP1120581 Whirlpool Refrigerator Mechanism In Stock WPL WP1120581 $122.43

2161306 Whirlpool Refrigerator ARM Pivot

2161306 Whirlpool Refrigerator ARM Pivot Out of Stock WPL 2161306 $7.01

W10749708 Whirlpool Refrigerator Coupling

W10749708 Whirlpool Refrigerator Coupling Out of Stock WPL W10749708 $20.55

WP1129262 Whirlpool Refrigerator Cover

WP1129262 Whirlpool Refrigerator Cover Out of Stock WPL WP1129262 $15.39

WPW10272364 Whirlpool Refrigerator Screw

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $6.75

WP2179227 Whirlpool Refrigerator Crisper Pan

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $183.37

2172931 Whirlpool Refrigerator Shield

2172931 Whirlpool Refrigerator Shield Out of Stock WPL 2172931 $43.18

W11233072 Whirlpool Screw

W11233072 Whirlpool Screw In Stock WPL W11233072 $14.22

WP1119005 Whirlpool Refrigerator Spacer

WP1119005 Whirlpool Refrigerator Spacer In Stock WPL WP1119005 $6.93

WP2174076 Whirlpool Refrigerator Cover

WP2174076 Whirlpool Refrigerator Cover Out of Stock WPL WP2174076 $163.99

WP1119007 Whirlpool Refrigerator Spacer

WP1119007 Whirlpool Refrigerator Spacer Out of Stock WPL WP1119007 $8.31

WP628356 Whirlpool Refrigerator Fill Cup

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $26.35

WP2161324 Whirlpool Refrigerator Clip

WP2161324 Whirlpool Refrigerator Clip Out of Stock WPL WP2161324 $6.81

WP489235 Whirlpool Refrigerator Washer

WP489235 Whirlpool Refrigerator Washer Out of Stock WPL WP489235 $6.81

WP627843 Whirlpool Refrigerator Ejector Arm

WP627843 Whirlpool Refrigerator Ejector Arm Out of Stock WPL WP627843 $52.15

2152019 Whirlpool Refrigerator Cover

2152019 Whirlpool Refrigerator Cover Out of Stock WPL 2152019 $51.38

2157405 Whirlpool Refrigerator Blade Block

2157405 Whirlpool Refrigerator Blade Block Out of Stock WPL 2157405 $15.96

2150331 Whirlpool Refrigerator Wire Cover

2150331 Whirlpool Refrigerator Wire Cover Out of Stock WPL 2150331 $16.47

489229 Whirlpool Refrigerator Pin Roll

489229 Whirlpool Refrigerator Pin Roll Out of Stock WPL 489229 $37.93

876765 Whirlpool Refrigerator Primary Mountin

876765 Whirlpool Refrigerator Primary Mountin In Stock WPL 876765 $48.99

2171705 Whirlpool Refrigerator Light Lens

2171705 Whirlpool Refrigerator Light Lens Out of Stock WPL 2171705 $62.75

2161307 Whirlpool Refrigerator Rod

2161307 Whirlpool Refrigerator Rod Out of Stock WPL 2161307 $12.65

W10852691 Whirlpool Refrigerator Baffle

W10852691 Whirlpool Refrigerator Baffle Out of Stock WPL W10852691 $19.59

WP2162361 Whirlpool Micro Switch

WP2162361 Whirlpool Micro Switch In Stock WPL WP2162361 $17.12

WP1119018 Whirlpool Refrigerator Bearing

WP1119018 Whirlpool Refrigerator Bearing Out of Stock WPL WP1119018 $5.47

W11596045 Whirlpool Refrigerator ARM-CONTRL

W11596045 Whirlpool Refrigerator ARM-CONTRL Out of Stock WPL W11596045 $18.72

1119020 Whirlpool Refrigerator Spring

1119020 Whirlpool Refrigerator Spring Out of Stock WPL 1119020 $11.33

W11500948 Whirlpool Refrigerator Bracket

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $19.03

1119021 Whirlpool Refrigerator Clip

1119021 Whirlpool Refrigerator Clip Out of Stock WPL 1119021 $6.87

489136 Whirlpool Refrigerator Screw

489136 Whirlpool Refrigerator Screw Out of Stock WPL 489136 $6.75

WP1119017 Whirlpool Refrigerator Deflector

WP1119017 Whirlpool Refrigerator Deflector Out of Stock WPL WP1119017 $5.47

WP2172890 Whirlpool Refrigerator Wire

WP2172890 Whirlpool Refrigerator Wire Out of Stock WPL WP2172890 $4.50

489234 Whirlpool Refrigerator Washer

489234 Whirlpool Refrigerator Washer Out of Stock WPL 489234 $14.22

WP489236 Whirlpool Refrigerator Ring-E

WP489236 Whirlpool Refrigerator Ring-E Out of Stock WPL WP489236 $7.55

489396 Whirlpool Refrigerator Clip

489396 Whirlpool Refrigerator Clip Out of Stock WPL 489396 $7.01

WP2171706 Whirlpool Refrigerator Light Lens

WP2171706 Whirlpool Refrigerator Light Lens Out of Stock WPL WP2171706 $56.97

2155938 Whirlpool Refrigerator Hinge Cover

2155938 Whirlpool Refrigerator Hinge Cover Out of Stock WPL 2155938 $13.48

WP489427 Whirlpool Refrigerator Screw

WP489427 Whirlpool Refrigerator Screw Out of Stock WPL WP489427 $5.47

WPW10141625 Whirlpool Refrigerator Screw

WPW10141625 Whirlpool Refrigerator Screw Out of Stock WPL WPW10141625 $14.22

876764 Whirlpool Refrigerator Primary Valve

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $54.25

978026 Whirlpool Refrigerator Primary Valve

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $70.29

978027 Whirlpool Refrigerator Primary Valve

978027 Whirlpool Refrigerator Primary Valve Out of Stock WPL 978027 $71.70

978030 Whirlpool Refrigerator Valve

978030 Whirlpool Refrigerator Valve Out of Stock WPL 978030 $75.23

WP978025 Whirlpool Refrigerator Valve

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $58.69

212643 Whirlpool Refrigerator Permagum Sealer

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $55.91

350930 Whirlpool White Spray Paint

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.46

350942 Whirlpool Spray Paint

350942 Whirlpool Spray Paint Out of Stock WPL 350942 $28.47

350956 Whirlpool Spray AL

350956 Whirlpool Spray AL In Stock WPL 350956 $17.70

4317943 Whirlpool Refrigerator Ice Maker Asse

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $163.48

511873 Whirlpool Refrigerator Paint

511873 Whirlpool Refrigerator Paint Out of Stock WPL 511873 $29.93

606755 Whirlpool Refrigerator Bag

606755 Whirlpool Refrigerator Bag Out of Stock WPL 606755 $46.31

72017 Whirlpool Appliance Touch Up Paint Whit

72017 Whirlpool Appliance Touch Up Paint Whit In Stock WPL 72017 $8.52

72032 Whirlpool Appliance Touch Up Paint Blac

72032 Whirlpool Appliance Touch Up Paint Blac In Stock WPL 72032 $12.99

799344 Whirlpool Refrigerator Paint

799344 Whirlpool Refrigerator Paint Out of Stock WPL 799344 $146.78

833938 Whirlpool Refrigerator Terminal

833938 Whirlpool Refrigerator Terminal Out of Stock WPL 833938 $5.47

876370 Whirlpool Refrigerator Insulation

876370 Whirlpool Refrigerator Insulation In Stock WPL 876370 $123.91

W11238399 Whirlpool Refrigerator Tape

W11238399 Whirlpool Refrigerator Tape Out of Stock WPL W11238399 $73.85

WP503695 Whirlpool Refrigerator Sealer

WP503695 Whirlpool Refrigerator Sealer Out of Stock WPL WP503695 $65.53

WP505587 Whirlpool Refrigerator Sealer

WP505587 Whirlpool Refrigerator Sealer Out of Stock WPL WP505587 $97.64

WP542638 Whirlpool Refrigerator Grease

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $41.16

WP72107 Whirlpool Tuchup

WP72107 Whirlpool Tuchup In Stock WPL WP72107 $9.87
