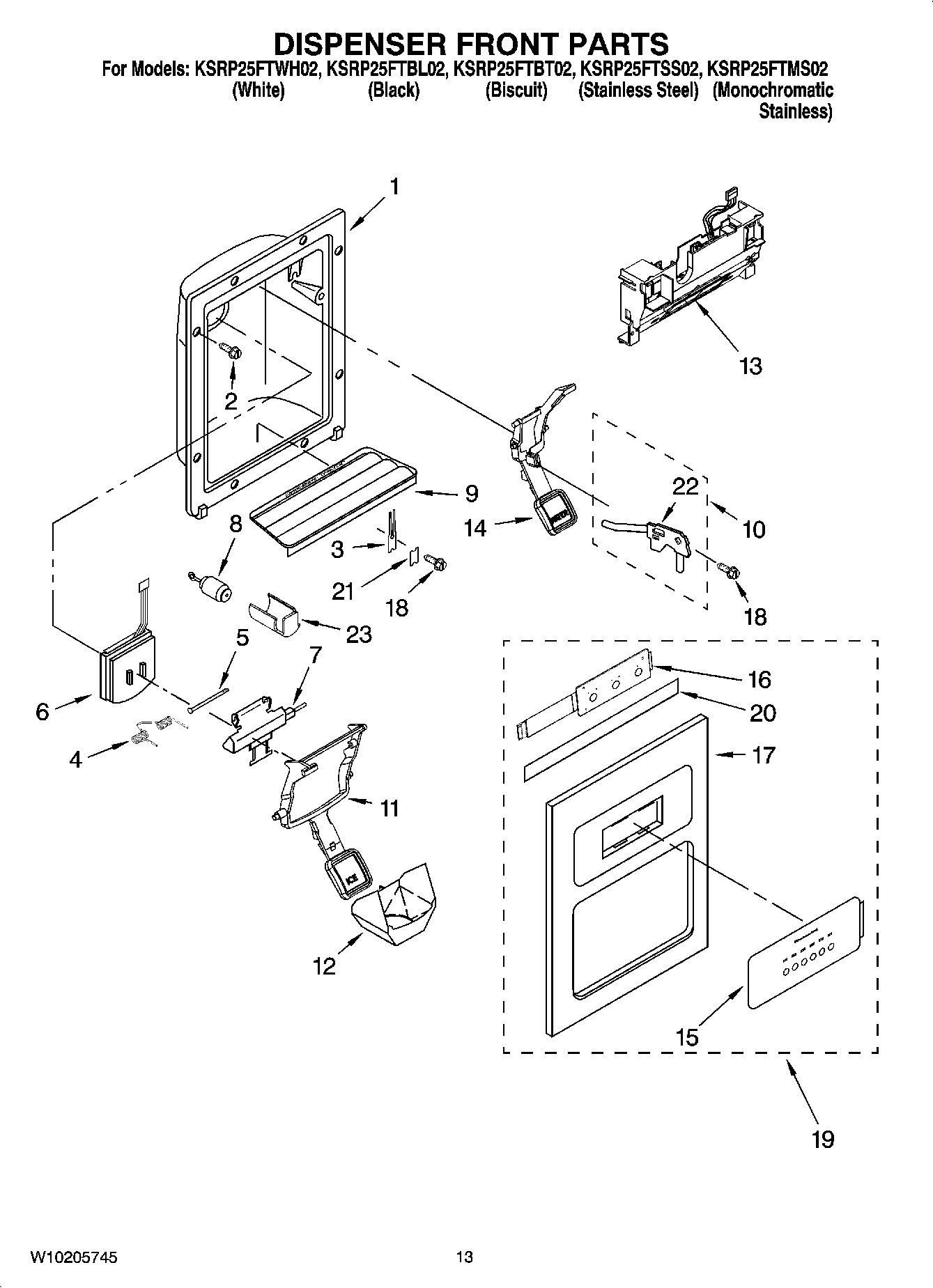

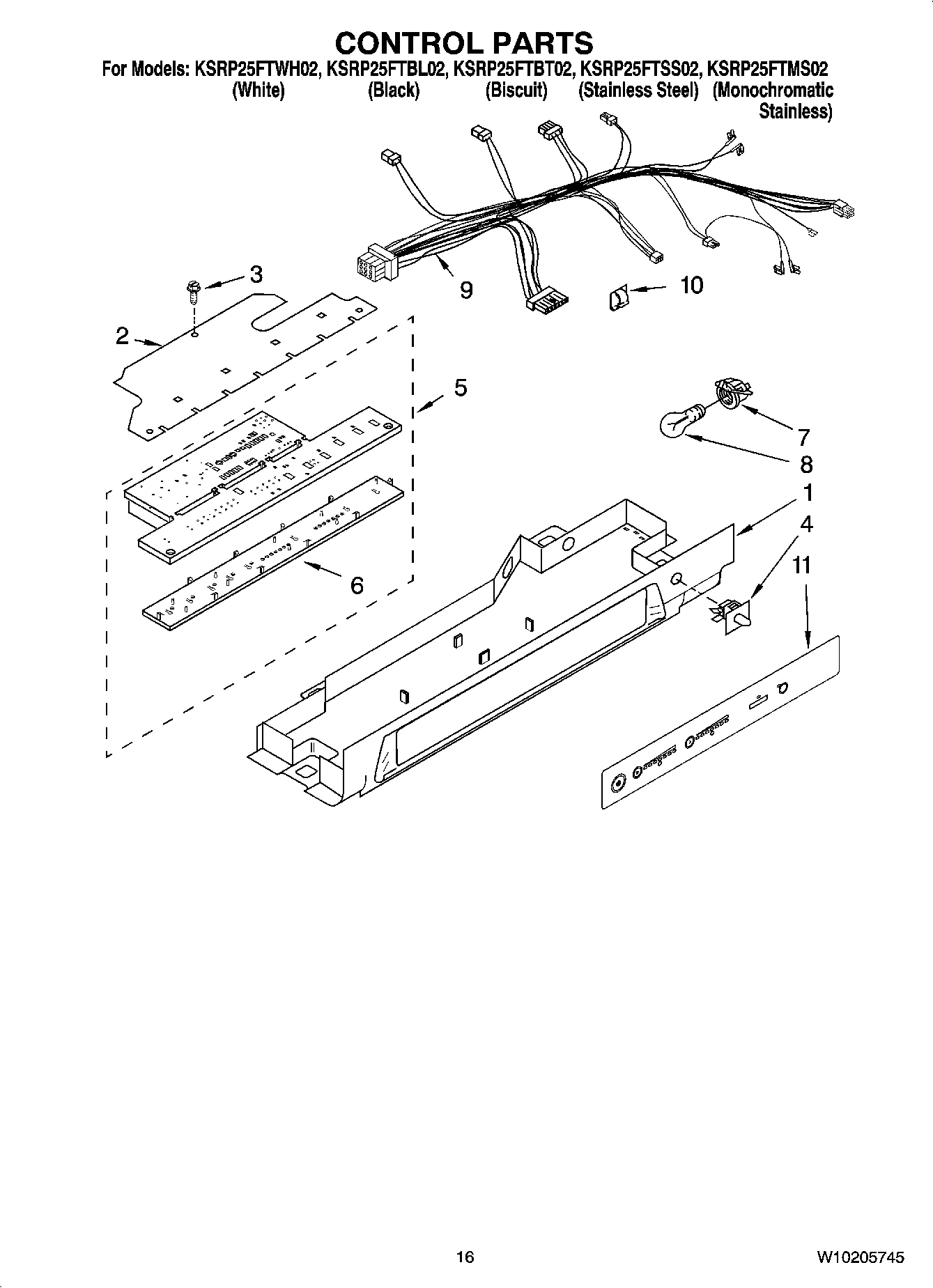

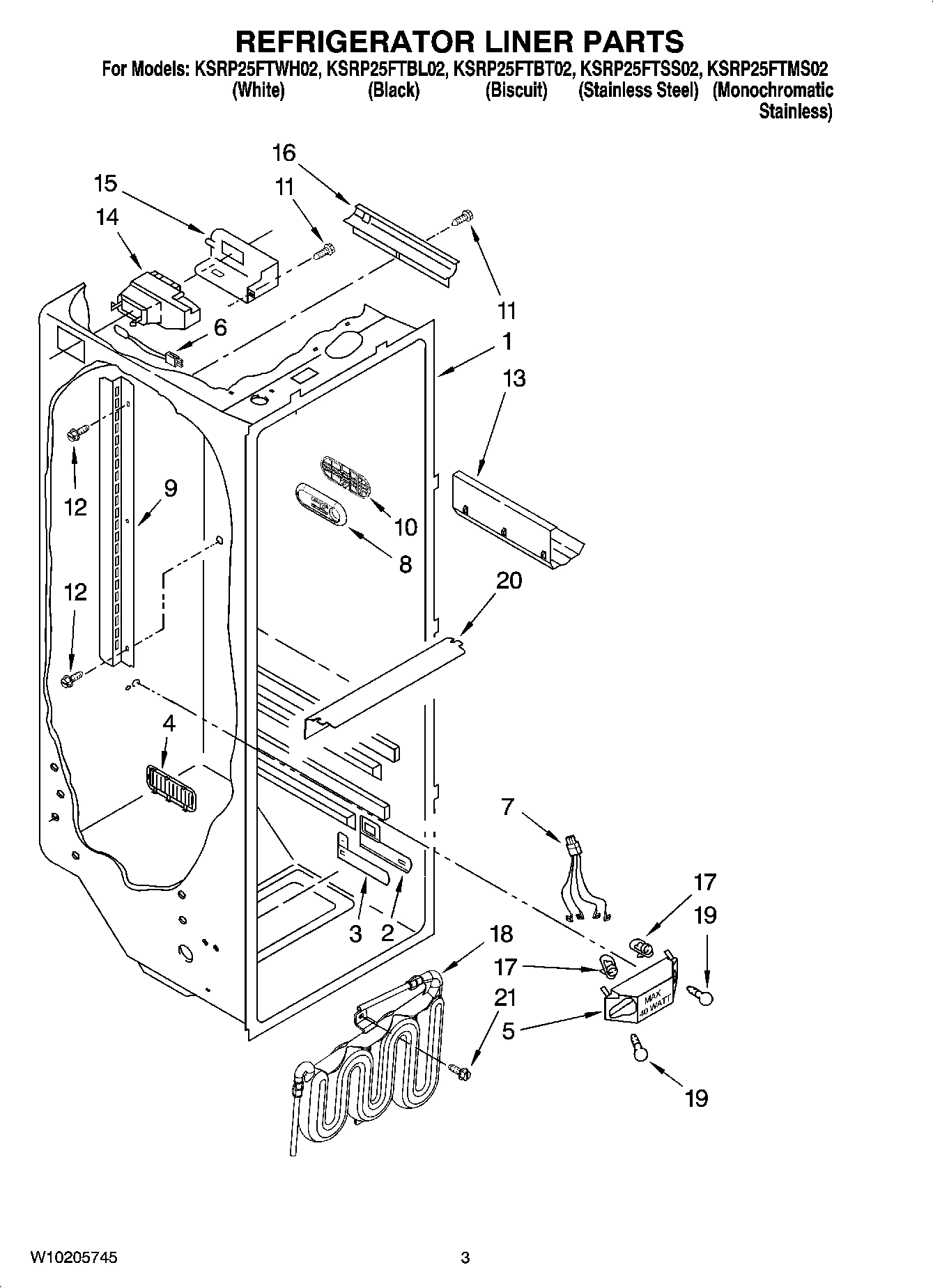

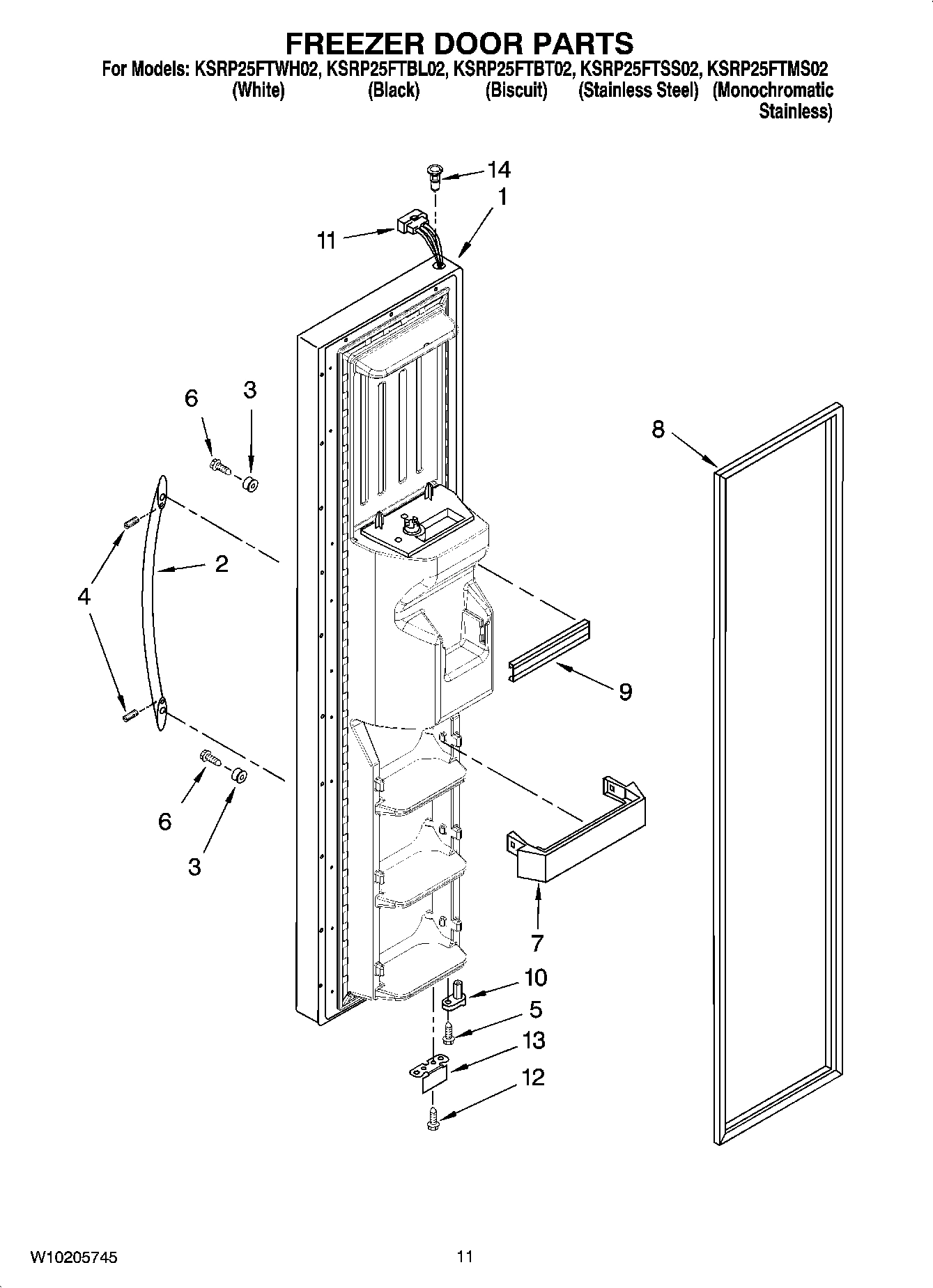

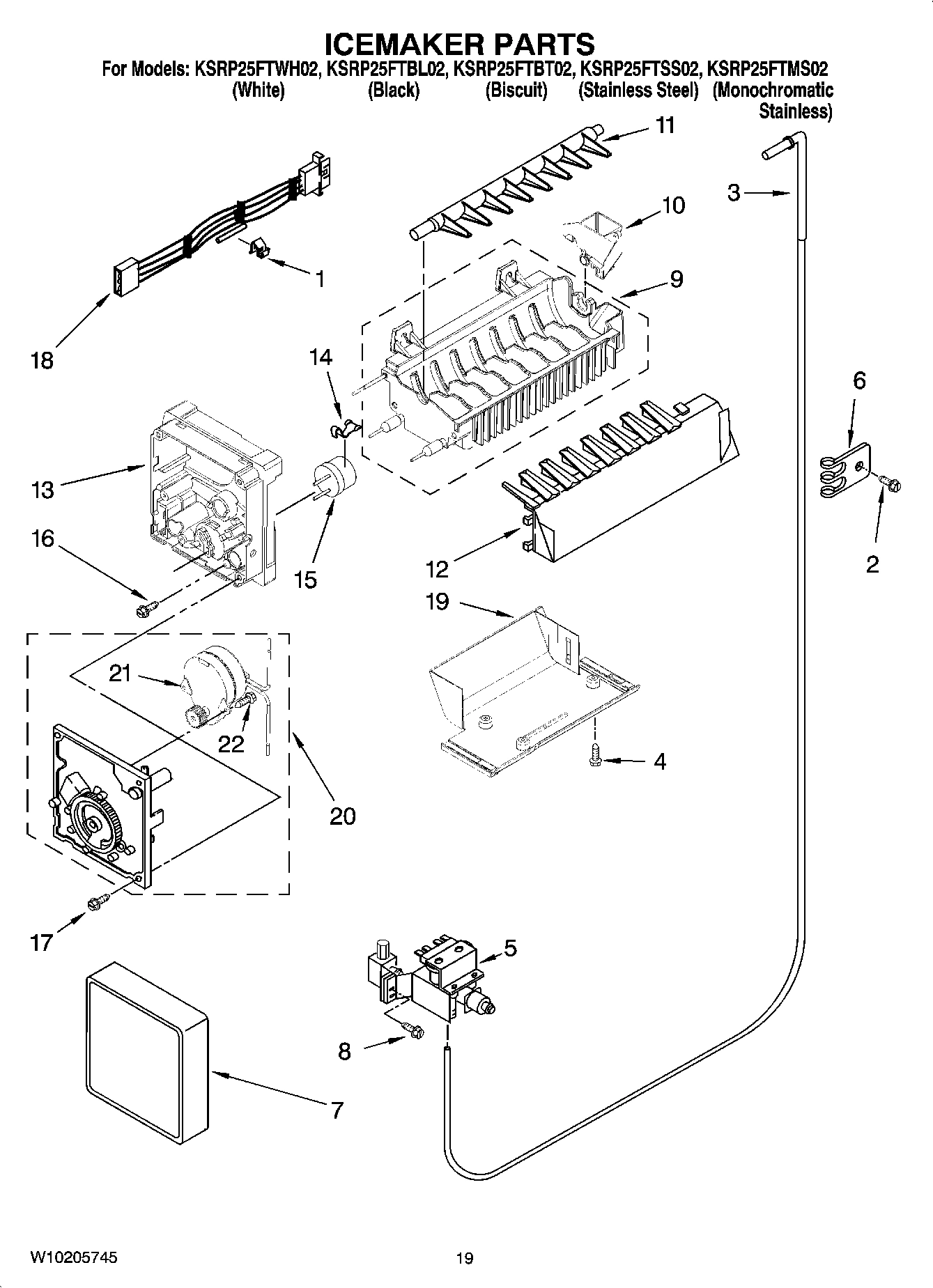

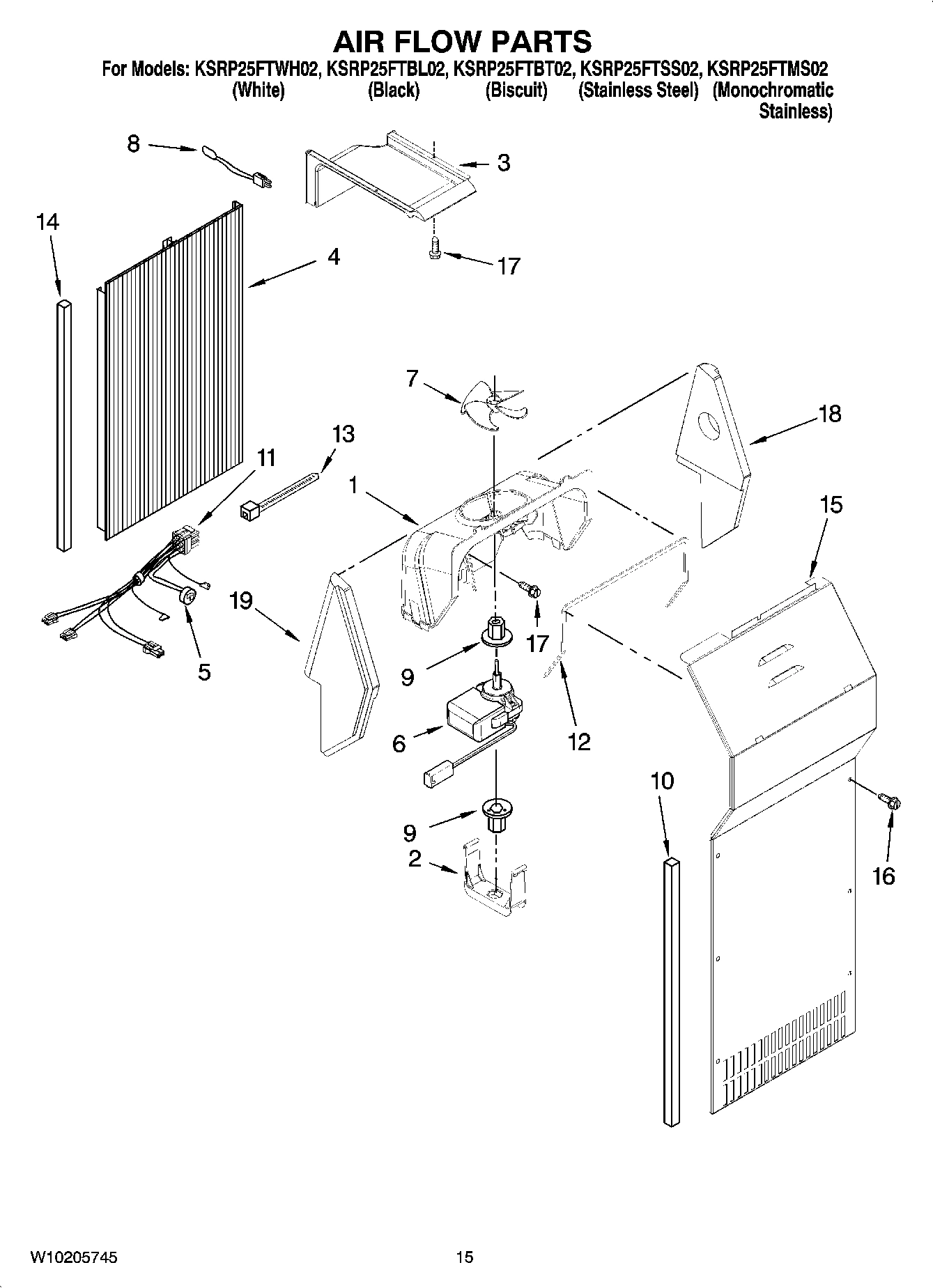

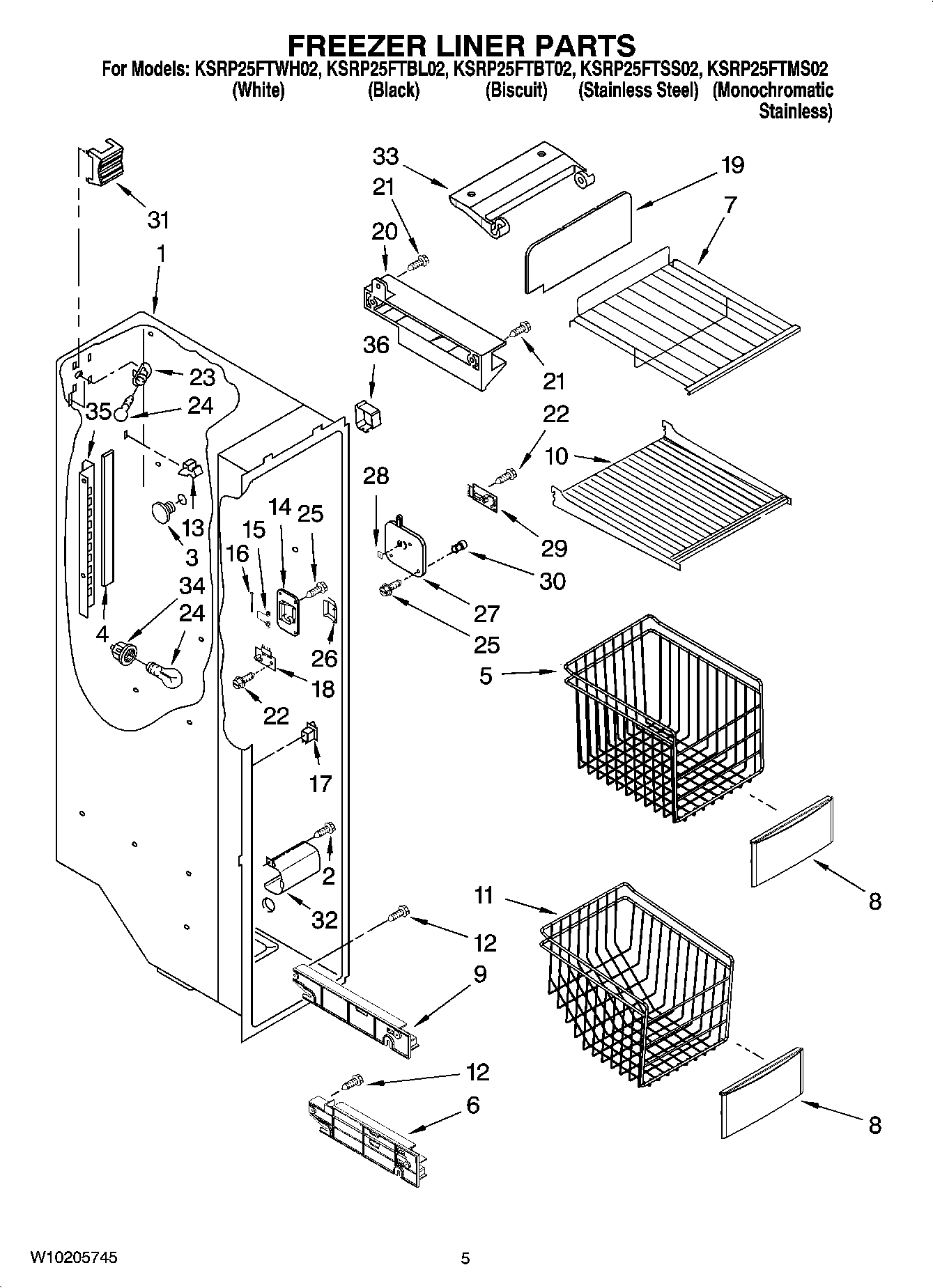

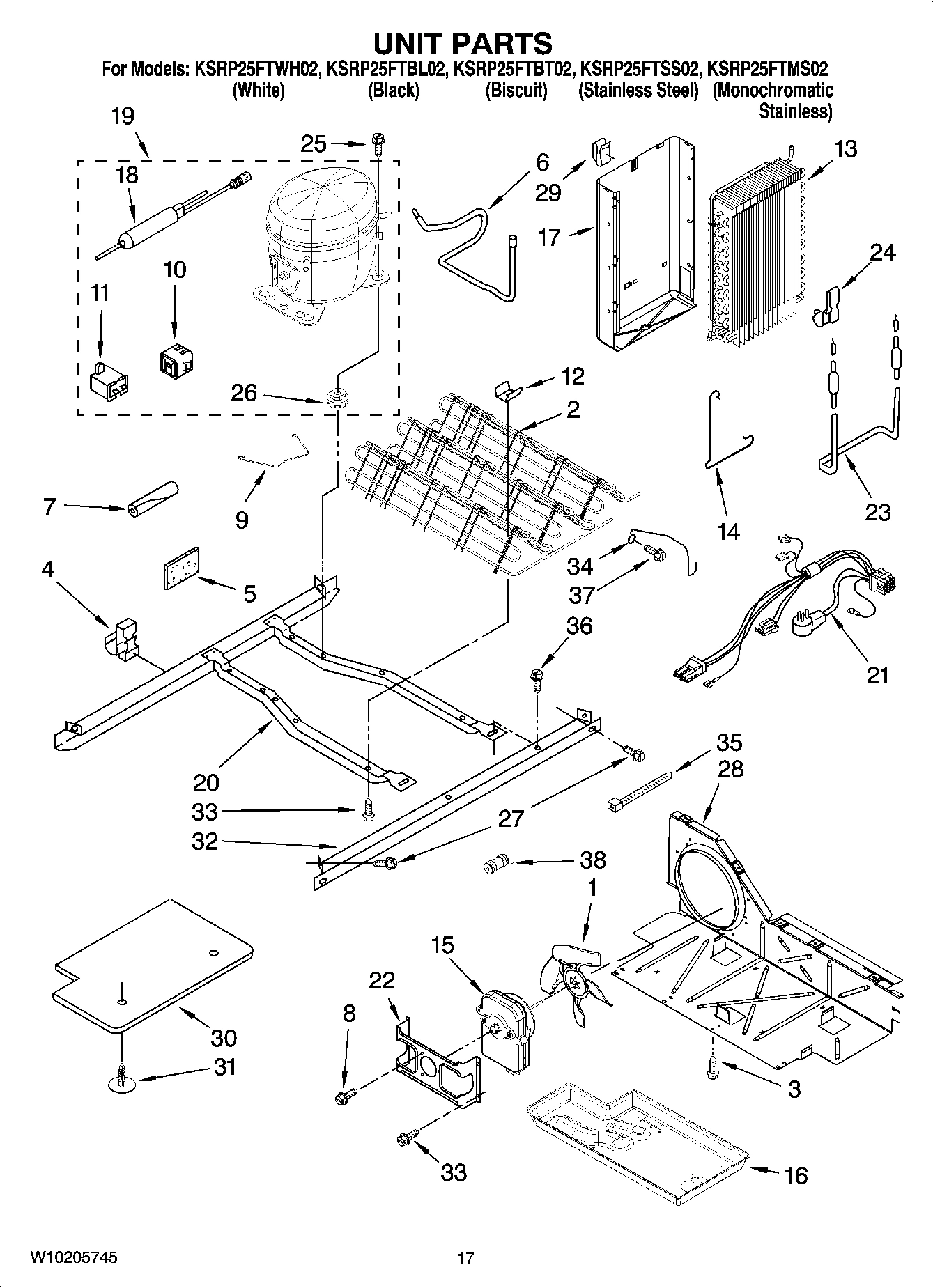

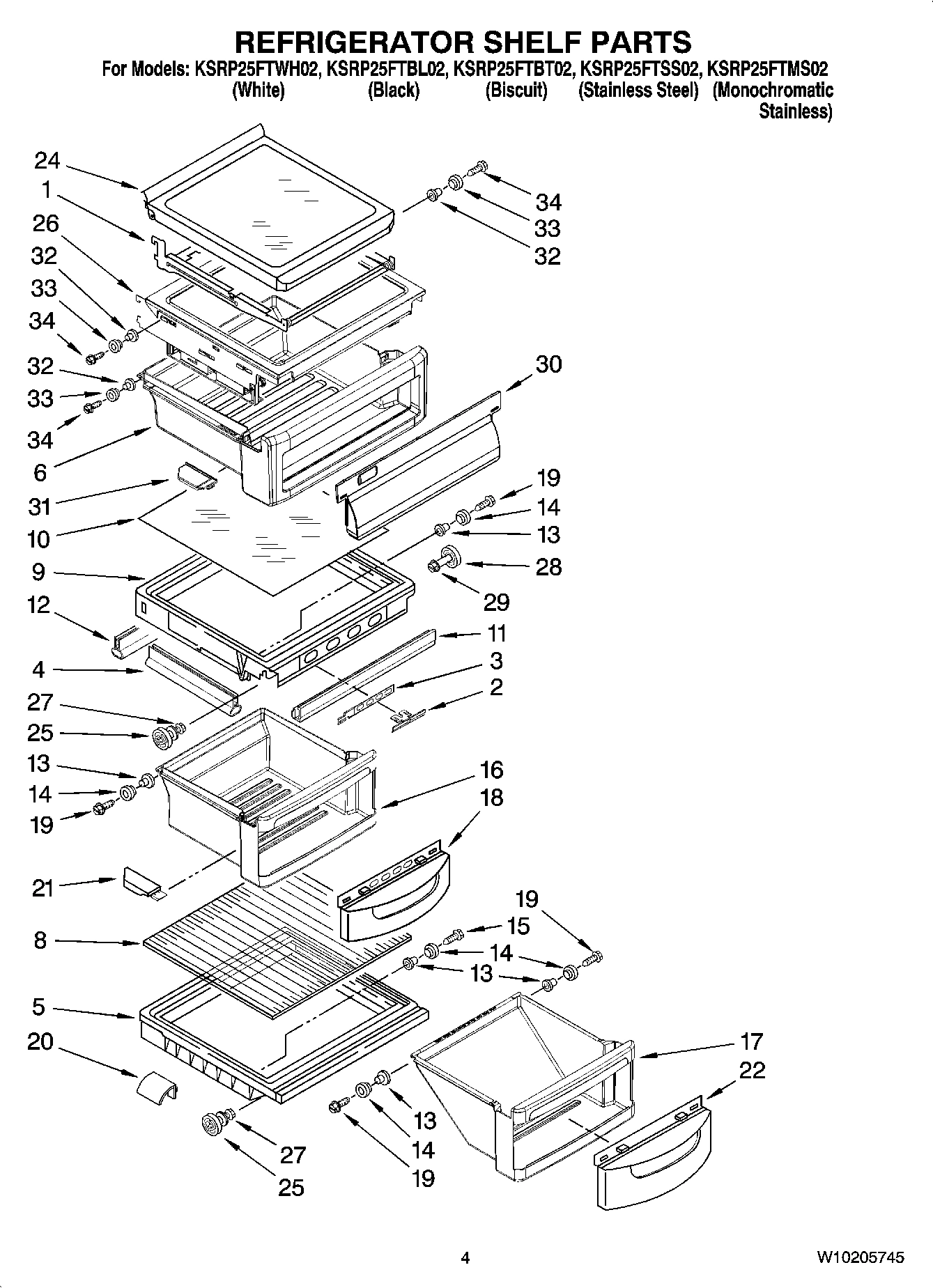

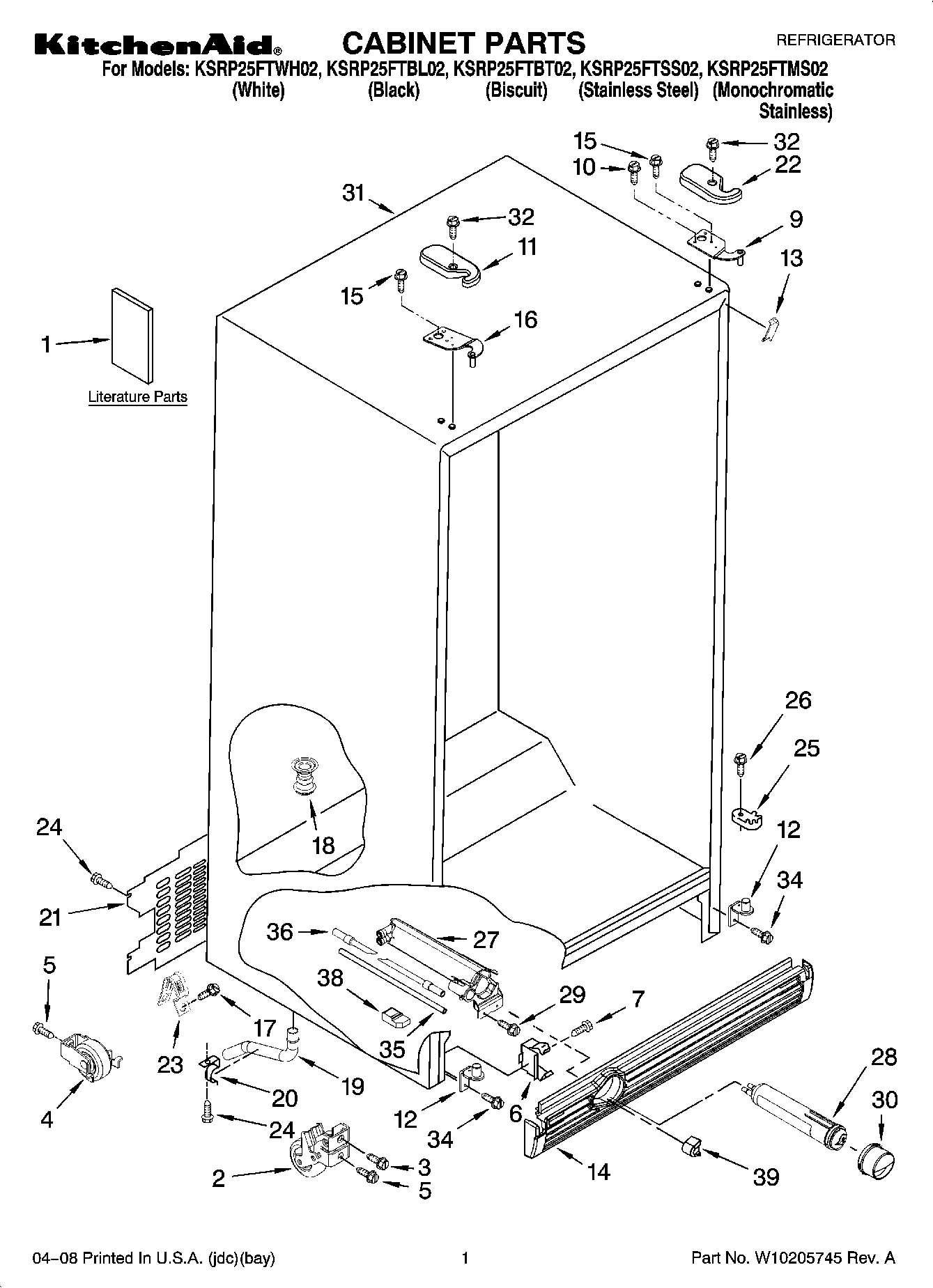

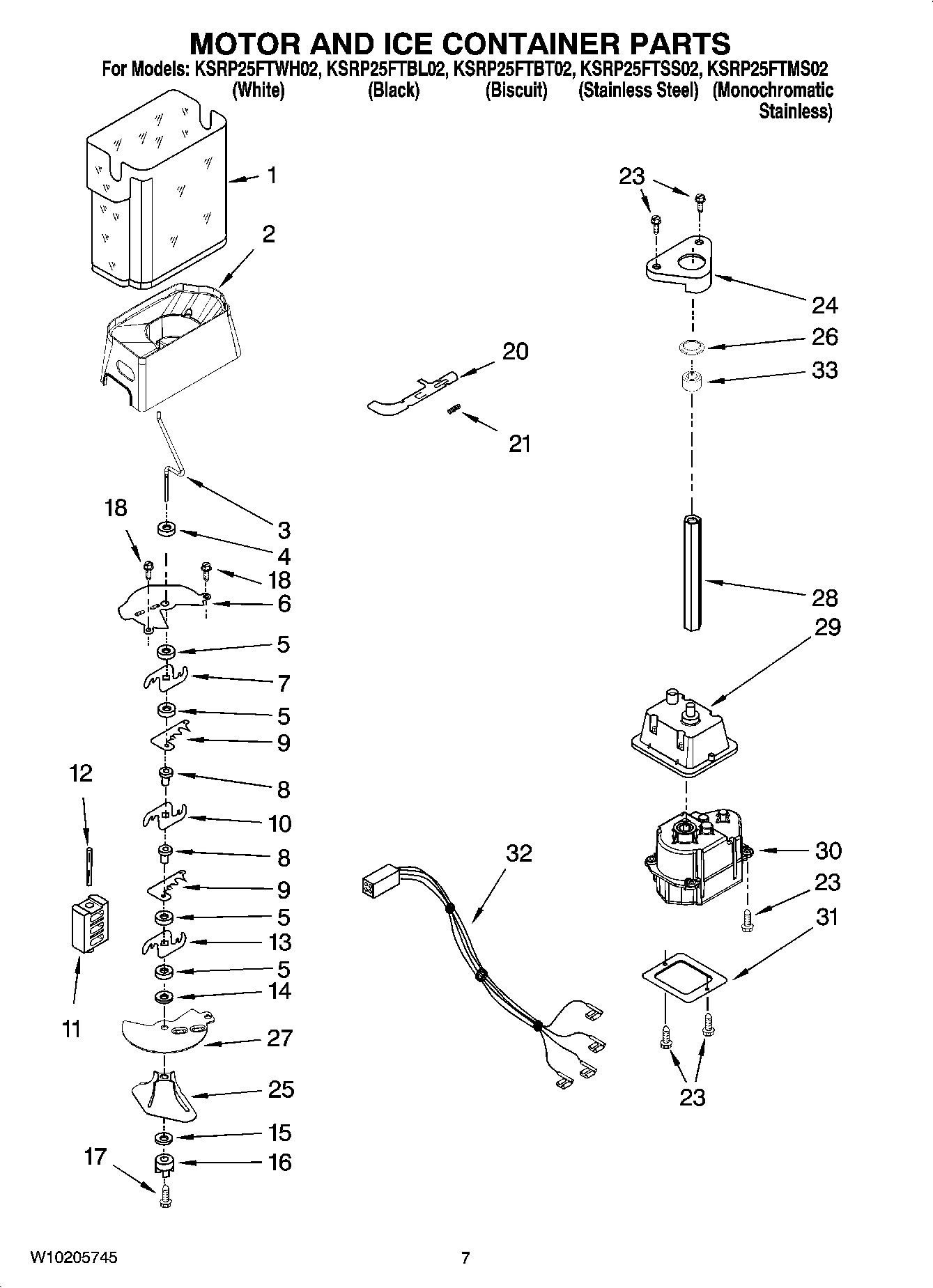

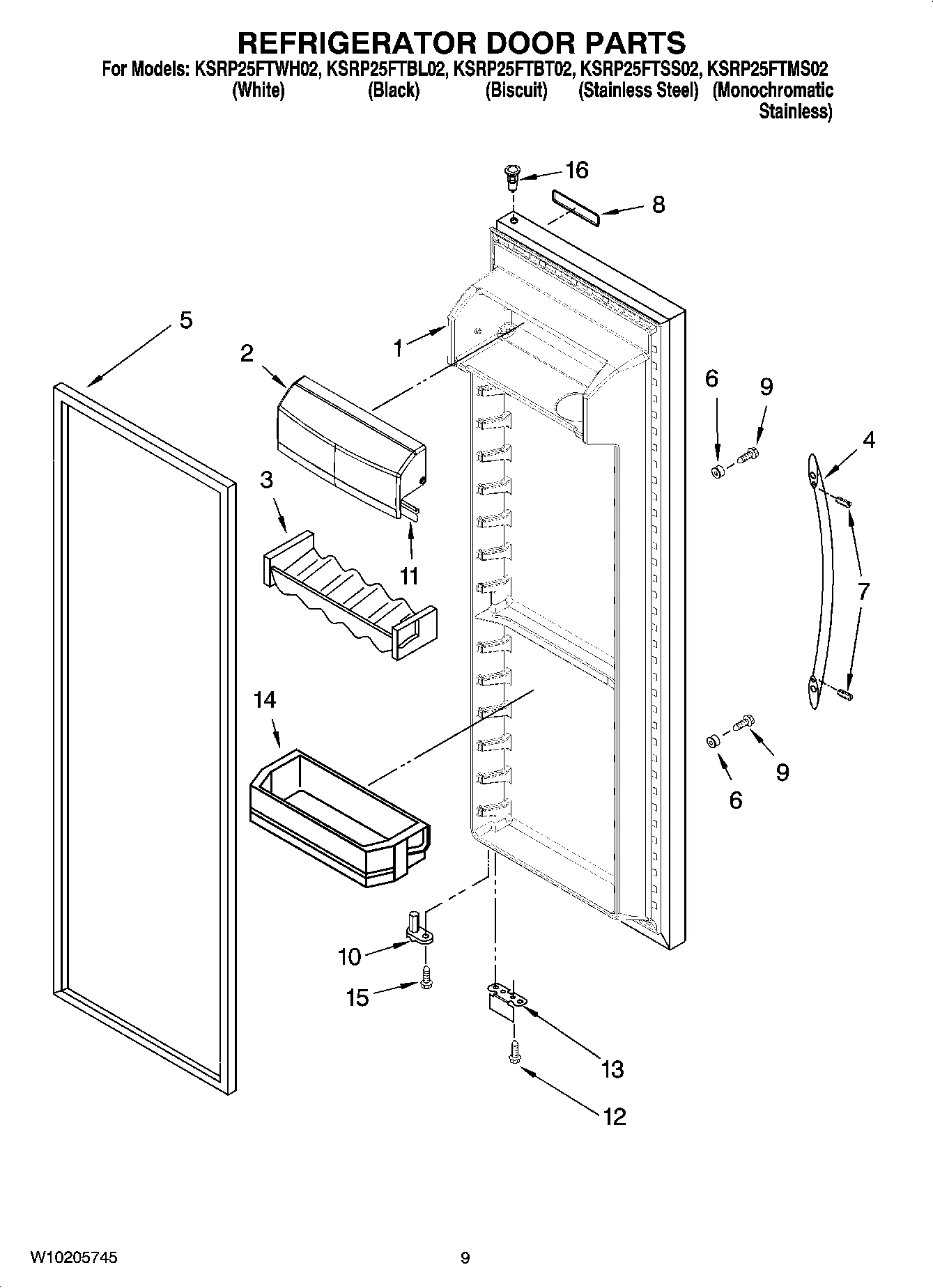

Model Whirlpool KSRP25FTSS02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

1

Control Box WPL W10134300 Contact Us For Availability

1

SHELF ASSEMBLY,CANTILEVER (3) WPL 2195975 Contact Us For Availability

2

WPW10130497 Whirlpool Refrigerator Crush Bin Backorder WPL WPW10130497 $107.17

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Cover WPL 2216879 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.71

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $71.47

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $130.99

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Fitting, Water WPL 2303216 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

4

Handle (Black) WPL 2319727B Contact Us For Availability

4

Washer WPL 2258220 Contact Us For Availability

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $242.61

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

5

Electronic Control WPL 2321724 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $244.60

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.75

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

TUBE, SUCTION WPL 2205765 Contact Us For Availability

6

Insert, Control Board (Not Available, Order 5 WPL ARI100600A Contact Us For Availability

6

Snack Pan (Includes 30 & 31) WPL 2301120 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

7

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.84

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

7

Shelf Bin (3) WPL 2171070K Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $58.43

8

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $38.71

8

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $23.99

8

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $50.14

8

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $47.62

8

Nameplate (Gray) WPL W10046610 Contact Us For Availability

8

Glass, Cover WPL 2255144 Contact Us For Availability

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

W11106297 Whirlpool Refrigerator Grille Backorder WPL W11106297 $85.17

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $44.34

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

9

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

9

Control Box Harness WPL 2216115 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301484 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $73.99

Glass, Cover WPL W10141753 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.18

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $100.57

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Apollo Gray) WPL 2180261AP Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

Overlay, Control Box WPL 2318980 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $60.74

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

GASKET (REAR) WPL 2223362 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Bracket, Control WPL W10133702 Contact Us For Availability

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Door Bin (4) WPL W10169669 Contact Us For Availability

Thimble-Top (For Stainless Steel and Monochro WPL 2301049 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Lever, Water Dispenser (Apollo Gray) WPL 2180270AP Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Overlay, Front Cover (Not Available Order 19) WPL ARI100597A Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.99

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

LED Display (Not Available, Order 19) WPL ARI100598A Contact Us For Availability

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

Front Cover, Housing (Not Available, Order 19 WPL ARI100599A Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

Window, Crisper WPL 2174076 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $53.45

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

Front Cover Assembly (Includes Items 15, 16, WPL 2318947B Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Front Cover Assembly (Includes Items 15, 16, WPL 2318947T Contact Us For Availability

Front Cover Assembly (Includes Items 15, 16, WPL 2318947US Contact Us For Availability

Front Cover Assembly (Includes Items 15, 16, WPL 2318947W Contact Us For Availability

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $59.87

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $17.07

Latch, Bin WPL 2317277 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $14.02

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

Window, Meat Pan WPL 2174362 Contact Us For Availability

23

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

23

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

23

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

24

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

24

Shelf & Roller Assembly WPL 2216102 Contact Us For Availability

25

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $64.24

25

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

25

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Shelf, Snack Pan WPL 2301034 Contact Us For Availability

27

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.62

27

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

27

Cover, Receiver WPL W10173569 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

29

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

29

Enclosure, Motor WPL 2256154 Contact Us For Availability

W10271509 Whirlpool Refrigerator Ice Maker Au In Stock WPL W10271509 $201.87

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $44.99

Window, Snack Pan WPL 2301006 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

Cap, Snack Pan (Right Side) WPL 2301016 Contact Us For Availability

Cap, Snack Pan (Left Side) WPL 2301017 Contact Us For Availability

Cover WPL 2212305 Contact Us For Availability

32

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $23.56

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

32

Eyelet, Roller WPL 2301153 Contact Us For Availability

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $50.80

Roller WPL 2301152 Contact Us For Availability

34

Screw WPL 8533983 Contact Us For Availability

36

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $59.85

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

37

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

39

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

100

Ice Container (Complete) WPL 2317273 Contact Us For Availability
