Model Whirlpool KSRB25QDBL02 – Common Parts & Diagrams
08 - FREEZER DOOR

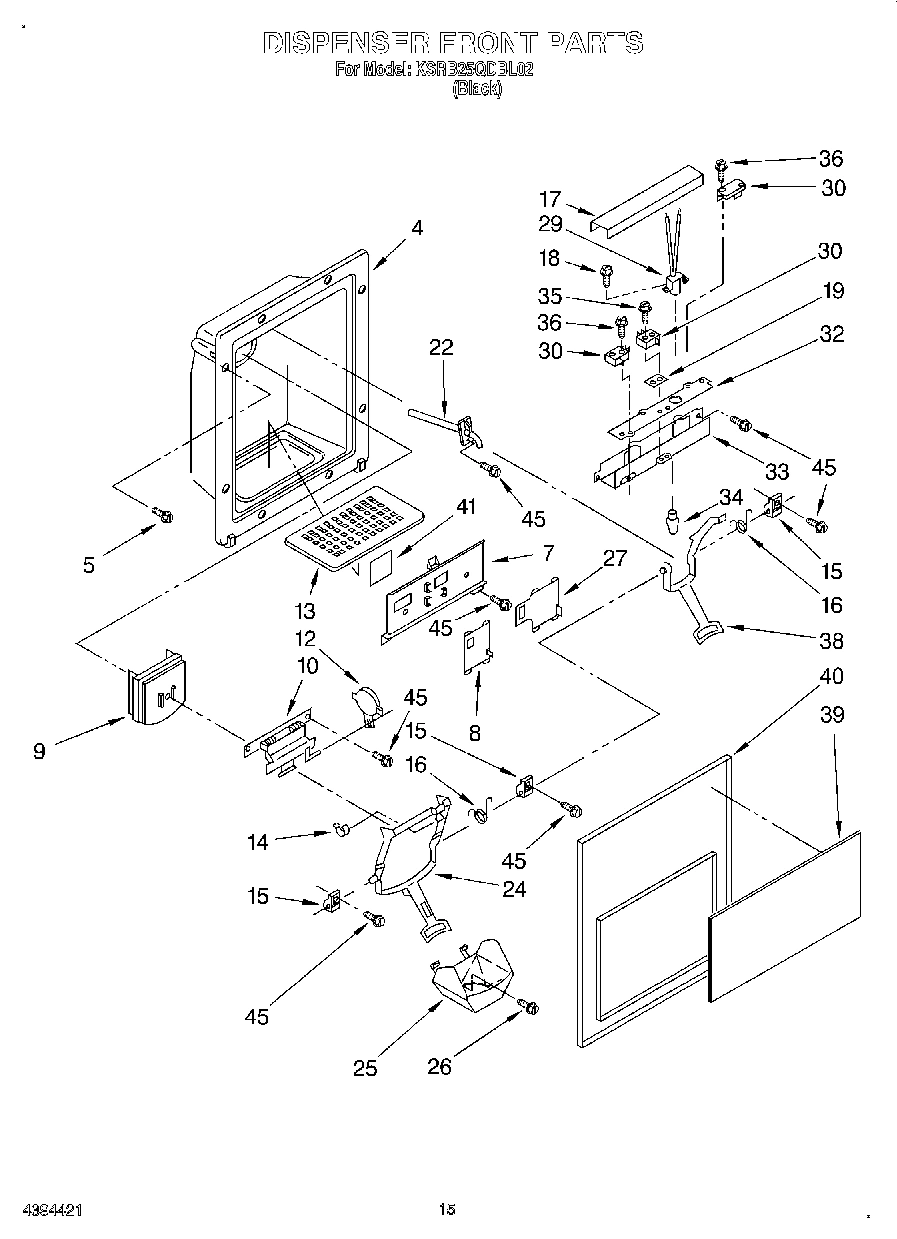

09 - DISPENSER FRONT

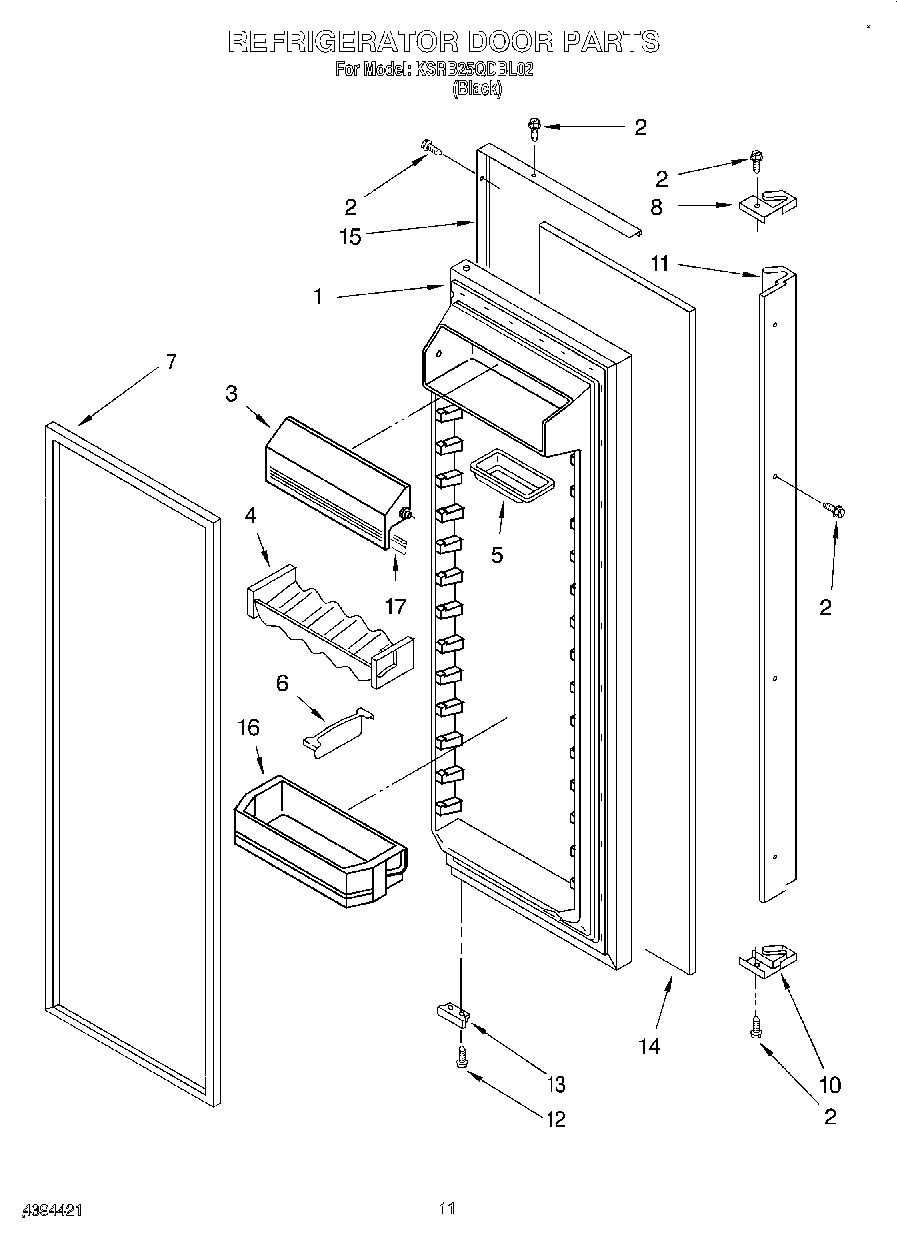

07 - REFRIGERATOR DOOR

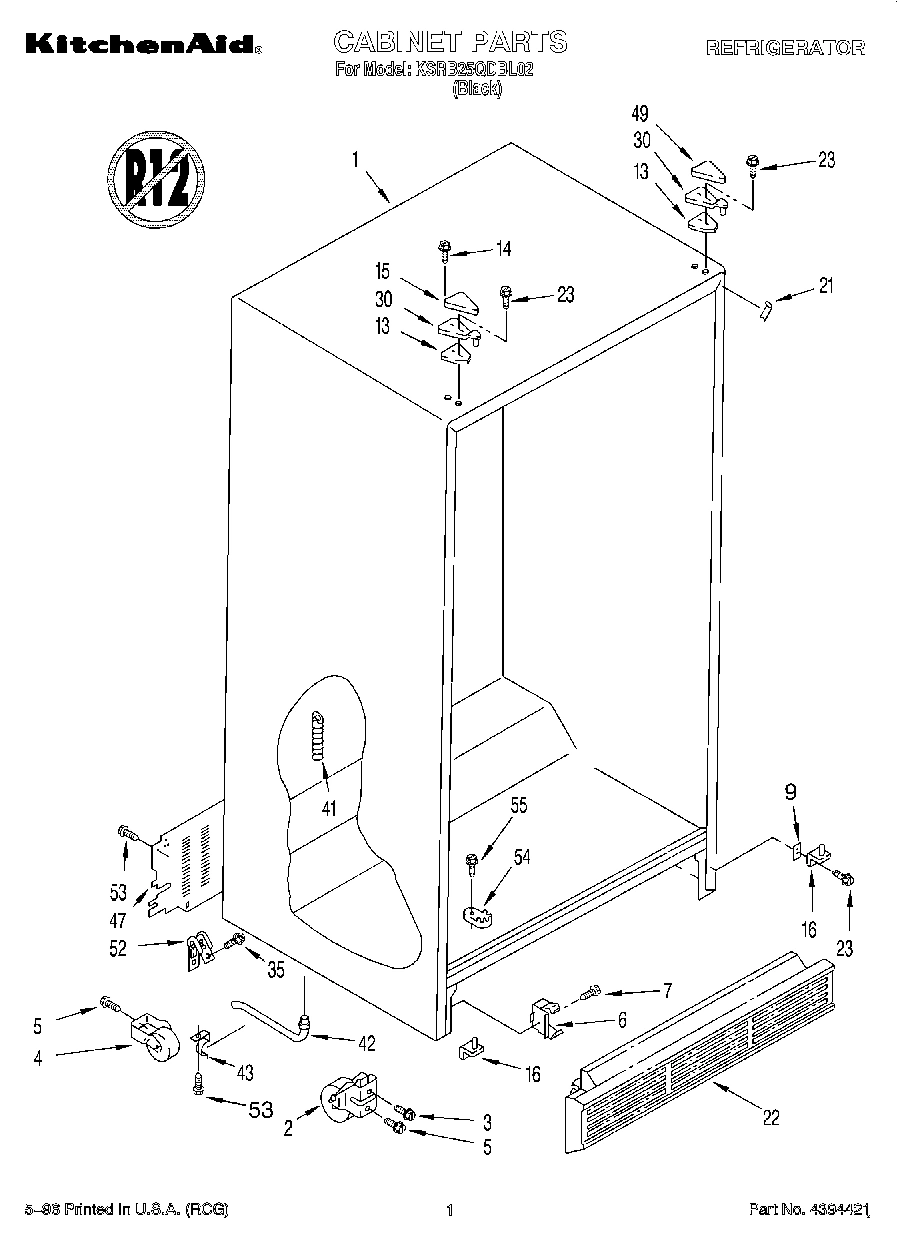

01 - CABINET

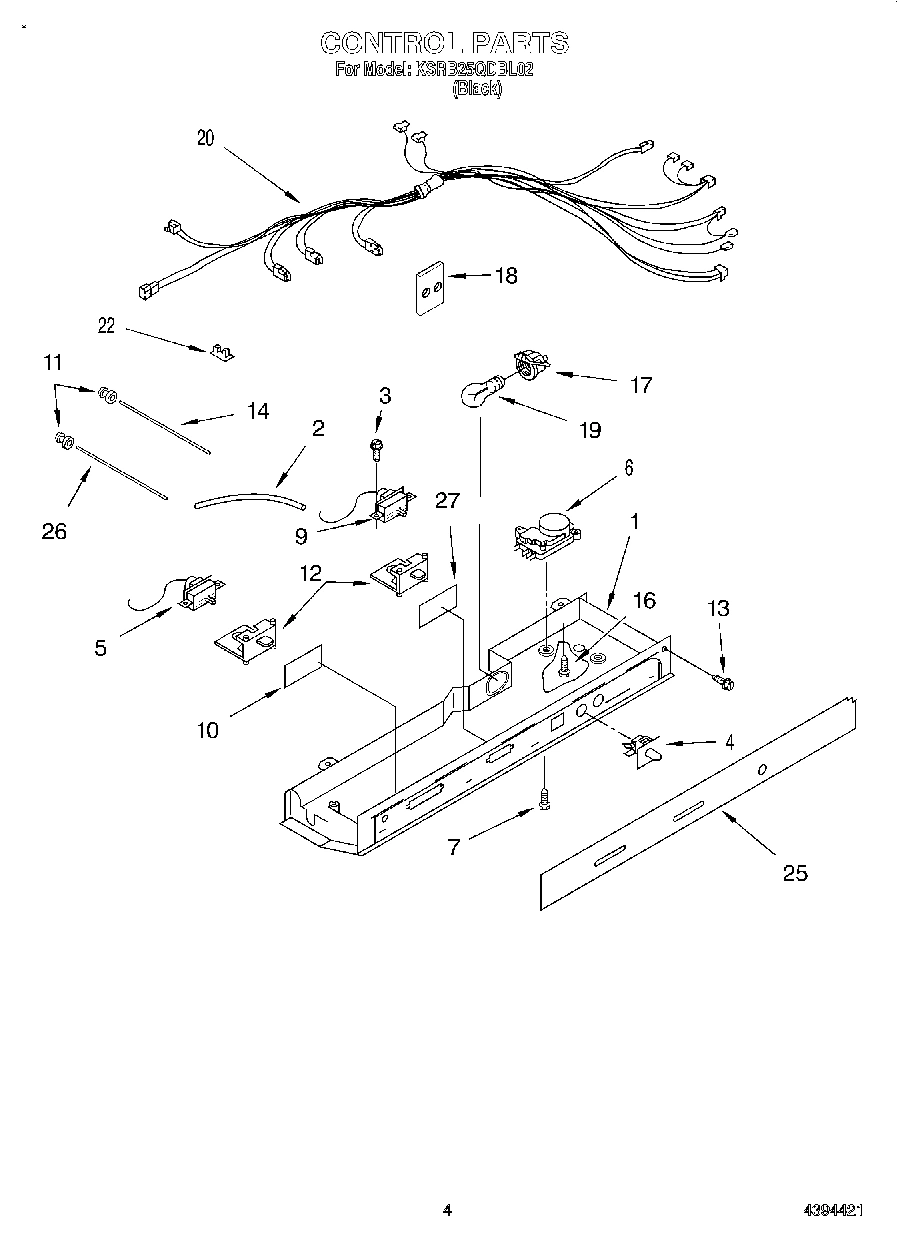

03 - CONTROL

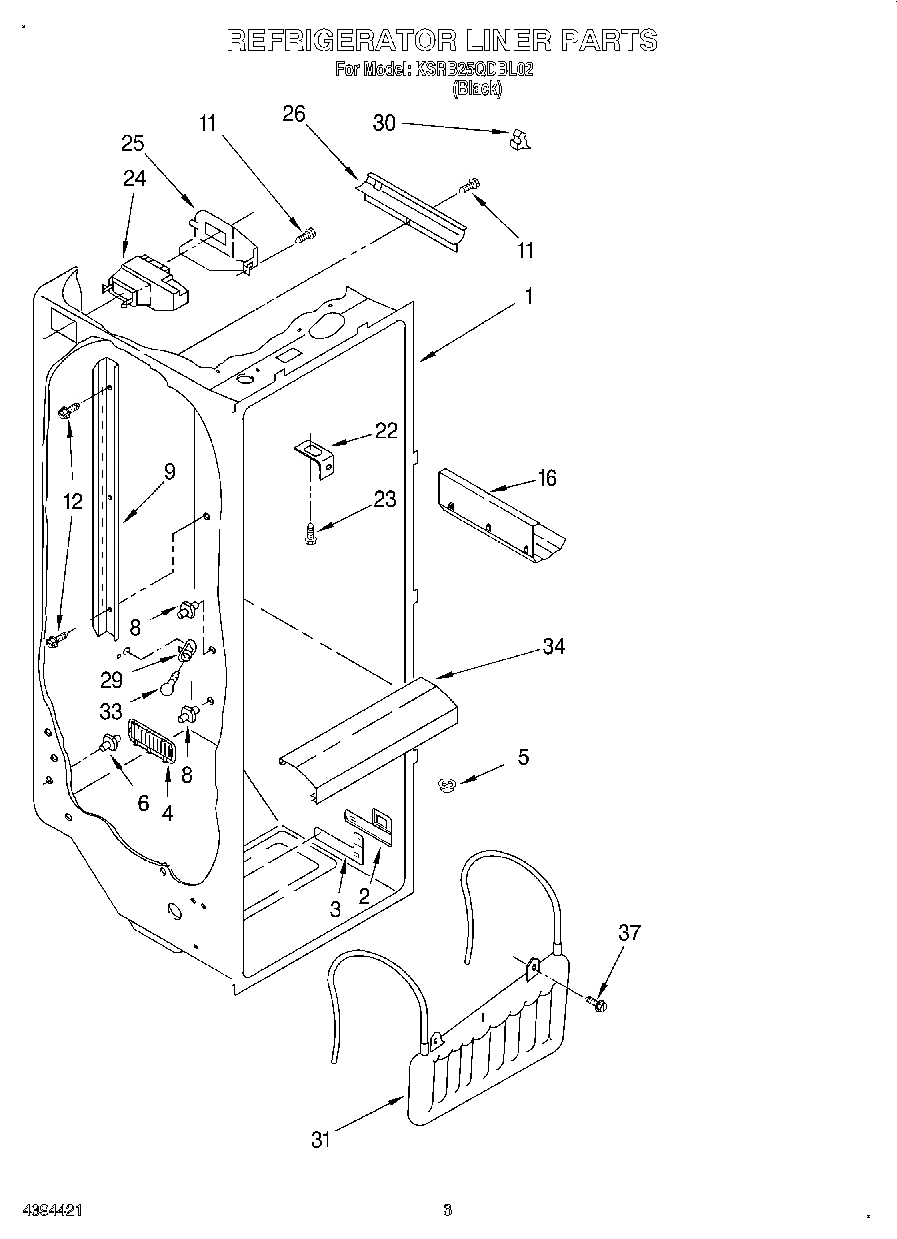

02 - REFRIGERATOR LINER

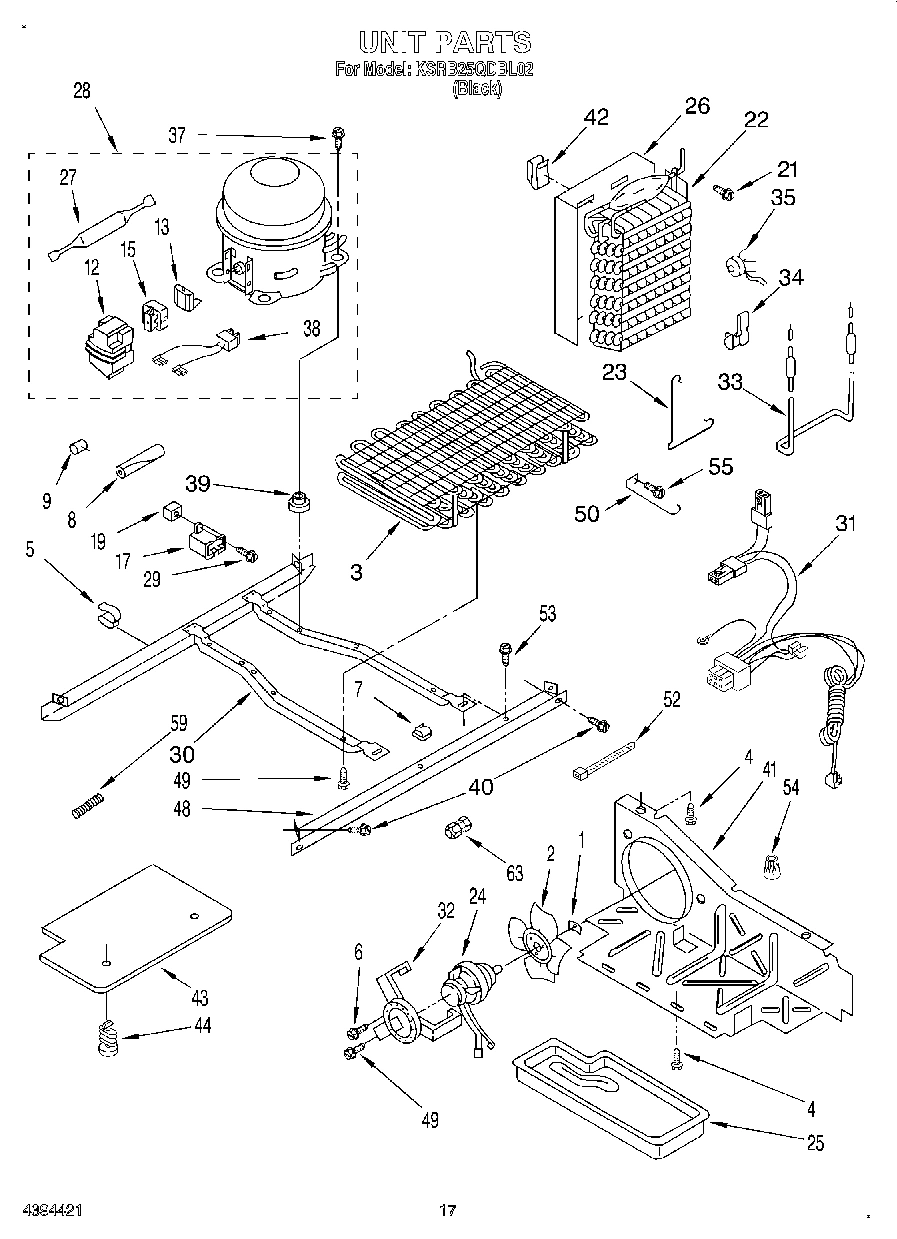

10 - UNIT

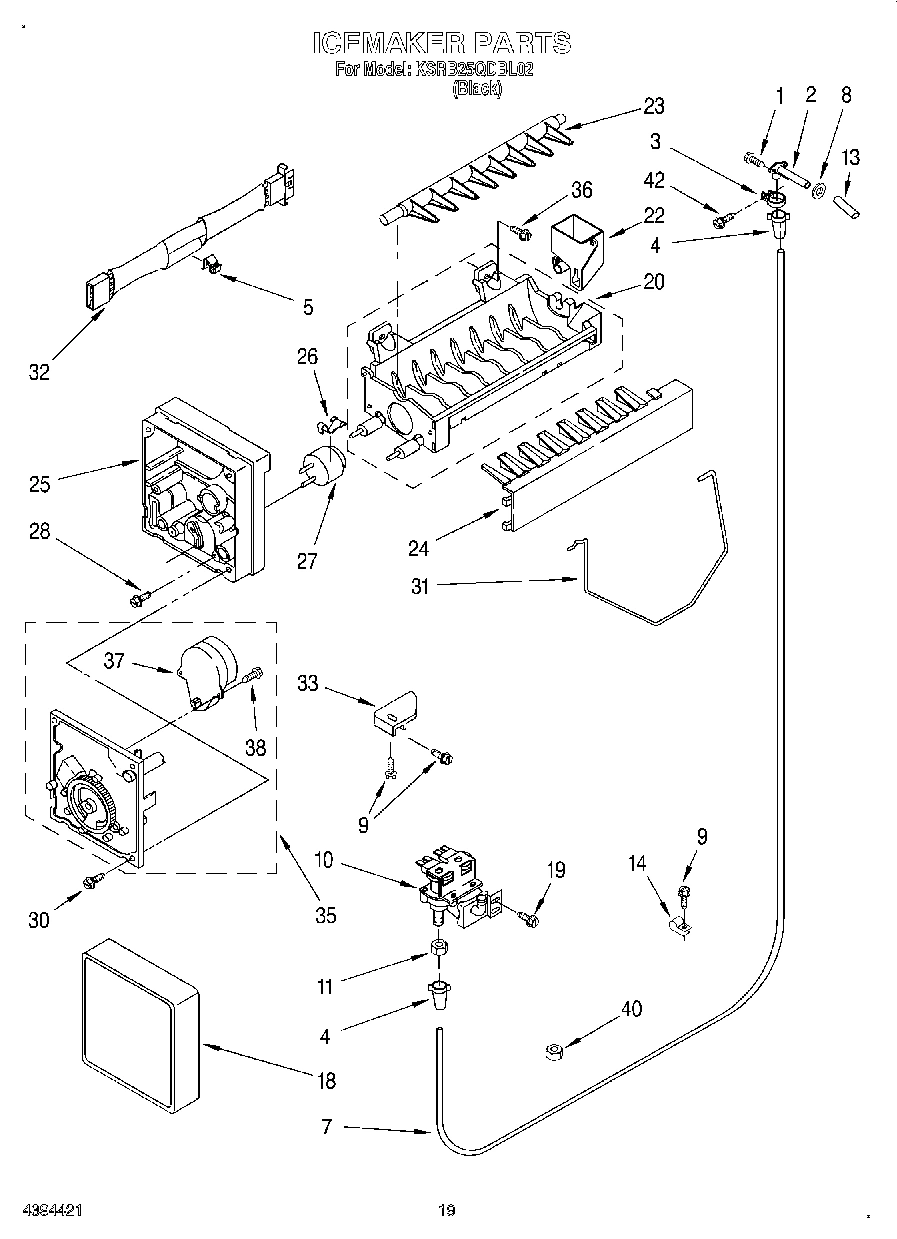

11 - ICEMAKER
05 - FREEZER LINER
12 - AIRFLOW, LIT/OPTIONAL

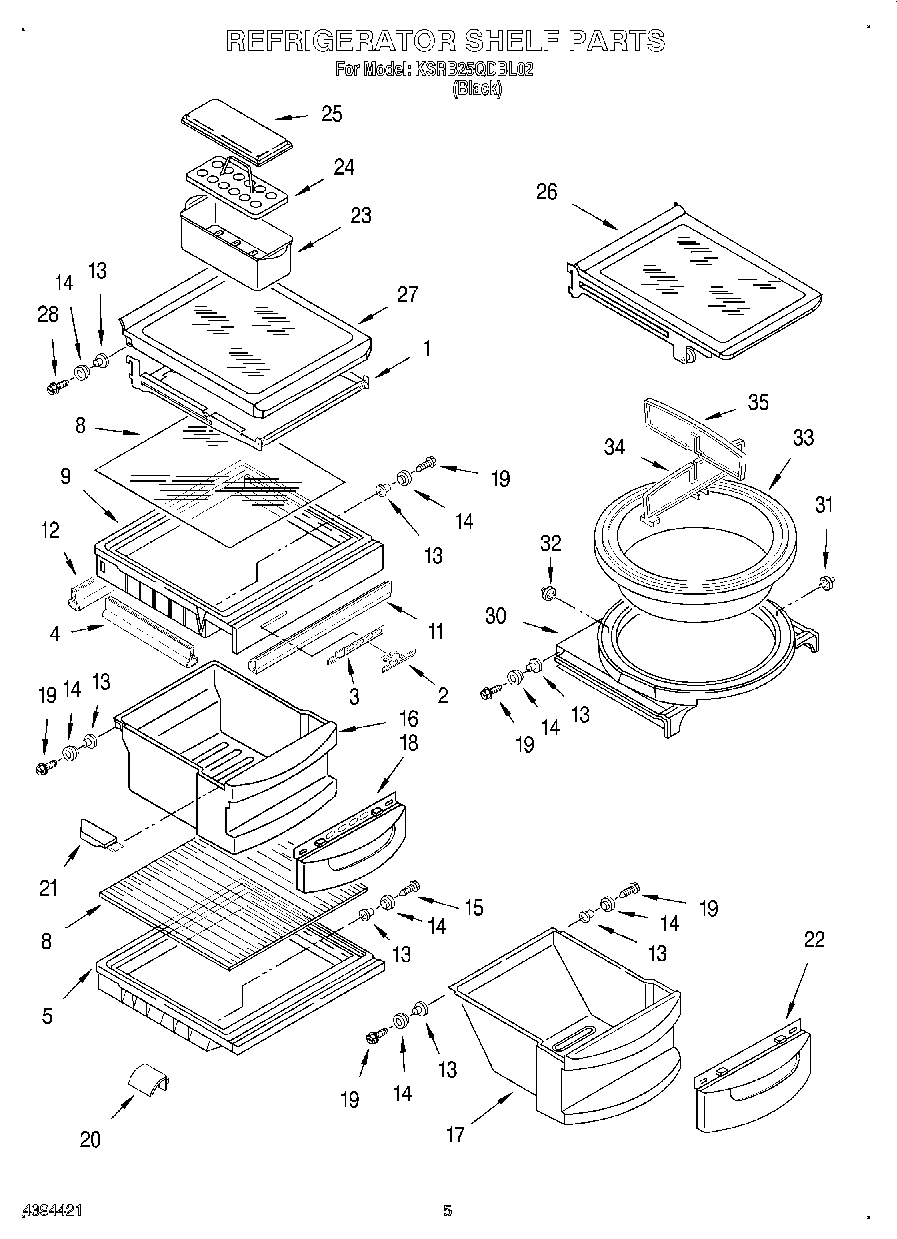

04 - REFRIGERATOR SHELF

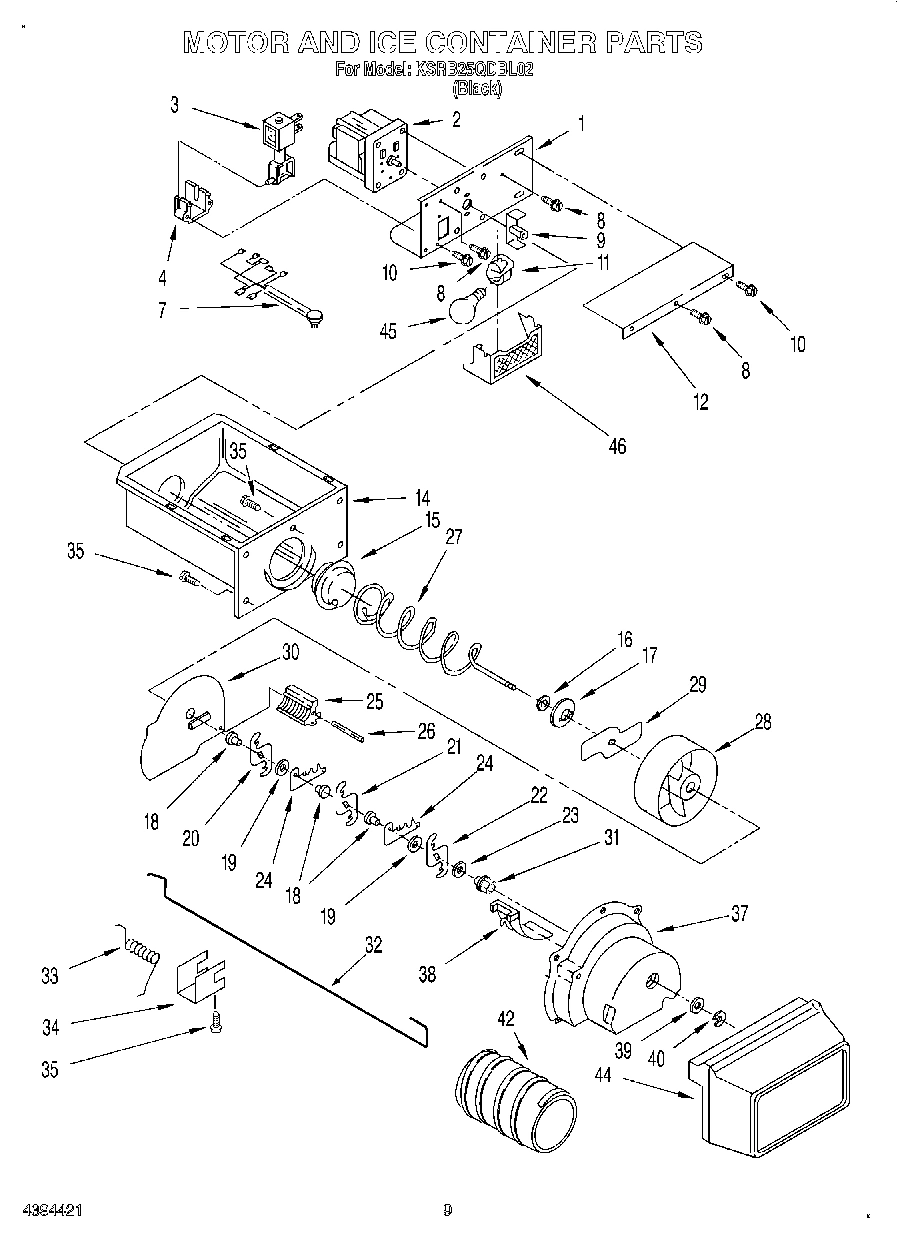

06 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool KSRB25QDBL02
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175335 WPL LIT2175335 Contact Us For Availability
WPL LIT2194171 WPL LIT2194171 Contact Us For Availability
WPL LIT2194630 WPL LIT2194630 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI94878A2 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2174023 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Glass, Cover (2) WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Relay (See Overload) WPL ARI94880A4 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
21
Basket, Square WPL 2181765 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Grille WPL 2155485 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Front, Basket WPL 2171767 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Basket, Shallow WPL 2181763 Contact Us For Availability
23
Shim Kit, Black Glass Panel WPL 2182010 Contact Us For Availability
23
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
23
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
23
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
23
WPL 978883 WPL 978883 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Basket, Sloped WPL 2181764 Contact Us For Availability
25
Cover WPL 2169935 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
27
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
28
Screw WPL 489439 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
30
Carriage WPL 2168792 Contact Us For Availability
31
Unit, Harness WPL 2181709 Contact Us For Availability
31
Roller, Front (2) WPL 2179486 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Roller, Rear (2) WPL 2179487 Contact Us For Availability
33
Round Pan WPL 2168793 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Divider, 1/2 WPL 2174363 Contact Us For Availability
35
Divider, 1/4 WPL 2174364 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Hinge Cover WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
