Model Whirlpool KSRB22QABL00 REFRIGERATOR – Common Parts & Diagrams
11 - AIR FLOW

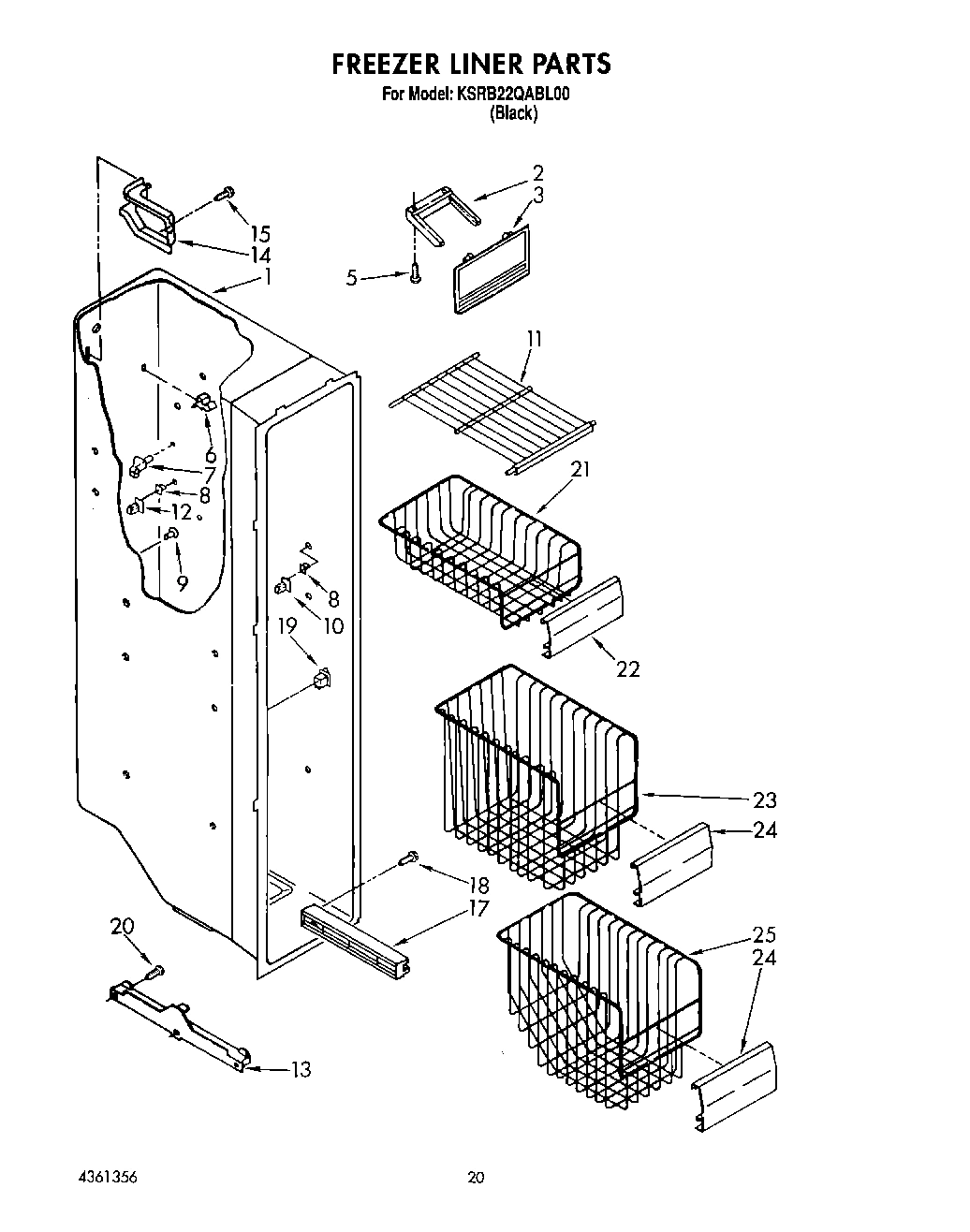

13 - FREEZER LINER, LIT/OPTIONAL

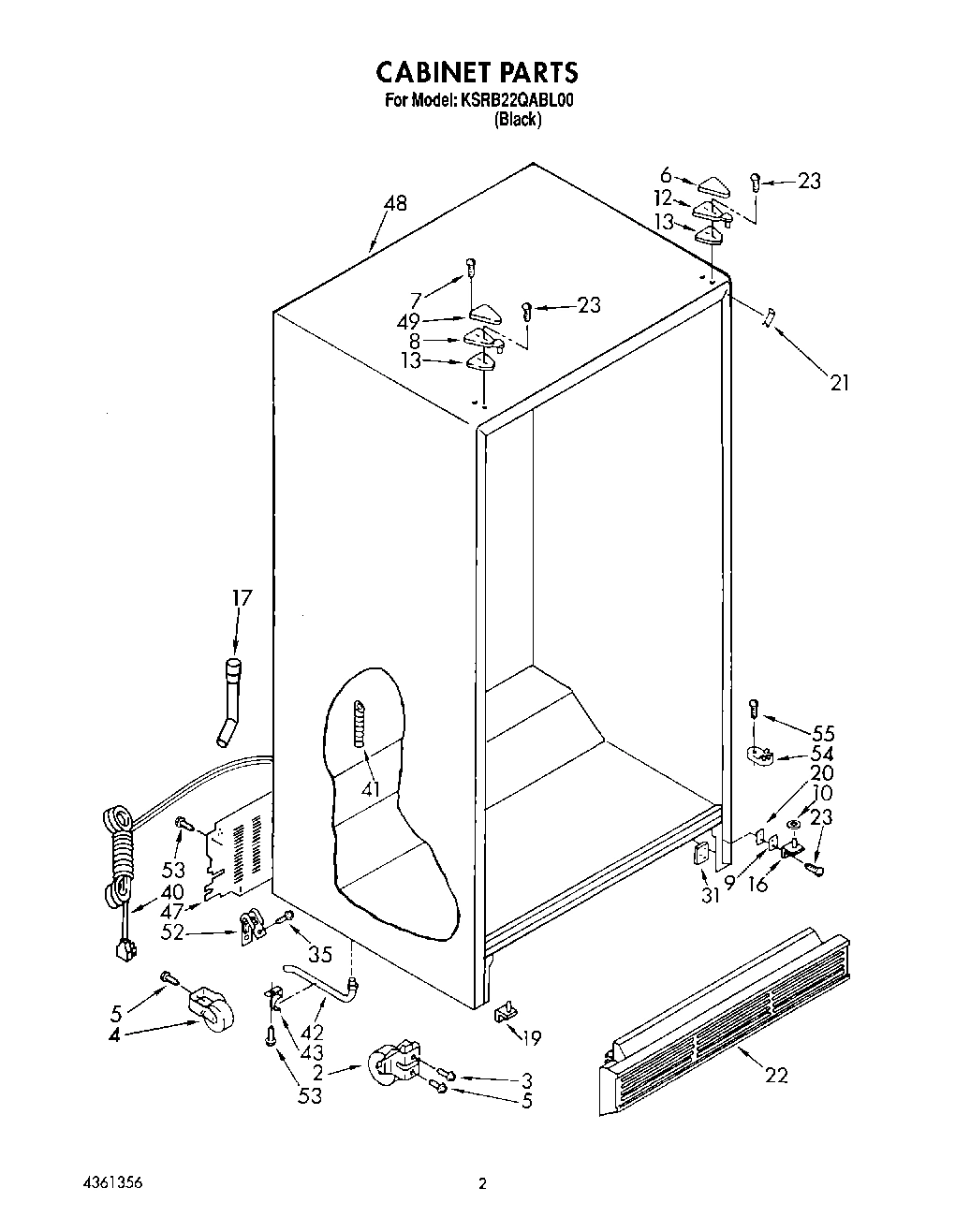

02 - CABINET

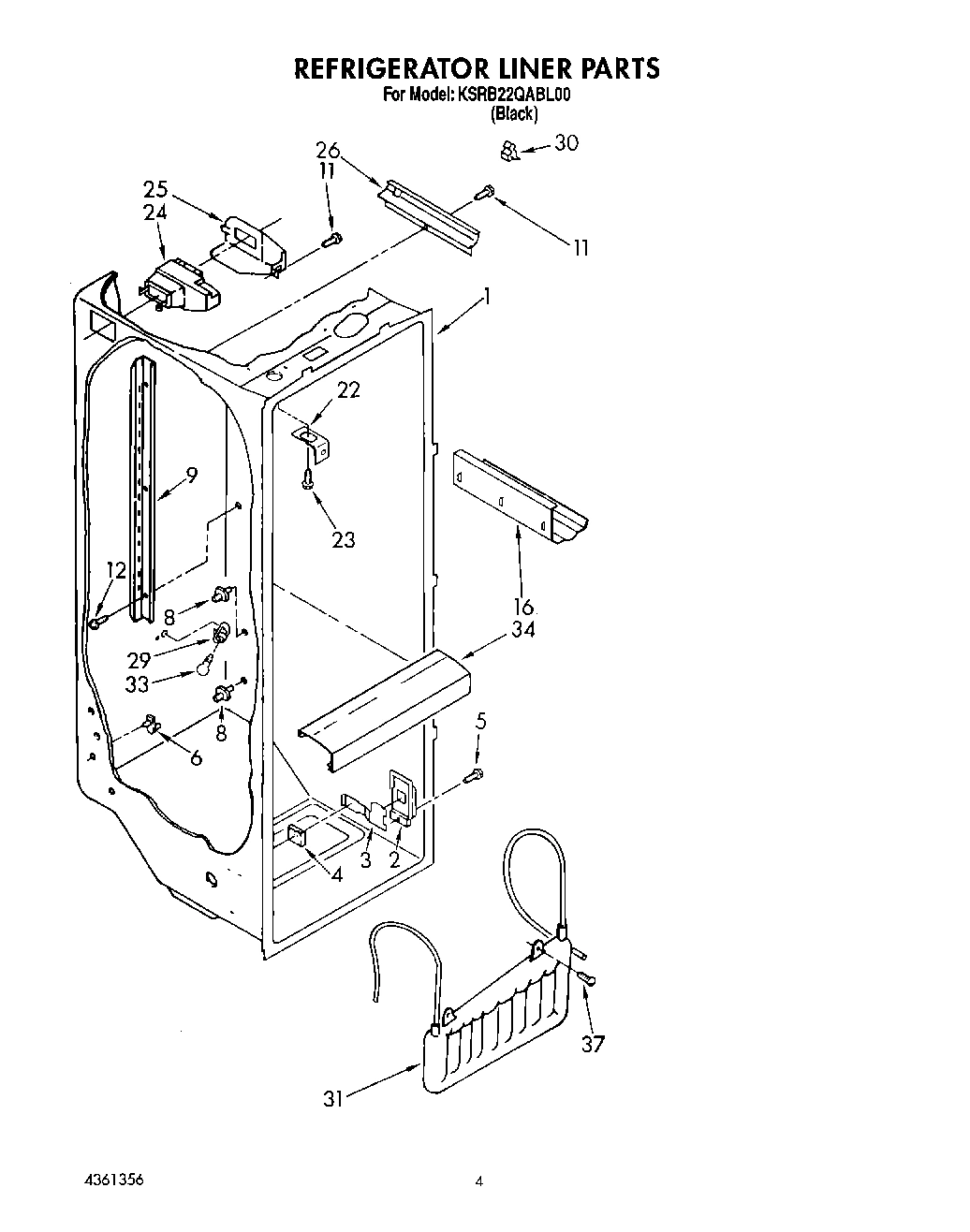

03 - REFRIGERATOR LINER

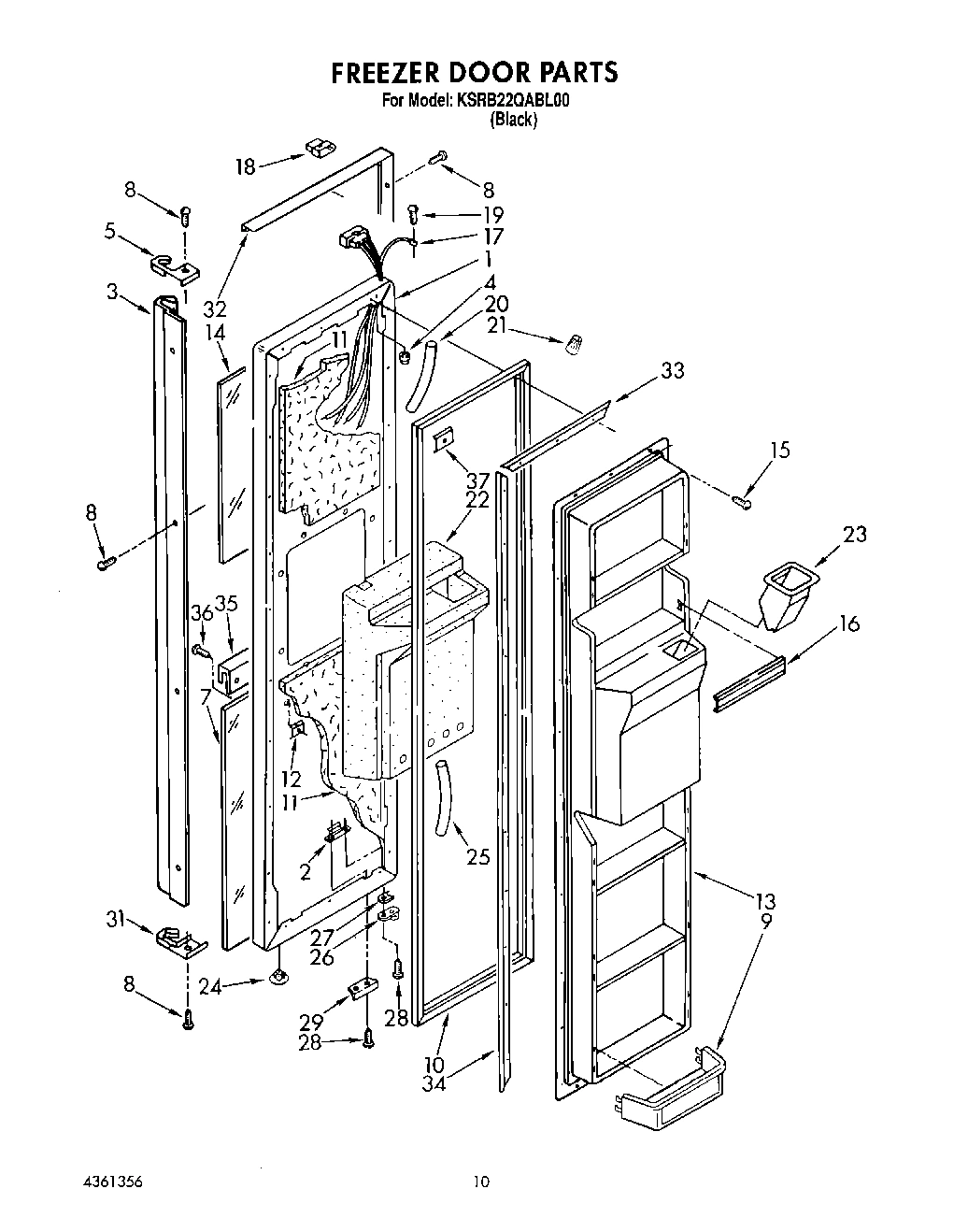

07 - FREEZER DOOR

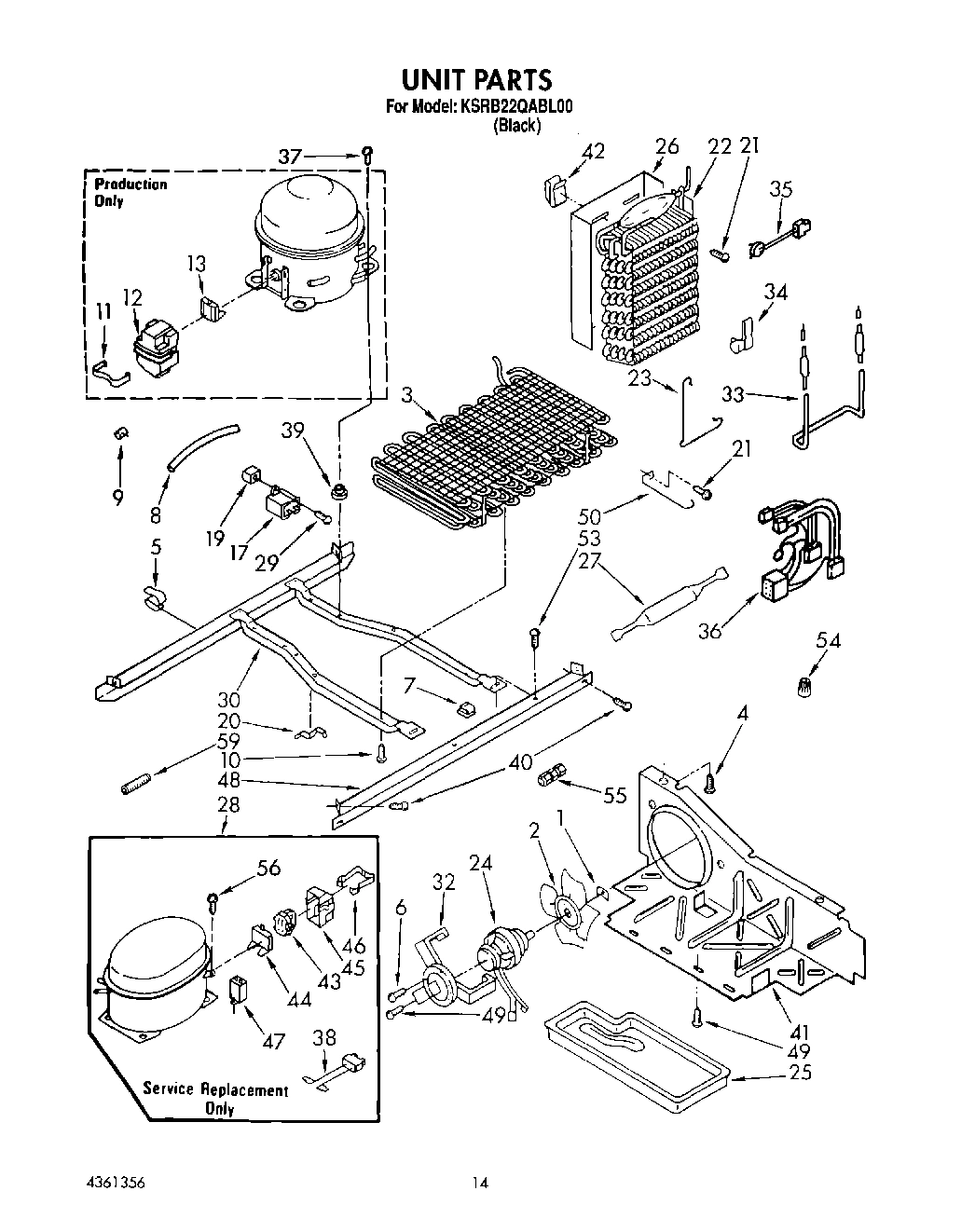

09 - UNIT

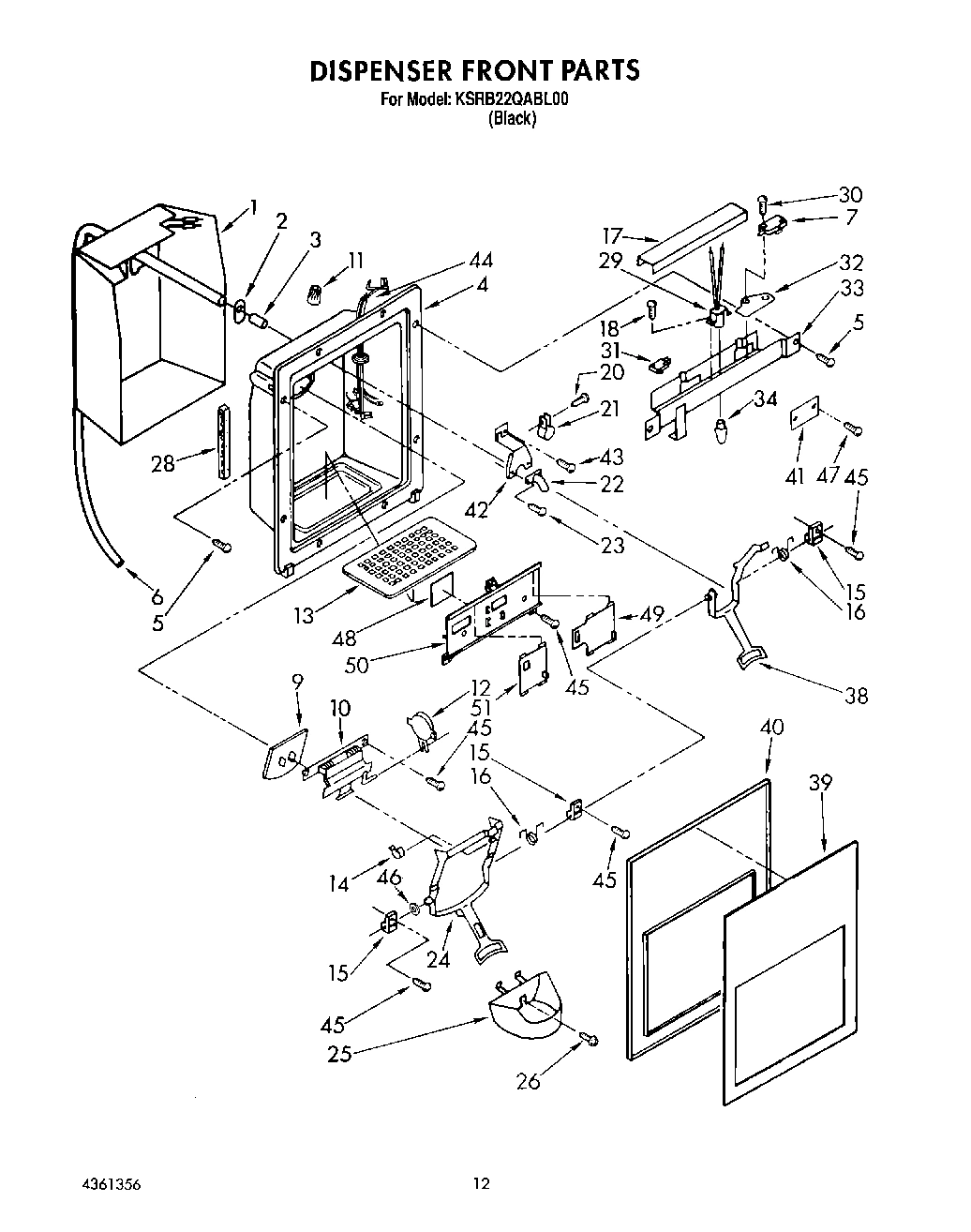

08 - DISPENSER FRONT

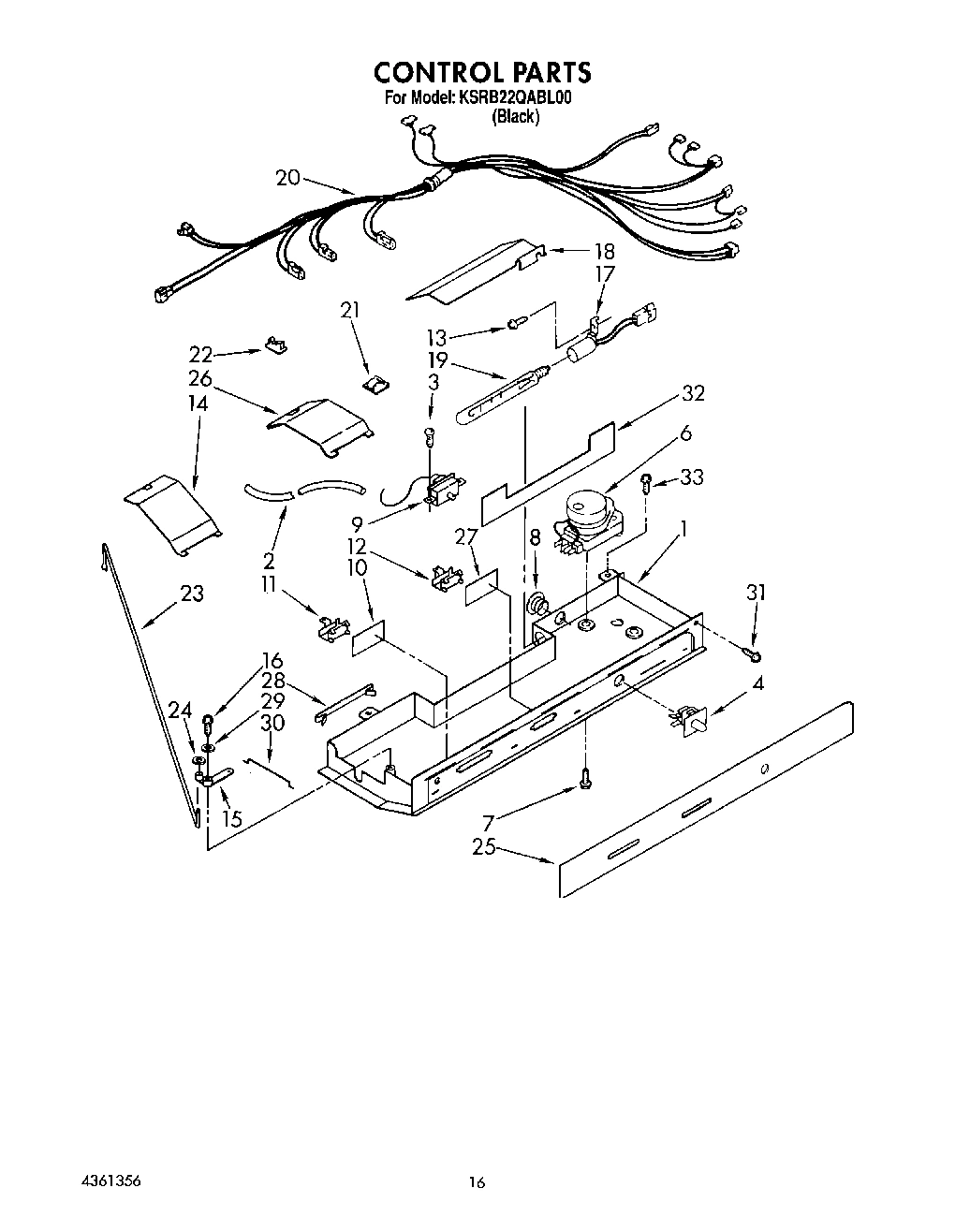

10 - CONTROL

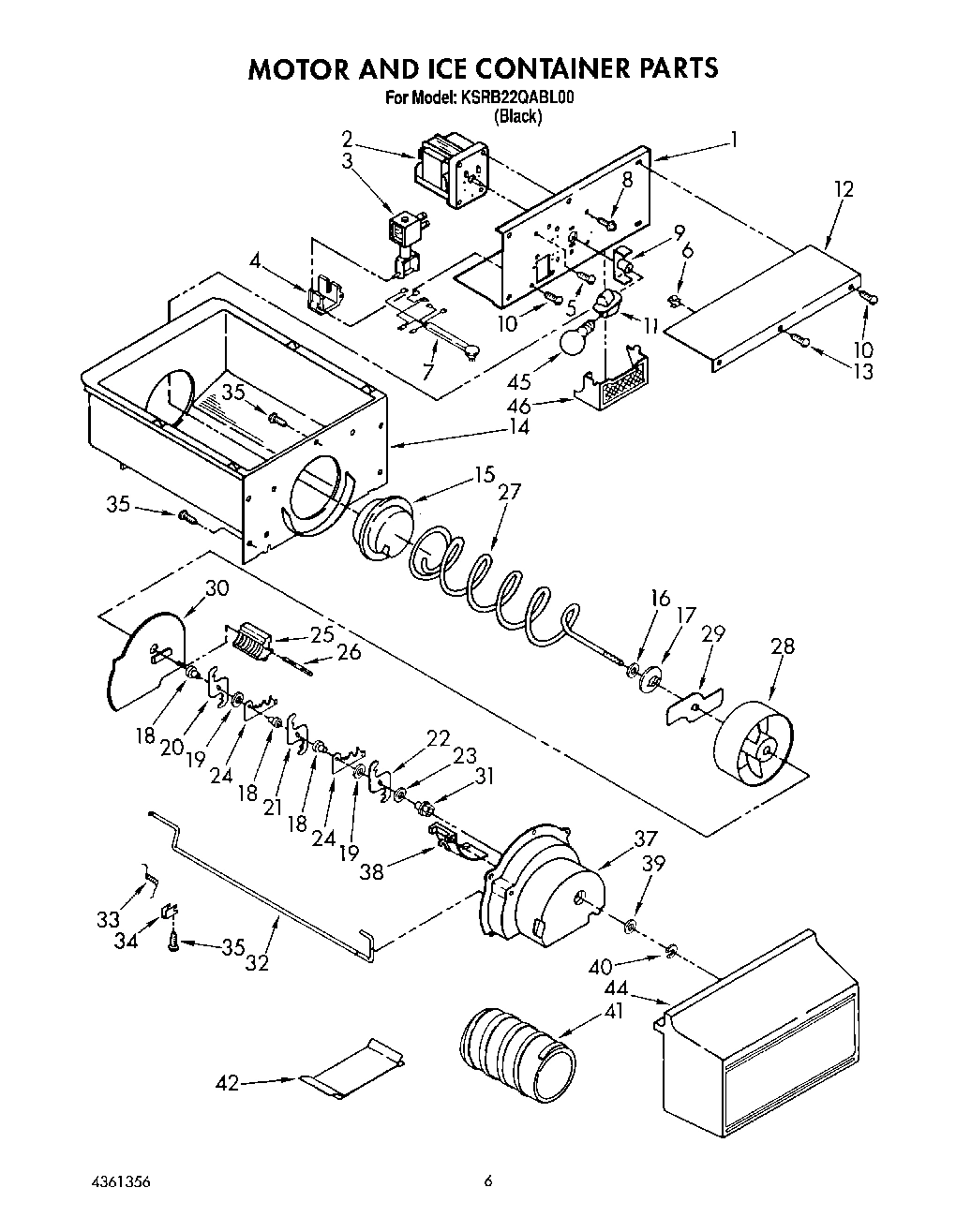

05 - MOTOR AND ICE CONTAINER

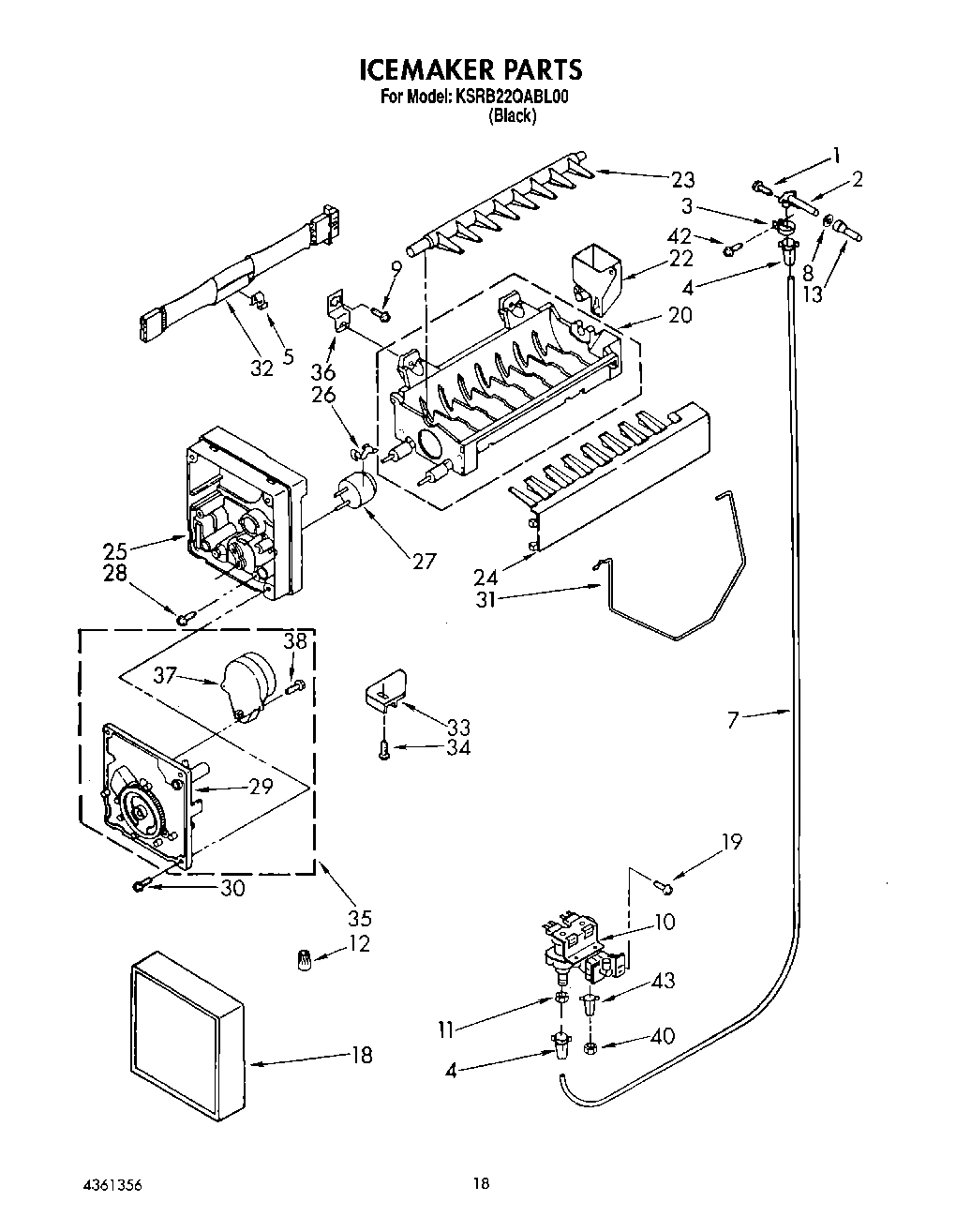

12 - ICEMAKER

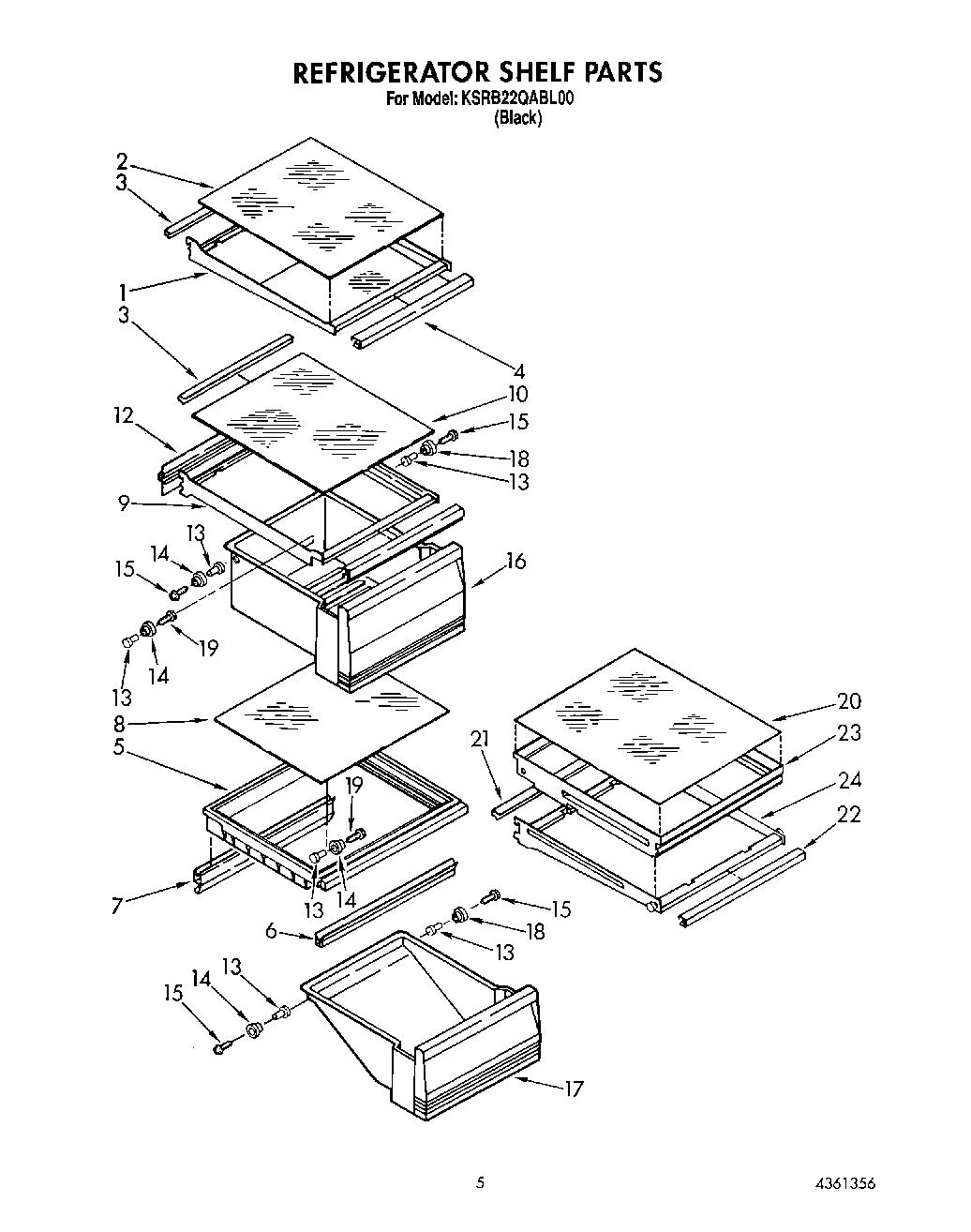

04 - REFRIGERATOR SHELF

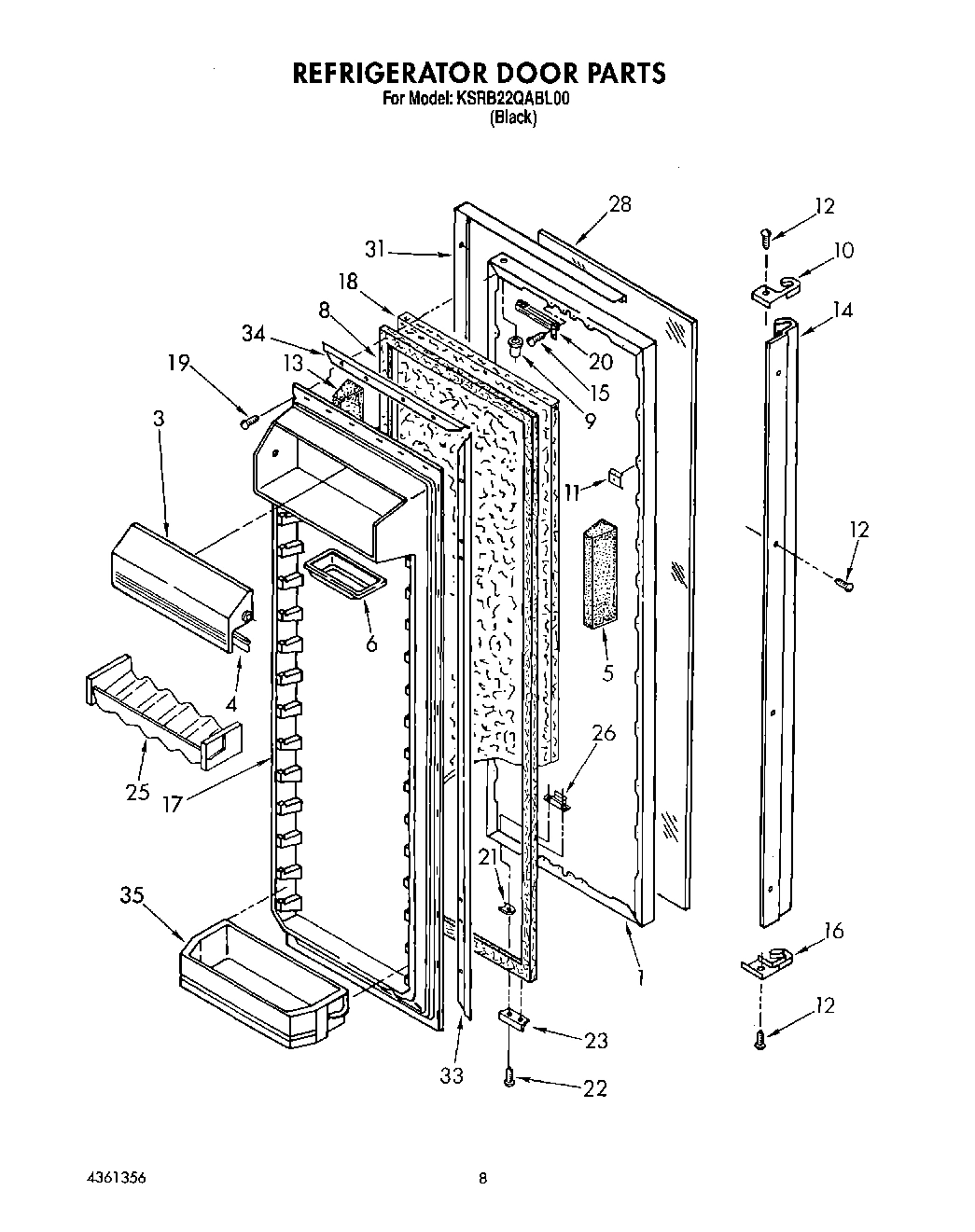

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSRB22QABL00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI94430A6 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 2161507 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Control Box WPL 2155693 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 1125597 Contact Us For Availability
1
Refrigerator Door (Also Order Item 18) WPL 2161504 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Door, Compartment WPL 1125733 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Gasket, Utility Door WPL 1125695 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Screw (2) WPL 487523 Contact Us For Availability
5
Dike, Door Handle Side WPL 1126149 Contact Us For Availability
6
Hinge Cover WPL 2155938 Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162347 Contact Us For Availability
6
Butter, Tray WPL 1125936 Contact Us For Availability
7
Black Glass, Lower WPL 1126020 Contact Us For Availability
7
Switch WPL 841336 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Shelf Bin (4) WPL 1117928 Contact Us For Availability
9
Pan Shelf & Slide Assembly WPL 2161760 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Door Mechanism Assembly WPL 2147167 Contact Us For Availability
10
End Cap, Top WPL 1125918 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
11
Foam Insulation WPL 876029 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
12
Screw (2) WPL 489376 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Panel, Interior Door WPL 1126179 Contact Us For Availability
13
Overload (Includes Relay) WPL 2154857 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
13
Dike, Door Hinge Side WPL 1126150 Contact Us For Availability
14
Handle WPL 1125919 Contact Us For Availability
14
Black Glass, Upper WPL 1126019 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Roller (L) WPL 2161749 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Rack, Wine & Egg WPL 1125913 Contact Us For Availability
16
End Cap, Bottom WPL 1125917 Contact Us For Availability
16
Trim, Door Shelf WPL 1126496 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Crisper Pan (2) WPL 2161893 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 1119212 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Utility Pan, Meat WPL 2161892 Contact Us For Availability
17
Panel, Interior Door WPL 1117904 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Roller (R) WPL 2161750 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Control Box Harness WPL 2155694 Contact Us For Availability
20
Glass, Shelf WPL 2161683 Contact Us For Availability
20
Door Closer, Upper Cam WPL 1117898 Contact Us For Availability
21
Reflector WPL 2161809 Contact Us For Availability
22
Insulation, Dispenser WPL 2149014 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Gasket, Front WPL 2161686 Contact Us For Availability
23
Chute, Ice WPL 1119036 Contact Us For Availability
23
Bracket, Door Stop WPL 1115906 Contact Us For Availability
23
Clamp WPL 2161329 Contact Us For Availability
23
Frame & Roller WPL 2161706 Contact Us For Availability
24
hole plug WPL ARI94431A6 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Frame & Roller Cantilever WPL 2161806 Contact Us For Availability
25
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
25
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Escutcheon, Control Box WPL 2155695 Contact Us For Availability
25
Holder, Beverage WPL 1125981 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
26
Light Bar WPL 1118089 Contact Us For Availability
27
Window WPL 1126028 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Compressor (Includes Items 38, 43, 44, 45, 46 WPL 4317959 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
28
Black Glass WPL 1126018 Contact Us For Availability
29
Socket, Lamp WPL 2147131 Contact Us For Availability
30
Screw, 4-40 x 3/4 WPL 489155 Contact Us For Availability
31
Trim, Door WPL 1117899 Contact Us For Availability
32
Trim, Door WPL 1125921 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Switch (2) WPL 2147164 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
33
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
33
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
33
Heater, Defrost WPL 2162079 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
35
Trim, Dispenser WPL 1125979 Contact Us For Availability
35
Shelf Bin (4) WPL 1125555 Contact Us For Availability
36
Screw WPL 489374 Contact Us For Availability
36
Unit, Harness WPL 2149199 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 1115349 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Insert, Cover WPL 1126178 Contact Us For Availability
40
Cover, Housing (Includes Item 39) WPL 1126172 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Spacer, Holding Switch WPL 625834 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Housing WPL 2152700 Contact Us For Availability
43
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
44
Overload WPL 1118841 Contact Us For Availability
44
Wiring Harness, Door WPL 2147166 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126249 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Washer WPL 489336 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Screw WPL 488361 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Heat Shield, Frame WPL 2147172 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
Slide, Light Switch WPL 2152724 Contact Us For Availability
50
Frame, Slides WPL 2152716 Contact Us For Availability
51
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
59
Spring WPL 983659 Contact Us For Availability
NI
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
NI
Gasket (Front) WPL 1125814 Contact Us For Availability
× ![]()
