Model Whirlpool KSFS25FKBL02 REFRIGERATOR – Common Parts & Diagrams
07 - FREEZER DOOR PARTS

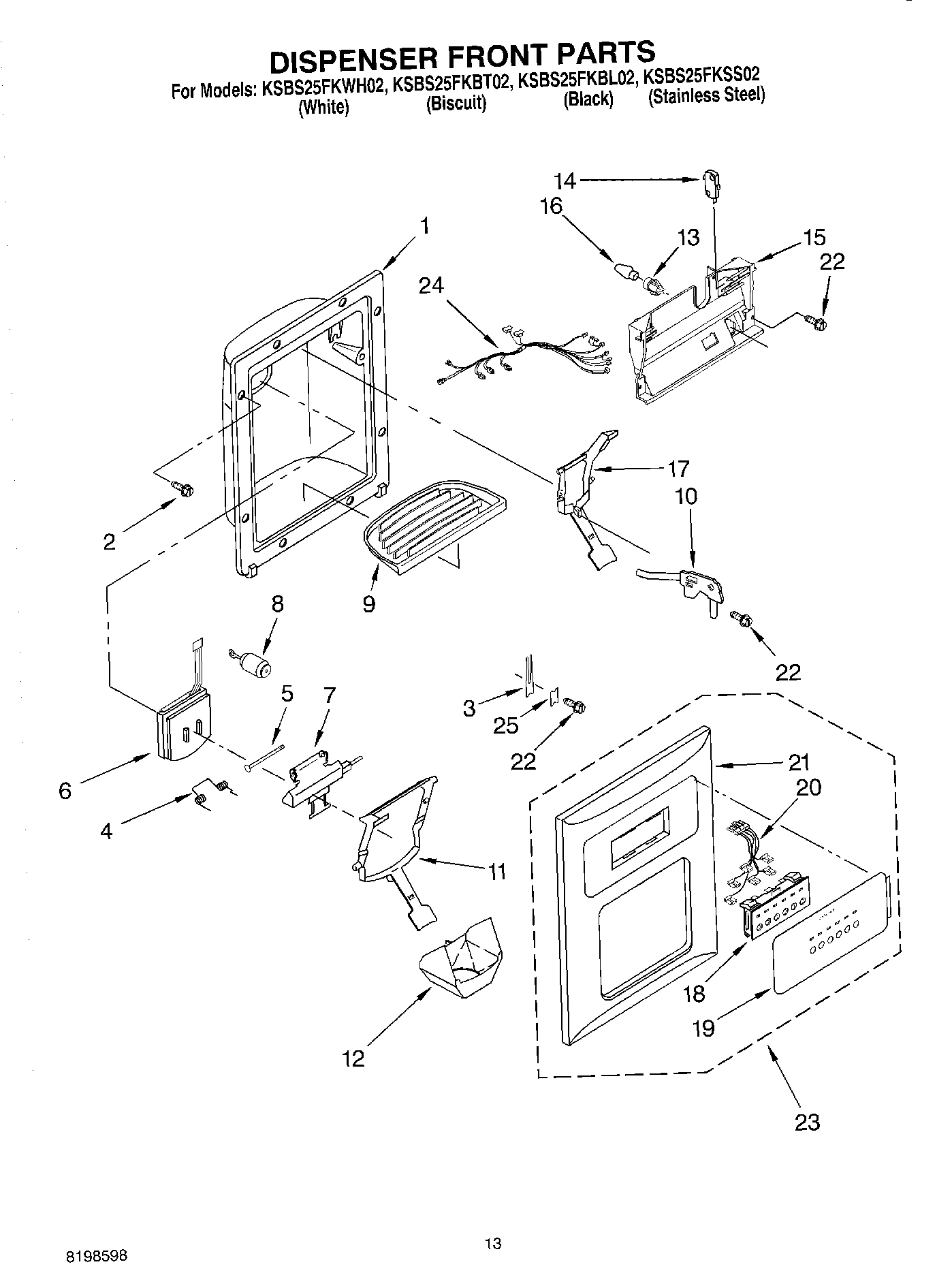

08 - DISPENSER FRONT PARTS

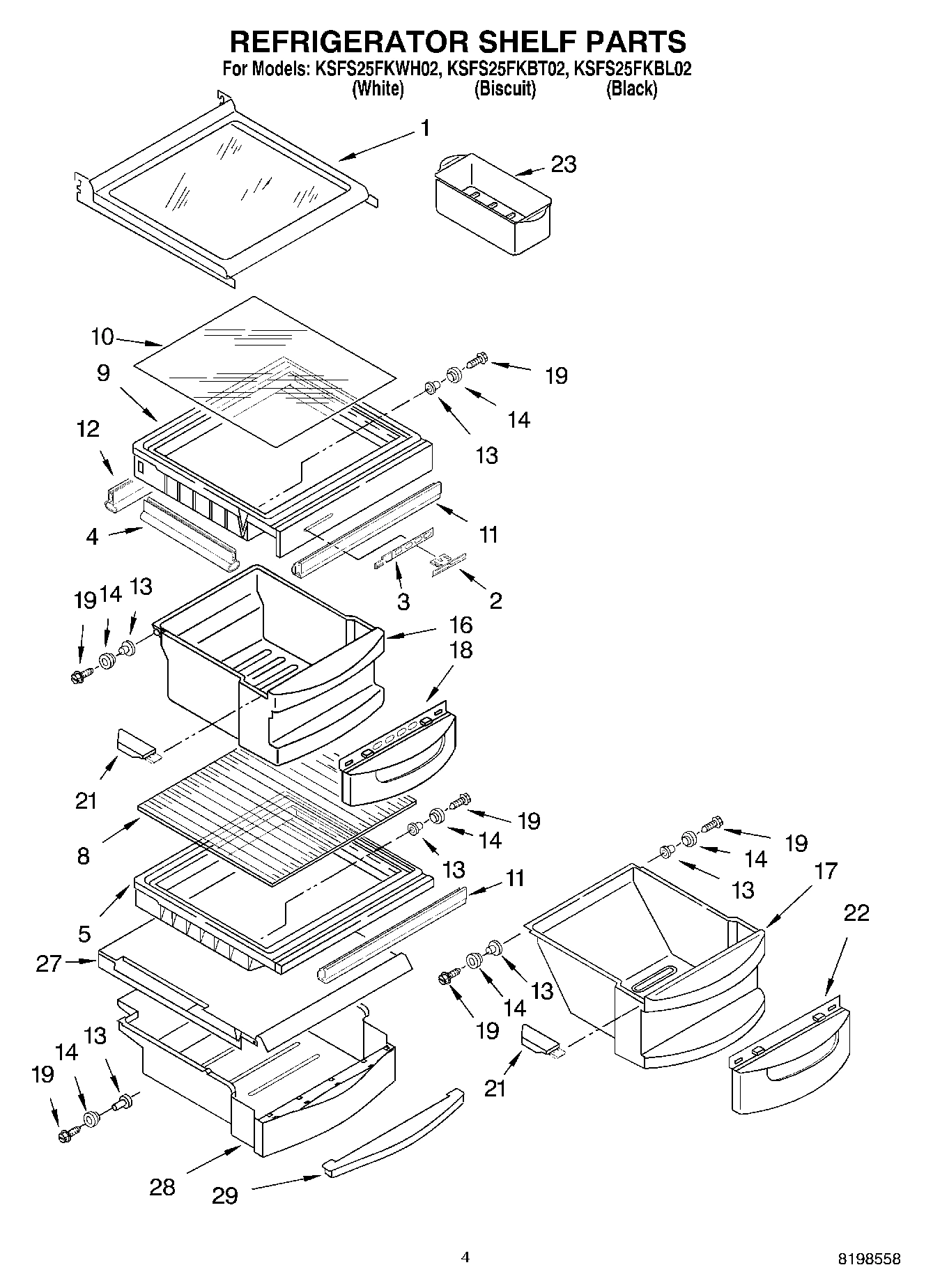

03 - REFRIGERATOR SHELF PARTS

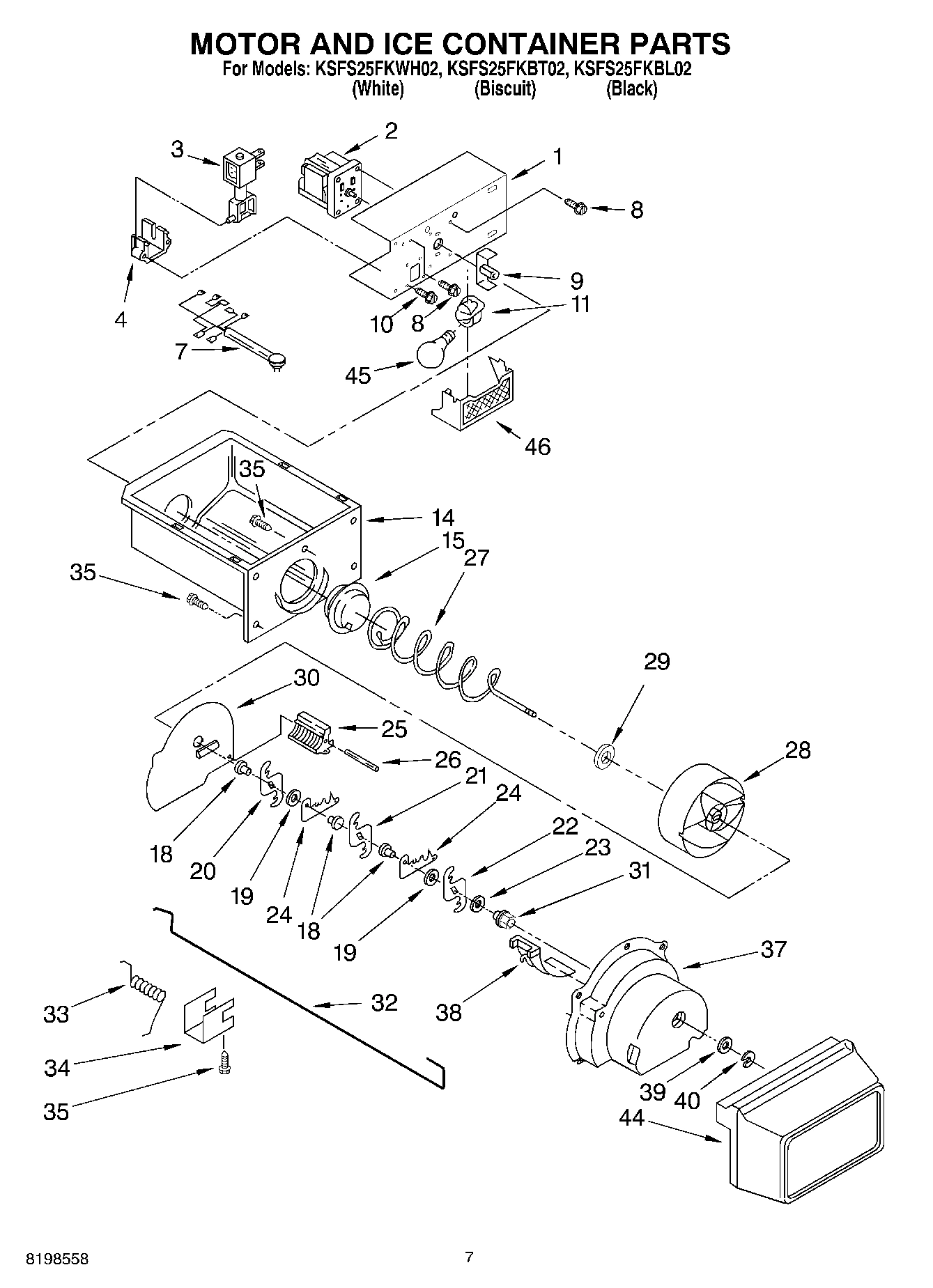

05 - MOTOR AND ICE CONTAINER PARTS

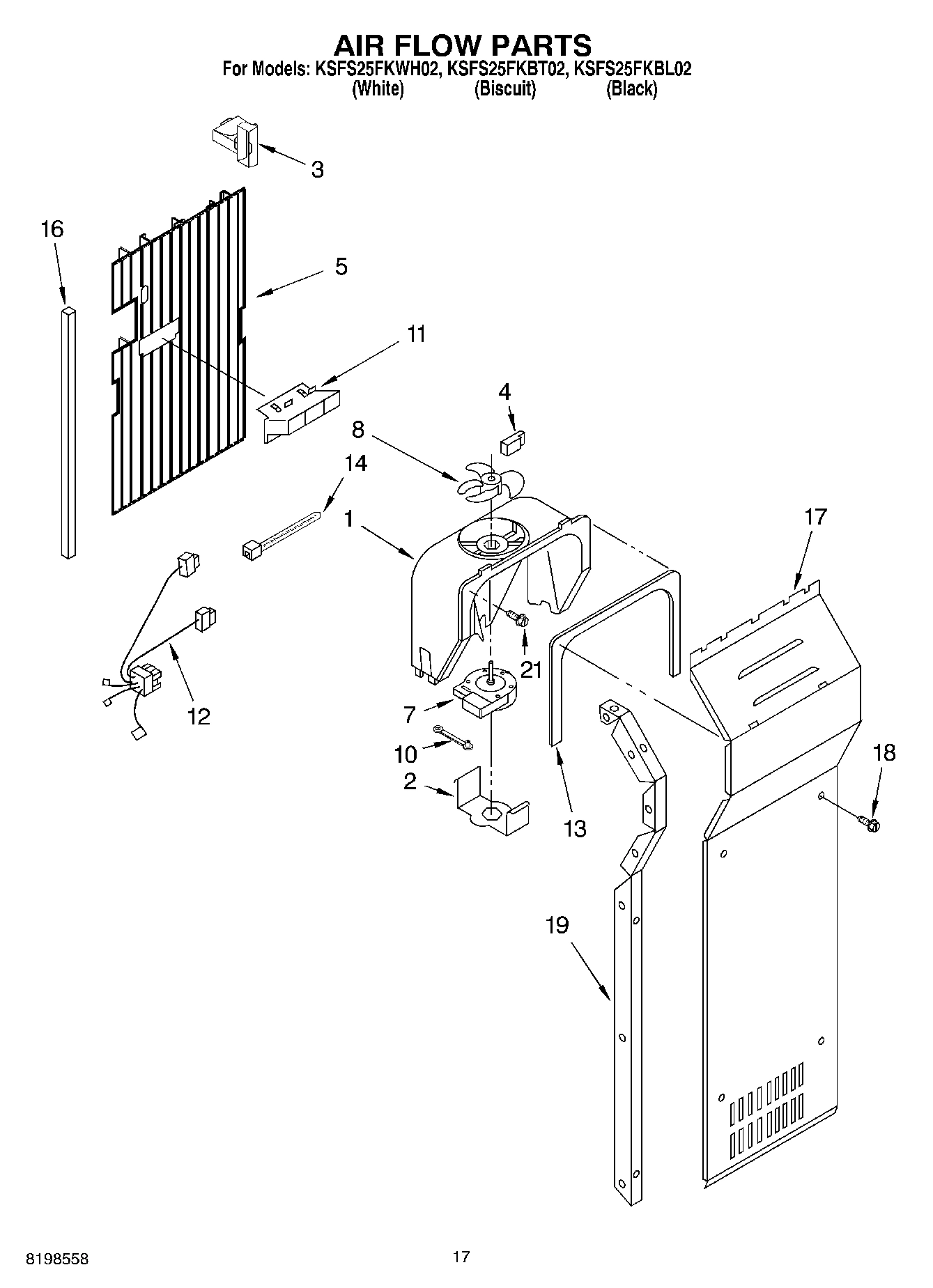

10 - AIR FLOW PARTS

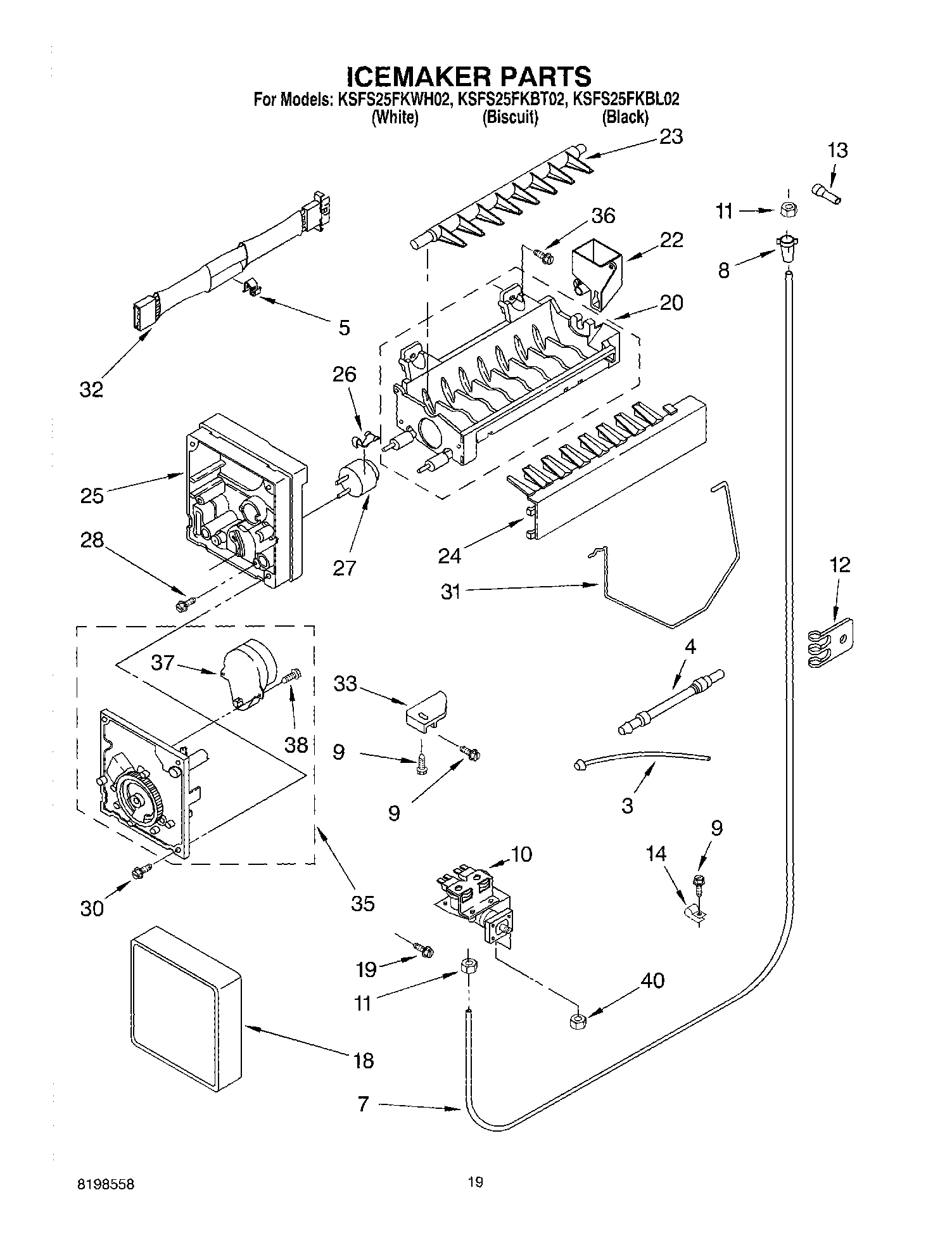

12 - ICEMAKER PARTS - PARTS NOT ILLUSTRATED

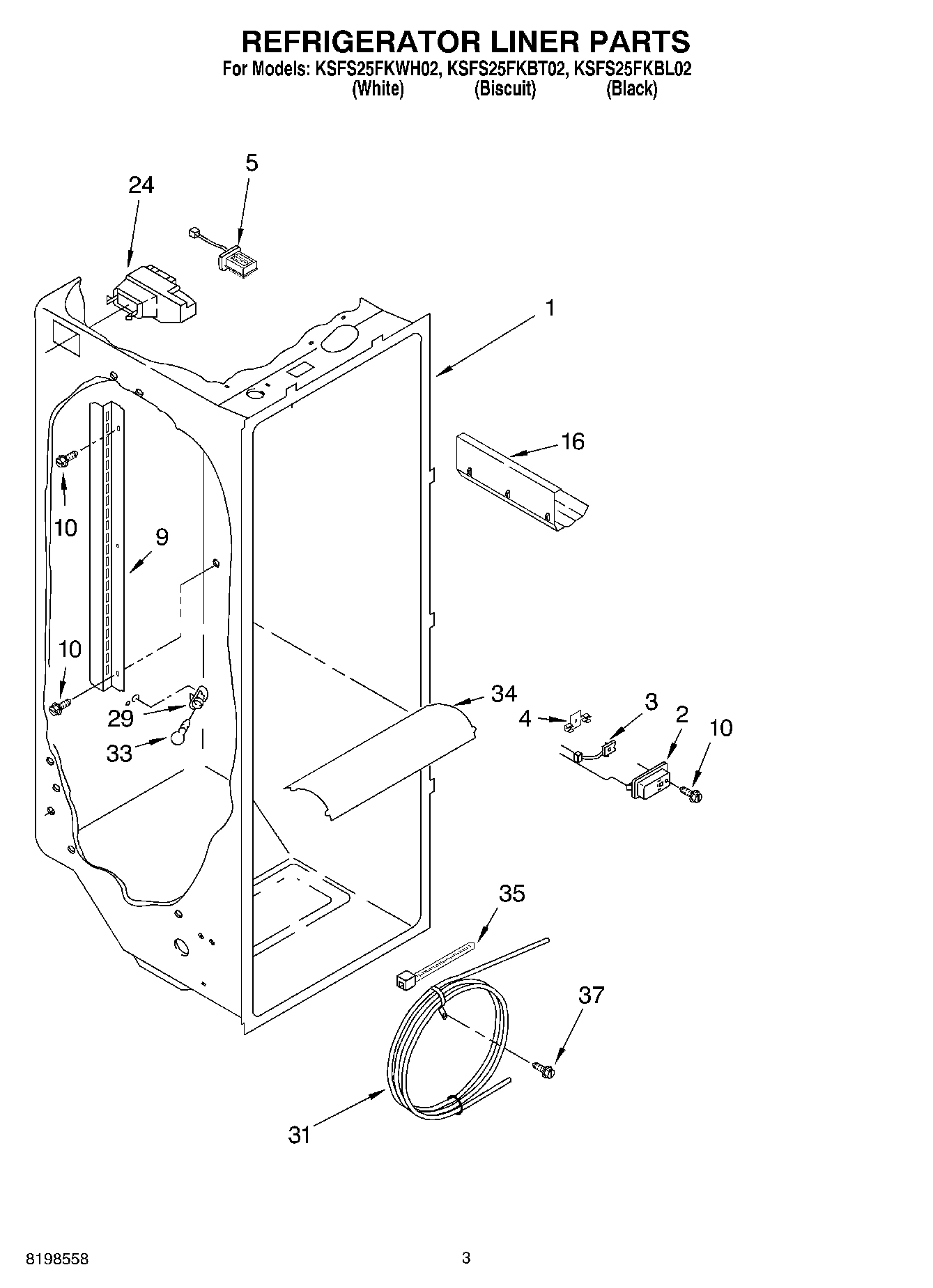

02 - REFRIGERATOR LINER PARTS

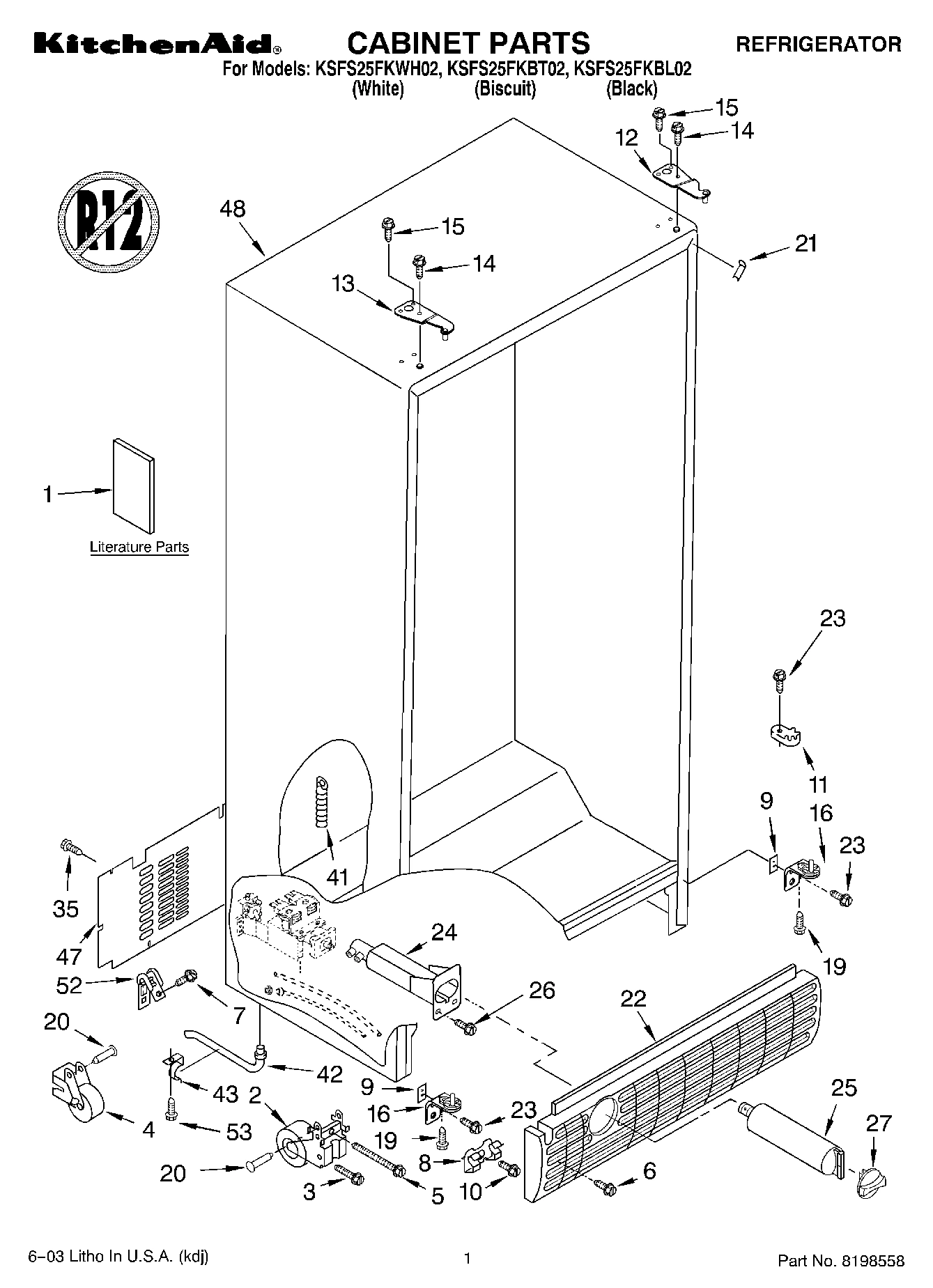

01 - CABINET PARTS

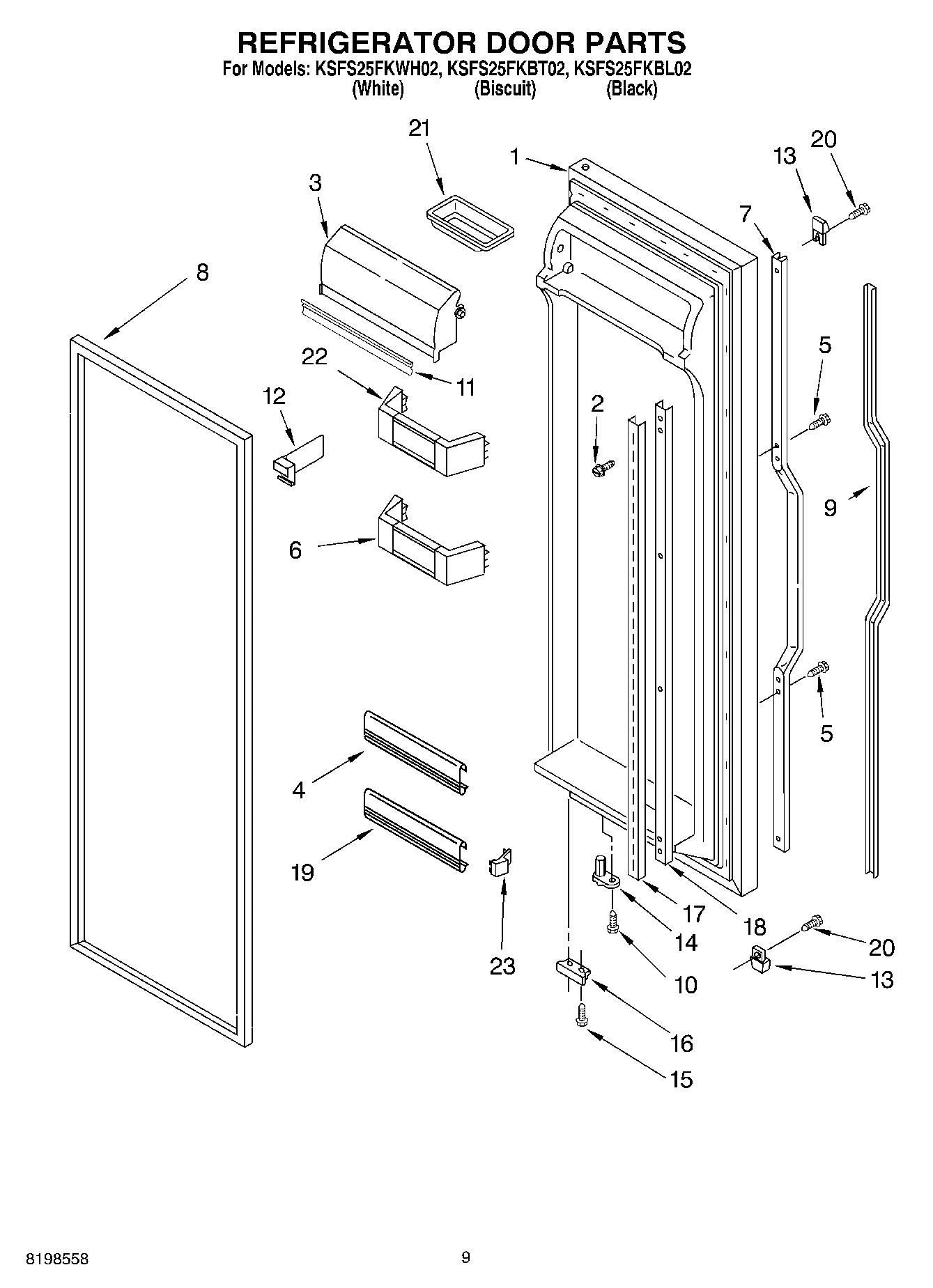

06 - REFRIGERATOR DOOR PARTS

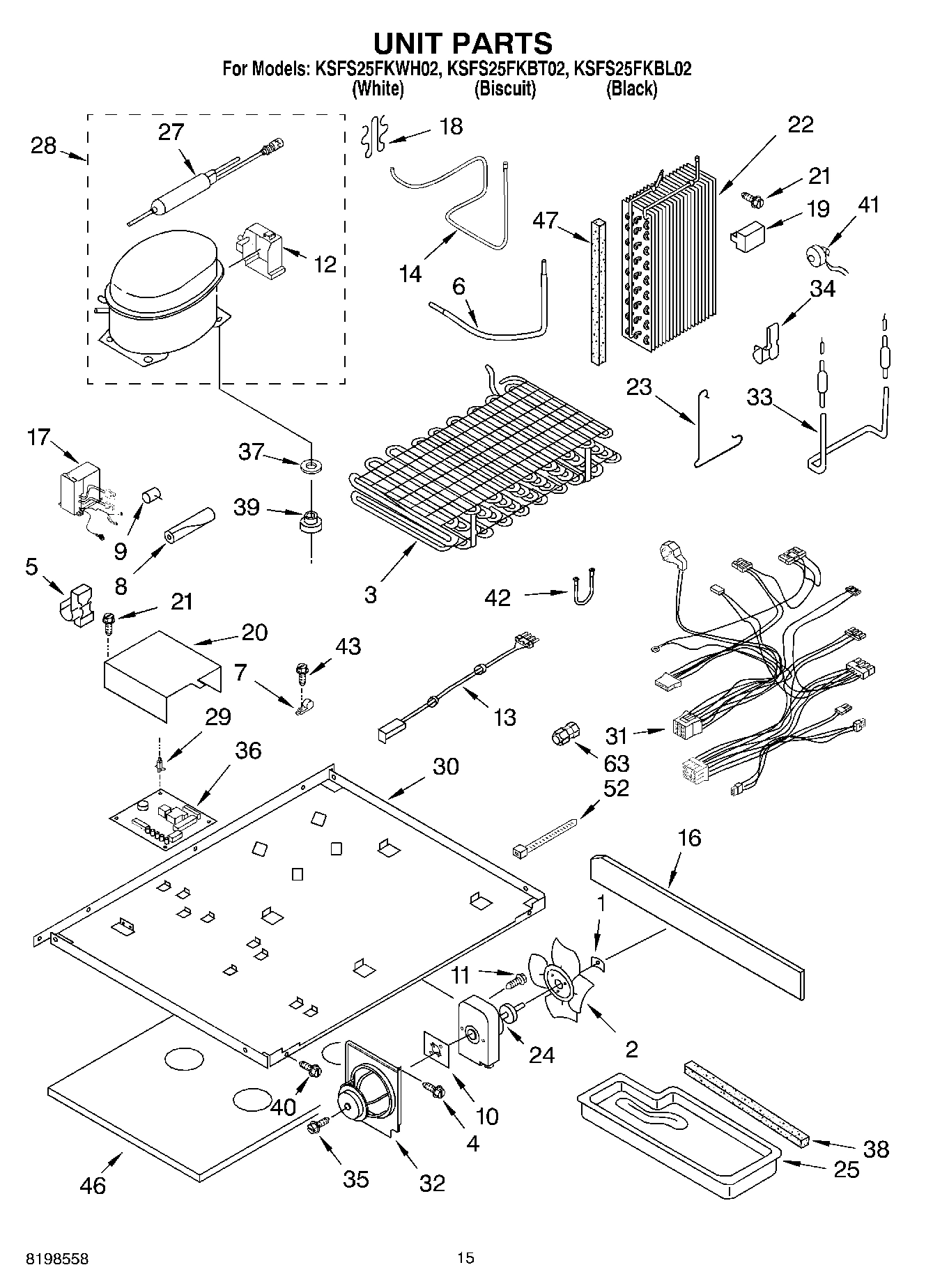

09 - UNIT PARTS

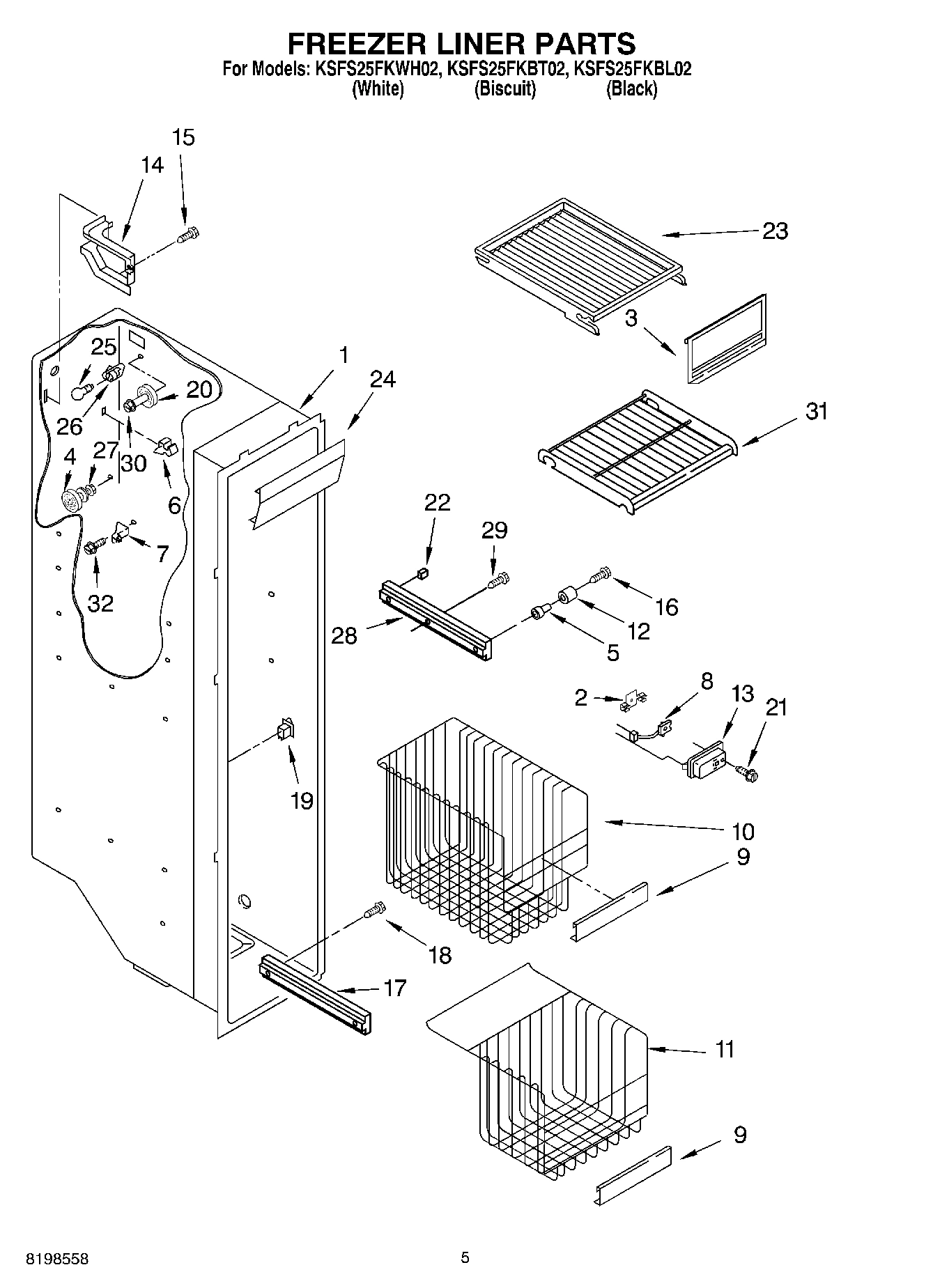

04 - FREEZER LINER PARTS

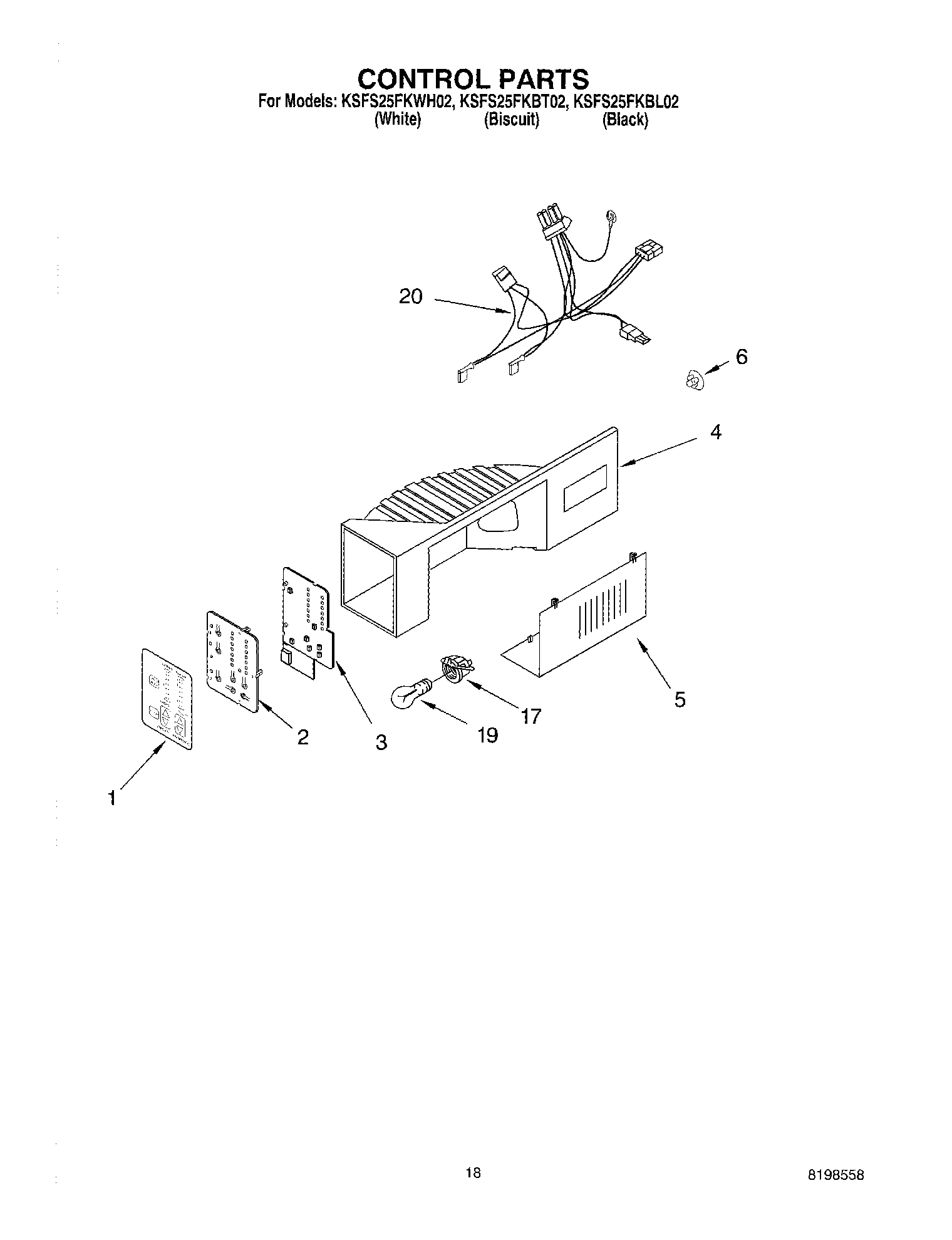

11 - CONTROL PARTS
Common parts from model Whirlpool KSFS25FKBL02 REFRIGERATOR
LITERATURE PARTS WPL ARI92102A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI92104A3 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2221544 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2221548 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT2260953 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Black) WPL 2210773B Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Biscuit) WPL 2210773T Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (White) WPL 2210773W Contact Us For Availability
1
Liner (Not A Seviceable Part) WPL ARI92105A4 Contact Us For Availability
1
Overlay WPL 2203081 Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Clip, Thermistor WPL 2209204 Contact Us For Availability
2
Front Roller (2) WPL 2203007 Contact Us For Availability
2
Retainer, Circuit Board WPL 2221538 Contact Us For Availability
3
Bolt WPL 3400512 Contact Us For Availability
3
Door, Compartment WPL 2218122 Contact Us For Availability
3
Condenser Assembly WPL 2205983 Contact Us For Availability
3
Door, Ice Compartment WPL 2199860 Contact Us For Availability
3
Circuit Board, Interface WPL 2214765 Contact Us For Availability
4
Trim, Door Shelf WPL 2256010 Contact Us For Availability
4
Roller (Rear) (2) WPL 2203008 Contact Us For Availability
4
Control Box WPL 2199717 Contact Us For Availability
5
Eyelet, Roller WPL 2174478 Contact Us For Availability
5
Bolt WPL 3400511 Contact Us For Availability
5
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
5
Light Lens WPL 2203108 Contact Us For Availability
6
Tube, Condenser to Heat Loop WPL 2214366 Contact Us For Availability
7
Retainer, Insert (Black) WPL 2203106B Contact Us For Availability
7
Retainer, Insert (Biscuit) WPL 2203106T Contact Us For Availability
7
Retainer, Insert (White) WPL 2203106W Contact Us For Availability
8
Glass, Cover WPL 2203038 Contact Us For Availability
8
Clip WPL 2209558 Contact Us For Availability
8
Door Gasket, Magnetic (Mist Beige) WPL 2221305 Contact Us For Availability
8
Door Gasket, Magnetic (Black) WPL 2221310 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
9
Insert, Handle (Black) WPL 2203107B Contact Us For Availability
9
Insert, Handle (Biscuit) WPL 2203107T Contact Us For Availability
9
Insert, Handle (White) WPL 2203107W Contact Us For Availability
9
Trim, Basket WPL 2199867 Contact Us For Availability
10
Bracket, Insert WPL 2210750 Contact Us For Availability
10
Basket (2) WPL 2199863 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Gasket WPL 2159124 Contact Us For Availability
11
Basket, Shallow WPL 2199892 Contact Us For Availability
12
Divider, Bin WPL 2195497 Contact Us For Availability
12
Roller WPL 2188212 Contact Us For Availability
13
Tube, Water Inlet WPL 2203024 Contact Us For Availability
13
End Cap, Handle (Black) WPL 2194778B Contact Us For Availability
13
End Cap, Handle (Biscuit) WPL 2194778T Contact Us For Availability
13
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
13
Wire Assembly WPL 2187390 Contact Us For Availability
14
Tube Suction WPL 2214365 Contact Us For Availability
14
Wiring Cover WPL 2203111 Contact Us For Availability
16
Hinge & Cam Assy. WPL 2208137 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2210774 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2214451 Contact Us For Availability
16
Extension, Air Baffle WPL 2203020 Contact Us For Availability
17
Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2208197 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2208198 Contact Us For Availability
18
Ladder, Shelf (2) WPL 1113949 Contact Us For Availability
18
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
19
Trim, Door Shelf WPL 2203087 Contact Us For Availability
19
Block, Evaporator WPL 2208183 Contact Us For Availability
20
Control Box Harness WPL 2214376 Contact Us For Availability
20
Housing, Control Board WPL 2257354 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 2203067B Contact Us For Availability
21
Filler, Wrapper (Biscuit) WPL 2203067T Contact Us For Availability
21
Filler, Wrapper (White) WPL 2203067W Contact Us For Availability
21
Butter, Dish WPL 2165792 Contact Us For Availability
22
Grille (Black) WPL 2199904B Contact Us For Availability
22
Window, Meat Pan WPL 2174076 Contact Us For Availability
22
Stop, Roller WPL 1113169 Contact Us For Availability
22
Grille (Biscuit) WPL 2199904T Contact Us For Availability
22
Grille (White) WPL 2199904W Contact Us For Availability
22
Bin, Door (3) WPL 2199983 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2209533 Contact Us For Availability
24
Air Diffuser Assembly WPL 2214367 Contact Us For Availability
24
Light Lens WPL 2199965 Contact Us For Availability
28
Slide, Container (Right Side) WPL 2002720 Contact Us For Availability
29
Handle, Beverage WPL 2203029 Contact Us For Availability
30
Unit Mounting Plate WPL 2223711 Contact Us For Availability
31
Harness, Main Control WPL 2187664 Contact Us For Availability
31
Shelf WPL 2199861 Contact Us For Availability
32
Fan, Motor Bracket WPL 2208157 Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Board, Control WPL 2252095 Contact Us For Availability
37
Washer WPL 680975 Contact Us For Availability
40
Screw WPL 3400515 Contact Us For Availability
42
Extension Tube WPL 2199954 Contact Us For Availability
42
Tube, Heat Loop WPL 2199806 Contact Us For Availability
46
Insulation, Mounting Plate WPL 2223712 Contact Us For Availability
47
Cover, Unit WPL 2214385 Contact Us For Availability
47
Side Support WPL 2203160 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI92103A3 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
63
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI92110A8 Contact Us For Availability
63
and Optional Parts Not Included WPL ARI92111A1 Contact Us For Availability
63
REFRIGERANT CHARGE 6.00 oz. (R-134A) WPL ARI92112A7 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
100
WPL ARI92113A7 WPL ARI92113A7 Contact Us For Availability
100
WPL ARI92114A1 WPL ARI92114A1 Contact Us For Availability
100
WPL ARI92115A9 WPL ARI92115A9 Contact Us For Availability
100
WPL ARI92116A3 WPL ARI92116A3 Contact Us For Availability
× ![]()
