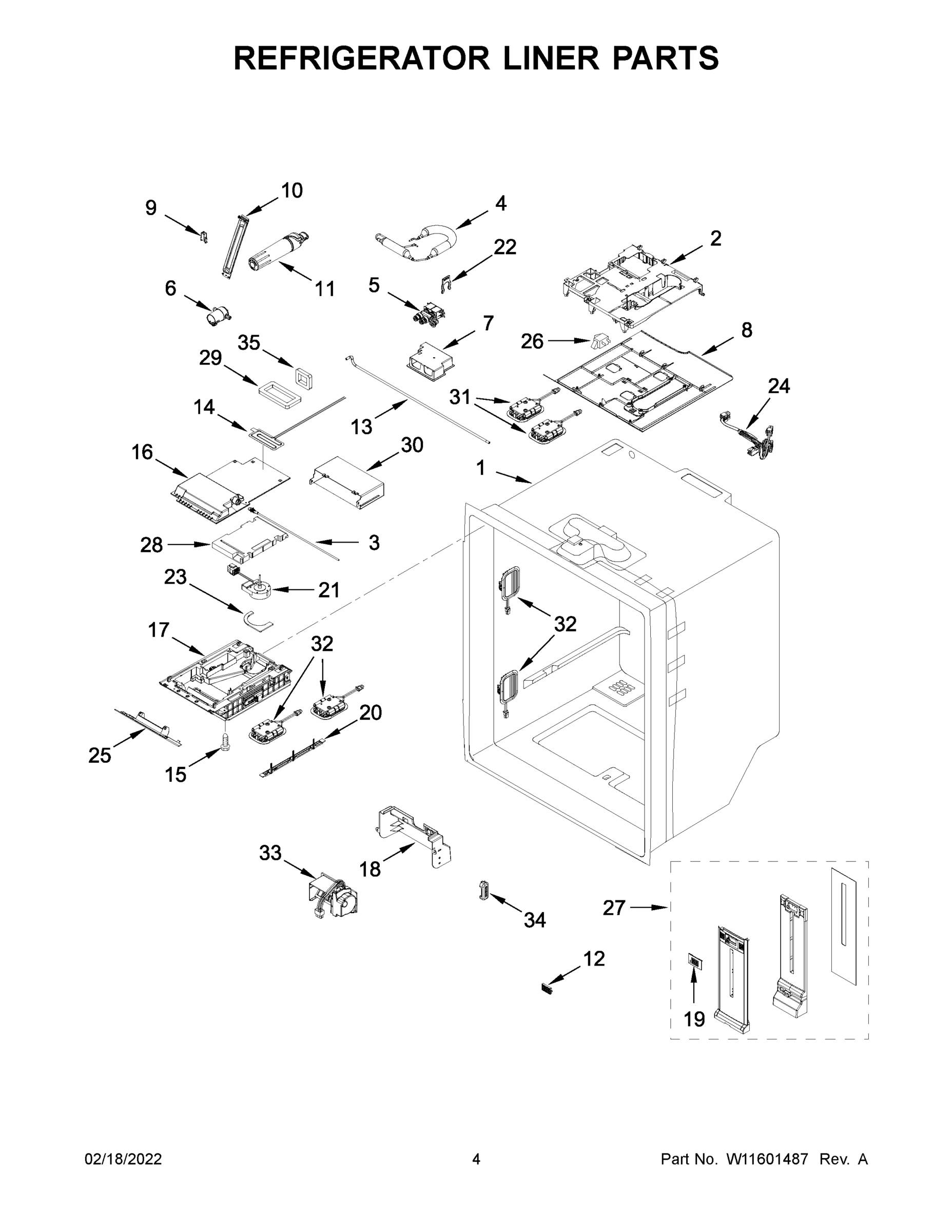

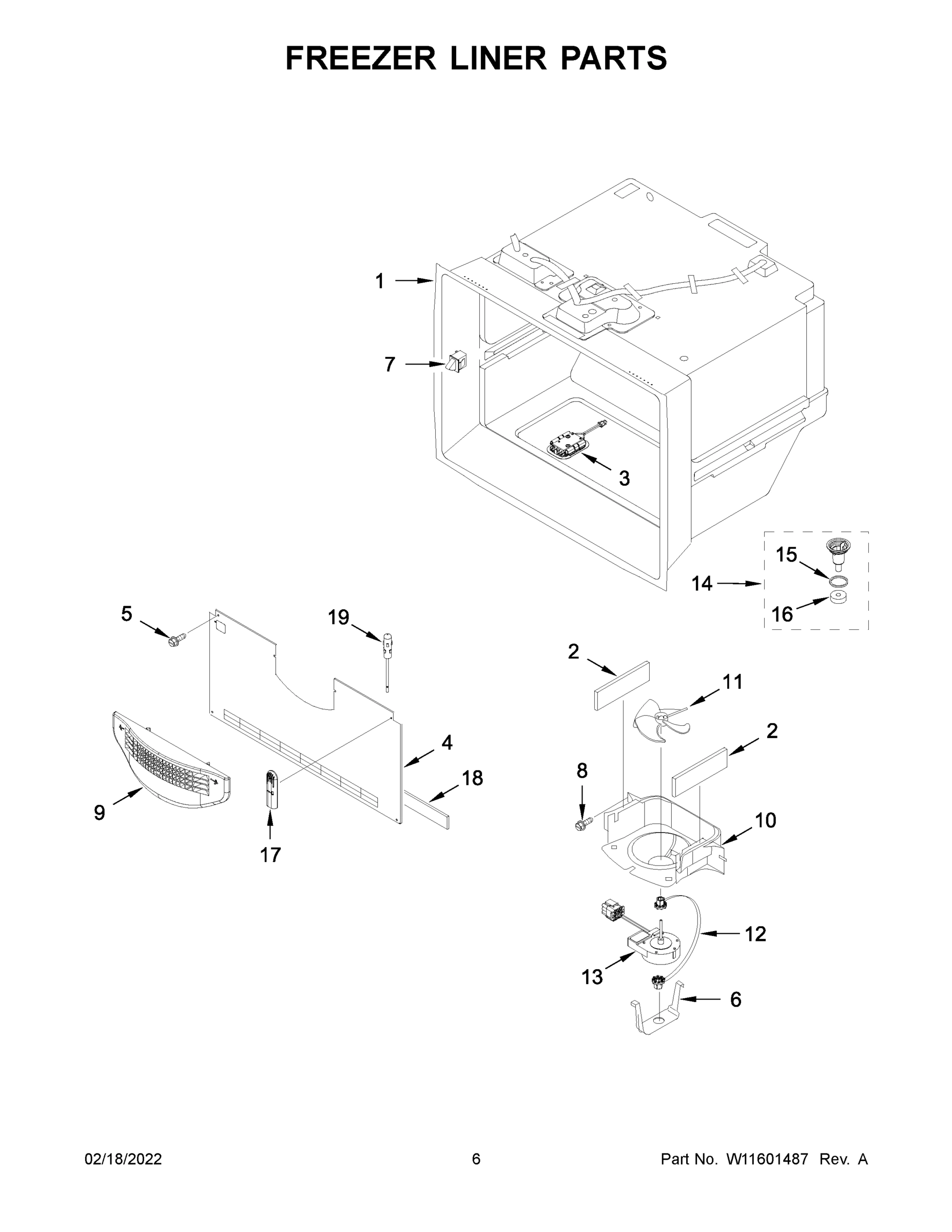

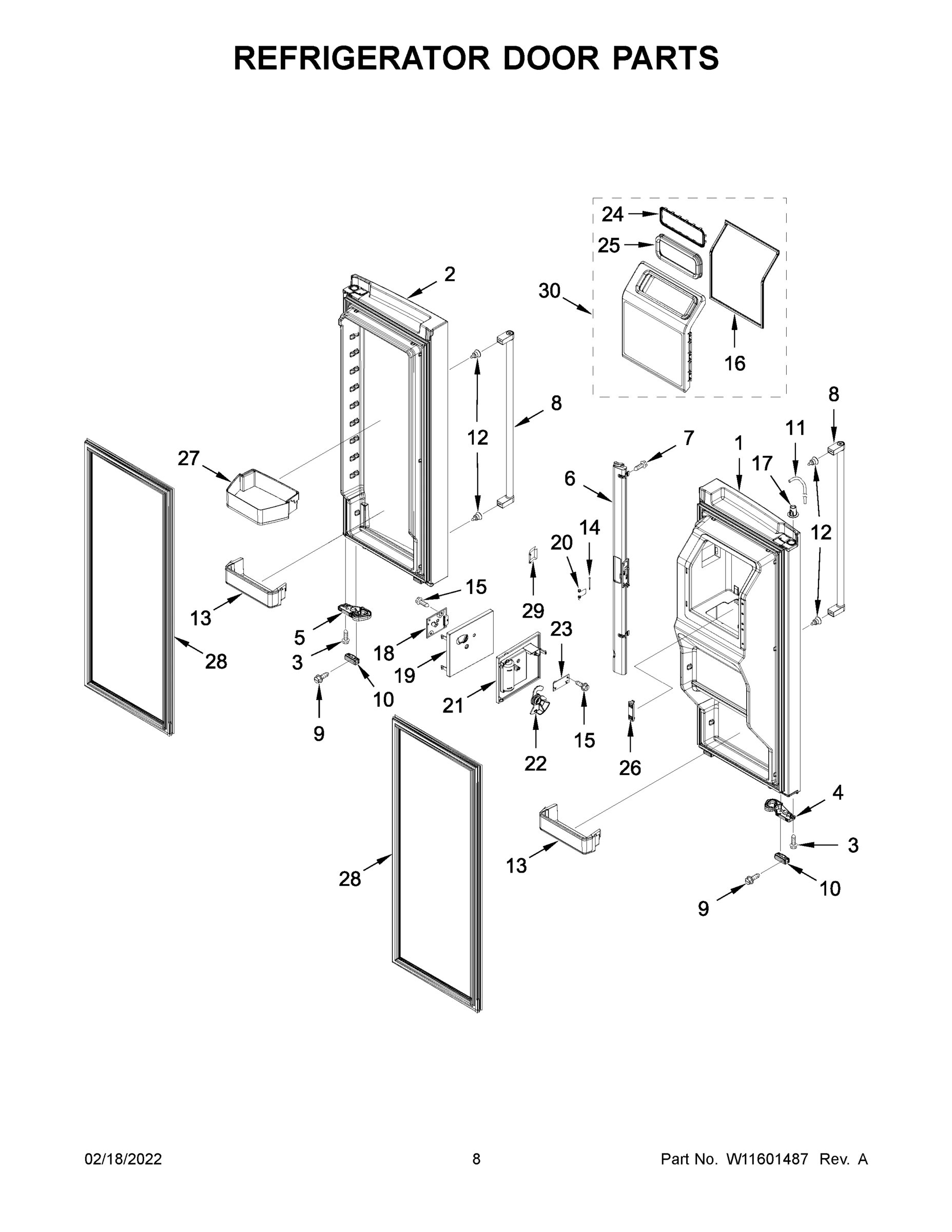

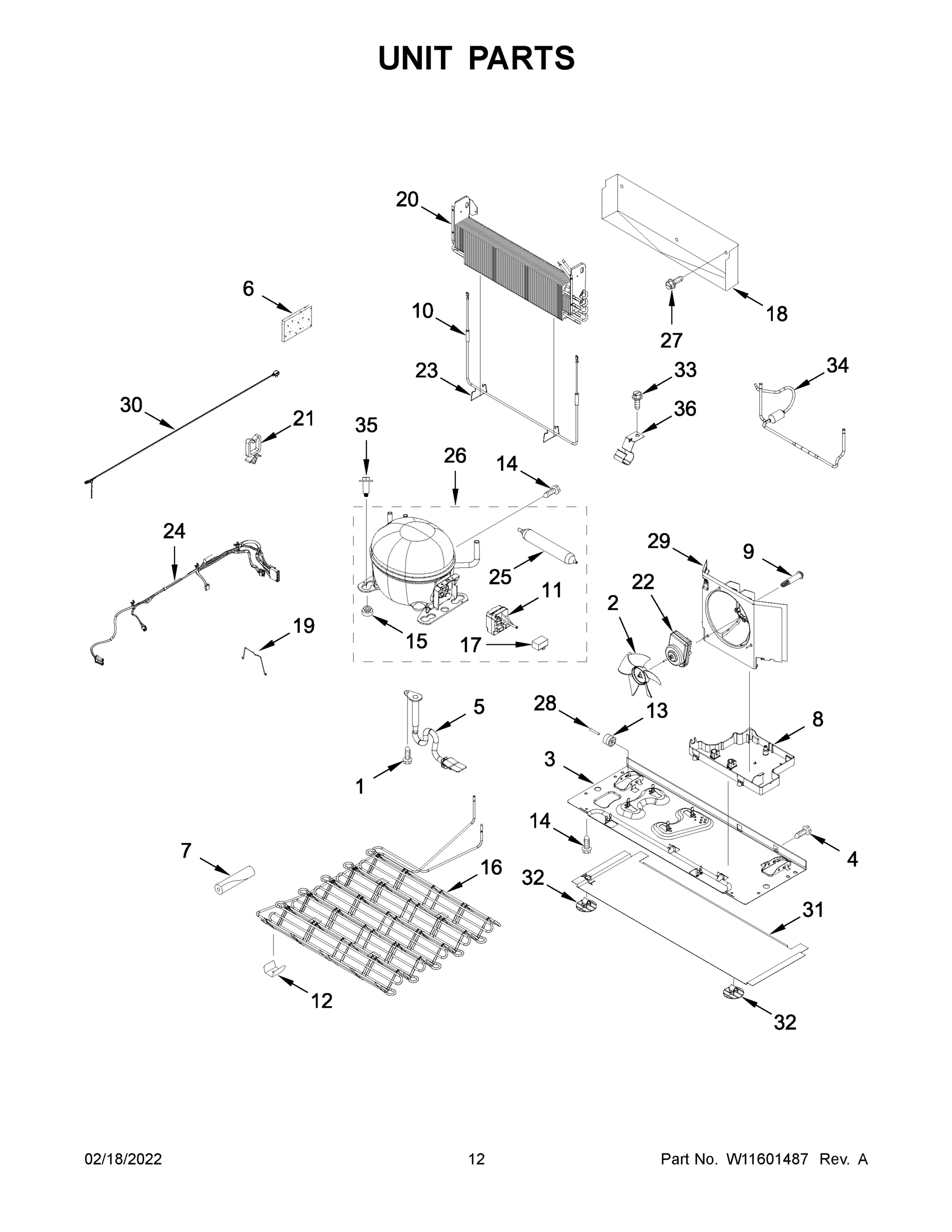

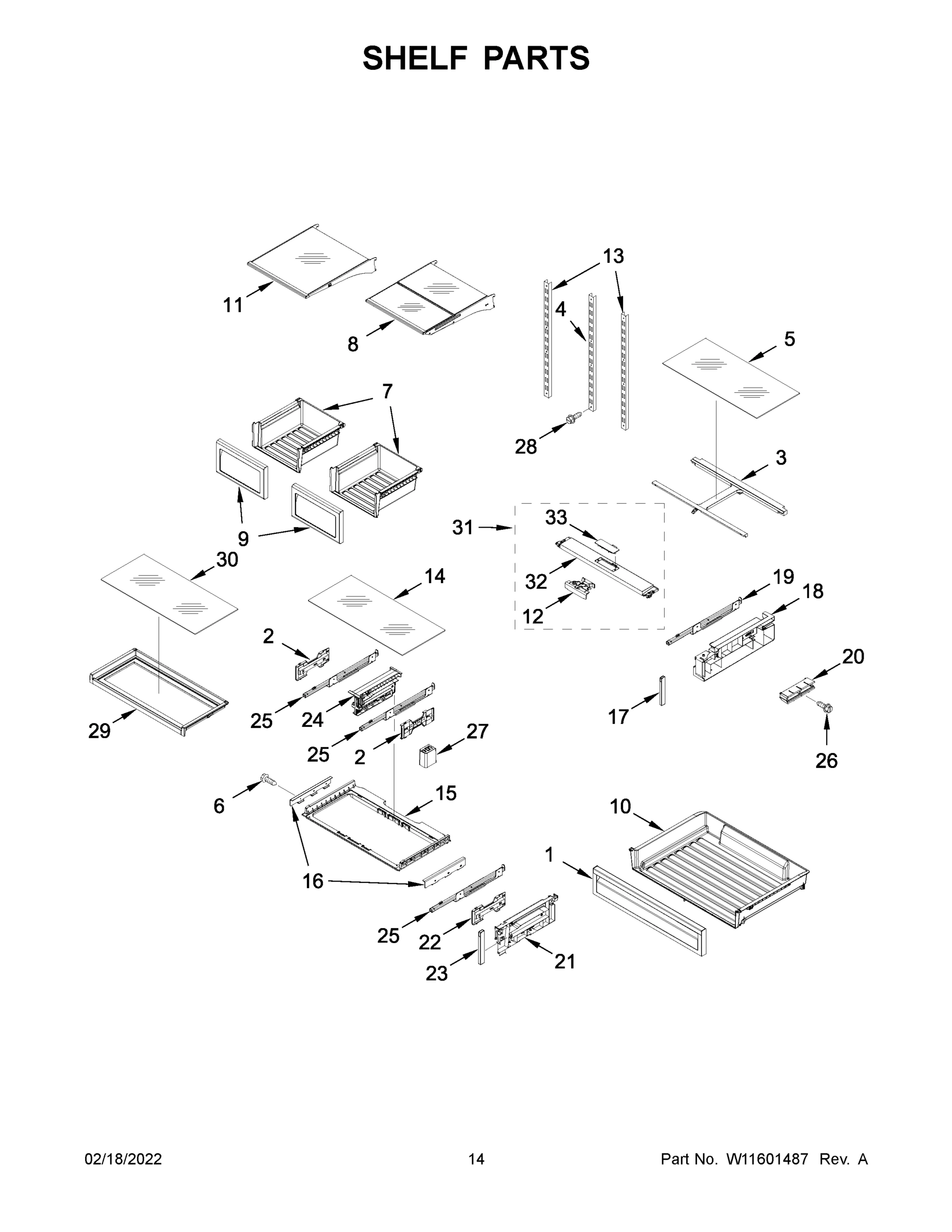

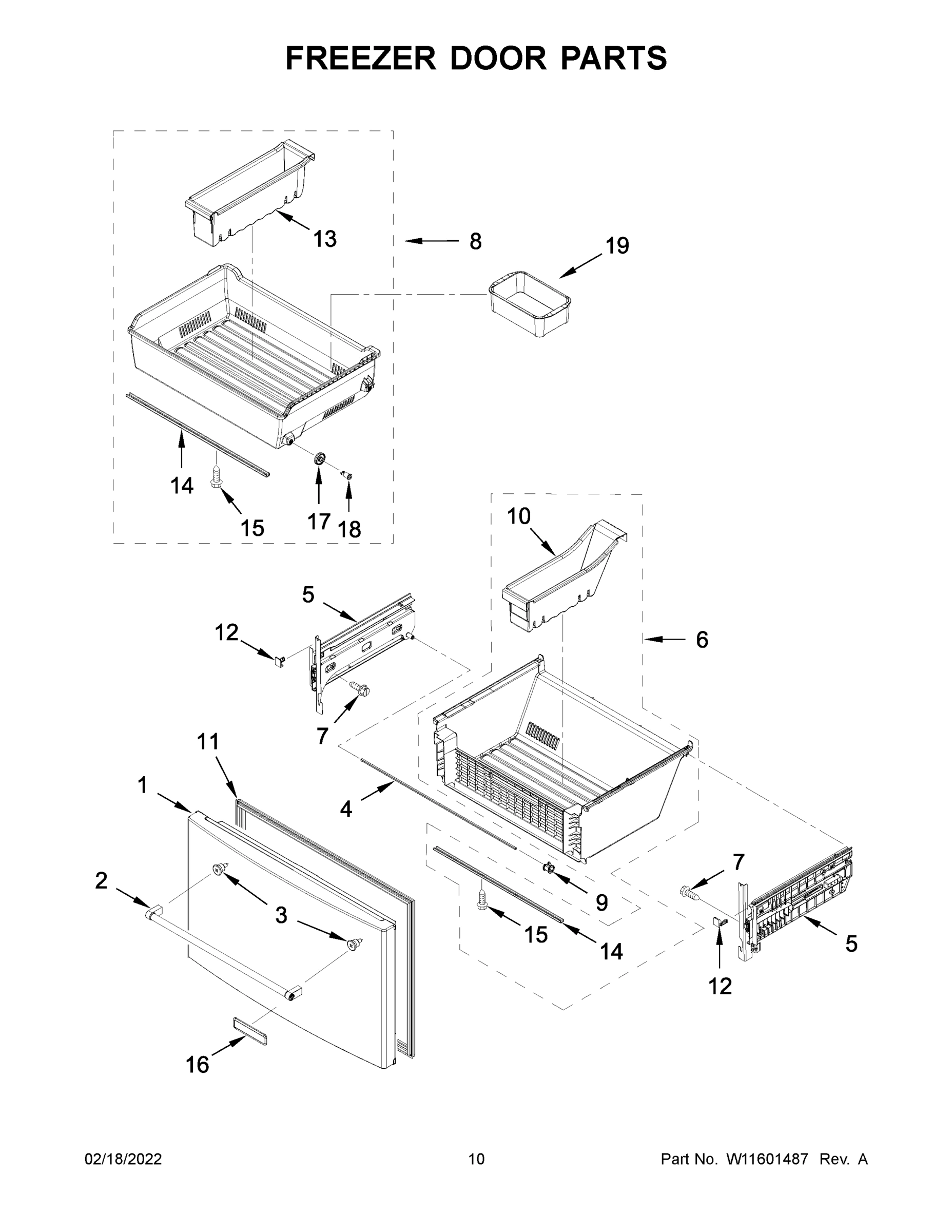

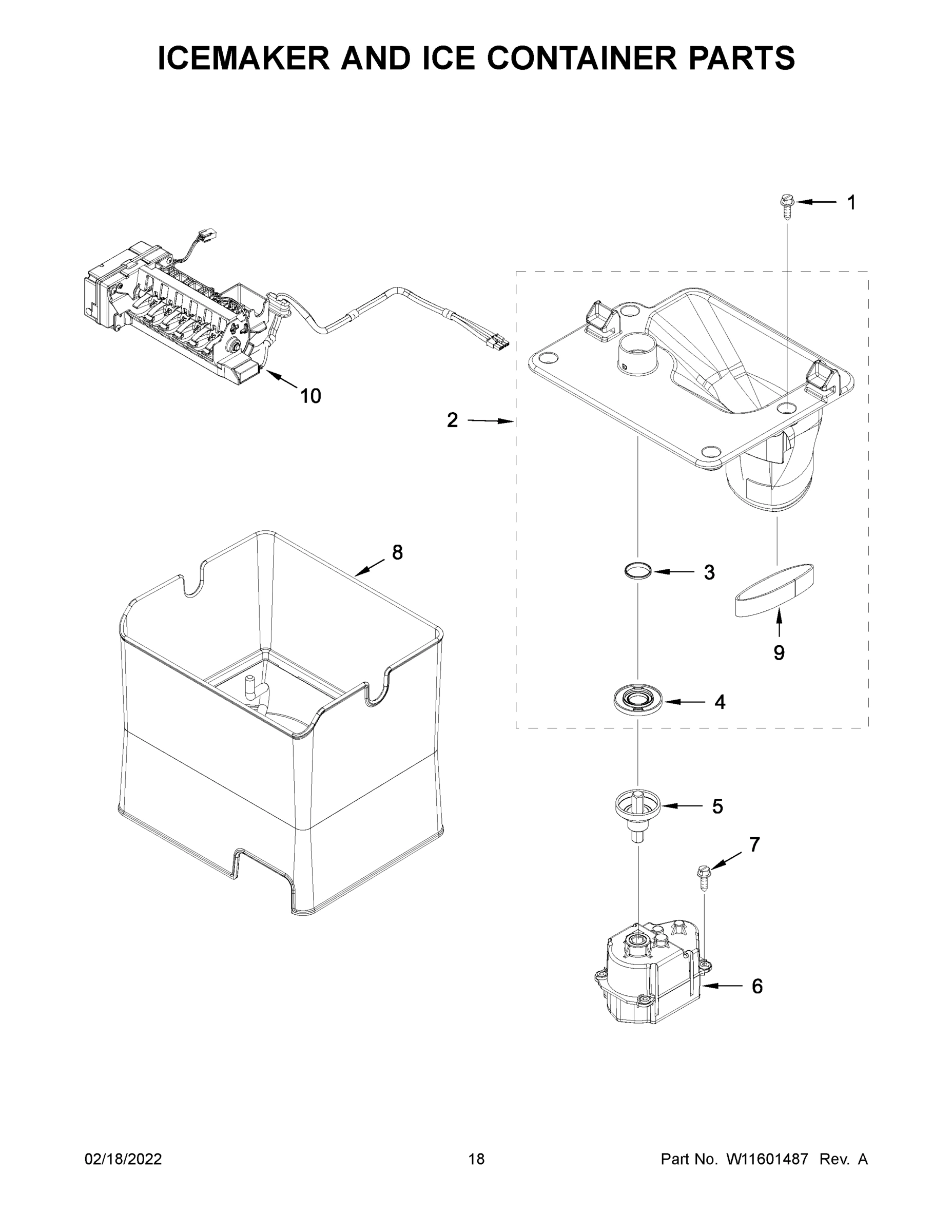

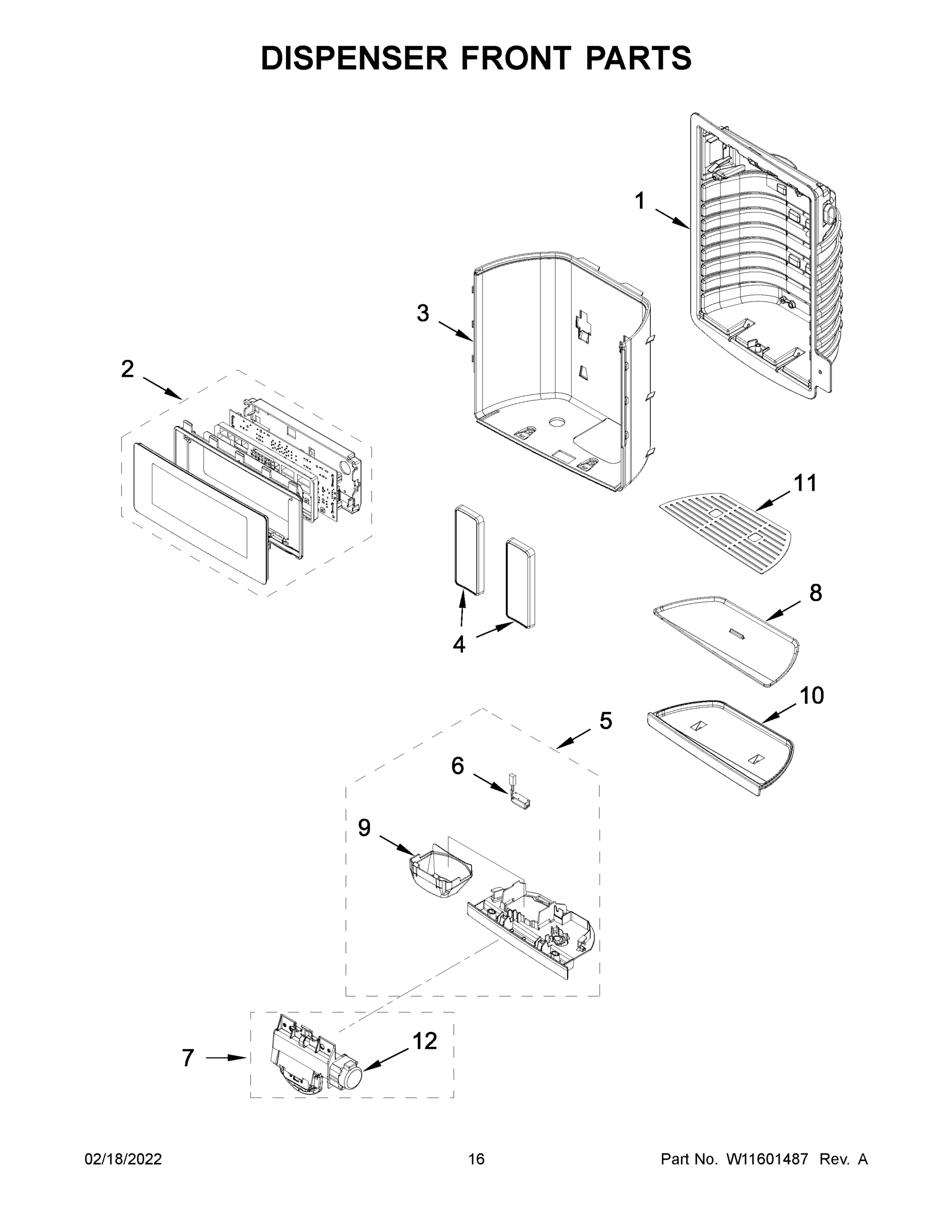

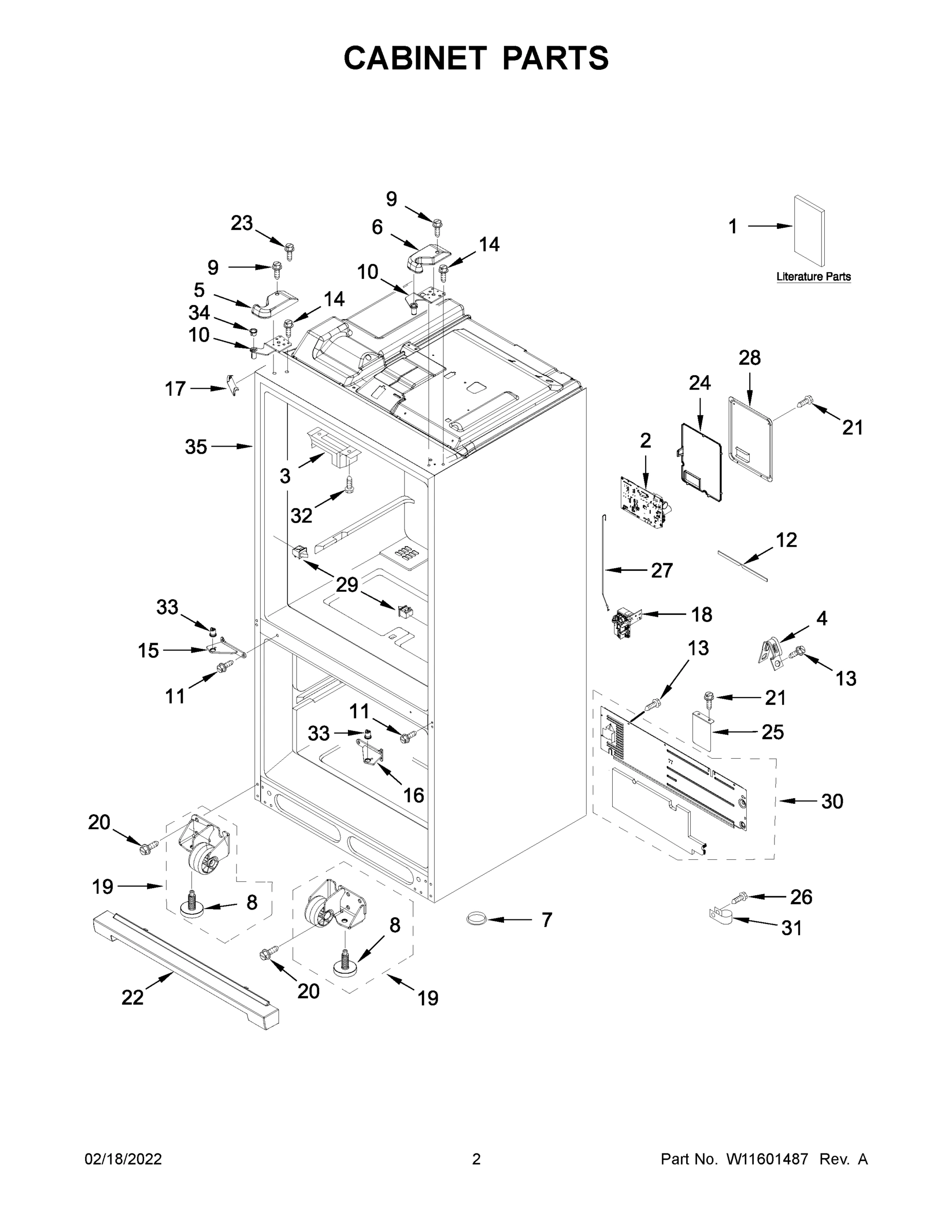

Model Whirlpool KRFF577KPS01 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts &amp; Diagrams

1

W11226806 Whirlpool Refrigerator Front Pan Backorder WPL W11226806 $186.88

1

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

2

WP2188935 Whirlpool Refrigerator Fan Blade In Stock WPL WP2188935 $56.99

2

ASSEMBLY, ICE CHUTE PLATE WPL W10572235 Contact Us For Availability

3

W10486344 Whirlpool Refrigerator Shield Backorder WPL W10486344 $81.98

3

W10562833 Whirlpool Refrigerator Pivot Block Backorder WPL W10562833 $28.71

3

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

3A

WPW10486346 Whirlpool Refrigerator Shield Backorder WPL WPW10486346 $87.94

4

W10467461 Whirlpool Refrigerator Ladder Backorder WPL W10467461 $31.58

4

W10847834 Whirlpool Clip Backorder WPL W10847834 $8.89

4

W10904595 Whirlpool Refrigerator Closer Backorder WPL W10904595 $10.45

4

W11561037 Whirlpool Refrigerator Pad In Stock WPL W11561037 $43.53

4

WPW10503522 Whirlpool Refrigerator Shaft Backorder WPL WPW10503522 $59.67

4A

WPW10346924 Whirlpool Refrigerator Pad In Stock WPL WPW10346924 $151.93

5

W10471617 Whirlpool Refrigerator Cover Backorder WPL W10471617 $14.97

5

W10836794 Whirlpool Refrigerator Separator Backorder WPL W10836794 $131.08

5

W11212164 Whirlpool Refrigerator Door Closer Backorder WPL W11212164 $10.51

5

W11509548 Whirlpool Ice Bucket Coupler In Stock WPL W11509548 $21.99

5

W11712703 Whirlpool Extension Assembly Backorder WPL W11712703 $27.38

6

W10594052 Whirlpool Refrigerator Freezer Bin Backorder WPL W10594052 $163.98

6

W10822606 Whirlpool Refrigerator Dispenser Mo In Stock WPL W10822606 $118.99

6

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $48.58

6

COVER, TOP HINGE RIGHT HAND (BLACK) WPL W10407157 Contact Us For Availability

6A

W10849525 Whirlpool Refrigerator Mullion Rail Backorder WPL W10849525 $90.97

6A

WPW10407158 Whirlpool Refrigerator Cover Asse Backorder WPL WPW10407158 $14.33

7

W11227365 Whirlpool Refrigerator Crisper Pan Backorder WPL W11227365 $93.68

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

7

WPW10606117 Whirlpool Refrigerator Ice Door In Stock WPL WPW10606117 $114.99

8

W10400889 Whirlpool Insert Backorder WPL W10400889 $31.29

8

W10754145 Whirlpool Refrigerator Cover Backorder WPL W10754145 $55.57

8

W11129522 Whirlpool Ice Bucket Assembly In Stock WPL W11129522 $235.99

8

W11225840 Whirlpool Refrigerator Evaporator T Backorder WPL W11225840 $96.99

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $9.86

8

WPW10737428 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10737428 $228.43

8A

W10402269 Whirlpool Refrigerator Insert Backorder WPL W10402269 $40.79

9

W10852685 Whirlpool Clip Assembly Backorder WPL W10852685 $6.79

9

W11176882 Whirlpool Refrigerator Front Panel Backorder WPL W11176882 $186.88

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $80.99

9

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $13.99

9

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $17.95

W10400884 Whirlpool Refrigerator Drip Tray In Stock WPL W10400884 $43.32

W10407187 Whirlpool Refrigerator Door Bumper In Stock WPL W10407187 $30.32

W10754143 Whirlpool Refrigerator Filter Cover Backorder WPL W10754143 $72.04

W11658802 Whirlpool Refrigerator Ice Maker In Stock WPL W11658802 $151.99

WPW10363507 Whirlpool Refrigerator Shroud Backorder WPL WPW10363507 $52.31

10A

W11573367 Whirlpool Refrigerator Door Bumper Backorder WPL W11573367 $14.02

10A

WPW10400887 Whirlpool Drip Tray Backorder WPL WPW10400887 $43.77

W10394073 Whirlpool Refrigerator Water Tube Backorder WPL W10394073 $78.77

W10673842 Whirlpool Refrigerator Screw Backorder WPL W10673842 $8.89

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $49.99

WPW10542708 Whirlpool Refrigerator Grille Backorder WPL WPW10542708 $48.98

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $23.40

W10585151 Whirlpool Refrigerator Stop Pan Backorder WPL W10585151 $54.30

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $11.99

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $67.75

12A

W10585150 Whirlpool Refrigerator Stop Pan Backorder WPL W10585150 $54.36

13

W10719660 Whirlpool Refrigerator Ladder Backorder WPL W10719660 $122.56

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $11.21

W11087201 Whirlpool Refrigerator Heater In Stock WPL W11087201 $63.99

W11126052 Whirlpool Screw Assembly In Stock WPL W11126052 $14.99

W11677723 Whirlpool Support Backorder WPL W11677723 $95.76

15

W10407279 Whirlpool Refrigerator Door Hinge Backorder WPL W10407279 $50.76

15A

W10878115 Whirlpool Refrigerator Door Hinge Backorder WPL W10878115 $46.84

W10407275 Whirlpool Refrigerator Door Hinge Backorder WPL W10407275 $50.76

W10876598 Whirlpool Refrigerator Nameplate In Stock WPL W10876598 $53.98

W11625019 Whirlpool Refrigerator Gasket Backorder WPL W11625019 $31.13

WPW10598013 Whirlpool Refrigerator Cover In Stock WPL WPW10598013 $88.99

16A

W11240748 Whirlpool Refrigerator Door Hinge Backorder WPL W11240748 $47.39

W11578839 Whirlpool Roller In Stock WPL W11578839 $8.89

W11661208 Whirlpool Cover Assembly Backorder WPL W11661208 $14.02

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $74.46

PLATE, PANTRY FRONT WPL W10562479 Contact Us For Availability

17A

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

18

W10898445-includeCORE Whirlpool W10898445 Ref Backorder WPL W10898445-includeCORE $284.09

18

W11573594 Whirlpool Refrigerator Axle Backorder WPL W11573594 $11.42

18

PLATE, SIDE PANTRY (LEFT HAND) WPL W10704668 Contact Us For Availability

W10499289 Whirlpool Refrigerator Slide Backorder WPL W10499289 $213.42

W10563326 Whirlpool Refrigerator Cover Backorder WPL W10563326 $13.39

W11026416 Whirlpool Refrigerator Cantilever B In Stock WPL W11026416 $71.50

W11661170 Whirlpool Clip Backorder WPL W11661170 $7.27

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $61.97

19A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $60.99

19A

SLIDE, PANTRY (RIGHT HAND) WPL W10499294 Contact Us For Availability

20

W10432697 Whirlpool Refrigerator Insulation Backorder WPL W10432697 $8.98

20

W10785113 Whirlpool Refrigerator Trim Backorder WPL W10785113 $82.81

20

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

20A

W11506620 Whirlpool Refrigerator Coupler In Stock WPL W11506620 $20.45

21

W10563309 Whirlpool Refrigerator Cover Backorder WPL W10563309 $15.58

21

W11329364 Whirlpool Refrigerator Plate Backorder WPL W11329364 $55.73

21

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.89

21A

W11329579 Whirlpool Refrigerator Plate Backorder WPL W11329579 $55.81

W10562802 Whirlpool Refrigerator Plate In Stock WPL W10562802 $93.99

W10563328 Whirlpool Refrigerator Slide Backorder WPL W10563328 $151.29

W11678575 Whirlpool Ring In Stock WPL W11678575 $8.89

WPW10637669 Whirlpool Refrigerator Front Gril Backorder WPL WPW10637669 $81.73

22A

WPW10637671 Whirlpool Refrigerator Front Gril In Stock WPL WPW10637671 $86.99

23

WPW10392172 Whirlpool Refrigerator Gasket Backorder WPL WPW10392172 $16.84

24

W10768379 Whirlpool Refrigerator Cover Backorder WPL W10768379 $54.05

24

W11504381 Whirlpool Refrigerator Retainer Backorder WPL W11504381 $9.46

24

W11614808 Whirlpool Refrigerator Wire Harness In Stock WPL W11614808 $62.60

25

W10567563 Whirlpool Refrigerator Gasket Backorder WPL W10567563 $33.41

25

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $25.50

25

W11233912 Whirlpool Refrigerator Slide In Stock WPL W11233912 $171.99

25A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $18.91

25B

W11504447 Whirlpool Refrigerator Coupler In Stock WPL W11504447 $28.45

26

W11684620 Whirlpool Vent Backorder WPL W11684620 $14.02

26A

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $16.99

26B

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $16.69

26C

W11506621 Whirlpool Refrigerator Coupler In Stock WPL W11506621 $13.99

26D

W11506635 Whirlpool Refrigerator Valve Couple In Stock WPL W11506635 $24.99

28

W10423560 Whirlpool Refrigerator Screw Backorder WPL W10423560 $8.89

28

W10754144 Whirlpool Refrigerator Cover Backorder WPL W10754144 $55.74

28

WPW10280983 Whirlpool Refrigerator Insulation Backorder WPL WPW10280983 $57.72

29

W10563323 Whirlpool Refrigerator Flipper Backorder WPL W10563323 $85.50

29

WPW10280988 Whirlpool Refrigerator Gasket In Stock WPL WPW10280988 $7.99

29

WPW10406719 Whirlpool Refrigerator Shroud Backorder WPL WPW10406719 $48.85

30

W11126056 Whirlpool Refrigerator Adapter In Stock WPL W11126056 $68.47

31

W10278140 Whirlpool Refrigerator Unit Cover Backorder WPL W10278140 $63.98

32

W10815861 Whirlpool Refrigerator Clip Backorder WPL W10815861 $10.00

32

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $4.80

33

WPW10479155 Whirlpool Refrigerator Control In Stock WPL WPW10479155 $109.99

33

COUPLER, DOOR WPL W10505294 Contact Us For Availability

34

W10212137 Whirlpool Refrigerator Grommet Backorder WPL W10212137 $8.35

34

W11238397 Whirlpool Refrigerator Cover In Stock WPL W11238397 $14.02

35

WPW10320706 Whirlpool Refrigerator Gasket In Stock WPL WPW10320706 $16.99

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $37.84

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

W10134625 Whirlpool Refrigerator Touch-Up Pai Backorder WPL W10134625 $12.92

NLA:TOUCH-UP Backorder WPL W10917540 $10.38

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
