Model Whirlpool KEYW870BAL0 ELECTRIC DRYER – Common Parts & Diagrams

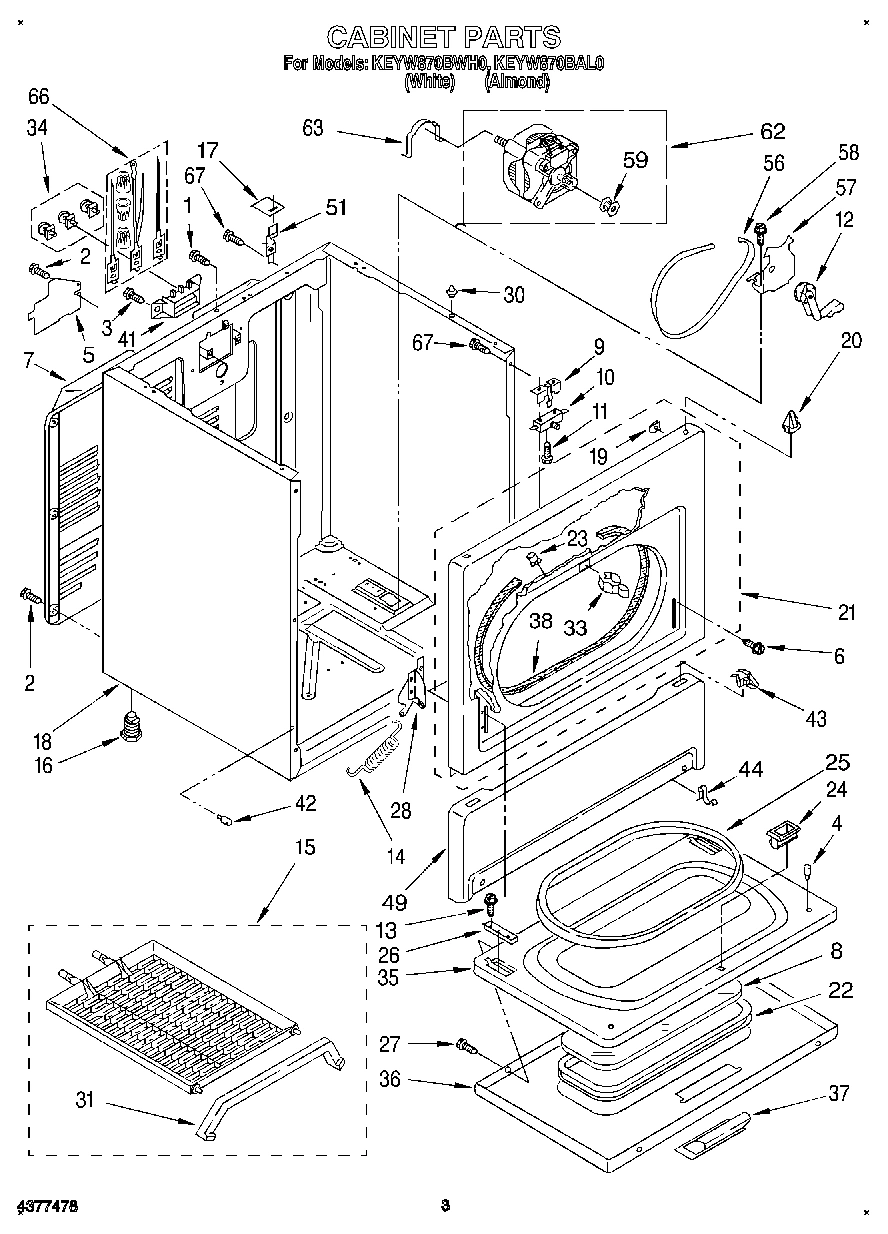

02 - SECTION

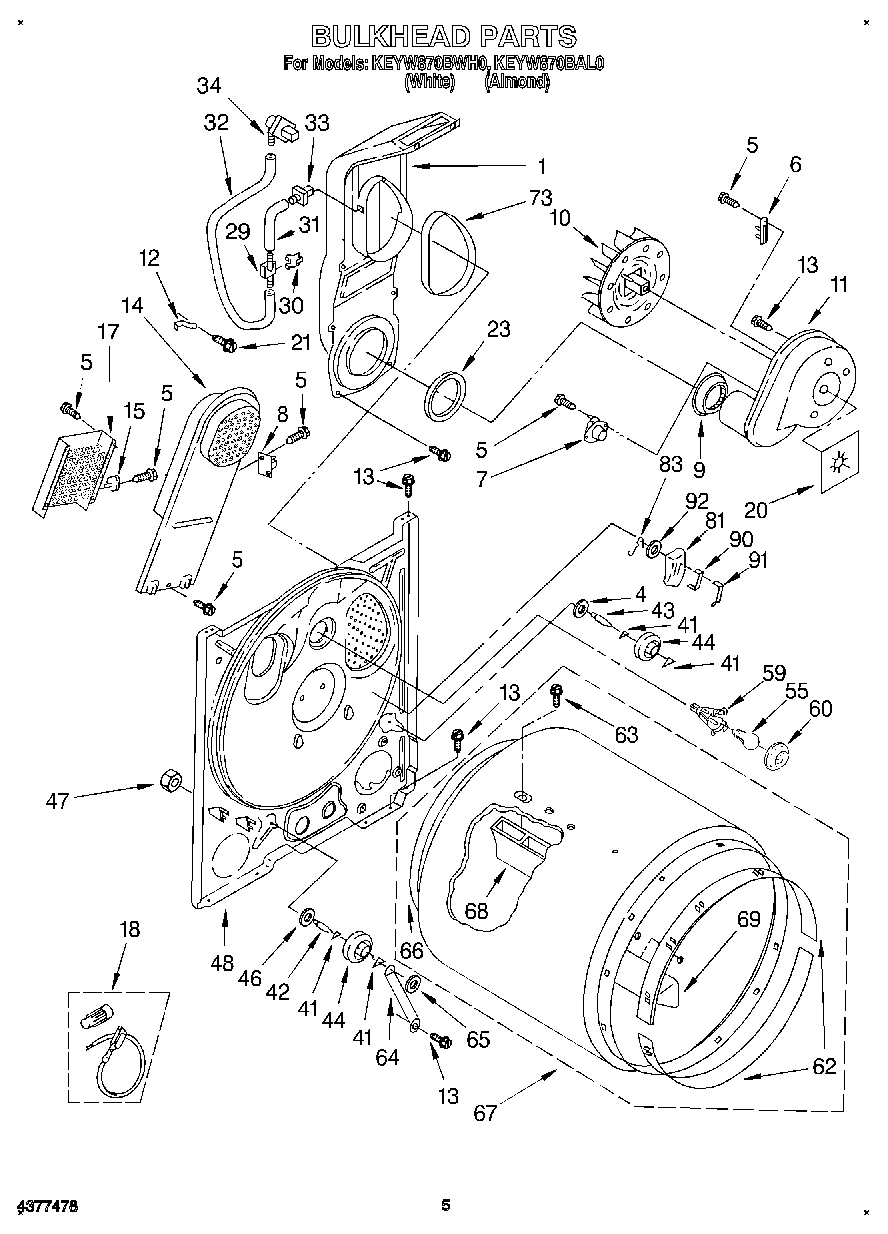

03 - SECTION

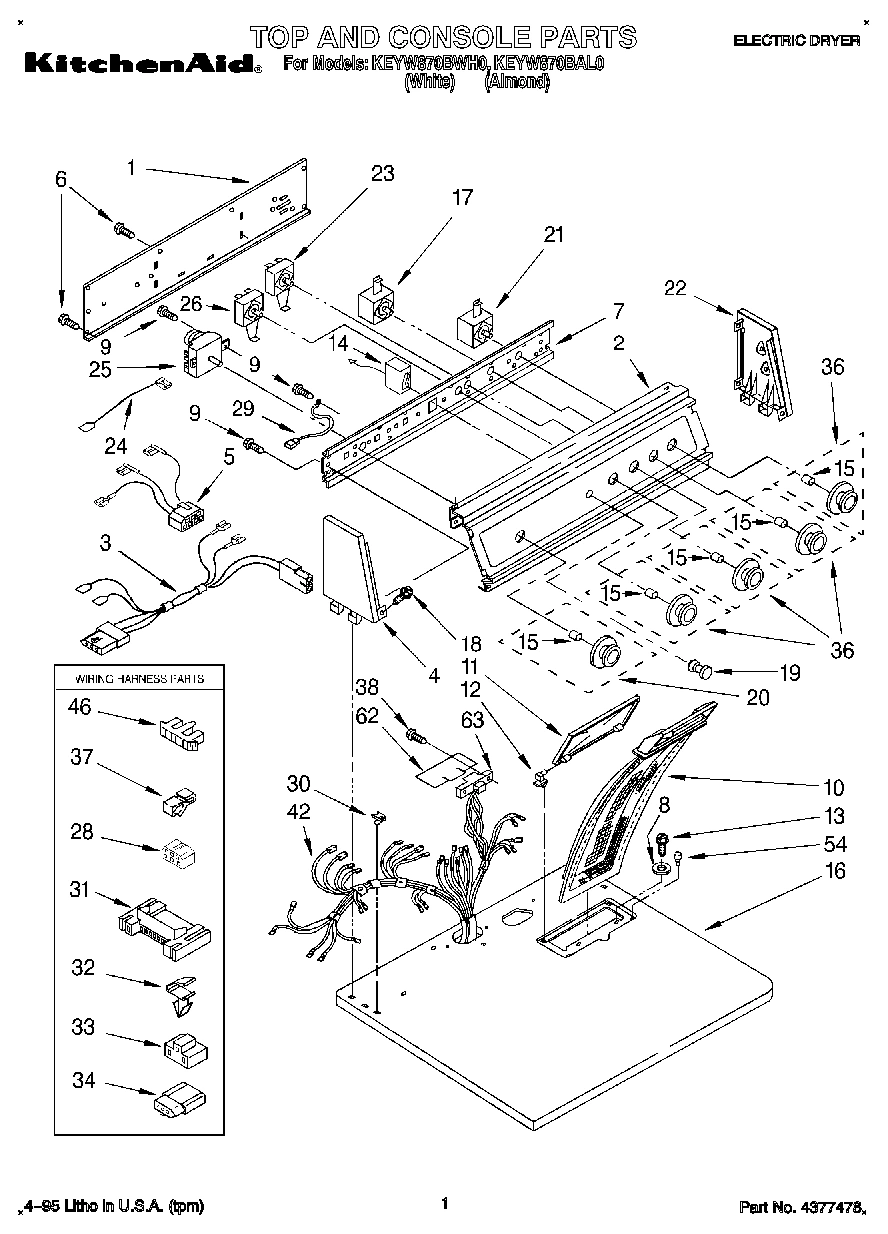

01 - SECTION
Common parts from model Whirlpool KEYW870BAL0 ELECTRIC DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT WPL 799344 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT3387320 WPL LIT3387320 Contact Us For Availability
WPL LIT3389704 WPL LIT3389704 Contact Us For Availability
WPL LIT3403303 WPL LIT3403303 Contact Us For Availability
WPL LIT3403306 WPL LIT3403306 Contact Us For Availability
1
Panel, Rear Console WPL 3399179 Contact Us For Availability
2
Panel, Control WPL 3362015 Contact Us For Availability
3
Wire, Jumper (Light Switch) WPL 3401678 Contact Us For Availability
4
End Cap (L.H.) WPL 3360571 Contact Us For Availability
5
Wire-Jumper Assembly WPL 3397693 Contact Us For Availability
7
Bracket, Control WPL 3396293 Contact Us For Availability
8
Washer WPL 237446 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 691200 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 691201 Contact Us For Availability
14
Lamp, Indicator WPL 3350417 Contact Us For Availability
16
Top (White) WPL 3399162 Contact Us For Availability
16
Top (Almond) WPL 3399163 Contact Us For Availability
18
Screw, Console WPL 64211 Contact Us For Availability
19
Lens, Light WPL 3350383 Contact Us For Availability
20
Seal, Blower WPL 3392123 Contact Us For Availability
20
Knob, Timer WPL 3396269 Contact Us For Availability
21
Relay, Push To Start WPL 3398096 Contact Us For Availability
22
Cap, End (R.H.) WPL 3360568 Contact Us For Availability
23
Switch, Temperature Control WPL 3394484 Contact Us For Availability
24
Wire, Jumper (Violet) WPL 3393809 Contact Us For Availability
24
Wire, Jumper (Blue) WPL 3393810 Contact Us For Availability
24
Wire, Jumper (Tan) WPL 3401668 Contact Us For Availability
25
Timer, 60Hz. WPL 3398196 Contact Us For Availability
26
Switch, Temperature (Extra-Care) WPL 3396012 Contact Us For Availability
28
Connector 6-Circuit WPL 3347243 Contact Us For Availability
29
Sensor, Pressure WPL 696371 Contact Us For Availability
29
Wire, Ground WPL 690853 Contact Us For Availability
30
Clip, Switch WPL 339745 Contact Us For Availability
31
Bracket, Dryer Rack WPL 692989 Contact Us For Availability
31
Tubing Upstream WPL 339892 Contact Us For Availability
32
Tubing Downstream WPL 339893 Contact Us For Availability
33
Tap Upstream WPL 339624 Contact Us For Availability
34
Tap, Downstream WPL 339625 Contact Us For Availability
34
Connector, 3-Circuit WPL 3353875 Contact Us For Availability
36
Knob, Control (4) WPL 3363041 Contact Us For Availability
37
Clip WPL 689180 Contact Us For Availability
42
Harness, Electric WPL 3401741 Contact Us For Availability
46
Connector, Timer WPL 3397269 Contact Us For Availability
48
Bulkhead WPL 3396791 Contact Us For Availability
54
Bumper, Lint Lid WPL 297535 Contact Us For Availability
59
Socket Assembly WPL 691034 Contact Us For Availability
60
Lens, Drum Light WPL 341165 Contact Us For Availability
× ![]()
