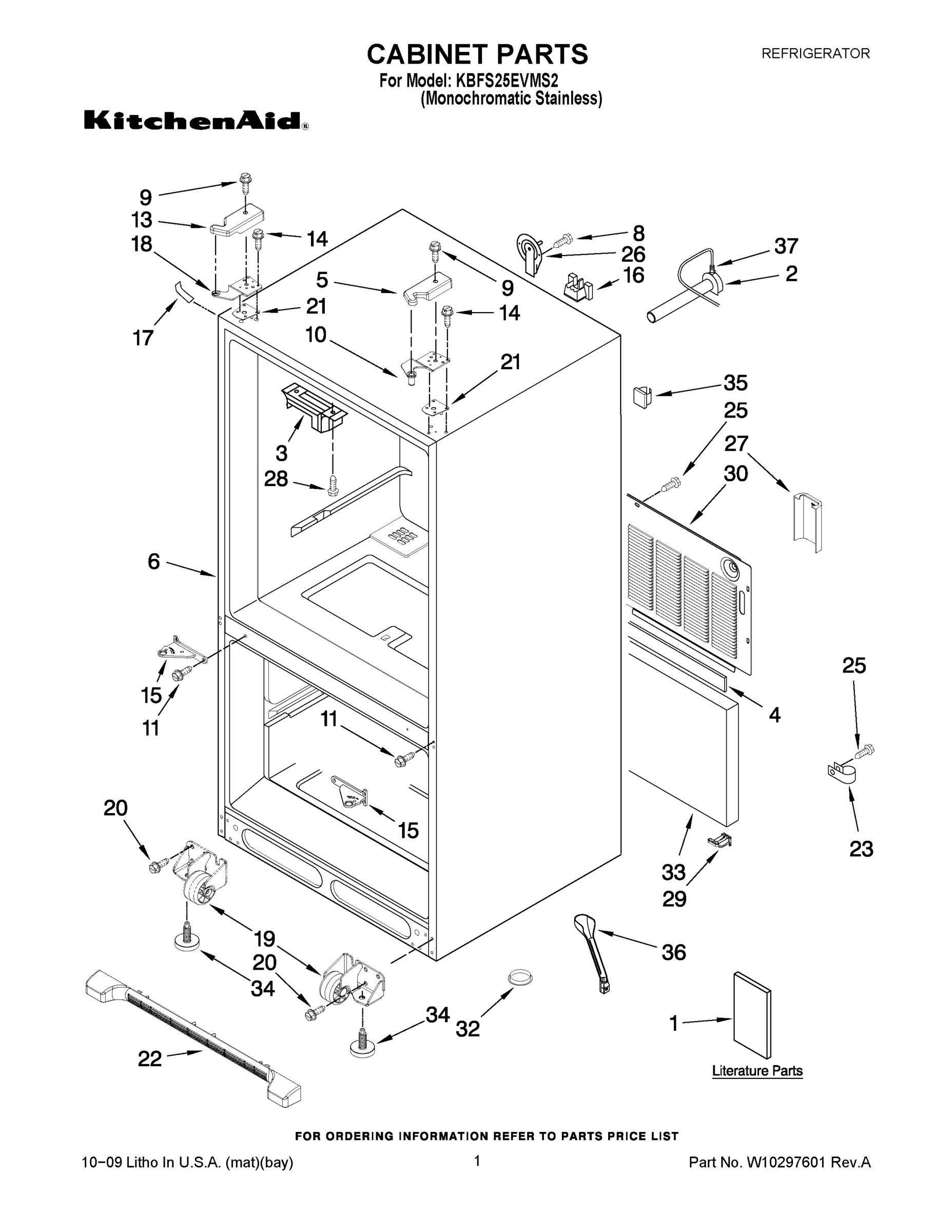

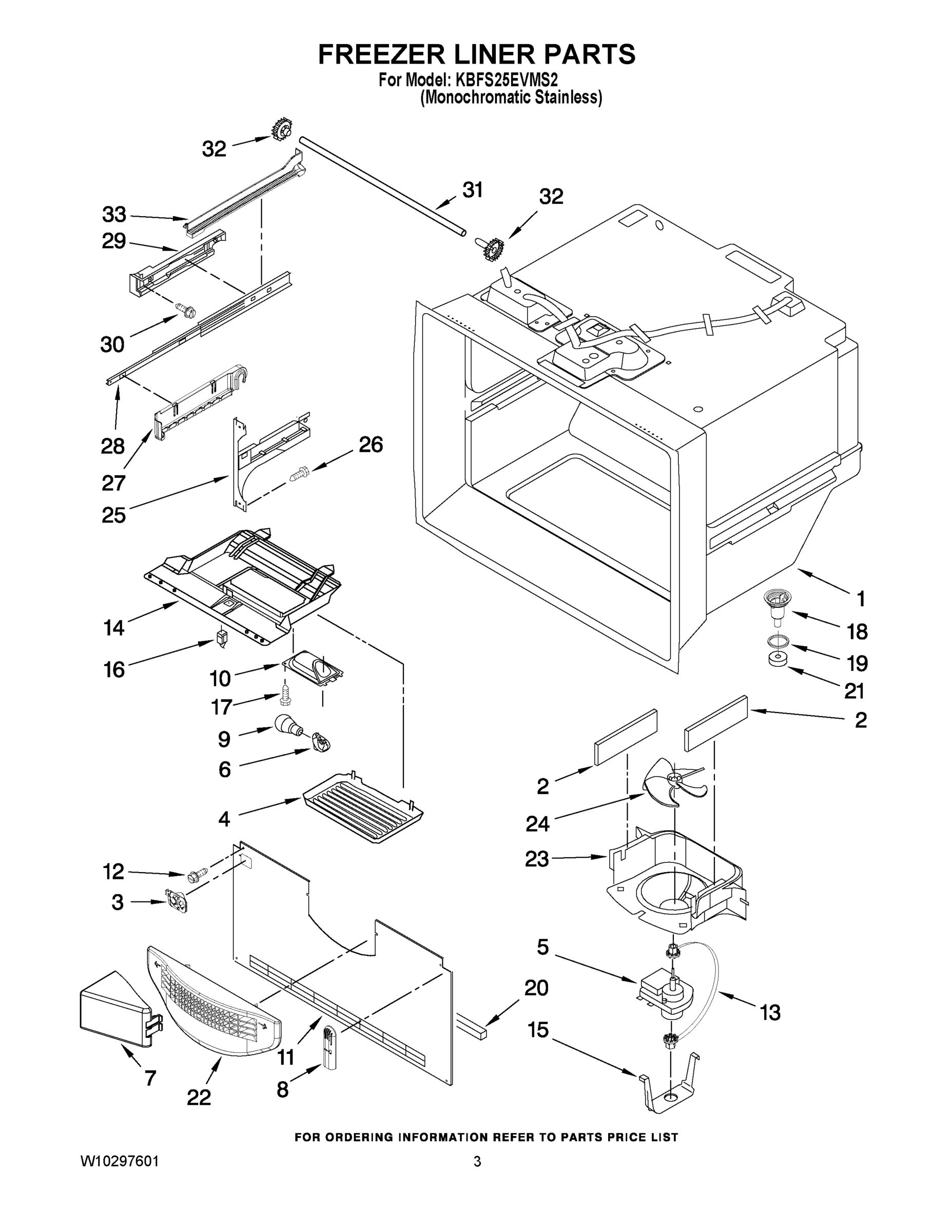

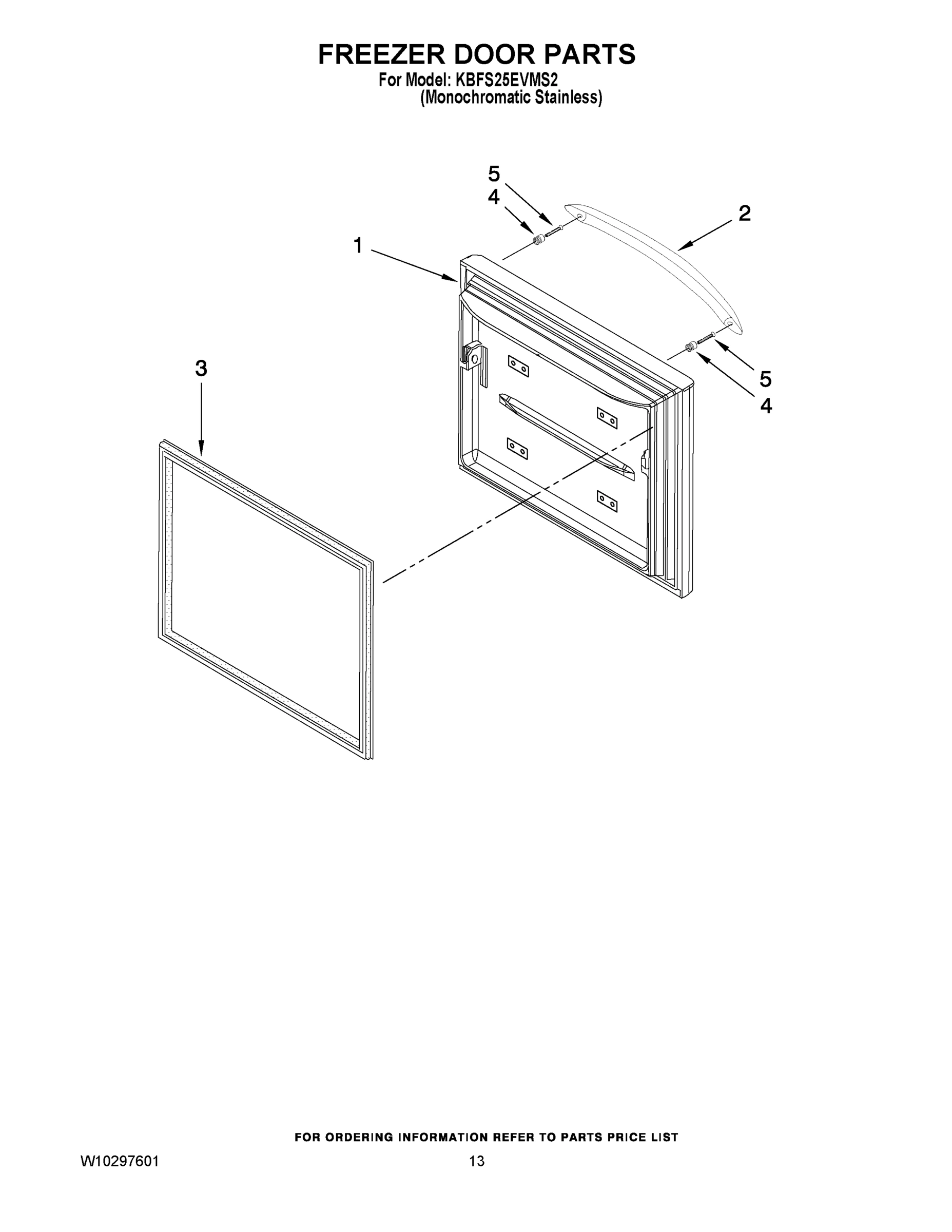

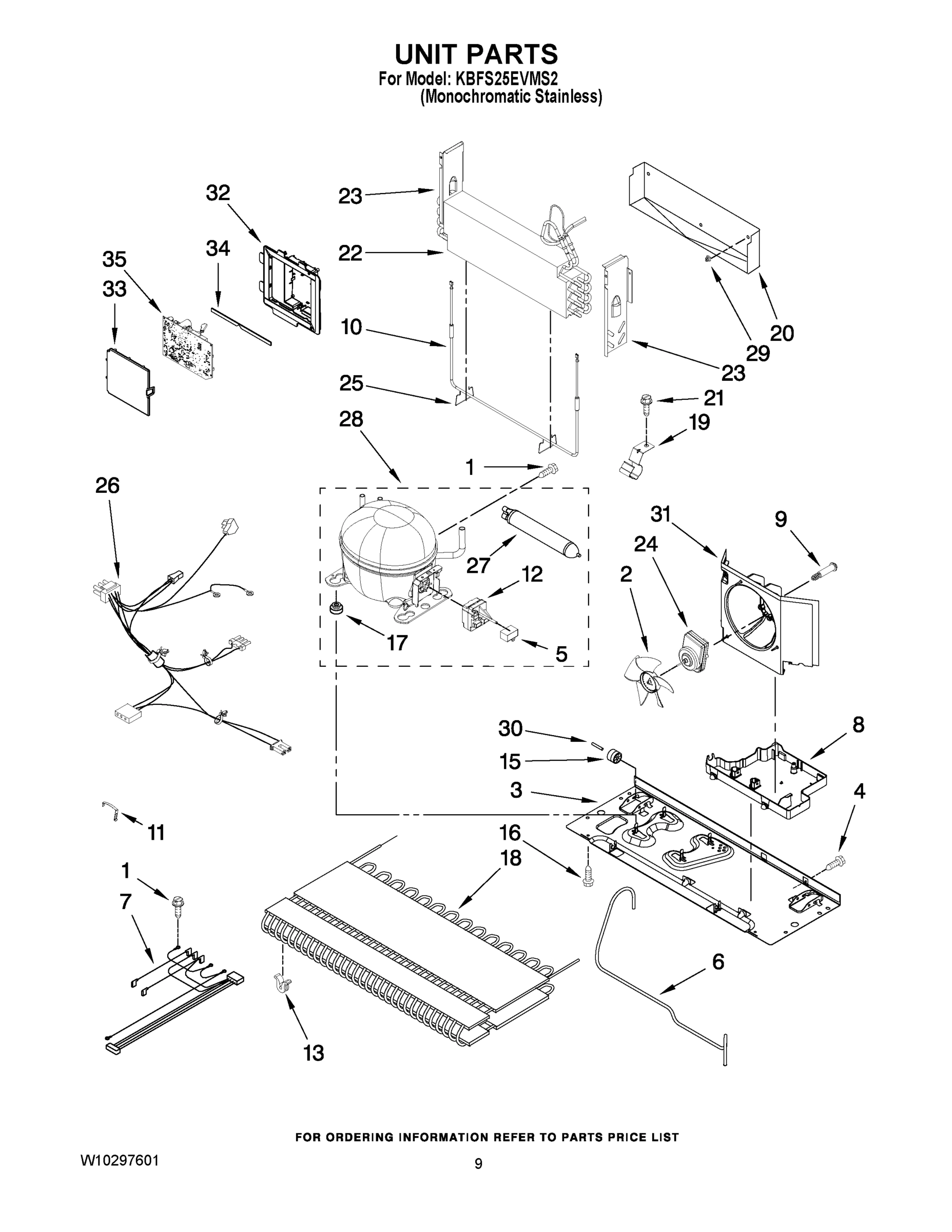

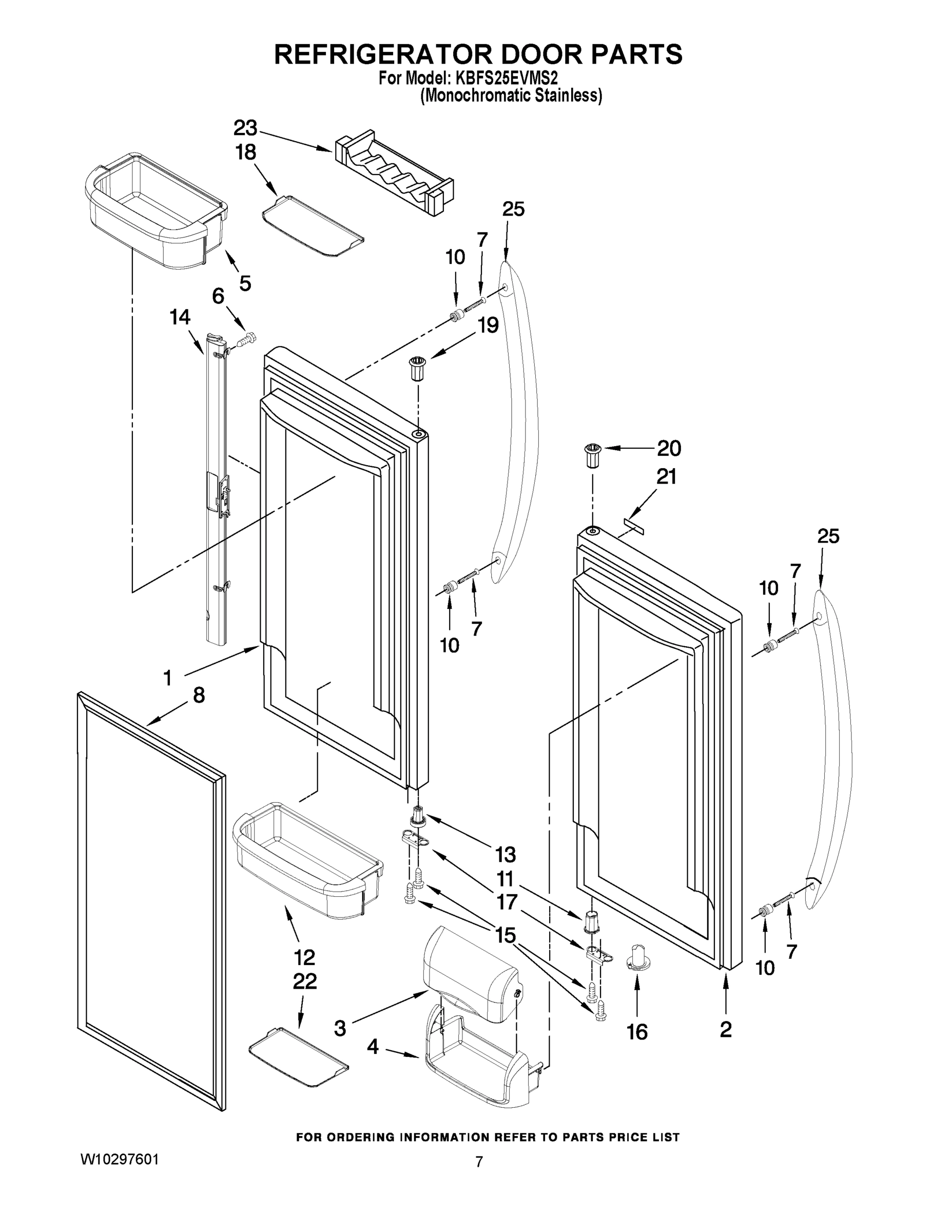

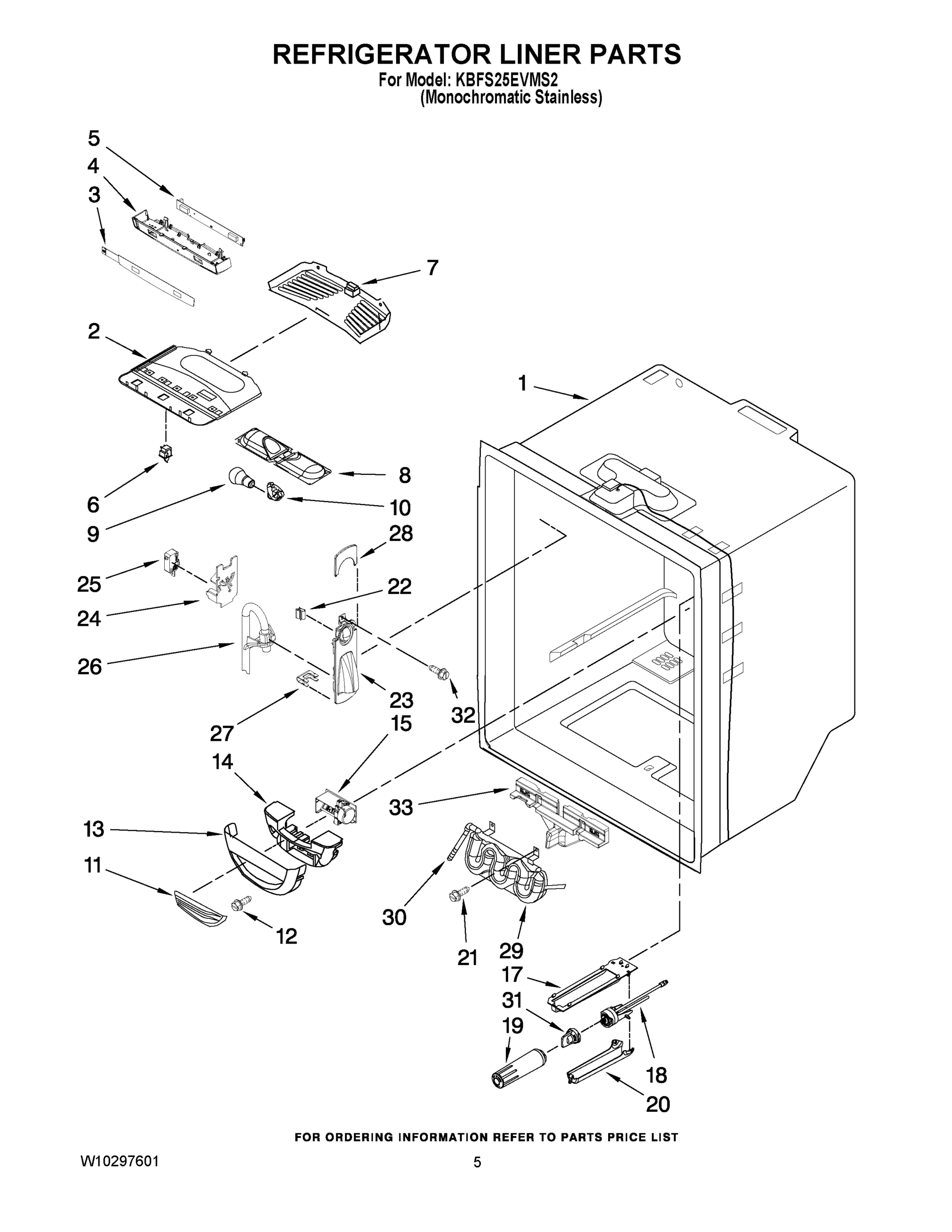

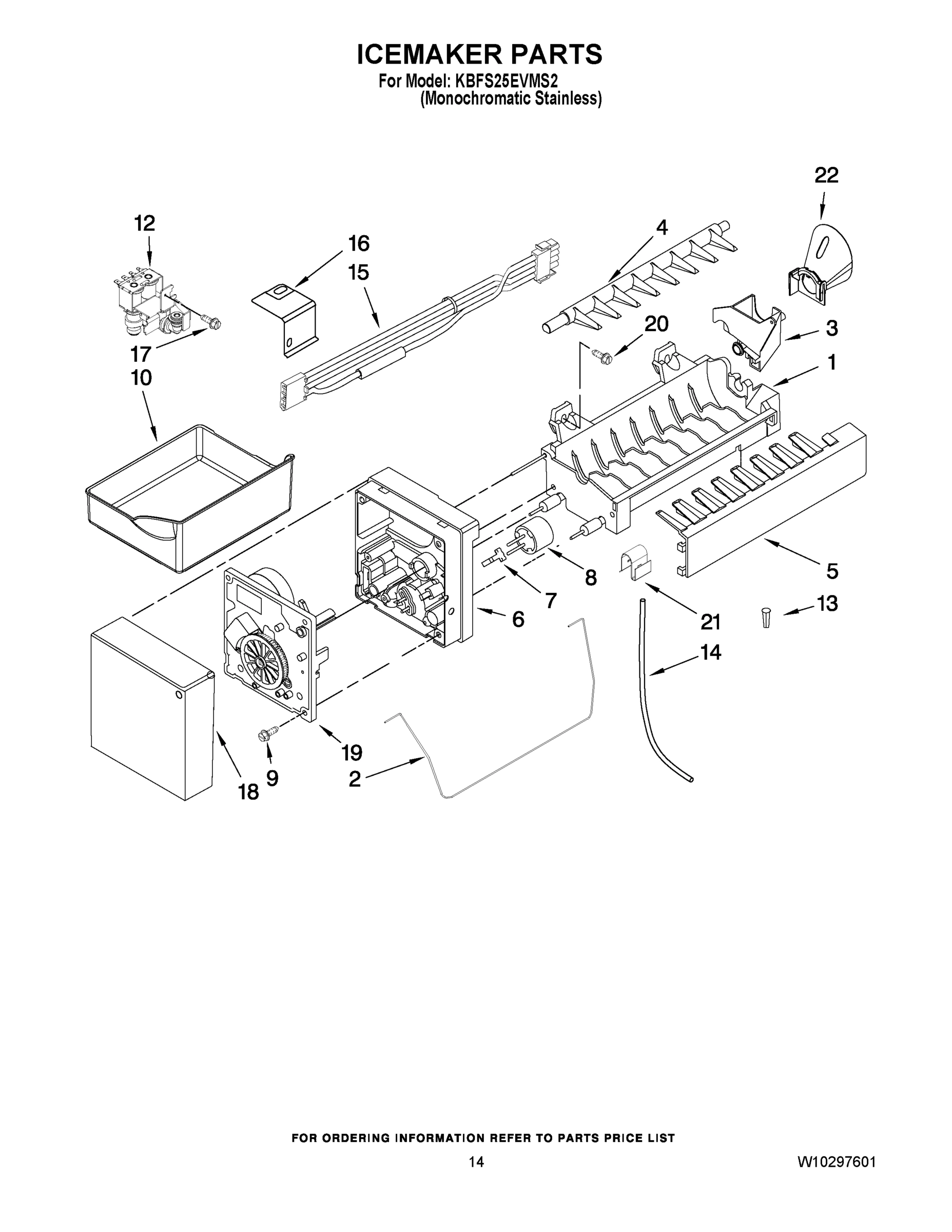

Model Whirlpool KBFS25EVMS2 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11033333 Whirlpool Glass Shelf Backorder WPL W11033333 $154.65

1

DOOR, FREEZER (STAINLESS) WPL 13092253SQ Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.82

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $68.22

2

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $159.97

2

MODULE, LIGHT WPL 12806302 Contact Us For Availability

3

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $58.43

3

W10443320 Whirlpool Gray Outer Gasket In Stock WPL W10443320 $123.04

3

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $16.36

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $66.10

3

WPW10317125 Whirlpool Refrigerator Overlay Backorder WPL WPW10317125 $172.64

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.82

4

W11416469 Whirlpool Refrigerator Housing Backorder WPL W11416469 $145.61

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

4

Cover, Light WPL 12804901 Contact Us For Availability

4

MOUNT, HANDLE WPL 12691403 Contact Us For Availability

5

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $66.51

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $67.67

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

5

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.82

5

WPW10319823-includeCORE Whirlpool WPW10319823 Backorder WPL WPW10319823-includeCORE $254.14

5

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $48.67

5

Cover, Right Hinge (Apollo Grey) WPL 12629801AP Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.39

6

WPW10217747 Whirlpool Refrigerator Tube Backorder WPL WPW10217747 $91.28

7

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $58.43

7

W10171558 Whirlpool Refrigerator Divider Backorder WPL W10171558 $27.13

7

W10911102 Whirlpool Refrigerator Wire Harness Backorder WPL W10911102 $67.87

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $64.80

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $71.00

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $17.48

8

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

8

WPW10655368 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655368 $103.45

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $7.98

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $7.86

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.82

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $96.92

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $109.20

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $7.57

W11702858 Whirlpool Housing Backorder WPL W11702858 $53.93

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $114.81

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.82

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.90

W10853652 Whirlpool Refrigerator Hinge Bushin Backorder WPL W10853652 $4.82

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $54.77

12

WP12544124 Whirlpool Refrigerator Valve In Stock WPL WP12544124 $185.10

12

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $6.83

12

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $67.06

W10217487 Whirlpool Refrigerator Cover Backorder WPL W10217487 $13.76

W11690160 Whirlpool Grommet Backorder WPL W11690160 $4.67

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $71.86

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

Bushing, Door (Bottom Left) (Apollo Grey) WPL 12699301AP Contact Us For Availability

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $77.56

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $77.68

Backorder WPL W11750607 $29.99

WP12722803AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722803AP $197.32

12655102AP Whirlpool Refrigerator Door Hinge Backorder WPL 12655102AP $96.02

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $146.33

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $17.81

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $23.39

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $57.62

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $6.20

Screw WPL 12992101 Contact Us For Availability

W11401472 Whirlpool Refrigerator Door Stop Backorder WPL W11401472 $14.02

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $9.15

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.82

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $4.82

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $31.75

W11346623 Whirlpool Refrigerator Water Filter In Stock WPL W11346623 $73.97

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $68.00

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $232.59

19

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

19

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $66.53

19

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

10961006AP Whirlpool Refrigerator Hinge Bushi Backorder WPL 10961006AP $5.90

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $16.73

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.38

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $70.23

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $56.94

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $4.82

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $4.82

Nameplate (Stainless) WPL W10046610 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $235.59

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $18.89

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $58.73

CLIP, FACADE (2) WPL B8390302SP Contact Us For Availability

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $63.26

Dam (Left Side) WPL 12225602 Contact Us For Availability

FACADE, DISP. WPL 12706909SP Contact Us For Availability

Dam (Right Side) WPL 12225702 Contact Us For Availability

24

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $52.38

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $85.07

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.48

W11673433 Whirlpool Clip Backorder WPL W11673433 $92.88

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $43.98

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $96.35

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $97.67

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

W11224411 Whirlpool Refrigerator Wire Harness Backorder WPL W11224411 $88.21

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $14.02

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.80

W10208593 Whirlpool Refrigerator Valve Cover In Stock WPL W10208593 $9.90

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.43

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $56.63

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $56.63

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $408.11

28

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $14.25

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $127.64

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $8.23

W11229977 Whirlpool Refrigerator Reservoir In Stock WPL W11229977 $108.01

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $24.26

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $24.42

Clip, Evaporator WPL 10623002 Contact Us For Availability

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $19.08

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $127.74

31

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $18.52

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $48.14

31

Plug, Bypass WPL 61003146 Contact Us For Availability

32

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $13.01

32

Basket, Freezer (Lower) WPL W10150039 Contact Us For Availability

32

BOX, HV CONTROL WPL W10257665 Contact Us For Availability

W10847995 Whirlpool Divider Assembly Backorder WPL W10847995 $57.02

W11489993 Whirlpool Refrigerator Rail In Stock WPL W11489993 $13.47

W11489994 Whirlpool Refrigerator Rail In Stock WPL W11489994 $13.47

W11714300 Whirlpool Insulation In Stock WPL W11714300 $34.01

INSULATION, SOUND WPL 12820505 Contact Us For Availability

LID, HV BOX WPL 12957702 Contact Us For Availability

34

GASKET, HV BOX WPL 12957801 Contact Us For Availability

35

WPW10317076-includeCORE Whirlpool WPW10317076 Backorder WPL WPW10317076-includeCORE $299.39

37

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $17.99

40

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $55.26

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $59.84

350930 Whirlpool White Spray Paint In Stock WPL 350930 $20.46

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.04

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $9.44

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $14.16

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $58.05

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.50

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $44.05

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.21

WPW10224292 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10224292 $88.98

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

HARNESS, FZ MODULE (INCLUDES THERMISTOR) WPL W10235312 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

REFRIGERANT CHARGE (5.25 OZS. (R-134A)) WPL NP Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
