Model Maytag JFX2597AEP2 REFRIGERATOR – Common Parts & Diagrams

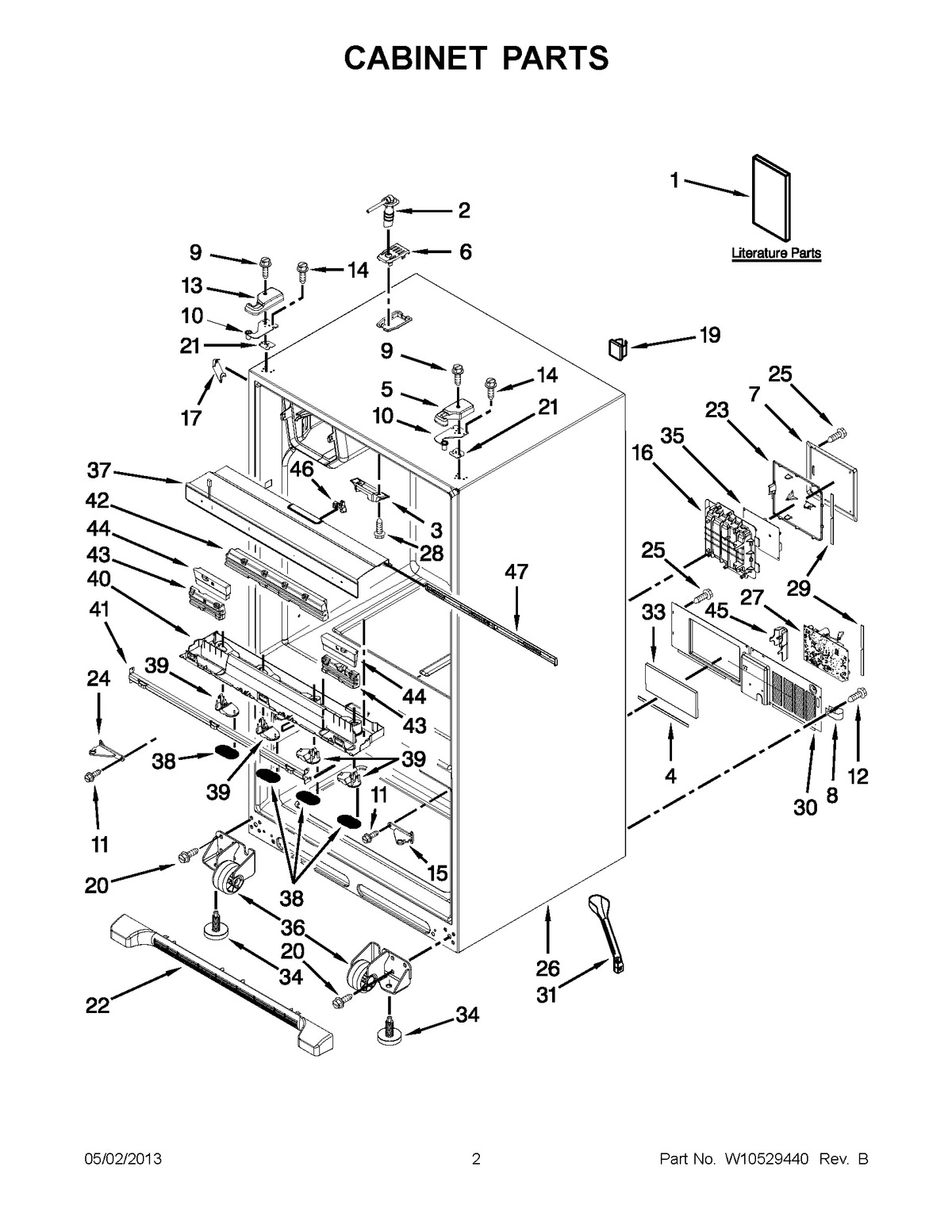

01 - CABINET PARTS

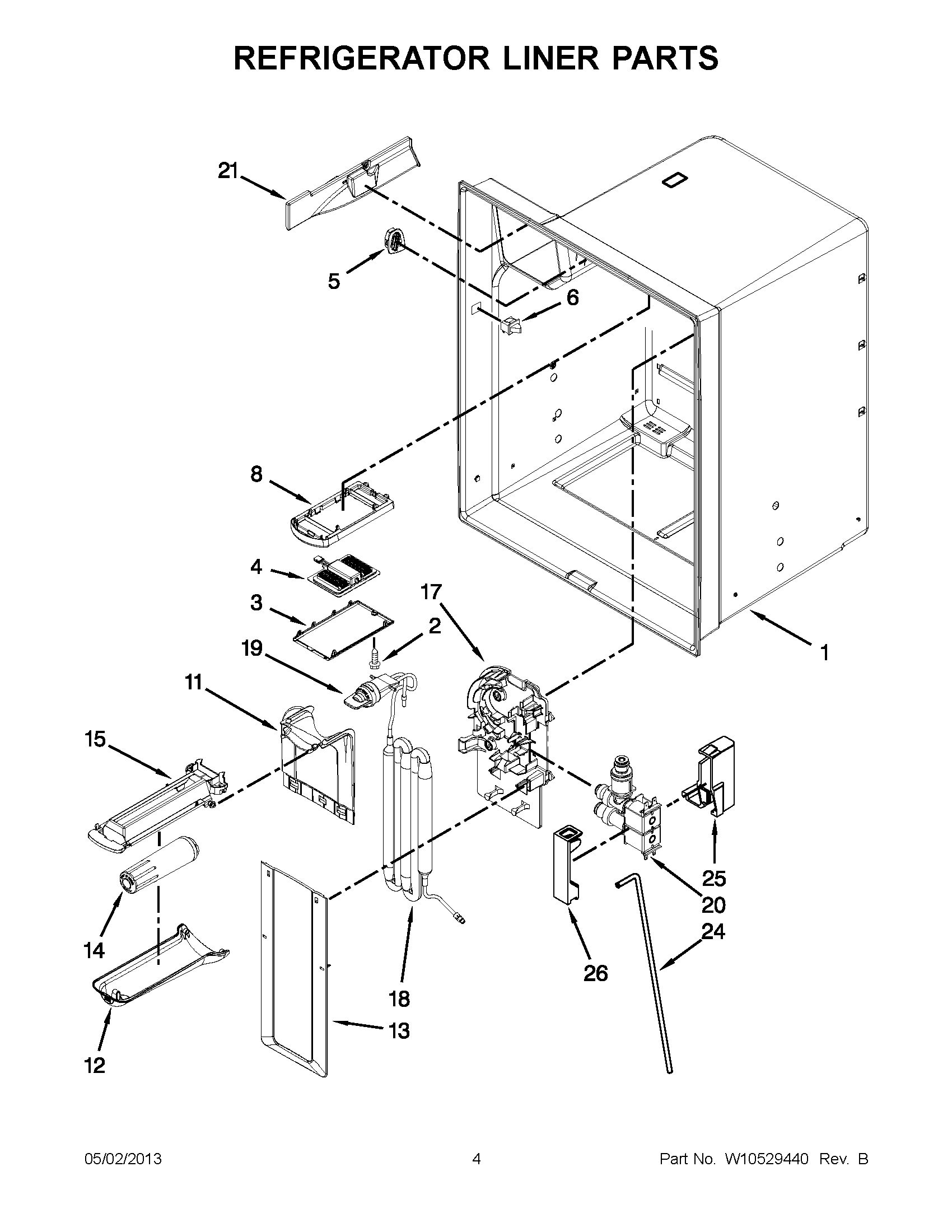

02 - REFRIGERATOR LINER PARTS

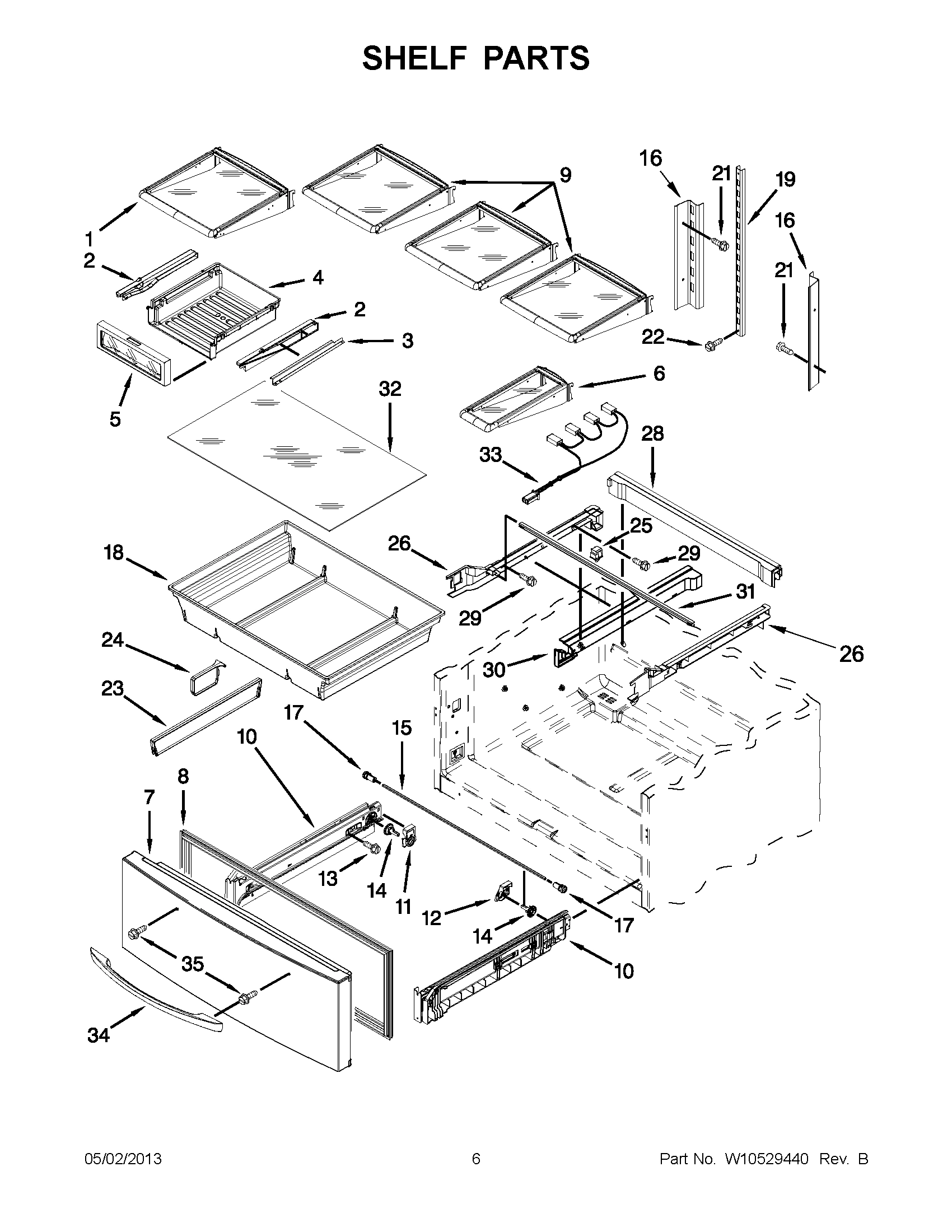

03 - SHELF PARTS

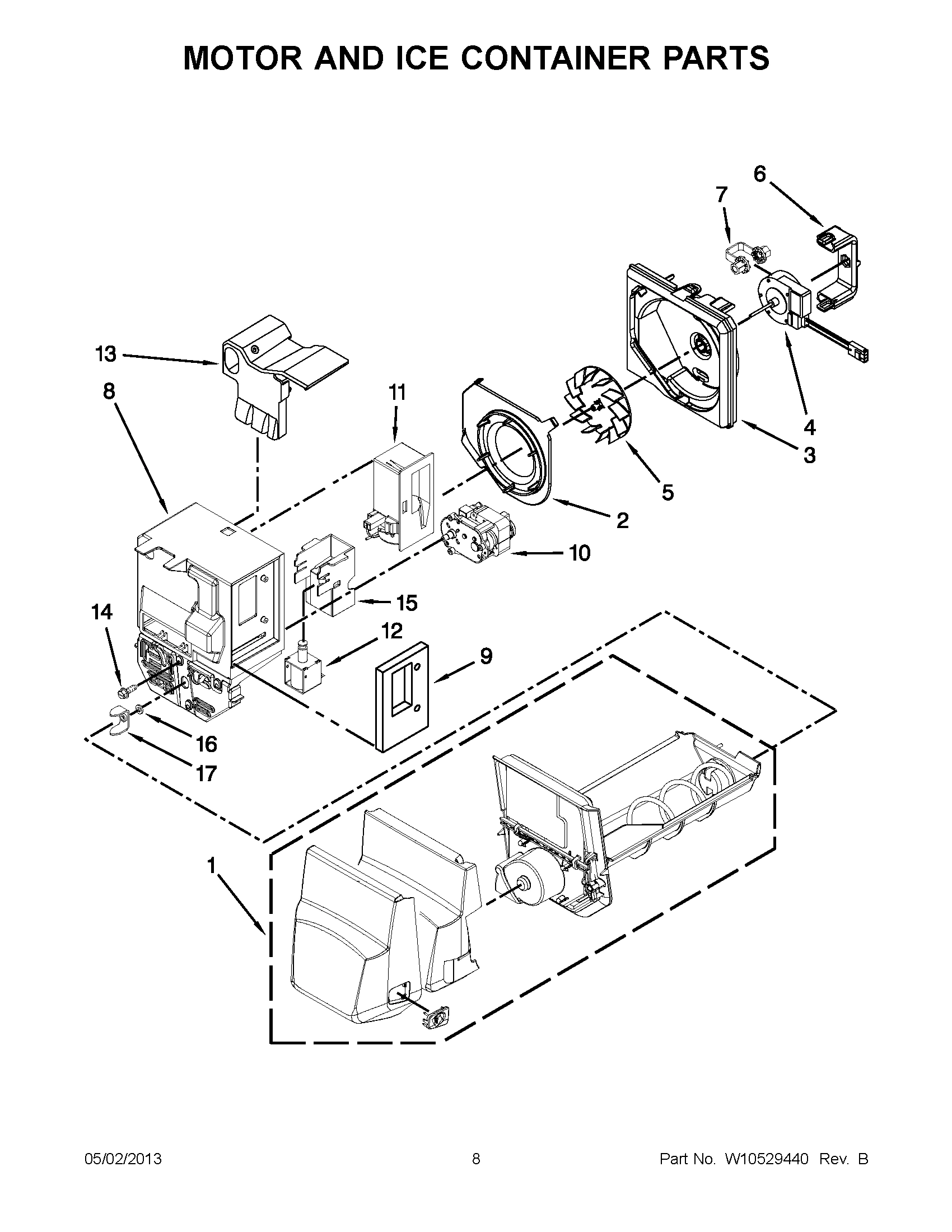

04 - MOTOR AND ICE CONTAINER PARTS

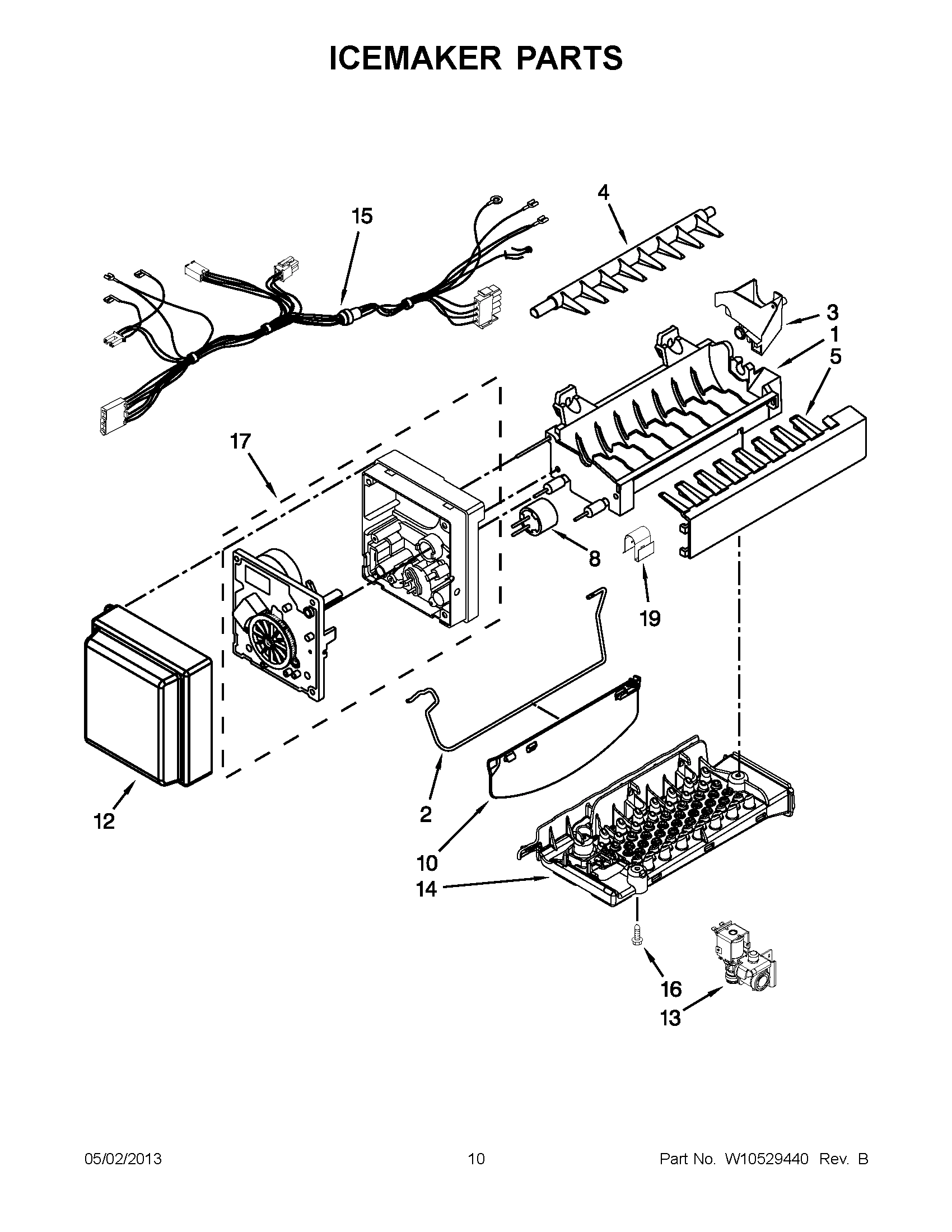

05 - ICEMAKER PARTS

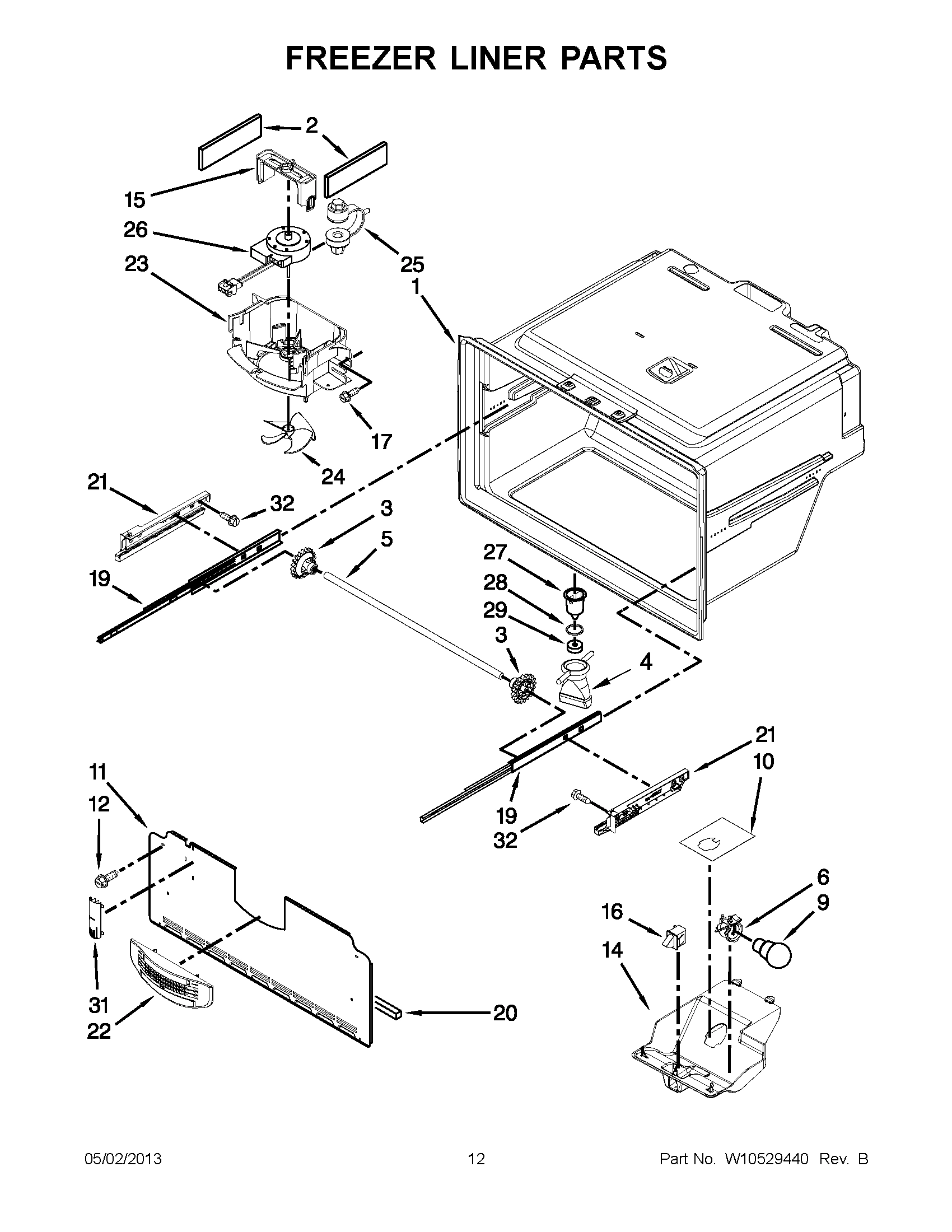

06 - FREEZER LINER PARTS

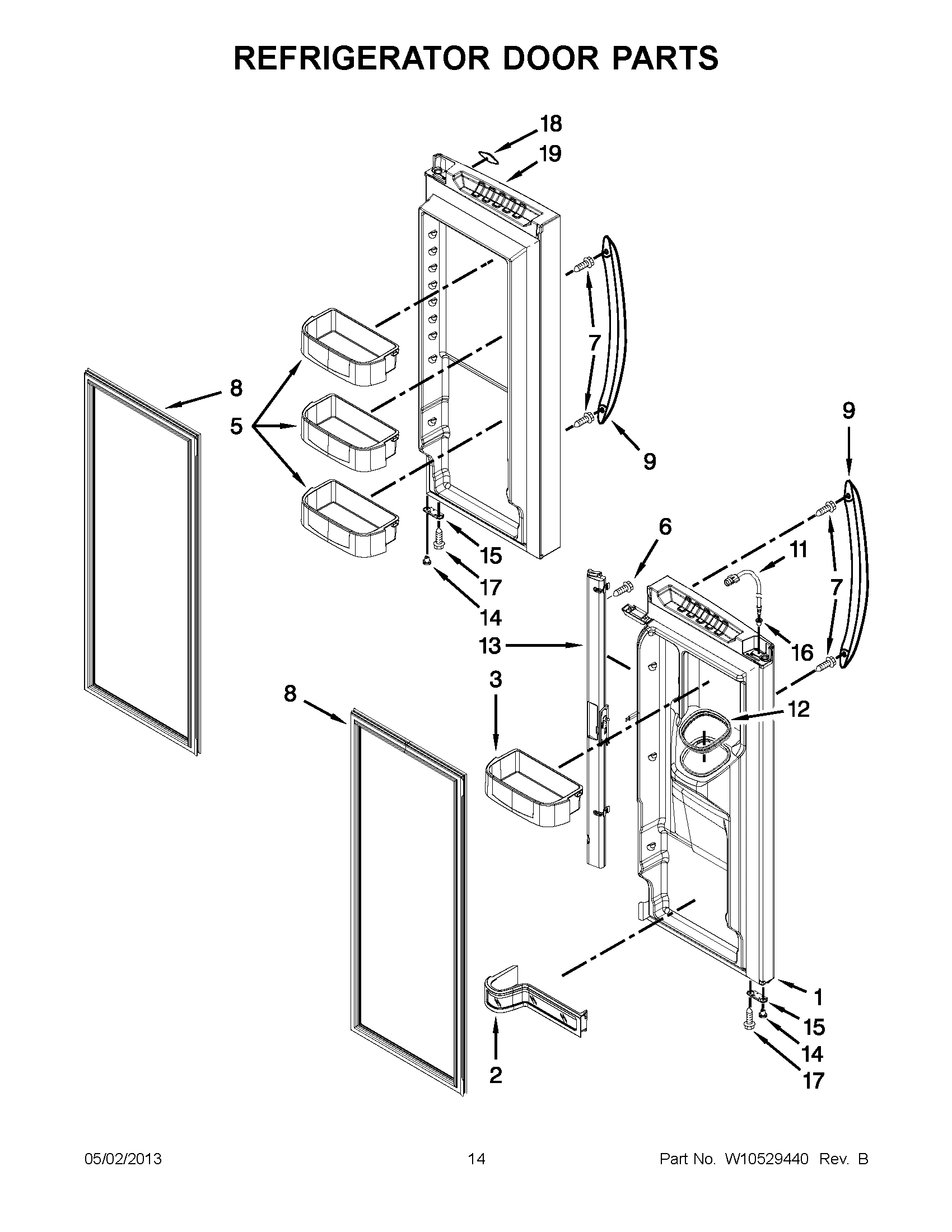

07 - REFRIGERATOR DOOR PARTS
08 - FREEZER DOOR PARTS

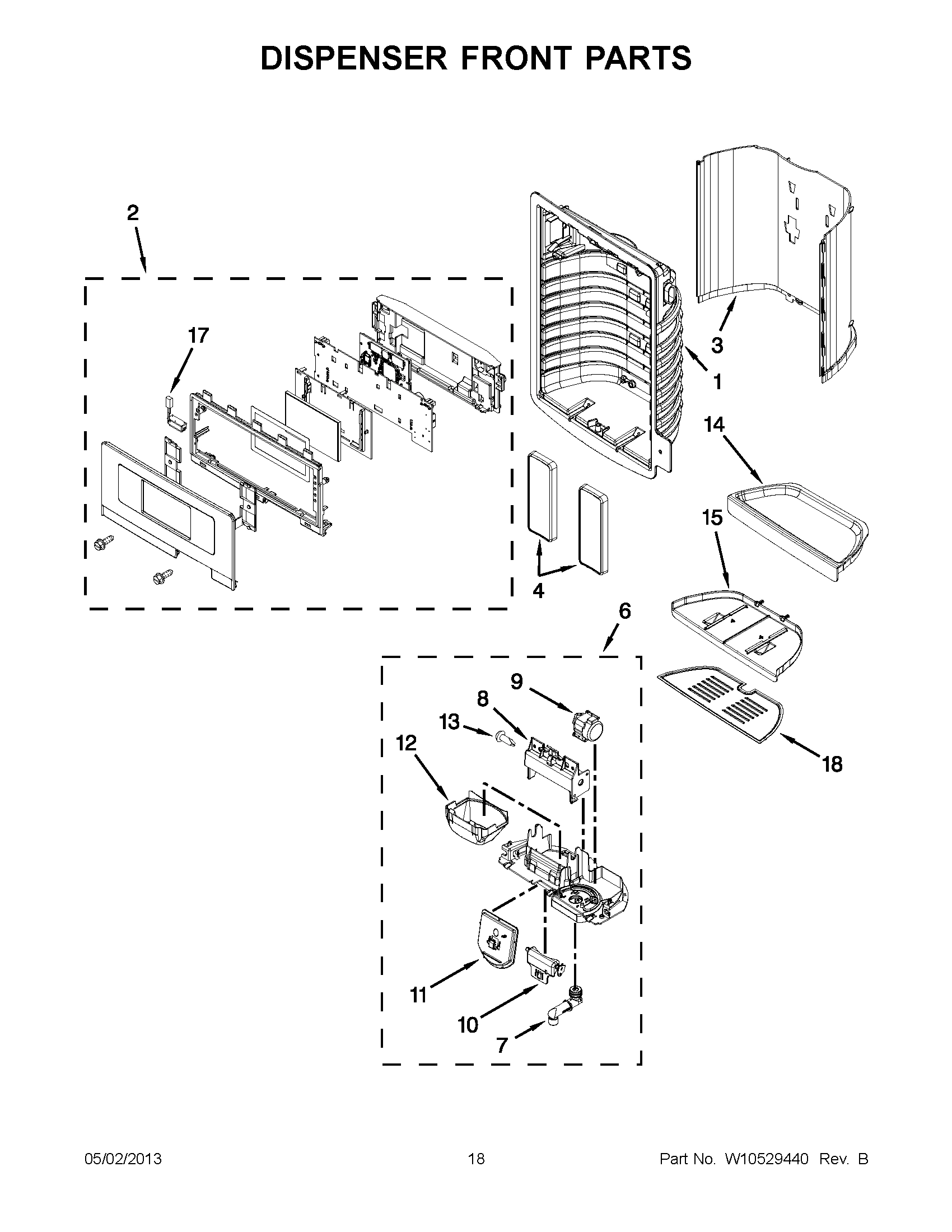

09 - DISPENSER FRONT PARTS

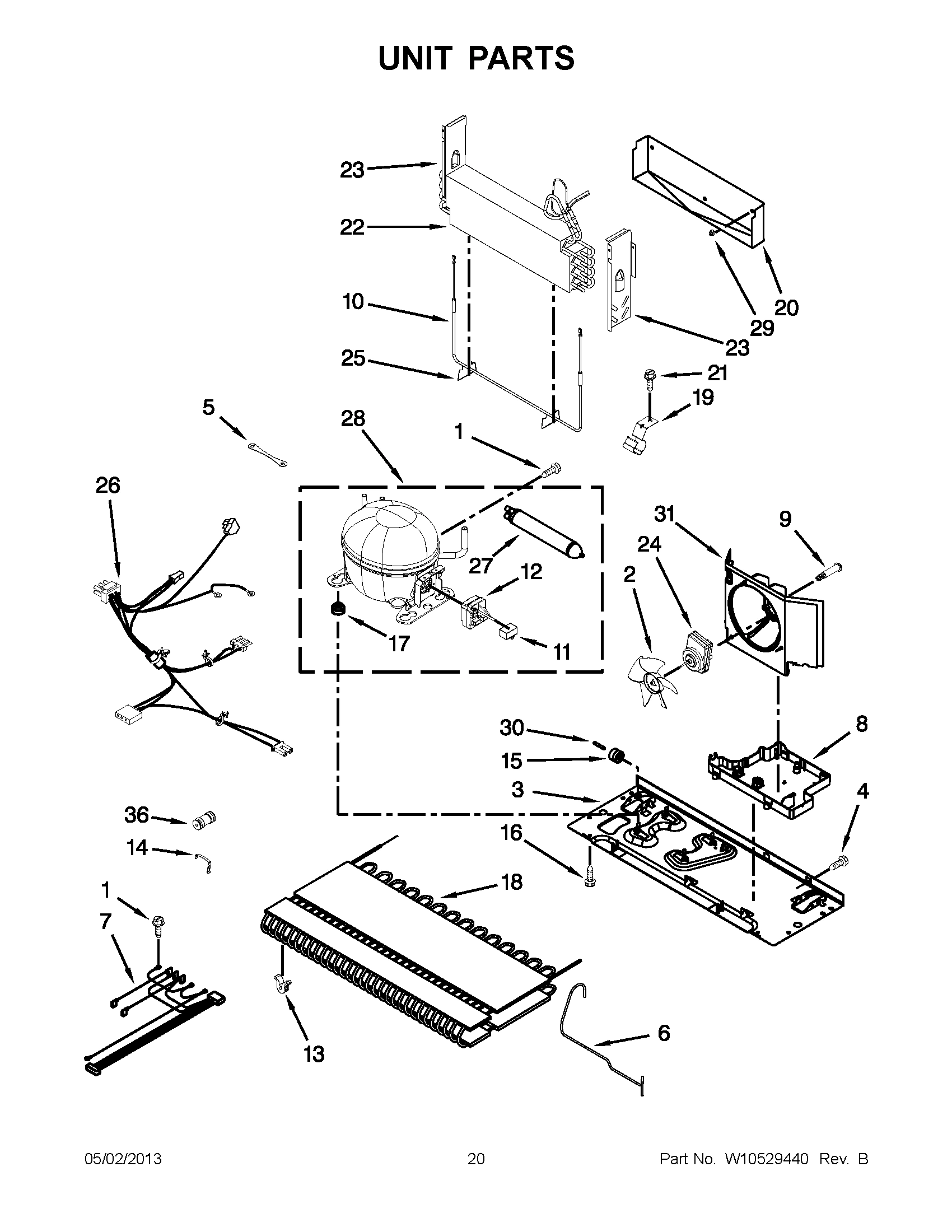

10 - UNIT PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JFX2597AEP2 REFRIGERATOR
1
ASSEMBLEY, SHELF & ROLLER MAY W10345310 Contact Us For Availability
1
MAY W10536669 MAY W10536669 Contact Us For Availability
1
ASSEMBLY, MOLD & HEATER MAY W10300025 Contact Us For Availability
1
MAY 13107324S MAY 13107324S Contact Us For Availability
1
MAY 13107111S MAY 13107111S Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
2
SCREW (STAINLESS) MAY 3400065 Contact Us For Availability
2
RUNNER, PAN ROLLER (RIGHT HAND) MAY W10346890 Contact Us For Availability
2
RUNNER, PAN ROLLER (LEFT HAND) MAY W10346891 Contact Us For Availability
2
MAY W10121282 MAY W10121282 Contact Us For Availability
2
MAY W10378254 MAY W10378254 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10355269 MAY W10355269 Contact Us For Availability
2
MAY W10443322 MAY W10443322 Contact Us For Availability
2
MAY W10509461 MAY W10509461 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
3
MAY 12698403 MAY 12698403 Contact Us For Availability
3
LENS, RC LED MAY W10311756 Contact Us For Availability
3
MAY W10385043 MAY W10385043 Contact Us For Availability
3
MAY W10309863 MAY W10309863 Contact Us For Availability
3
MAY W10377998 MAY W10377998 Contact Us For Availability
3
MAY W10355270 MAY W10355270 Contact Us For Availability
3
MAY 12924801SP MAY 12924801SP Contact Us For Availability
3
FALSE WALL DISP. (STAINLESS) MAY W10305890 Contact Us For Availability
3
MAY W10480111 MAY W10480111 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MODULE, MAIN LED MAY W10289592 Contact Us For Availability
4
MAY W10366640 MAY W10366640 Contact Us For Availability
4
MAY W10308033 MAY W10308033 Contact Us For Availability
4
EJECTOR, ARM MAY W10318914 Contact Us For Availability
4
MAY W10309238 MAY W10309238 Contact Us For Availability
4
ADAPTER, OUTER BIN MAY 12925403SP Contact Us For Availability
4
ASSEMBLY, PAD (GREY) MAY W10353848 Contact Us For Availability
5
MAY 12962302AP MAY 12962302AP Contact Us For Availability
5
MAY W10555984 MAY W10555984 Contact Us For Availability
5
MAY W10396909 MAY W10396909 Contact Us For Availability
5
MAY W10123444 MAY W10123444 Contact Us For Availability
5
STRIPPER, ICE MAY W10122563 Contact Us For Availability
5
MAY 12812903WD MAY 12812903WD Contact Us For Availability
5
MAY W10355264 MAY W10355264 Contact Us For Availability
5
BIN, UPPER FREEZER MAY 12924903 Contact Us For Availability
5
MAY W10236396 MAY W10236396 Contact Us For Availability
6
MAY 12981401AP MAY 12981401AP Contact Us For Availability
6
SWITCH, ROCKER MAY 12466103 Contact Us For Availability
6
SHELF, MINI MAY W10329926 Contact Us For Availability
6
MAY 12990513 MAY 12990513 Contact Us For Availability
6
MAY 12956603 MAY 12956603 Contact Us For Availability
6
ADAPTER, CENTER BIN MAY 12925404SP Contact Us For Availability
6
MAY W10353552 MAY W10353552 Contact Us For Availability
6
MAY W10242974 MAY W10242974 Contact Us For Availability
7
MAY 12961602 MAY 12961602 Contact Us For Availability
7
MAY 13107112S MAY 13107112S Contact Us For Availability
7
MAY W10151687 MAY W10151687 Contact Us For Availability
7
BRACKET AND GLIDE ASSEMBLY MAY W10235357 Contact Us For Availability
7
MAY 2316647 MAY 2316647 Contact Us For Availability
7
MOTOR, EVAPORATOR (INCLUDES HEATER HARNESS) MAY W10276647 Contact Us For Availability
8
MAY M0108107 MAY M0108107 Contact Us For Availability
8
HOUSING-RC-LED MAY W10343359 Contact Us For Availability
8
GASKET-PANTRY (GREY) MAY W10443326 Contact Us For Availability
8
MAY W10309864 MAY W10309864 Contact Us For Availability
8
MAY W10290336 MAY W10290336 Contact Us For Availability
8
MAY W10443273 MAY W10443273 Contact Us For Availability
8
MAY W10235367 MAY W10235367 Contact Us For Availability
8
MAY W10174827 MAY W10174827 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY W10329925 MAY W10329925 Contact Us For Availability
9
MAY 12920001 MAY 12920001 Contact Us For Availability
9
BULB, LIGHT MAY W10311527 Contact Us For Availability
9
DOOR HANDLE (STAINLESS (JFX2597AEM2)) MAY W10298179 Contact Us For Availability
9
DOOR HANDLE (STAINLESS (JFX2597AEP2)) MAY W10446527 Contact Us For Availability
9
RETAINER, GLIDE (LEFT HAND) MAY 12925501SP Contact Us For Availability
9
RETAINER, GLIDE (RIGHT HAND) MAY 12925502SP Contact Us For Availability
9
MAY W10205979 MAY W10205979 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
HINGE, TOP LEFT HAND MAY 12963204ED Contact Us For Availability
10
HINGE, TOP RIGHT HAND MAY 12963205ED Contact Us For Availability
10
ADAPTER, PANTRY (LEFT HAND) MAY W10295155 Contact Us For Availability
10
ADAPTER, PANTRY (RIGHT HAND) MAY W10295157 Contact Us For Availability
10
MAY W10309868 MAY W10309868 Contact Us For Availability
10
MAY W10351019 MAY W10351019 Contact Us For Availability
10
HOUSING, FOIL MAY W10277466 Contact Us For Availability
10
BRACKET, DOOR SLIDE (LEFT HAND) MAY W10330991 Contact Us For Availability
10
BRACKET, DOOR SLIDE (RIGHT HAND) MAY W10330993 Contact Us For Availability
10
MAY W10346124 MAY W10346124 Contact Us For Availability
10
MAY 12729123 MAY 12729123 Contact Us For Availability
11
MAY W10339086 MAY W10339086 Contact Us For Availability
11
MAY 12960101 MAY 12960101 Contact Us For Availability
11
GEAR, SPUR MAY W10277360 Contact Us For Availability
11
HANDLE, FREEZER (STAINLESS (JFX2597AEP2)) MAY W10409333 Contact Us For Availability
11
HANDLE, FREEZER (STAINLESS (JFX2597AEM2)) MAY W10564657 Contact Us For Availability
11
DAMPER, CONTROL MAY W10196393 Contact Us For Availability
11
MAY W10308421 MAY W10308421 Contact Us For Availability
11
MAY W10511930 MAY W10511930 Contact Us For Availability
11
DOOR, ICE MAY W10317279 Contact Us For Availability
11
MAY W10350564 MAY W10350564 Contact Us For Availability
12
MAY 12960301 MAY 12960301 Contact Us For Availability
12
COVER, GEAR (LEFT HAND) MAY W10284709 Contact Us For Availability
12
COVER, GEAR (RIGHT HAND) MAY W10294414 Contact Us For Availability
12
MAY W10460893 MAY W10460893 Contact Us For Availability
12
ASSEMBLY, SOLENOID MAY W10309866 Contact Us For Availability
12
COVER, FRONT MAY W10460383 Contact Us For Availability
12
MAY W10287601 MAY W10287601 Contact Us For Availability
12
GUIDE, ICE MAY W10339578 Contact Us For Availability
12
START DEVICE, COMBINATION (START RELAY AND OV MAY W10197428 Contact Us For Availability
13
MAY 12962301AP MAY 12962301AP Contact Us For Availability
13
MAY 12960001 MAY 12960001 Contact Us For Availability
13
MAY W10272364 MAY W10272364 Contact Us For Availability
13
MAY W10118612 MAY W10118612 Contact Us For Availability
13
MAY W10498990 MAY W10498990 Contact Us For Availability
13
MULLION, DOOR (GREY) MAY W10311757 Contact Us For Availability
13
CLIP, MOTOR COUPLING MAY W10174818 Contact Us For Availability
13
MAY W10137529 MAY W10137529 Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY UKF8001 MAY UKF8001 Contact Us For Availability
14
SCREW MAY 12991701 Contact Us For Availability
14
MAY W10312691 MAY W10312691 Contact Us For Availability
14
MAY W10315248 MAY W10315248 Contact Us For Availability
14
MAY 12028505AP MAY 12028505AP Contact Us For Availability
14
TRAY, DISPENSER (STAINLESS) MAY W10305897 Contact Us For Availability
14
MAY W10204187 MAY W10204187 Contact Us For Availability
15
HINGE, CENTER (RT) (GREY) MAY 13000002AP Contact Us For Availability
15
MAY 12955901 MAY 12955901 Contact Us For Availability
15
SHAFT, RACK MAY W10298176 Contact Us For Availability
15
MAY W10346971 MAY W10346971 Contact Us For Availability
15
MAY W10404016 MAY W10404016 Contact Us For Availability
15
MAY 12956601 MAY 12956601 Contact Us For Availability
15
MAY 12968202AP MAY 12968202AP Contact Us For Availability
15
SLIDE, TRAY DISPENSER (GREY) MAY W10267863 Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
16
MAY W10456699 MAY W10456699 Contact Us For Availability
16
MAY W10251965 MAY W10251965 Contact Us For Availability
16
MAY W10251968 MAY W10251968 Contact Us For Availability
16
MAY W10465946 MAY W10465946 Contact Us For Availability
16
SWITCH, LIGHT MAY 12466111SP Contact Us For Availability
16
CLIP, BUSHING MAY 12996601 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
MAY W10334463 MAY W10334463 Contact Us For Availability
17
COLLAR, GEAR MAY W10277361 Contact Us For Availability
17
MAY 12990521 MAY 12990521 Contact Us For Availability
17
YOKE, ICE (DISPENSER) MAY 63052A001 Contact Us For Availability
17
ASSEMBLY, MODULE MAY W10377147 Contact Us For Availability
17
MAY 12990504 MAY 12990504 Contact Us For Availability
17
MAY W10238083 MAY W10238083 Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
18
MAY W10418477 MAY W10418477 Contact Us For Availability
18
MAY W10530656 MAY W10530656 Contact Us For Availability
18
NAMEPLATE (STAINLESS (JFX2597AEM2)) MAY W10214168 Contact Us For Availability
18
NAMEPLATE (STAINLESS (JFX2597AEP2)) MAY W10420623 Contact Us For Availability
18
MAY W10215957 MAY W10215957 Contact Us For Availability
18
MAY W10346415 MAY W10346415 Contact Us For Availability
19
MAY 12664501SP MAY 12664501SP Contact Us For Availability
19
MAY W10273464 MAY W10273464 Contact Us For Availability
19
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
19
MAY W10120018 MAY W10120018 Contact Us For Availability
19
MAY 13107319S MAY 13107319S Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY W10349187 MAY W10349187 Contact Us For Availability
20
GASKET MAY A3189396 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
21
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
21
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
21
MAY 12990702 MAY 12990702 Contact Us For Availability
21
MAY W10309869 MAY W10309869 Contact Us For Availability
21
MAY W10284682 MAY W10284682 Contact Us For Availability
21
MAY W10284683 MAY W10284683 Contact Us For Availability
22
MAY W10534155 MAY W10534155 Contact Us For Availability
22
MAY 12990512 MAY 12990512 Contact Us For Availability
22
MAY 12959901 MAY 12959901 Contact Us For Availability
22
MAY W10313899 MAY W10313899 Contact Us For Availability
23
MAY W10296541 MAY W10296541 Contact Us For Availability
23
DIVIDER, LARGE PANTRY MAY W10328402 Contact Us For Availability
23
MAY 12951401 MAY 12951401 Contact Us For Availability
23
MAY 12963002SP MAY 12963002SP Contact Us For Availability
23
MAY 12963102SP MAY 12963102SP Contact Us For Availability
24
HINGE, CENTER (LT) (GREY) MAY 13000001AP Contact Us For Availability
24
MAY W10444033 MAY W10444033 Contact Us For Availability
24
DIVIDER, SMALL PANTRY MAY W10328403 Contact Us For Availability
24
MAY 12986101 MAY 12986101 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
MAY W10118193 MAY W10118193 Contact Us For Availability
25
MAY 12951101 MAY 12951101 Contact Us For Availability
26
MAY W10118194 MAY W10118194 Contact Us For Availability
26
RAIL, PANTRY (LEFT HAND) MAY W10311723 Contact Us For Availability
26
RAIL, PANTRY (RIGHT HAND) MAY W10311726 Contact Us For Availability
26
MOTOR, EVAPORATOR MAY W10252866 Contact Us For Availability
26
MAY W10402006 MAY W10402006 Contact Us For Availability
27
CONTROL, ELECTRONIC POWER SAUPPLY MAY W10226427 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10177049 Contact Us For Availability
28
MAY 12990302 MAY 12990302 Contact Us For Availability
28
MAY W10331298 MAY W10331298 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
MAY W10391109 MAY W10391109 Contact Us For Availability
29
MAY 12957801 MAY 12957801 Contact Us For Availability
29
MAY B8381501 MAY B8381501 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
30
MAY W10211854 MAY W10211854 Contact Us For Availability
30
COVER, PANTRY RAIL (LEFT HAND) MAY W10311725 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
31
TUBE-DRAIN MAY W10344402 Contact Us For Availability
31
BRACE, CRISPER COVER MAY 12227305WD Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
MAY W10346616 MAY W10346616 Contact Us For Availability
32
MAY 12990501 MAY 12990501 Contact Us For Availability
33
MAY 12820505 MAY 12820505 Contact Us For Availability
33
HARNESS, RC-LED MAY W10335721 Contact Us For Availability
34
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
35
MAY W10467104 MAY W10467104 Contact Us For Availability
36
ROLLER ASSEMBLY (RIGHT HAND) MAY W10515762 Contact Us For Availability
36
ROLLER ASSEMBLY (LEFT HAND) MAY W10515763 Contact Us For Availability
36
MAY W10334458 MAY W10334458 Contact Us For Availability
37
MAY W10508289 MAY W10508289 Contact Us For Availability
38
MAY W10237349 MAY W10237349 Contact Us For Availability
39
MODULE, LED LIGHT MAY W10320778 Contact Us For Availability
40
HOUSING, MODULE MAY W10311719 Contact Us For Availability
41
MAY W10492234 MAY W10492234 Contact Us For Availability
42
MULLION, SECONDARY MAY W10311721 Contact Us For Availability
43
WEDGE, SPACER LEFT HAND & RIGHT HAND MAY W10316401 Contact Us For Availability
44
WEDGE, SPACER LEFT HAND & RIGHT HAND MAY W10316403 Contact Us For Availability
45
MAY W10208592 MAY W10208592 Contact Us For Availability
46
MAY W10331297 MAY W10331297 Contact Us For Availability
47
MAY W10367522 MAY W10367522 Contact Us For Availability
100
ASSEMBLY, ICEMAKER MAY W10377151 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3`` MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24 MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
