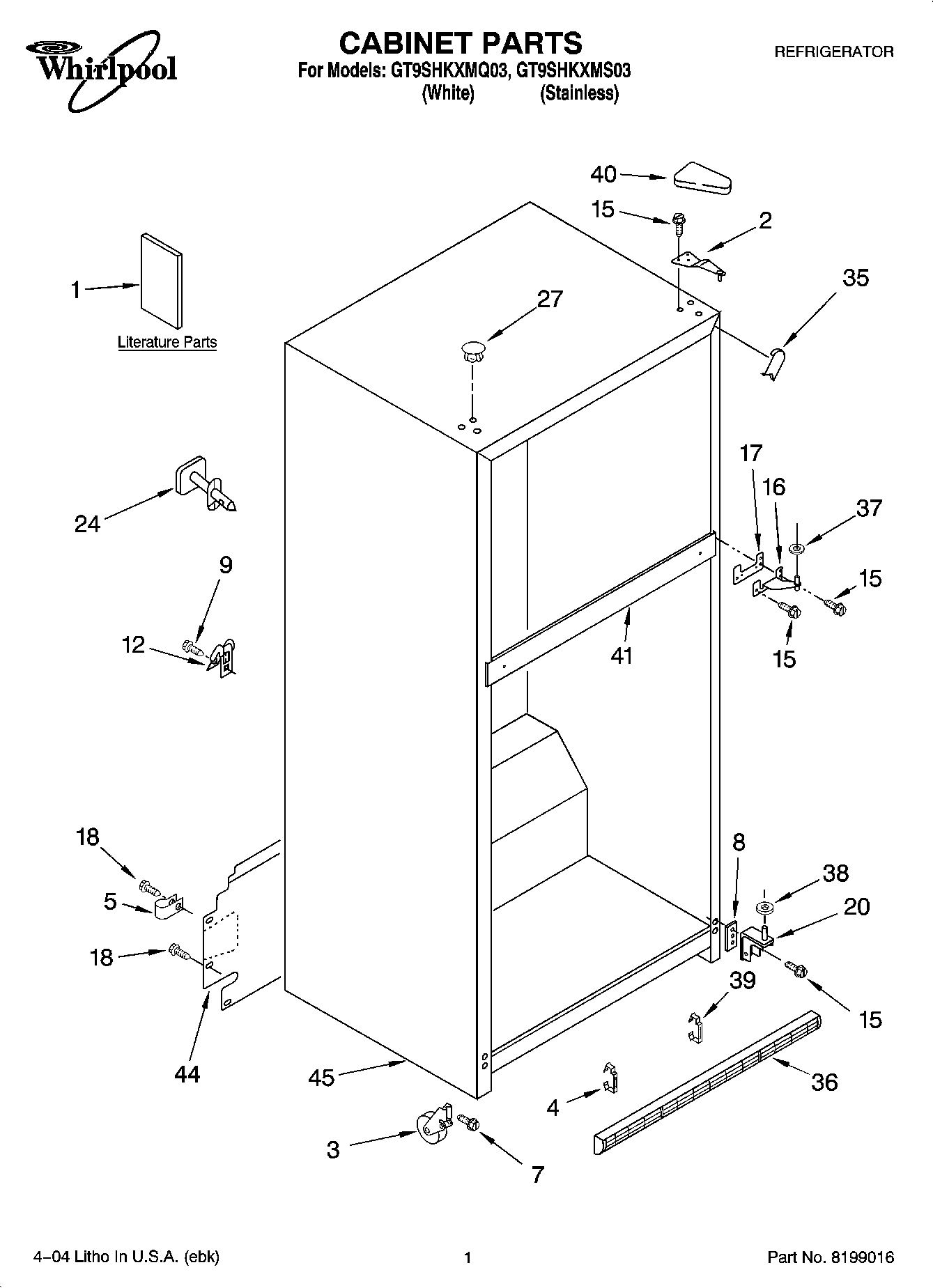

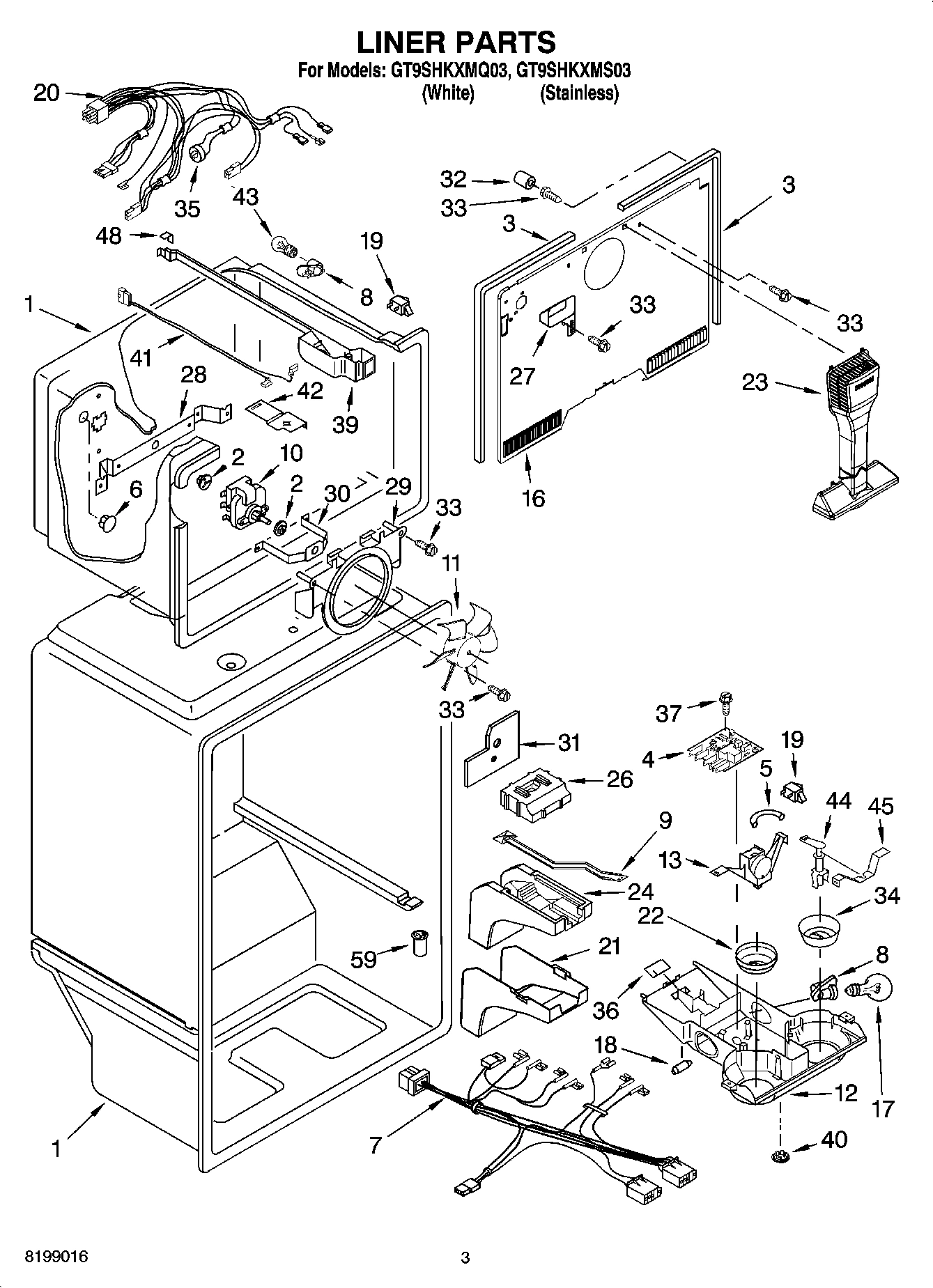

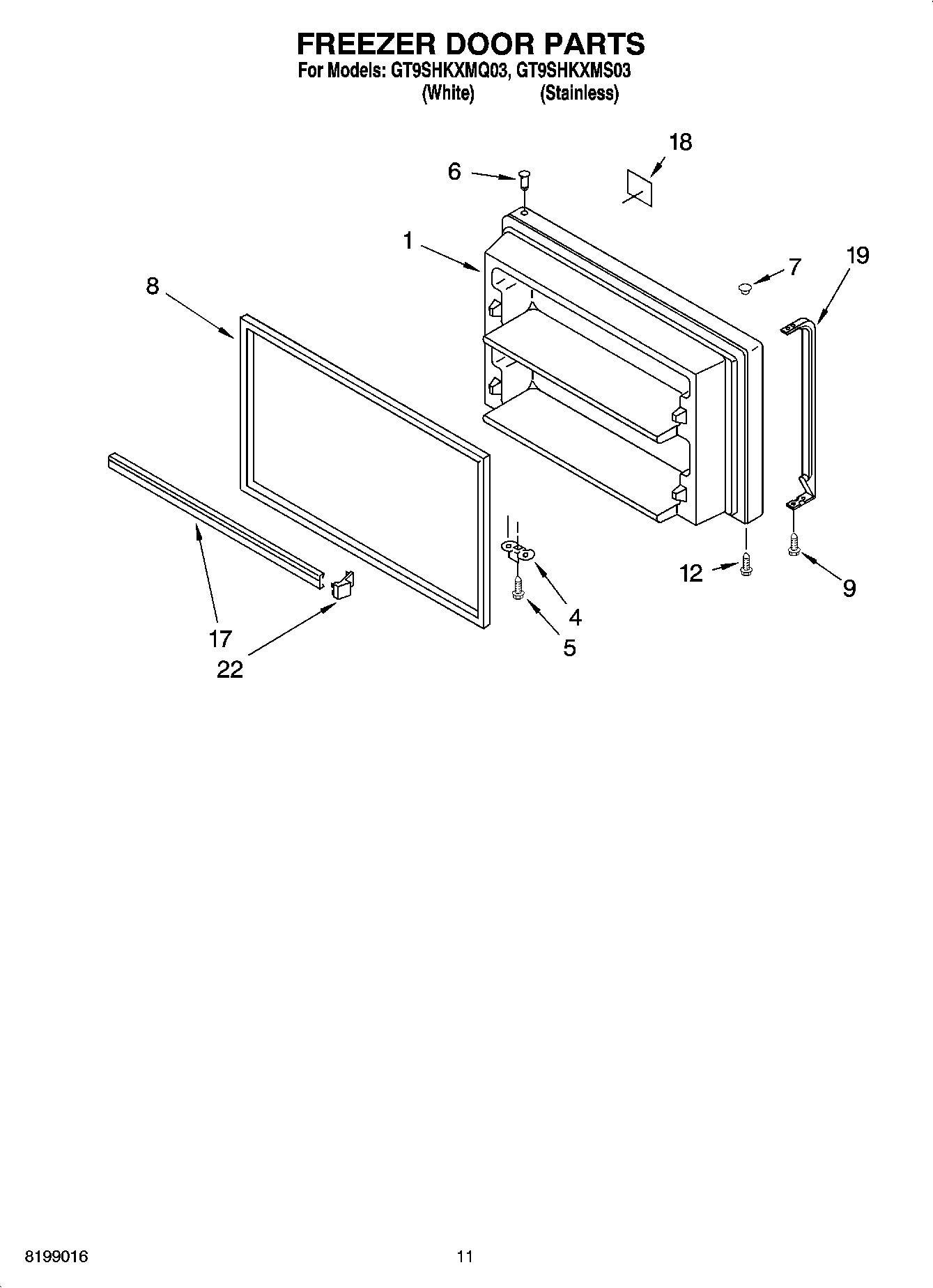

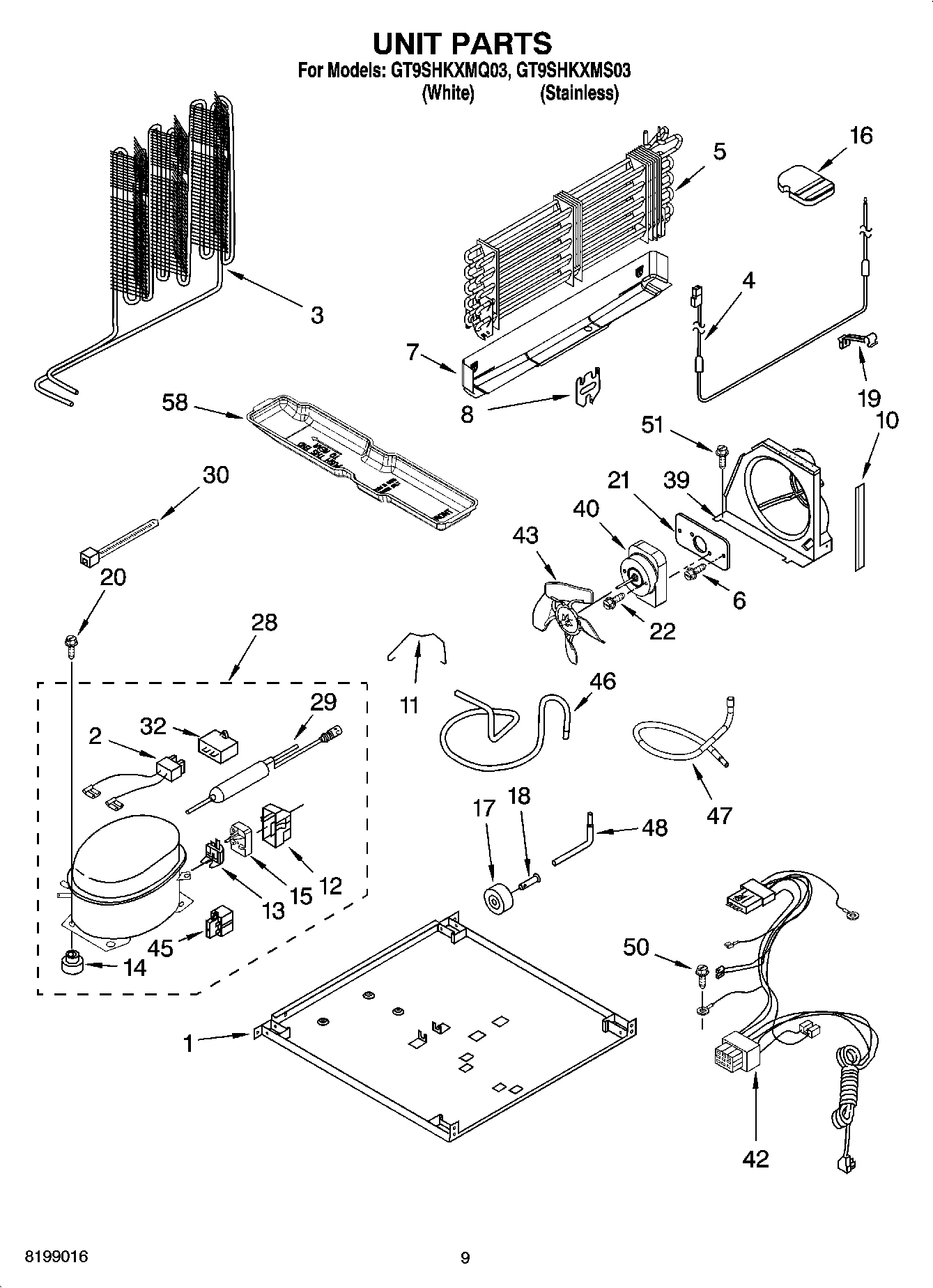

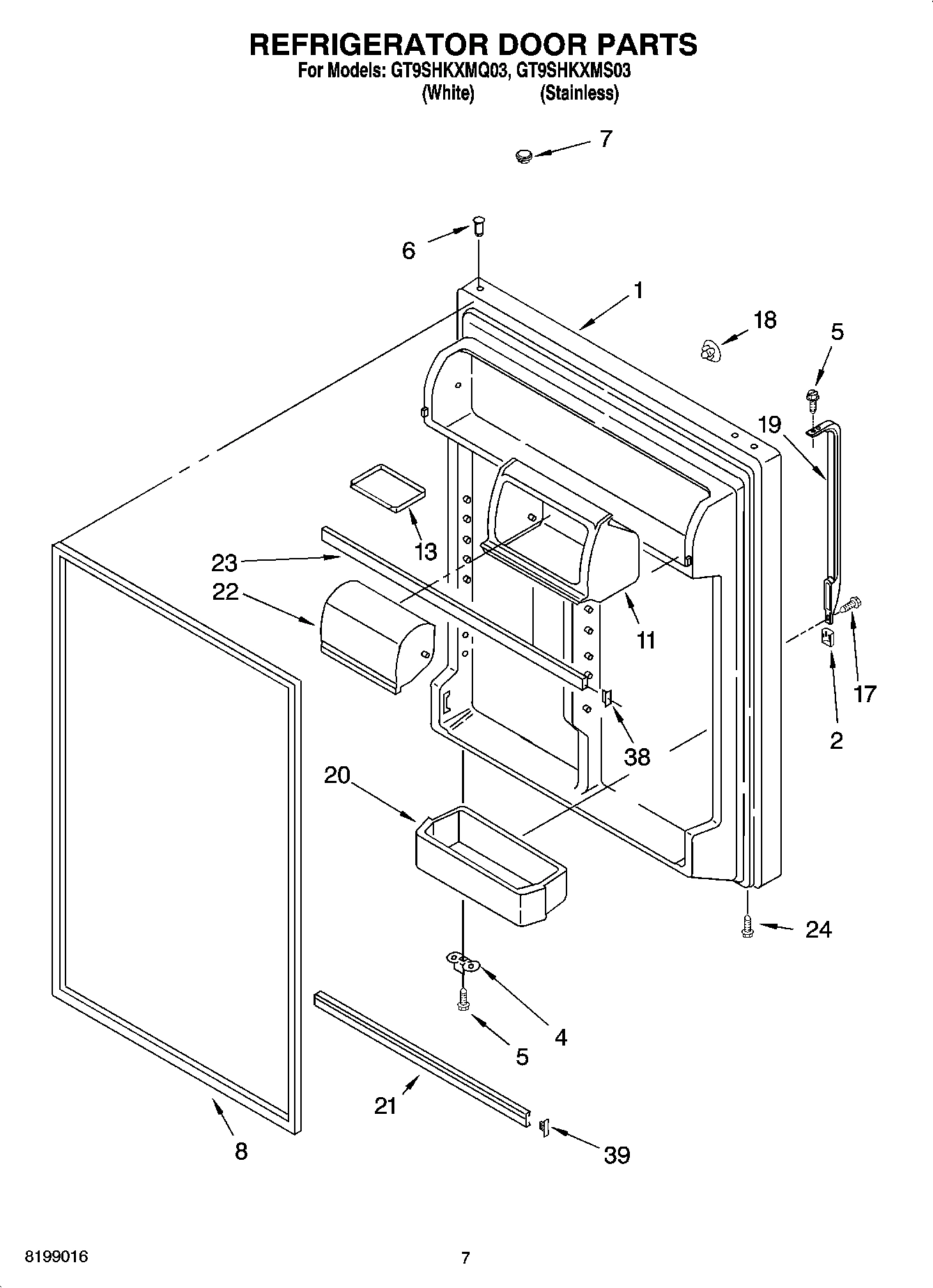

Model Whirlpool GT9SHKXMS03 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

DO-IT-YOURSELF MANUAL, REF./ FZR. WPL 677969 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI73321A5 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI73325A4 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $4.20

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $52.56

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $19.62

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.73

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.65

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $216.12

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $11.11

4

CLIP, GRILLE WPL 2189356 Contact Us For Availability

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.50

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $3.22

5

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.53

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.11

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $4.51

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $13.13

7

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.19

7

Wire Assy. Control Box WPL 2187352 Contact Us For Availability

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $37.17

8

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

9

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $3.07

9

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $5.84

9

Damper, Air WPL 2179858 Contact Us For Availability

10

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $49.31

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $36.53

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $10.80

12

Control Box WPL 2212982 Contact Us For Availability

13

Tray, Door WPL 2159302 Contact Us For Availability

13

Thermostat Assembly WPL 2200830 Contact Us For Availability

15

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $68.35

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.30

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $32.06

16

Support Block WPL 2201184 Contact Us For Availability

16

Cover-Evaporator WPL 2254257 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $82.58

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $5.82

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $3.22

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $5.76

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $5.47

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

Nameplate WPL 2220214 Contact Us For Availability

Weight, Thermal WPL 2200831 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

19

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $4.19

20

Wire Assembly, Freezer Compartment (Includes WPL 2187686 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Plate, Motor Mtg. WPL 2301979 Contact Us For Availability

22

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.89

22

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $15.45

22

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $49.55

23

WP2159312 Whirlpool Refrigerator Door Trim Backorder WPL WP2159312 $77.84

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $62.12

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $51.42

24

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $3.22

24

Fitting, Water Tube (Not Serviced) WPL ARI73322A8 Contact Us For Availability

26

Air Diffuser, Top WPL 2179877 Contact Us For Availability

27

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.45

27

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $11.50

27

Cover, Hole WPL 2205003 Contact Us For Availability

28

Bracket, Fan Front WPL 2214976 Contact Us For Availability

29

Bracket, Fan Motor WPL 2218696 Contact Us For Availability

30

Bracket, Fan Rear WPL 2214979 Contact Us For Availability

31

Shield, heat WPL 2204639 Contact Us For Availability

32

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $13.74

32

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $6.98

33

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $14.59

34

Knob, Damper WPL 2176297 Contact Us For Availability

35

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $11.14

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $20.08

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $4.19

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $6.44

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $33.30

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $41.07

Grille (Black) WPL 2254388 Contact Us For Availability

37

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $5.63

37

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.77

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.60

39

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $37.78

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.02

39

Housing Base WPL 2201152 Contact Us For Availability

40

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $15.96

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $13.33

40

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $17.58

41

Rail Center (Not Serviced) WPL ARI73323A5 Contact Us For Availability

41

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

42

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $137.01

42

Trim, Crisper Pan WPL 2195340 Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $6.74

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $55.38

44

Cover, Unit WPL 2221775 Contact Us For Availability

44

Post, Damper WPL 2179859 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI73324A6 Contact Us For Availability

45

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

48

Gasket, Rear WPL 2166284 Contact Us For Availability

50

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $5.76

50

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

59

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $37.43
