Model Whirlpool GS5SHGXLT01 REFRIGERATOR – Common Parts & Diagrams

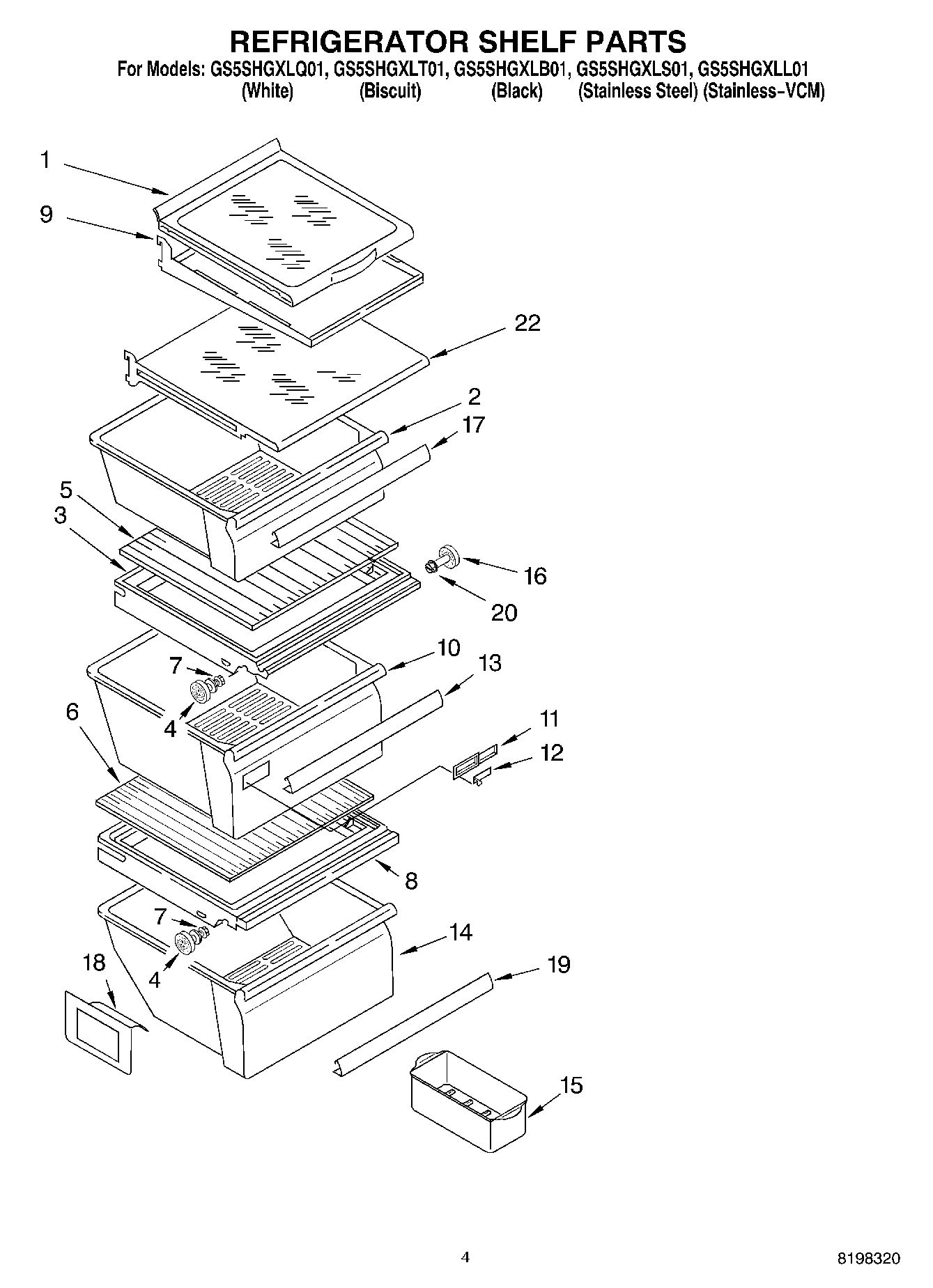

03 - REFRIGERATOR SHELF PARTS

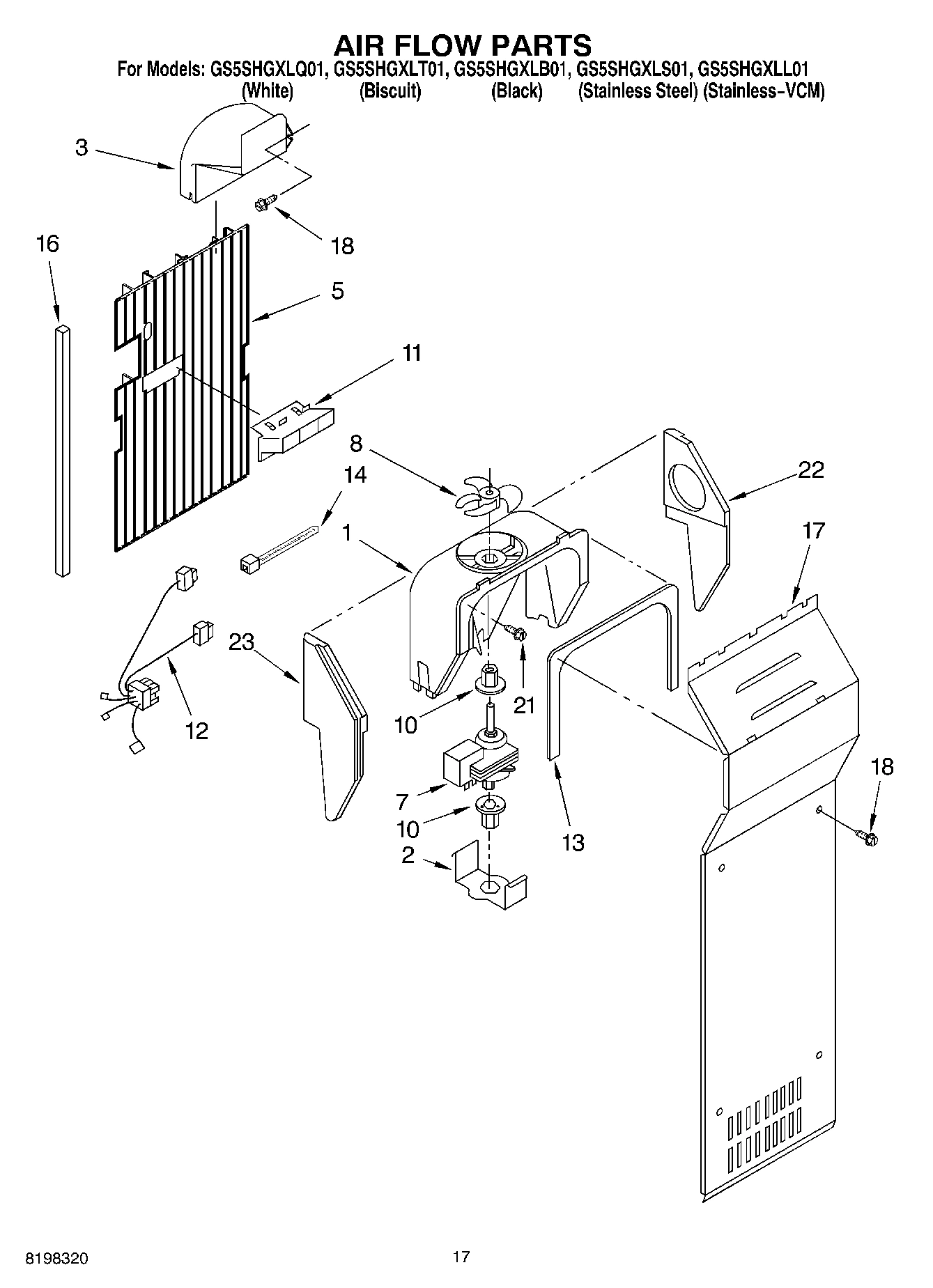

10 - AIR FLOW PARTS

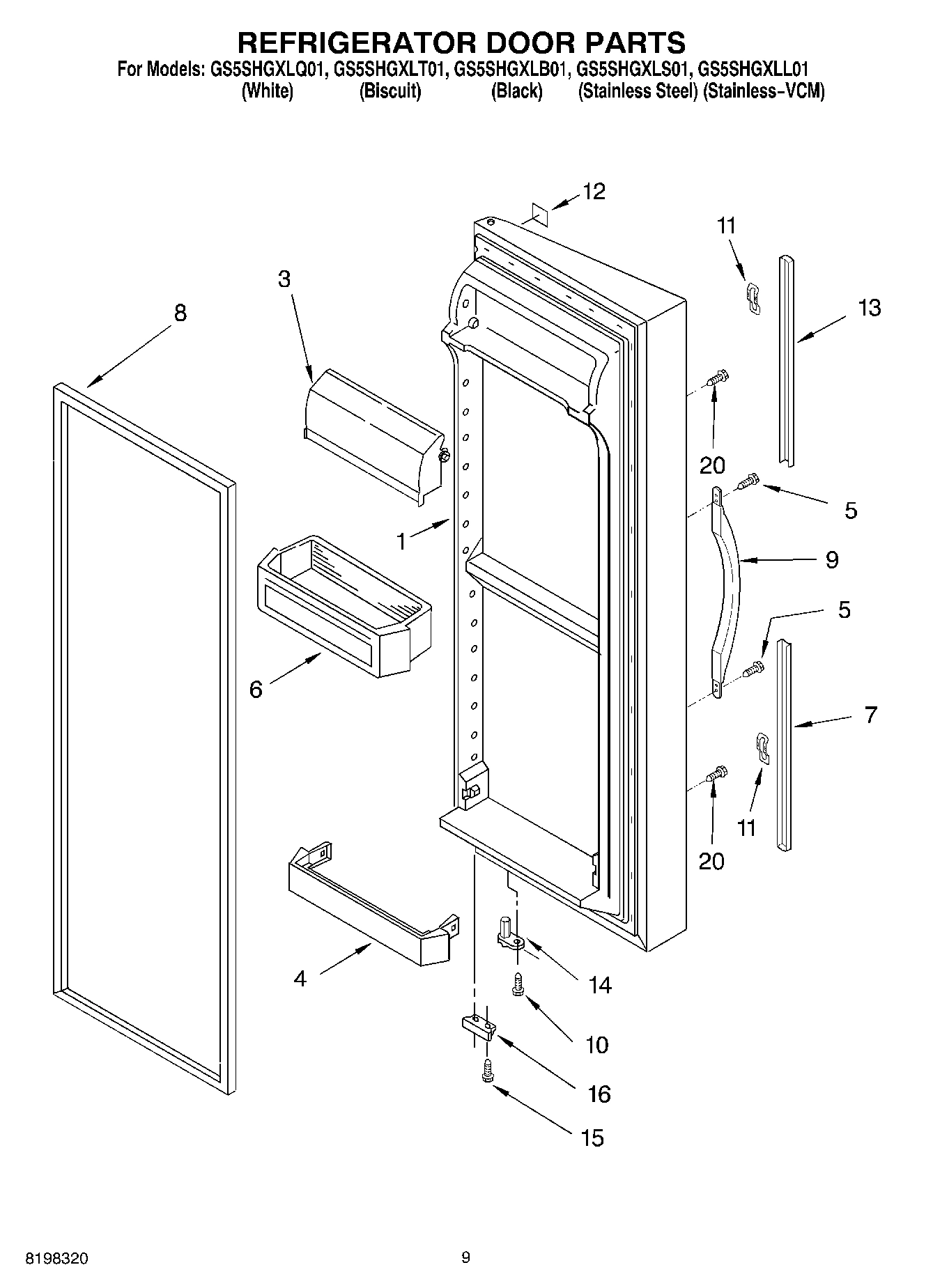

06 - REFRIGERATOR DOOR PARTS

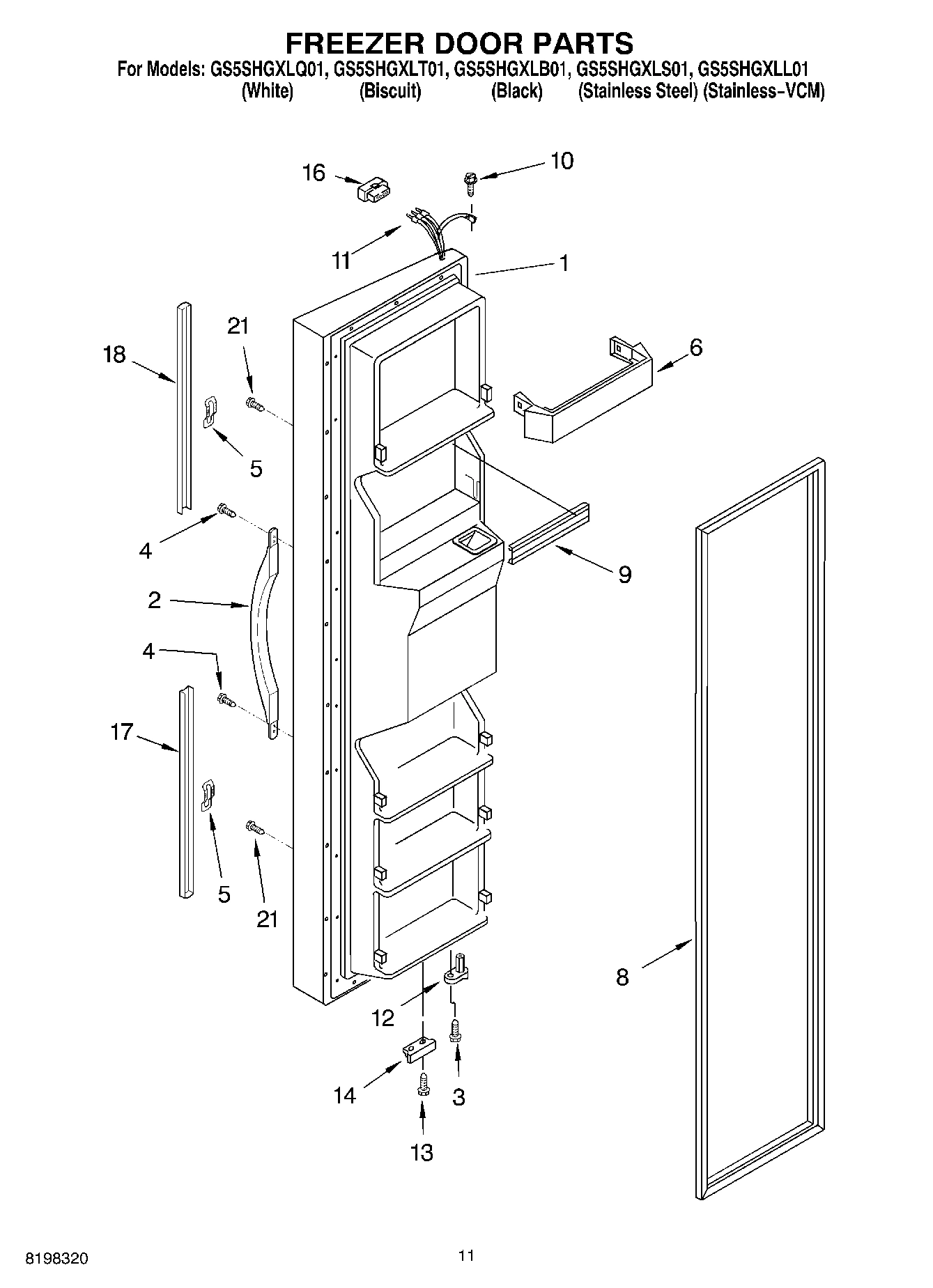

07 - FREEZER DOOR PARTS

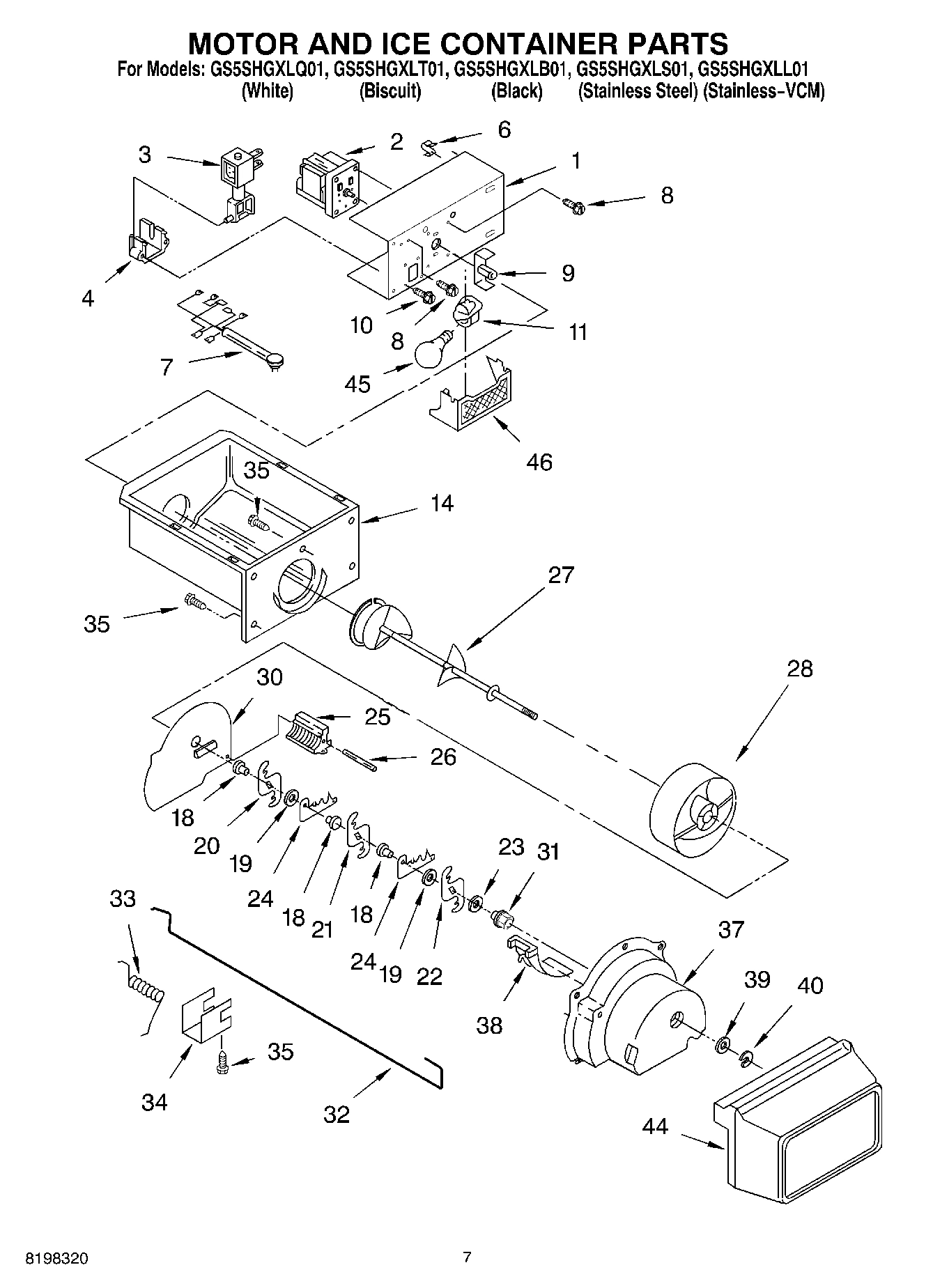

05 - MOTOR AND ICE CONTAINER PARTS

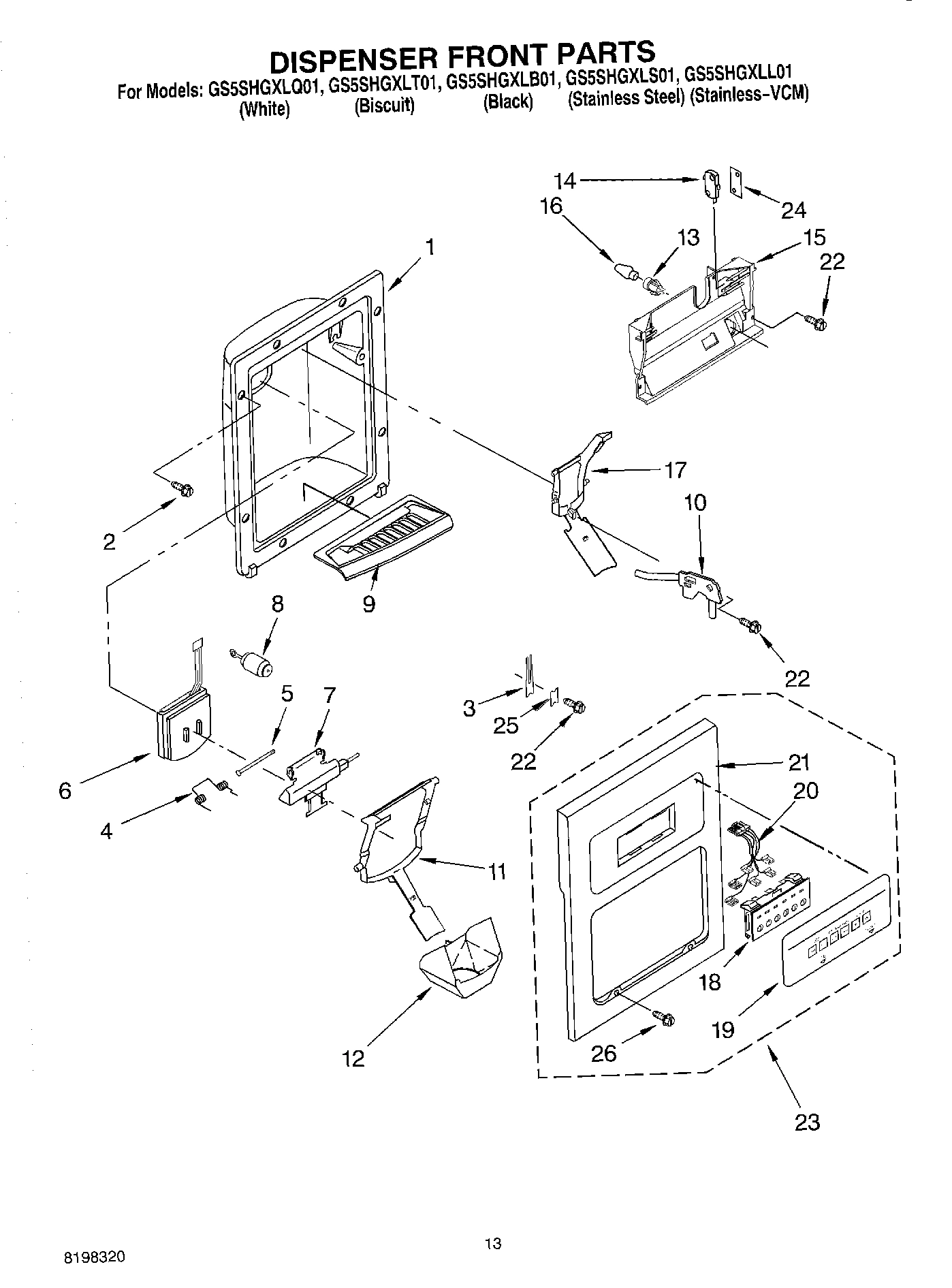

08 - DISPENSER FRONT PARTS

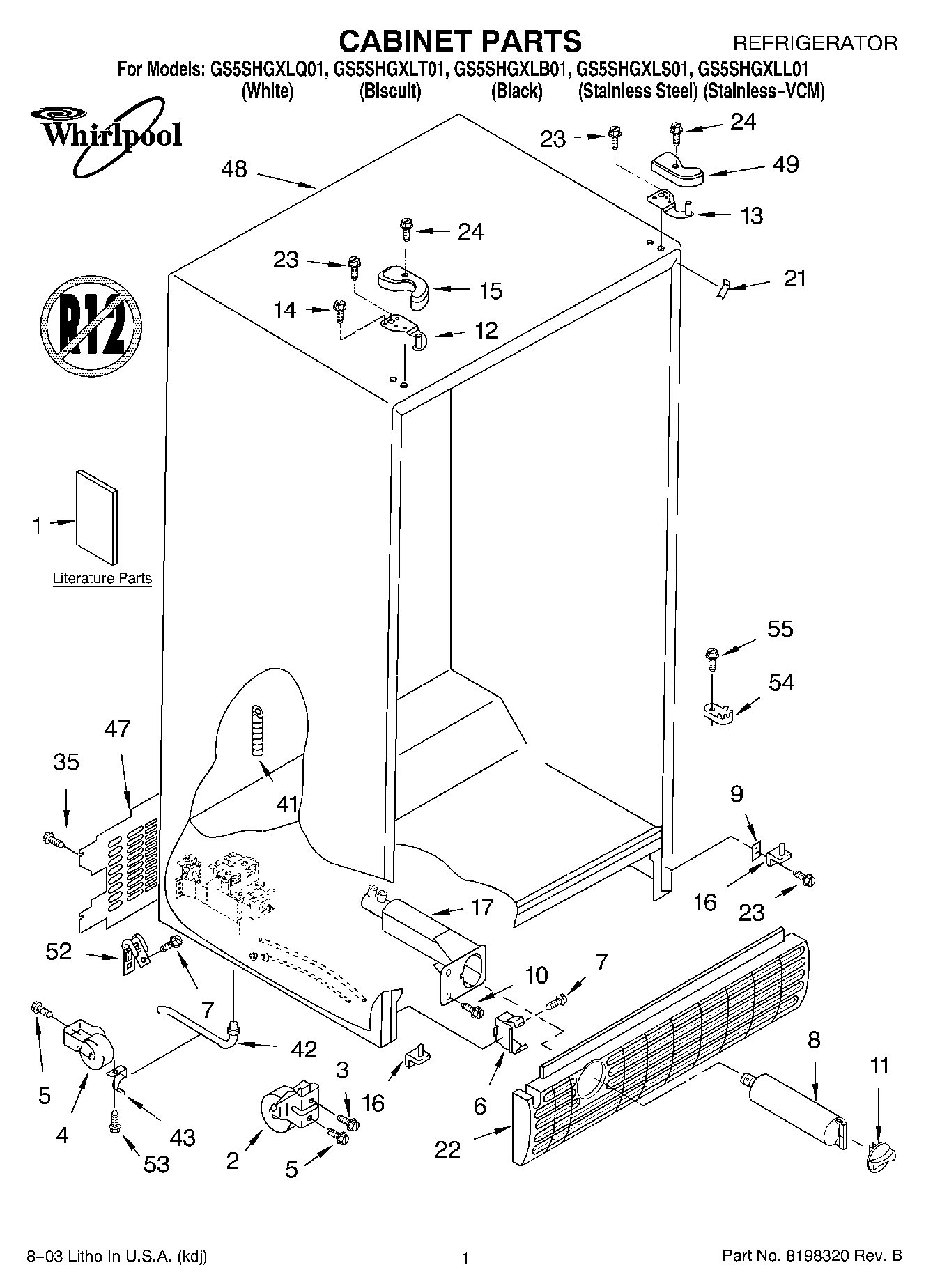

01 - CABINET PARTS

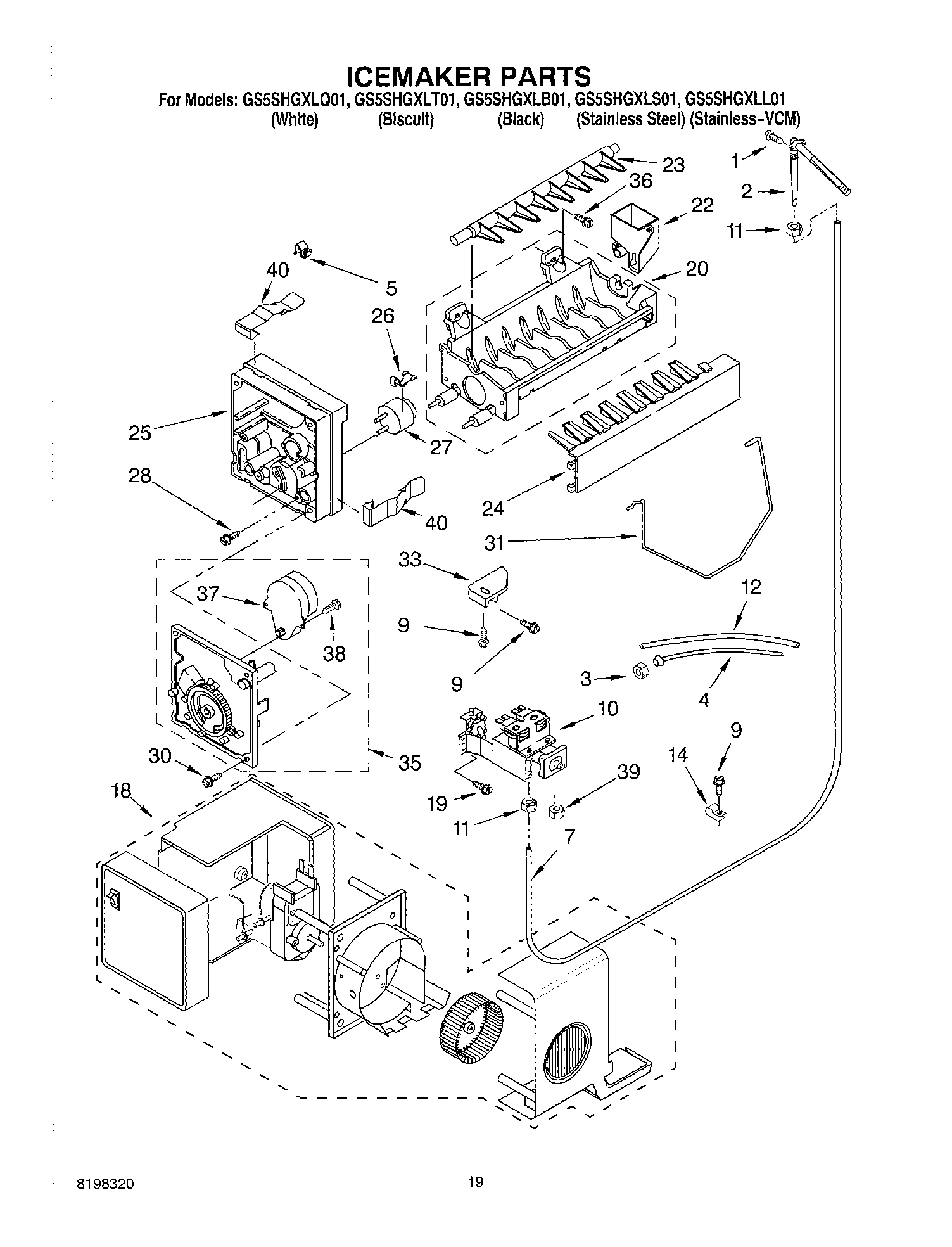

12 - ICEMAKER PARTS - PARTS NOT ILLUSTRATED

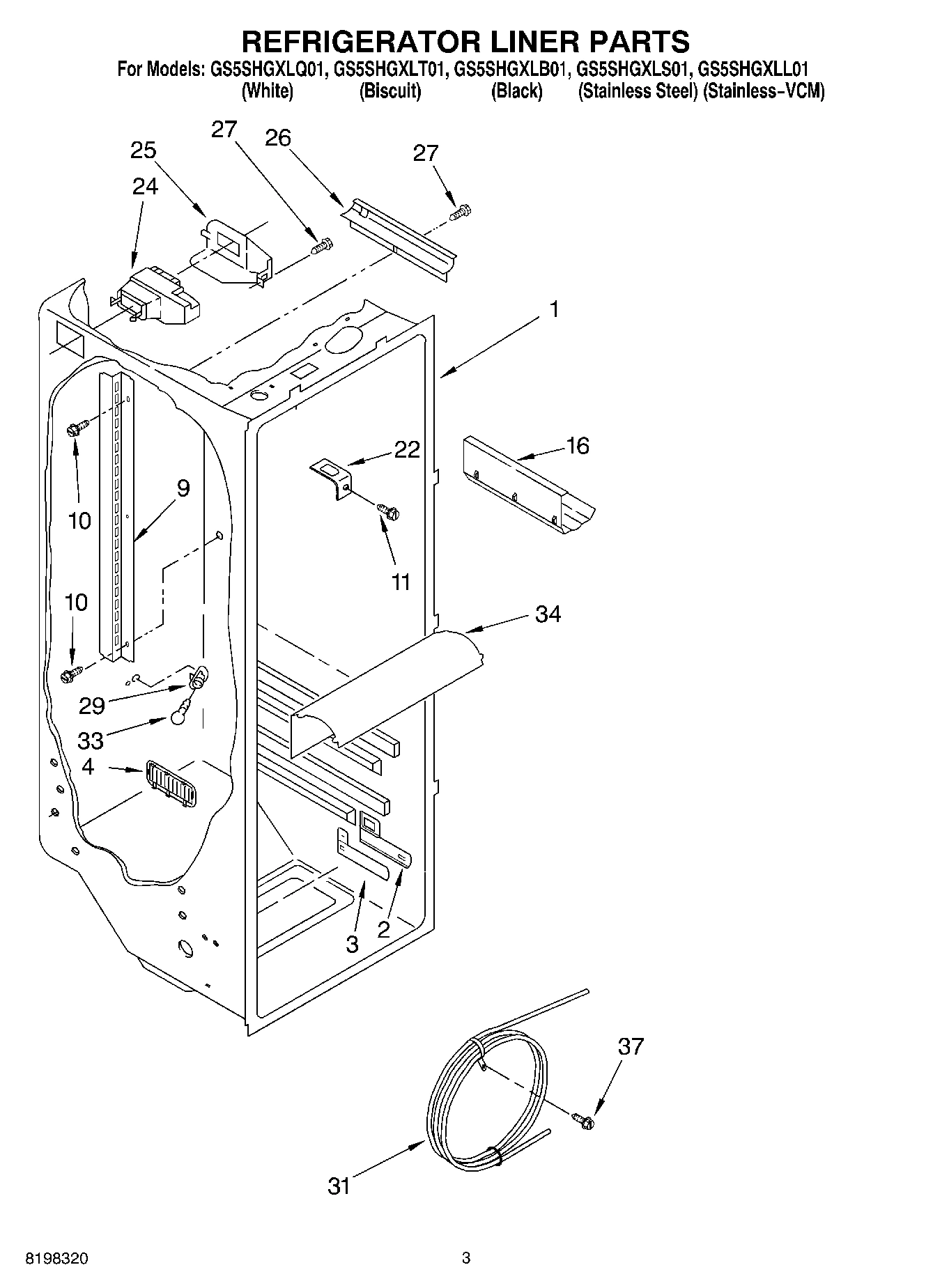

02 - REFRIGERATOR LINER PARTS

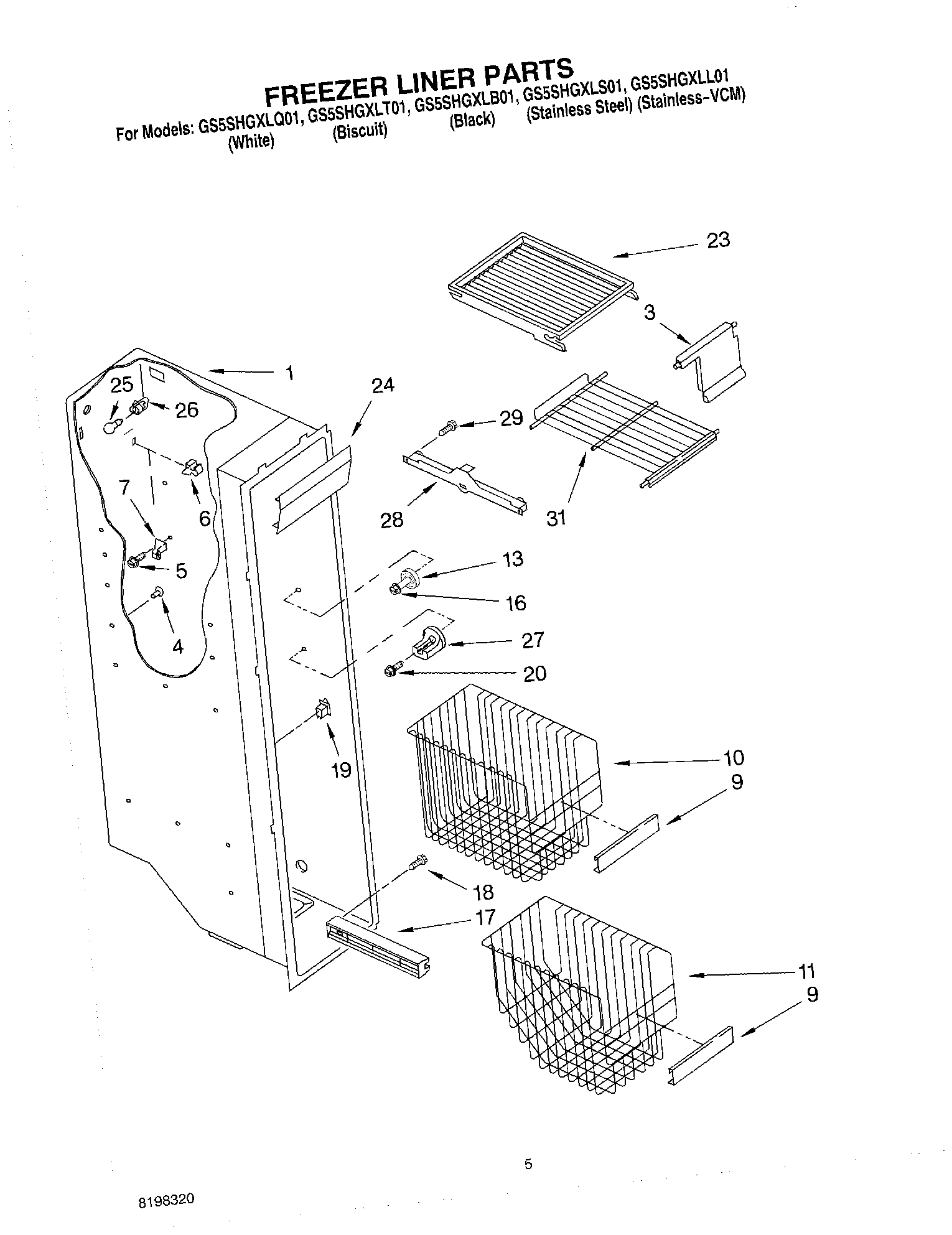

04 - FREEZER LINER PARTS

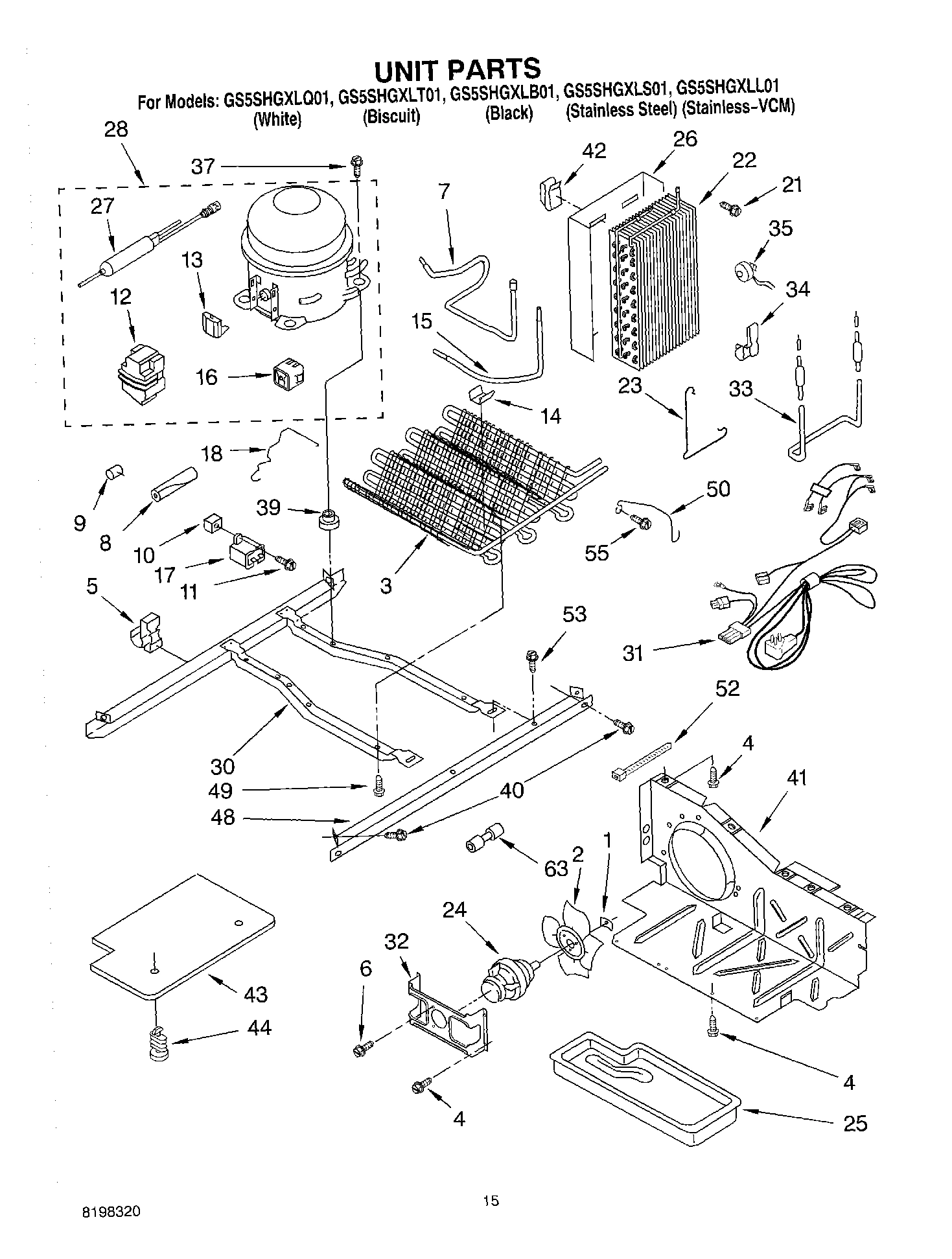

09 - UNIT PARTS

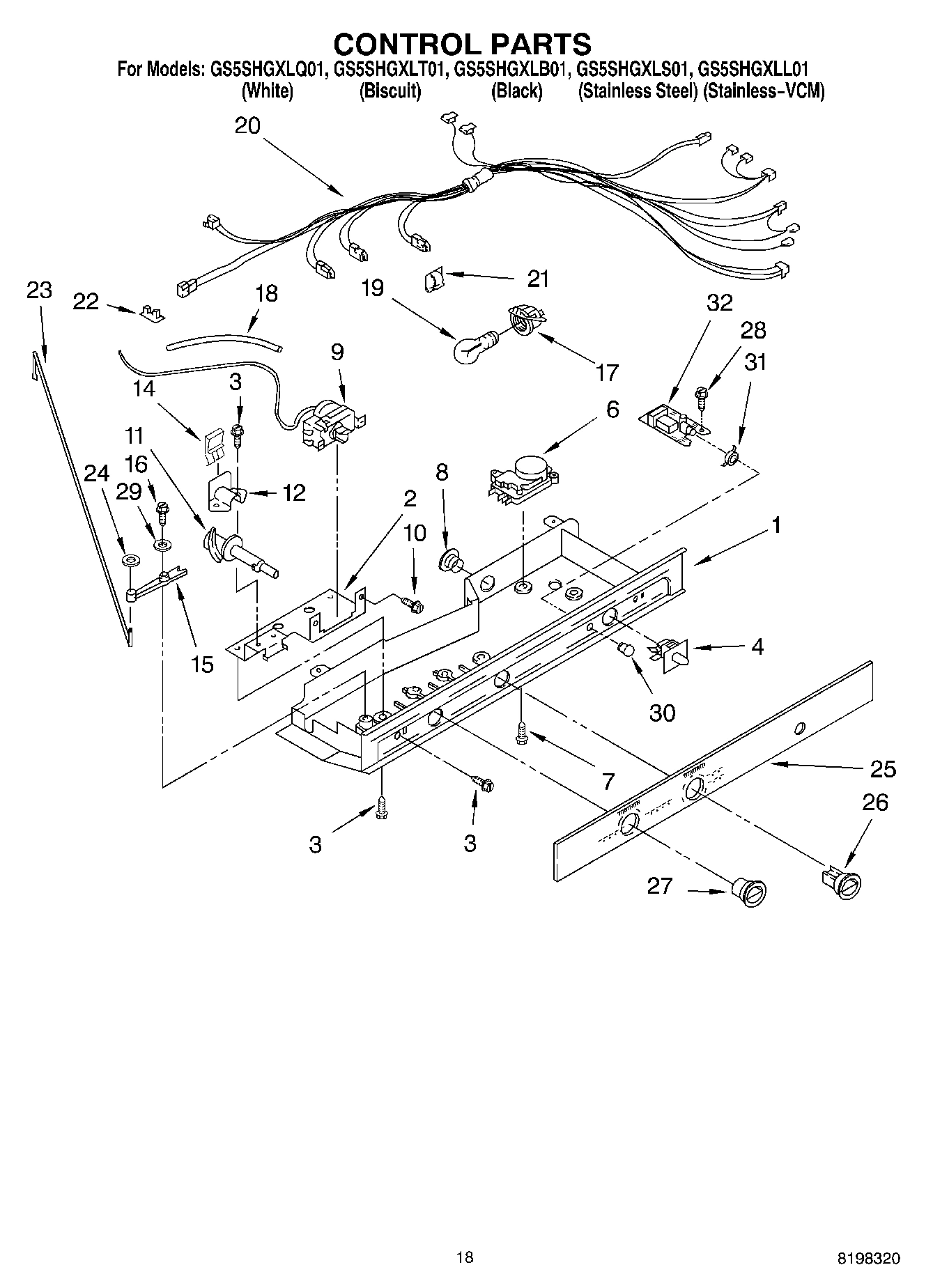

11 - CONTROL PARTS
Common parts from model Whirlpool GS5SHGXLT01 REFRIGERATOR
WPL ARI70787A3 WPL ARI70787A3 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI70781A9 Contact Us For Availability
1
Liner (Not A Seviceable Part) WPL ARI70782A2 Contact Us For Availability
1
Control Box WPL 2200137 Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Door, Ice Compartment WPL 2204285 Contact Us For Availability
3
Condenser Assembly WPL 2204484 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
7
TUBE, SUCTION WPL 2205765 Contact Us For Availability
9
Grille, Overflow (White) WPL 2207007W Contact Us For Availability
9
Shim (1) WPL 2209697 Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability
9
Ladder, Shelf WPL 2206273 Contact Us For Availability
9
Trim, Basket WPL 2195905 Contact Us For Availability
10
Basket, Tall WPL 2181765 Contact Us For Availability
10
Screw Grommet WPL 509812 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
12
Nameplate WPL 2220214 Contact Us For Availability
15
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Start Device, Combination (Start Relay and Ov WPL 2220475 Contact Us For Availability
17
Lever, Water Dispenser (Black) WPL 2203561B Contact Us For Availability
17
Lever, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
20
Control Box Harness WPL 2187556 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
22
Grille (Biscuit) WPL 2198468T Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2212073 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
30
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
31
Unit, Harness WPL 2187510 Contact Us For Availability
31
Retainer, Light Lens WPL 2200097 Contact Us For Availability
32
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
34
Light Lens WPL 2209769 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
37
Screw WPL 489473 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
63
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI70788A4 Contact Us For Availability
63
and Optional Parts WPL ARI70789A6 Contact Us For Availability
63
WPL ARI70790A2 WPL ARI70790A2 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
100
WPL ARI70791A5 WPL ARI70791A5 Contact Us For Availability
100
WPL ARI70792A5 WPL ARI70792A5 Contact Us For Availability
100
WPL ARI70793A6 WPL ARI70793A6 Contact Us For Availability
100
WPL ARI70794A5 WPL ARI70794A5 Contact Us For Availability
× ![]()
