Model Whirlpool GS5SHGXLS01 REFRIGERATOR – Common Parts & Diagrams

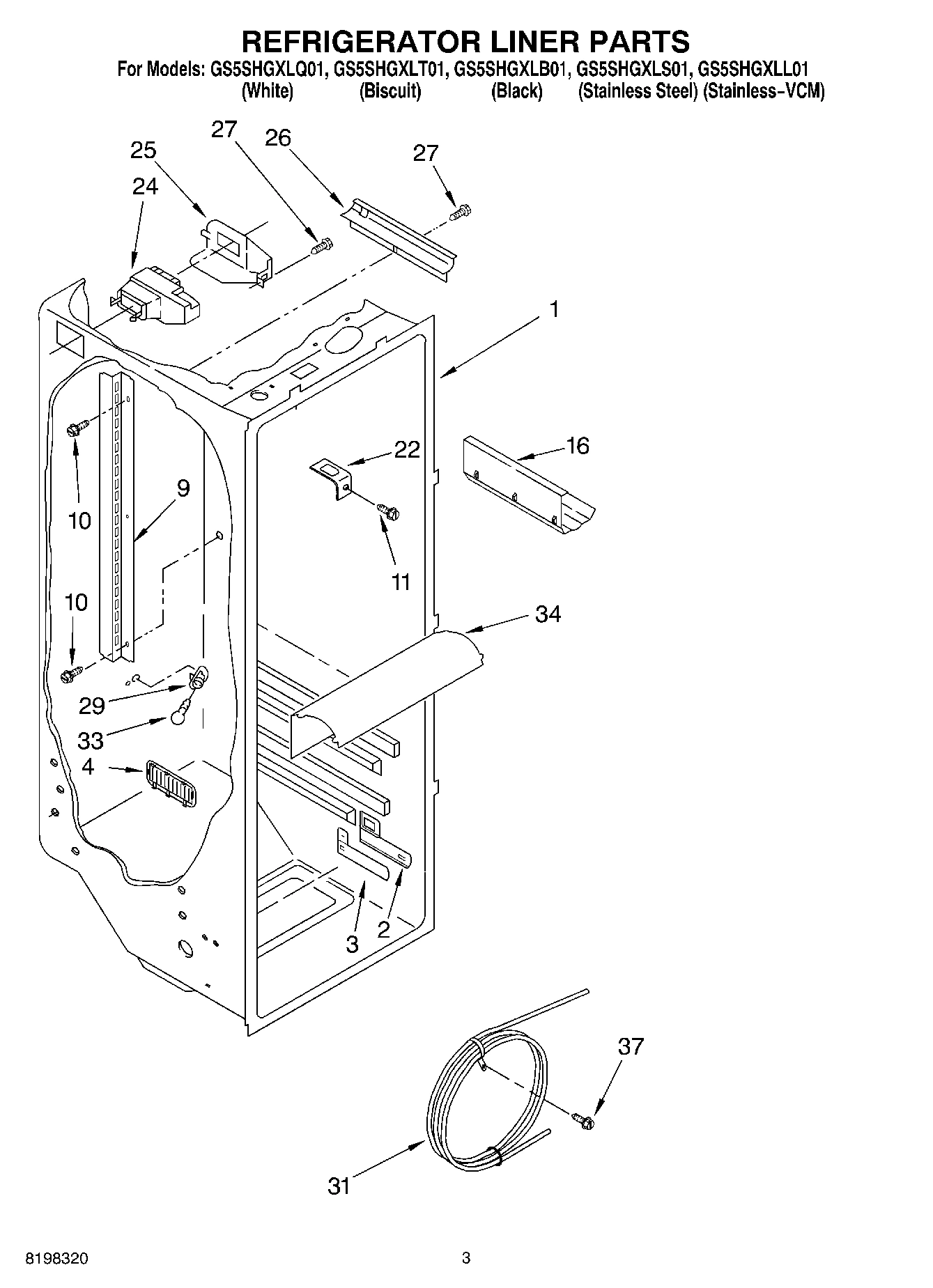

02 - REFRIGERATOR LINER PARTS

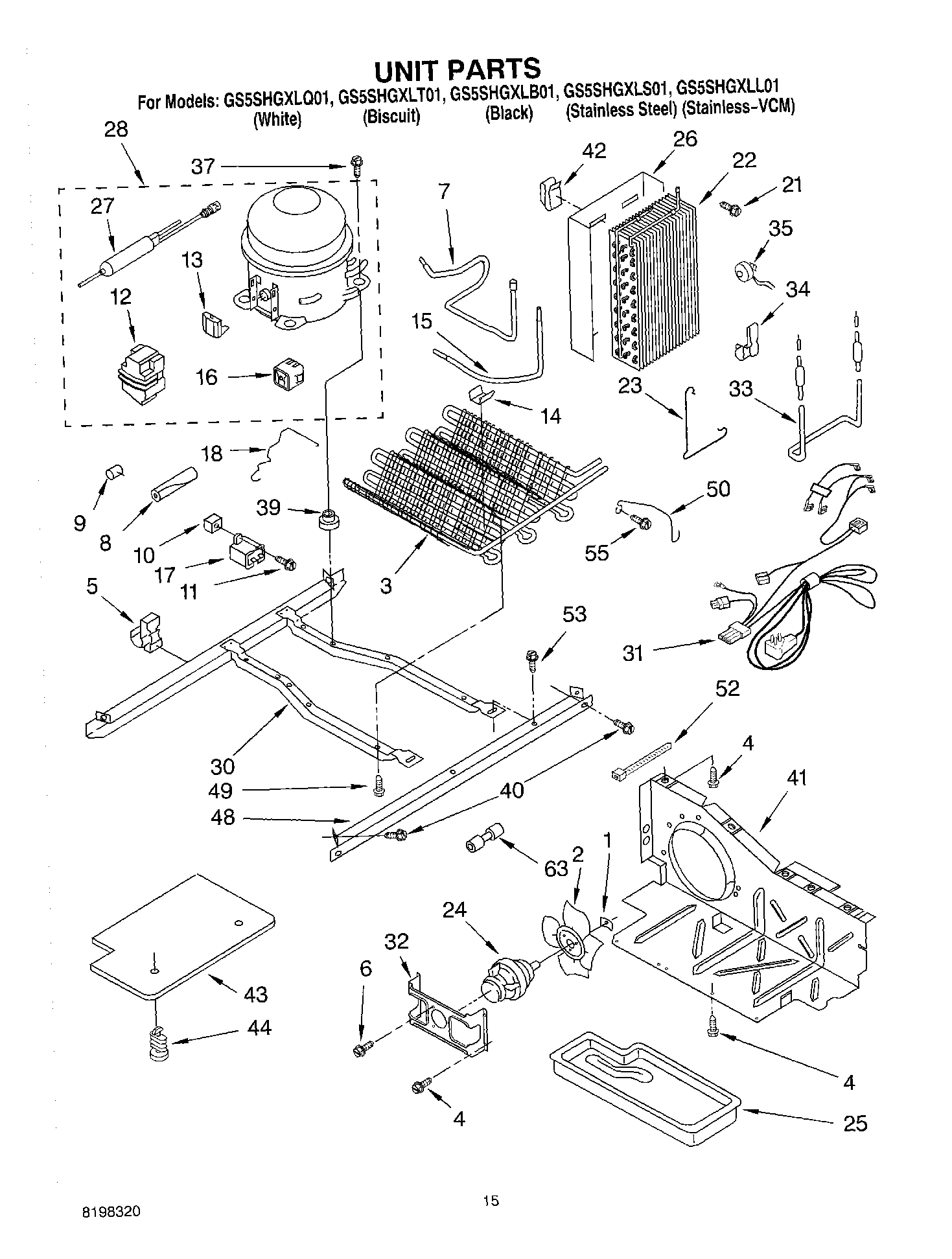

09 - UNIT PARTS

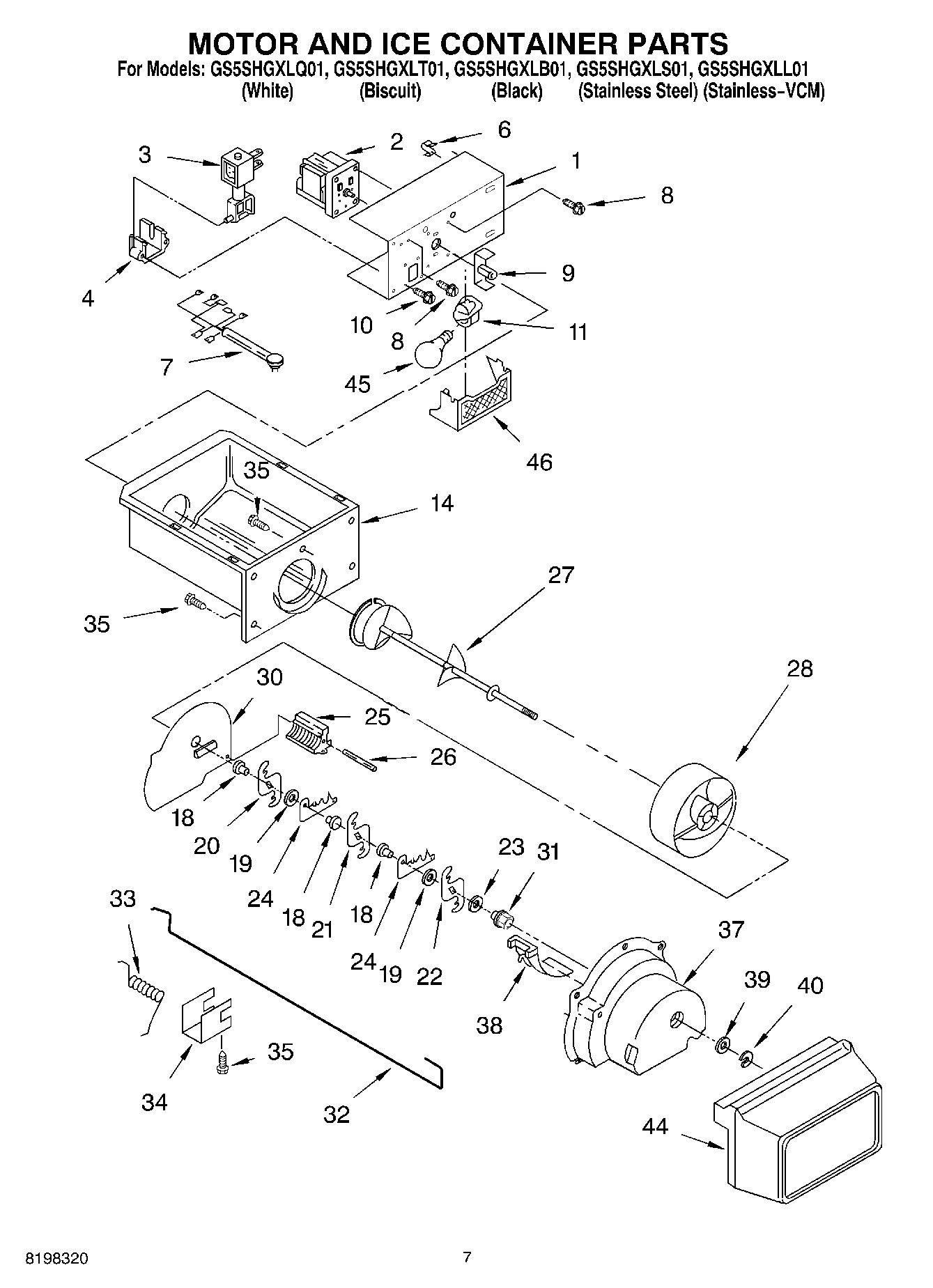

05 - MOTOR AND ICE CONTAINER PARTS

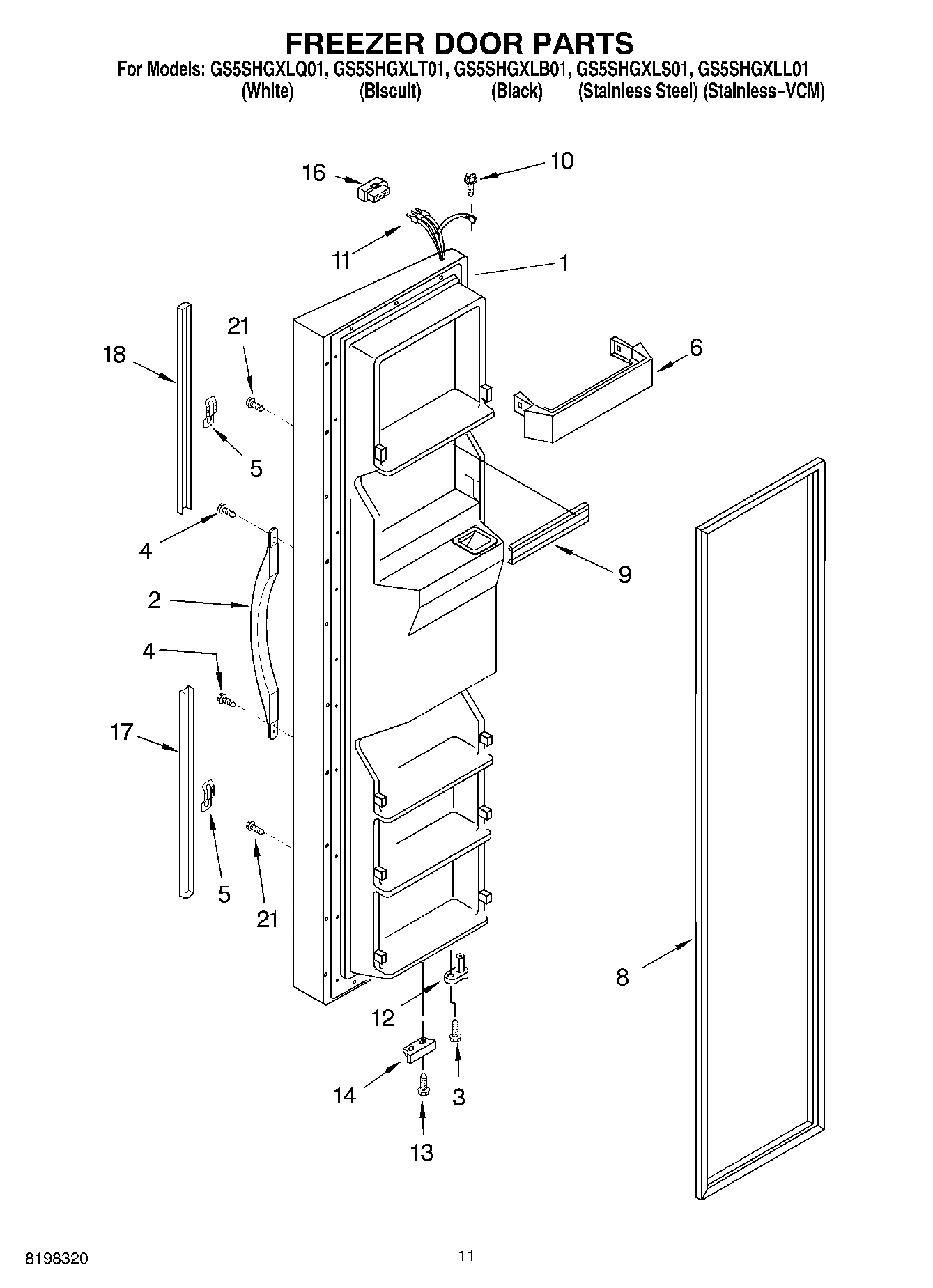

07 - FREEZER DOOR PARTS

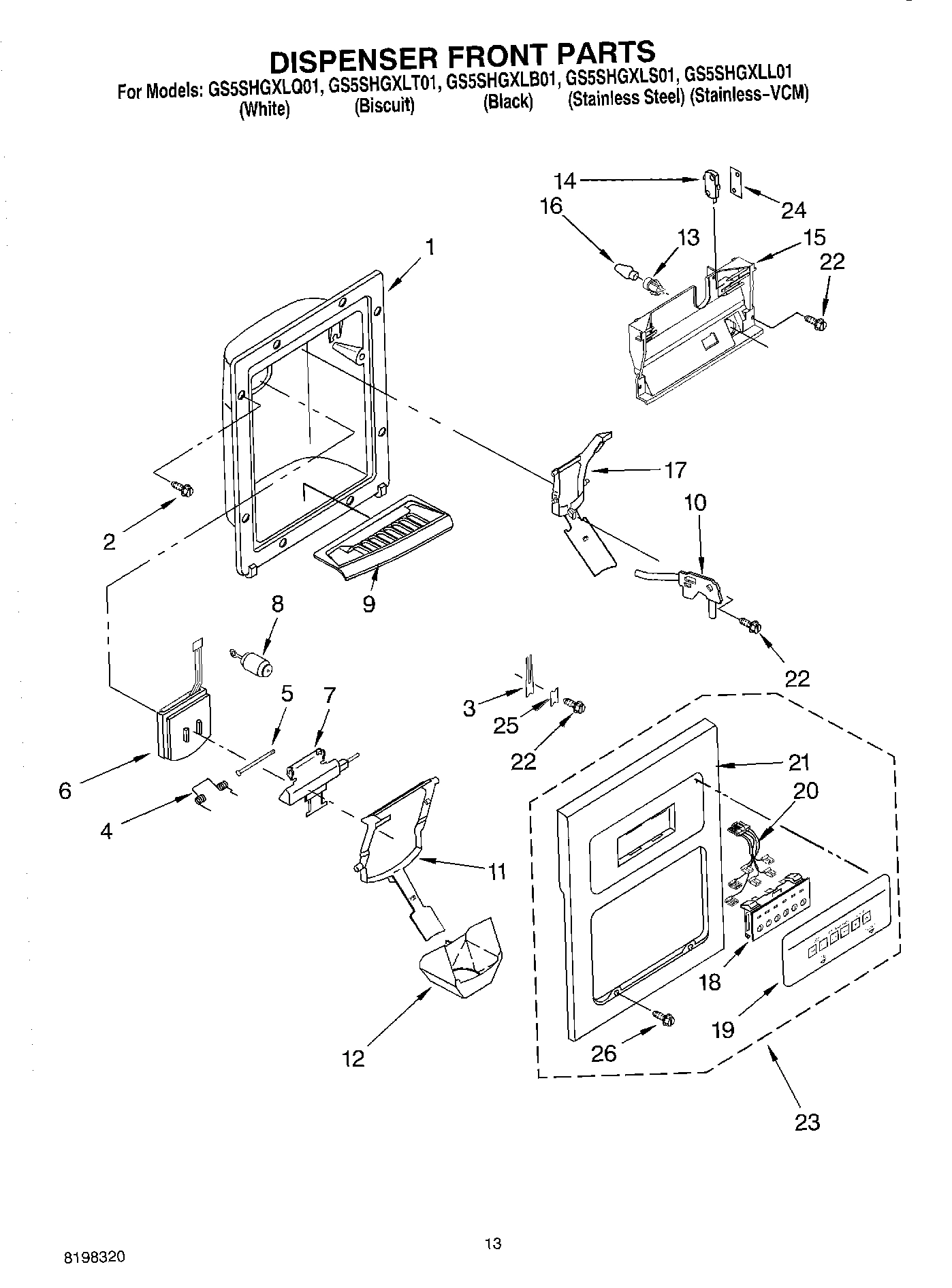

08 - DISPENSER FRONT PARTS

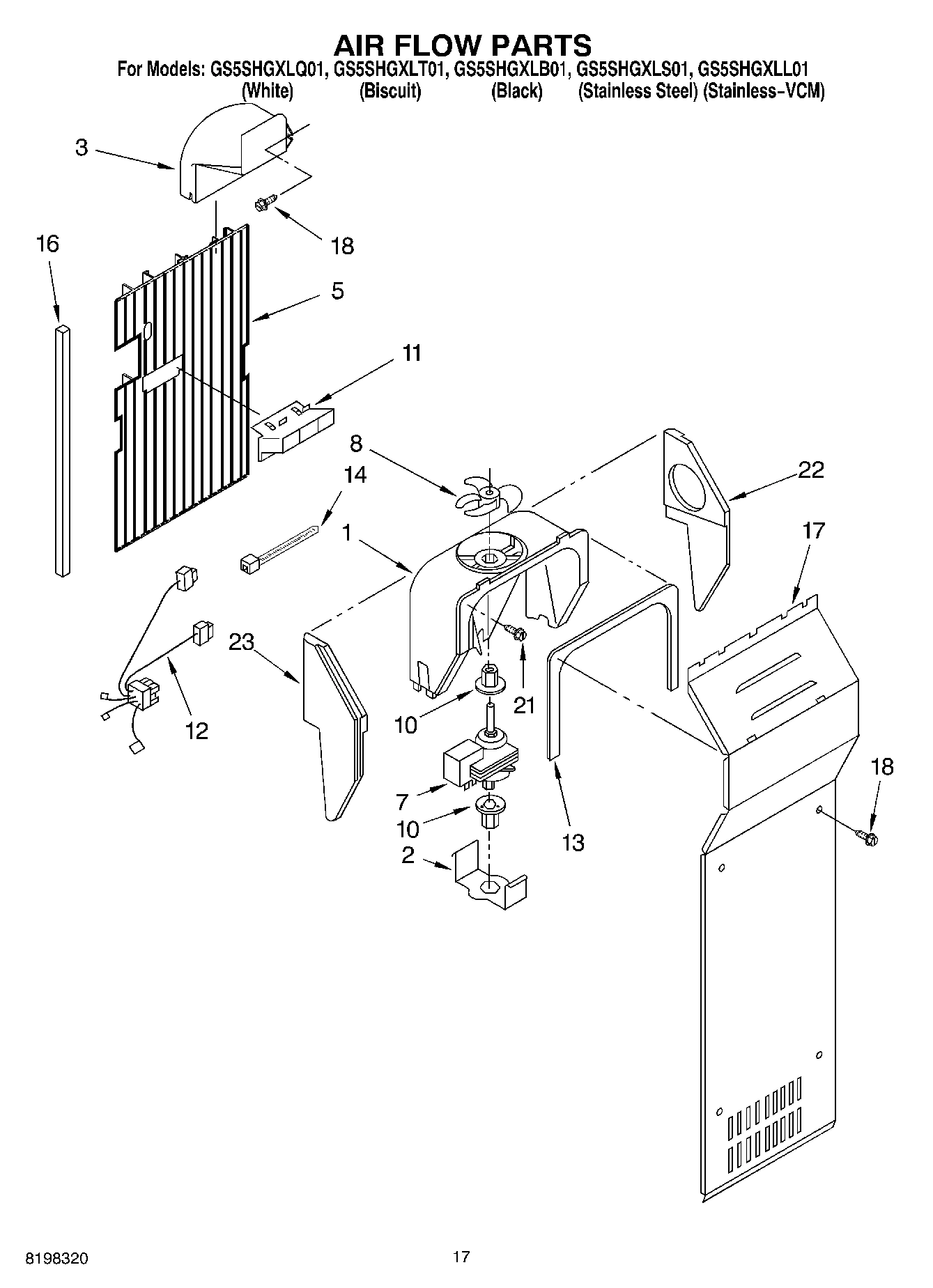

10 - AIR FLOW PARTS

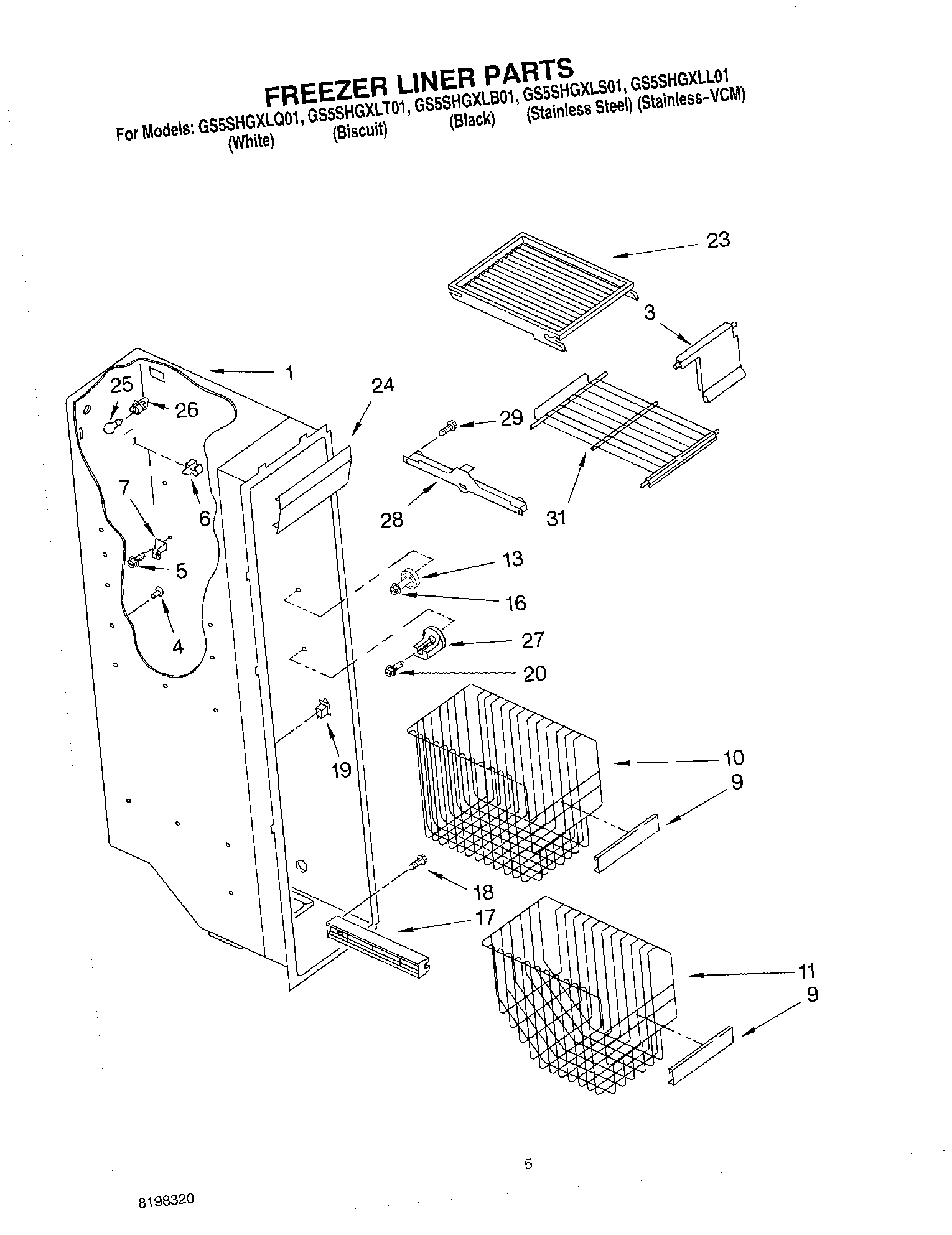

04 - FREEZER LINER PARTS

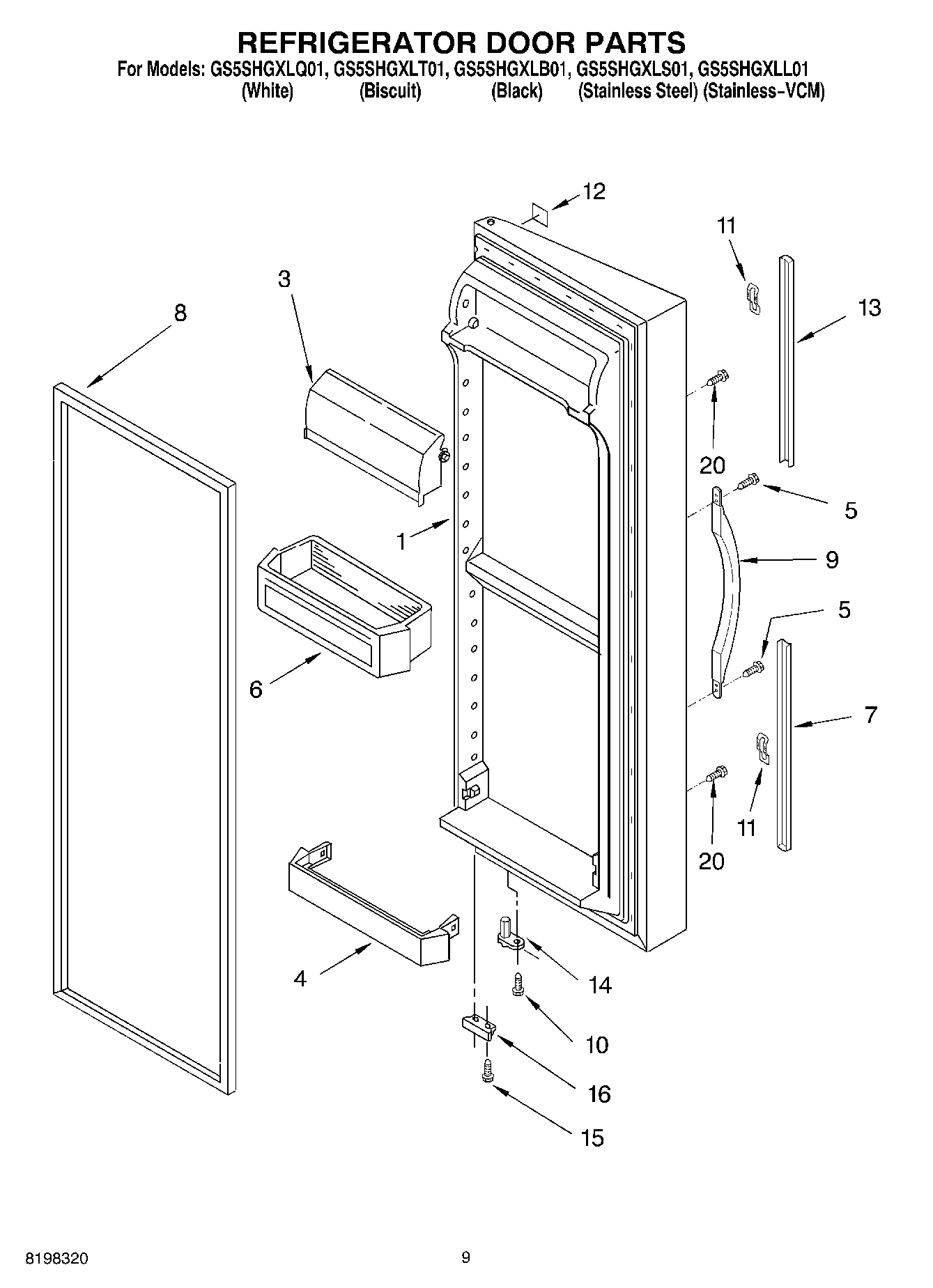

06 - REFRIGERATOR DOOR PARTS

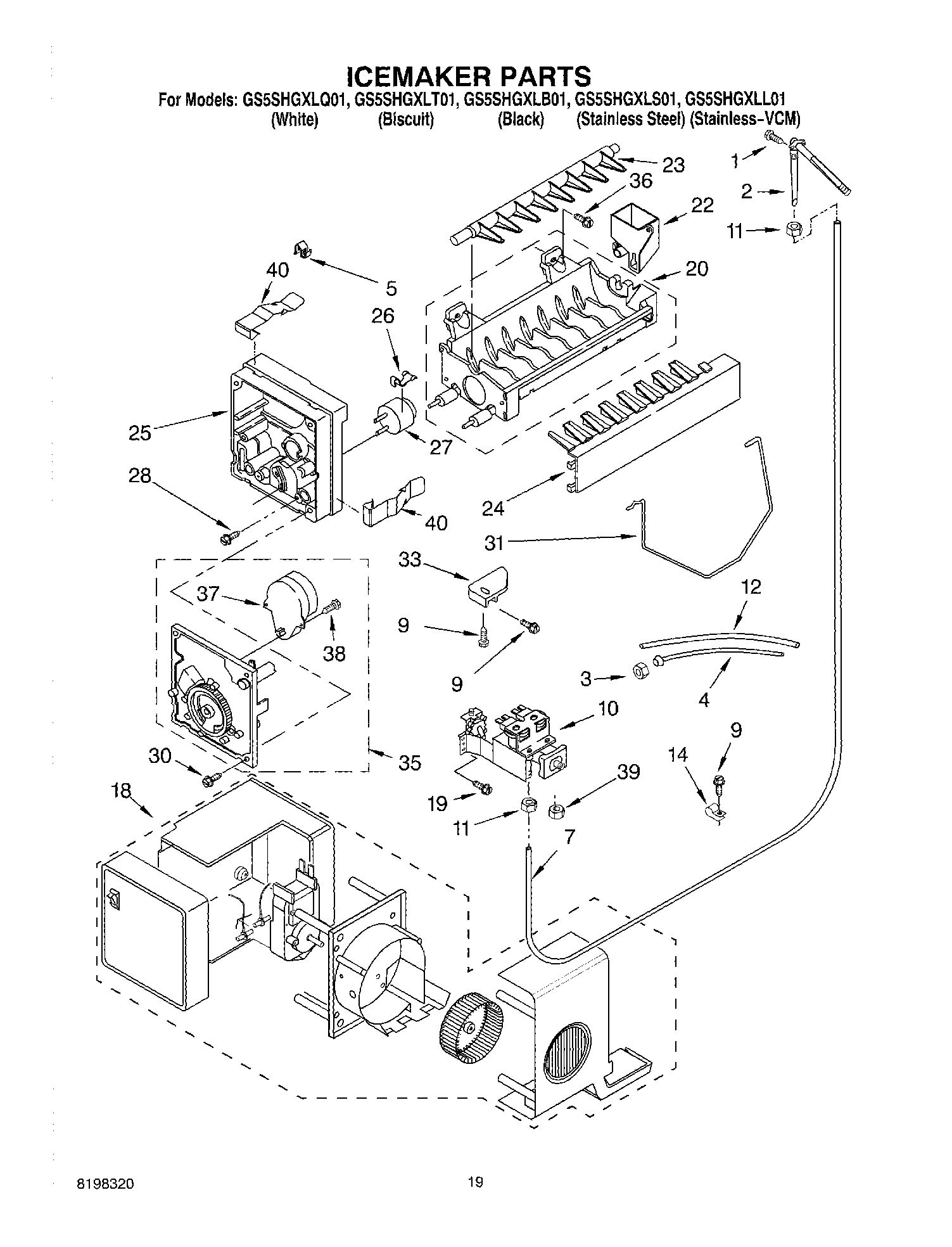

12 - ICEMAKER PARTS - PARTS NOT ILLUSTRATED

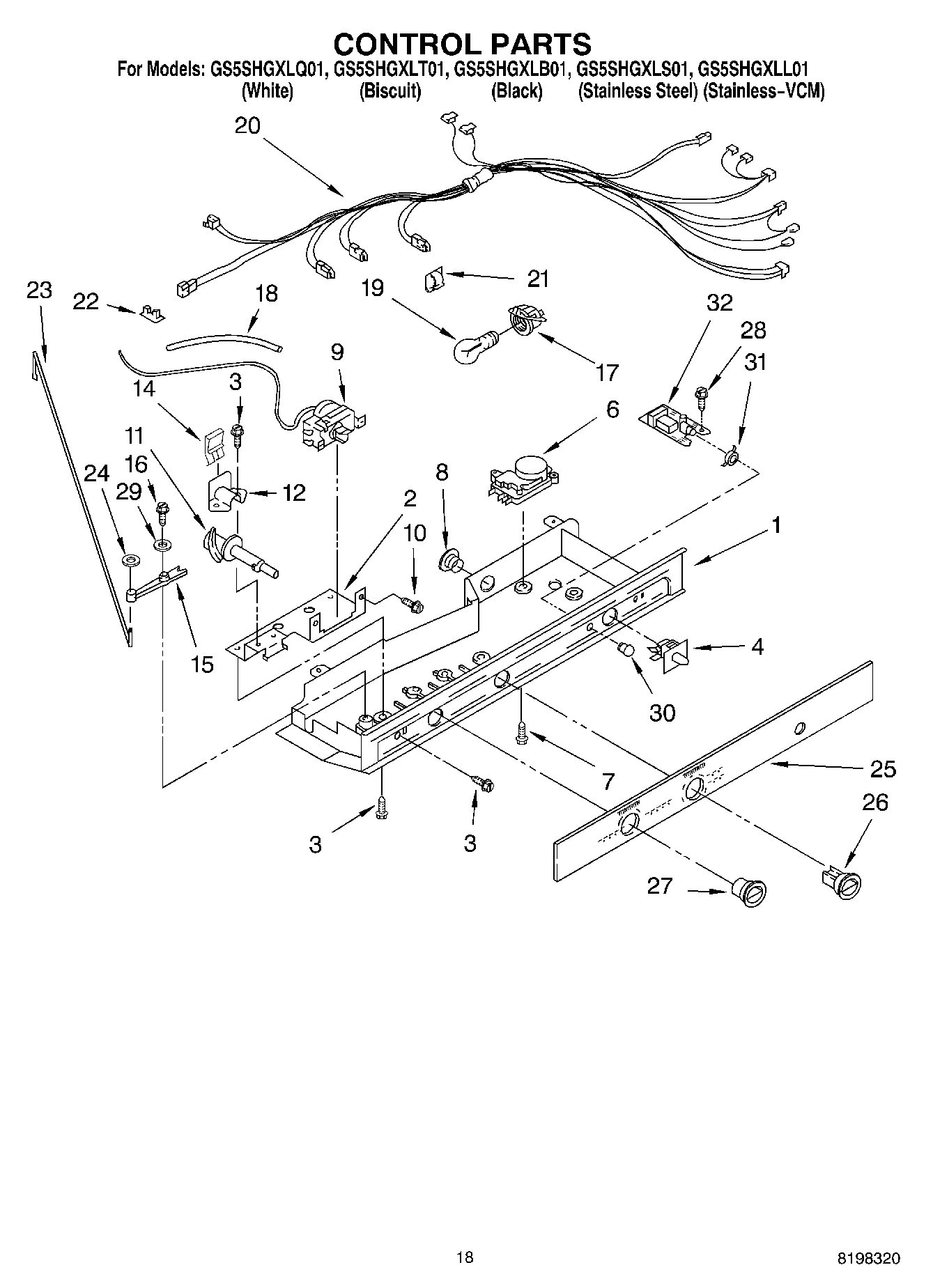

11 - CONTROL PARTS

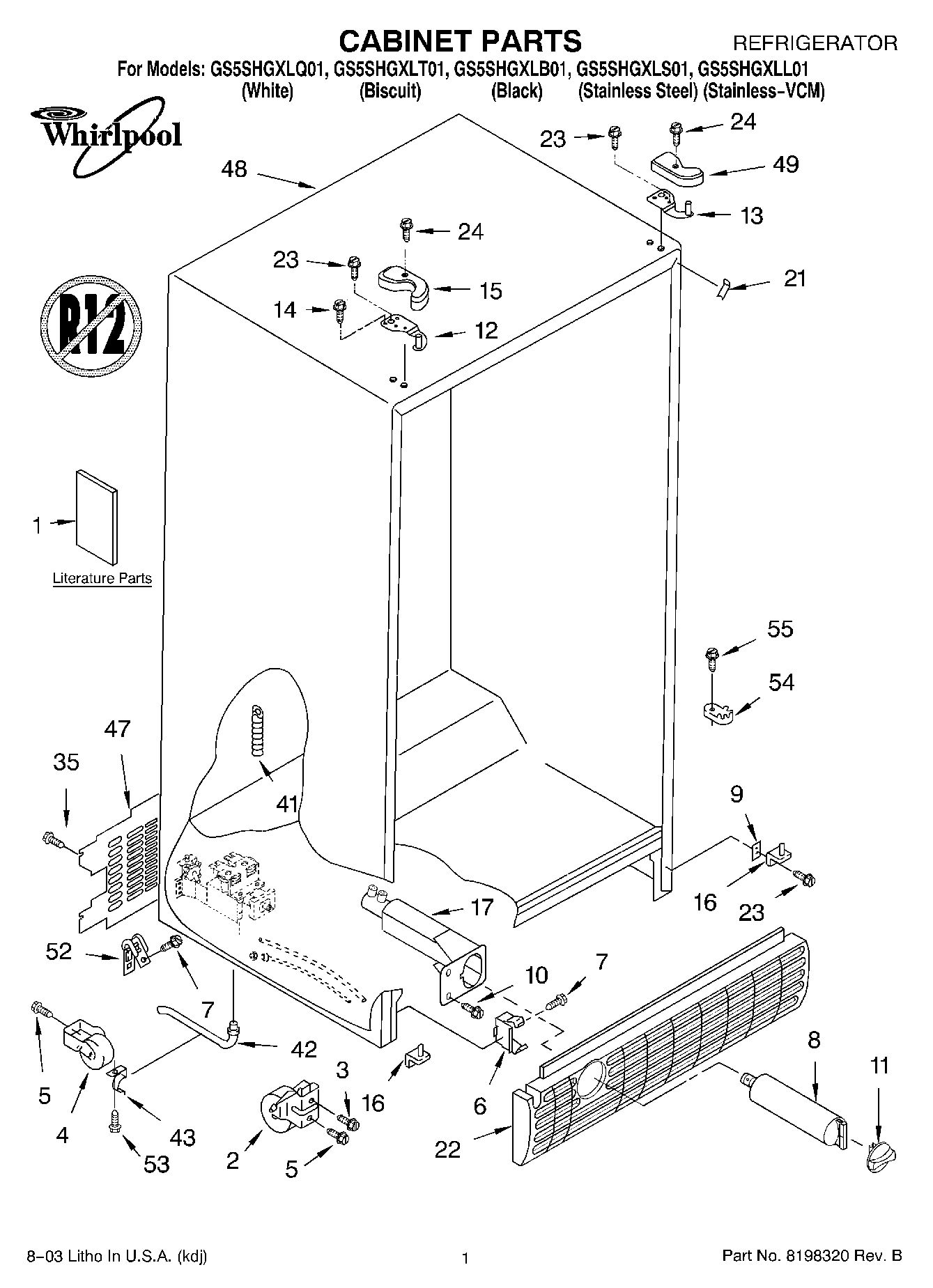

01 - CABINET PARTS

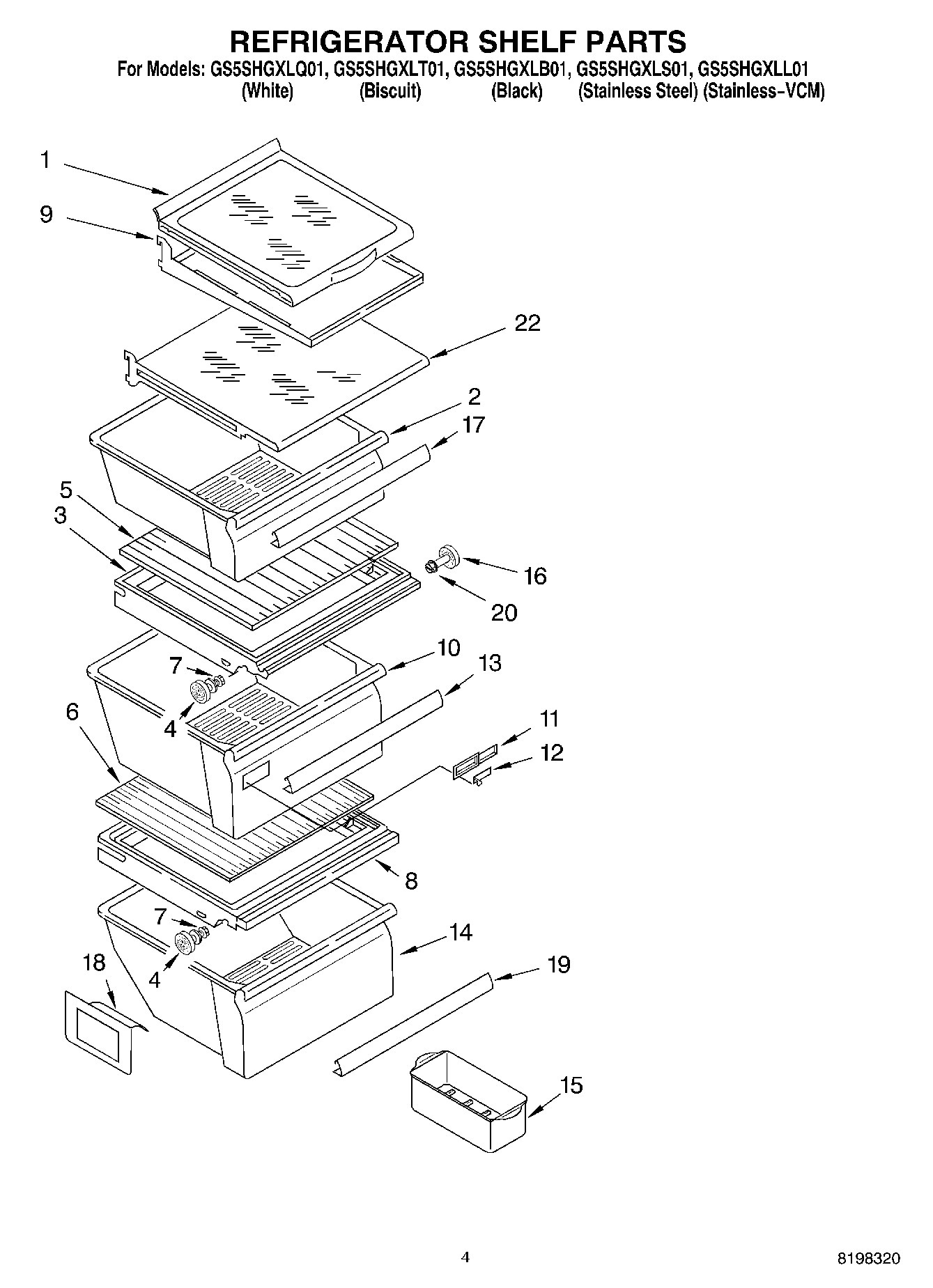

03 - REFRIGERATOR SHELF PARTS
Common parts from model Whirlpool GS5SHGXLS01 REFRIGERATOR
LITERATURE PARTS WPL ARI70756A1 Contact Us For Availability
1
Control Box WPL 2200137 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2220426 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT2220699 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2255373 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Nut, Compression WPL 2200083 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
7
TUBE, SUCTION WPL 2205765 Contact Us For Availability
8
Cover, Meat Pan WPL 2217039 Contact Us For Availability
9
Grille, Overflow (White) WPL 2207007W Contact Us For Availability
9
Shim (1) WPL 2209697 Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability
9
Frame, Shelf WPL 2195975 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability
12
Nameplate WPL 2220214 Contact Us For Availability
13
Extension, Top (Black) WPL 2217187B Contact Us For Availability
13
Extension, Top (Biscuit) WPL 2217187T Contact Us For Availability
13
Extension, Top (White) WPL 2217187W Contact Us For Availability
15
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability
17
Lever, Water Dispenser (Black) WPL 2203561B Contact Us For Availability
17
Lever, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability
18
Acceler-Ice Assy. WPL 2219992 Contact Us For Availability
20
Control Box Harness WPL 2187556 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
21
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
22
Grille (Biscuit) WPL 2198468T Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Shelf, Snack Bin WPL 2206347 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2212073 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
30
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
31
Retainer, Light Lens WPL 2200097 Contact Us For Availability
32
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
39
Nut, Compression WPL 1129179 Contact Us For Availability
40
Clip, Icemaker WPL 2204881 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI70757A6 Contact Us For Availability
49
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
100
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
100
WPL ARI70768A7 WPL ARI70768A7 Contact Us For Availability
100
WPL ARI70769A4 WPL ARI70769A4 Contact Us For Availability
100
WPL ARI70770A7 WPL ARI70770A7 Contact Us For Availability
100
WPL ARI70771A8 WPL ARI70771A8 Contact Us For Availability
× ![]()
