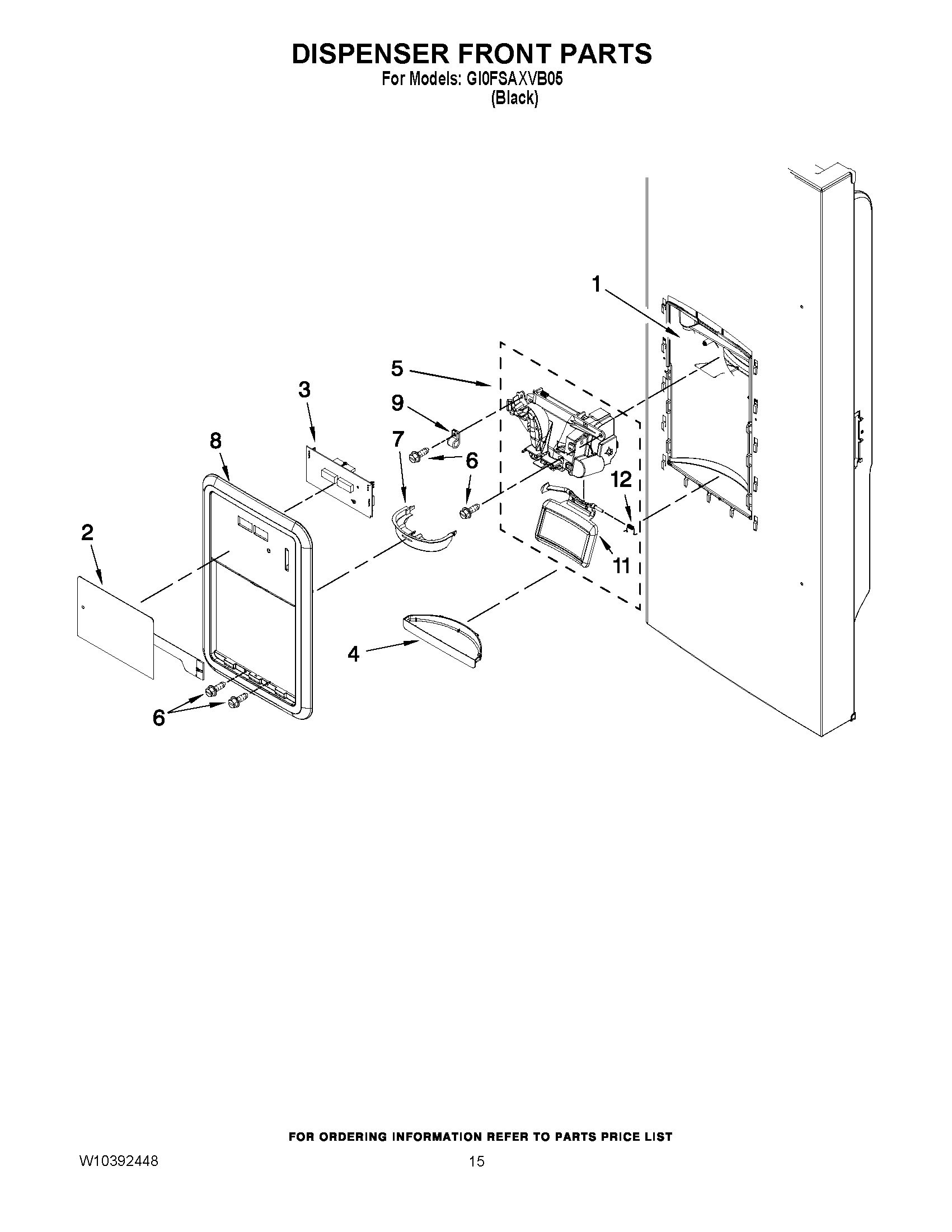

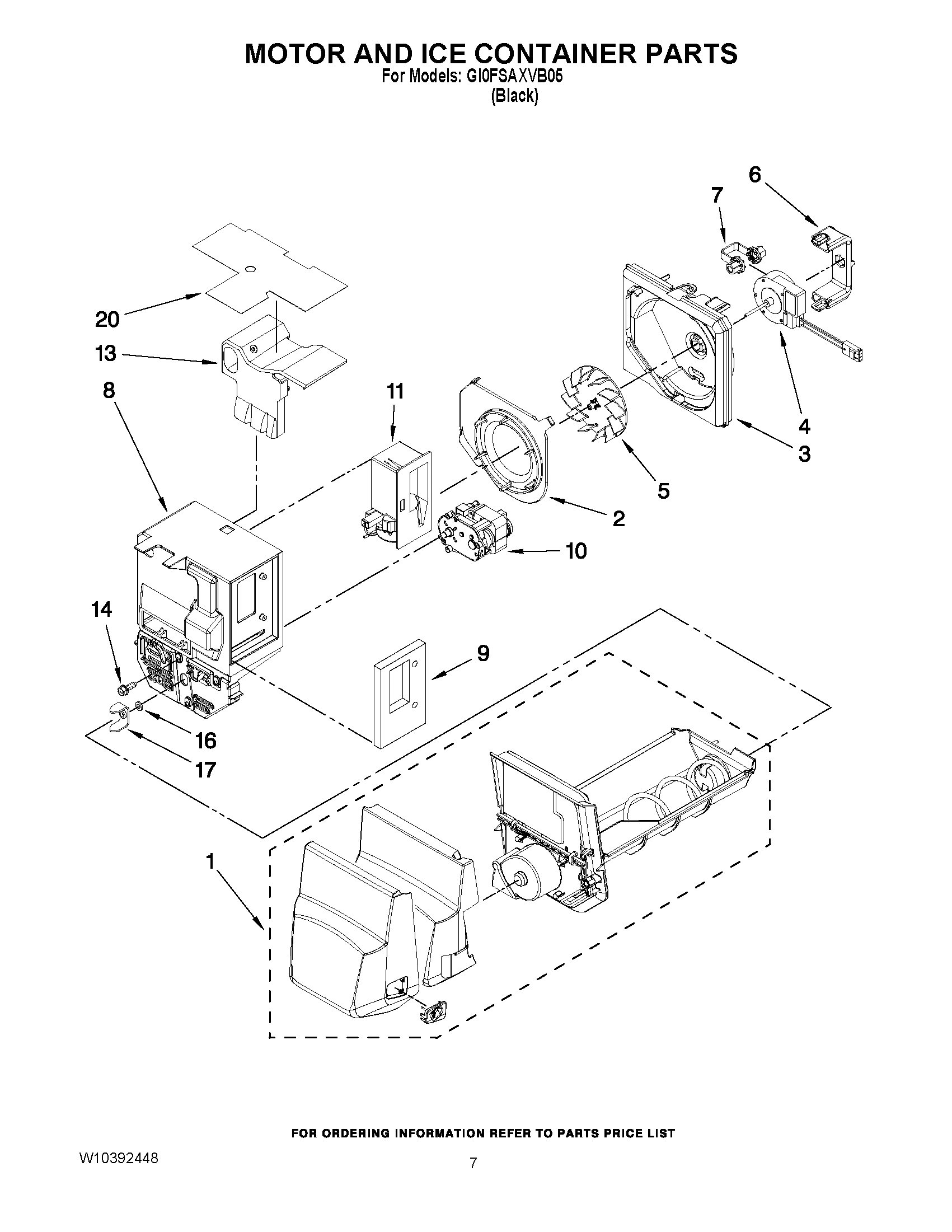

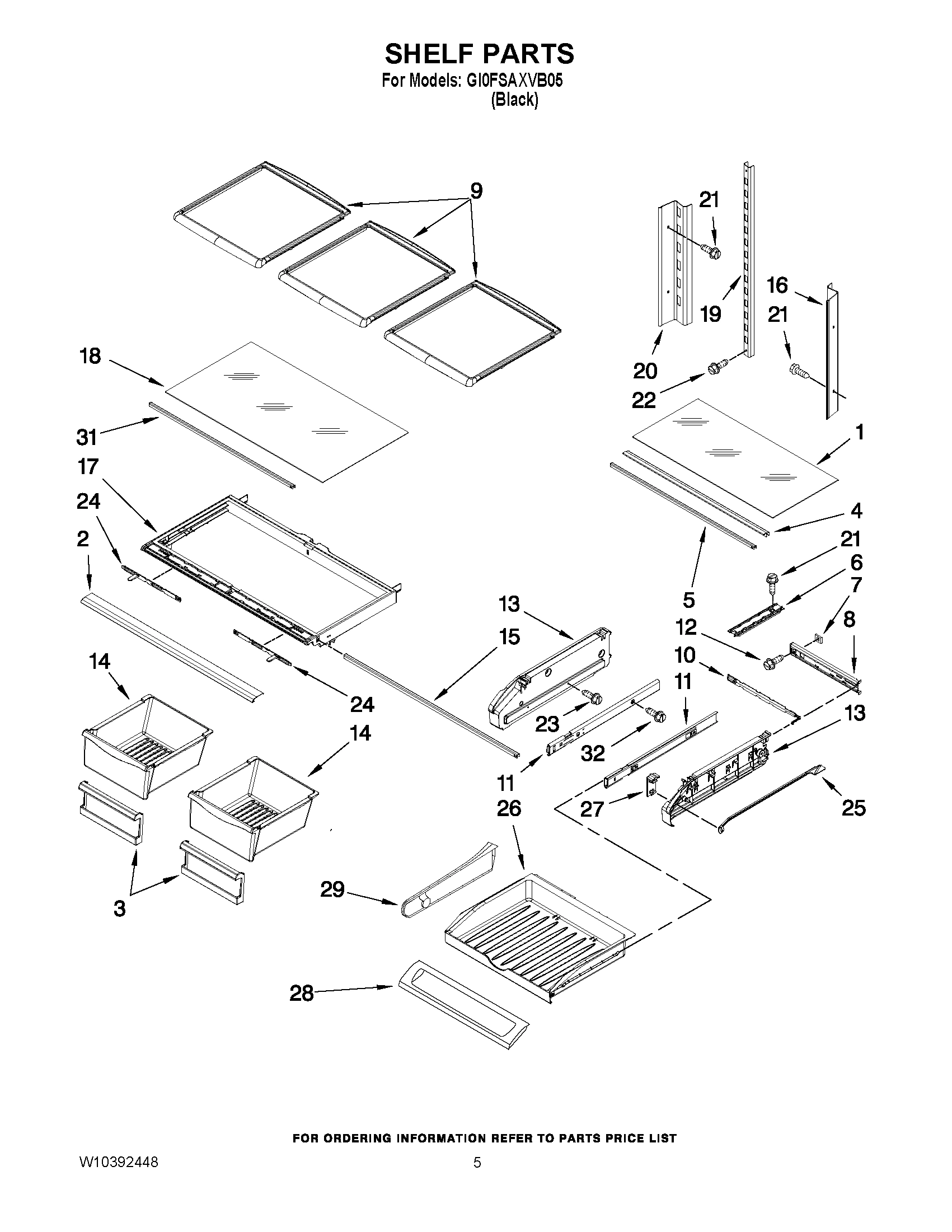

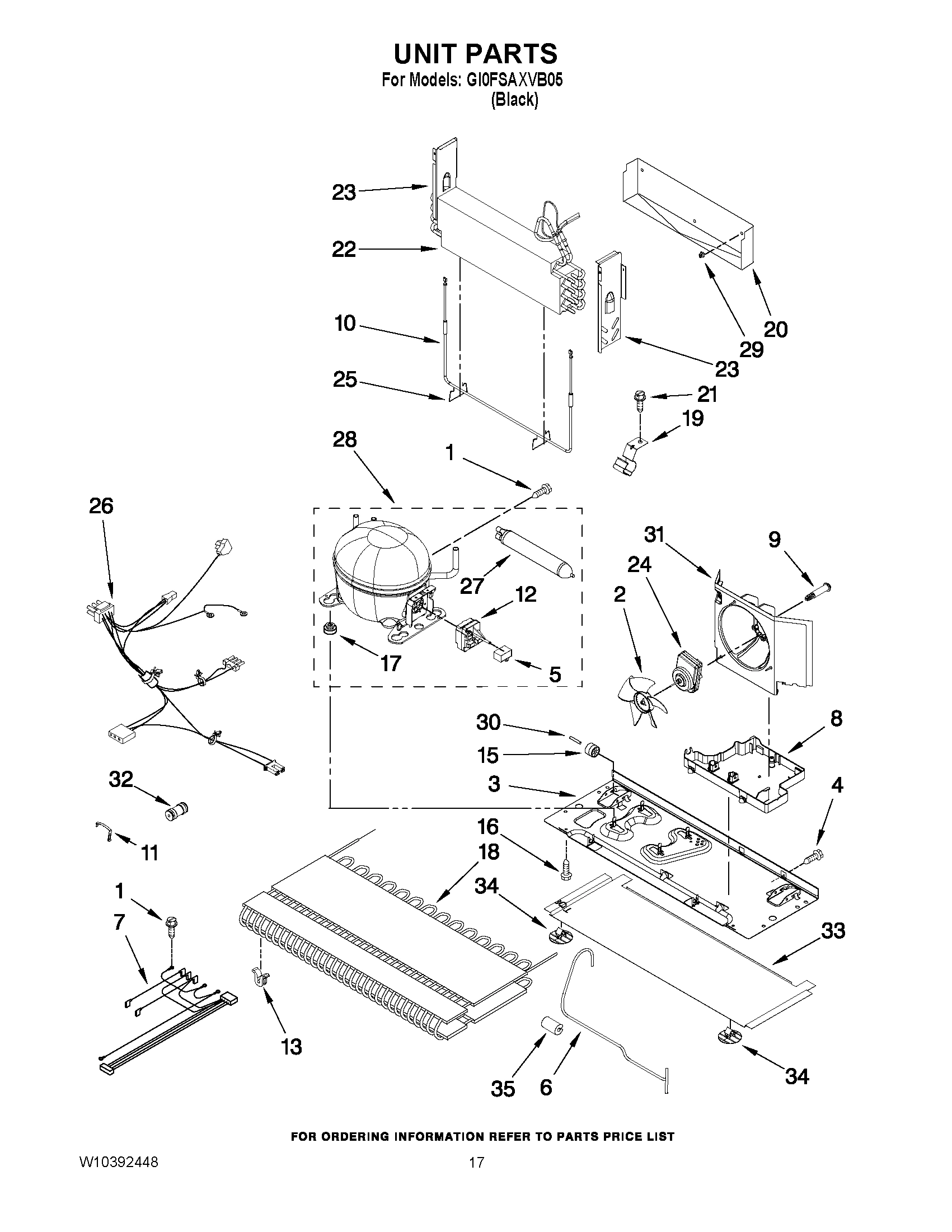

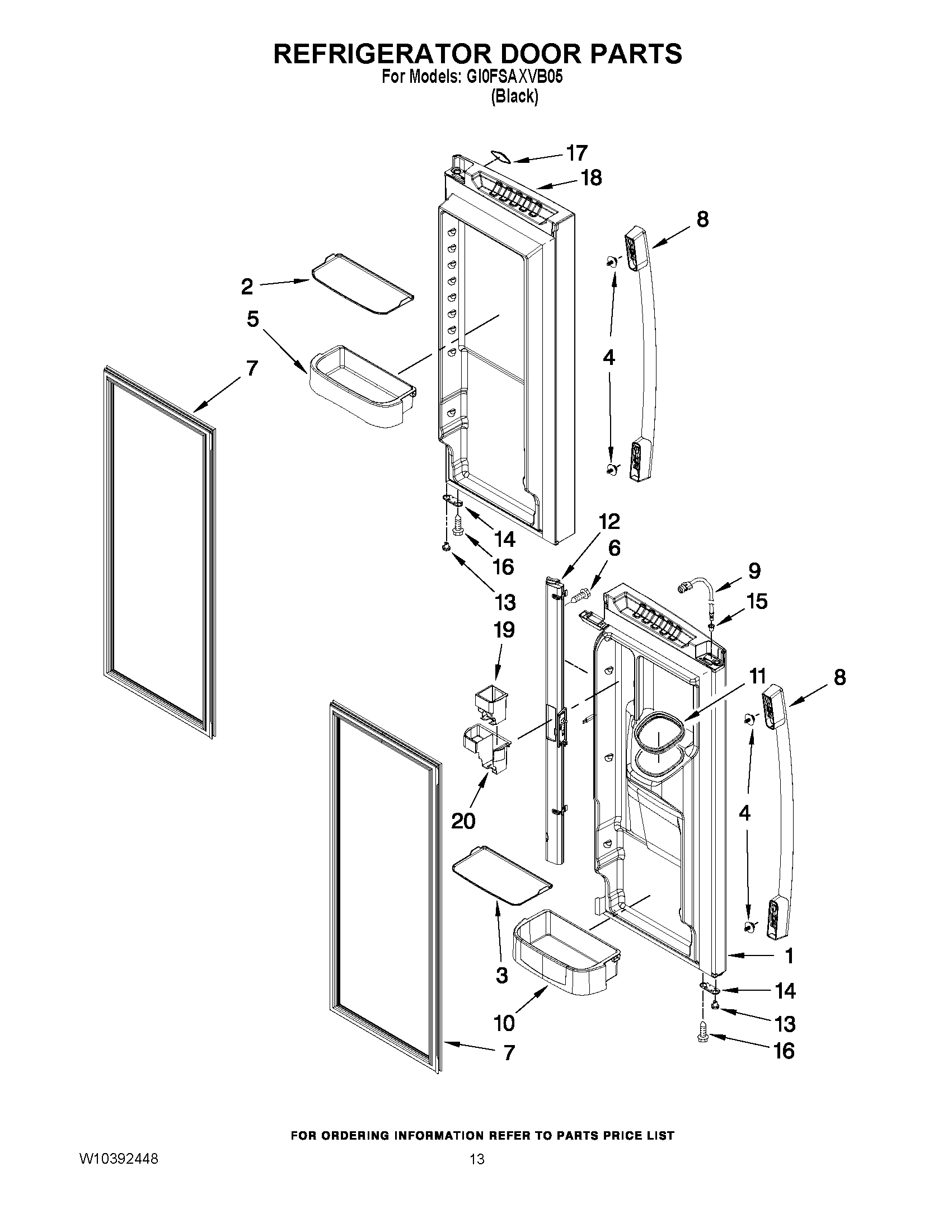

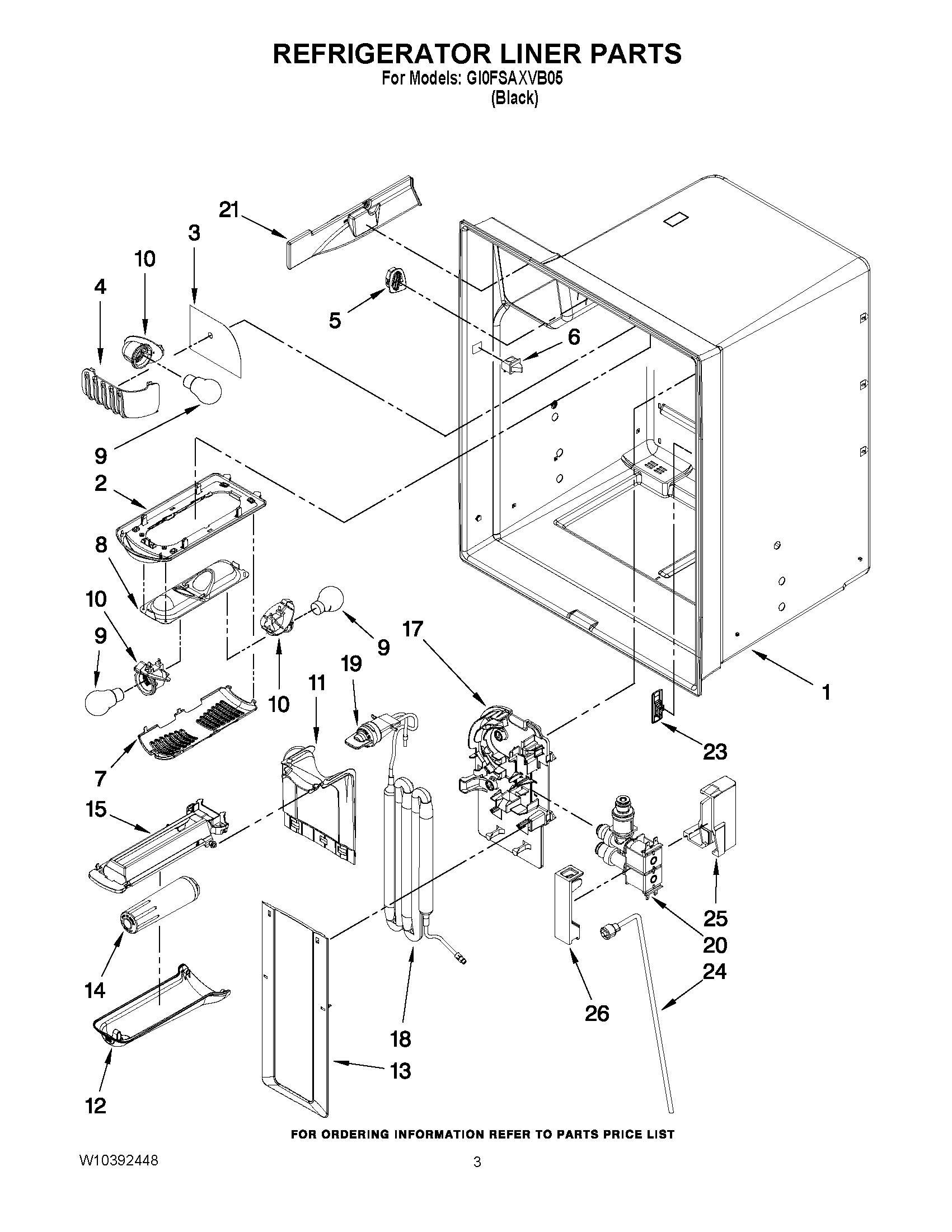

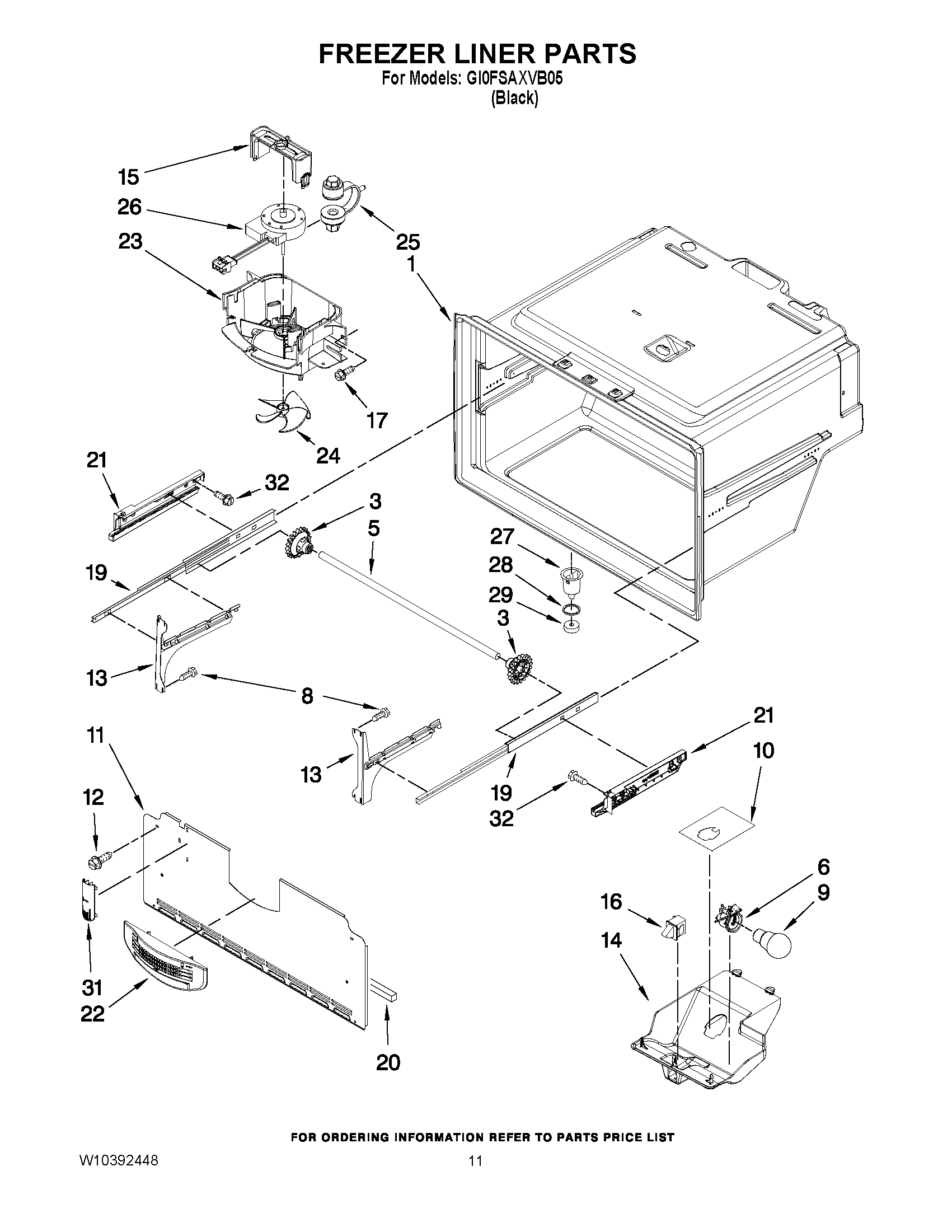

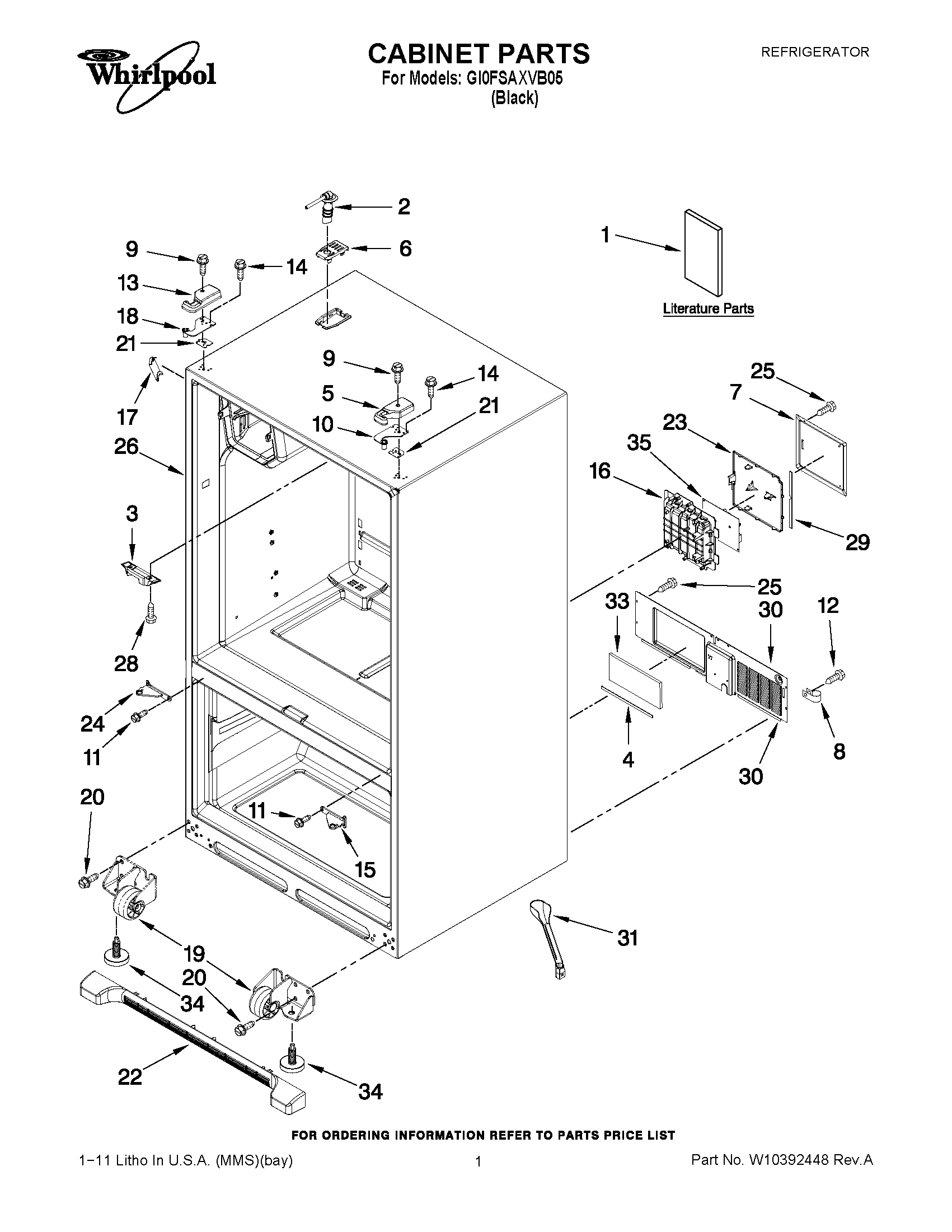

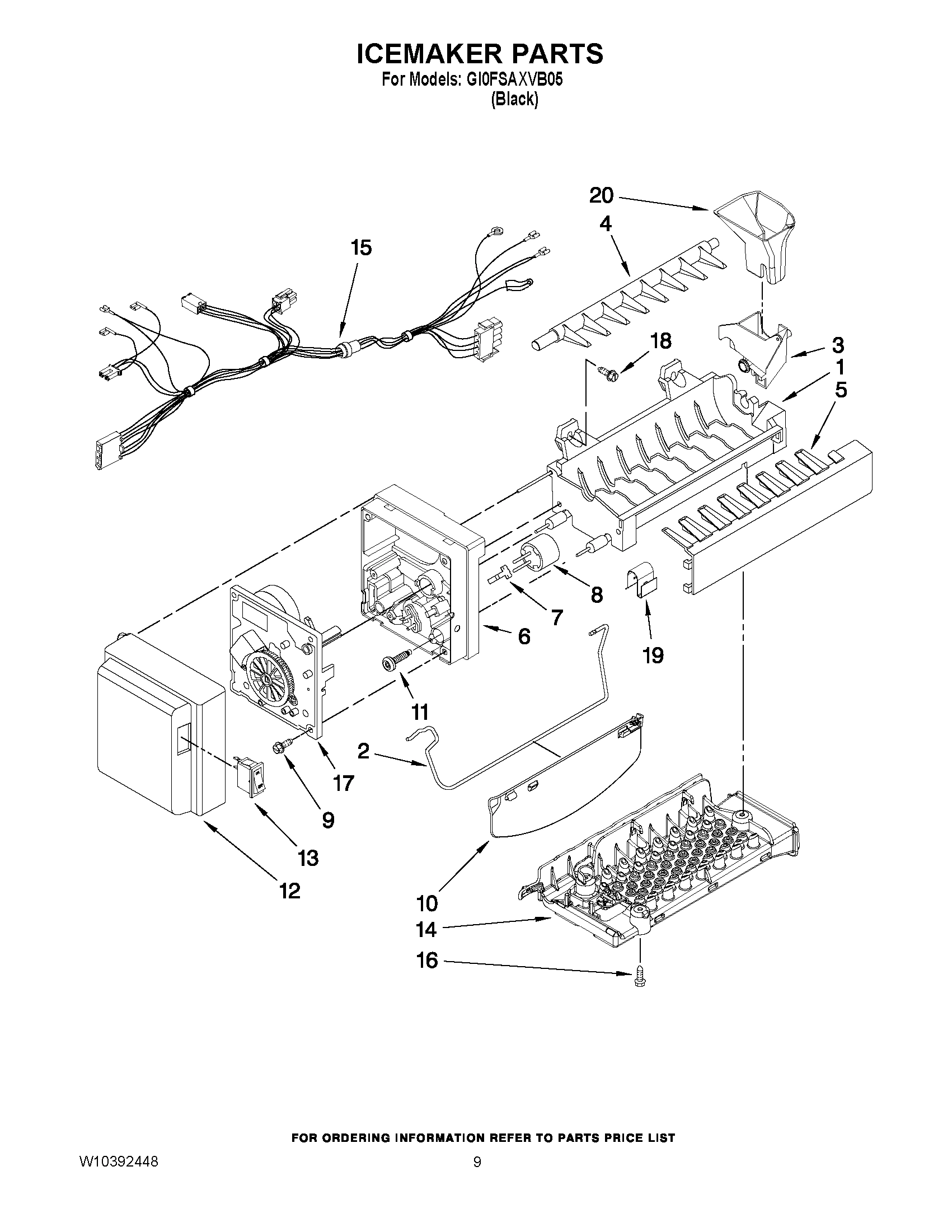

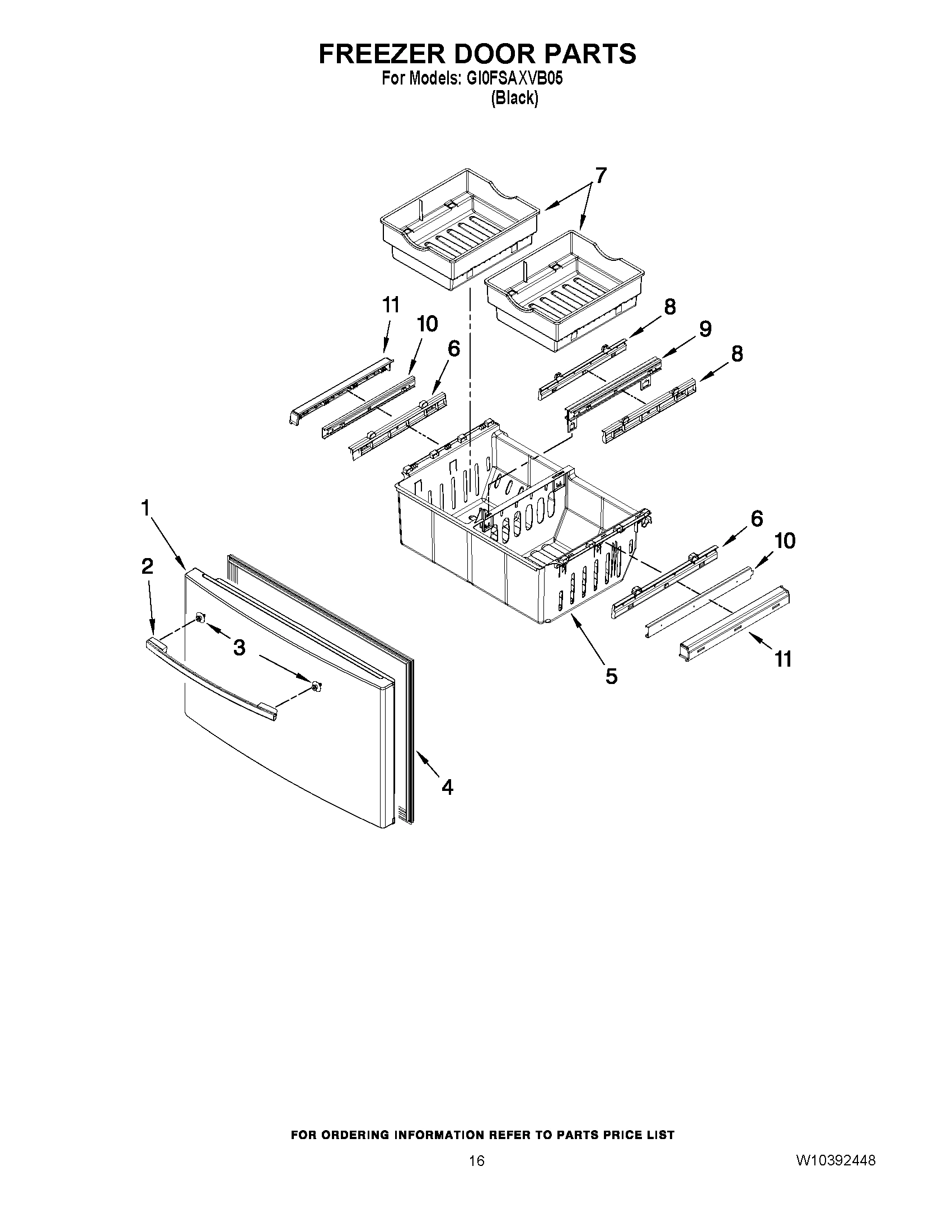

Model Whirlpool GI0FSAXVB05 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $132.71

1

WPW10324088 Whirlpool Refrigerator Ice Bin Backorder WPL WPW10324088 $269.99

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.91

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $68.99

2

WPW10175514 Whirlpool Refrigerator Shut-Off A Backorder WPL WPW10175514 $57.50

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.99

3

W10121281 Whirlpool Refrigerator Shroud Backorder WPL W10121281 $52.80

3

W10327050 Whirlpool Refrigerator Cup Fill Backorder WPL W10327050 $61.35

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $66.10

4

12921801 Whirlpool Refrigerator Light Cover Backorder WPL 12921801 $14.02

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $8.23

4

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $23.29

4

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $6.84

4

WPW10162697 Whirlpool Refrigerator Motor Backorder WPL WPW10162697 $216.66

4

Sump, Dispenser (Black) WPL W10168726 Contact Us For Availability

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $18.80

5

WP13005704B Whirlpool Ice Chute Backorder WPL WP13005704B $206.99

5

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $61.99

5

WPW10123444K Whirlpool Refrigerator Wheel Backorder WPL WPW10123444K $57.99

5

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

6

12981401B Whirlpool Refrigerator Filtration C Backorder WPL 12981401B $8.35

6

W10165970 Whirlpool Refrigerator Clip Backorder WPL W10165970 $58.17

6

W10390735 Whirlpool Refrigerator Tube Backorder WPL W10390735 $95.00

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $75.11

7

W10850438 Whirlpool Refrigerator Evaporator M In Stock WPL W10850438 $257.55

7

Grommet, Fan Motor WPL W10151687 Contact Us For Availability

8

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $96.92

8

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $74.19

8

W10356558 Whirlpool Refrigerator Divider Backorder WPL W10356558 $67.89

8

W11351146 Whirlpool Refrigerator Handle Backorder WPL W11351146 $119.22

8

WPW10655368 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655368 $95.74

8

Facade, Dispenser (Black) WPL W10163996 Contact Us For Availability

9

W10235358 Whirlpool Refrigerator Glide Backorder WPL W10235358 $210.08

9

W10275942 Whirlpool Refrigerator Water Tube Backorder WPL W10275942 $78.00

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $7.98

9

WP67006341 Whirlpool Refrigerator Gasket In Stock WPL WP67006341 $5.99

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $14.02

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $16.94

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $102.99

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $136.74

WPW10121440 Whirlpool Refrigerator Extension Backorder WPL WPW10121440 $58.55

WPW10235368 Whirlpool Refrigerator Glide Backorder WPL WPW10235368 $214.29

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.90

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $181.94

W10826790 Whirlpool Refrigerator Retainer Backorder WPL W10826790 $39.36

W10826791 Whirlpool Refrigerator Retainer Backorder WPL W10826791 $39.36

WPW10127427 Whirlpool Refrigerator Control In Stock WPL WPW10127427 $135.66

WPW10168729 Whirlpool Refrigerator Pad Backorder WPL WPW10168729 $8.07

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $201.53

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $19.99

12

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $49.99

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $14.02

WP12656018 Whirlpool Drawer Support In Stock WPL WP12656018 $42.99

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $37.99

WP2313326 Whirlpool Refrigerator Switch Backorder WPL WP2313326 $12.74

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

14

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $65.79

14

W11434460 Whirlpool Refrigerator Housing Backorder WPL W11434460 $20.51

14

WPW10312691 Whirlpool Refrigerator Air Baffle In Stock WPL WPW10312691 $210.88

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $8.89

W10312698 Whirlpool Refrigerator Wire Harness Backorder WPL W10312698 $168.24

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $48.80

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $67.67

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

16

67006346 Whirlpool Refrigerator Washer Backorder WPL 67006346 $9.90

16

Screw WPL 12992101 Contact Us For Availability

17

WP63052-2 Whirlpool Refrigerator Impeller In Stock WPL WP63052-2 $46.99

17

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

17

Nameplate WPL 2220214 Contact Us For Availability

18

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.85

18

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $16.65

18

WPW10346415 Whirlpool Refrigerator Condenser Backorder WPL WPW10346415 $232.59

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $19.26

W10281329 Whirlpool Clamp In Stock WPL W10281329 $8.39

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $40.99

W11658403 Whirlpool Slides In Stock WPL W11658403 $117.71

WP12977402 Whirlpool Refrigerator Bin Backorder WPL WP12977402 $50.83

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

W10251966 Whirlpool Refrigerator Ladder Backorder WPL W10251966 $54.80

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.38

WP12977502 Whirlpool Refrigerator Bin Backorder WPL WP12977502 $50.74

WPW10121434 Whirlpool Refrigerator Insert Backorder WPL WPW10121434 $18.25

WPW10312696 Whirlpool Water Inlet Valve In Stock WPL WPW10312696 $190.82

Foil, Ice Box WPL W10142628 Contact Us For Availability

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $64.97

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $65.67

13033601 Whirlpool Refrigerator Wire Cover Backorder WPL 13033601 $47.30

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $56.94

22

W11536253 Whirlpool Refrigerator Evaporator Backorder WPL W11536253 $145.69

23

12963002SP Whirlpool Refrigerator Evaporator Backorder WPL 12963002SP $35.37

23

12987301 Whirlpool Refrigerator Cover Backorder WPL 12987301 $8.40

23

Dam (Right Side) WPL 12963102SP Contact Us For Availability

24

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $54.14

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $73.99

24

WATERLINE, CABINET (W/NUT) WPL W10328203 Contact Us For Availability

25

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $57.94

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $92.88

25

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.89

26

W11666013 Whirlpool Wire Harness Backorder WPL W11666013 $58.53

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.56

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $453.66

28

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $150.74

28

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $4.80

29

Clip, Evaporator WPL 10623002 Contact Us For Availability

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

30

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $128.08

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $47.99

31

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $67.83

32

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $14.46

33

Fiber, Acoustic WPL 12820505 Contact Us For Availability

33

EXTENSION-BASEPAN WPL W10206338 Contact Us For Availability

34

W10206339 Whirlpool Fastener Backorder WPL W10206339 $7.09

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $9.86

35

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

35

WPW10312695-includeCORE Whirlpool WPW10312695 Backorder WPL WPW10312695-includeCORE $232.79

100

WPW10300024 Whirlpool Ice Maker In Stock WPL WPW10300024 $251.99

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stnls Steel Magic WPL 20000008 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

REFINISHING MATERIAL (ENAMEL, BLACK (1 QT. UN WPL 799340 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE (5.25 OZS. (R-134A)) WPL NP Contact Us For Availability
