Model Whirlpool GDG9700 GAS DRYER – Common Parts &amp; Diagrams

1

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

1

DUCT, OUTLET ASSY. WPL Y307112 Contact Us For Availability

1

INSTRUCTION LABEL WPL 314942 Contact Us For Availability

1

SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability

1

BLADE, SAW WPL 038179 Contact Us For Availability

1

BACK UP PLATE WPL 314184 Contact Us For Availability

1

COVER, TERMINAL WPL Y312905 Contact Us For Availability

2

WP306604 Whirlpool Cut-off In Stock WPL WP306604 $20.71

2

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

2

LINT FILTER WPL Y307107 Contact Us For Availability

2

LABEL, INSTRUCTION WPL 314941 Contact Us For Availability

2

REPLACEMENT DRILL WPL 038180 Contact Us For Availability

2

PALNUT, END CAP WPL 214872 Contact Us For Availability

3

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $24.56

3

Y303836 Whirlpool Dryer Blower Wheel In Stock WPL Y303836 $27.73

3

TUMBLE FRONT ASSY W/SEAL WPL 307311 Contact Us For Availability

3

SCREW WPL 313764 Contact Us For Availability

3

SCREW WPL Y314062 Contact Us For Availability

3

HOLE SAW W/DRILL BIT WPL 038766 Contact Us For Availability

3

ELECTRONIC CONTROL WPL 307898 Contact Us For Availability

4

HOUSING, BLOWER WPL Y312893 Contact Us For Availability

4

EXTENSION CHUCK, DRILL WPL 038767 Contact Us For Availability

4

EDGE BOARD CONNECTOR WPL 307897 Contact Us For Availability

4

SCREW FOR CAUTION PLATE----NA WPL 311863 Contact Us For Availability

5

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

5

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

5

COVER, THREAD WPL 313915 Contact Us For Availability

5

ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability

5

WIRE, GROUND WPL 901220 Contact Us For Availability

5

RELAY WPL 307899 Contact Us For Availability

6

W10410999 Whirlpool Dryer Drive Motor In Stock WPL W10410999 $130.21

6

INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability

6

PC BOARD WPL Y307896 Contact Us For Availability

7

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

7

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $5.02

7

CONSOLE-HARVEST WHEAT WPL 305193M Contact Us For Availability

7

FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability

7

SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability

7

SWITCH, MOTOR WPL Y303877 Contact Us For Availability

7

SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability

7

SWITCH PUSH TO START WPL 307305 Contact Us For Availability

8

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

8

WP314820 Whirlpool Felt Seal In Stock WPL WP314820 $24.34

8

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

8

ACCESS DOOR-HARVEST WHEAT WPL 302542M Contact Us For Availability

8

EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability

8

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

9

4391996 Whirlpool Dryer Flat Igniter In Stock WPL 4391996 $22.45

9

SCREW WPL 304971 Contact Us For Availability

9

BAFFLE (SHORT) WPL 314803 Contact Us For Availability

9

DAMPER, BACK DRAFT WPL 059146 Contact Us For Availability

9

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

9

RESISTOR, MED TEMP GAS WPL 306917 Contact Us For Availability

9

CONVERTER WPL Y201808 Contact Us For Availability

4396007RW Whirlpool Dryer Vent Hood In Stock WPL 4396007RW $16.28

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

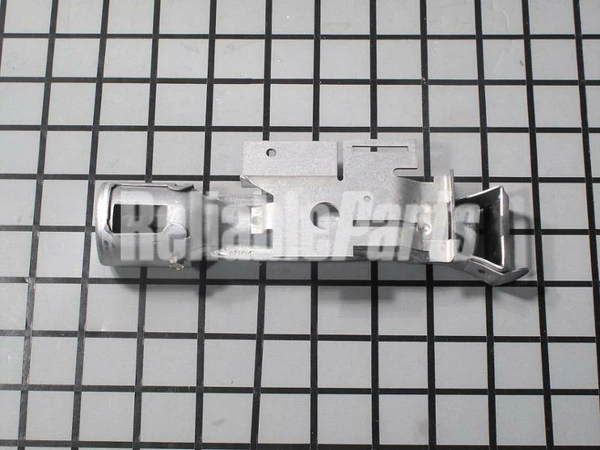

WP33002793 Whirlpool Burner Assembly Backorder WPL WP33002793 $132.39

WASHER WPL 314158 Contact Us For Availability

HINGE WPL 307099 Contact Us For Availability

PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability

TEMP CONTROL SWITCH 3 BUTTON WPL 307304 Contact Us For Availability

POWER CORD WPL 302521 Contact Us For Availability

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $94.27

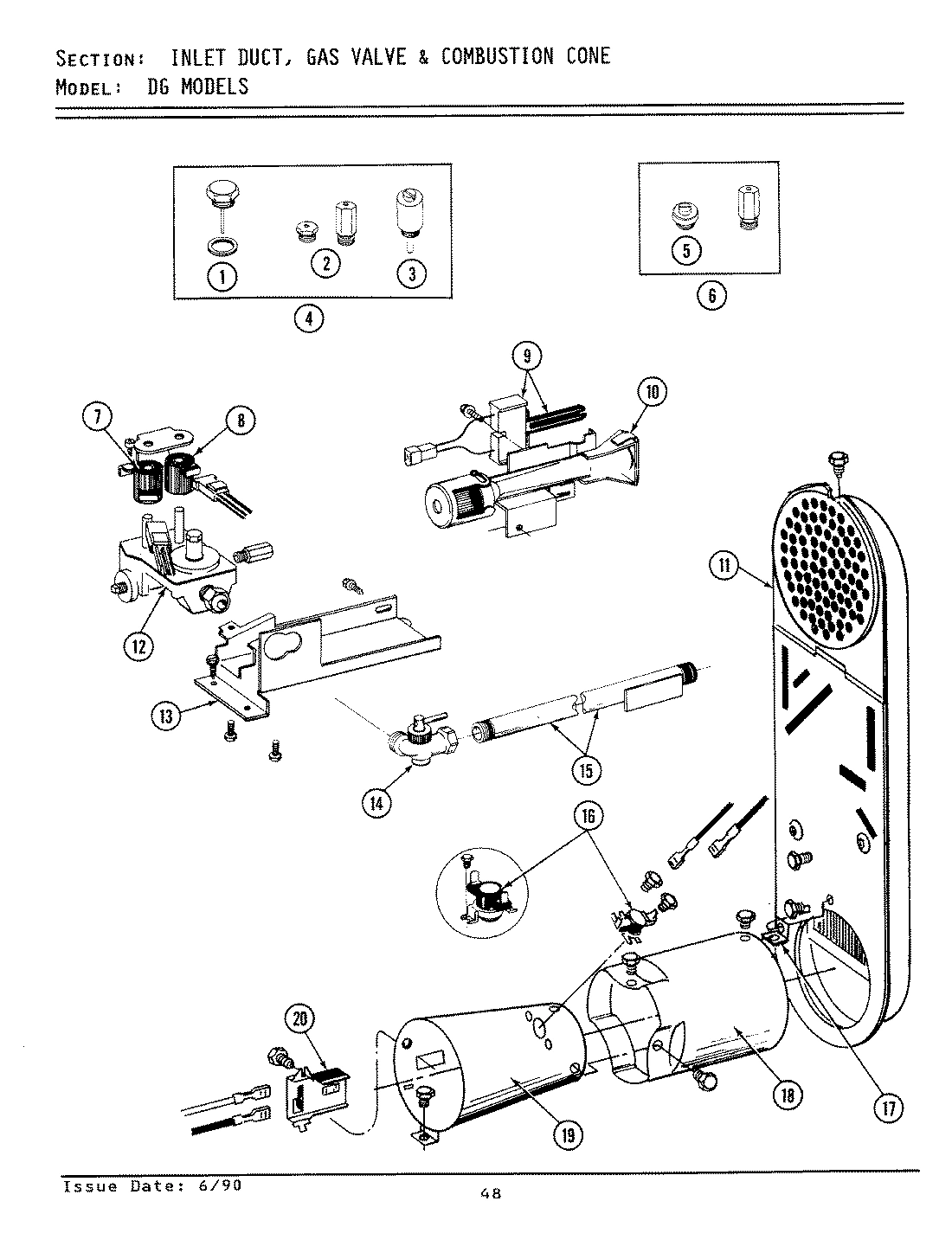

INLET DUCT ASSY. WPL 307119 Contact Us For Availability

TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability

TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability

DOOR ASSY HVT WHEAT WPL 307111M Contact Us For Availability

SEAL, FRONT PANEL WPL 314937 Contact Us For Availability

BAG, LINT (DACRON) WPL 311353 Contact Us For Availability

IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability

WP306176 Whirlpool Gas Valve In Stock WPL WP306176 $233.35

WPY312959 Whirlpool Dryer Drum Belt In Stock WPL WPY312959 $23.84

SCREW, HEX HD No.8 X 3/8 INCH WPL 211410 Contact Us For Availability

BACK, TUMBLER (W/SEAL) WPL Y307114 Contact Us For Availability

BACK, TUMBLER (W/SEAL) WPL Y308544 Contact Us For Availability

DOOR PANEL HVT WHEAT WPL 314966M Contact Us For Availability

TWIN FASTENER WPL Y313907 Contact Us For Availability

PIPE, VENTING WPL Y059130 Contact Us For Availability

GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability

GROMMET, CORD WPL 211881 Contact Us For Availability

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

BRACKET, GAS VALVE WPL 314566 Contact Us For Availability

HANDLE DOOR HVT WHEAT WPL 314973 Contact Us For Availability

TOP COVER ASSY WPL 307104M Contact Us For Availability

FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability

TIMER WPL Y307404 Contact Us For Availability

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability

FRONT PANEL WPL 307998M Contact Us For Availability

SCREW WPL 212949 Contact Us For Availability

BUSHING FOR ACCESS STUD WPL 312301 Contact Us For Availability

VENT DUCT ASSY. WPL Y059135 Contact Us For Availability

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

WP6-3037050 Whirlpool Idler Pulley In Stock WPL WP6-3037050 $18.21

SCREW WPL Y310632 Contact Us For Availability

SCREW----NA WPL Y313561 Contact Us For Availability

PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability

SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability

CABINET ASSY HVT WHEAT WPL 307124M Contact Us For Availability

RECTANGULAR VENT KIT WPL 059144 Contact Us For Availability

END CAP RH WPL 207216 Contact Us For Availability

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

WP303395 Whirlpool Thermostat In Stock WPL WP303395 $33.27

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $7.92

BASE ASSY. WPL Y303361 Contact Us For Availability

PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability

FASTENER, END CAP WPL 214894 Contact Us For Availability

4396010RP Whirlpool Dryer 6 Ft. Secure Connec In Stock WPL 4396010RP $27.71

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

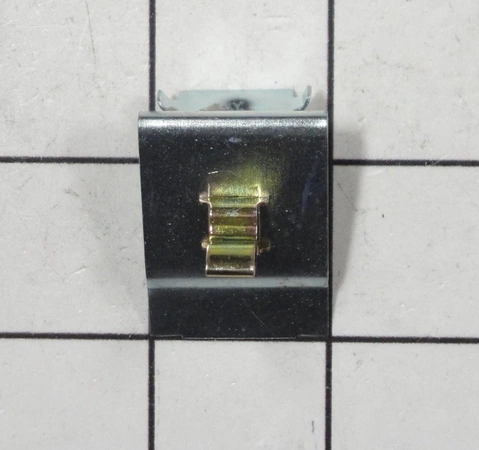

WP33001305 Whirlpool Door Strike Assembly Backorder WPL WP33001305 $1.77

WP6-3033630 Whirlpool Dryer Idler Arm Assembl In Stock WPL WP6-3033630 $56.49

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

CAP, KNOB WPL 215821 Contact Us For Availability

W10155650 Whirlpool Nut Backorder WPL W10155650 $8.89

WPW10116756 Whirlpool Spacer Backorder WPL WPW10116756 $33.58

CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability

DOOR SEAL WPL 314935 Contact Us For Availability

CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

CONE, COMBUSTION WPL Y303368 Contact Us For Availability

CONE, COMBUSTION WPL Y308548 Contact Us For Availability

DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability

BRACKET, EXHAUST DEFLECTOR WPL 313272 Contact Us For Availability

SUPPORT, MOTOR WPL 312897 Contact Us For Availability

KNOB, TIMER WPL 315041 Contact Us For Availability

33001004 Whirlpool Baffle In Stock WPL 33001004 $71.41

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

WPW10116751 Whirlpool Screw Backorder WPL WPW10116751 $4.82

SCREW WPL Y310759 Contact Us For Availability

CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability

EXHAUST DEFLECTOR KIT WPL 303736 Contact Us For Availability

COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability

DIAL SKIRT WPL 315042 Contact Us For Availability

COVER, ACCESS WPL Y312951 Contact Us For Availability

21

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

21

WPY312901 Whirlpool Blow Seal In Stock WPL WPY312901 $46.55

21

CONTROL PANEL WPL 307320 Contact Us For Availability

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability

WIRE HARNESS WPL 307308 Contact Us For Availability

CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability

SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability

23

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

23

WIRE HARNESS WPL 307422 Contact Us For Availability

23

LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability

24

RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability

24

CONTROL PANEL WPL 307215 Contact Us For Availability

25

SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability

26

SENSOR ASSEMBLY WITH SCREWS WPL 304997 Contact Us For Availability

27

RECEPTACLE, SENSOR GROUND WIRE WPL Y312658 Contact Us For Availability

29

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
