Model Whirlpool GDG24CT WASHER – Common Parts & Diagrams

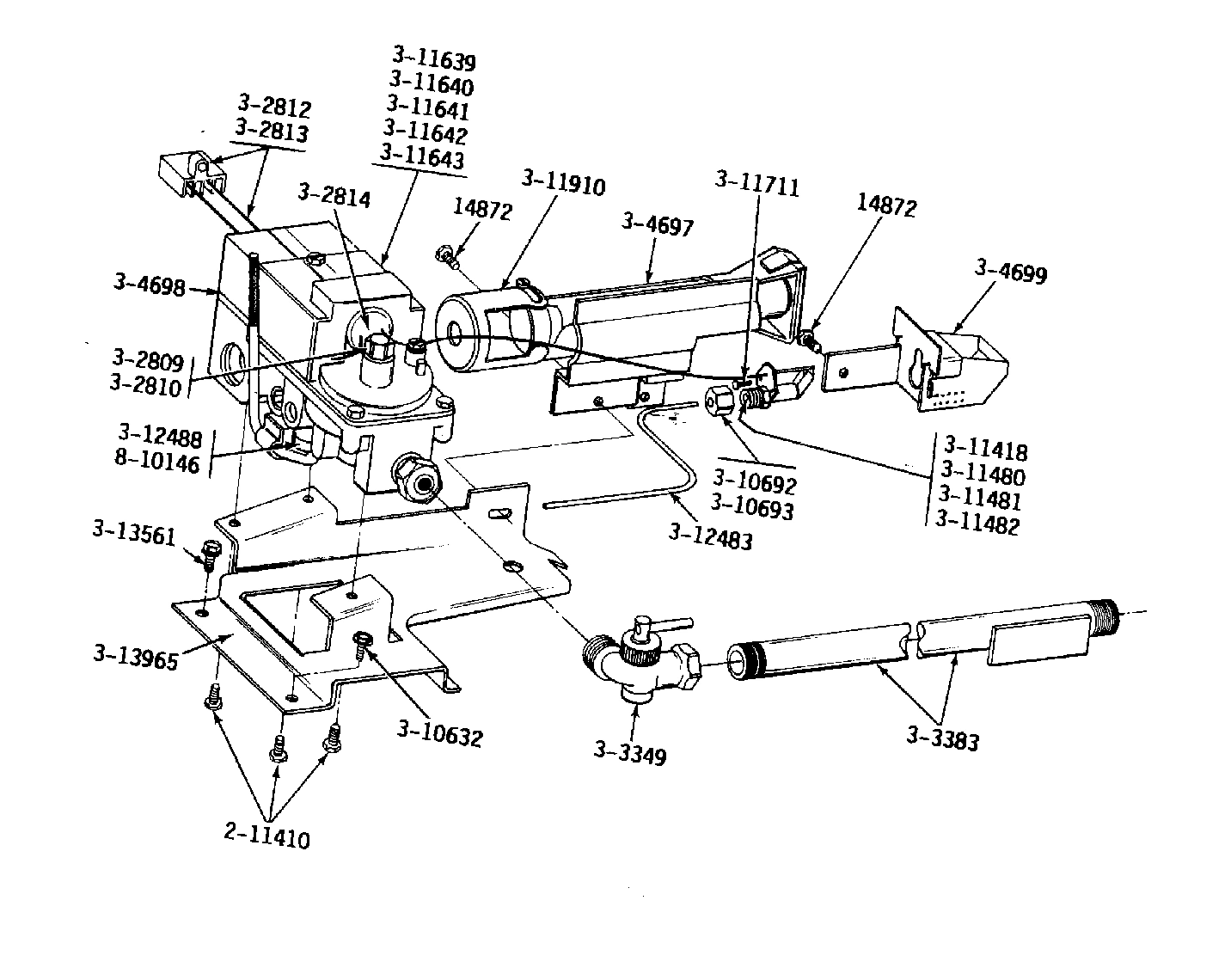

10 - 50HZ GAS VALVE

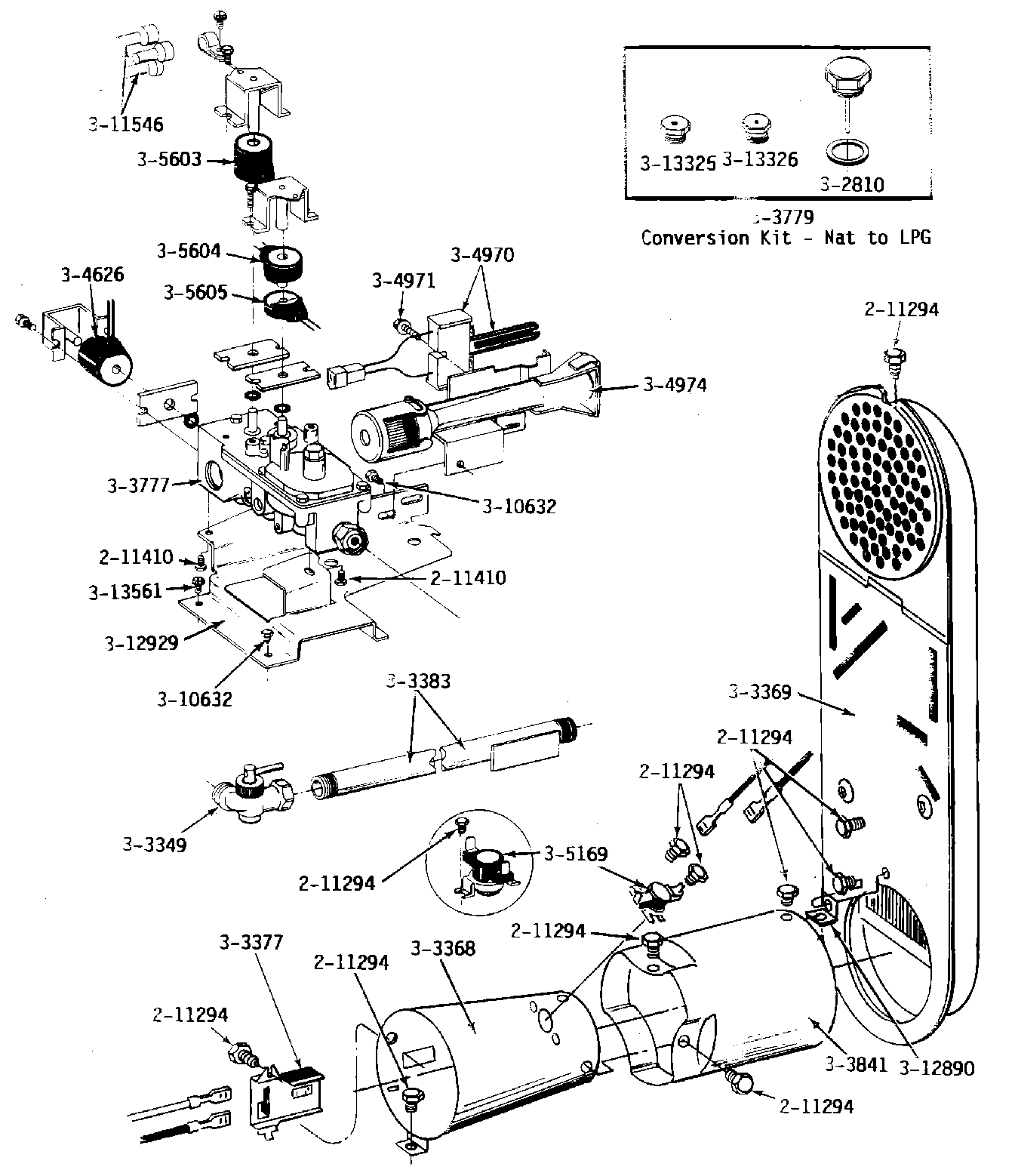

08 - INLET DUCT, GAS VALVE, CONE & EXTENSION
09 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

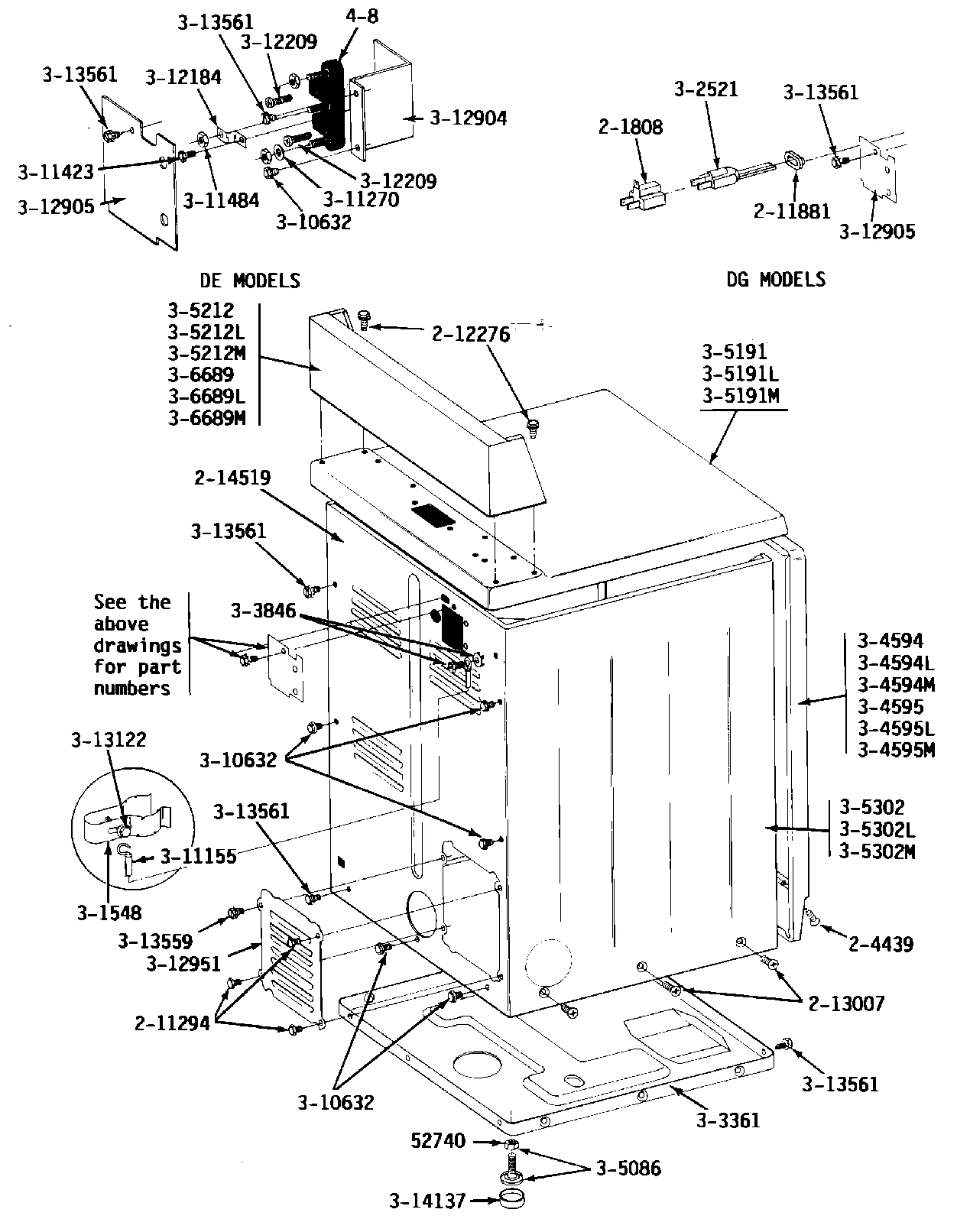

05 - REAR VIEW

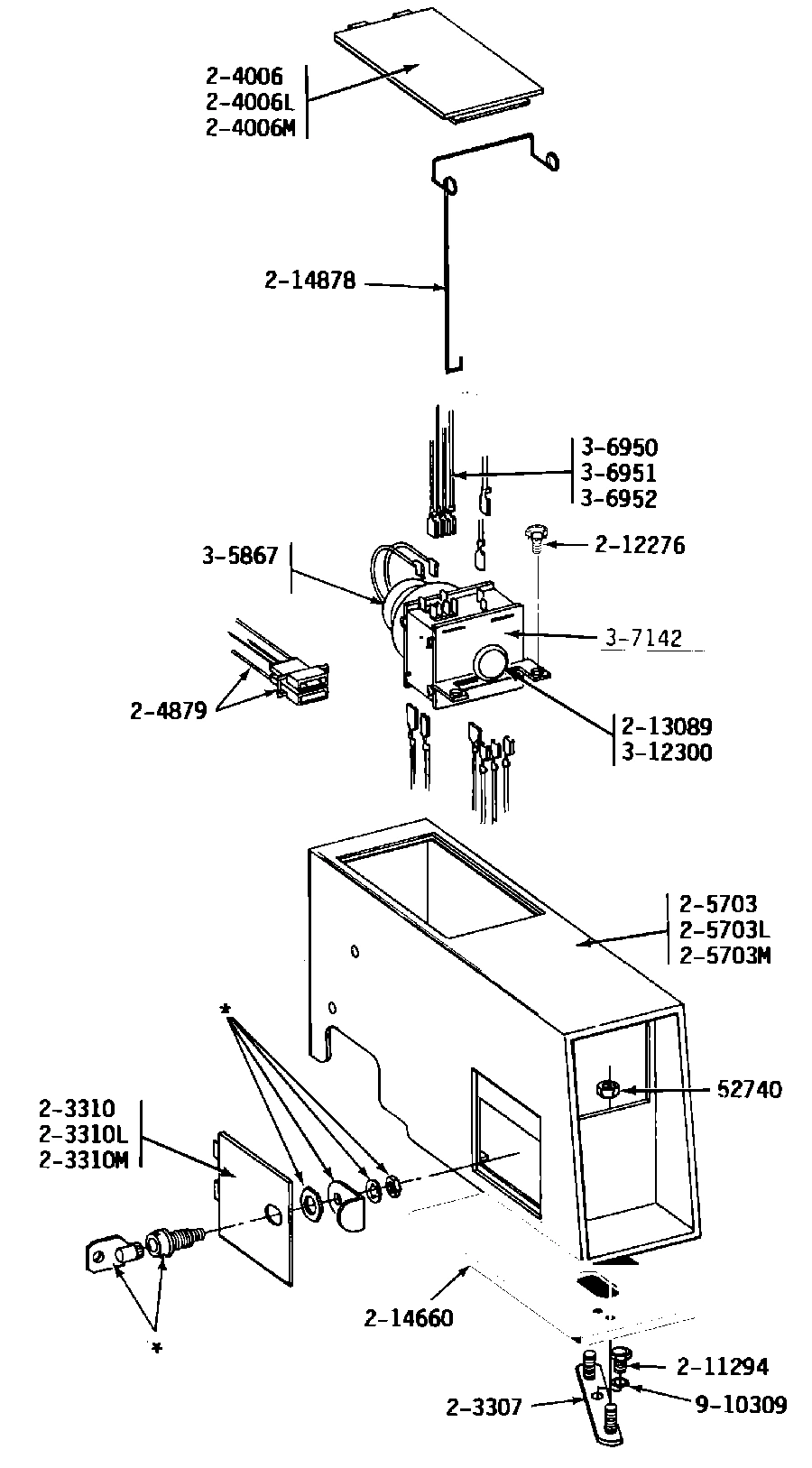

02 - CT CONTROL PANEL/TIMER

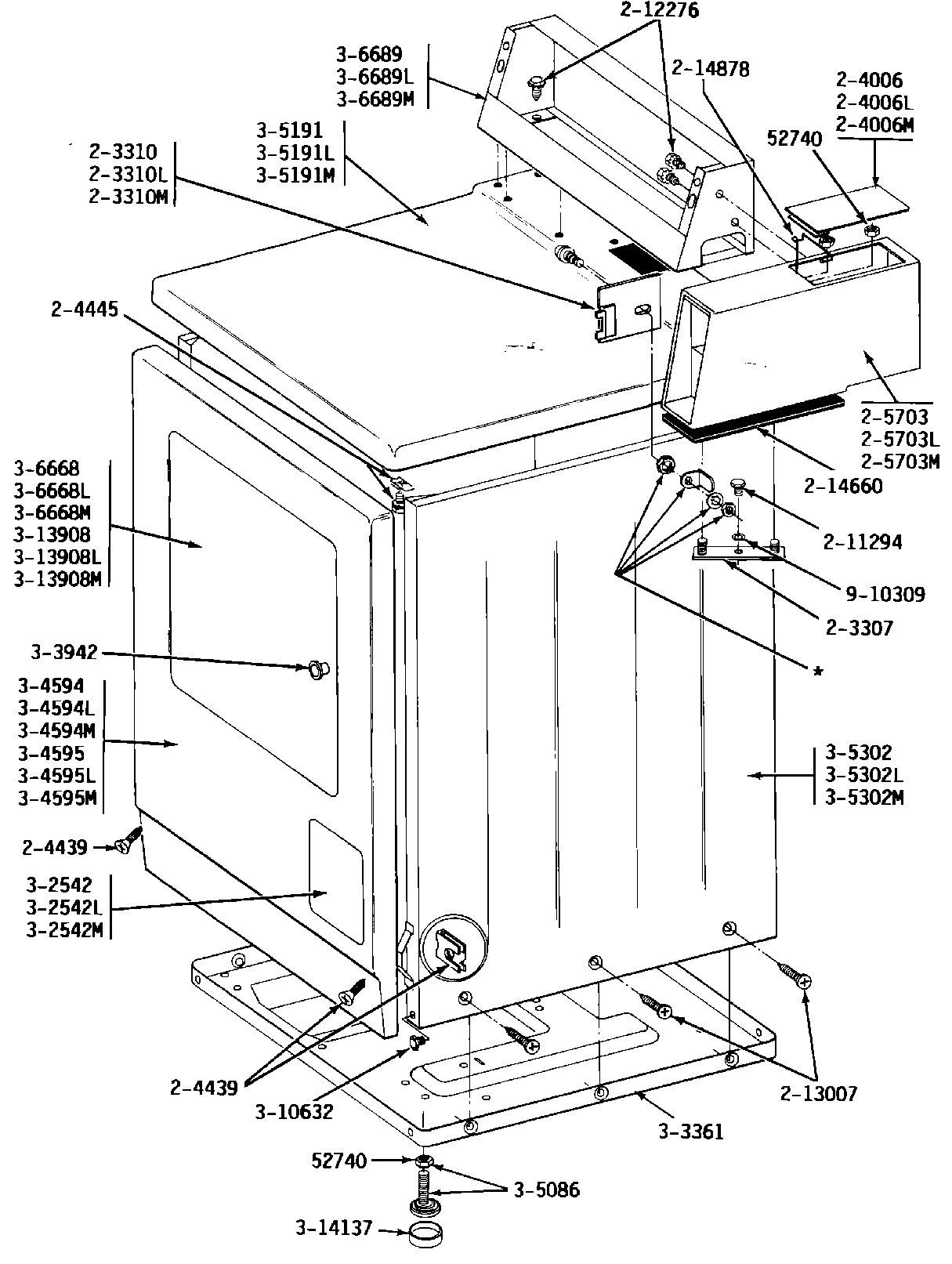

04 - FRONT VIEW

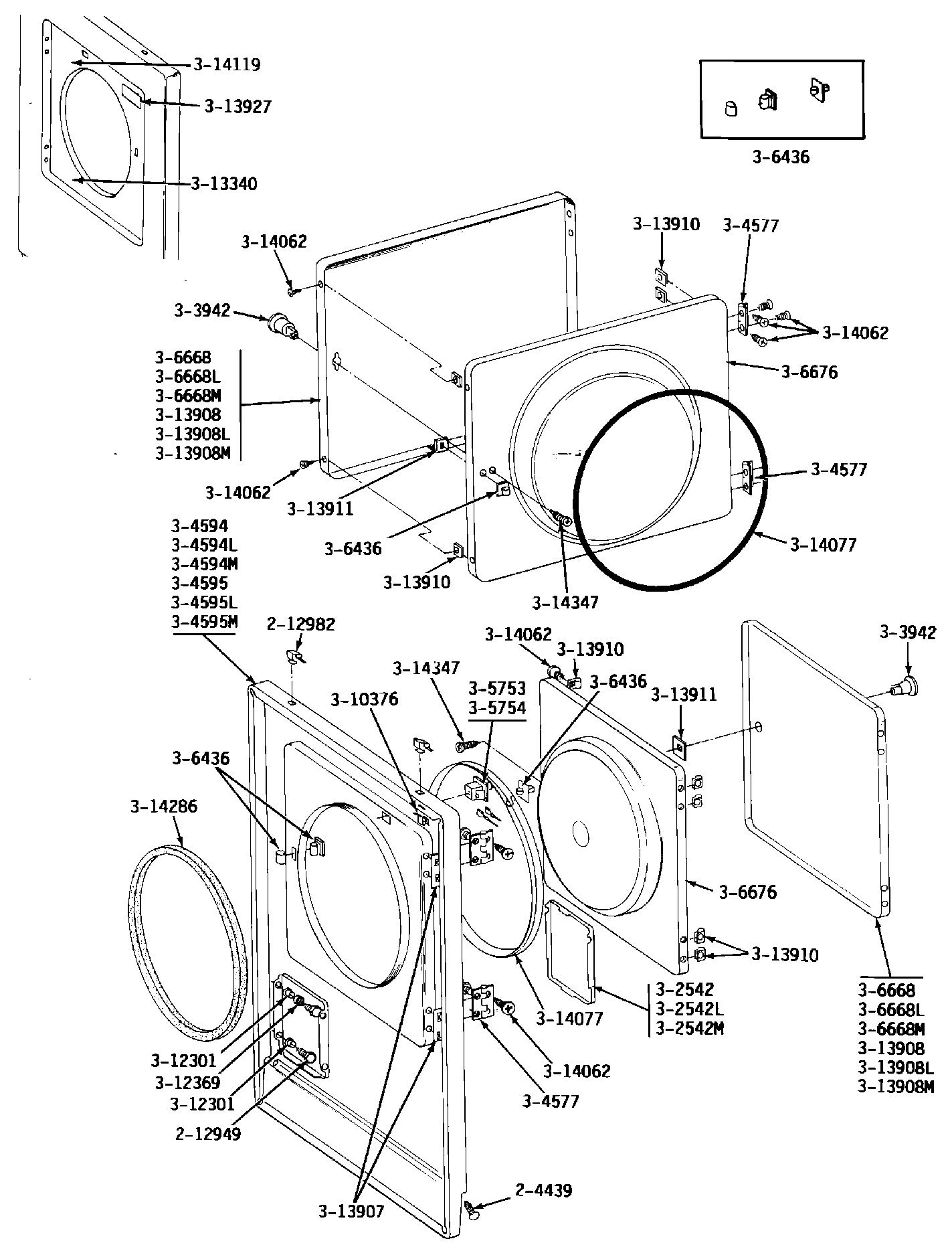

06 - FRONT PANEL & DOOR ASSEMBLY

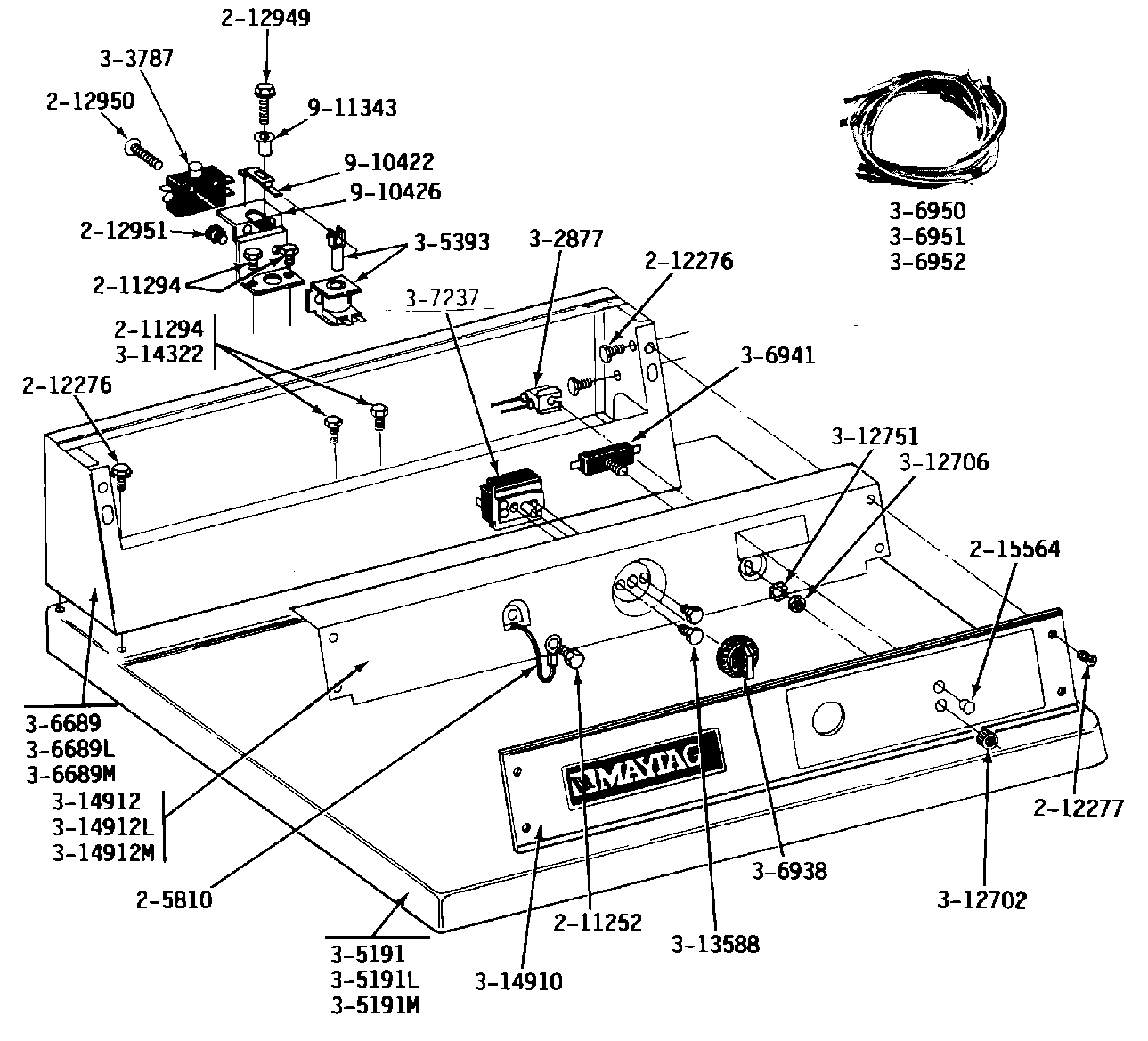

01 - CT CONTROL PANEL

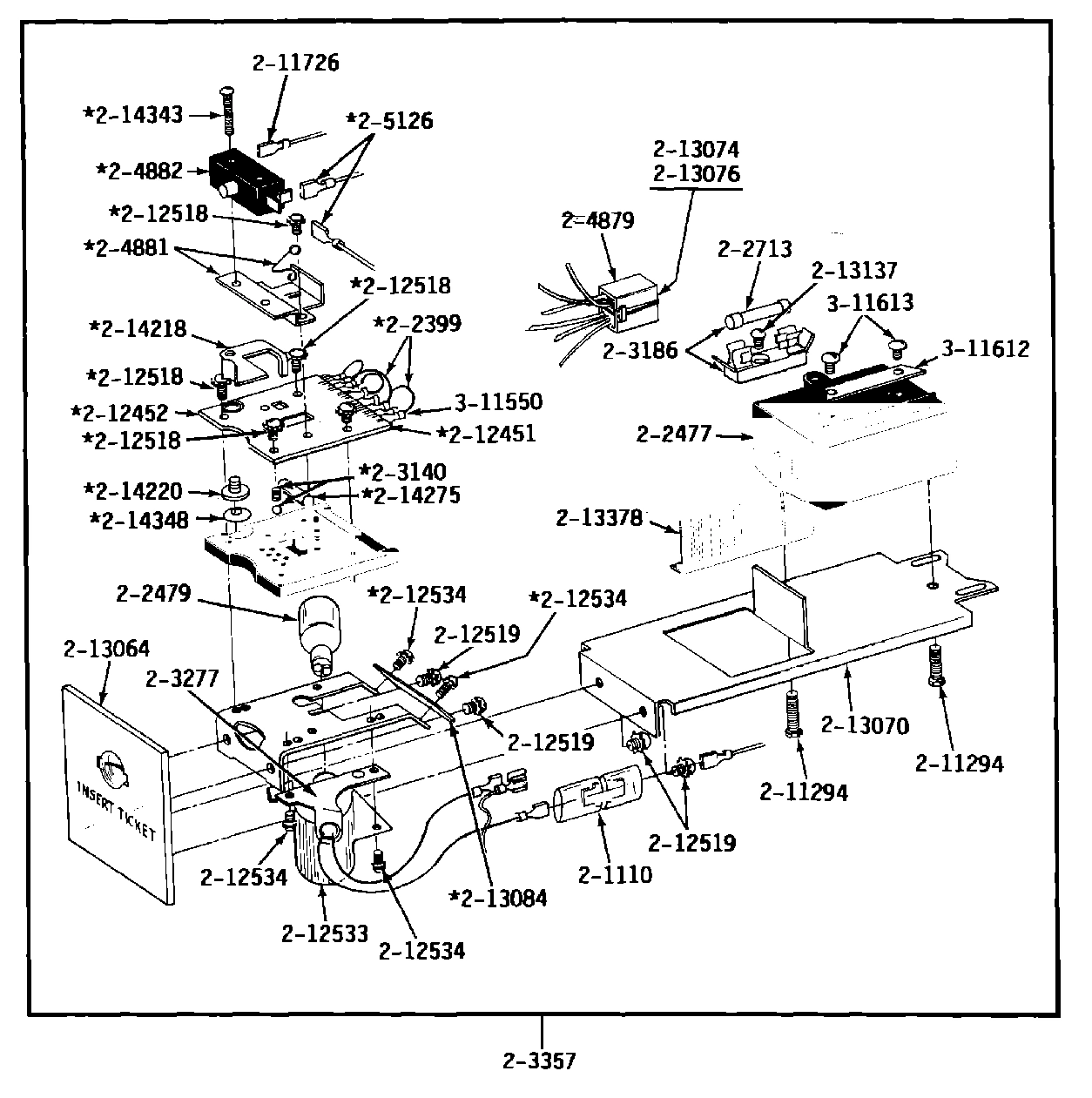

03 - CT CONTROL CENTER COMPONENTS

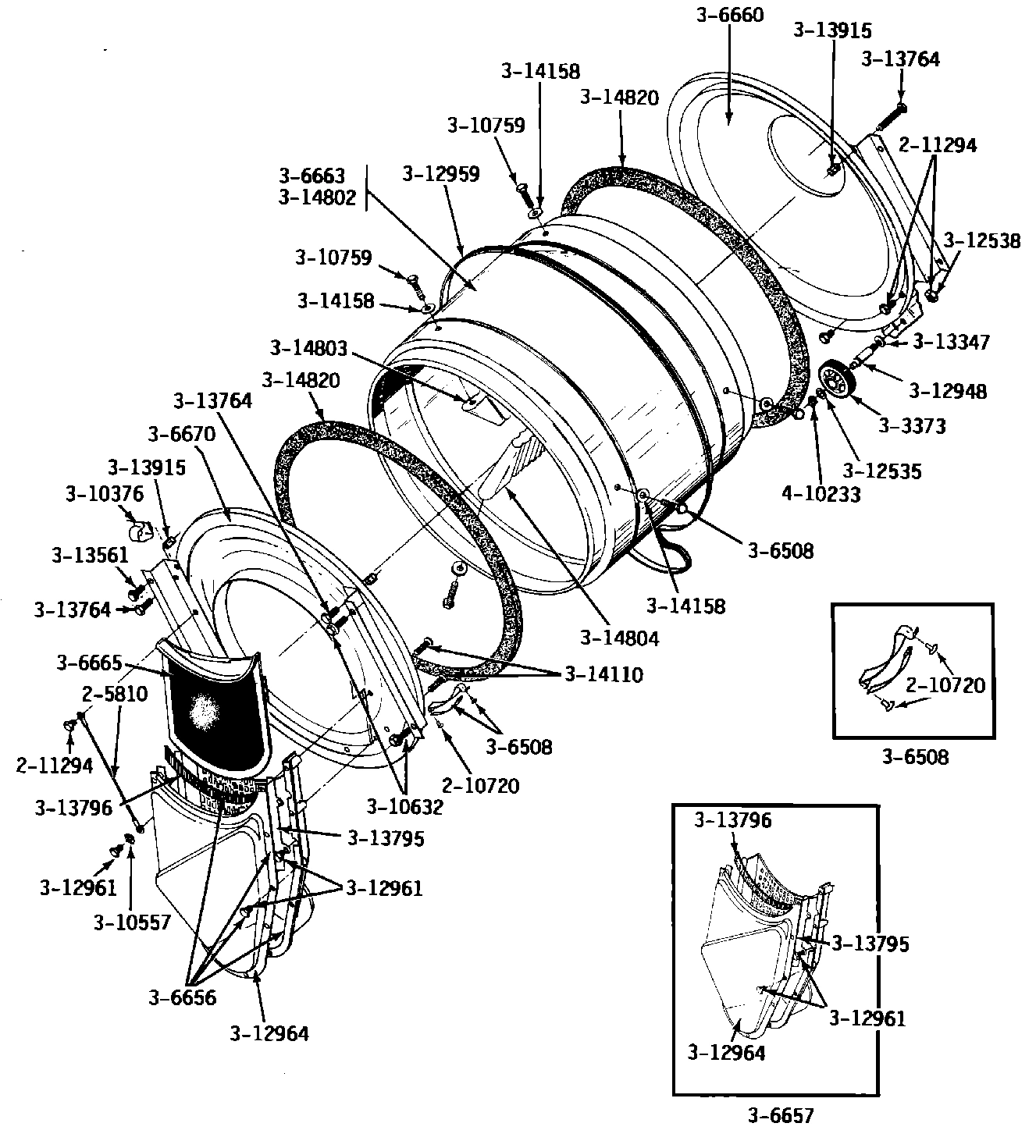

07 - LINT SCREEN, TUMBLER (FRONT & BACK)
Common parts from model Whirlpool GDG24CT WASHER
001
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
001
WIRE, GROUND WPL 205810 Contact Us For Availability
001
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
002
CONVERTER WPL Y201808 Contact Us For Availability
003
ELECTRONIC CONTROL WPL 202477 Contact Us For Availability
004
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
004
LAMP FOR TICKET CONTROL WPL 202479 Contact Us For Availability
005
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
005
GROMMET, CORD WPL 211881 Contact Us For Availability
006
INLET DUCT ASSEMBLY (DG) WPL Y303369 Contact Us For Availability
006
SCREW WPL 212949 Contact Us For Availability
006
OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability
007
SCREW, RELAY SWITCH TO BRKT WPL 212950 Contact Us For Availability
007
CONTACT BALL KIT WPL 203140 Contact Us For Availability
007
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
008
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
008
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
008
SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability
008
TUMBLER BACK WPL Y306660 Contact Us For Availability
009
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
009
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
010
CONVERSION KIT-NAT. TO LPG WPL Y303779 Contact Us For Availability
010
POWER CORD WPL 302521 Contact Us For Availability
010
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
011
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
012
SIDE COIL WPL Y304626 Contact Us For Availability
012
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
012
SWITCH FOR RELAY WPL Y303787 Contact Us For Availability
012
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
013
TOP COVER-WHITE WPL Y305191 Contact Us For Availability
013
SWITCH FOR TICKET CONTROL WPL 204882 Contact Us For Availability
013
WASHER WPL 310557 Contact Us For Availability
014
SCREW WPL Y310632 Contact Us For Availability
014
SCREW WPL 304971 Contact Us For Availability
014
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
014
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
015
SCREW WPL Y310759 Contact Us For Availability
015
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
015
KNOB FOR TIMER WPL 213089 Contact Us For Availability
016
COMPRESSION NUT WPL 310692 Contact Us For Availability
016
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
017
COMPRESSION SLEEVE WPL Y310693 Contact Us For Availability
017
SECONDARY COIL WPL 305603 Contact Us For Availability
017
GASKET, METER CASE WPL 214660 Contact Us For Availability
018
PILOT ORIFICE WPL Y311418 Contact Us For Availability
018
HOLDING COIL WPL 305604 Contact Us For Availability
018
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
018
LATCH FOR ACCESS DOOR WPL 214878 Contact Us For Availability
018
DOOR WPL Y306668 Contact Us For Availability
018
CIRCUIT BOARD WPL 212452 Contact Us For Availability
019
PILOT ORIFICE (LP) WPL Y311480 Contact Us For Availability
019
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
021
PILOT ORIFICE-LPG WPL Y311482 Contact Us For Availability
021
SHIELD FOR HEAT LAMP WPL 212533 Contact Us For Availability
021
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
022
ORIFICE FOR MAIN BURNER WPL Y311639 Contact Us For Availability
022
THERMOSTAT, MULTI-TEMP WPL 306966 Contact Us For Availability
022
BASE ASSY. WPL Y303361 Contact Us For Availability
022
TIMER WITH KNOB AND PIN WPL 307142 Contact Us For Availability
023
SCREW----NA WPL Y313561 Contact Us For Availability
023
GROOV-PIN WPL Y312300 Contact Us For Availability
024
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
024
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
025
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
025
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
025
PIN RECEPTACLE FOR PLUG WPL 213074 Contact Us For Availability
025
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
026
TWIN FASTENER WPL Y313907 Contact Us For Availability
026
LINT SEAL WPL Y313796 Contact Us For Availability
027
SCREW WPL Y311711 Contact Us For Availability
027
DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability
029
PILOT TUBE WPL Y312483 Contact Us For Availability
029
SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability
029
WASHER WPL 314158 Contact Us For Availability
030
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
030
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
030
SWITCH LEVER WPL 214218 Contact Us For Availability
030
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
031
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
031
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
031
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
032
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
032
ROLLER FOR CAM WPL 214275 Contact Us For Availability
033
SCREW WPL Y314062 Contact Us For Availability
034
DOOR SEAL WPL 314077 Contact Us For Availability
035
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
036
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
036
COVER FOR CIRCUIT BOARD WPL 311612 Contact Us For Availability
037
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
041
COVER, TERMINAL WPL Y312905 Contact Us For Availability
042
COVER, ACCESS WPL Y312951 Contact Us For Availability
043
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
043
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
044
WIRE, GROUND WPL 901220 Contact Us For Availability
048
WASHER WPL 910309 Contact Us For Availability
NI
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
NI
CONVERSION KIT-LPG TO NAT. WPL 301539 Contact Us For Availability
NI
COVER, THREAD WPL NLA Contact Us For Availability
NI
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
NI
THERMOSTAT, MULTI-TEMP WPL 306967 Contact Us For Availability
NI
COVER FOR BLOWER WPL 314778 Contact Us For Availability
NI
SCREW WPL 314818 Contact Us For Availability
NI
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
NI
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
NI
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
NI
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
NI
FASTENER WPL 215003 Contact Us For Availability
NI
BACK-UP PLATE - WHITE WPL 314912 Contact Us For Availability
NI
KNURLED NUT WPL Y312702 Contact Us For Availability
NI
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
NI
TICKET CONTROL WPL 202509 Contact Us For Availability
× ![]()
