Model Whirlpool GD25DFXFW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

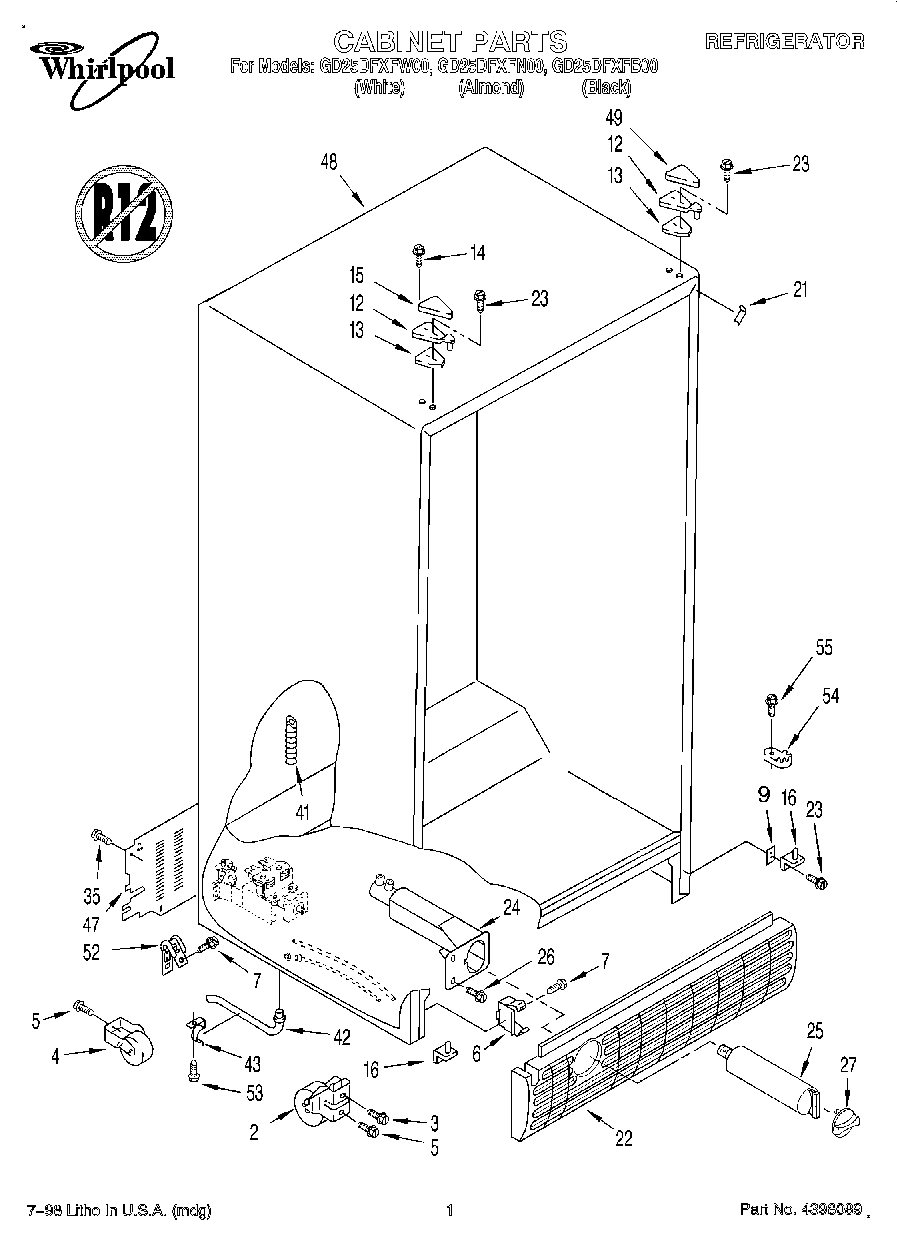

01 - CABINET

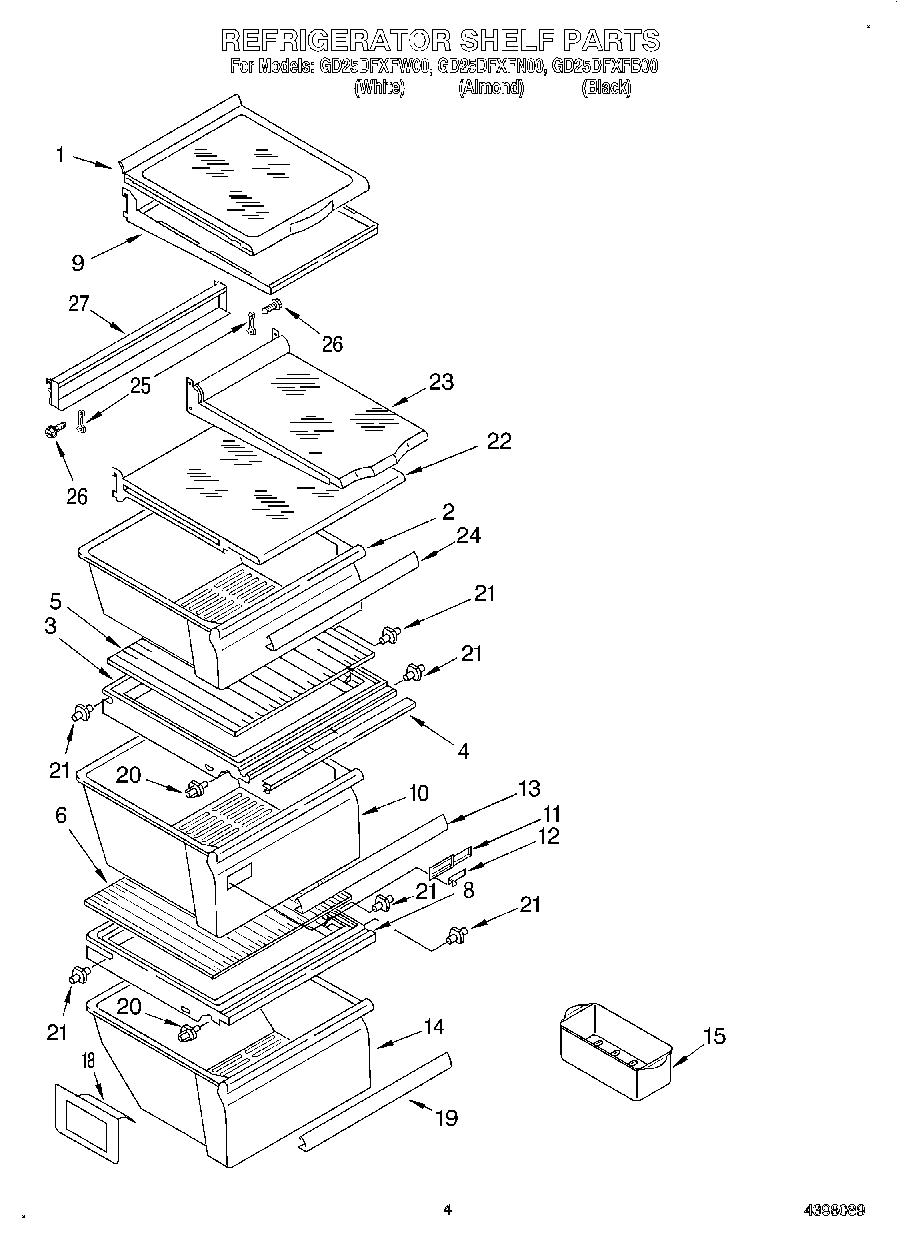

03 - REFRIGERATOR SHELF

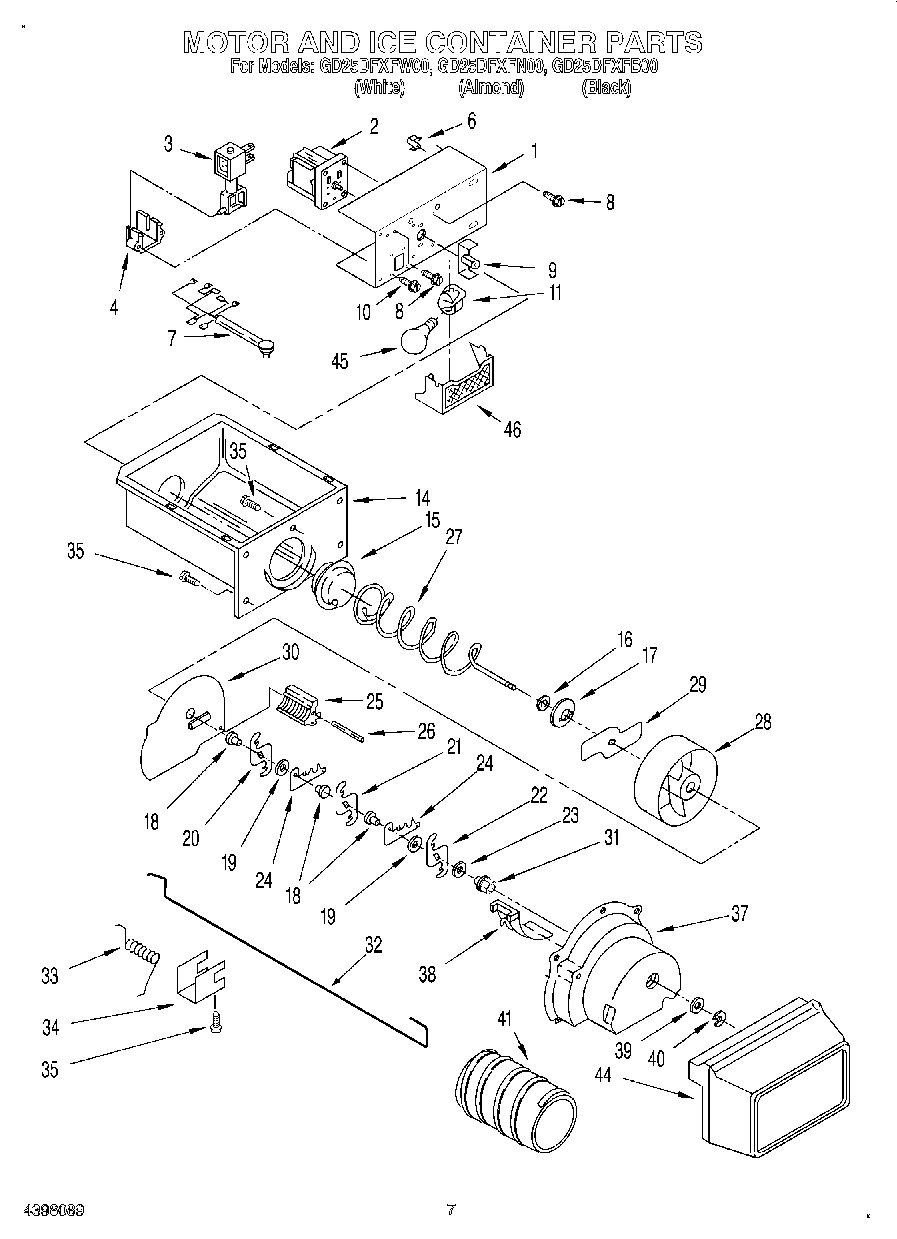

05 - MOTOR AND ICE CONTAINER

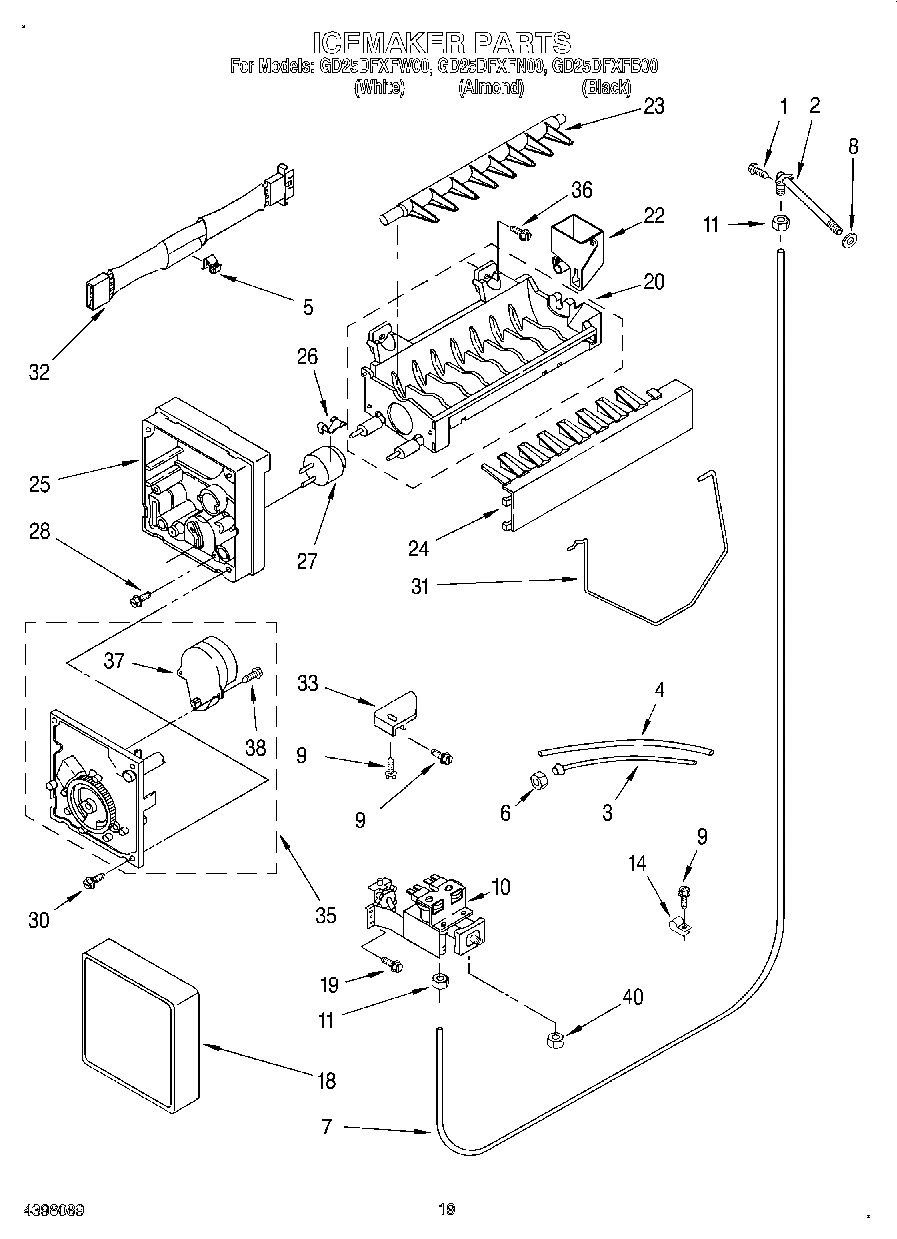

12 - ICEMAKER

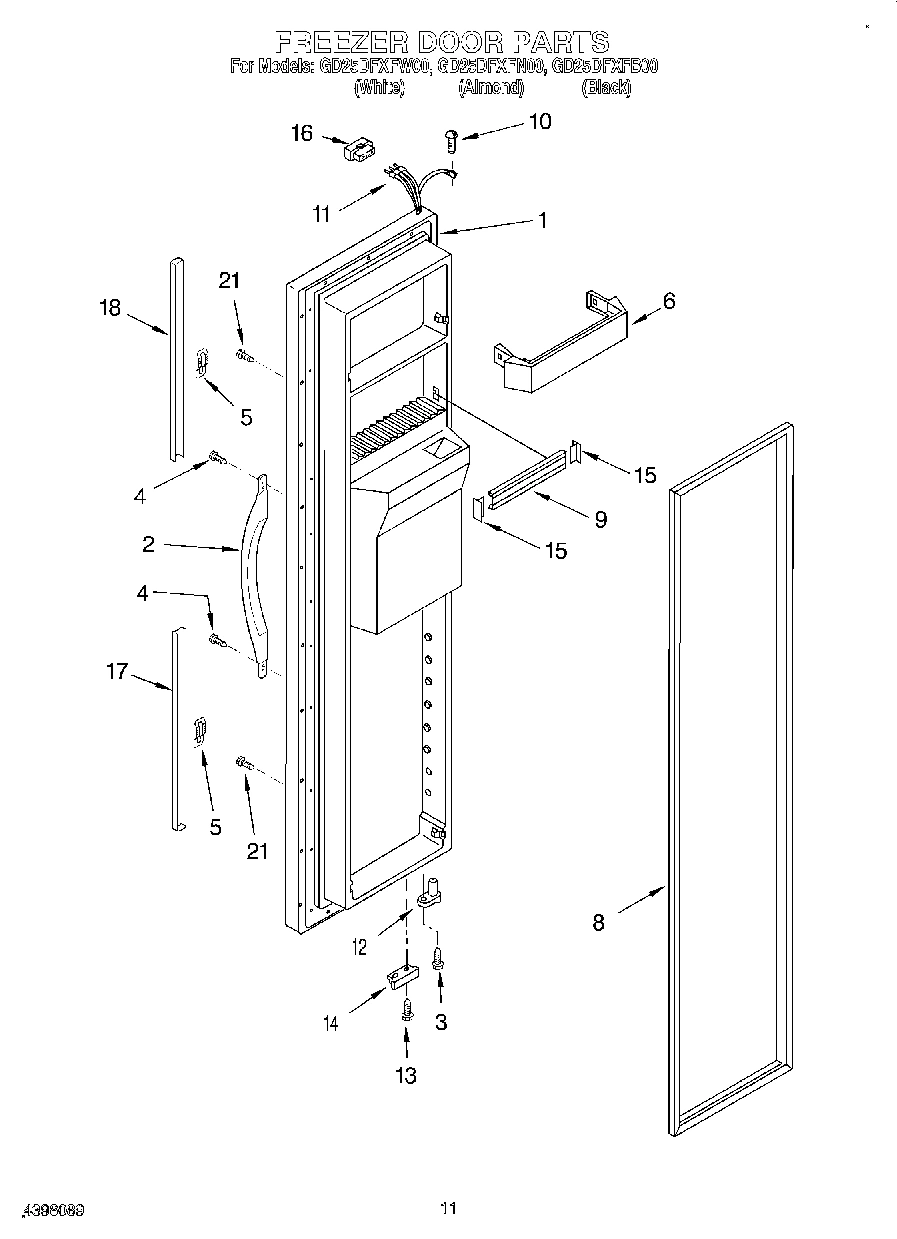

07 - FREEZER DOOR

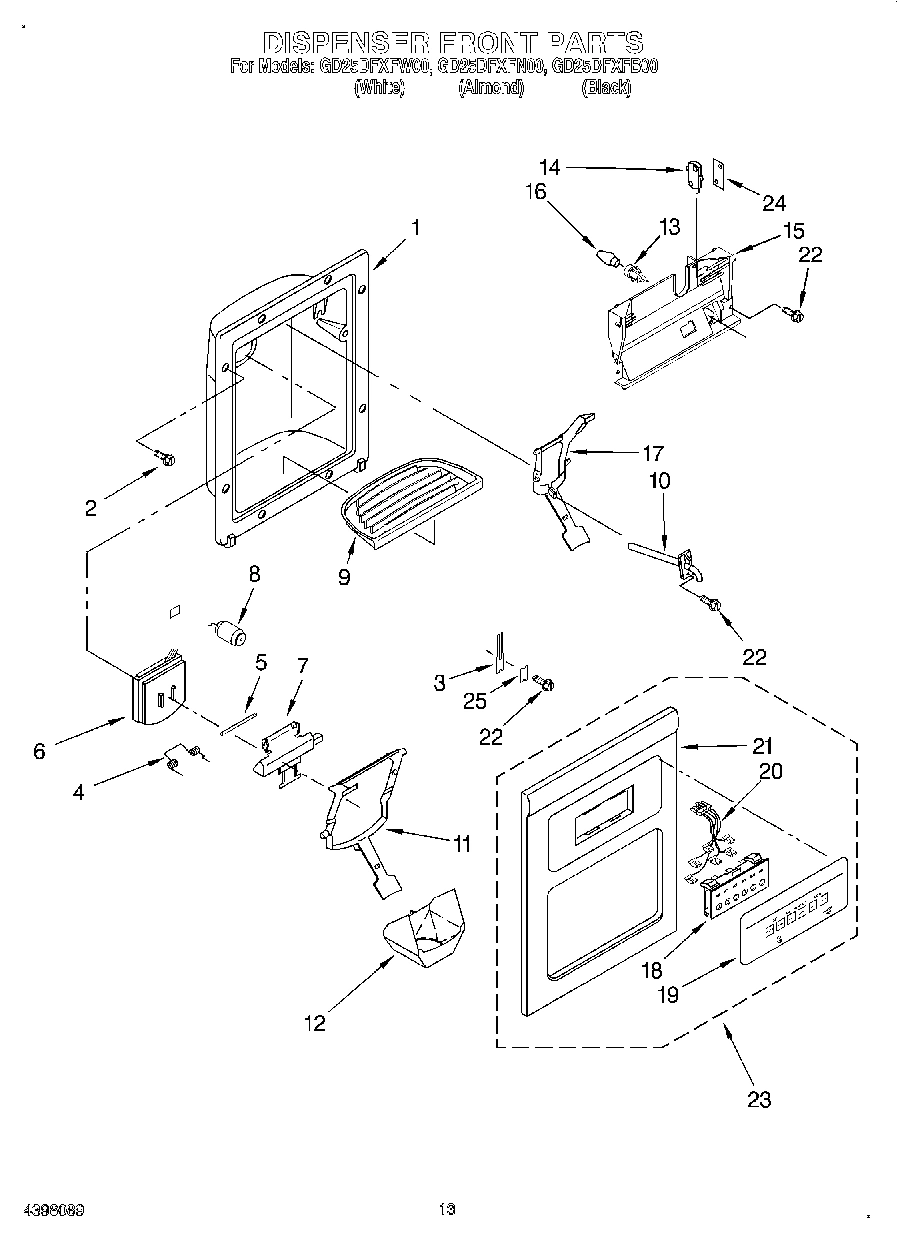

08 - DISPENSER FRONT

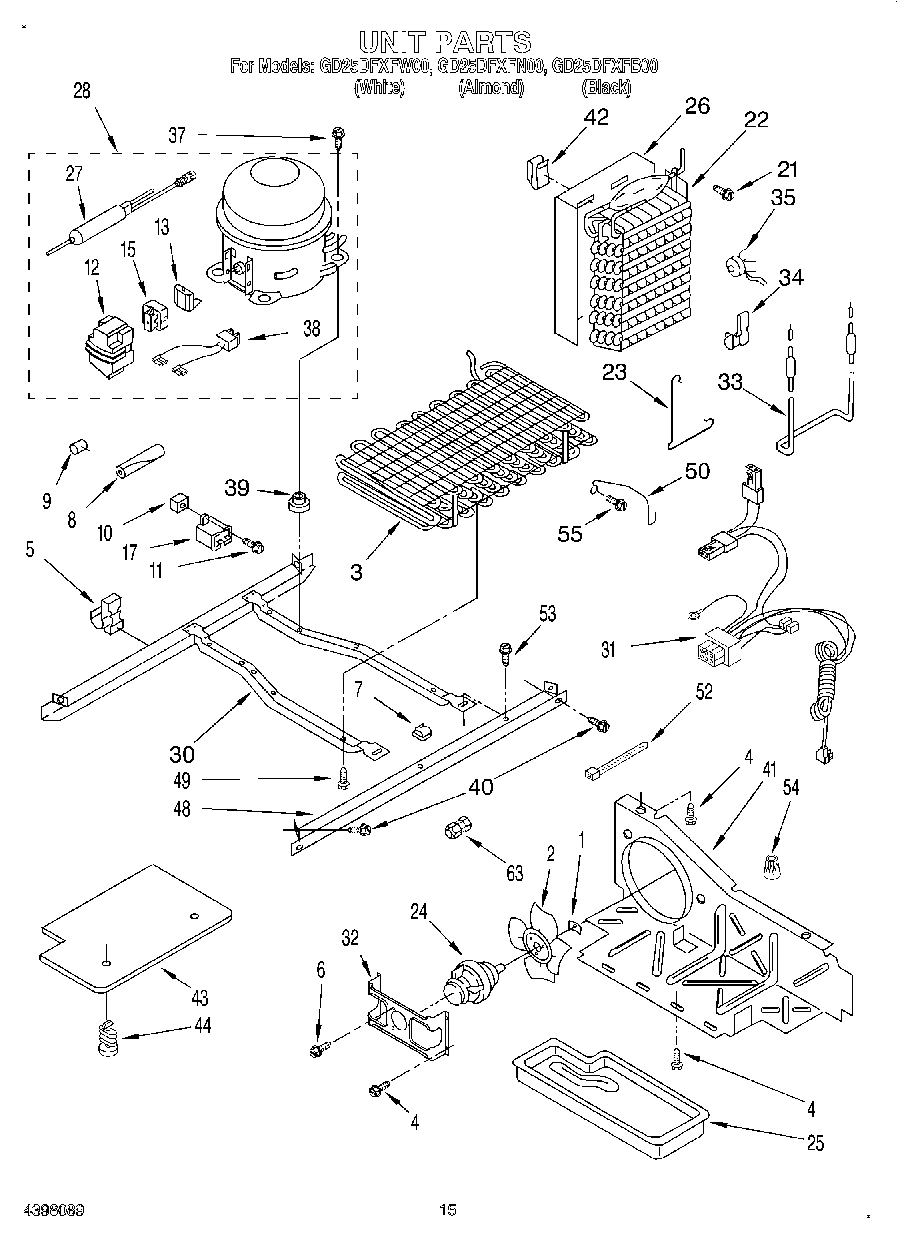

09 - UNIT

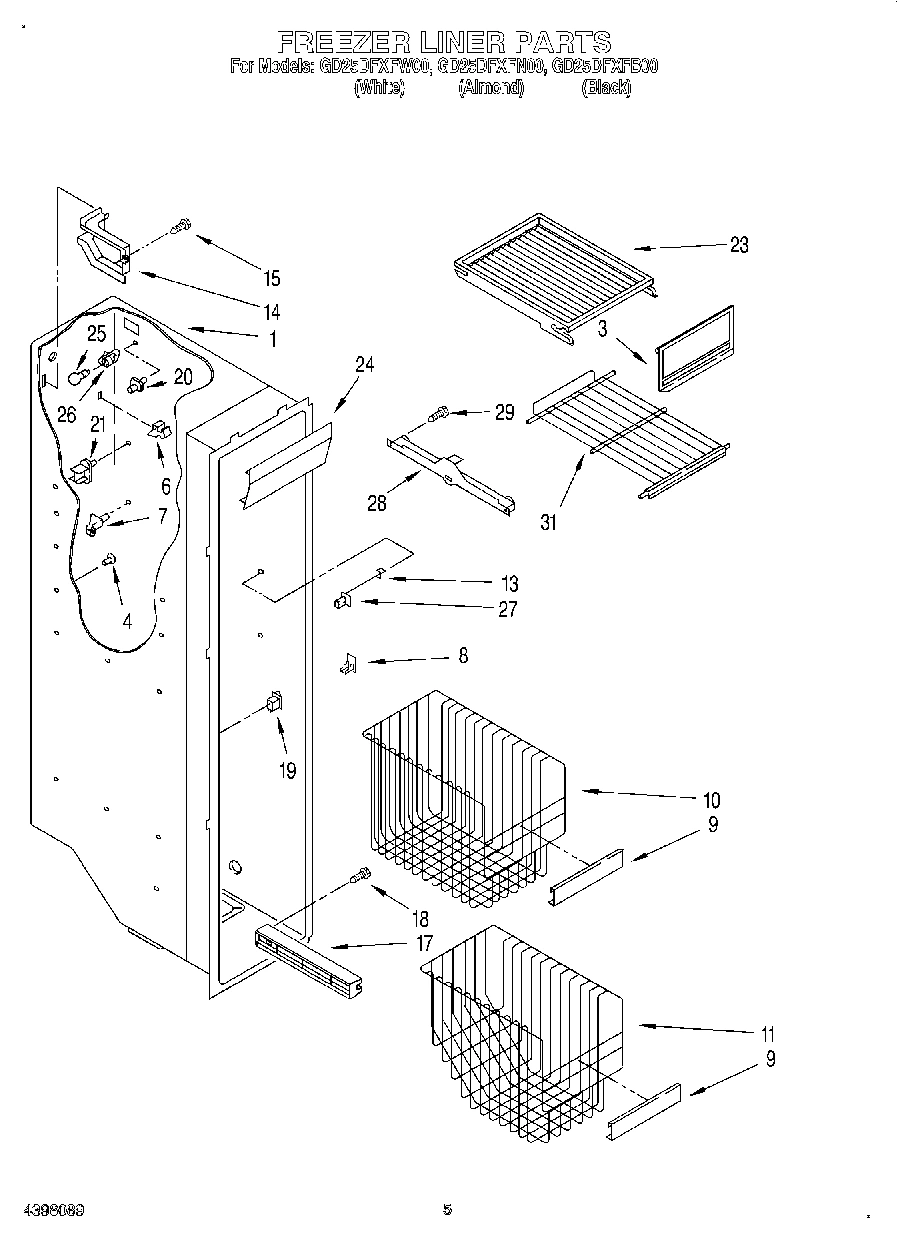

04 - FREEZER LINER

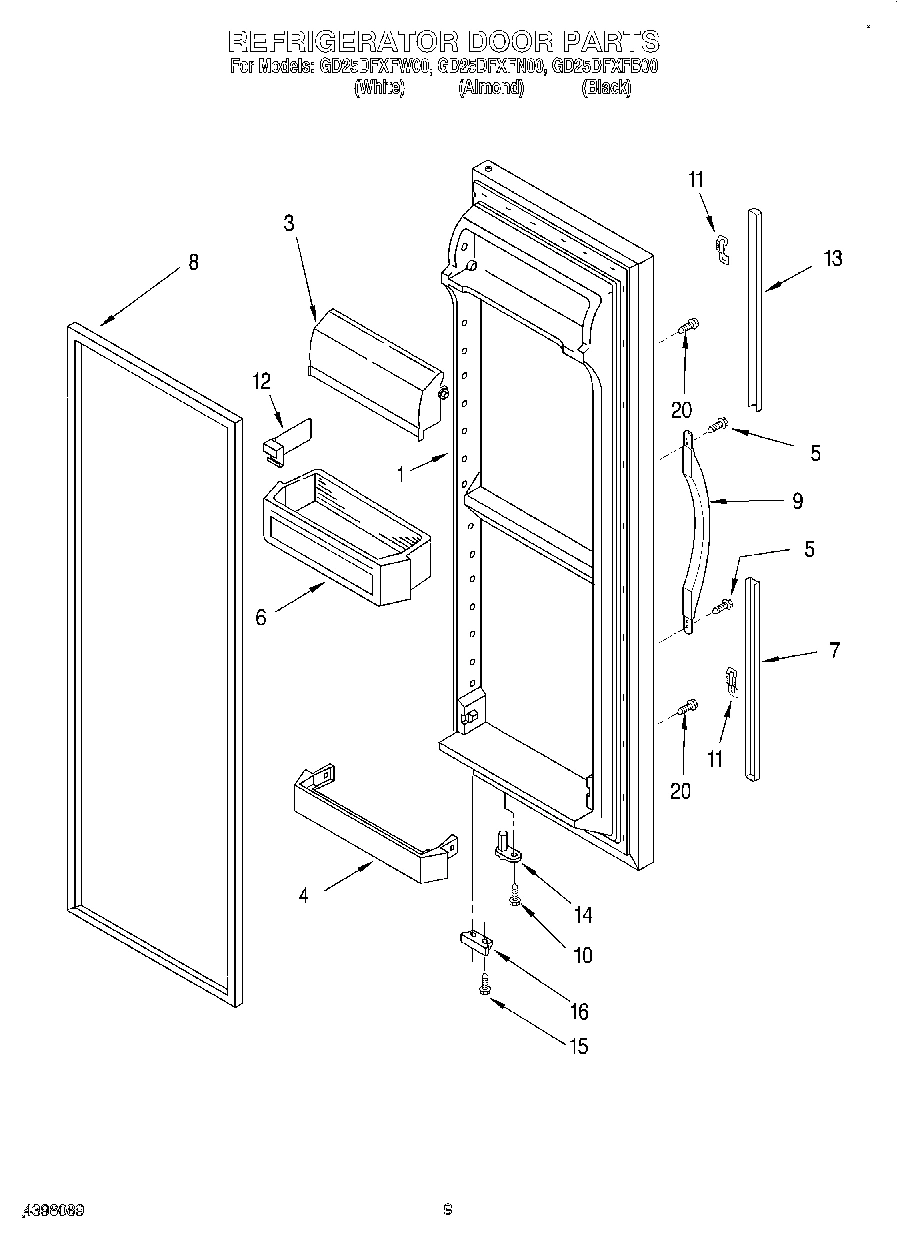

06 - REFRIGERATOR DOOR

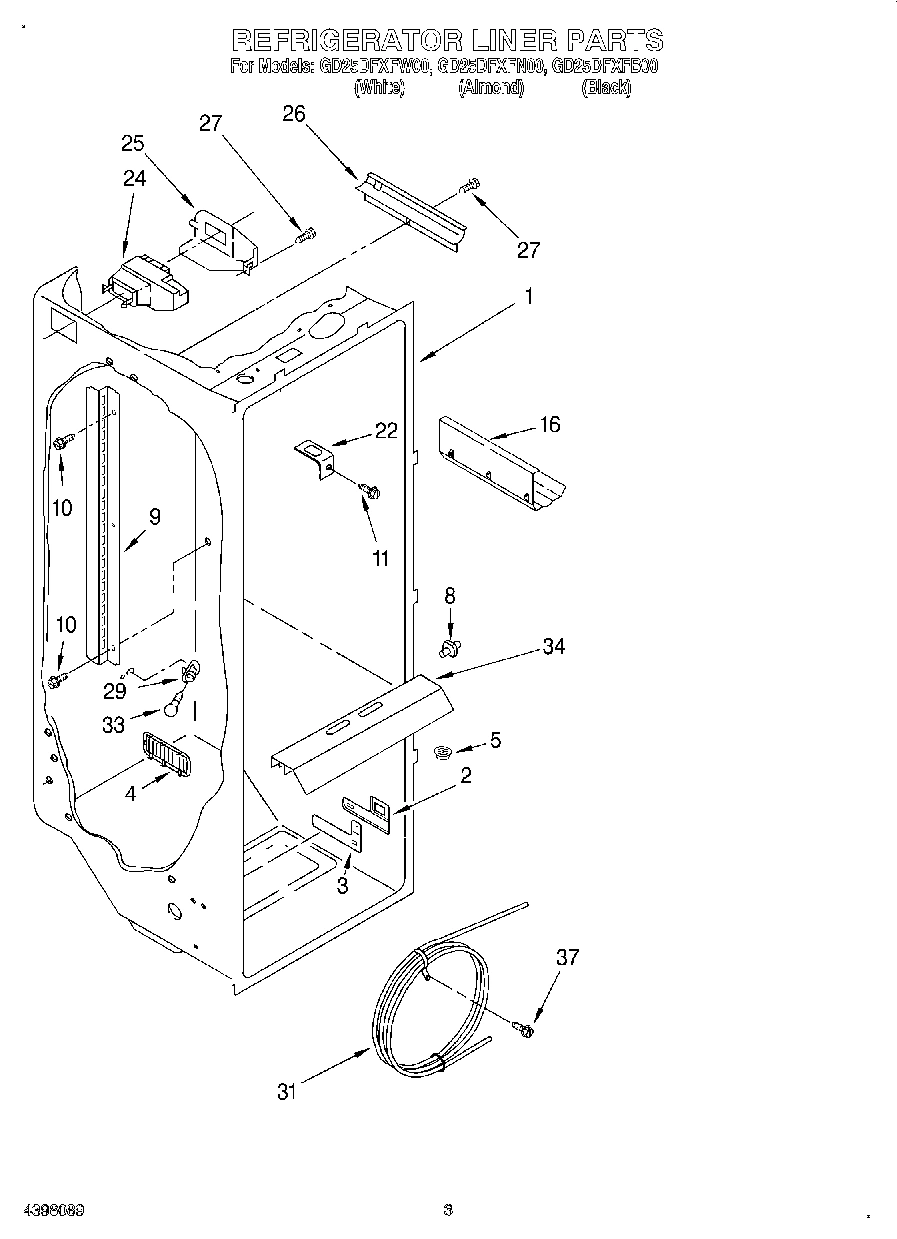

02 - REFRIGERATOR LINER

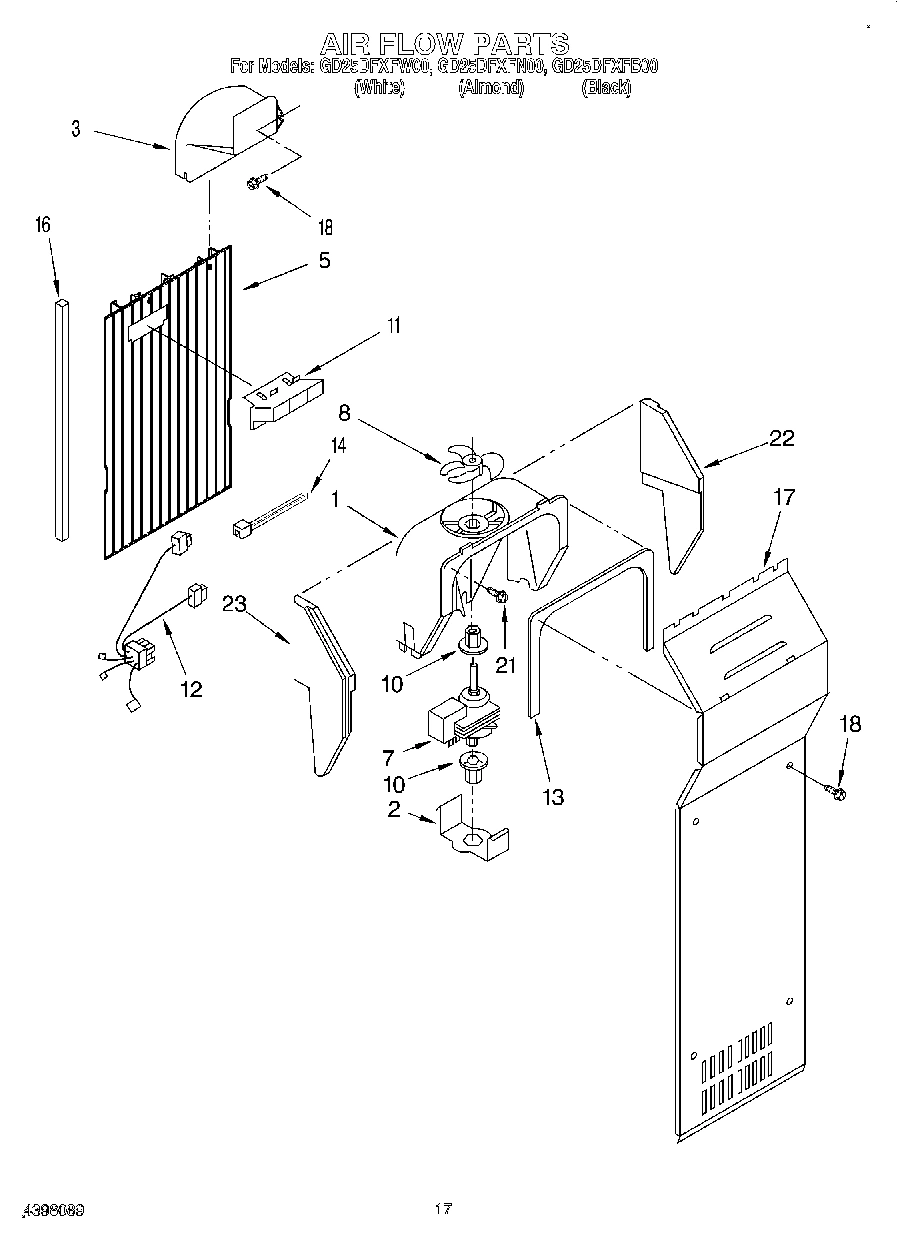

10 - AIR FLOW

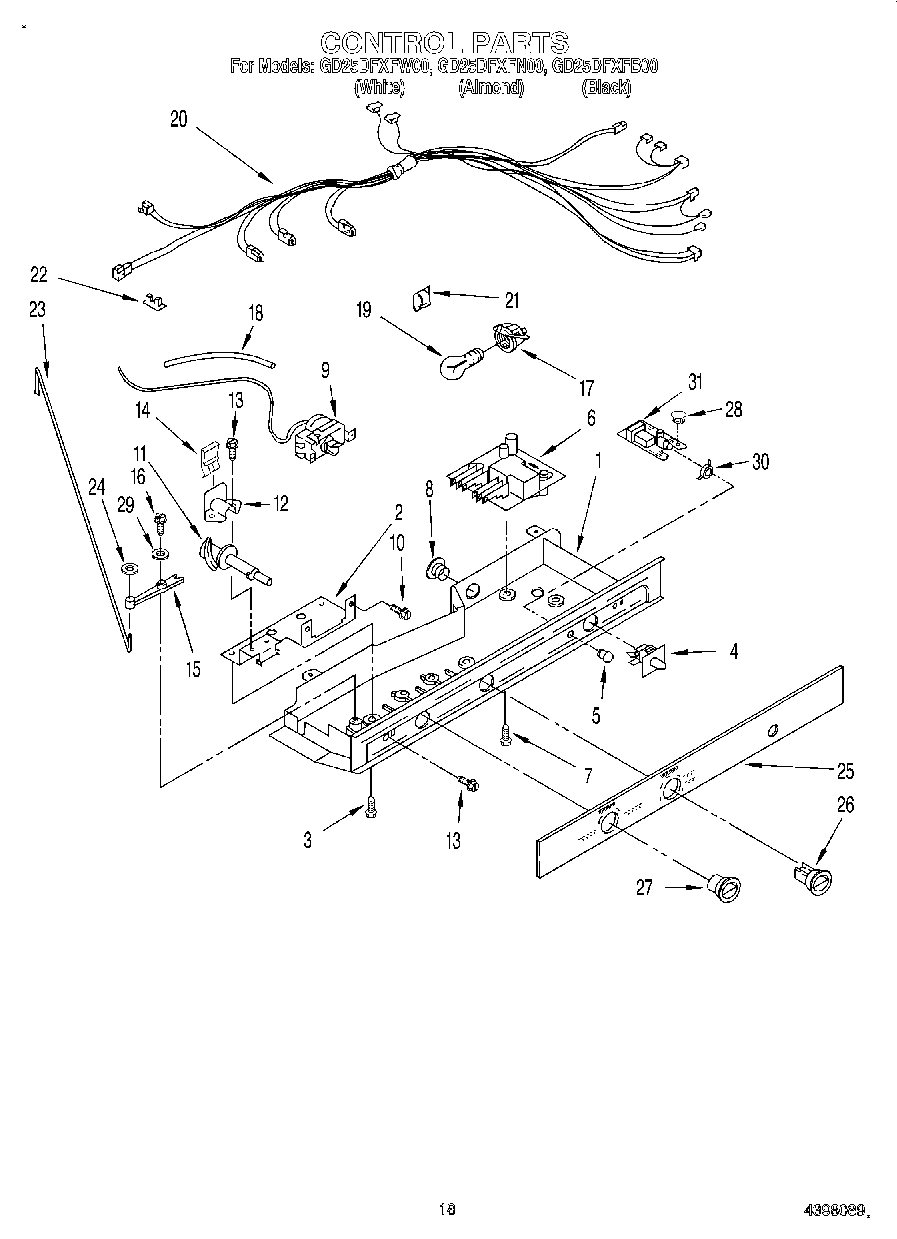

11 - CONTROL
Common parts from model Whirlpool GD25DFXFW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI61860A3 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194509B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194509N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194509W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI61859A8 Contact Us For Availability
1
Control Box WPL 2200136 Contact Us For Availability
2
Handle, Center (Black) WPL 2186649B Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
5
Air Duct Freezer WPL 2196122 Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Trim, Basket WPL 2195905 Contact Us For Availability
9
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
10
Basket, Tall WPL 2181765 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Extension, Top (Black) WPL 2194973B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
17
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Cover, Evaporator WPL 2196144 Contact Us For Availability
20
Control Box Harness WPL 2200107 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2194297 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2200100 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
28
Hole PLug WPL 2200379 Contact Us For Availability
30
Retainer, Light Lens WPL 2200097 Contact Us For Availability
31
Unit, Harness WPL 2194749 Contact Us For Availability
31
P.C. Board Filter Indicator WPL 2200098 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
× ![]()
