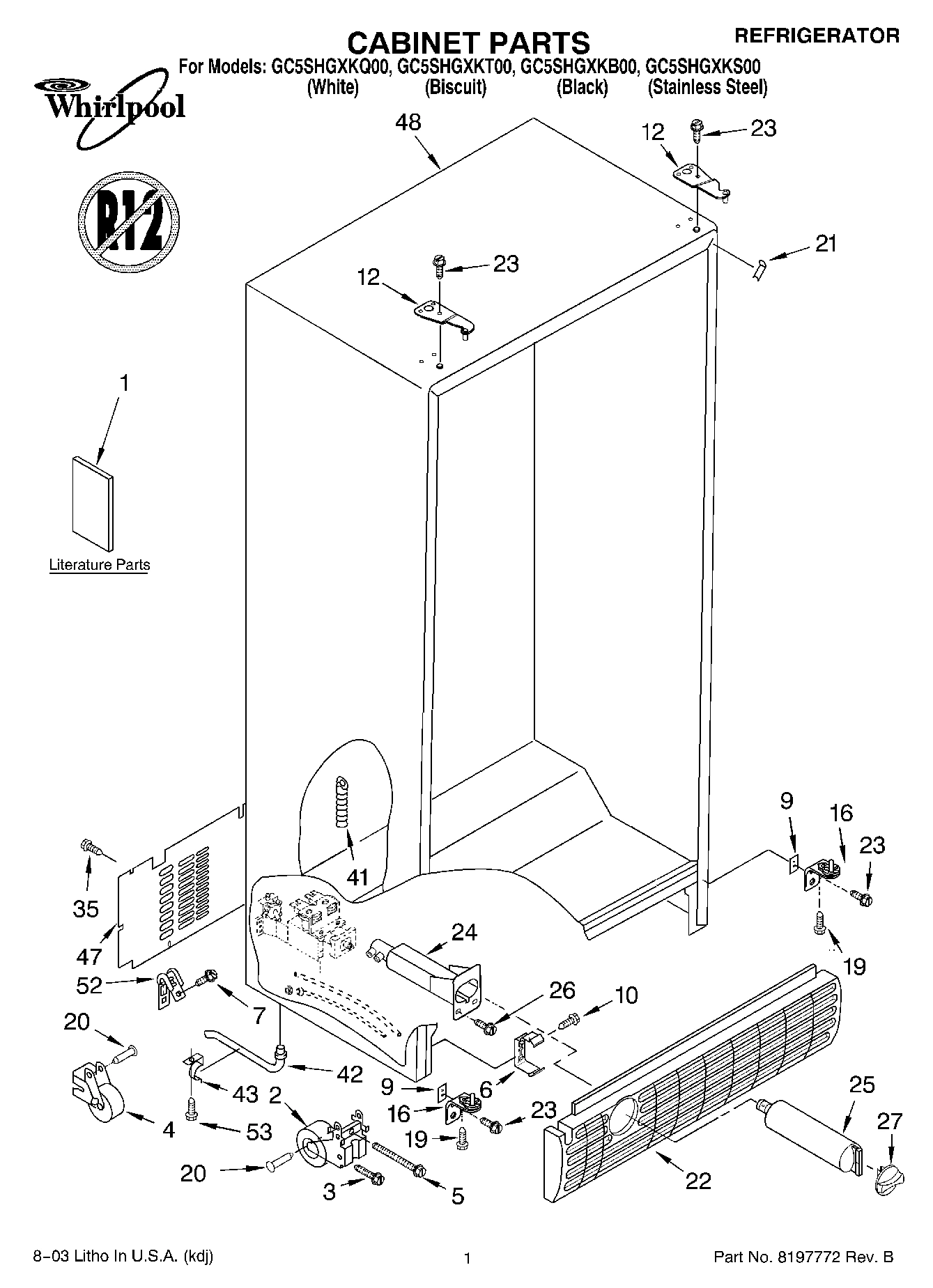

Model Whirlpool GC5SHGXKS00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

LITERATURE PARTS WPL ARI60949A3 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

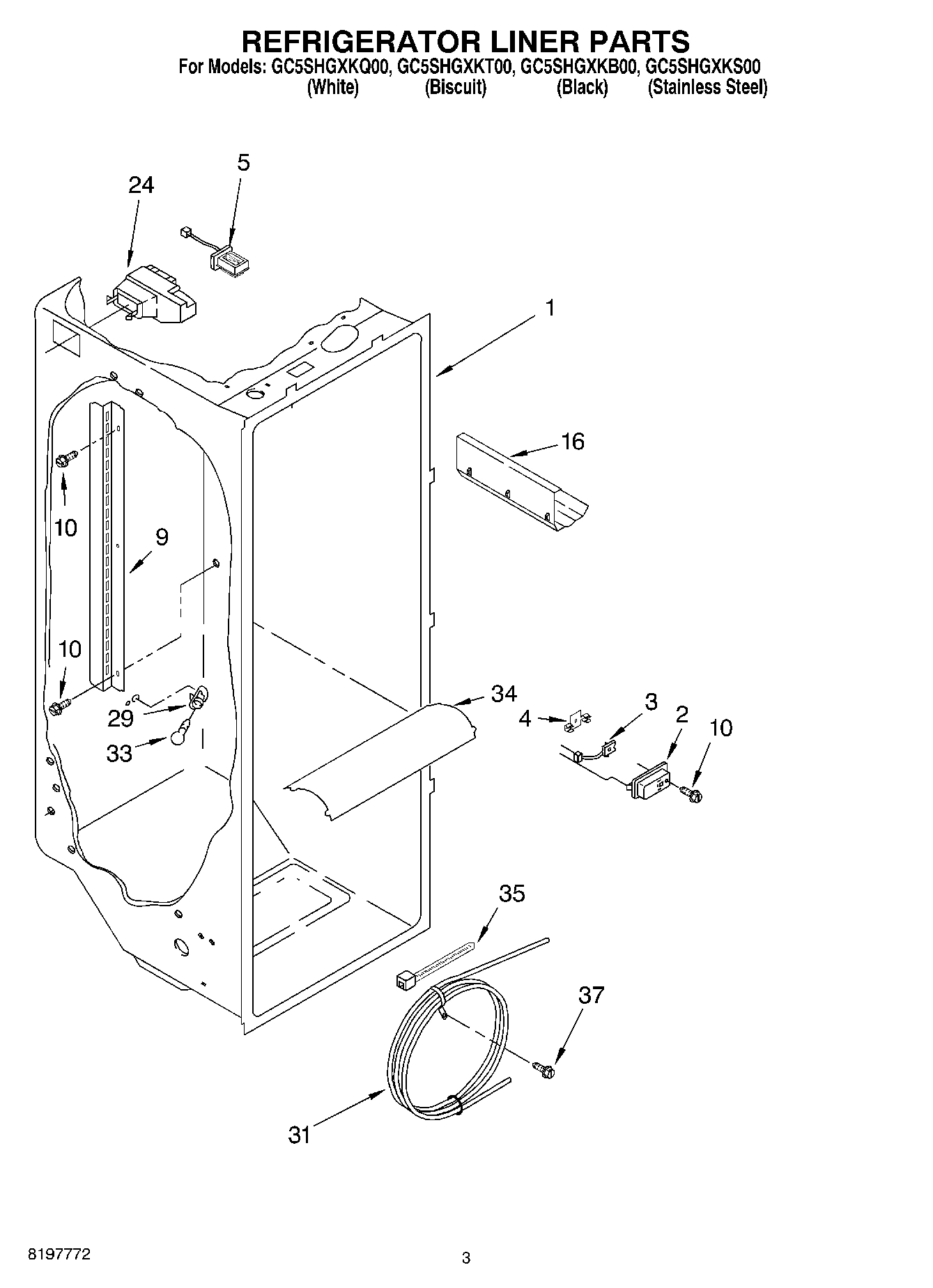

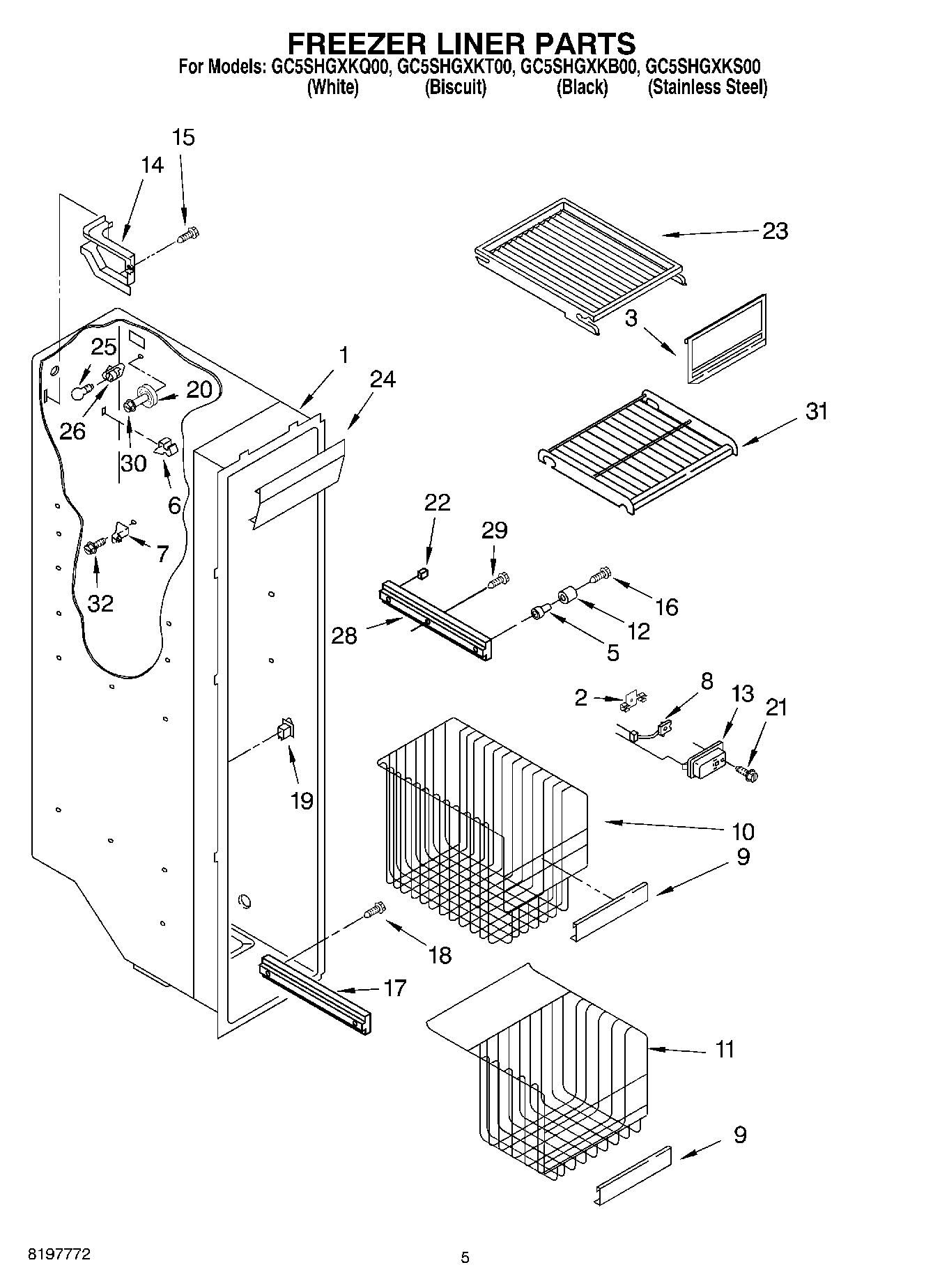

Liner (Not A Serviceable Part) WPL ARI60951A8 Contact Us For Availability

1

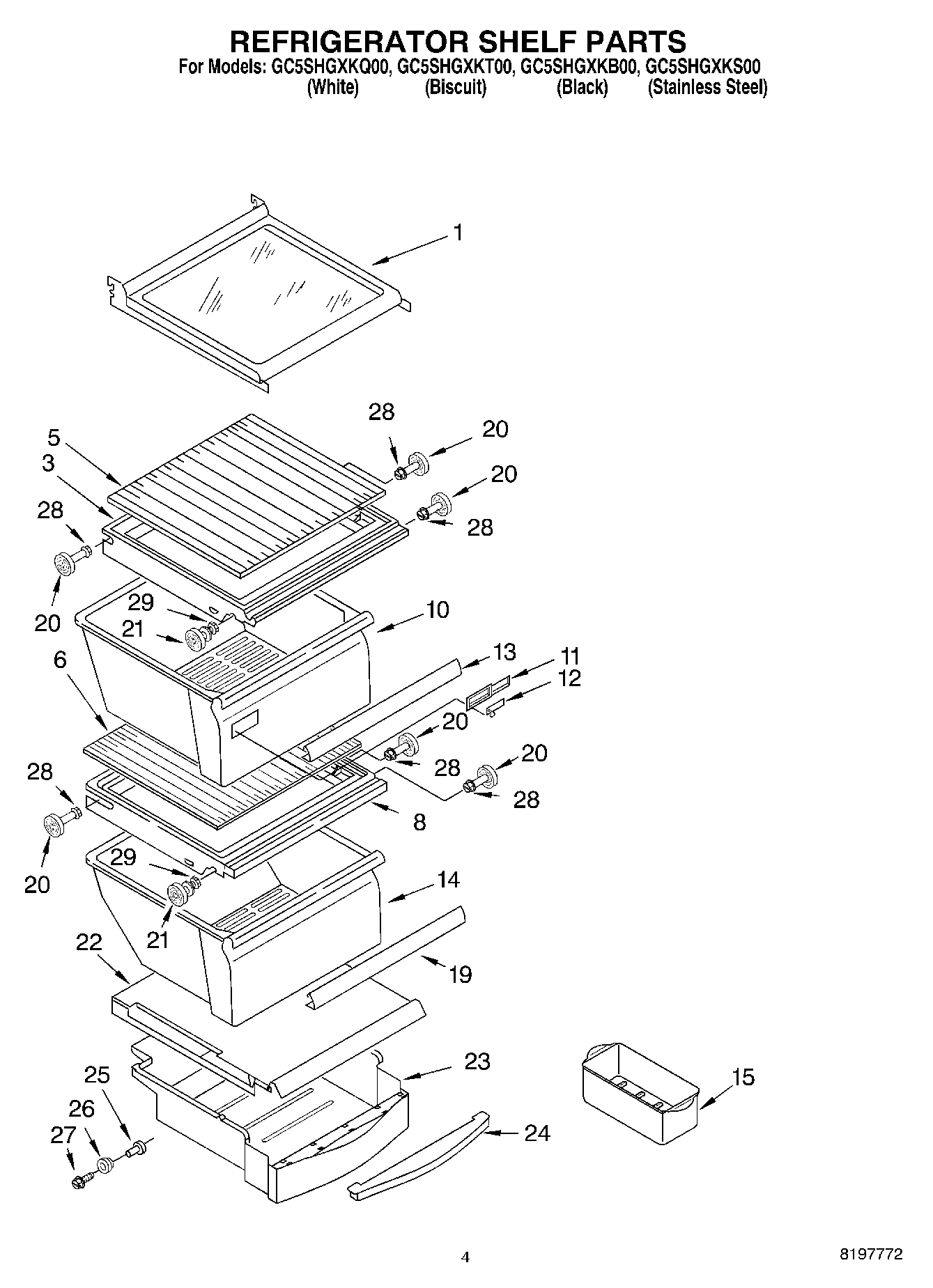

Shelf Assembly Spillguard (3) WPL 2203053 Contact Us For Availability

1

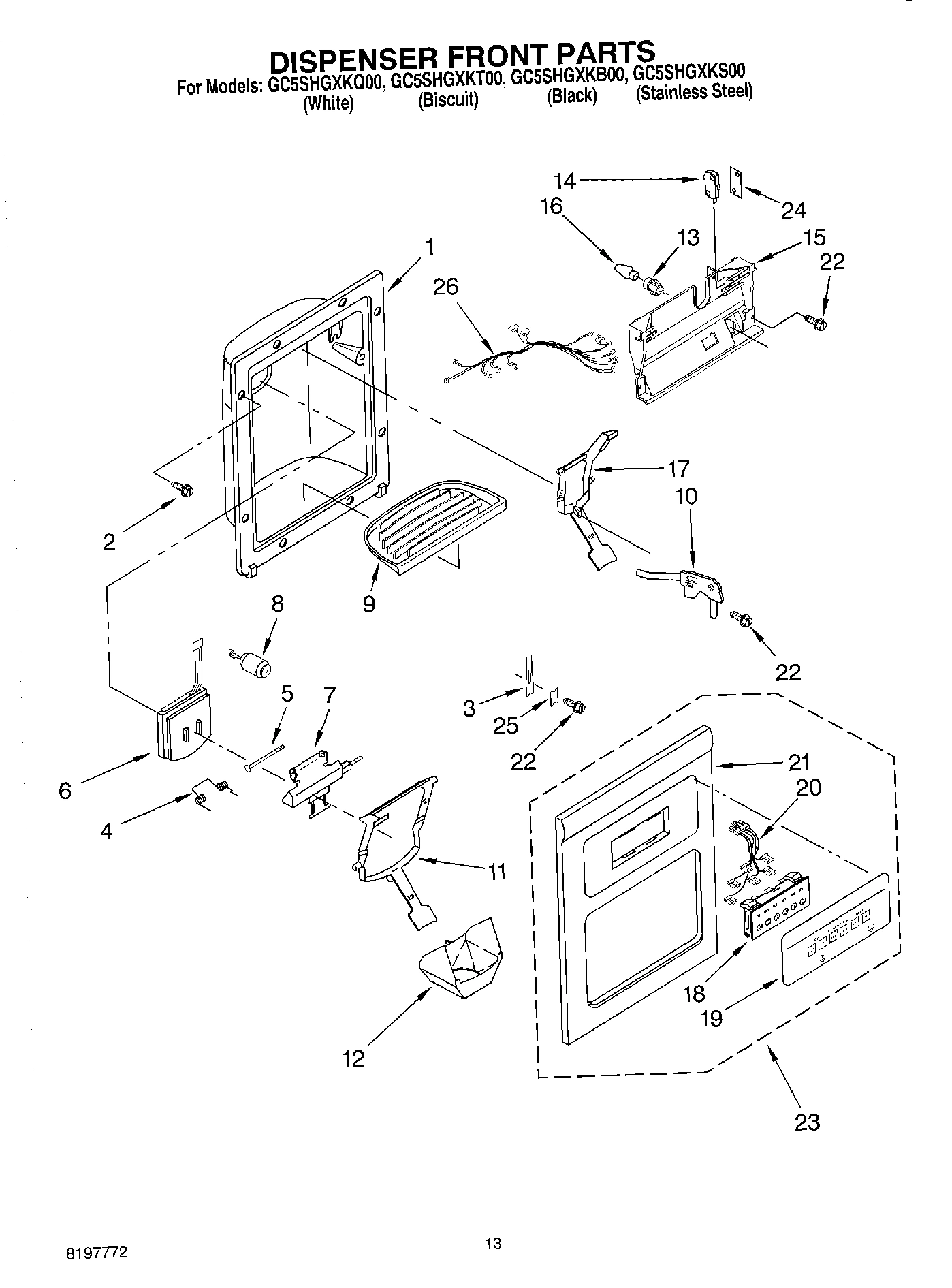

Housing, Dispenser (Not Serviced) WPL ARI60953A2 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2214447 Contact Us For Availability

1

LITERATURE PARTS (Energy Label) WPL LIT2219970 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2221517 Contact Us For Availability

1

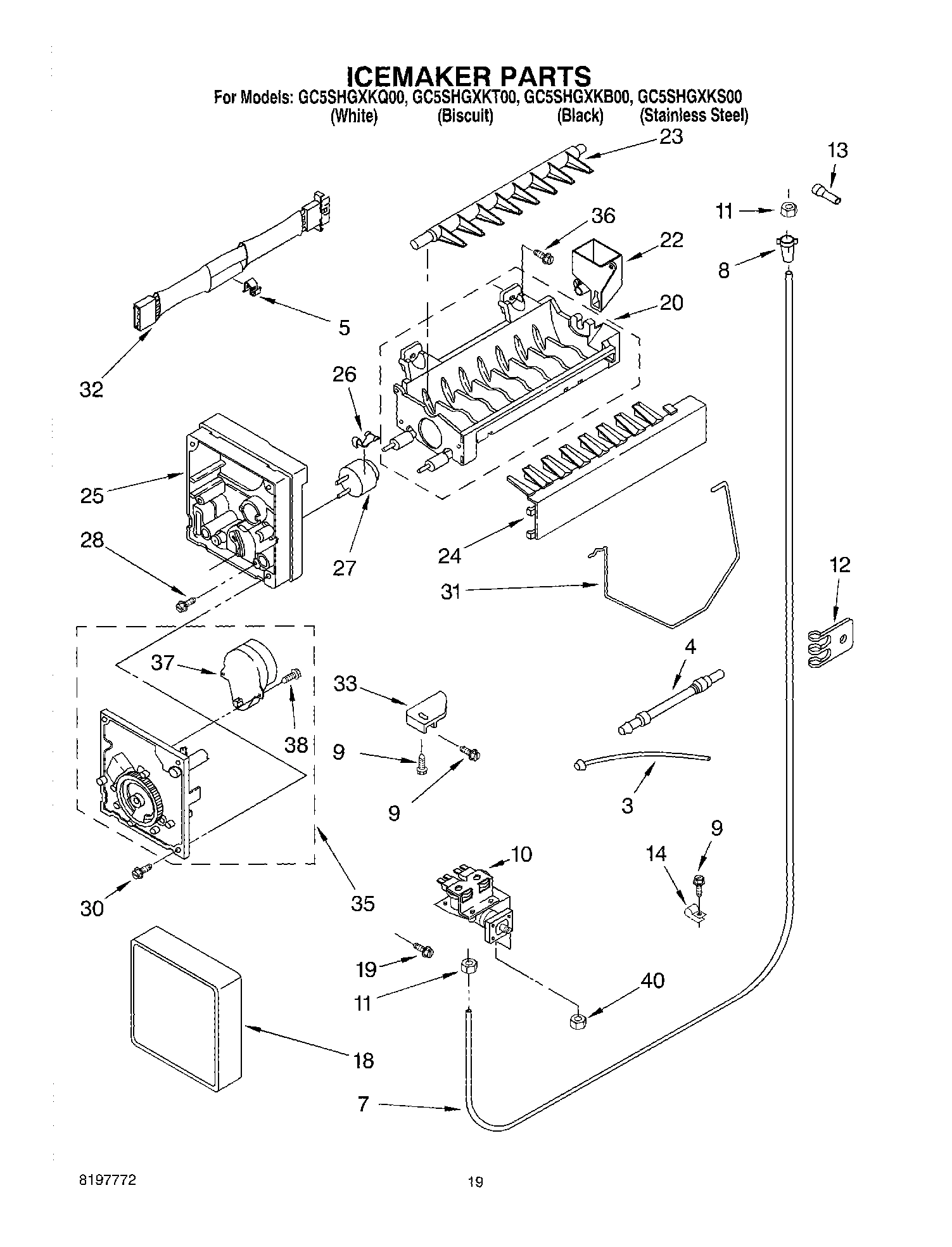

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

Bracket, Motor WPL 2214579 Contact Us For Availability

1

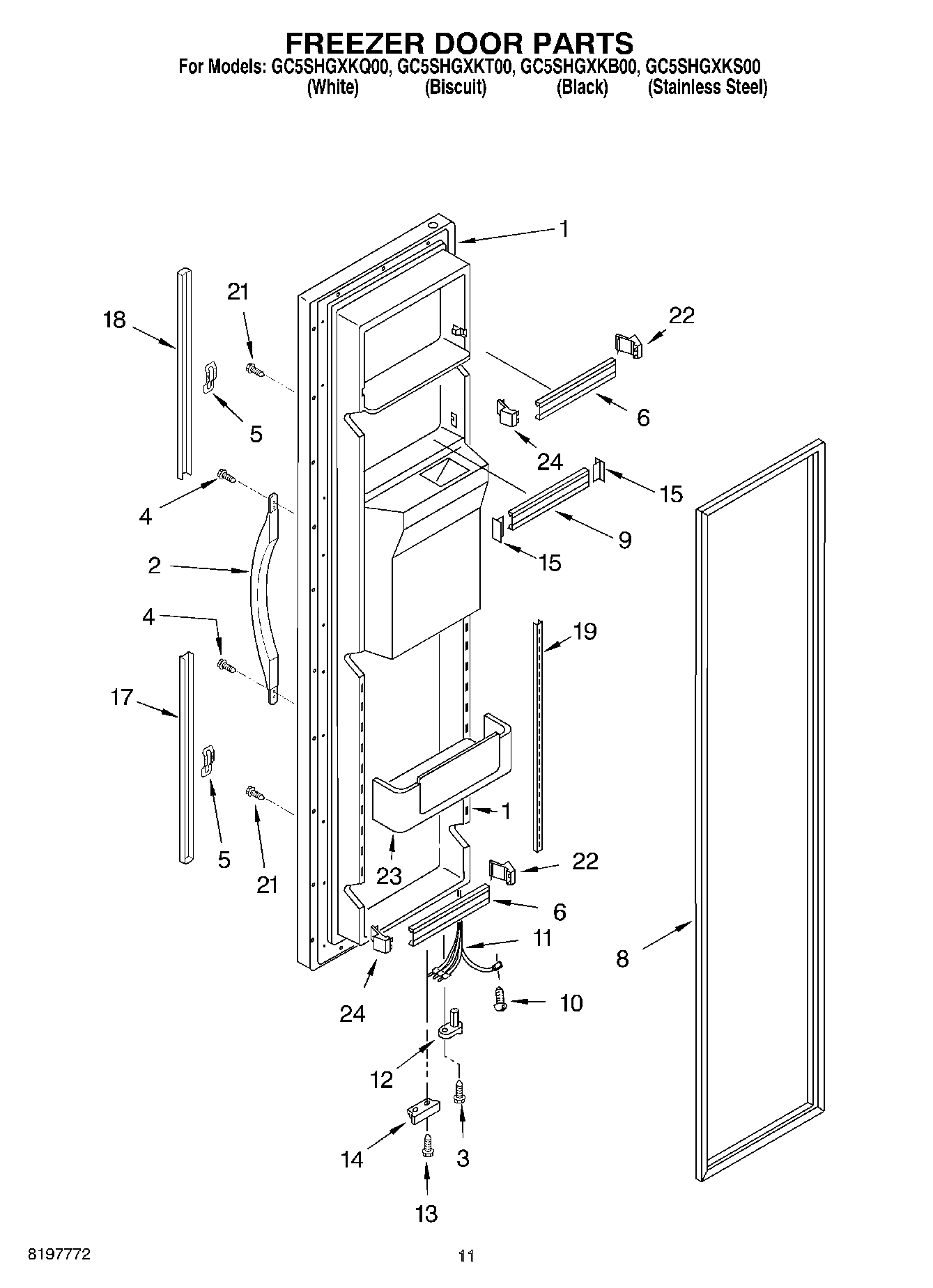

Freezer Door (Includes Item 8 And Dispenser F WPL 2210779B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2210779T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2210779W Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2214464S Contact Us For Availability

2

1116793 Whirlpool Refrigerator Cover Backorder WPL 1116793 $9.15

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $234.92

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Front Roller (2) WPL 2203007 Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.99

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

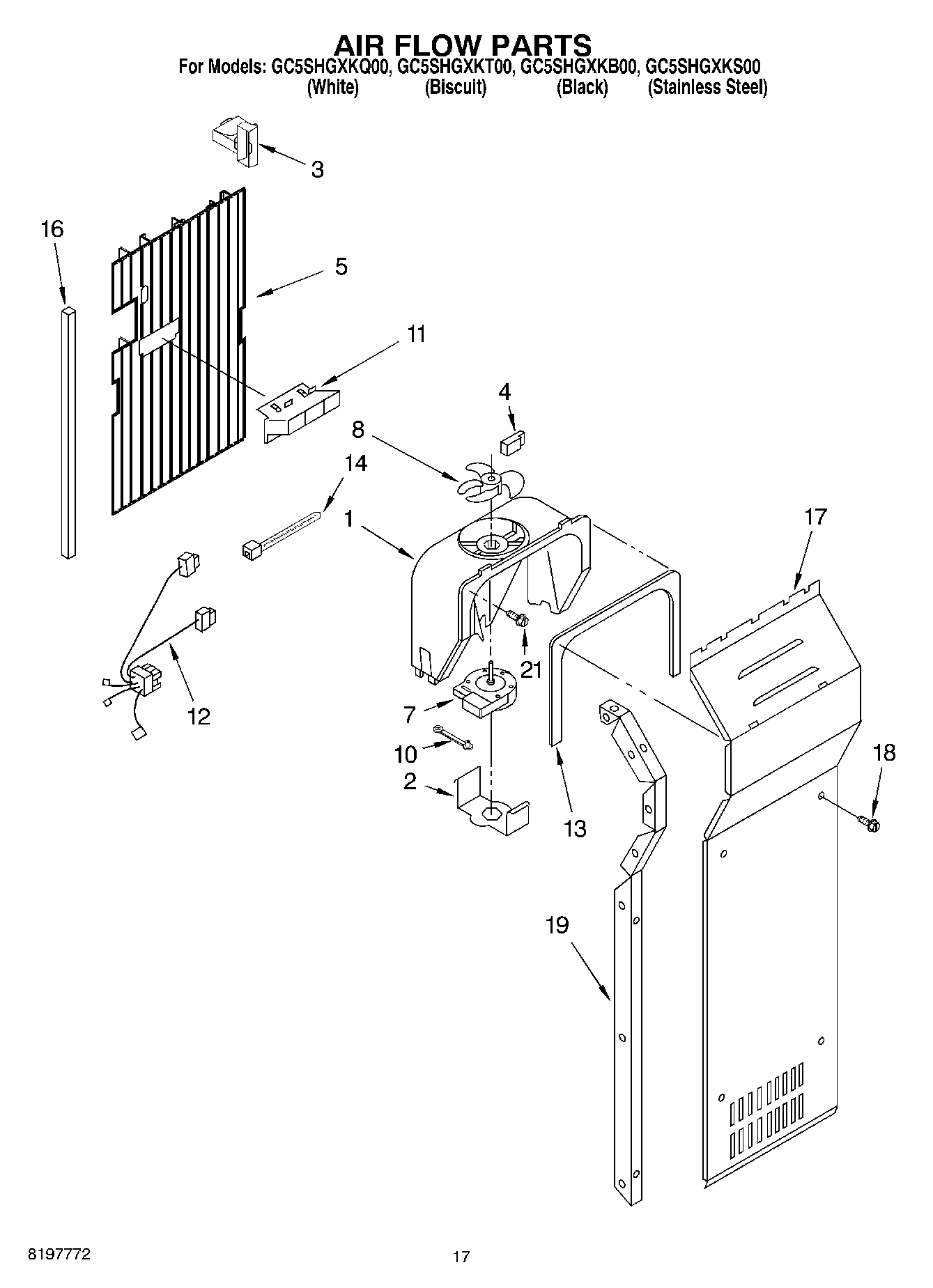

Air Scoop WPL 2210746 Contact Us For Availability

3

Bolt WPL 3400512 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $6.94

4

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $5.99

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

Clip, Thermistor WPL 2209204 Contact Us For Availability

4

Block, Fan Scroll WPL 2208184 Contact Us For Availability

4

Roller (Rear) (2) WPL 2203008 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Eyelet, Roller WPL 2174478 Contact Us For Availability

5

Air Baffle WPL 2220782 Contact Us For Availability

5

Air Duct Freezer WPL 2199931 Contact Us For Availability

5

Bolt WPL 3400511 Contact Us For Availability

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

Clip, Grille WPL 2209558 Contact Us For Availability

6

Trim, Door Shelf WPL 2199990 Contact Us For Availability

7

8201589 Whirlpool Refrigerator Evaporator Mot In Stock WPL 8201589 $224.99

7

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $16.99

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2206503 Contact Us For Availability

8

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Mechanism Delay WPL 2205686 Contact Us For Availability

8

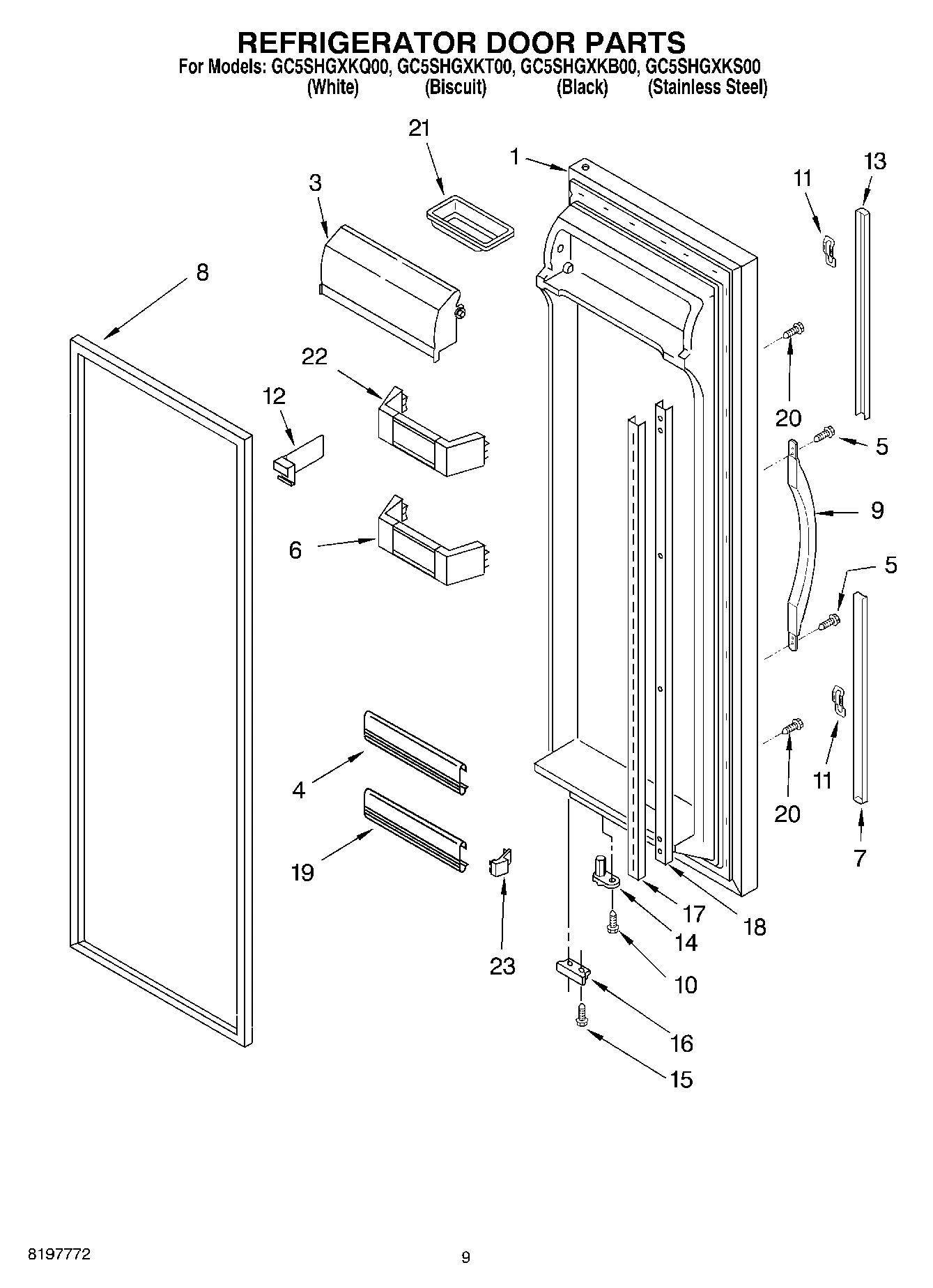

Door Gasket, Magnetic (Service) (Mist Beige) WPL 2209560 Contact Us For Availability

8

Door Gasket, Magnetic (Service) (Black) WPL 2209562 Contact Us For Availability

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.85

9

Grille, Overflow (White) WPL 2180241 Contact Us For Availability

9

Ladder, Shelf WPL 2181796 Contact Us For Availability

9

Grille, Overflow (Black) WPL 2180243 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2204201 Contact Us For Availability

9

Trim, Door Shelf WPL 2199991 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $102.33

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

Screw WPL 3400515 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.51

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability

Wiring Harness, Freezer Door WPL 2187667 Contact Us For Availability

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $61.35

2307007AP Whirlpool Refrigerator Hinge Backorder WPL 2307007AP $105.82

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $90.68

2307007T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007T $92.52

2307008AP Whirlpool Refrigerator Hinge Backorder WPL 2307008AP $107.95

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $30.22

2307008T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008T $90.68

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2214359 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Tube, Water Inlet WPL 2203024 Contact Us For Availability

Wire Assembly WPL 2187427 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $148.73

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

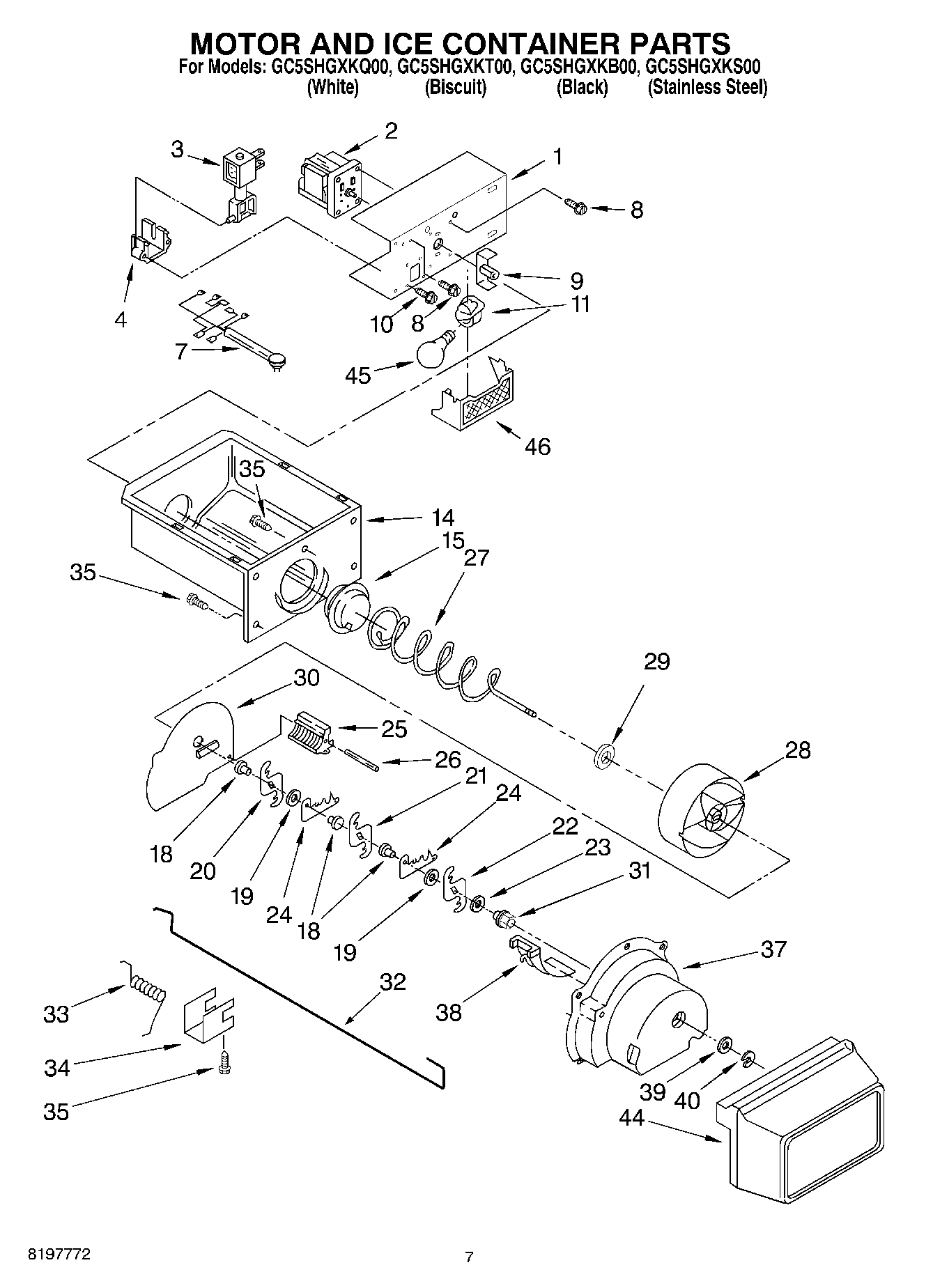

Ice Container WPL 2199895 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2210774 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2214451 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.42

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

Hinge & Cam Assy. WPL 2208137 Contact Us For Availability

Gasket WPL 2210780 Contact Us For Availability

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Cover, Evaporator WPL 2203122 Contact Us For Availability

Extension, Bottom (Black) WPL 2203086B Contact Us For Availability

Extension, Bottom (Biscuit) WPL 2203086T Contact Us For Availability

Extension, Bottom (White) WPL 2203086W Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

Switch Assembly (Not Available Order 23) WPL ARI60954A4 Contact Us For Availability

Extension, Top (Black) WPL 2203085B Contact Us For Availability

Extension, Top (Biscuit) WPL 2203085T Contact Us For Availability

Extension, Top (White) WPL 2203085W Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Trim, Door Shelf WPL 2203087 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI60955A9 Contact Us For Availability

Evaporator, Cover Rail (Right) WPL 2199922 Contact Us For Availability

Evaporator, Cover Rail (Left) WPL 2199923 Contact Us For Availability

Ladder, Shelf Assembly (2) WPL 2208147 Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $60.71

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

Front Cover, Housing (Not Available Order 23 WPL ARI60956A9 Contact Us For Availability

Filler, Wrapper (Black) WPL 2203067B Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2203067T Contact Us For Availability

Filler, Wrapper (White) WPL 2203067W Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.71

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WPW10270150 Whirlpool Crisper Drawer Cover In Stock WPL WPW10270150 $212.25

Grille (Black) WPL 2199904B Contact Us For Availability

Stop, Roller WPL 1113169 Contact Us For Availability

Grille (Biscuit) WPL 2199904T Contact Us For Availability

Grille (White) WPL 2199904W Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

Clamp WPL 2161324 Contact Us For Availability

Beverage Pan WPL 2203028 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186552B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186552T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186552W Contact Us For Availability

Bin, Door (2) WPL 2199992 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP2199840 Whirlpool Refrigerator Housing In Stock WPL WP2199840 $140.71

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Handle, Beverage WPL 2203031 Contact Us For Availability

Air Diffuser Assembly WPL 2214367 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

Endcap WPL 2195917 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $61.83

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

Roller WPL 2188212 Contact Us For Availability

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

26

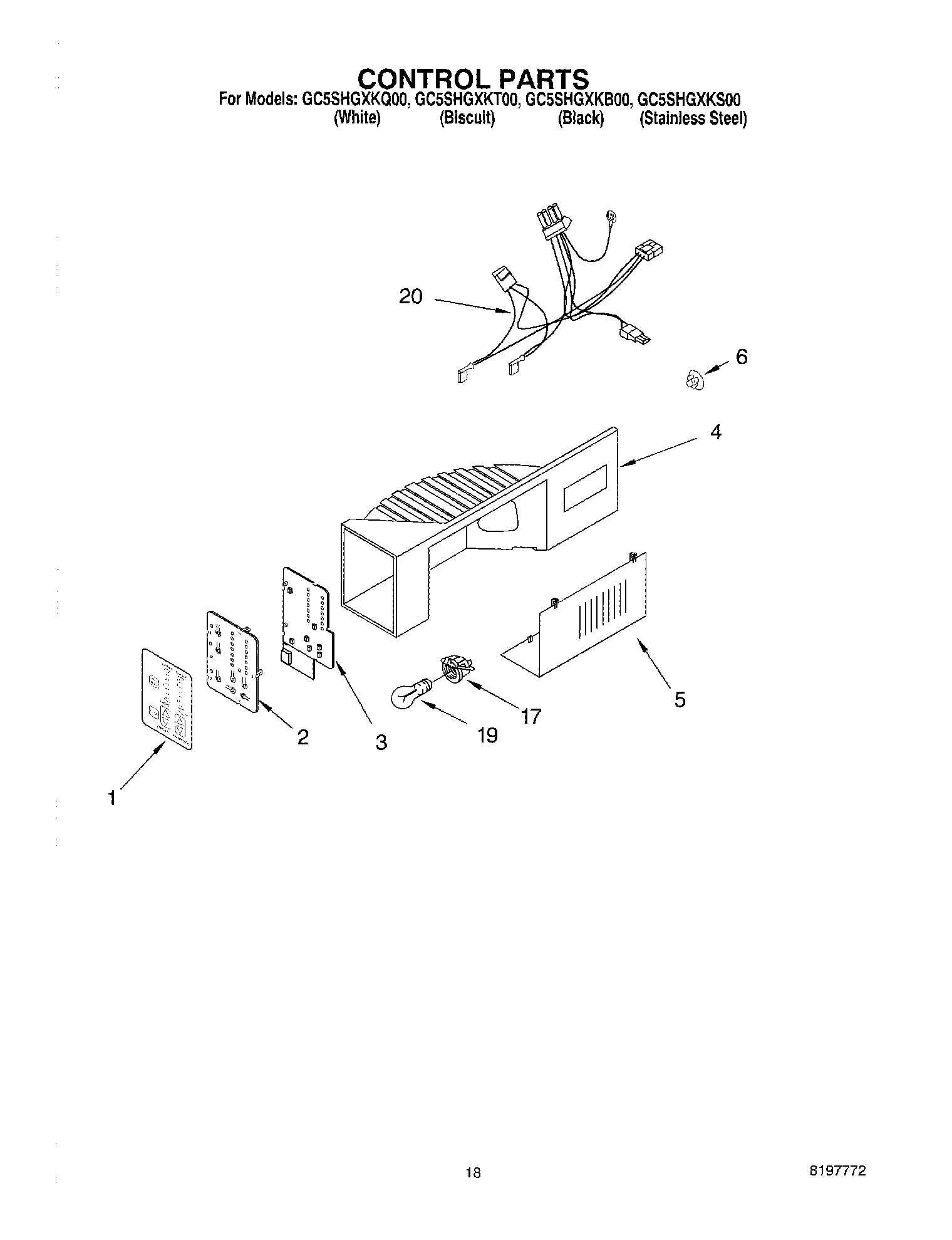

Wire Harness, Control Mounting Bracket WPL 2203170 Contact Us For Availability

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

Conveyor WPL 2160602 Contact Us For Availability

28

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $60.55

28

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

28

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

29

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $4.82

29

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

31

Shelf WPL 2199861 Contact Us For Availability

32

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

32

Control Arm WPL 2002728 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $112.09

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

37

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $88.88

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

42

Extension Tube WPL 2199954 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

43

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

44

Front Cover, Ice Container WPL 2199913 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

47

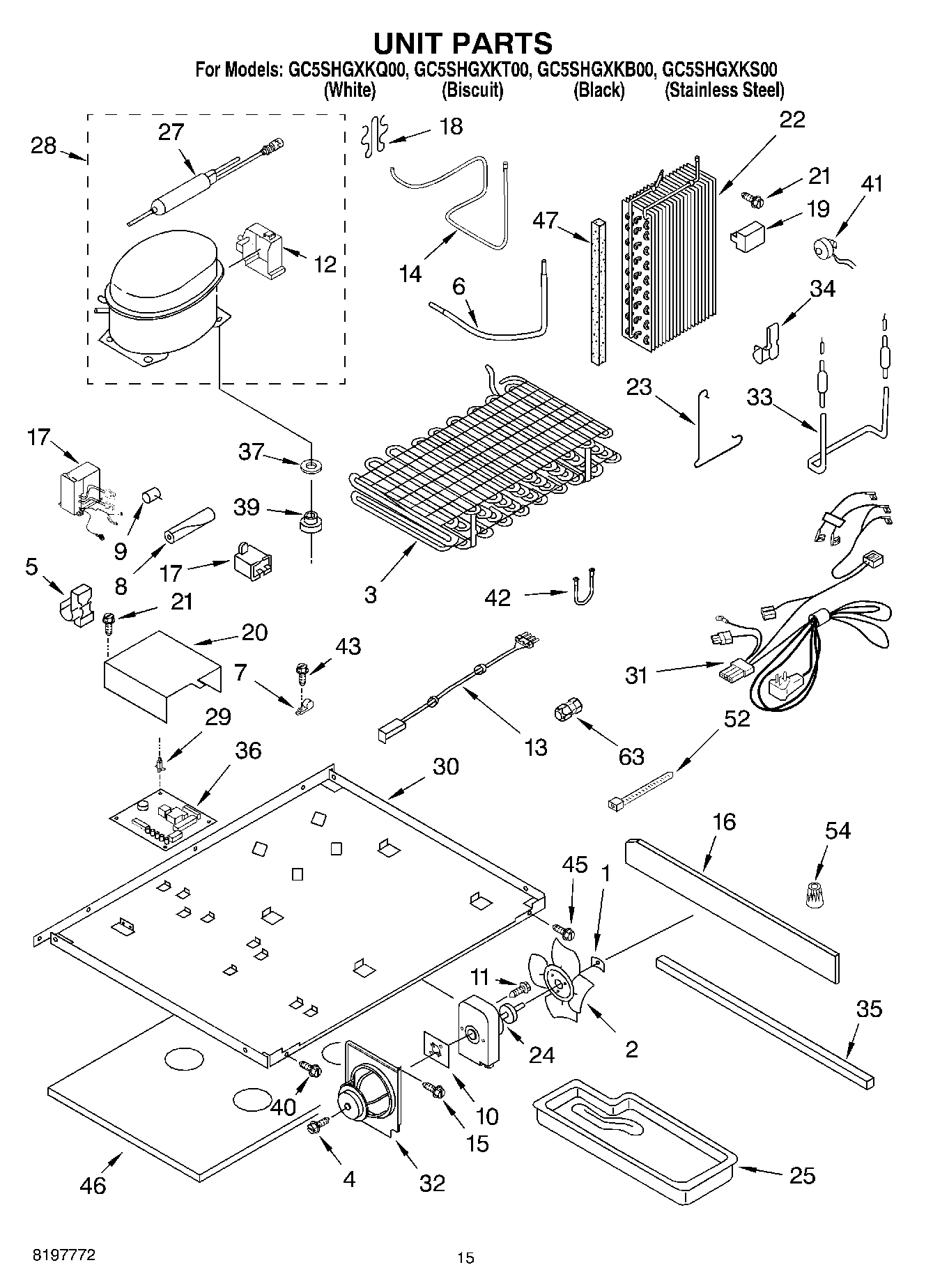

Cover, Unit WPL 2214385 Contact Us For Availability

48

Cabinet (Not A Serviceable Part) WPL ARI60950A7 Contact Us For Availability

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

53

NLA:SCREW Backorder WPL WPW10141645 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
