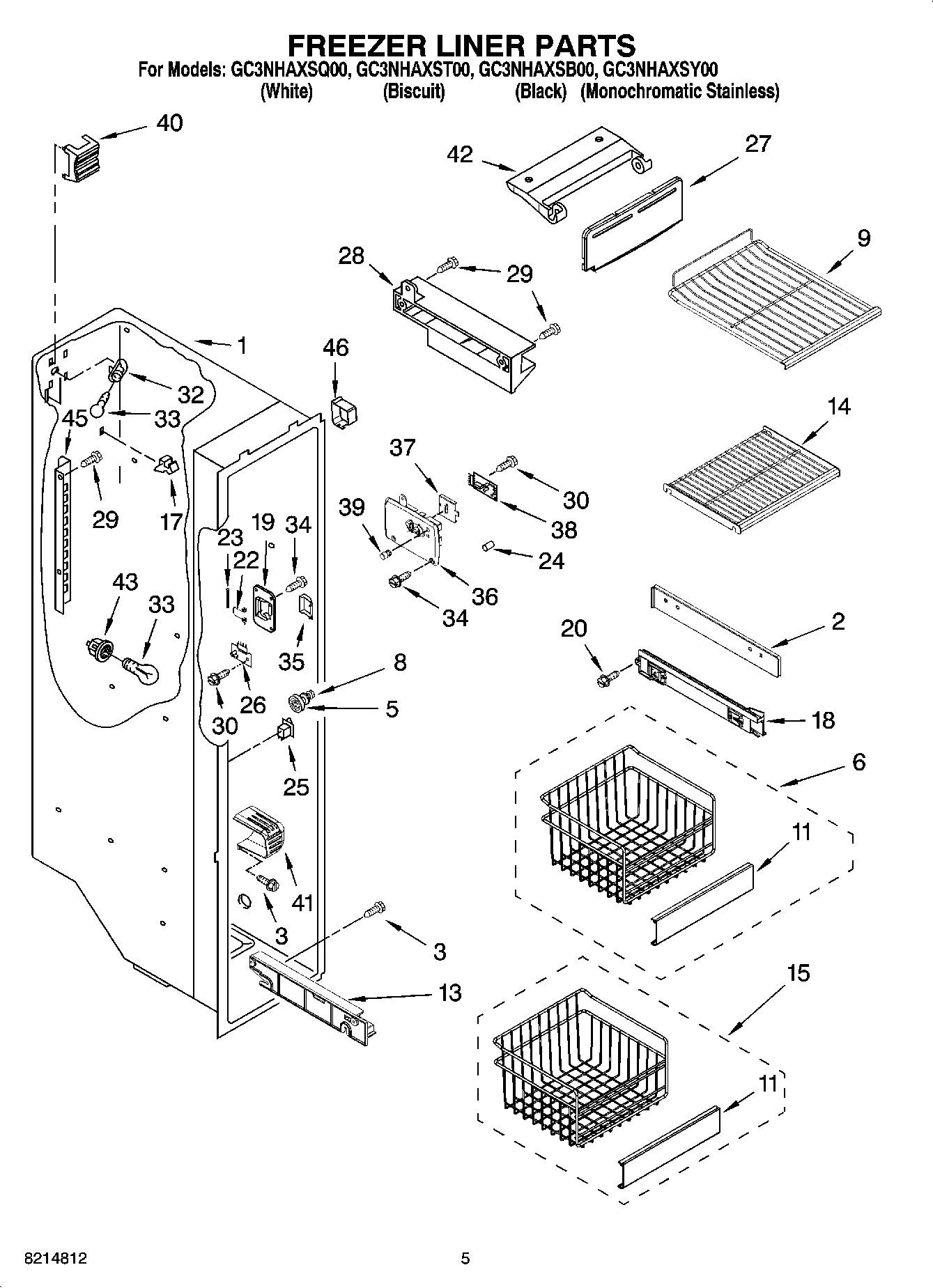

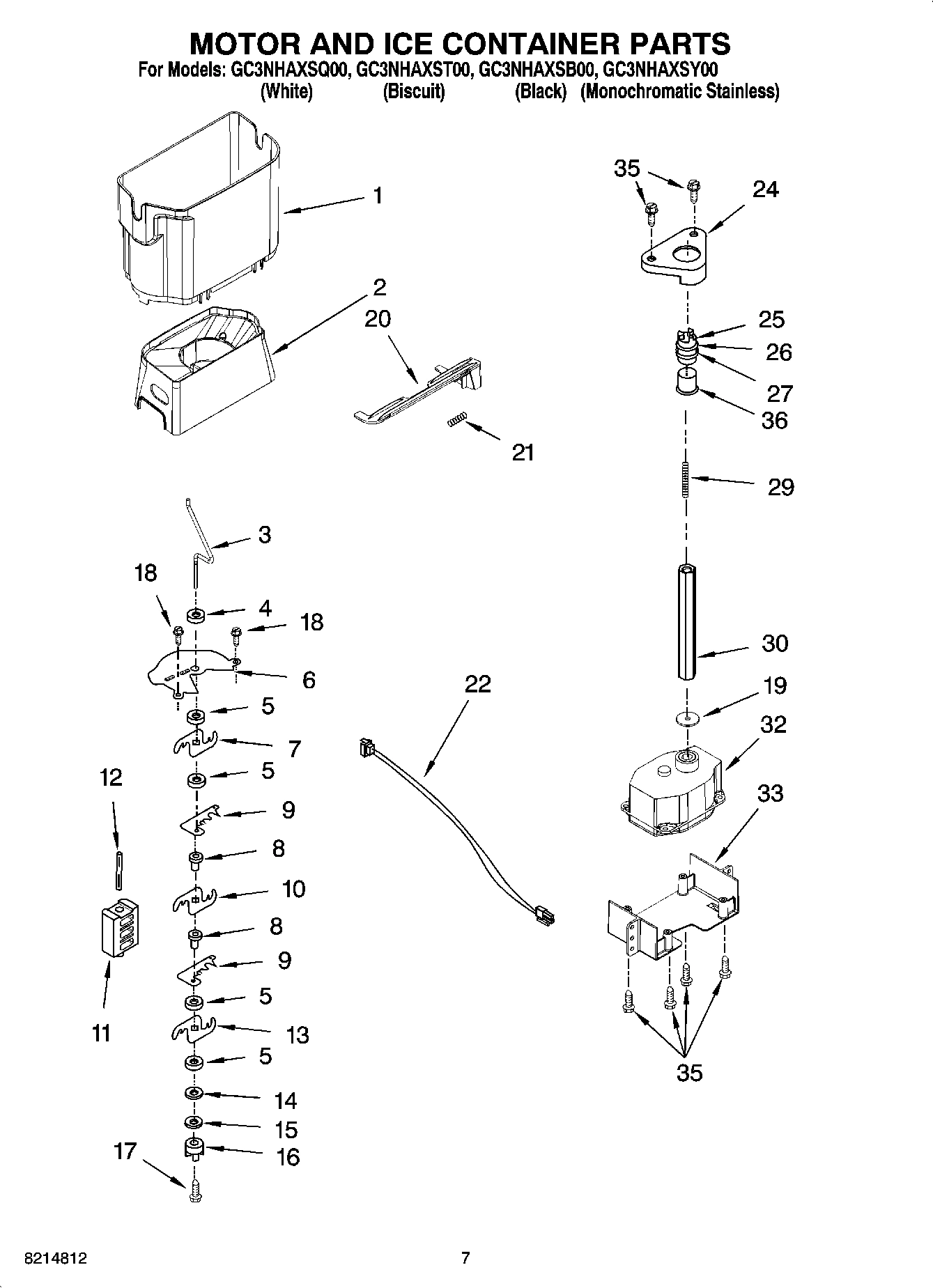

Model Whirlpool GC3NHAXSY00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.39

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $39.77

1

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $290.41

1

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.38

1

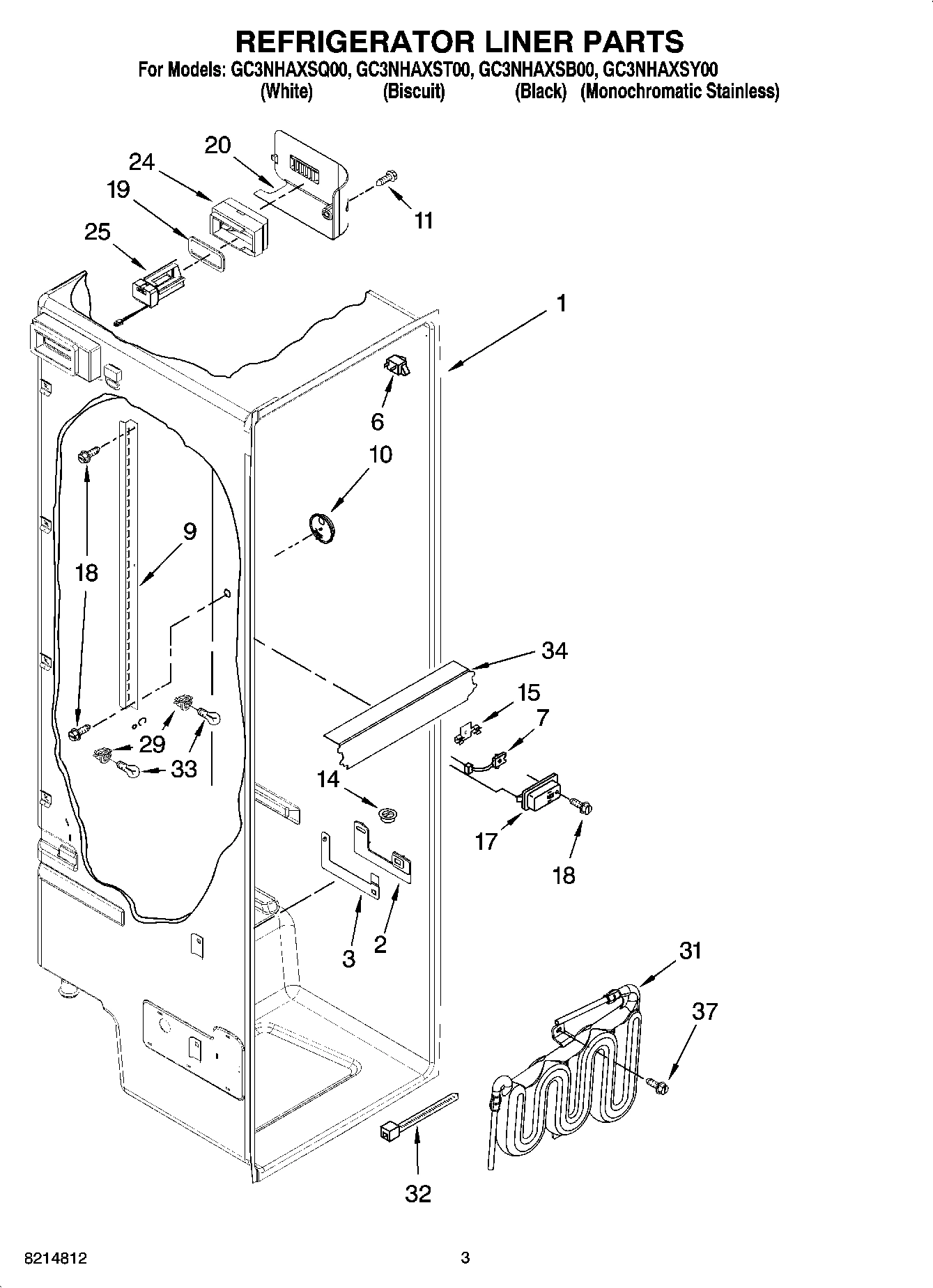

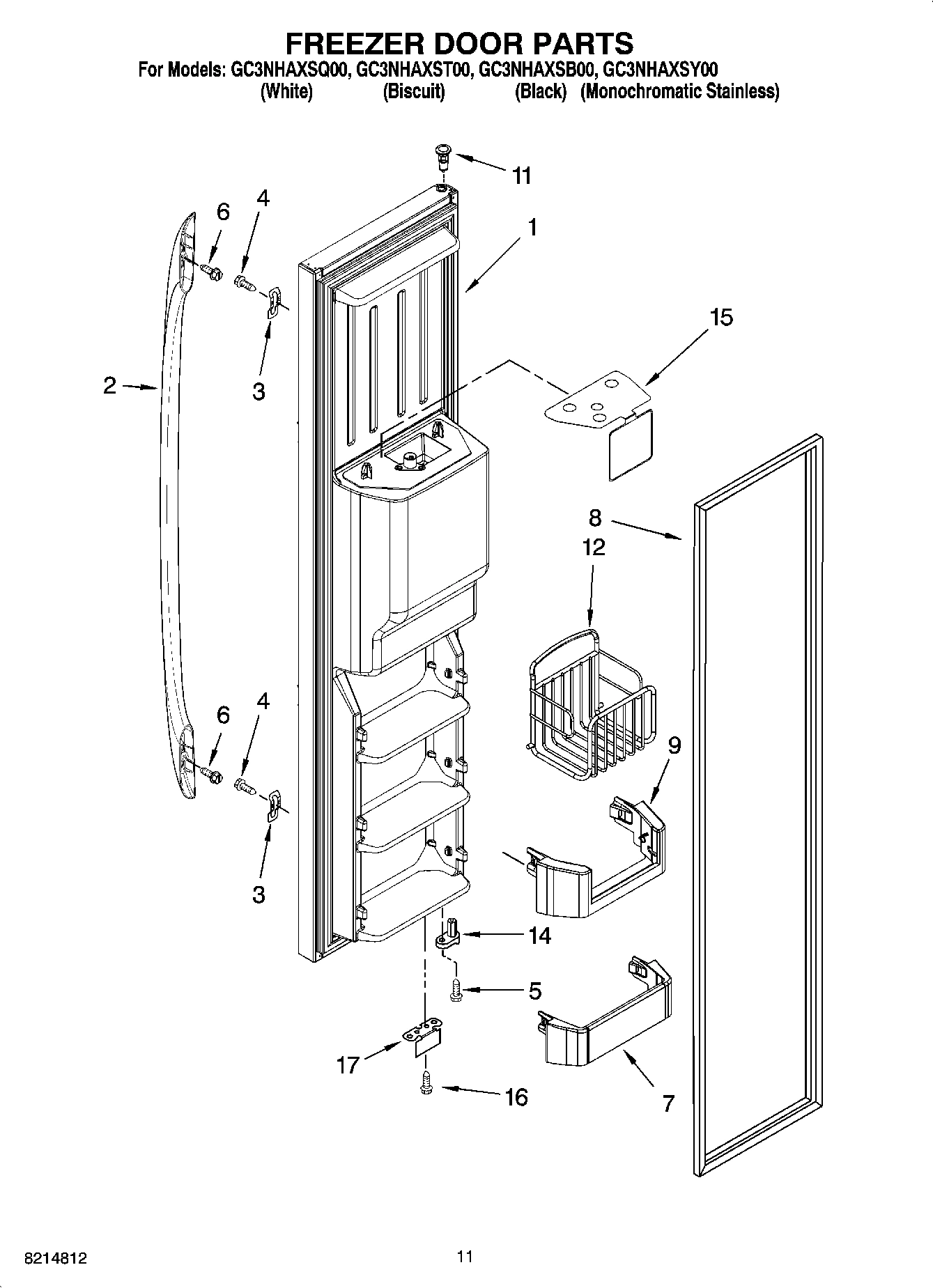

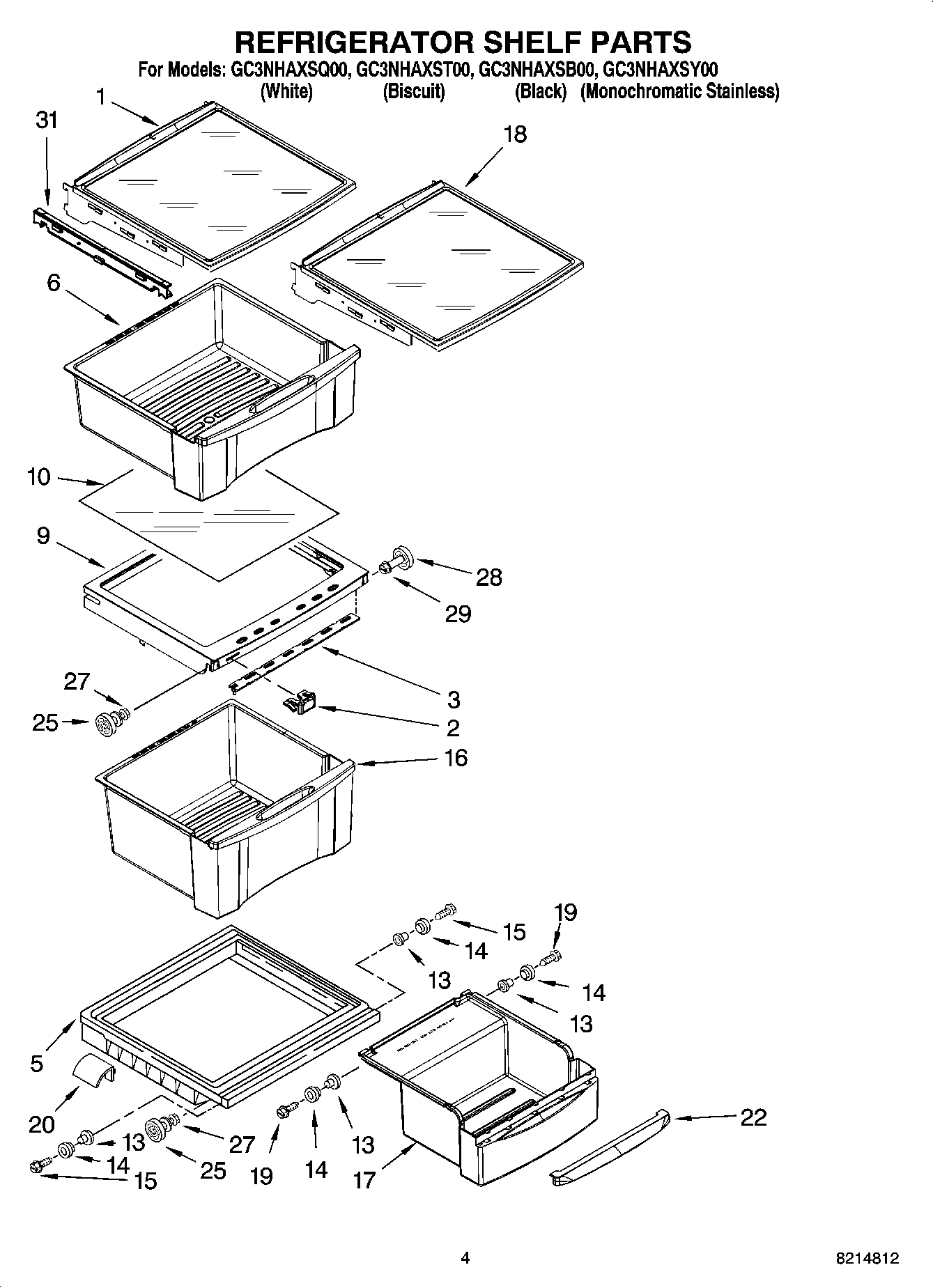

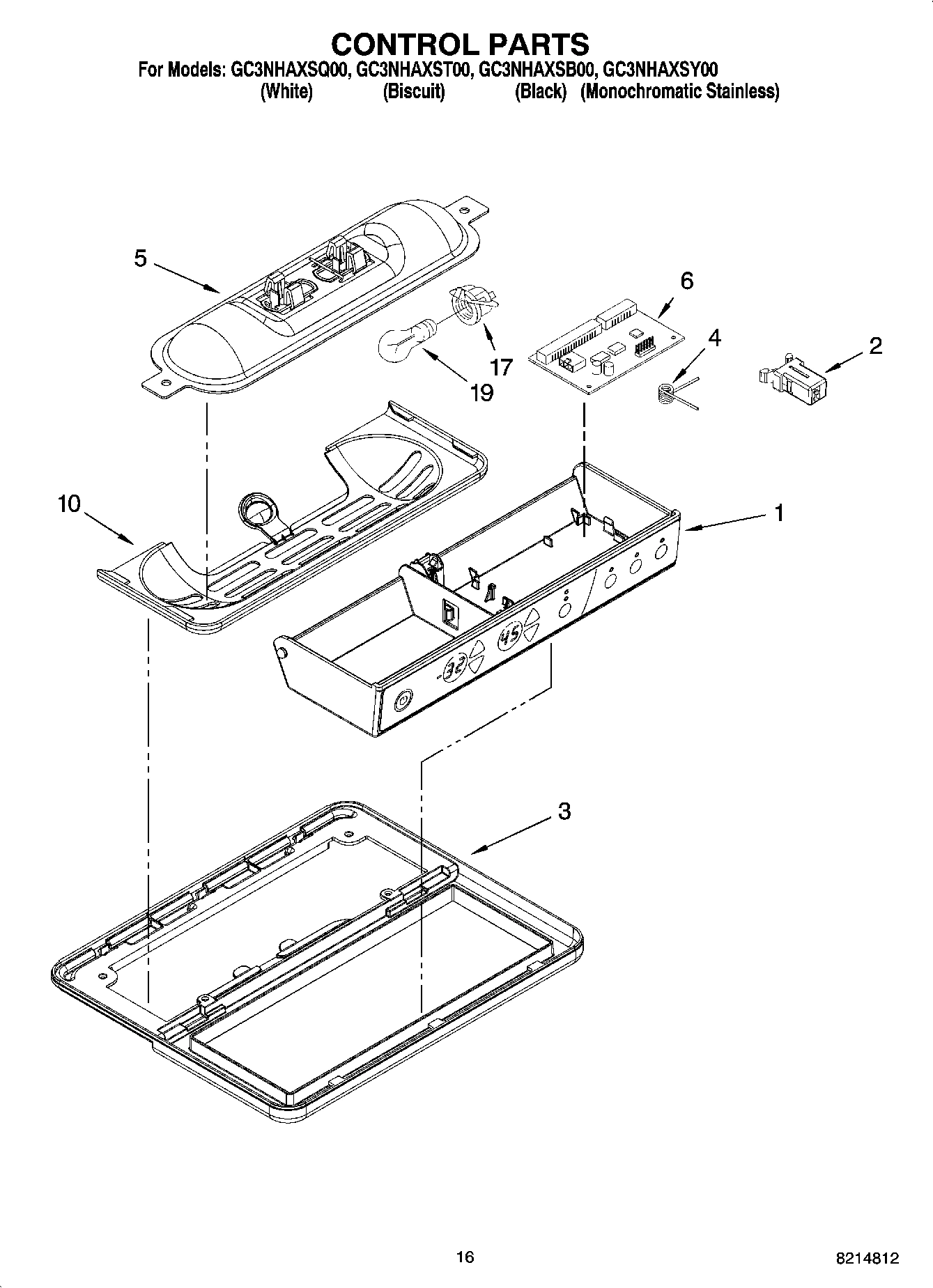

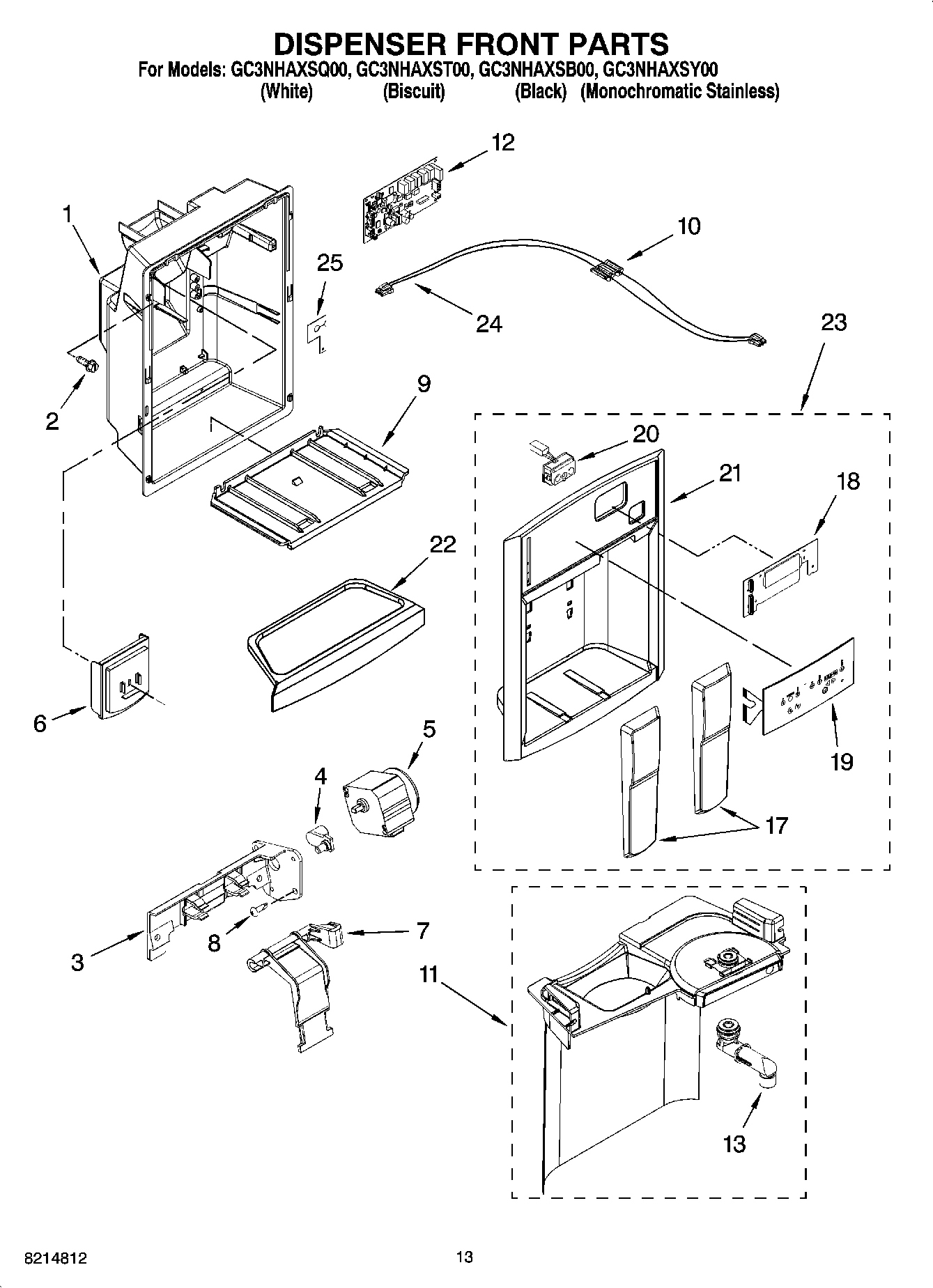

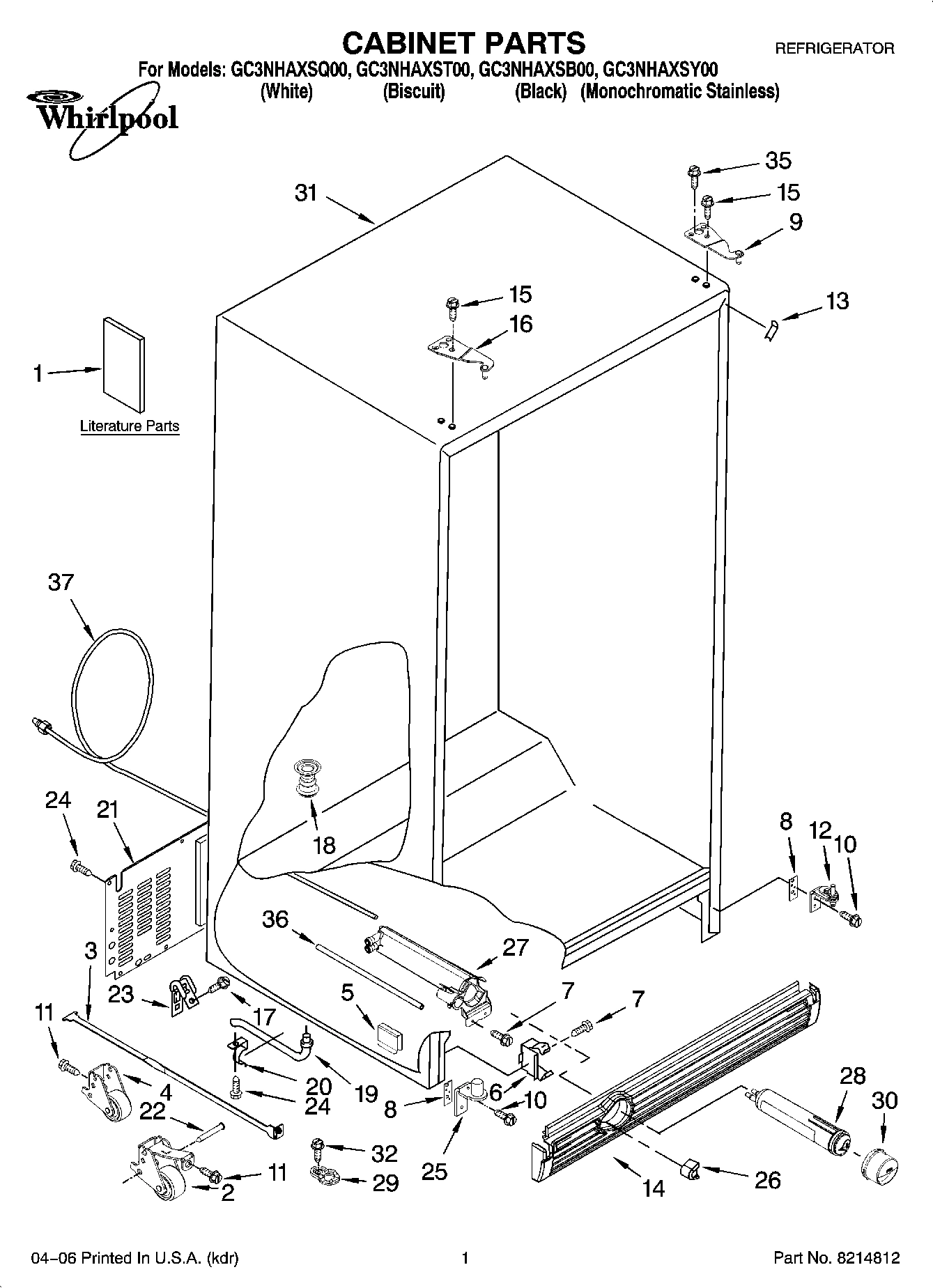

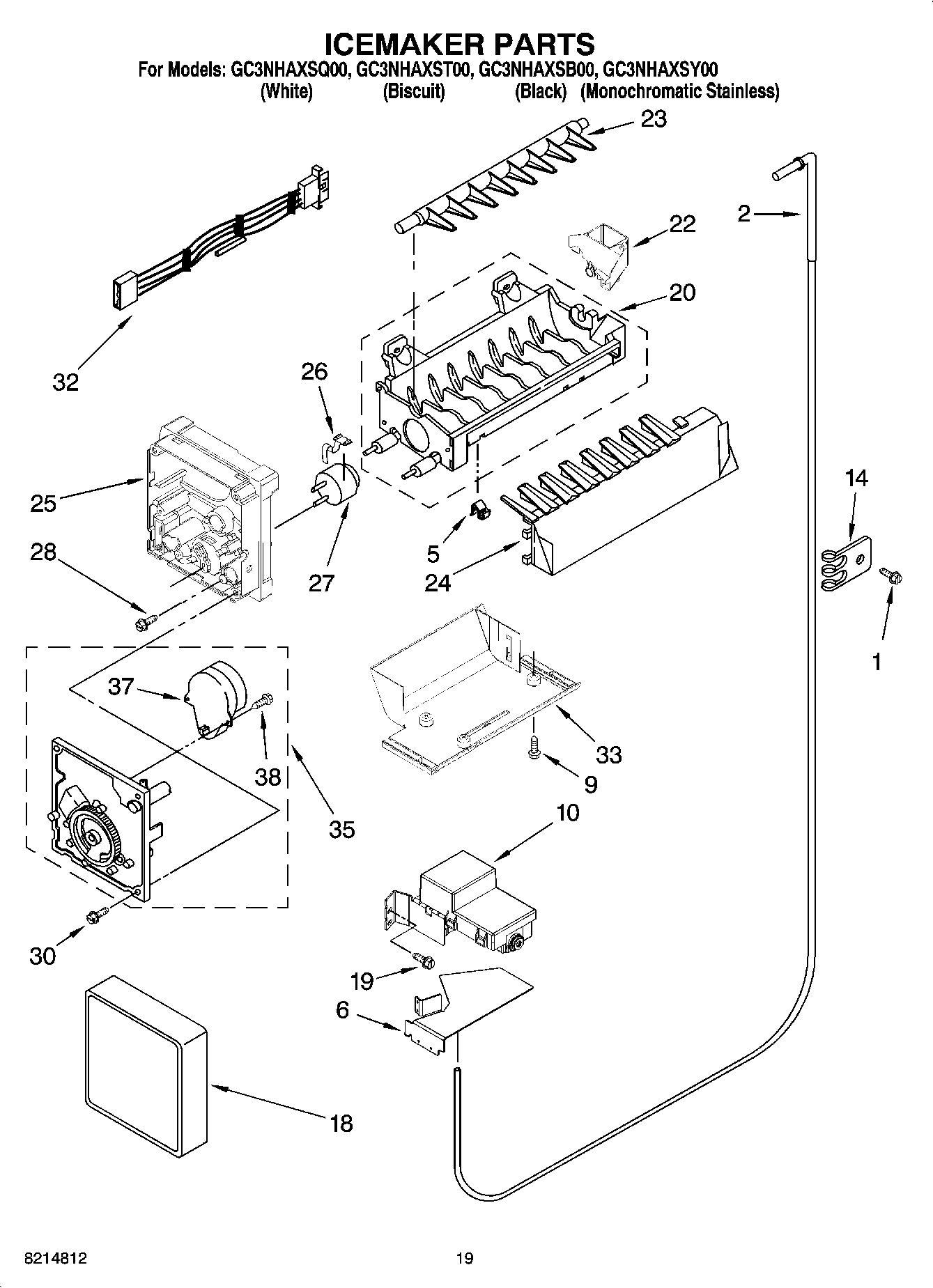

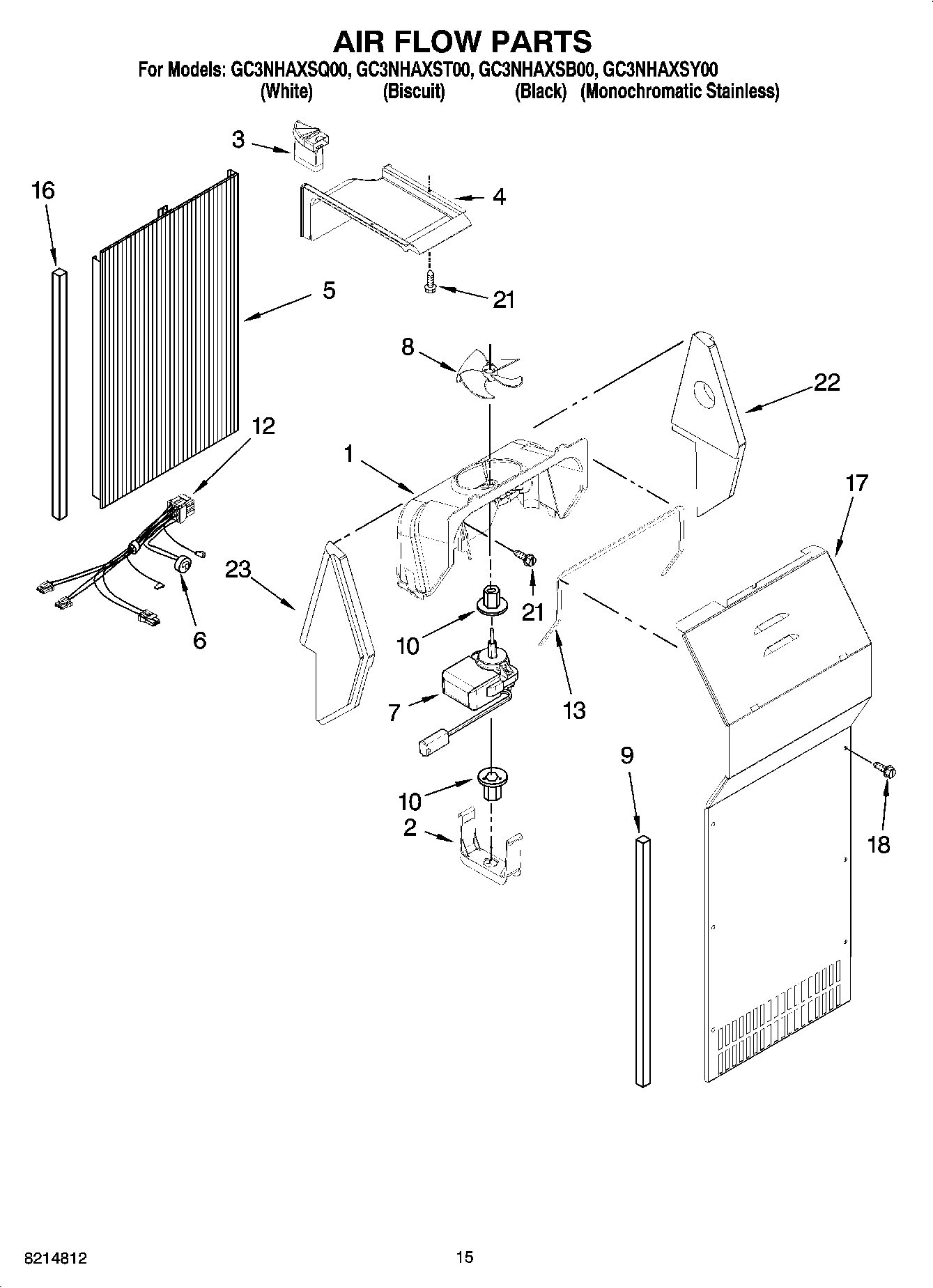

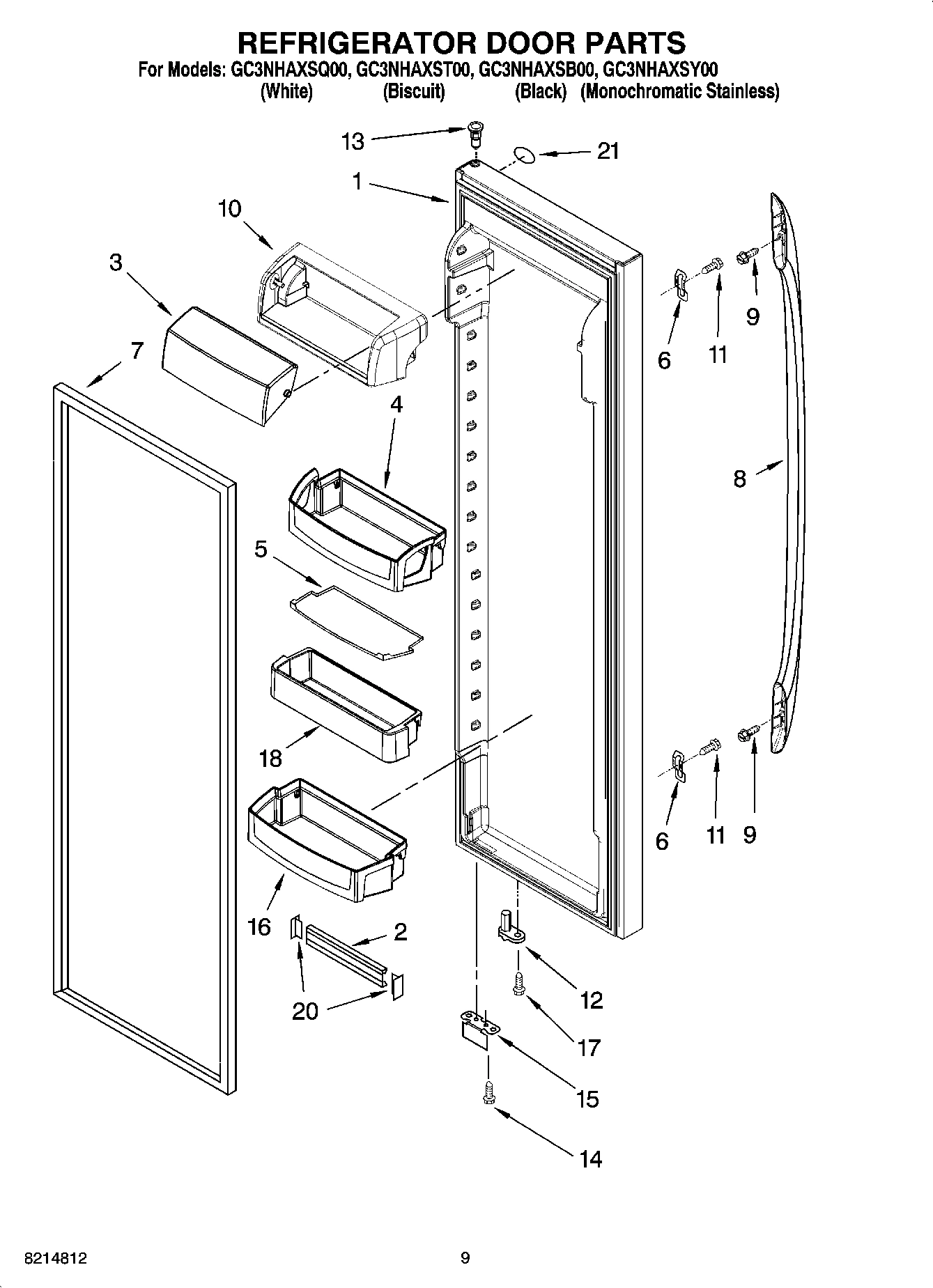

Refrigerator Door (Includes 7) (Monochromatic WPL 2224132SA Contact Us For Availability

1

Refrigerator Door (Includes 7) (Black) WPL 2317787B Contact Us For Availability

1

Refrigerator Door (Includes 7) (Biscuit) WPL 2317787T Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL 2317787W Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI59473A8 Contact Us For Availability

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $10.85

2

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $45.31

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $65.59

2

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $4.19

2

Crusher Bin WPL 2305206 Contact Us For Availability

2

Trim, Shelf WPL 2203087K Contact Us For Availability

3

W10193018 Whirlpool Refrigerator Condenser Backorder WPL W10193018 $292.92

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $43.66

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

4

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.89

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $36.68

4

Washer WPL 2258220 Contact Us For Availability

4

Door Bin WPL 2223463K Contact Us For Availability

5

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $12.14

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $5.62

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $6.23

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $44.66

5

Mat, Bin (3) WPL 2223464K Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.51

6

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $16.85

6

WP2305258 Whirlpool Dispenser Door Assembly Backorder WPL WP2305258 $10.59

6

Control Board Asm WPL 2307037 Contact Us For Availability

6

SCREW WPL 8533920 Contact Us For Availability

6

Housing, Control Board WPL 2223703 Contact Us For Availability

7

W10528579 Whirlpool Refrigerator Tube Backorder WPL W10528579 $290.90

7

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.76

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $33.40

7

Door Gasket, Magnetic (Mist Beige) WPL 2223841 Contact Us For Availability

7

Door Gasket, Magnetic (Black) WPL 2223911 Contact Us For Availability

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $63.41

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $18.95

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $5.11

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.77

8

Handle (Includes 9) (Black) WPL 2313351B Contact Us For Availability

8

Handle (Includes 9) (Biscuit) WPL 2313351T Contact Us For Availability

8

Handle (Includes 9) (Universal Silver) WPL 2313351US Contact Us For Availability

8

Handle (Includes 9) (White) WPL 2313351W Contact Us For Availability

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $29.93

9

2307008T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008T $89.81

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2 & 3) WPL 2223307 Contact Us For Availability

9

Grille, Slide (Apollo Gray) WPL 2305413AP Contact Us For Availability

9

Grille, Slide (Black) WPL 2305413B Contact Us For Availability

9

Grille, Slide (Biscuit) WPL 2305413T Contact Us For Availability

9

Grille, Slide (White) WPL 2305413W Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $56.83

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $58.49

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $139.68

WP2223879 Whirlpool Refrigerator Compressor D Backorder WPL WP2223879 $85.47

Plate, Mounting WPL 2301979 Contact Us For Availability

Ferrite Bead WPL 2308165 Contact Us For Availability

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.59

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.53

Block, Blade WPL 2198602 Contact Us For Availability

Separator Assembly (Black) WPL 2305460B Contact Us For Availability

Separator Assembly (Biscuit) WPL 2305460T Contact Us For Availability

Separator Assembly (Universal Silver) WPL 2305460US Contact Us For Availability

Separator Assembly (White) WPL 2305460W Contact Us For Availability

12

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $60.77

12

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $42.24

12

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.15

13

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $58.79

13

Eyelet, Roller WPL 2174478 Contact Us For Availability

13

Thimble, Top WPL 2308050 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $16.76

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $8.28

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $5.88

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.85

Clamp, Cable WPL 2305373 Contact Us For Availability

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $5.91

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.71

15

Clip, Thermistor WPL 2209204 Contact Us For Availability

16

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $89.81

16

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.34

16

Door Bin (2) WPL 2223239K Contact Us For Availability

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $64.88

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $24.02

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.59

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.29

Pad, Ice & Water (For White Model) WPL 2305247CG Contact Us For Availability

Pad, Ice & Water (For Black Model) WPL 2305247GM Contact Us For Availability

Pad, Ice & Water (For Monochromatic Stainless WPL 2305247MG Contact Us For Availability

Pad, Ice & Water (For Biscuit Model) WPL 2305247WL Contact Us For Availability

2301544 Whirlpool Refrigerator Glide Backorder WPL 2301544 $199.39

2301545 Whirlpool Refrigerator Glide Backorder WPL 2301545 $98.28

WP2224173 Whirlpool Refrigerator Cantilever B In Stock WPL WP2224173 $50.13

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $3.22

Cover Assembly, User Interface WPL 2304170 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2223353 Contact Us For Availability

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $5.37

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $12.28

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

Overlay, Front Control (Not Available, Order WPL ARI59474A2 Contact Us For Availability

20

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.02

20

Baseplate WPL 2306932 Contact Us For Availability

20

LED Assembly WPL 2317205 Contact Us For Availability

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.19

Nameplate WPL 2220214 Contact Us For Availability

Cover, Unit WPL 2223409 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI59475A5 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $275.26

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $31.00

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $19.04

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Handle WPL 2203029 Contact Us For Availability

Tray, Housing (Black) WPL 2305408B Contact Us For Availability

Tray, Housing (Biscuit) WPL 2305408T Contact Us For Availability

Tray, Housing (Universal Silver) WPL 2305408US Contact Us For Availability

Tray, Housing (White) WPL 2305408W Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $6.96

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

Front Cover A WPL 2317715W Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 17, 18, WPL 2317715B Contact Us For Availability

Front Cover Assembly (Includes Items 17, 18, WPL 2317715T Contact Us For Availability

Front Cover Assembly (Includes Items 17, 18, WPL 2317715US Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $89.04

WPL 2187814 WPL 2187814 Contact Us For Availability

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $12.11

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $10.90

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $245.91

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.65

Tray, Evaporator WPL 2223398 Contact Us For Availability

26

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.46

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.14

26

Heat Shield WPL 2224022 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $26.71

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.61

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $50.57

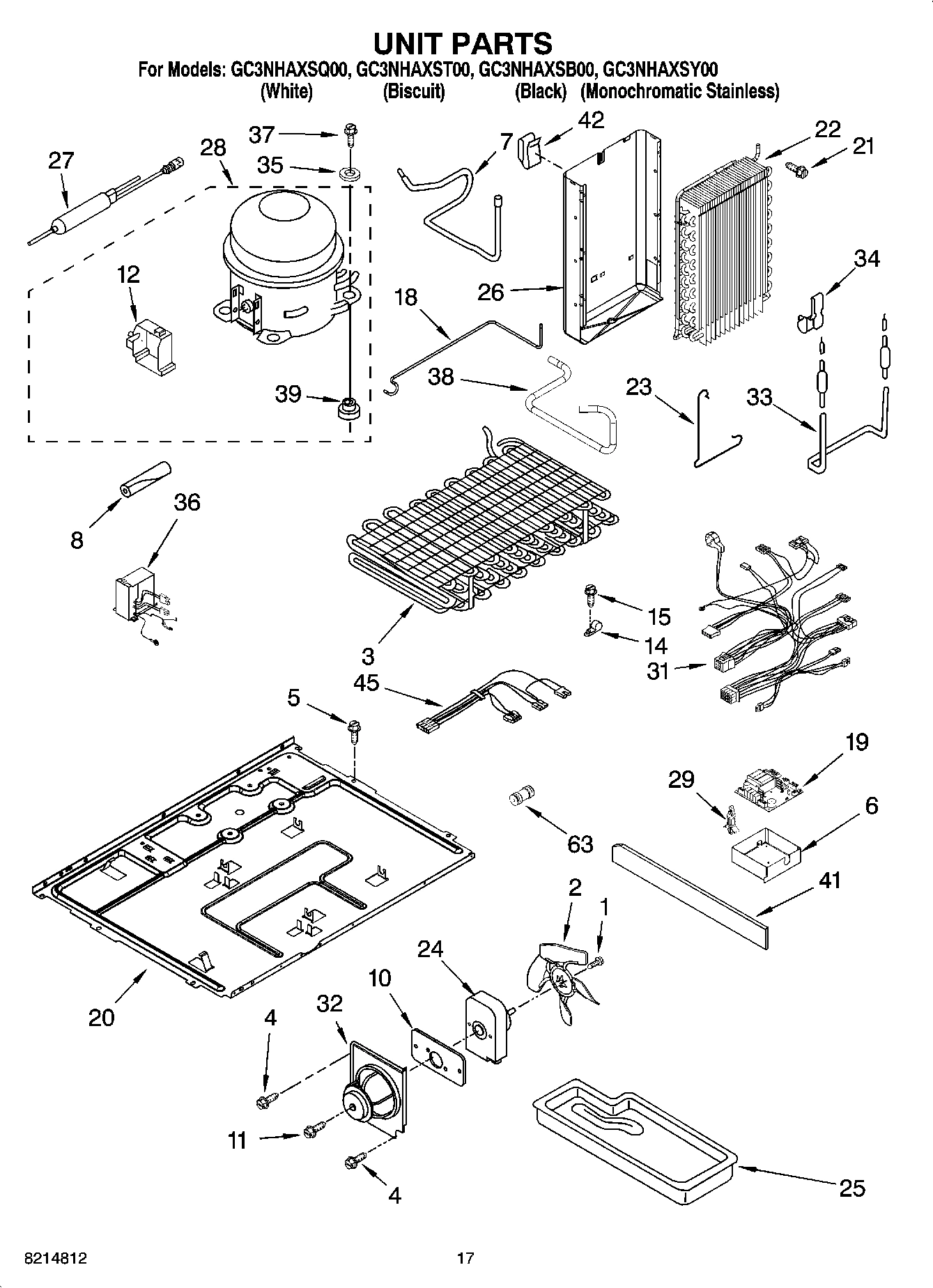

8201675 Whirlpool Refrigerator Compressor In Stock WPL 8201675 $377.82

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.88

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.34

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $5.56

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

2223800 Whirlpool Refrigerator Spacer Backorder WPL 2223800 $11.53

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $12.14

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $10.42

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $32.93

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.87

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $19.91

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $101.48

WPL 2260518T WPL 2260518T Contact Us For Availability

31

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $16.85

31

WP2310122 Whirlpool Refrigerator Wire Harness Backorder WPL WP2310122 $229.88

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $55.72

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $133.66

32

Fan, Motor Bracket WPL 2224024 Contact Us For Availability

33

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $77.34

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $43.05

33

Bracket, Motor WPL 2305208 Contact Us For Availability

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $7.20

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $6.29

34

Light Lens WPL 2223663 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.40

35

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $5.84

35

Washer (4) WPL W10000040 Contact Us For Availability

36

W10629033 Whirlpool Refrigerator Inverter Con In Stock WPL W10629033 $287.30

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $13.34

37

Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $7.10

38

Tube, Discharge WPL 2223352 Contact Us For Availability

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.04

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.59

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $5.76

41

2223394 Whirlpool Extension Backorder WPL 2223394 $64.97

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $3.22

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

45

2310121 Whirlpool Refrigerator Wire Harness Backorder WPL 2310121 $298.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $12.13

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI59476A6 Contact Us For Availability

REFRIGERANT CHARGE 6.00 oz. (R-134A) WPL ARI59477A5 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $150.35
