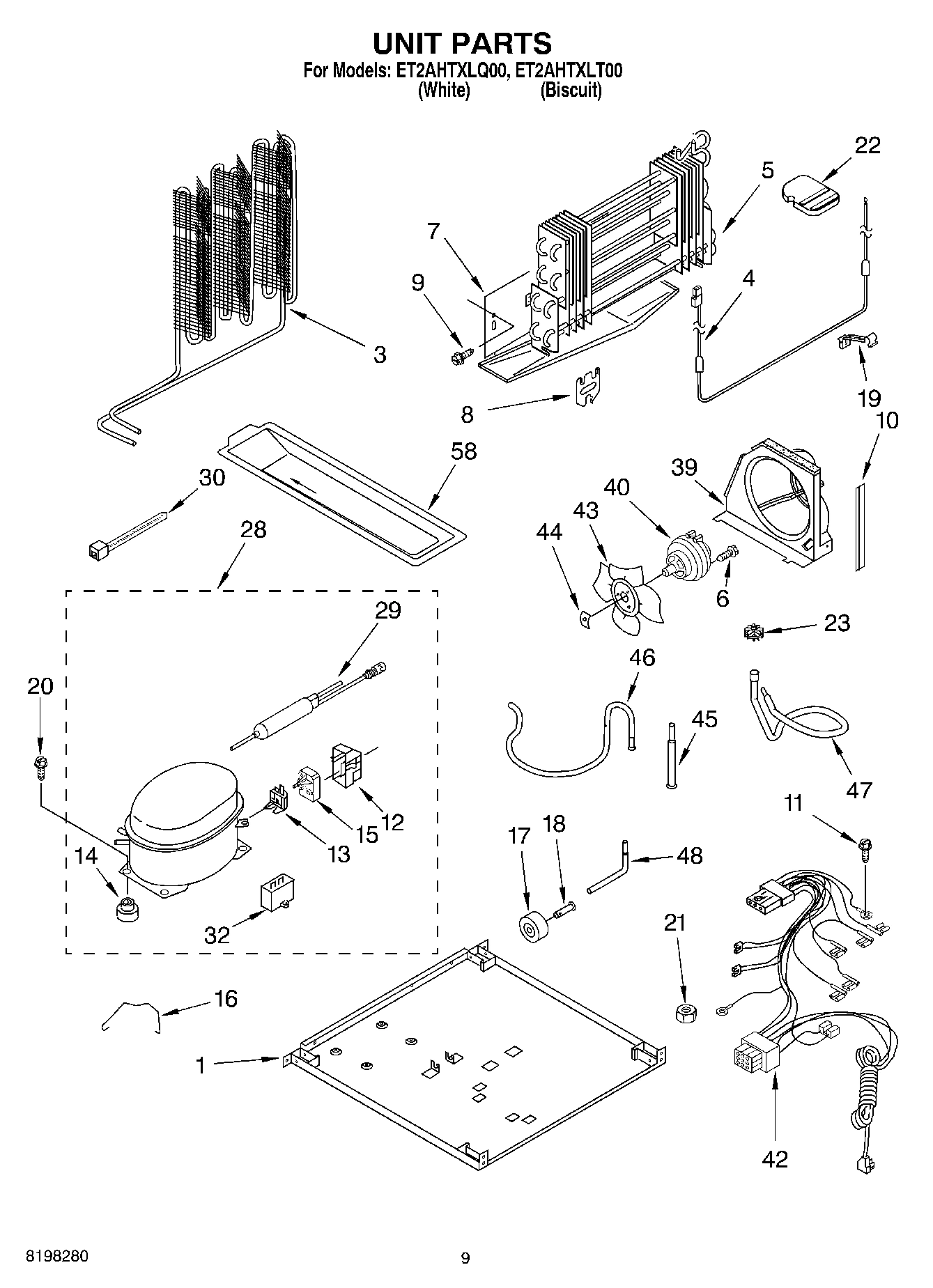

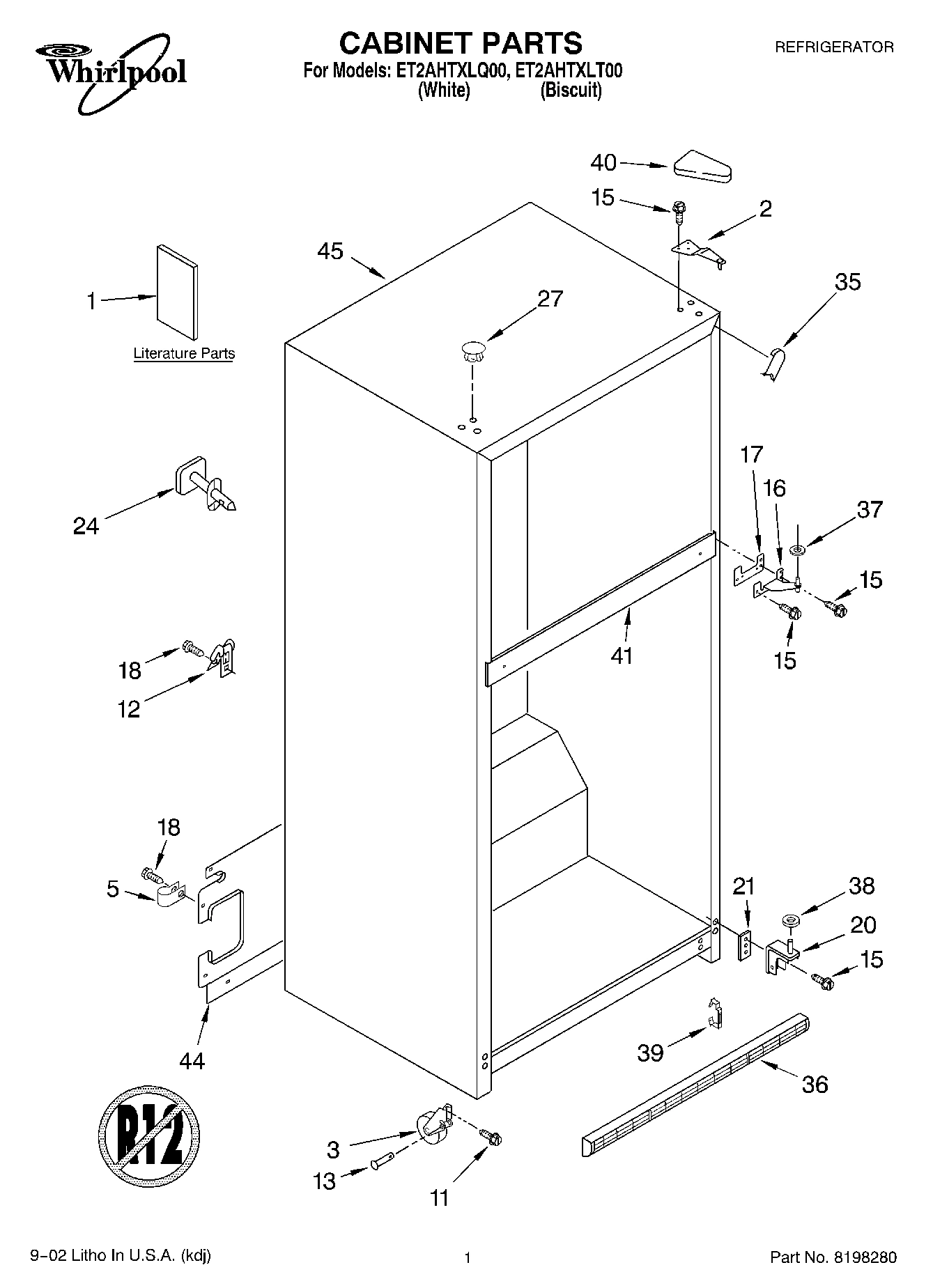

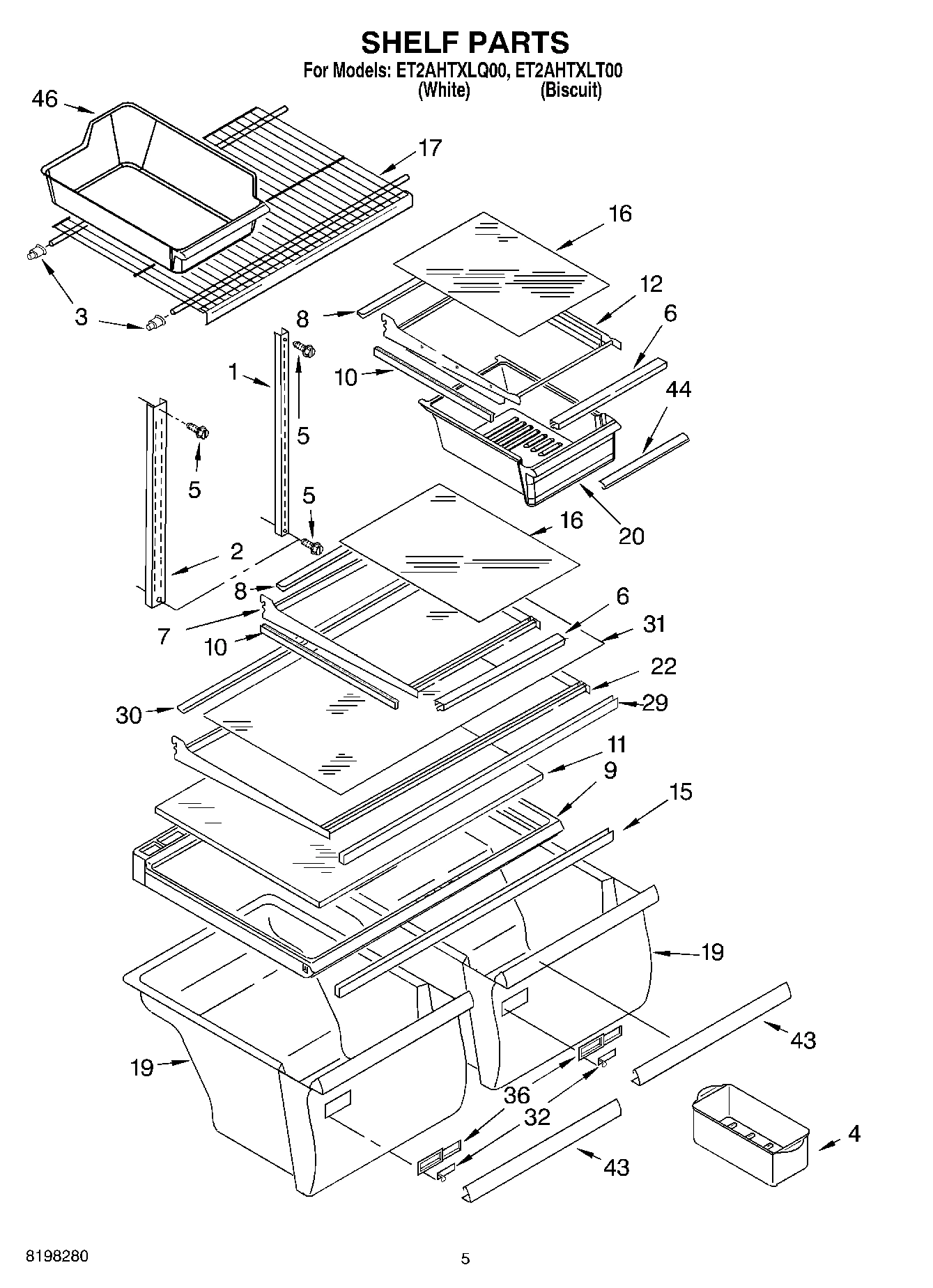

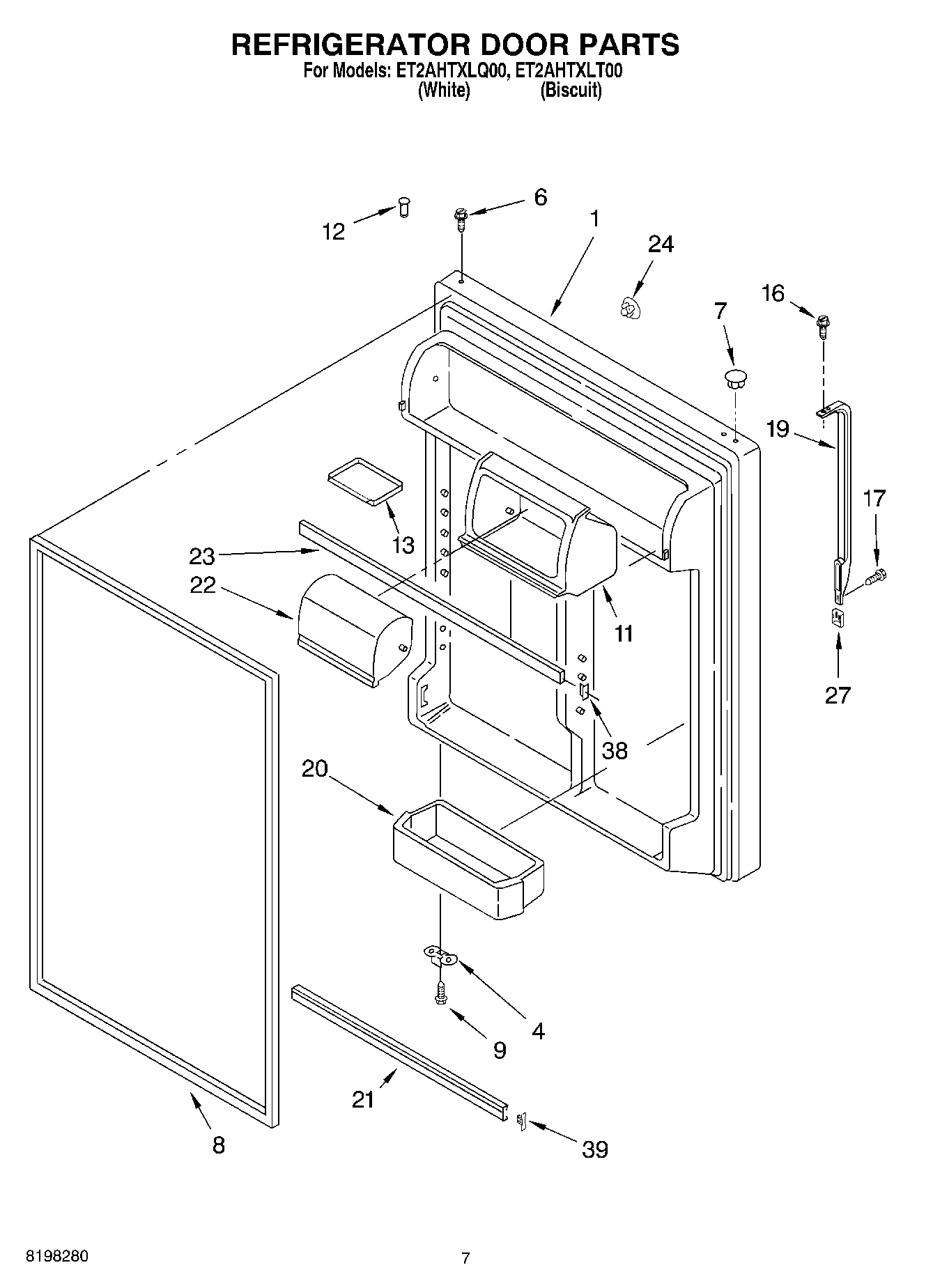

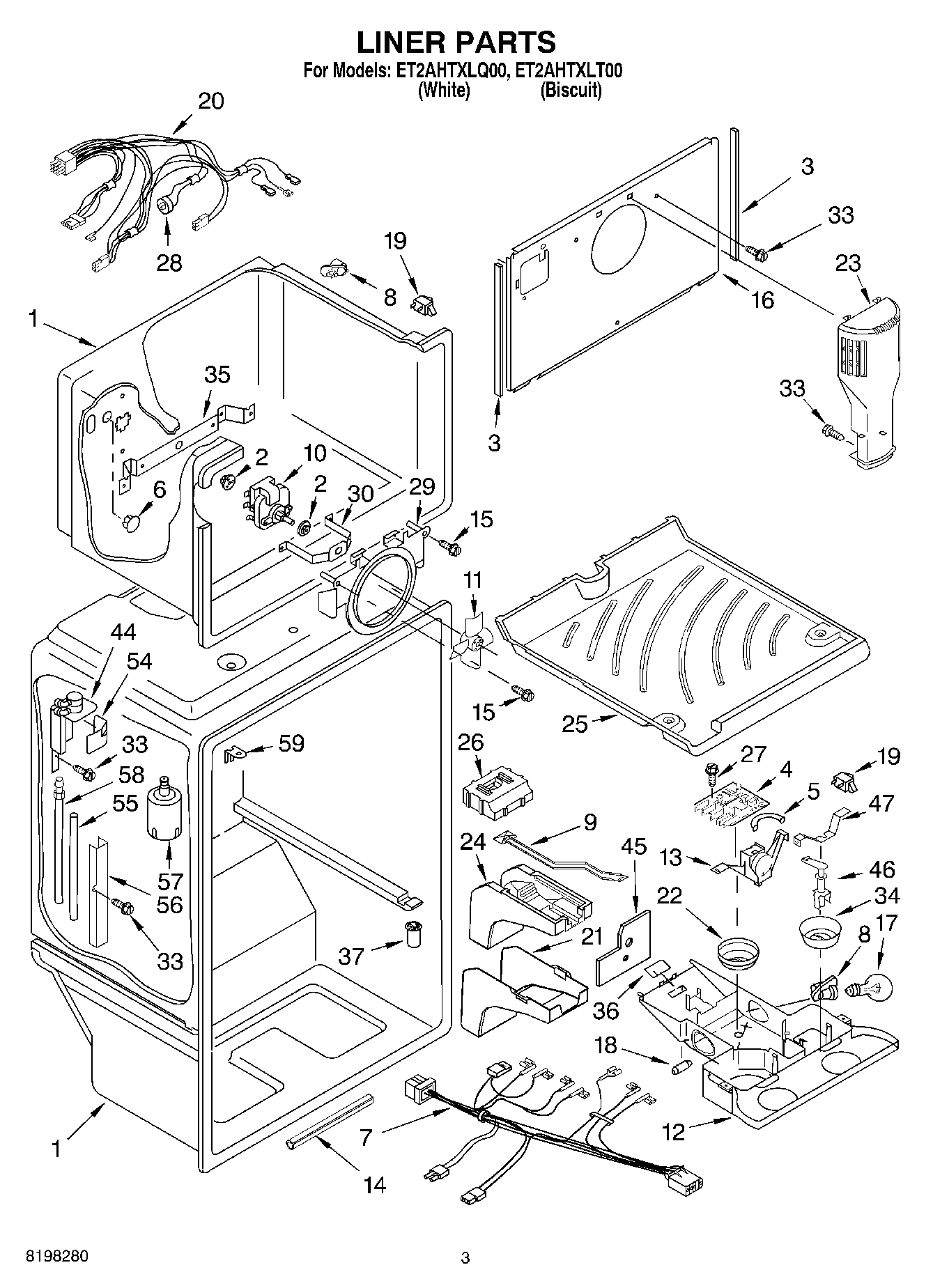

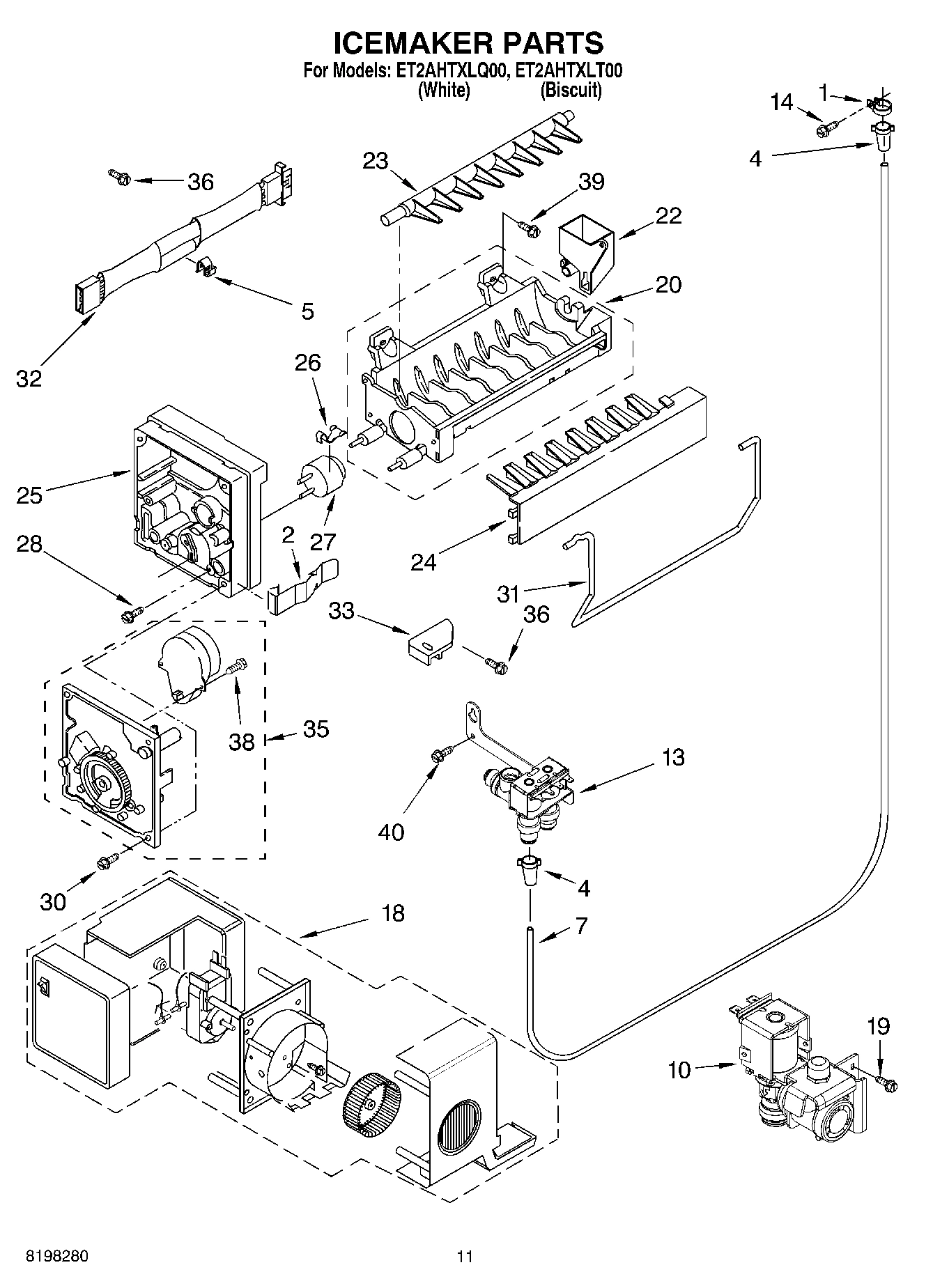

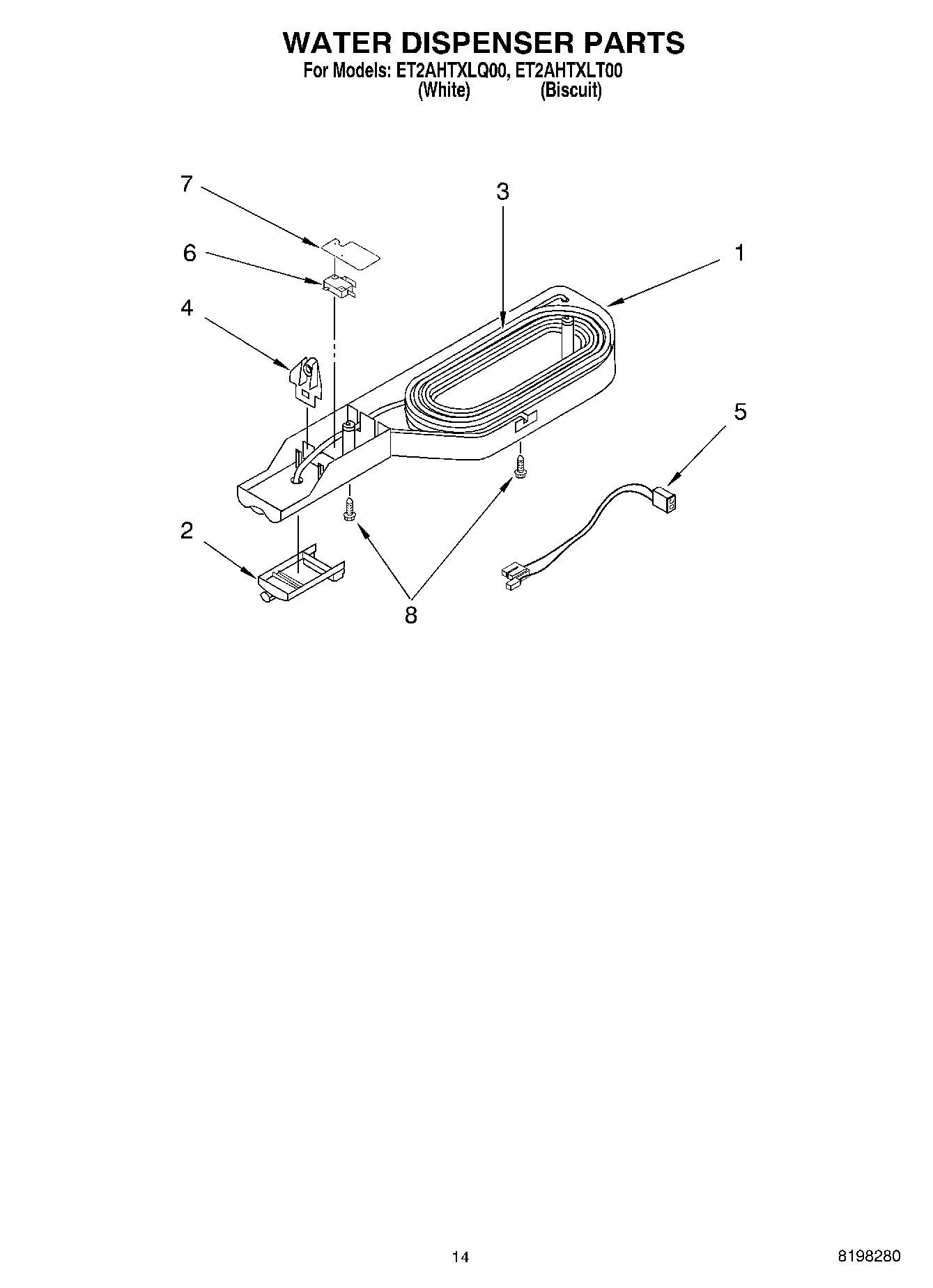

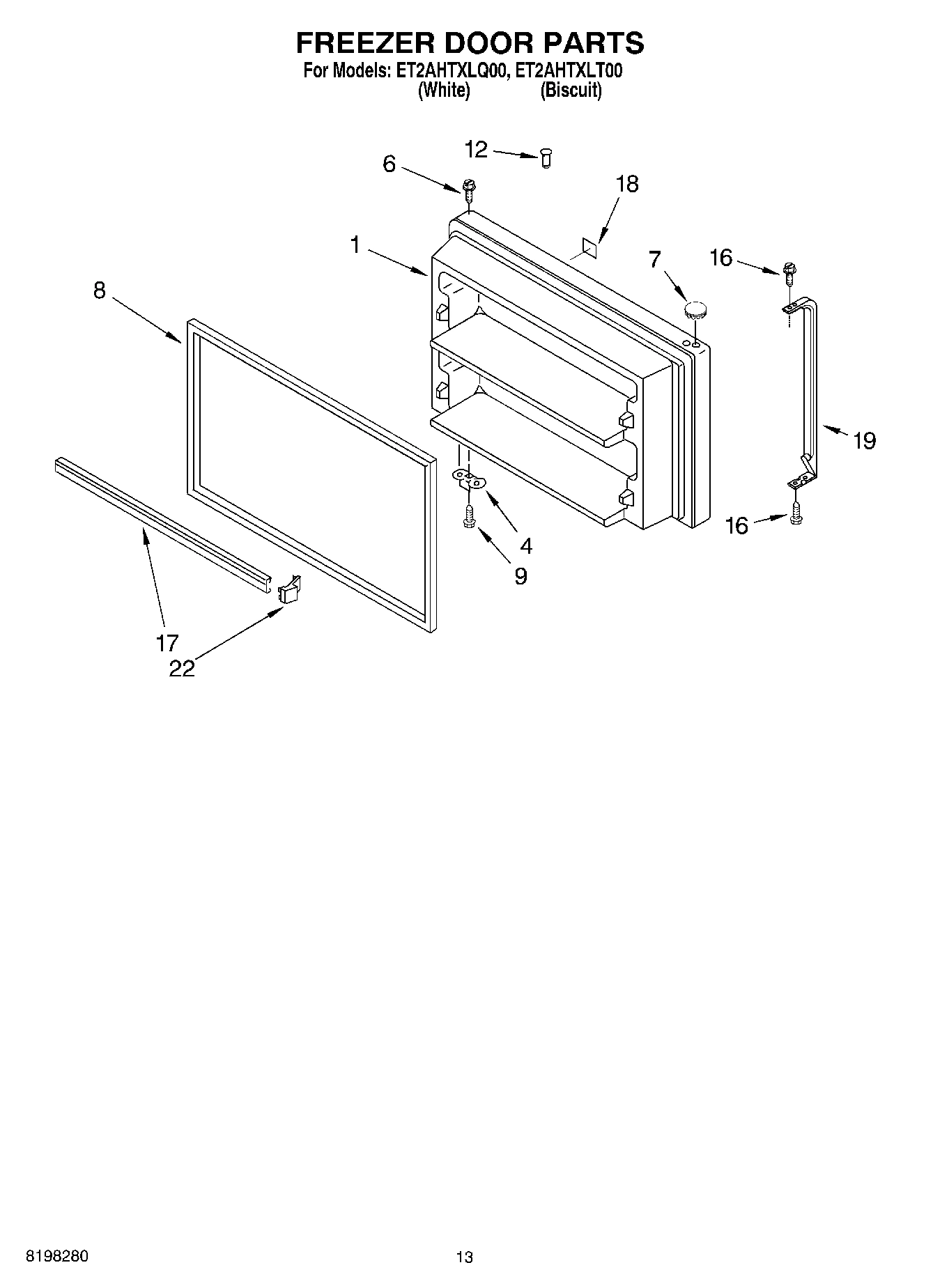

Model Whirlpool ET2AHTXLT00 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

Plate, Unit Mounting WPL 2205340 Contact Us For Availability

1

Freezer Door (Includes No.8 & No.12) (White) WPL 2183862 Contact Us For Availability

1

Freezer Door (Includes No.8& No.12) (Biscuit) WPL 2200928 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $8.47

4

WP2315530 Whirlpool Refrigerator Heater In Stock WPL WP2315530 $106.48

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Evaporator Assy. WPL 2195390 Contact Us For Availability

6

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $8.39

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

6

Trim, Shelf Front WPL 2188526 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $4.82

7

Frame Assembly, Shelf WPL 2201102E Contact Us For Availability

7

Drain Pan WPL 2172620 Contact Us For Availability

8

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $226.99

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

8

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

8

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

8

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

8

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

8

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

8

WP2188689 Whirlpool Refrigerator Shelf Trim Backorder WPL WP2188689 $77.73

8

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

8

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

8

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

8

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

8

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

8

Torx Key WPL 1117510 Contact Us For Availability

8

Bracket, Heater WPL 2176301 Contact Us For Availability

9

WP2314549 Whirlpool Refrigerator Cover In Stock WPL WP2314549 $190.46

9

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

10

Trim, Shelf Side WPL 2188517 Contact Us For Availability

10

Extension, Air Baffle WPL 2163780 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

WP2176225 Whirlpool Glass Shelf In Stock WPL WP2176225 $200.95

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

12

Frame Assembly, Meat Shelf WPL 2201106 Contact Us For Availability

13

4387913 Whirlpool Refrigerator Primary Overlo In Stock WPL 4387913 $40.99

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

13

Thermostat Assembly (Includes Items 5, 18, & WPL 2210491 Contact Us For Availability

14

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

14

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $67.10

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $90.99

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

16

2212996 Whirlpool Refrigerator Retainer Backorder WPL 2212996 $8.05

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $3.52

16

Glass, Shelf WPL 2200987 Contact Us For Availability

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $4.99

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $14.57

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

Shelf, Freezer WPL 2184667 Contact Us For Availability

18

Nameplate WPL 2175383 Contact Us For Availability

4388947 Whirlpool Refrigerator Door Handle Ki Backorder WPL 4388947 $163.78

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $134.62

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2204813 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204813 $65.99

20

WP2218132K Whirlpool Crisper Meat Pan In Stock WPL WP2218132K $120.99

20

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

21

Nut (Not Serviced) WPL ARI50471A1 Contact Us For Availability

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.71

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

DOOR COMPARTMENT WPL 2218109 Contact Us For Availability

Frame Assembly, Cantilever WPL 2201104 Contact Us For Availability

Support Block WPL 2201185 Contact Us For Availability

23

Air Tower WPL 2182340 Contact Us For Availability

23

Trim, Door Shelf WPL 2159306 Contact Us For Availability

23

Grommet WPL 531933 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

24

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

27

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $5.99

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $395.99

28

Installation Kit WPL 482801 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

29

TRIM, SHELF FRONT WPL 2188691 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $57.65

31

Glass, Shelf WPL 2174693 Contact Us For Availability

32

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

32

Slide, Crisper WPL 2176222 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

36

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.99

36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

39

Air Baffle WPL 2198921 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $11.82

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $165.99

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

42

Wire Assembly Unit WPL 2187385 Contact Us For Availability

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $55.91

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

44

Trim, Meat Pan WPL 2176357 Contact Us For Availability

45

Tube, Transition WPL 2212603 Contact Us For Availability

46

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $14.97

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $49.60

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Evaporator Tray WPL 2210451 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
