Model Whirlpool ET20PMXDW01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

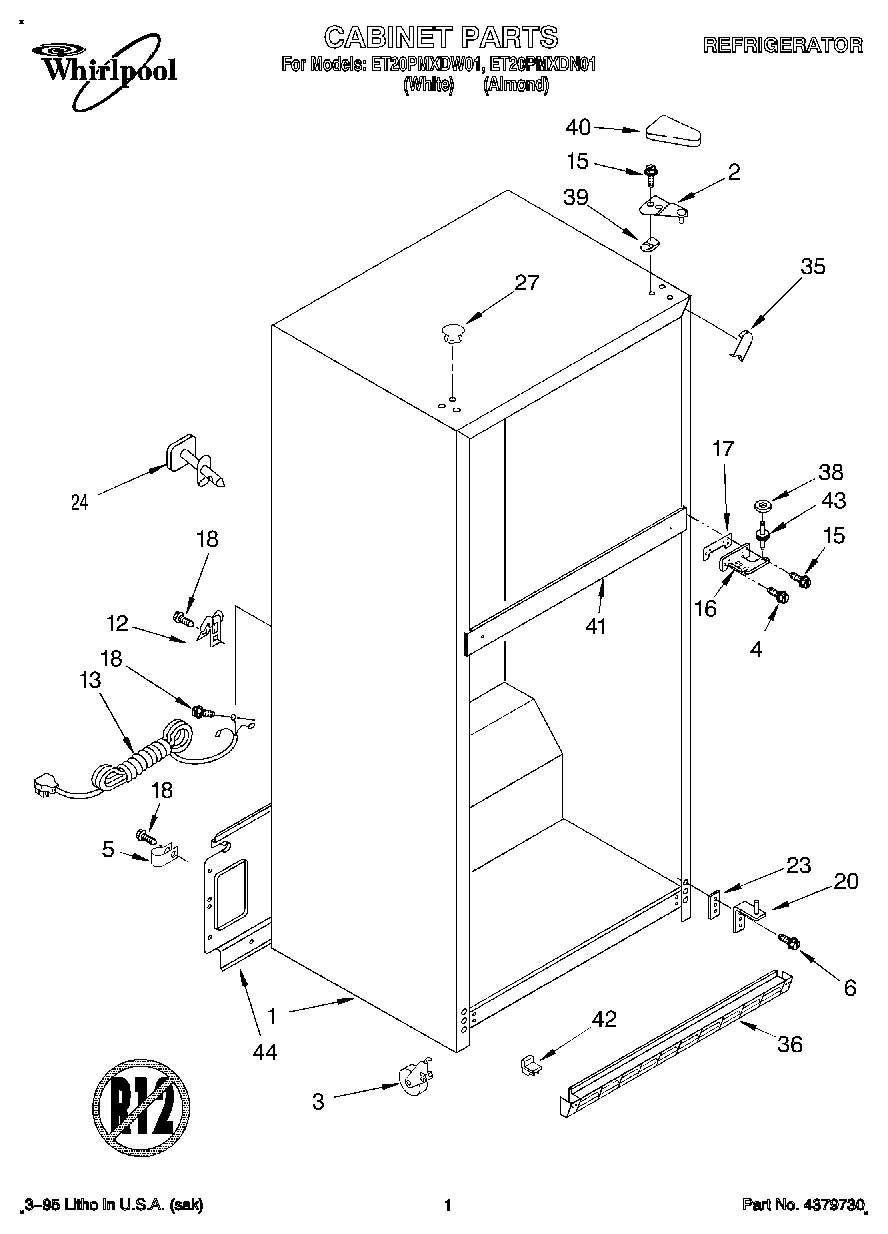

01 - CABINET

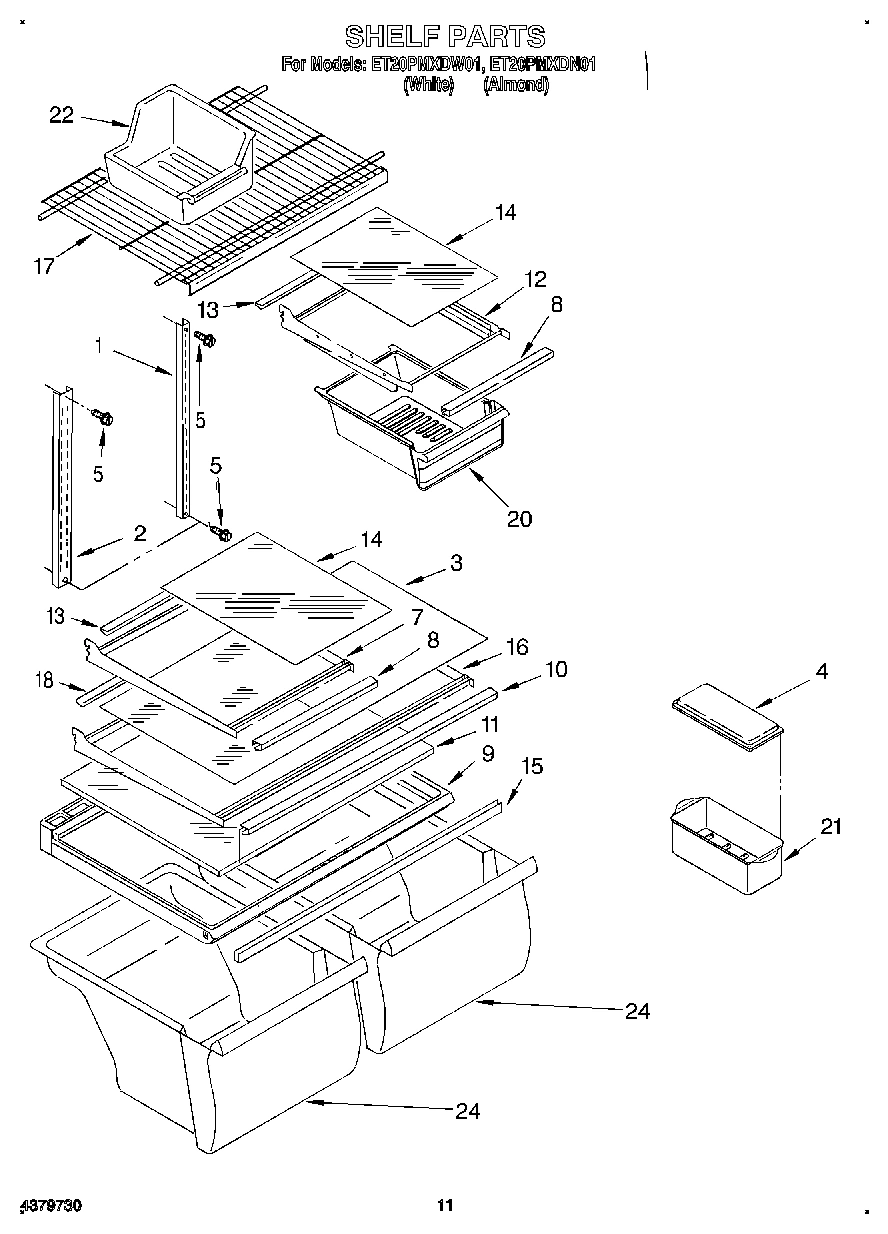

06 - SHELF, LIT/OPTIONAL

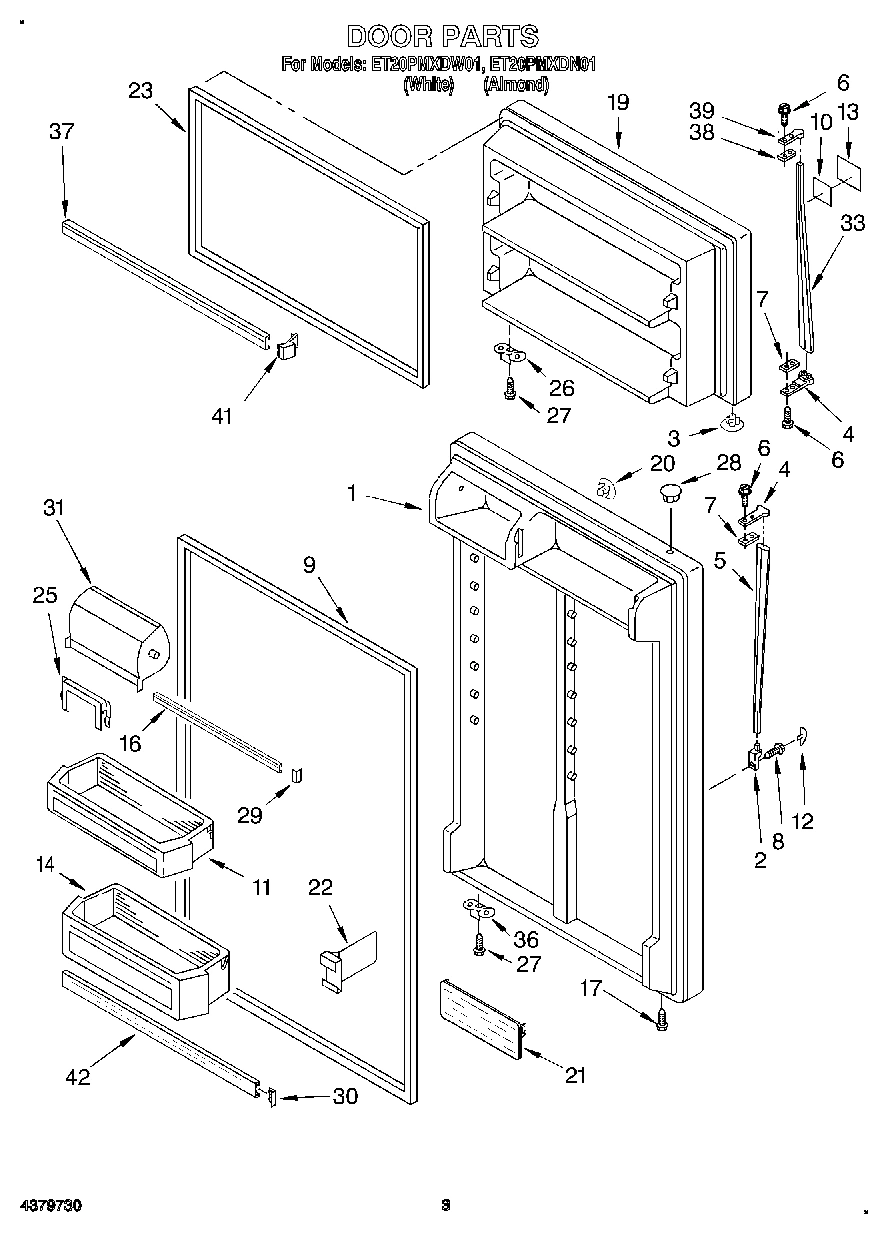

02 - DOOR

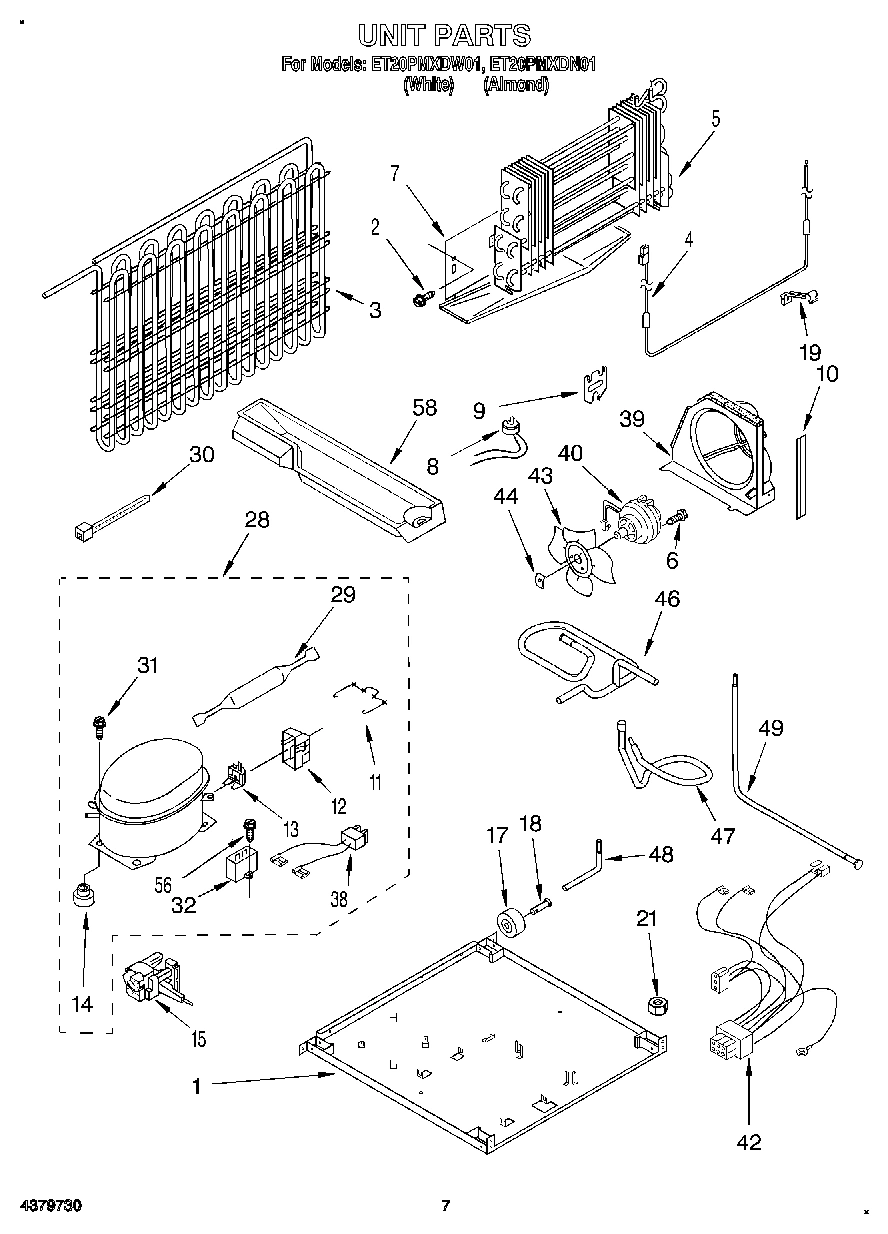

04 - UNIT

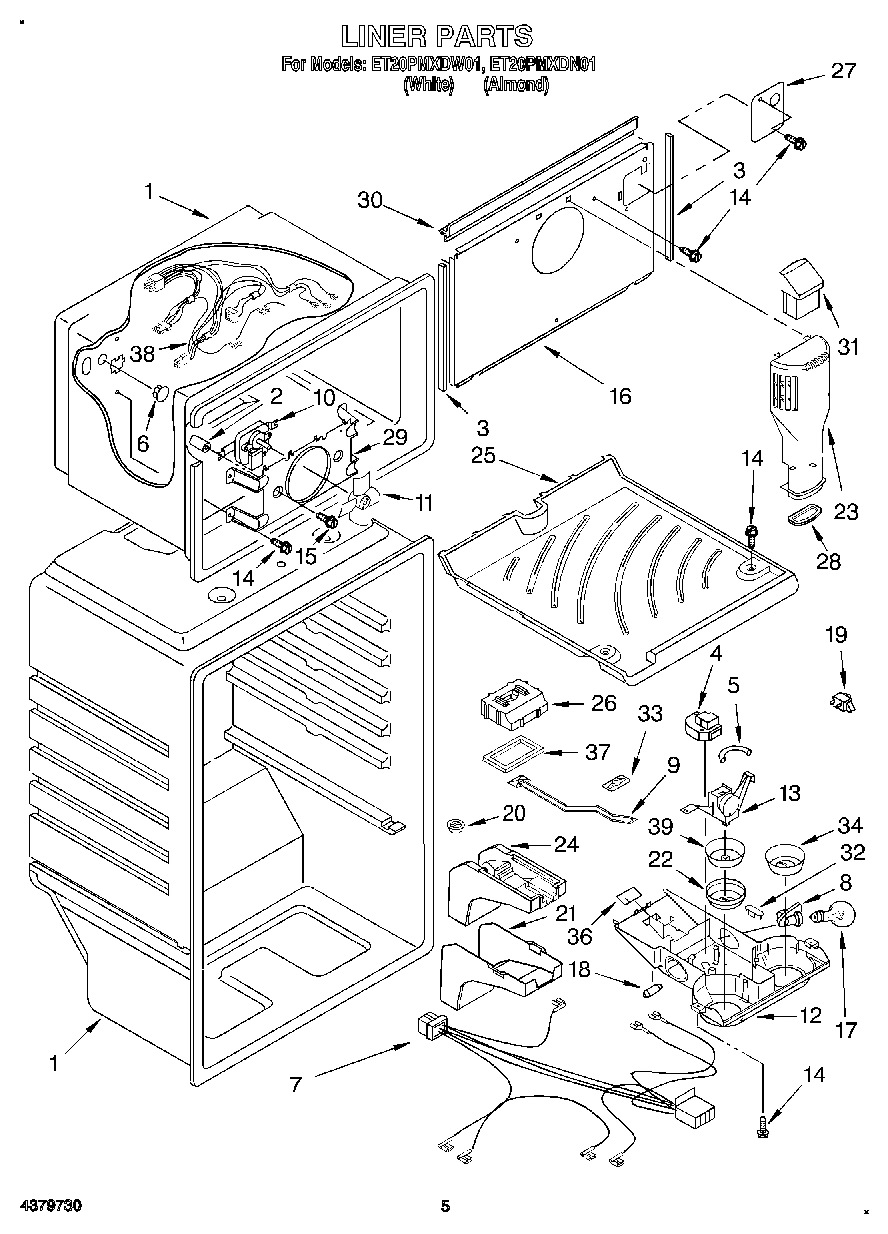

03 - LINER

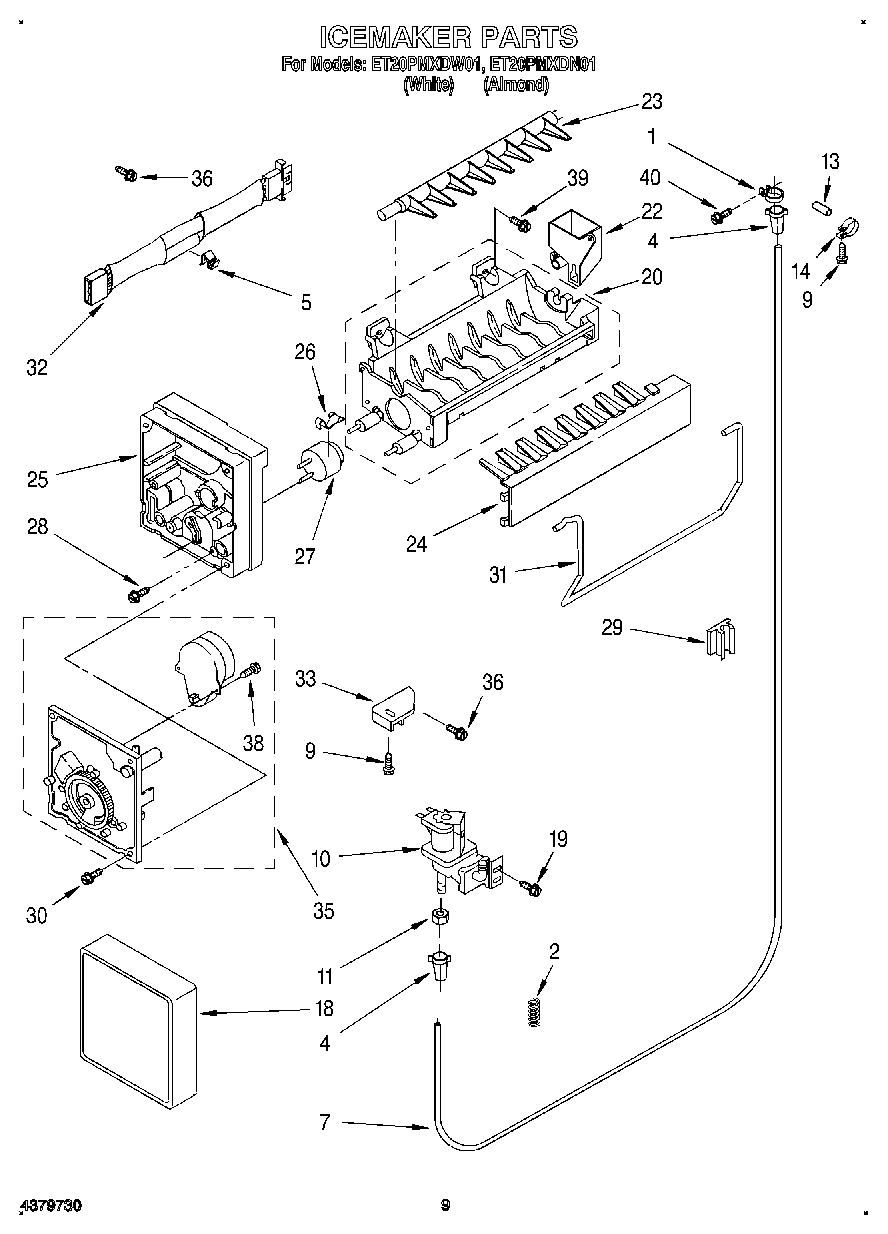

05 - ICEMAKER
Common parts from model Whirlpool ET20PMXDW01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) (Almond) WPL 2159280 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174624 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI49249A6 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Spring WPL 2174719 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
4
Timer, Defrost WPL 2176340 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Damper, Air WPL 2176268 Contact Us For Availability
10
Tape WPL 991259 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Door Bin, Narrow WPL 2170616 Contact Us For Availability
11
Clamp (Production Only) WPL 2169464 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Control Box WPL 2174672 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Nameplate (White Model) WPL 2162781 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2162782 Contact Us For Availability
13
Overload (Production) WPL 2169407 Contact Us For Availability
14
Door Bin, Wide WPL 2170615 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2163819 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Freezer Door (Includes Item 23) (White) WPL 2159273 Contact Us For Availability
19
Freezer Door (Includes Item 23) (Almond) WPL 2159274 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI49250A4 Contact Us For Availability
22
Divider-Door Bin WPL 2152335 Contact Us For Availability
22
Knob, Thermostat WPL 2174668 Contact Us For Availability
23
Air Tower WPL 2172575 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
24
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
24
Door Reversal Instructions WPL 2176379 Contact Us For Availability
24
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
24
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
24
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
24
WPL 978883 WPL 978883 Contact Us For Availability
25
Retainer, Bottle WPL 2163566 Contact Us For Availability
25
Freezer Floor WPL 2172680 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
26
Air Diffuser, Top WPL 2172563 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Gasket, Air Tower WPL 2179839 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Plug-Trim WPL 2159300 Contact Us For Availability
31
Screw WPL 489433 Contact Us For Availability
32
Hole Plug WPL 2174667 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2174669 Contact Us For Availability
36
Bracket, Door Stop WPL 2159368 Contact Us For Availability
37
Trim-Door (2) WPL 2171153 Contact Us For Availability
37
Gasket, Air Diffuser WPL 2172594 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
38
Wire Harness, Freezer WPL 2174610 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
42
Trim, Door WPL 2171148 Contact Us For Availability
42
Wire Assy. Unit WPL 2163879 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
46
Tube, Discharge WPL 2179776 Contact Us For Availability
47
Tube, Suction WPL 2179779 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
