Model Whirlpool ET14JKXAW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
03 - LINER, LIT/OPTIONAL
01 - DOOR

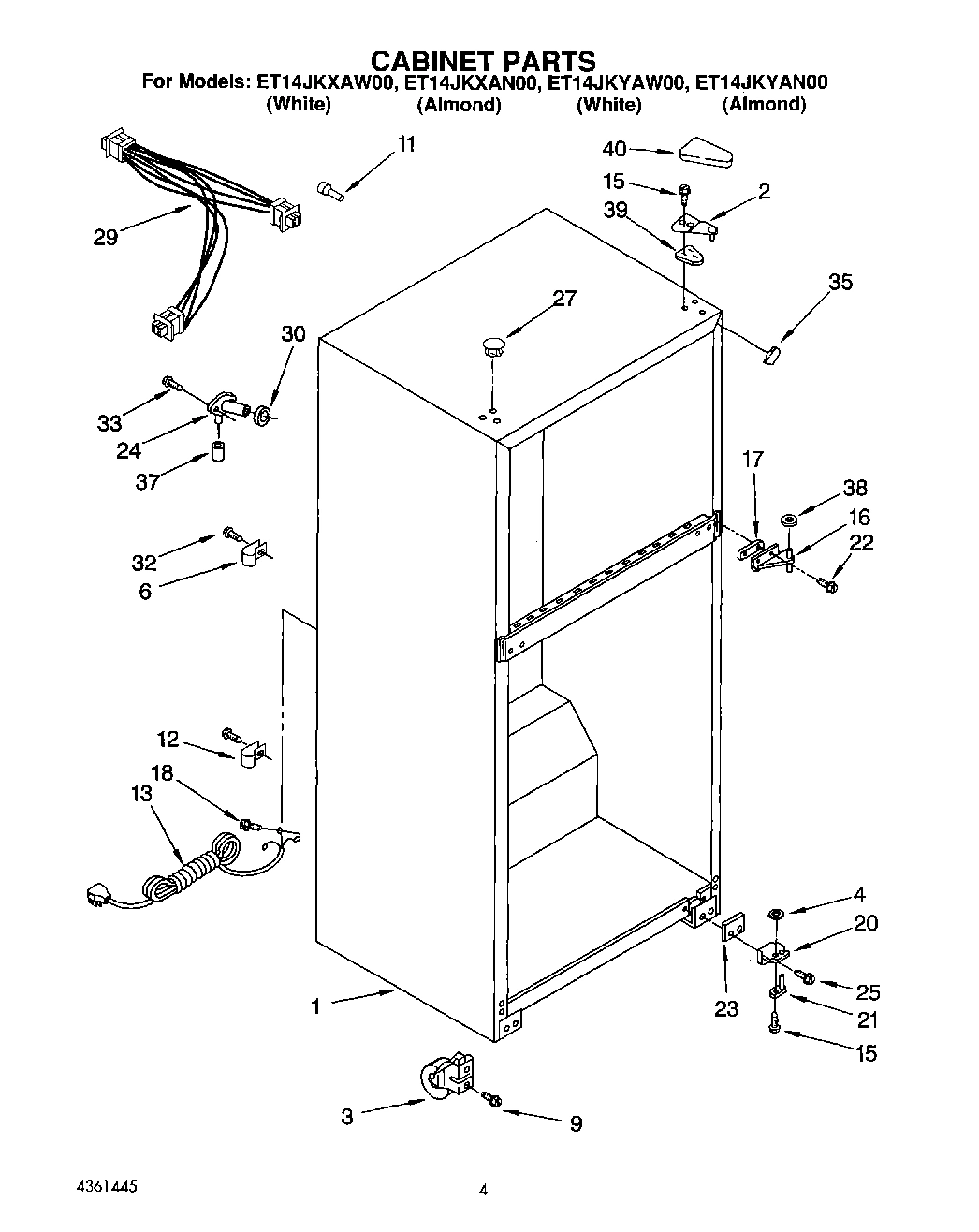

02 - CABINET

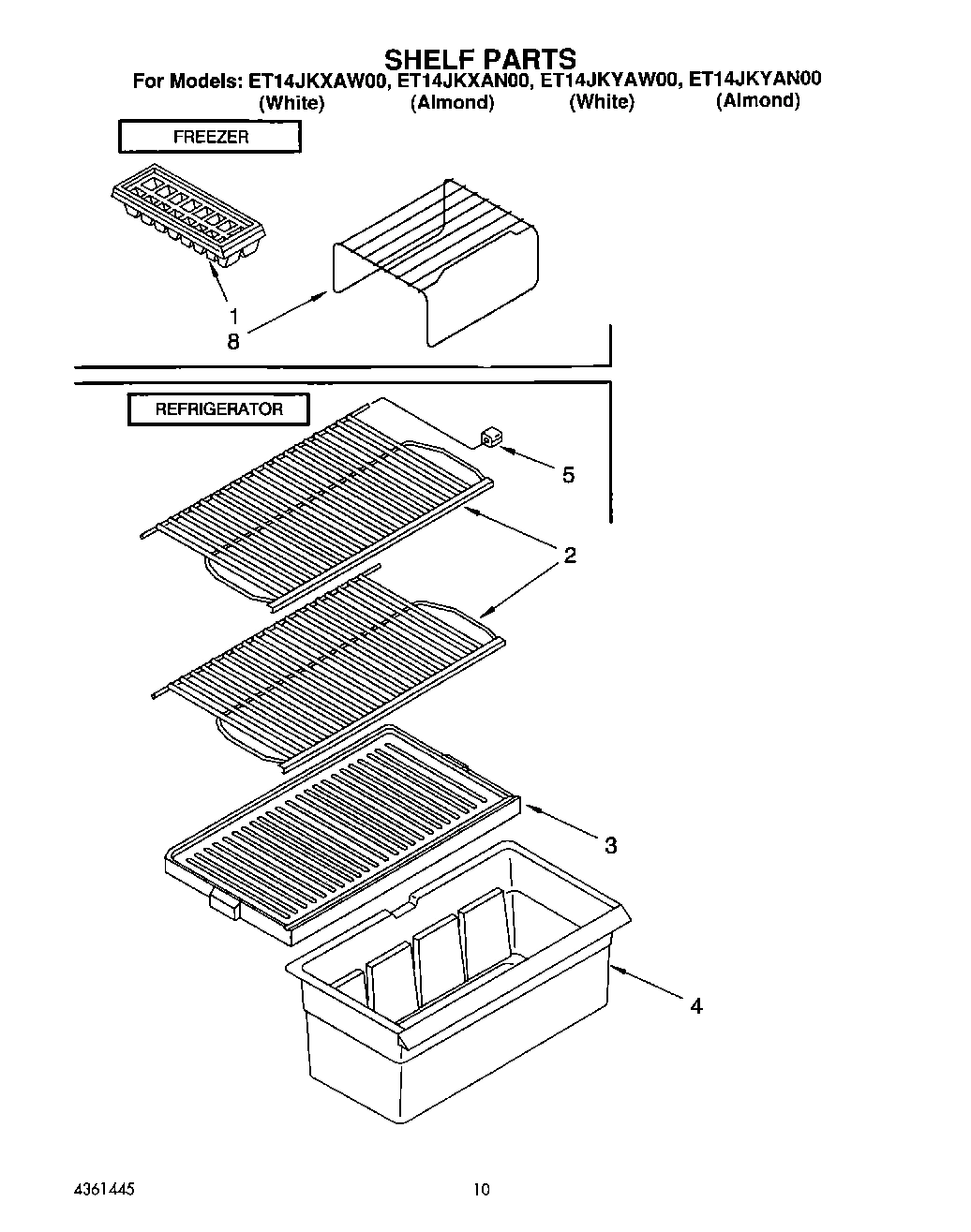

05 - SHELF

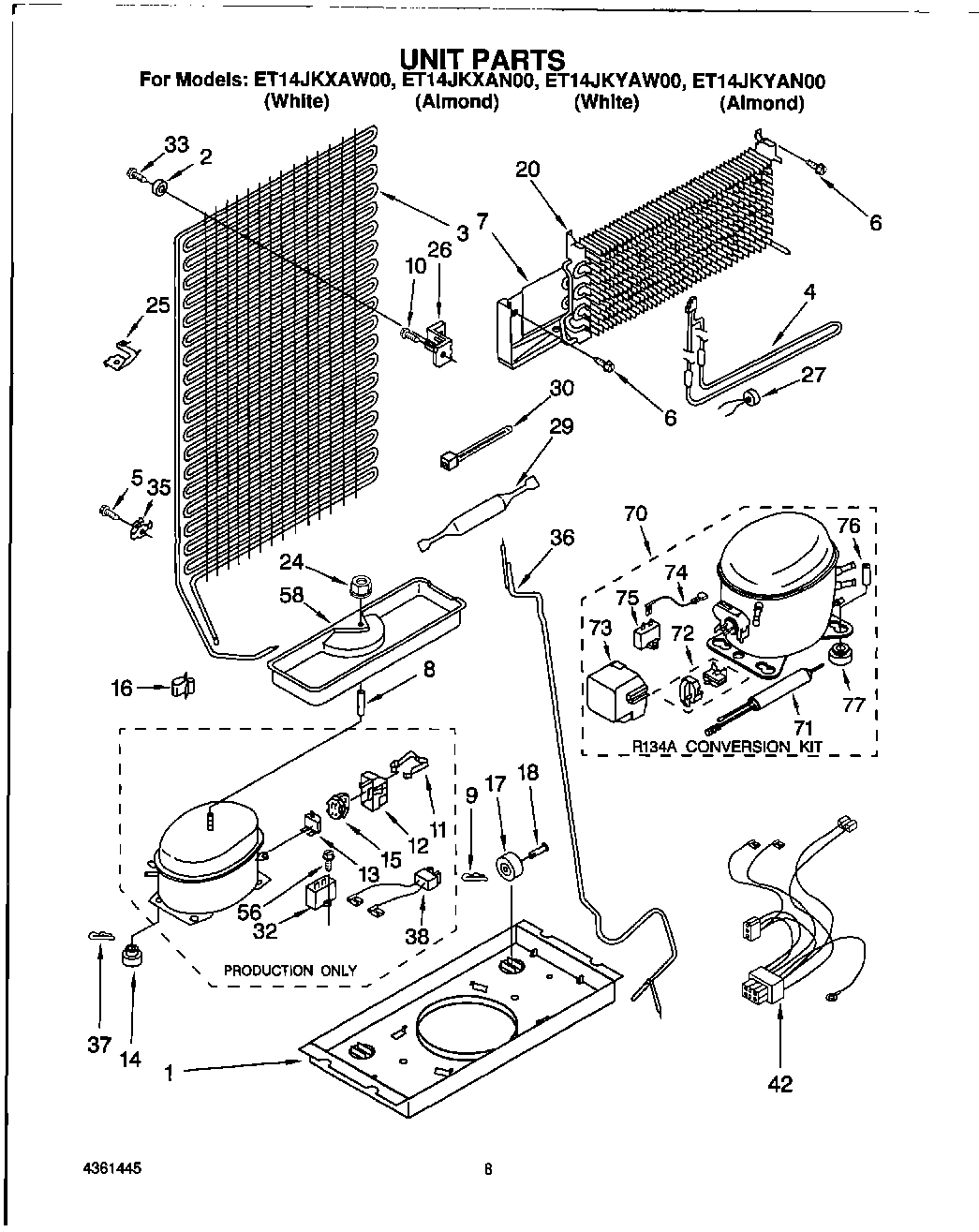

04 - UNIT
Common parts from model Whirlpool ET14JKXAW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI41941A4 Contact Us For Availability
2
Bumper (2) WPL 944772 Contact Us For Availability
3
Roller-Front WPL 9790461 Contact Us For Availability
3
Condenser WPL 9790413 Contact Us For Availability
4
Pan, Crisper WPL 9790377 Contact Us For Availability
4
Washer WPL 489202 Contact Us For Availability
5
Thimble WPL 9791835 Contact Us For Availability
7
Shim WPL 943187 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Heat Shield WPL 9791383 Contact Us For Availability
8
Spacer WPL 1105130 Contact Us For Availability
9
Screw (2) WPL 9791768 Contact Us For Availability
9
Clip-Pin WPL 20150912 Contact Us For Availability
11
Tube, Water Inlet WPL 836490 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
13
Thermostat WPL 9790409 Contact Us For Availability
13
Nameplate WPL 2152334 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Overload (Service Compr.) WPL 1108114 Contact Us For Availability
13
Overload (Production Compr.) WPL 2154758 Contact Us For Availability
15
Interior Door Panel (Refrigerator) WPL 9790360 Contact Us For Availability
15
Screw WPL 489327 Contact Us For Availability
17
Shim, Hinge Center WPL 9791480 Contact Us For Availability
18
Pin-Roller WPL 20150911 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Whit WPL 9790364 Contact Us For Availability
19
Freezer Door Panel (Also Order Item 11) (Almo WPL 9791627 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Hinge-Pin Bott. WPL 9791682 Contact Us For Availability
21
Retainer, Gasket WPL 1122551 Contact Us For Availability
22
Screw WPL 488714 Contact Us For Availability
23
Shim, Bottom Hinge WPL 9791716 Contact Us For Availability
24
Interior Door Panel (Freezer) WPL 9790358 Contact Us For Availability
25
Trim, Door Shelf WPL 9791741 Contact Us For Availability
26
Stop-Door WPL 1115910 Contact Us For Availability
26
Bracket, Condenser WPL 944791 Contact Us For Availability
27
Hole Plug (3) (Almond) WPL 2151653 Contact Us For Availability
28
KIT, FOAM SLAB (30`` X 32 1/2` WPL 876029 Contact Us For Availability
28
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
28
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 9790418 Contact Us For Availability
30
Clamp WPL 851095 Contact Us For Availability
31
Compartment Door WPL 9790560 Contact Us For Availability
33
Handle, F.C. (Almond Model) WPL 2148069 Contact Us For Availability
34
Retainer, Gasket WPL 1122553 Contact Us For Availability
35
Retainer, Gasket WPL 1120614 Contact Us For Availability
35
Corner Filler (Almond) WPL 2166004 Contact Us For Availability
35
Clip, Tube WPL 1105406 Contact Us For Availability
36
Stop, Door WPL 944035 Contact Us For Availability
36
Heat Exchanger WPL 9791825 Contact Us For Availability
37
Clip, Compressor WPL 24364001 Contact Us For Availability
39
Shim WPL 2157272 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
42
Wire Assy. Unit WPL 9790416 Contact Us For Availability
58
Evaporator Tray WPL 1101002 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388008 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
Start Kit WPL 482278 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
