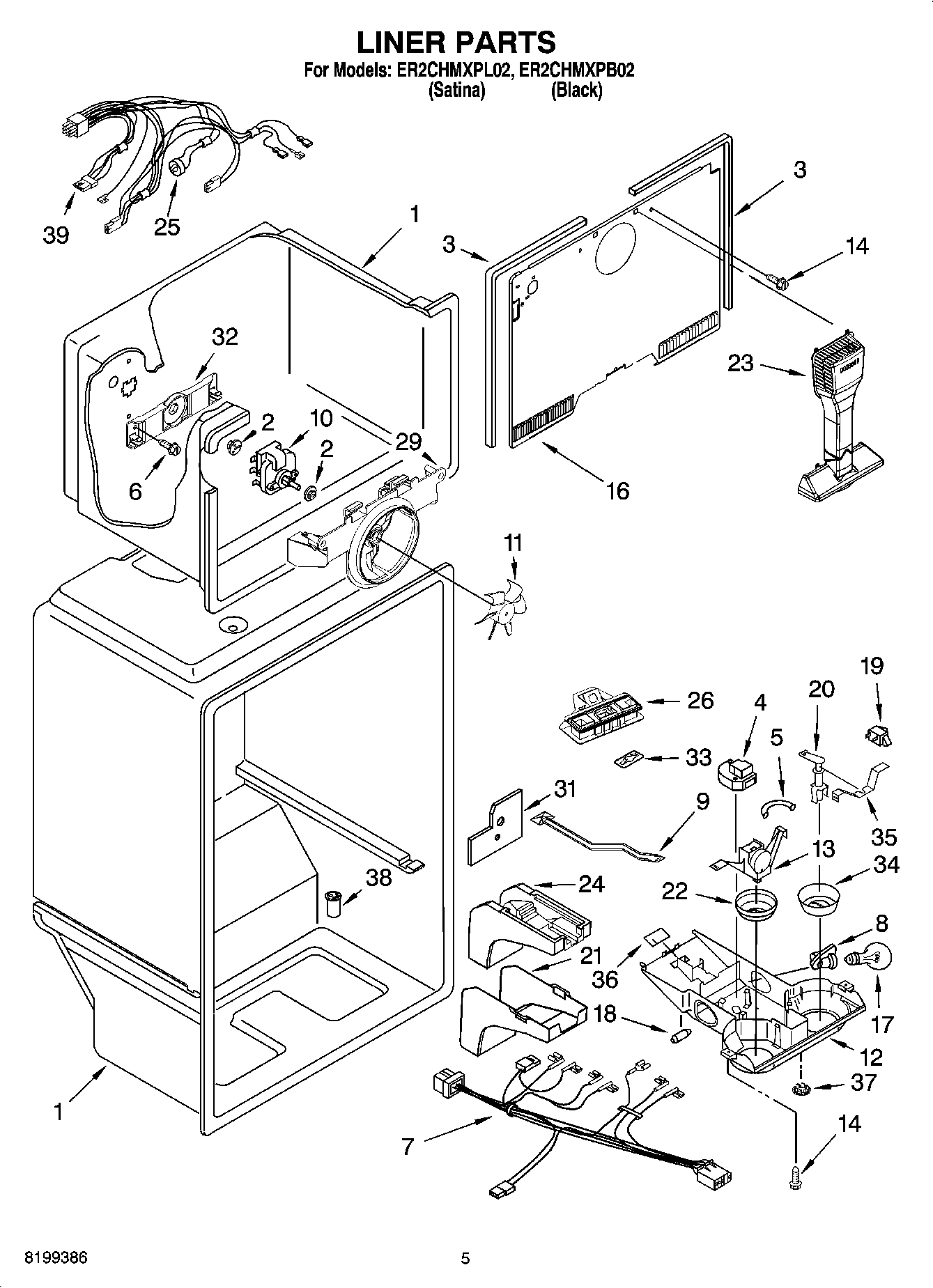

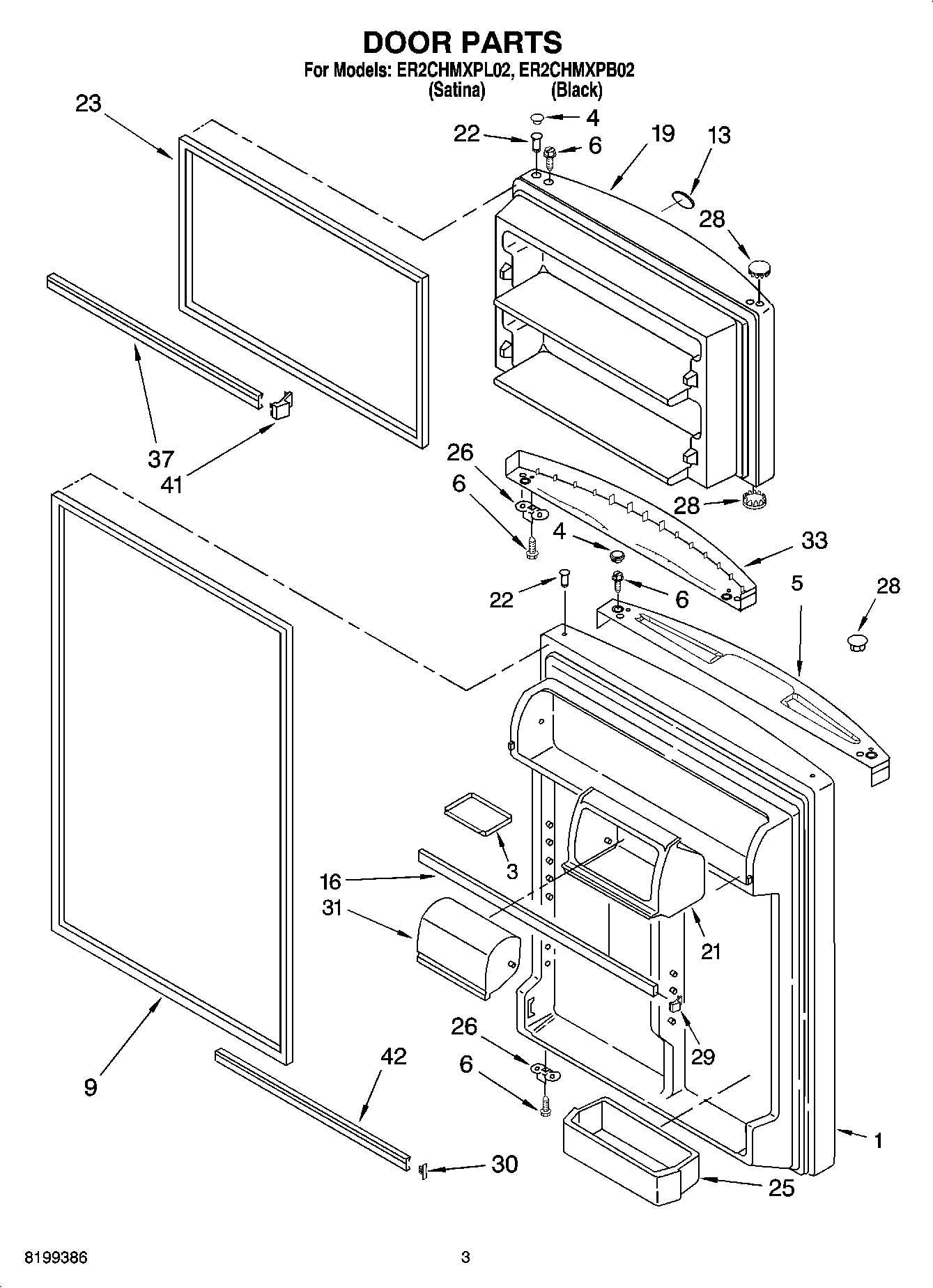

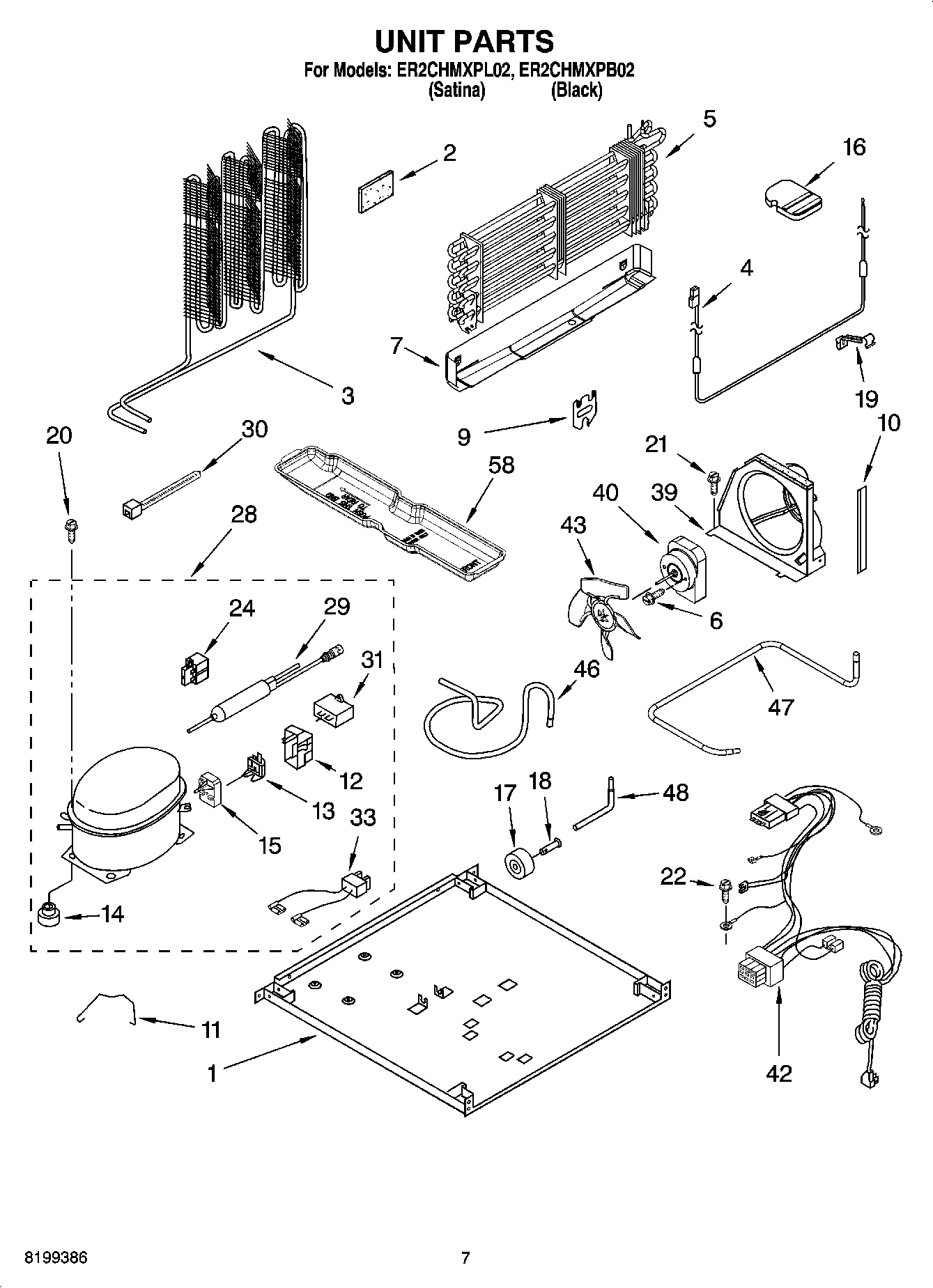

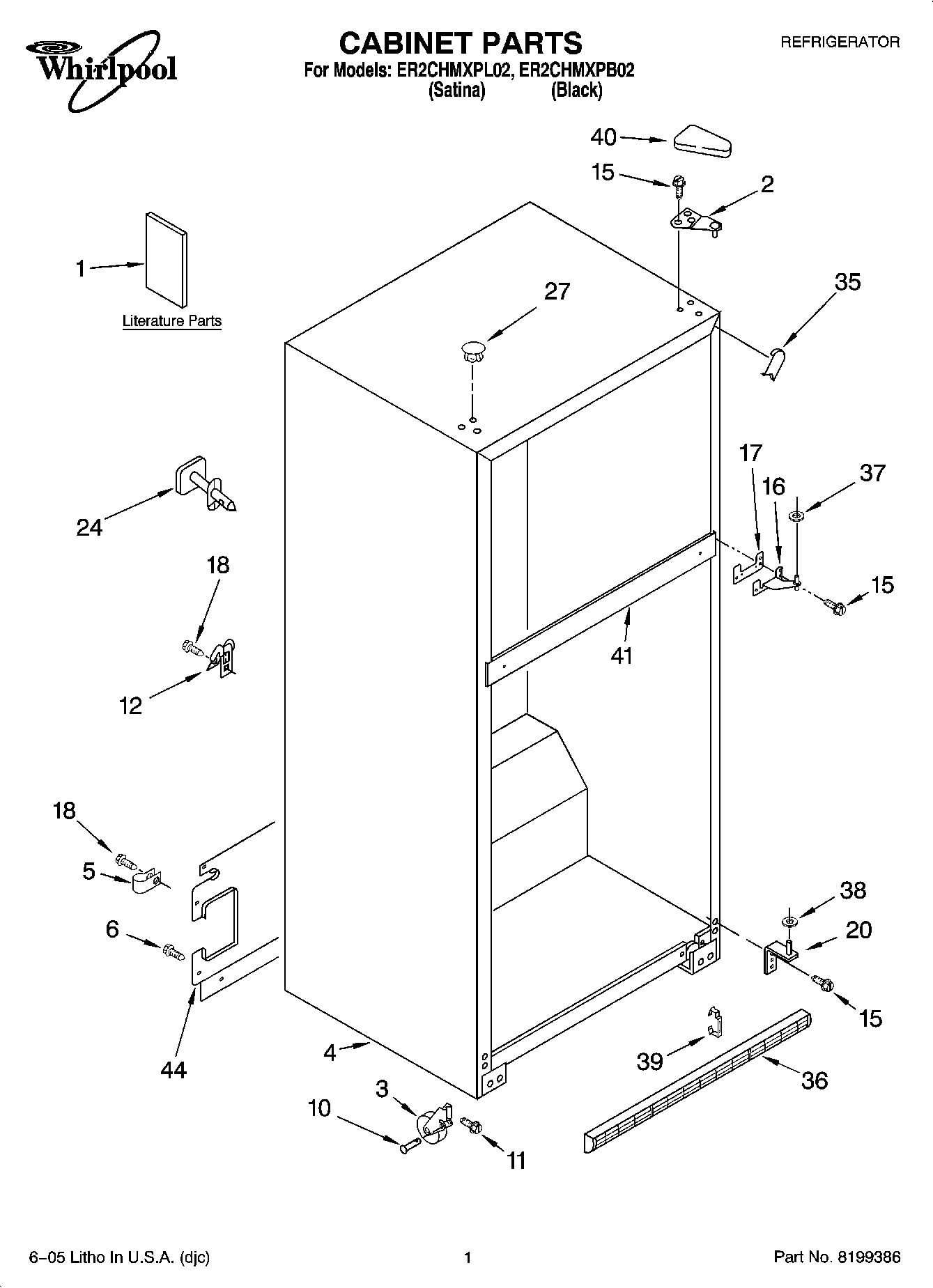

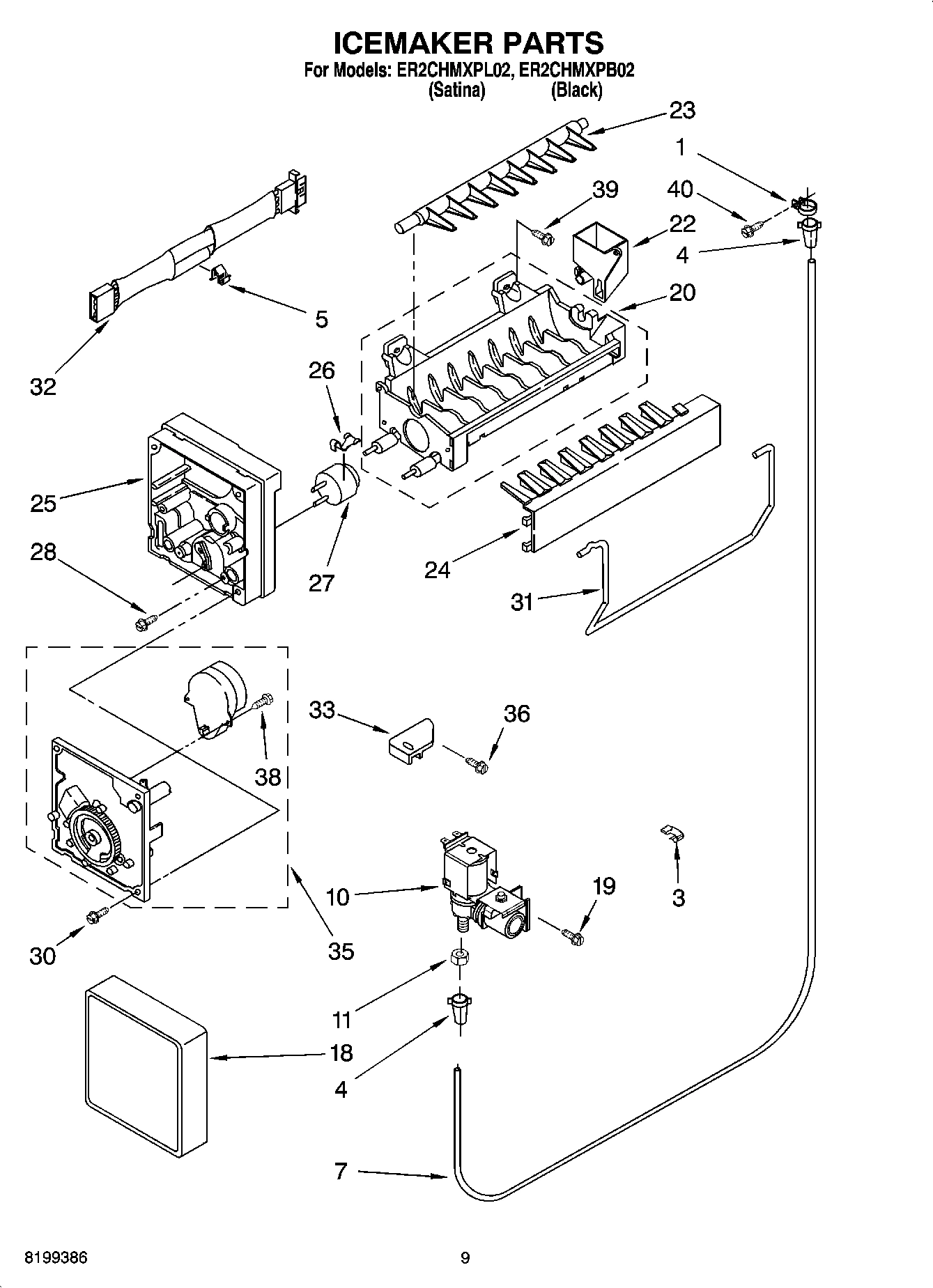

Model Whirlpool ER2CHMXPB02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

KIT WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

1

Refrigerator Door (Includes Illus. 9 & 22) (B WPL 2204867 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 9 & 22) (S WPL 2218505 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

3

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $59.69

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $16.47

3

Condenser WPL 2214960 Contact Us For Availability

3

Tray, Door WPL 2195388 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

4

WP2314156 Whirlpool Refrigerator Defrost Time In Stock WPL WP2314156 $199.75

4

Hole Plug, Endcap WPL 2204840 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Endcap, Handle WPL 2221644 Contact Us For Availability

6

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

6

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

7

Slide, Humidity Control WPL 2176222 Contact Us For Availability

7

Drain Pan WPL 2254295 Contact Us For Availability

8

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.99

9

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $253.50

10

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

10

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $51.99

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

WP2176225 Whirlpool Glass Shelf In Stock WPL WP2176225 $200.95

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

12

Pan, Shelf Cantilever WPL 2201106 Contact Us For Availability

13

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $57.77

13

Thermostat Assy. (Includes Illus. 5 & 18) WPL 2200859 Contact Us For Availability

15

WP2225785 Whirlpool Refrigerator Start Device In Stock WPL WP2225785 $119.79

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

16

Support Block WPL 2201185 Contact Us For Availability

16

Trim, Door Shelf WPL 2159306 Contact Us For Availability

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Clip, Heater WPL 2182338 Contact Us For Availability

Freezer Door (Black) WPL 2204856 Contact Us For Availability

Freezer Door (Includes Illus. 22 & 23) WPL 2218508 Contact Us For Availability

20

WP2218132K Whirlpool Crisper Meat Pan In Stock WPL WP2218132K $120.99

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $5.99

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Housing Compartment WPL 2210566 Contact Us For Availability

22

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

23

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $222.99

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $71.14

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $134.62

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

Relay (Service Only) WPL 2183454 Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

25

WP2204813 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204813 $65.99

26

W11745278 Whirlpool Bracket In Stock WPL W11745278 $8.47

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $395.99

28

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

29

Plug-Trim WPL 2177340 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $57.65

31

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

31

DOOR COMPARTMENT WPL 2218109 Contact Us For Availability

32

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $51.32

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $88.98

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

33

Endcap, Handle WPL 2225108 Contact Us For Availability

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

36

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

37

TRIM, DOOR (2) WPL 2195947 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

39

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

39

Air Baffle WPL 2302249 Contact Us For Availability

40

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

40

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

41

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.71

42

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $209.77

42

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $46.99

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $13.99

46

Tube, Discharge WPL 2225564 Contact Us For Availability

47

Tube, Suction WPL 2225565 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $49.60

8201826 Whirlpool Refrigerator Evaporator Tra Backorder WPL 8201826 $100.75

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI39823A8 Contact Us For Availability

REFRIGERANT CHARGE 4.00 Ozs. (R134A) WPL ARI39824A6 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
