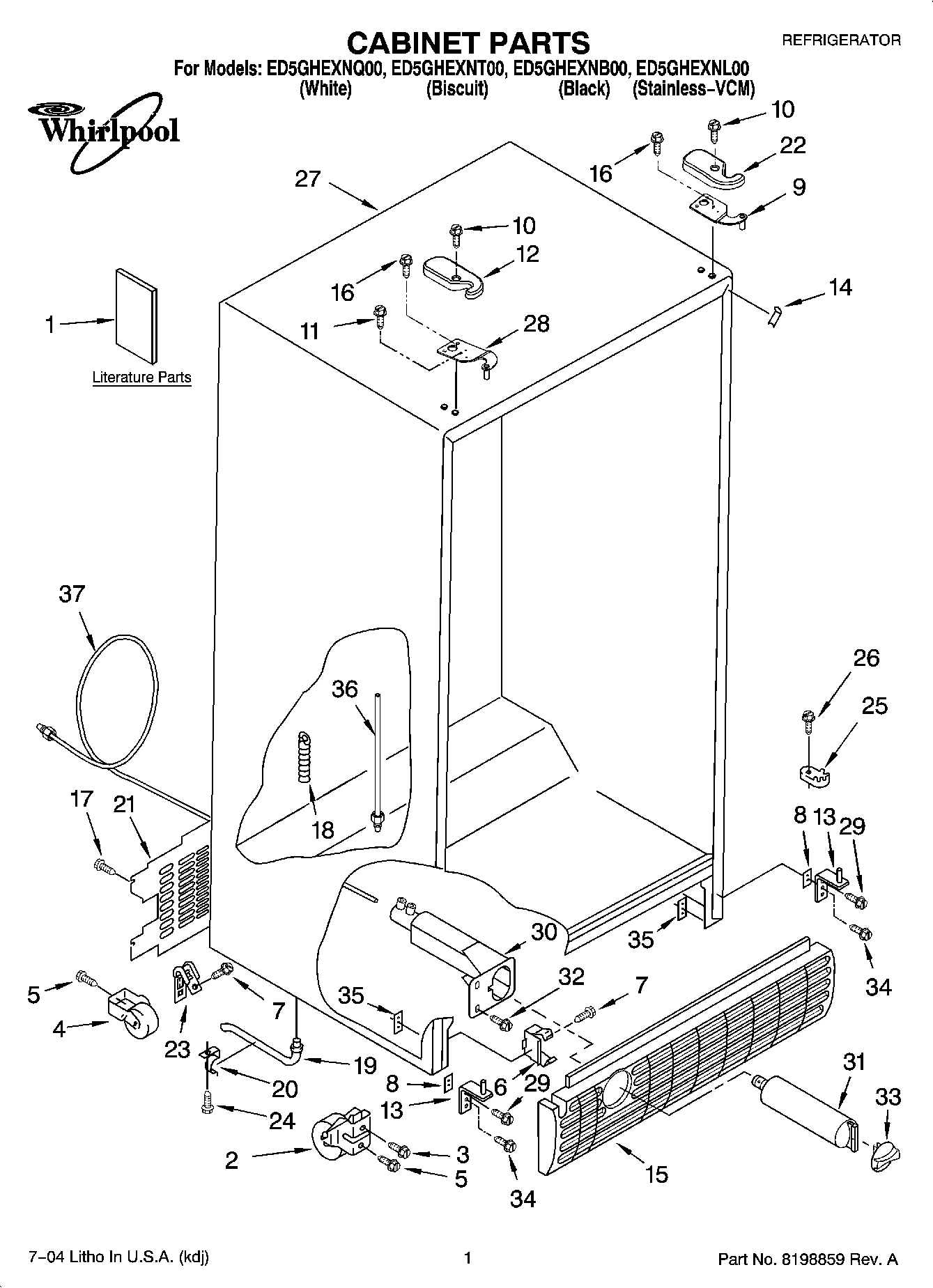

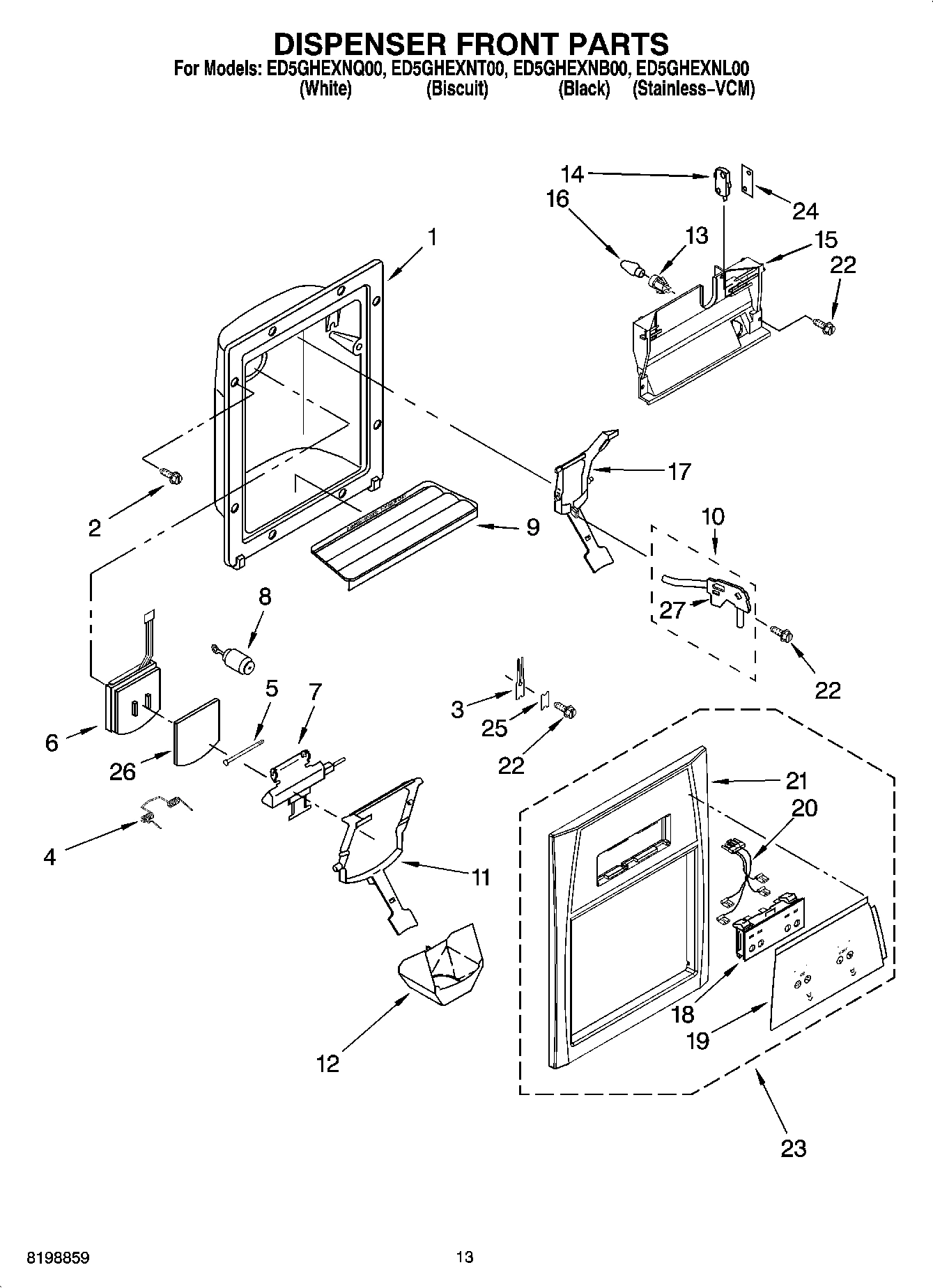

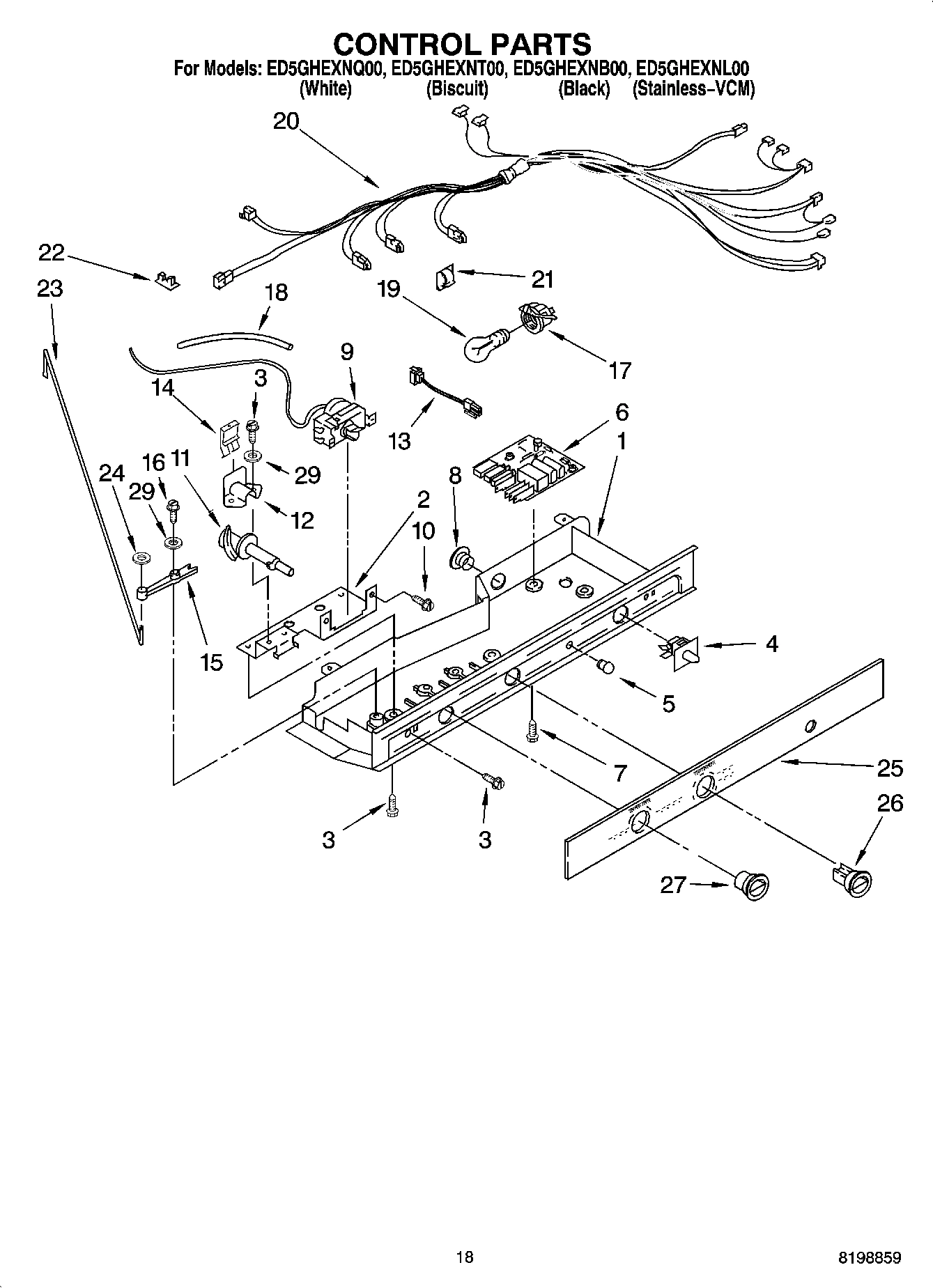

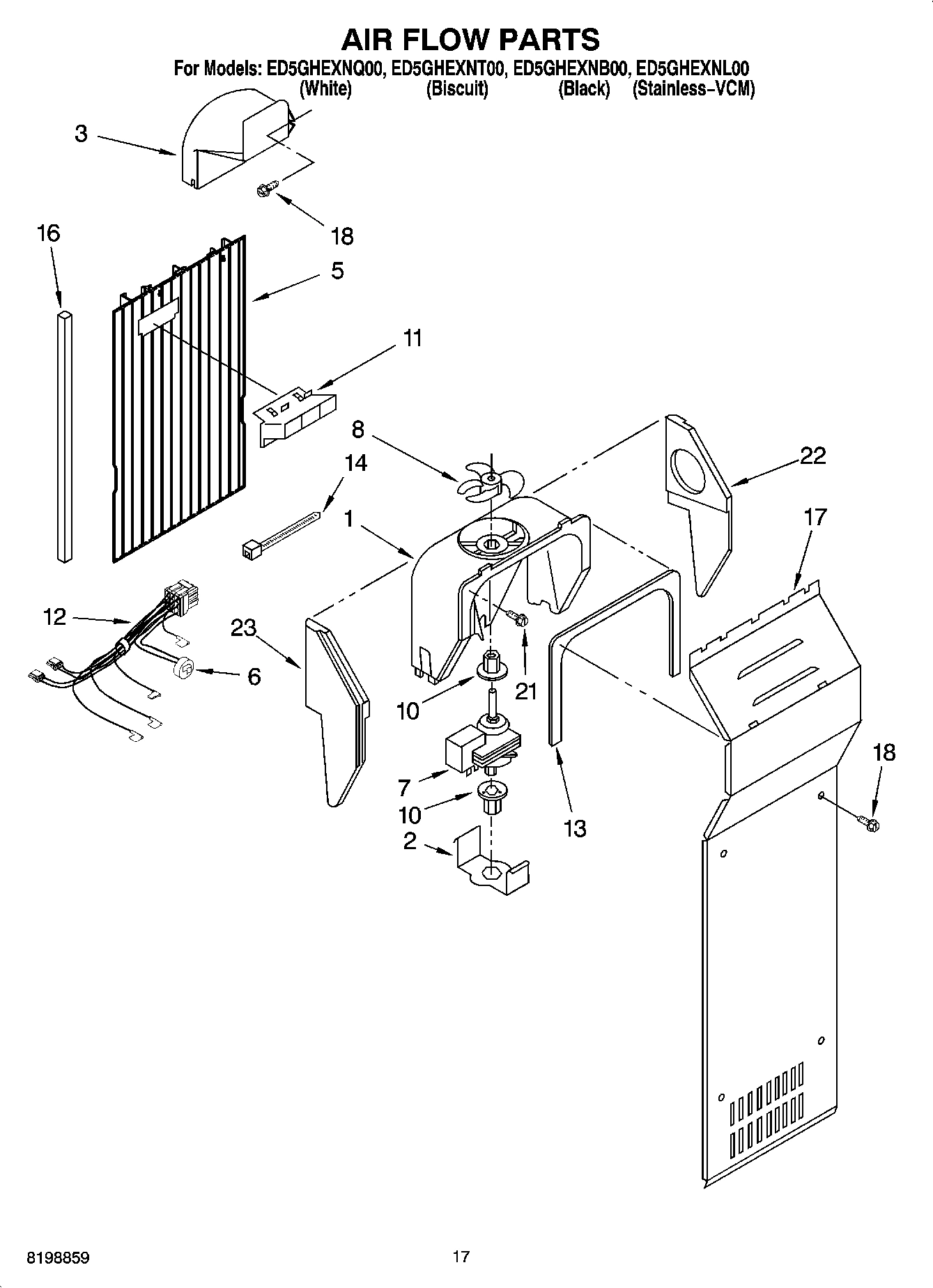

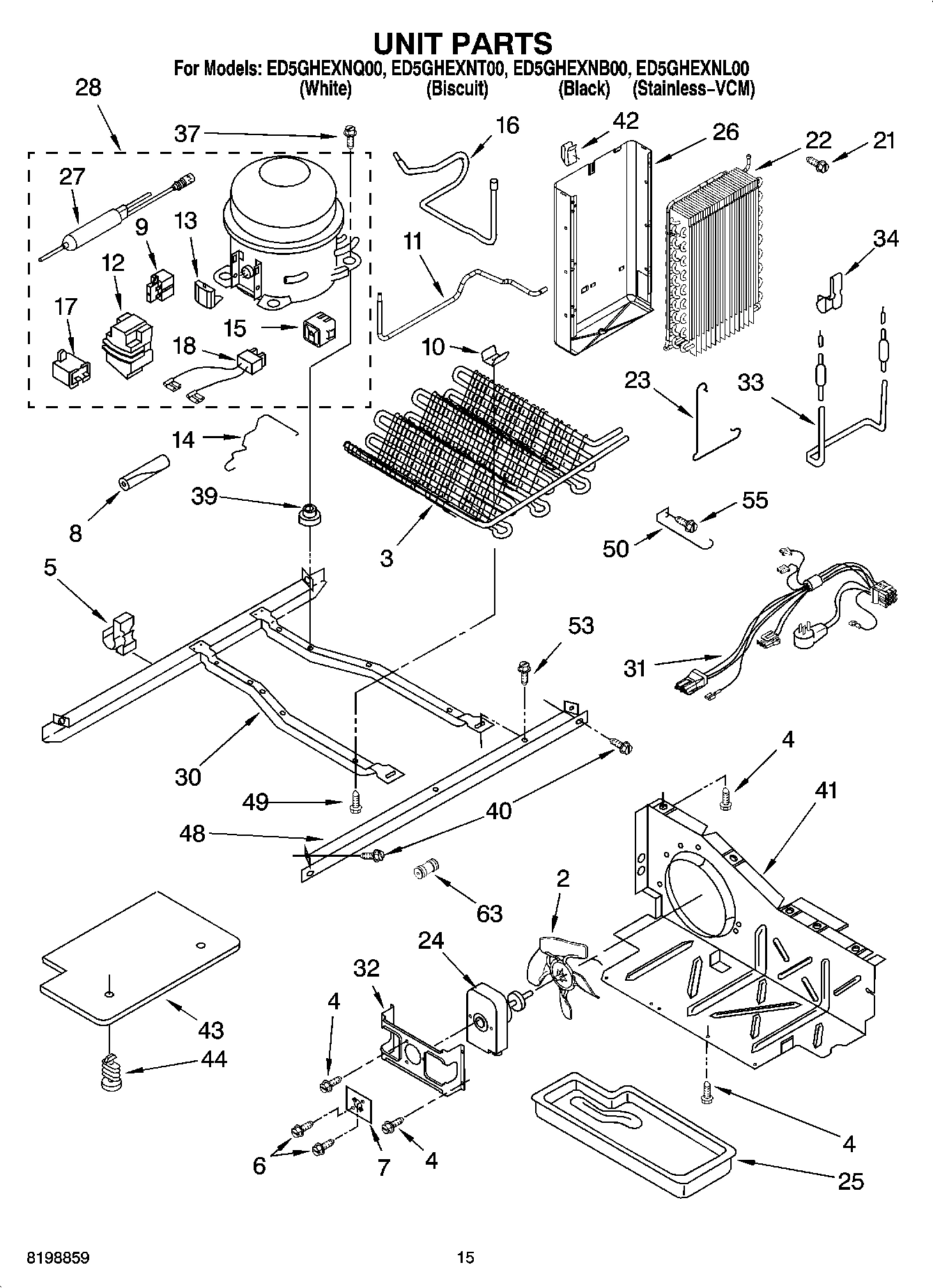

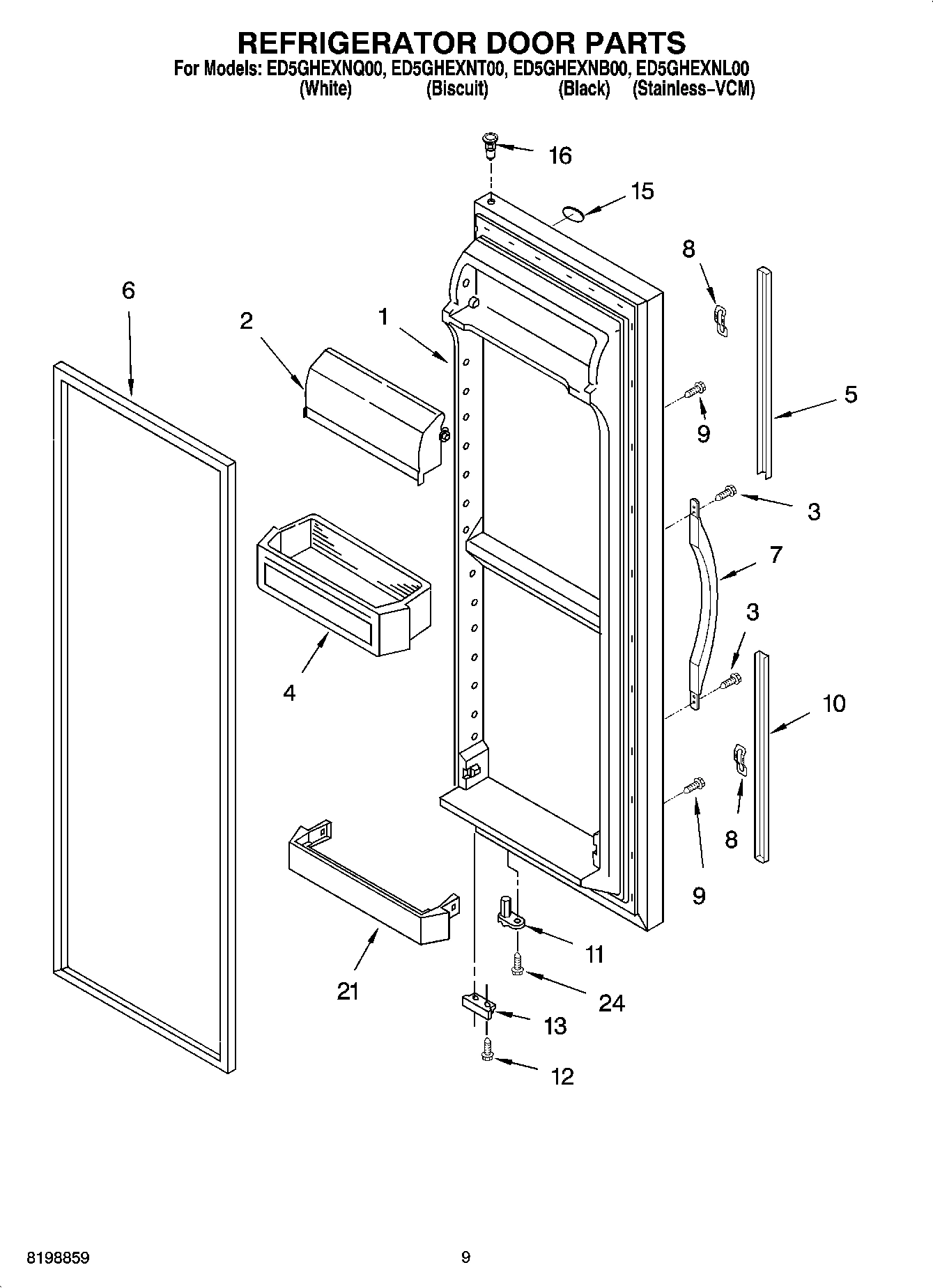

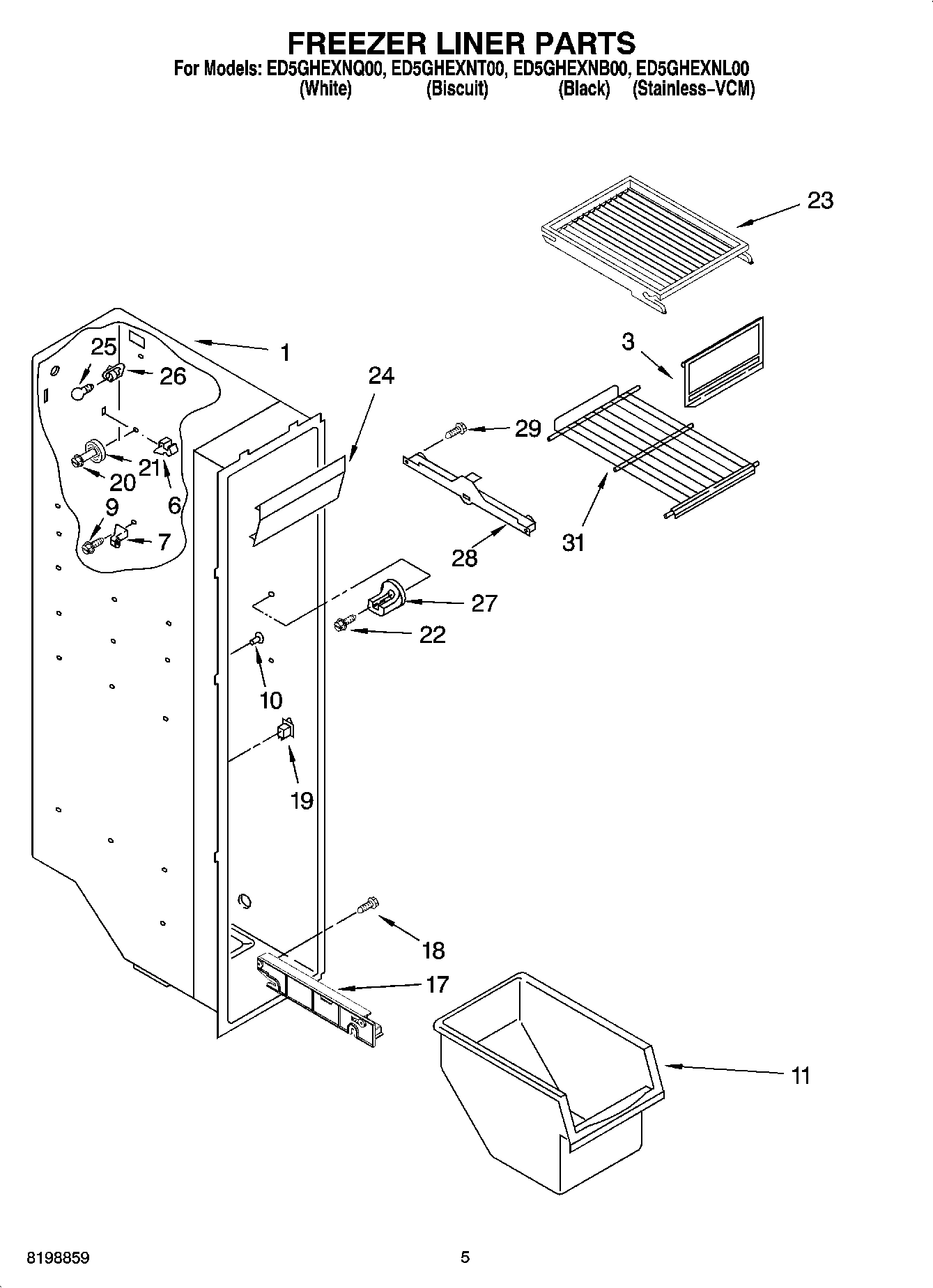

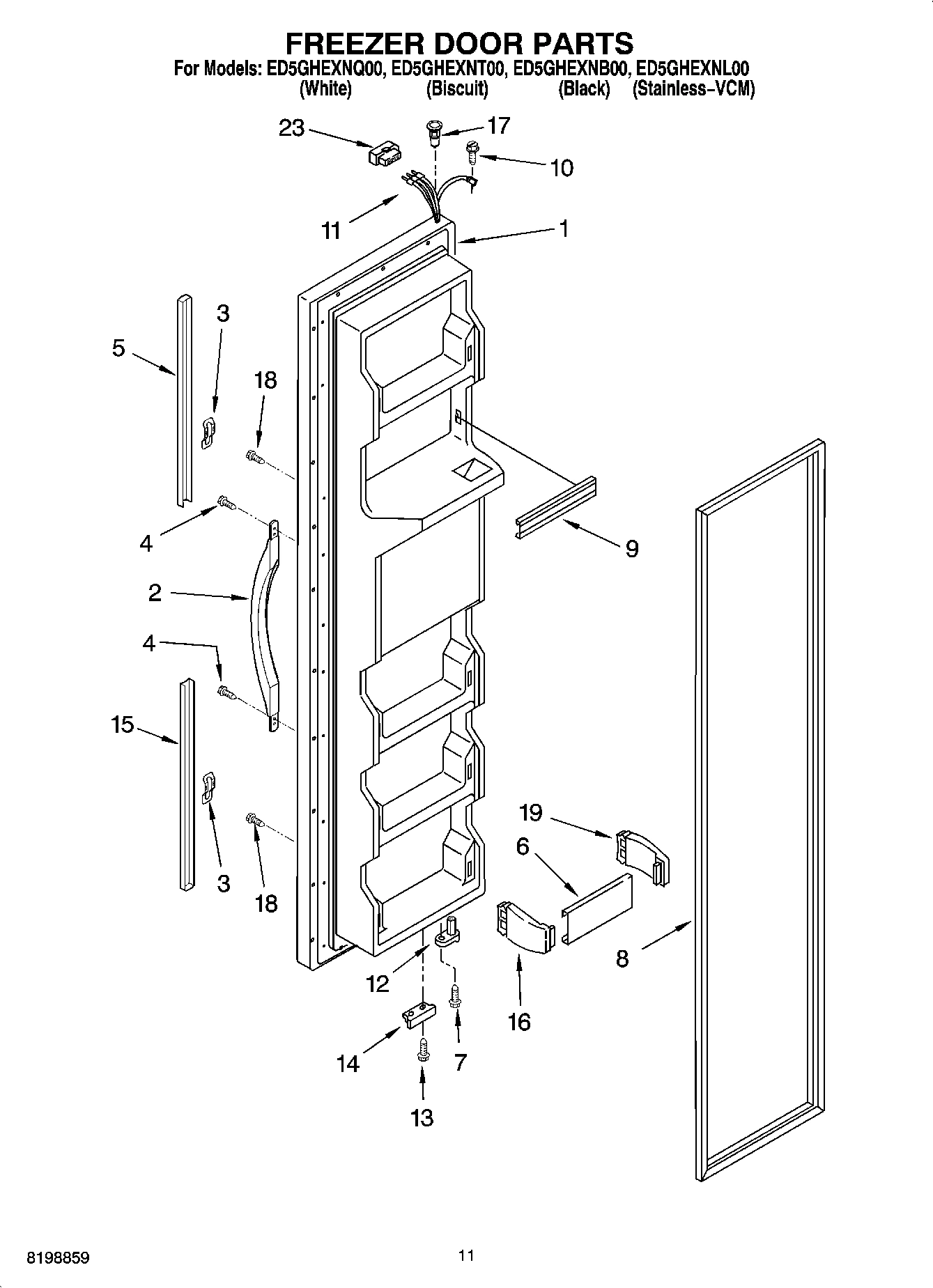

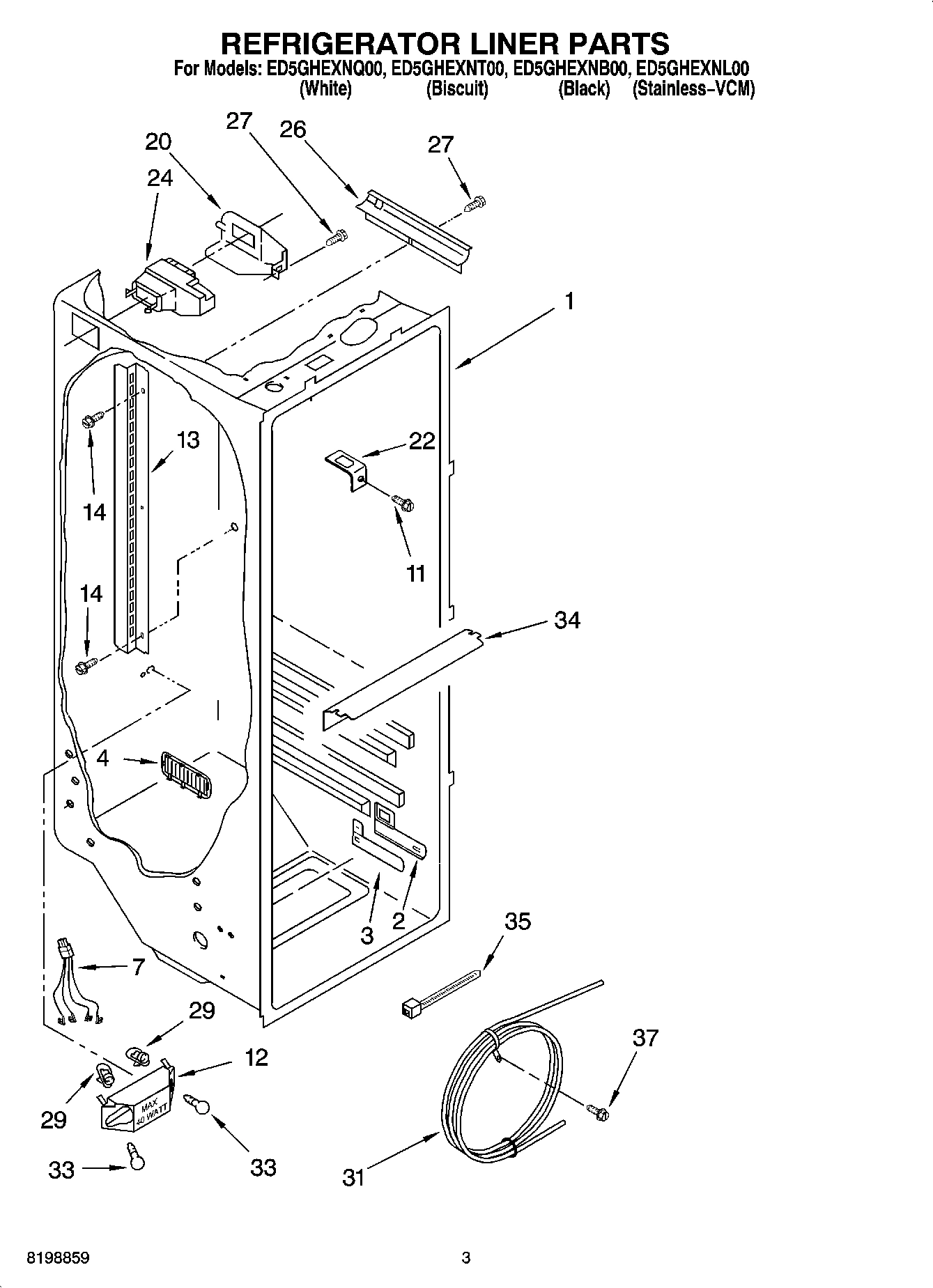

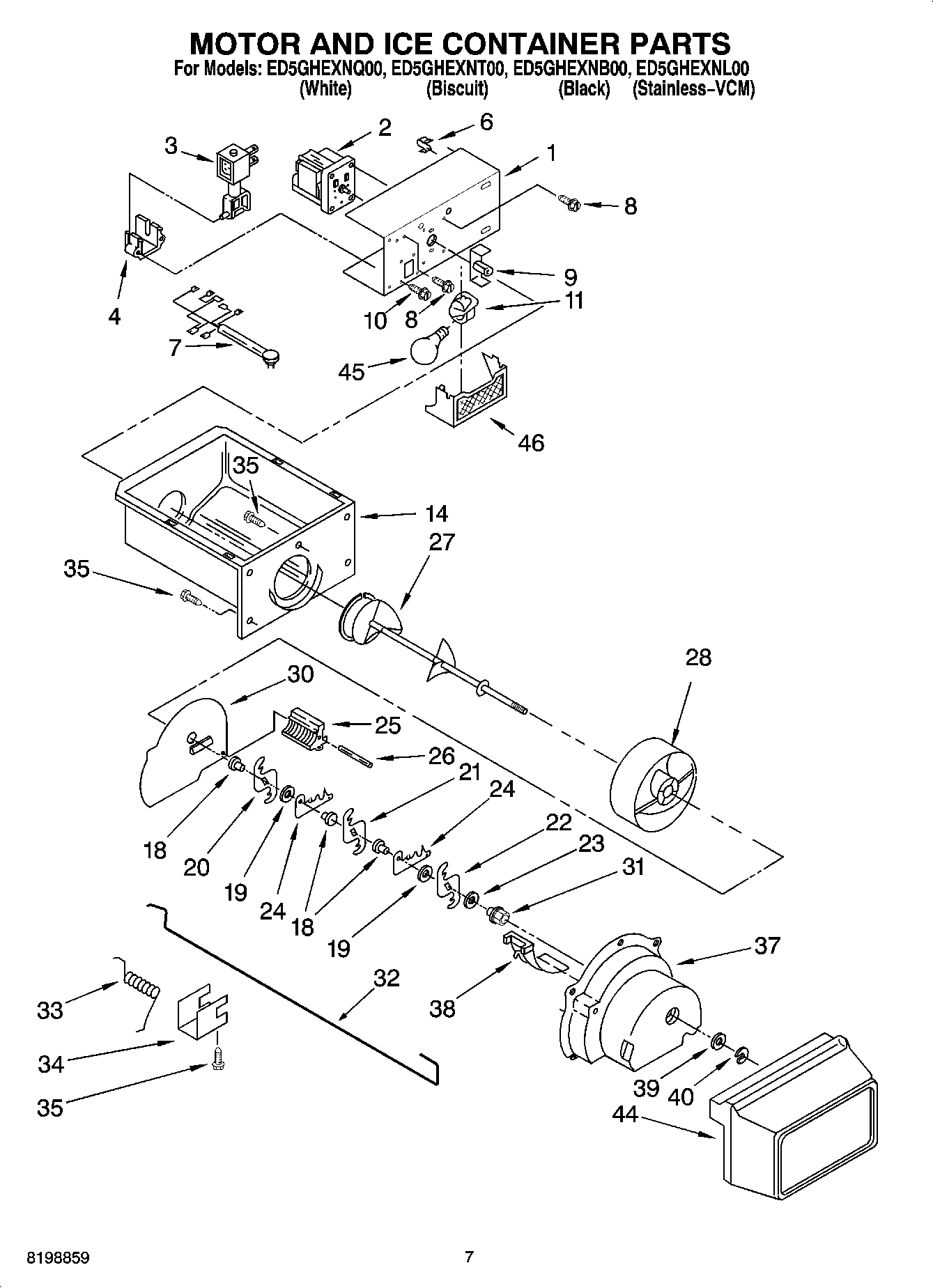

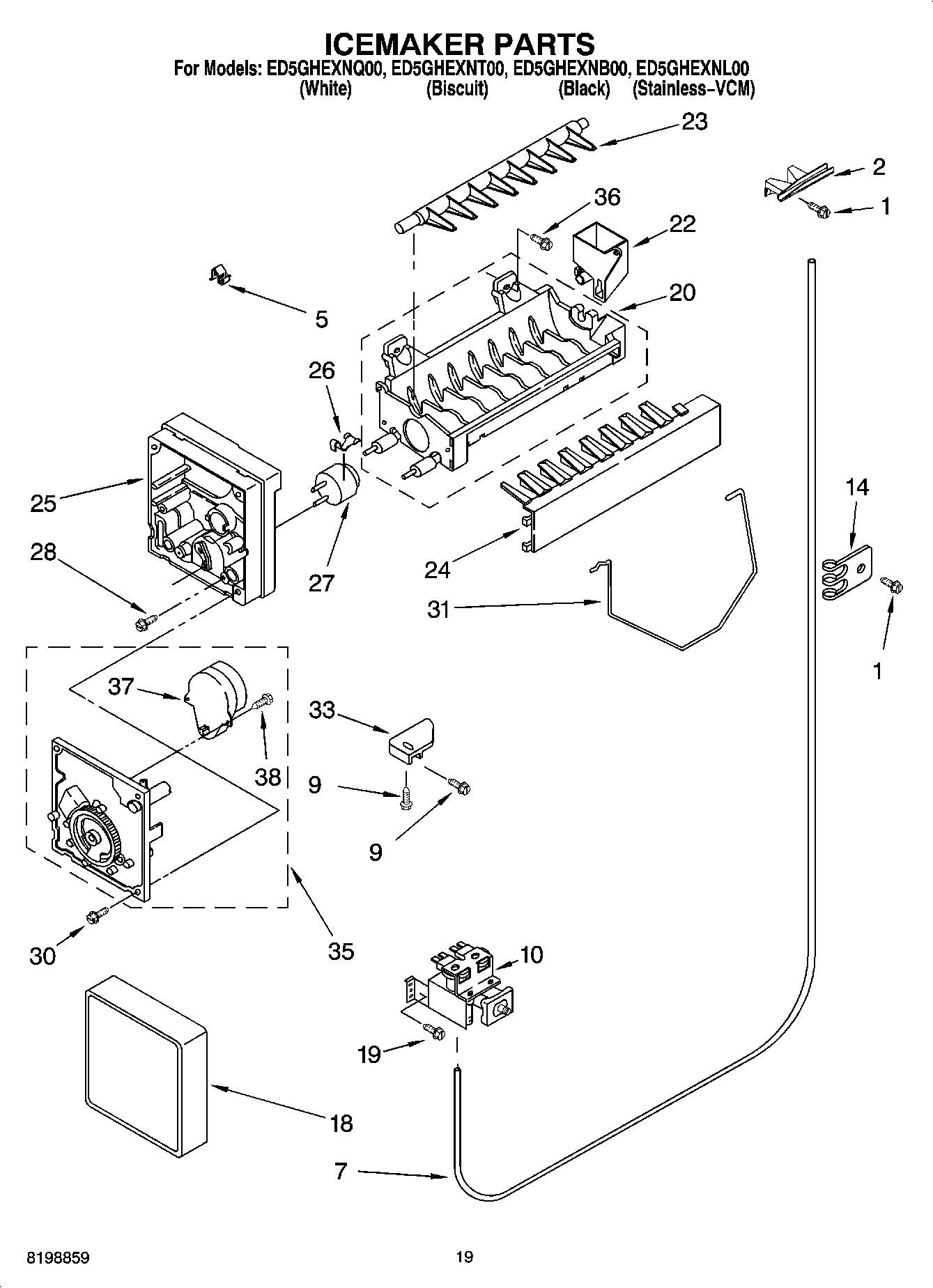

Model Whirlpool ED5GHEXNB00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

KIT, FOAM SLAB (30`` WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

LITERATURE PARTS WPL ARI34613A7 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

Use & Care Guide WPL 2188771 Contact Us For Availability

1

Service & Wiring Sheet WPL 2255381 Contact Us For Availability

1

Energy Guide WPL 2305888 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.93

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $55.83

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $29.87

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

7

Insert, Bracket WPL 2216997 Contact Us For Availability

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

8

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $44.34

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

Relay (Service Only) WPL 2183454 Contact Us For Availability

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $165.76

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $89.22

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $66.51

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $66.84

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $88.59

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.90

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $78.99

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $78.31

Extension, Handle Bottom (White) WPL 2194969W Contact Us For Availability

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Start-Device, Combination (Start Relay and Ov WPL 2188830 Contact Us For Availability

16

TUBE, SUCTION WPL 2205765 Contact Us For Availability

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $65.65

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $65.92

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $65.99

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

20

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

21

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $106.57

21

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Clamp WPL 2161324 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.86

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $89.49

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

NLA:SCREW Backorder WPL WPW10141645 $4.82

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Shield, Ice Door WPL 987121 Contact Us For Availability

Heat Shield WPL 2304289 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

Knob, Air Control WPL 2197871 Contact Us For Availability

Stud, Rear WPL 2196207 Contact Us For Availability

Cabinet (Not A Serviceable Part) WPL ARI34614A3 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

29

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

30

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $61.83

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $58.88

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $209.77

Shelf (2) WPL 2174268 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $7.27

34

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

35

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.69

36

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $71.99

37

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $42.98

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2186495 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILL WPL ARI34621A8 Contact Us For Availability

WPL ARI34622A5 WPL ARI34622A5 Contact Us For Availability

WPL ARI34623A2 WPL ARI34623A2 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
