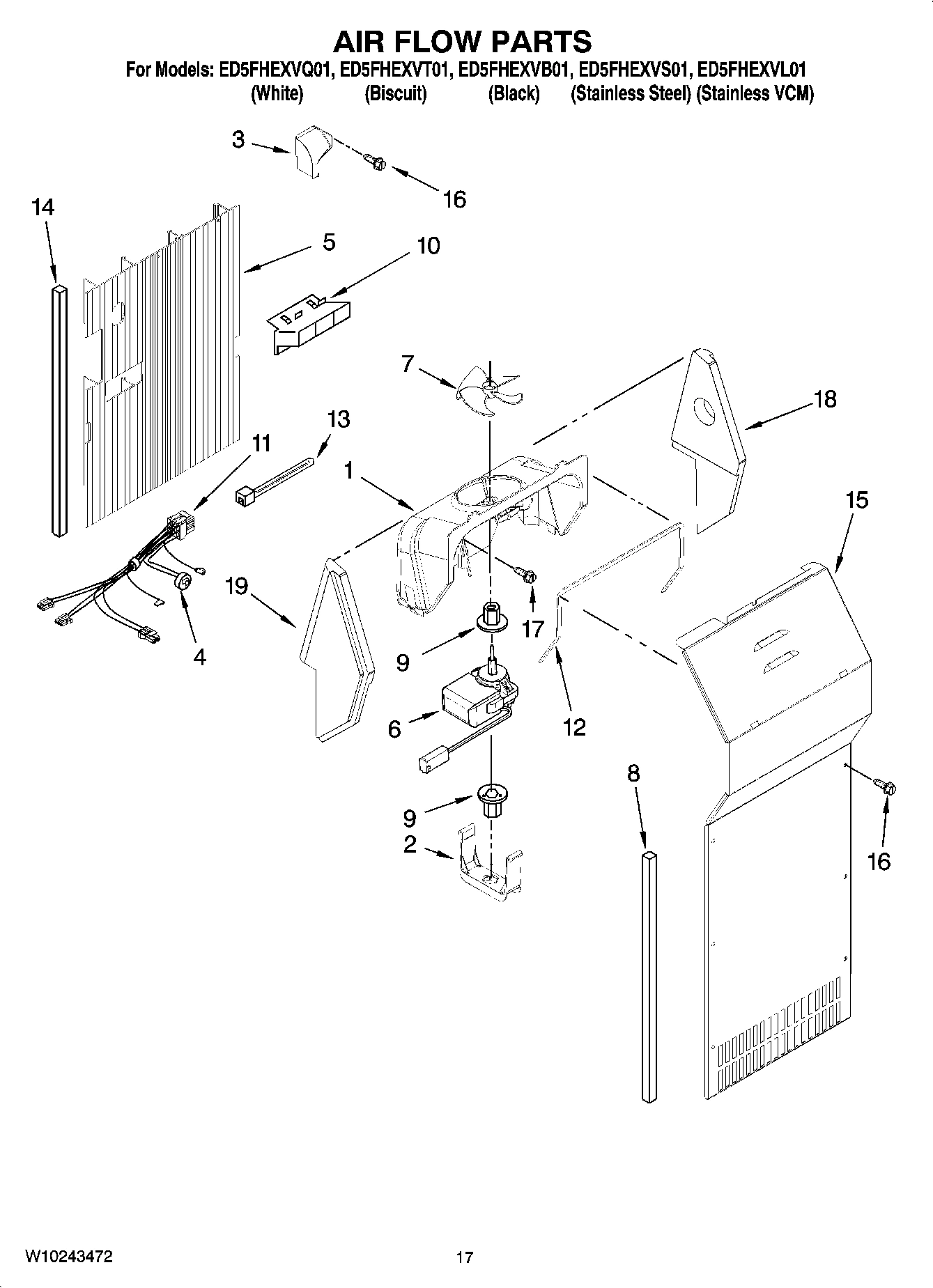

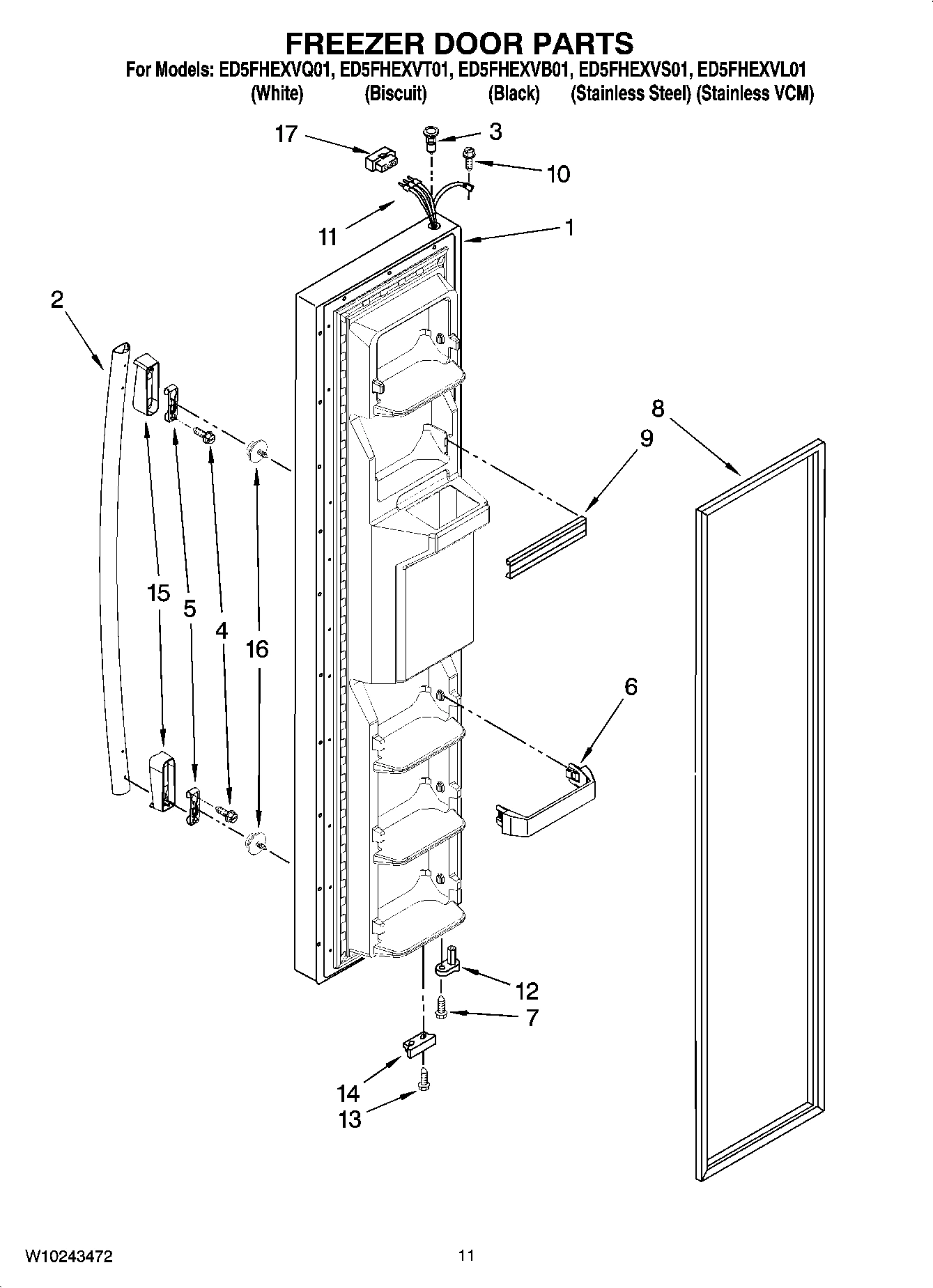

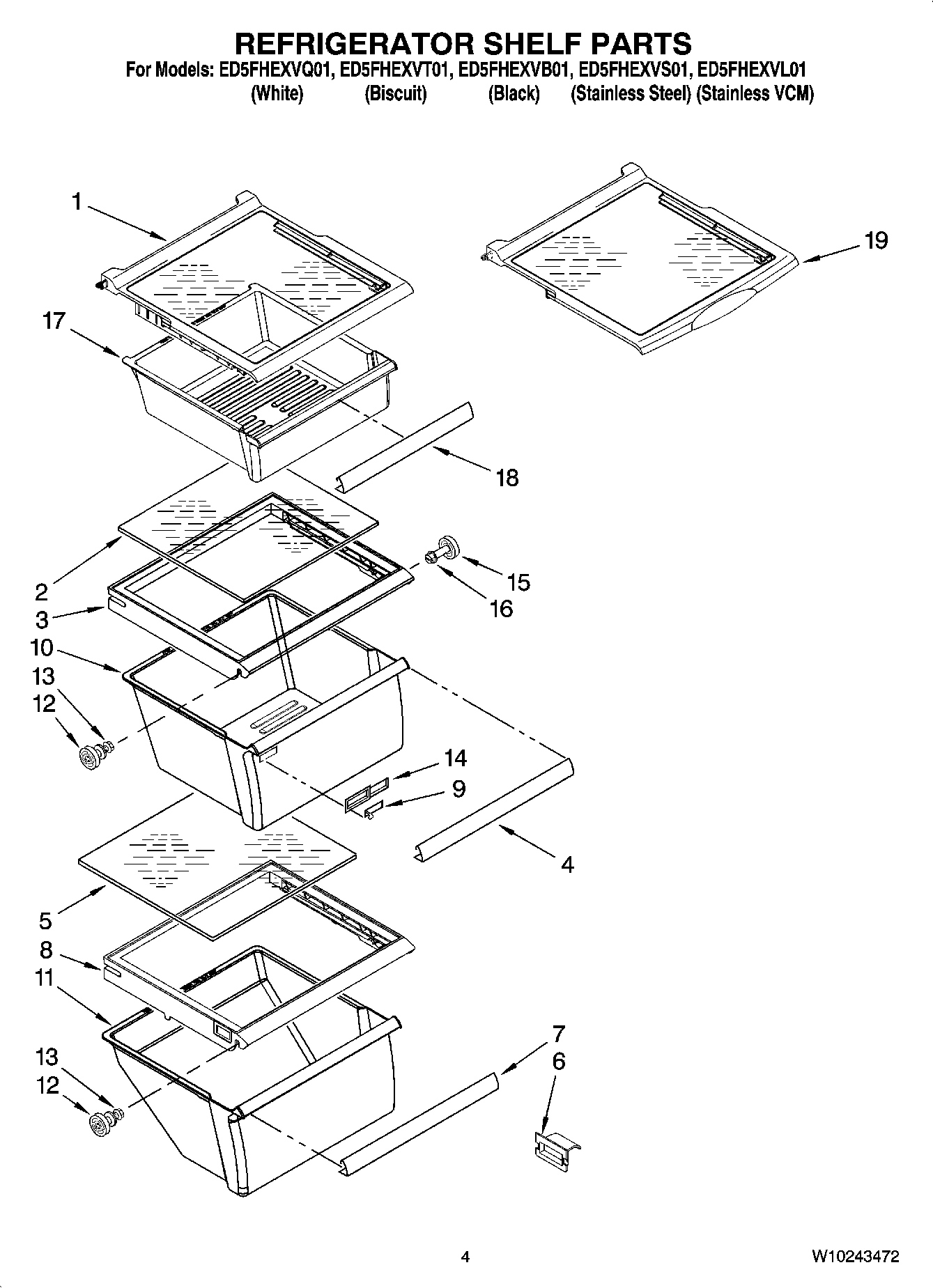

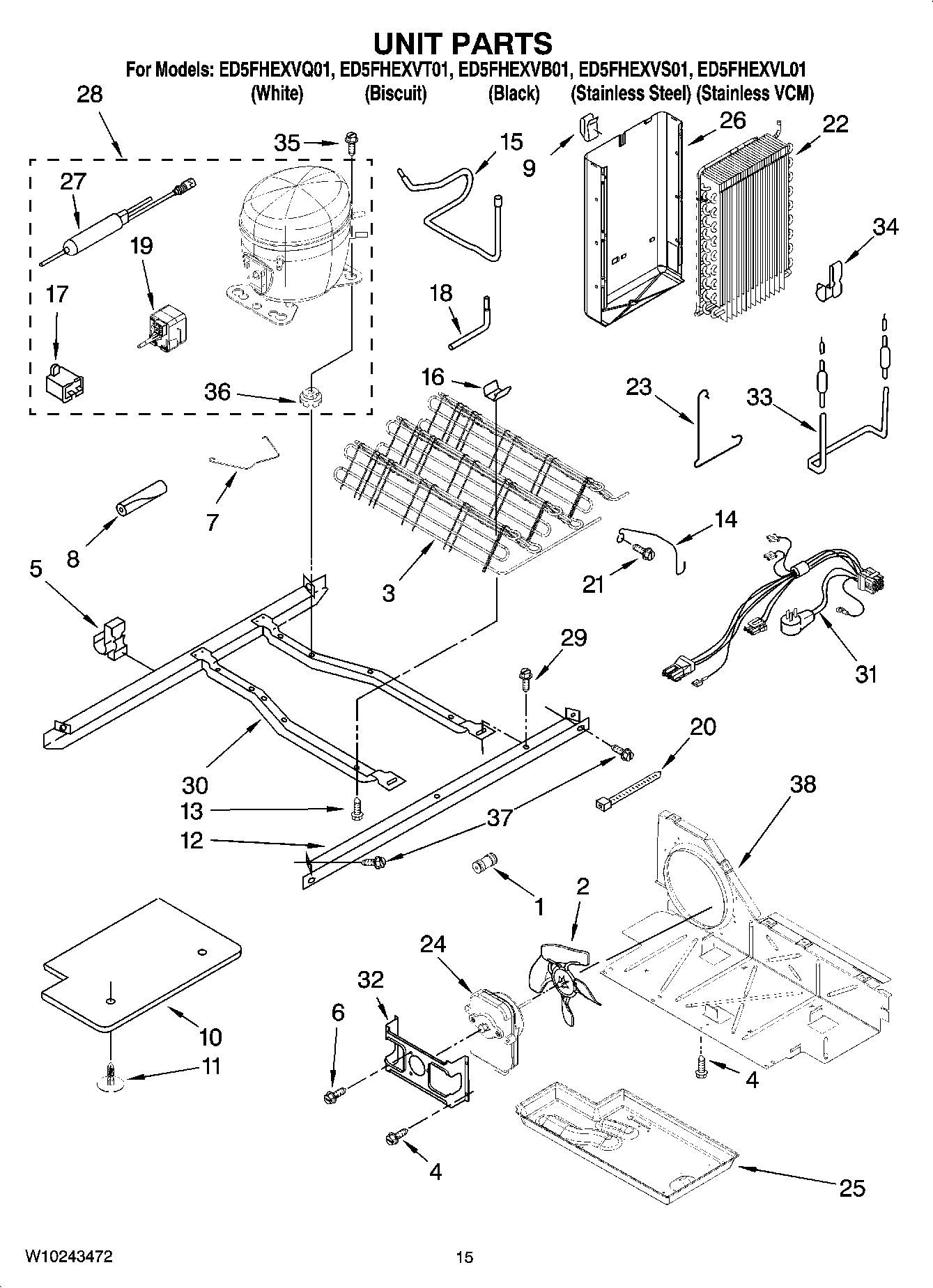

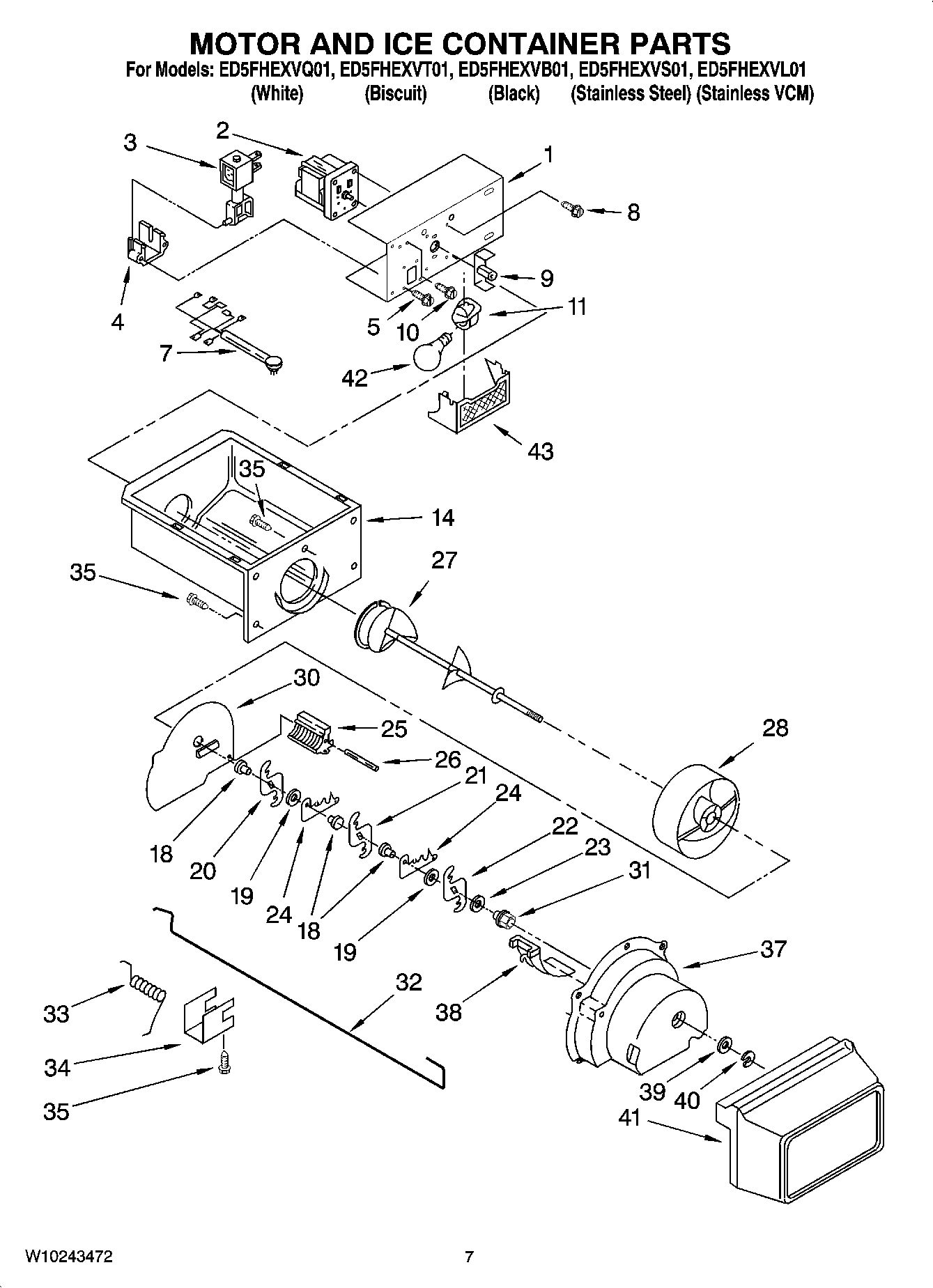

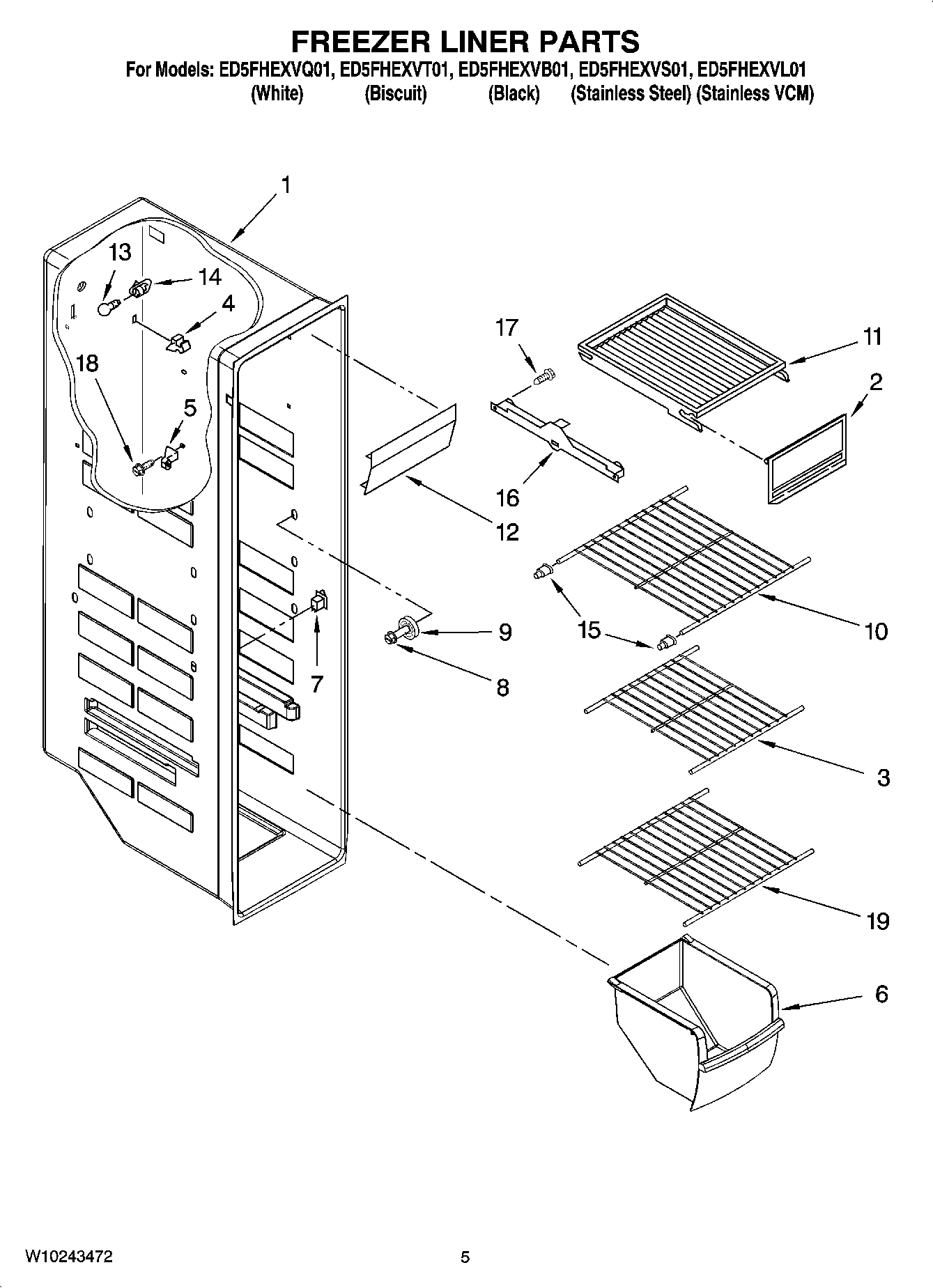

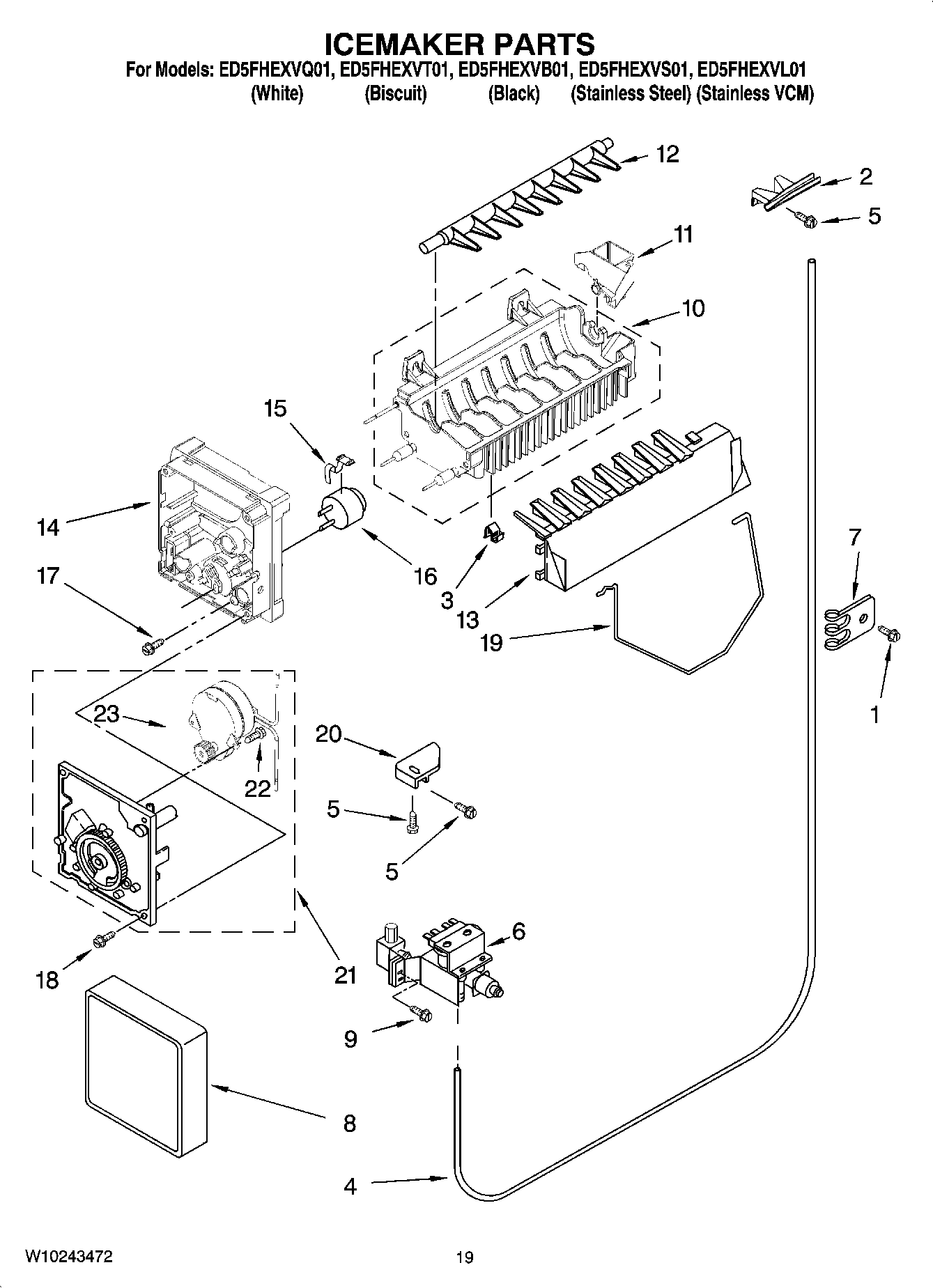

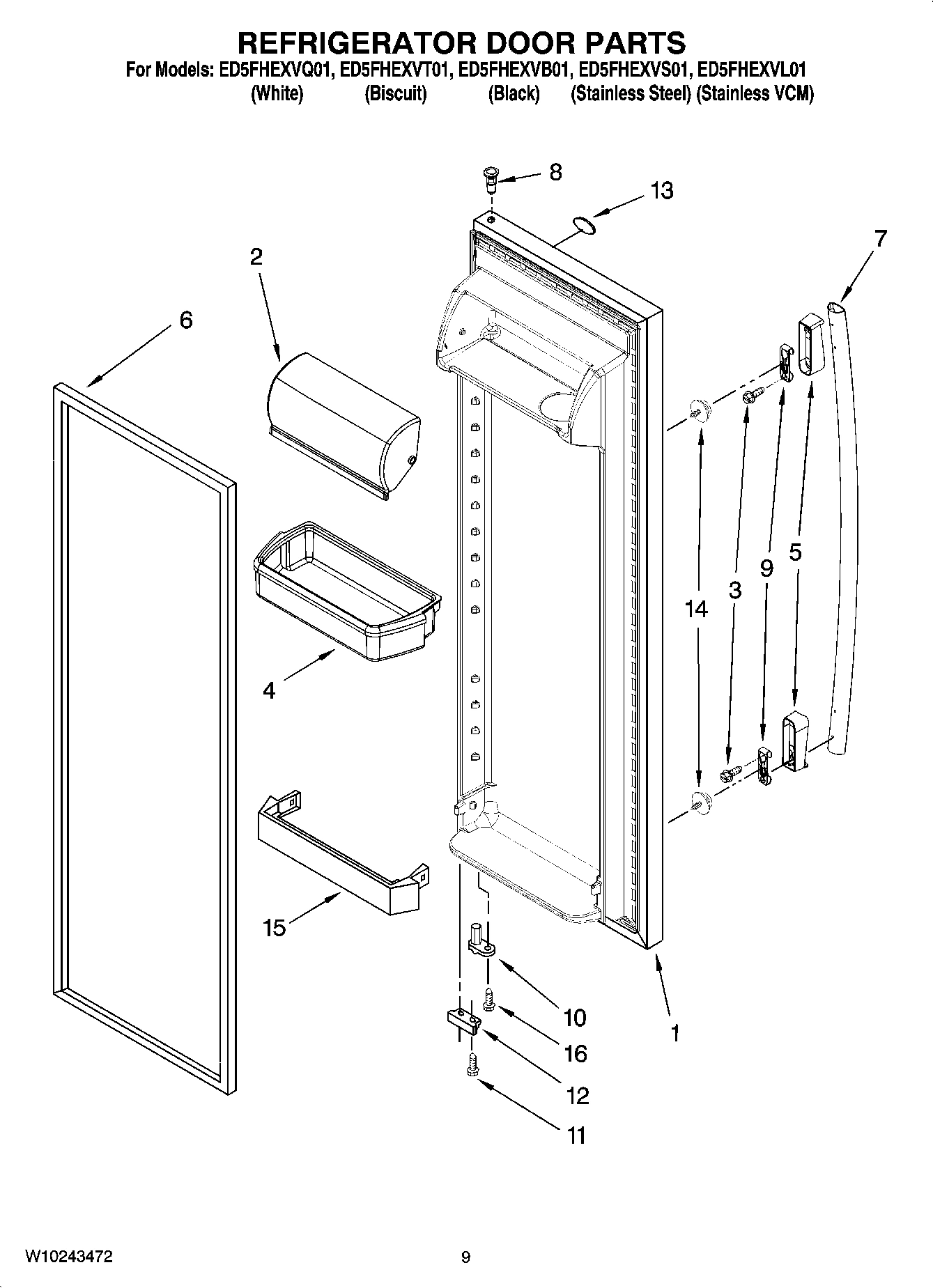

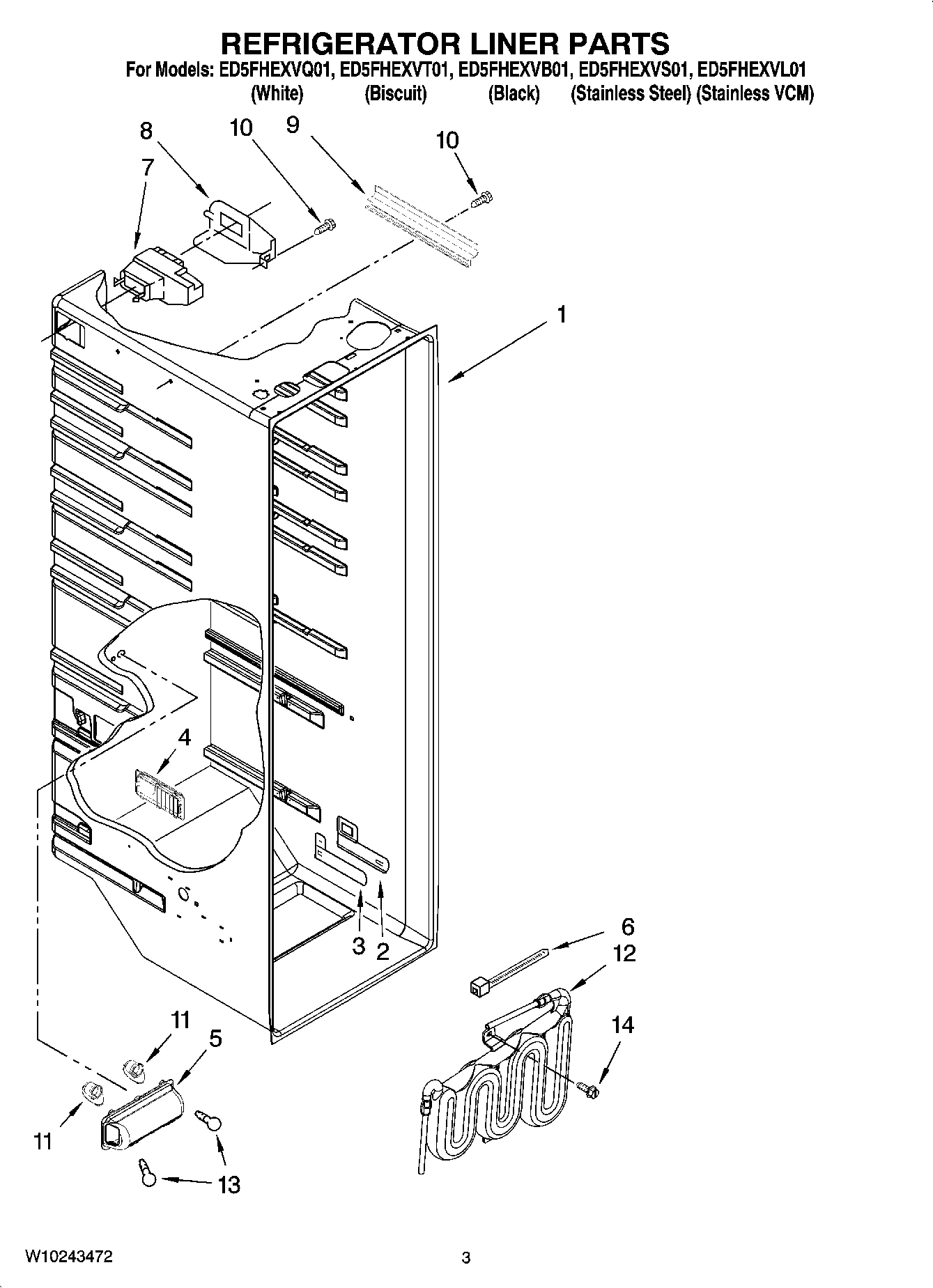

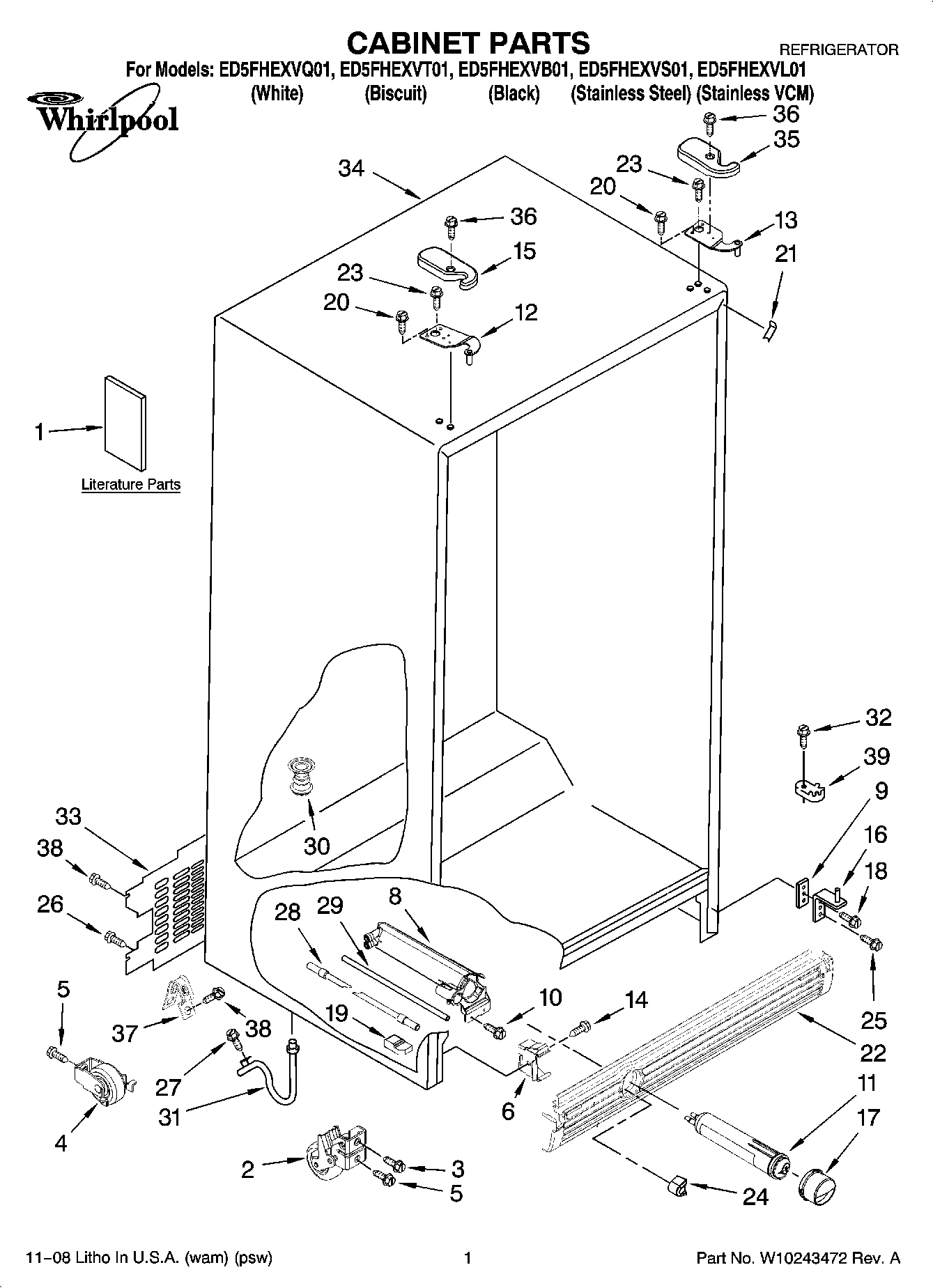

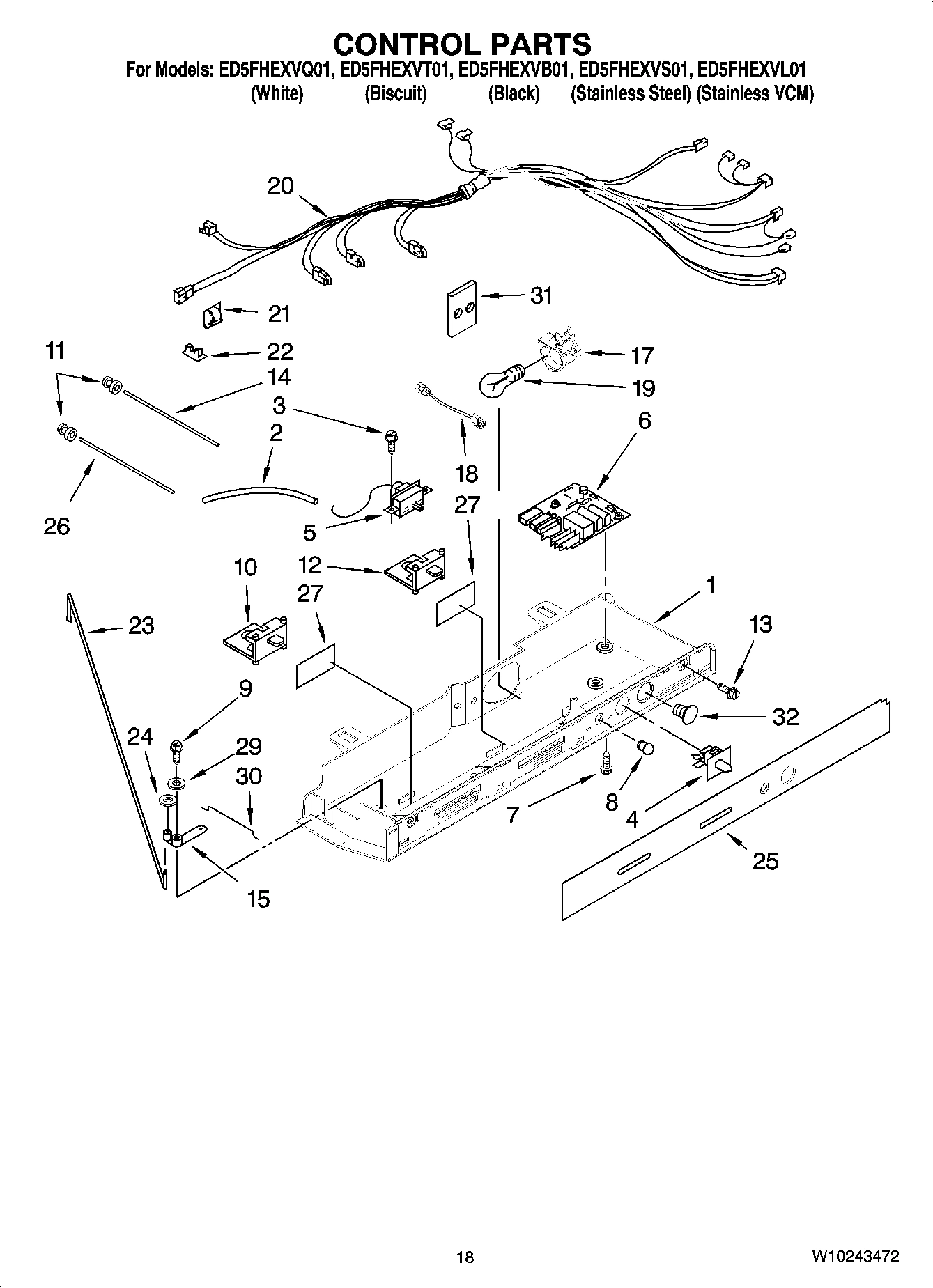

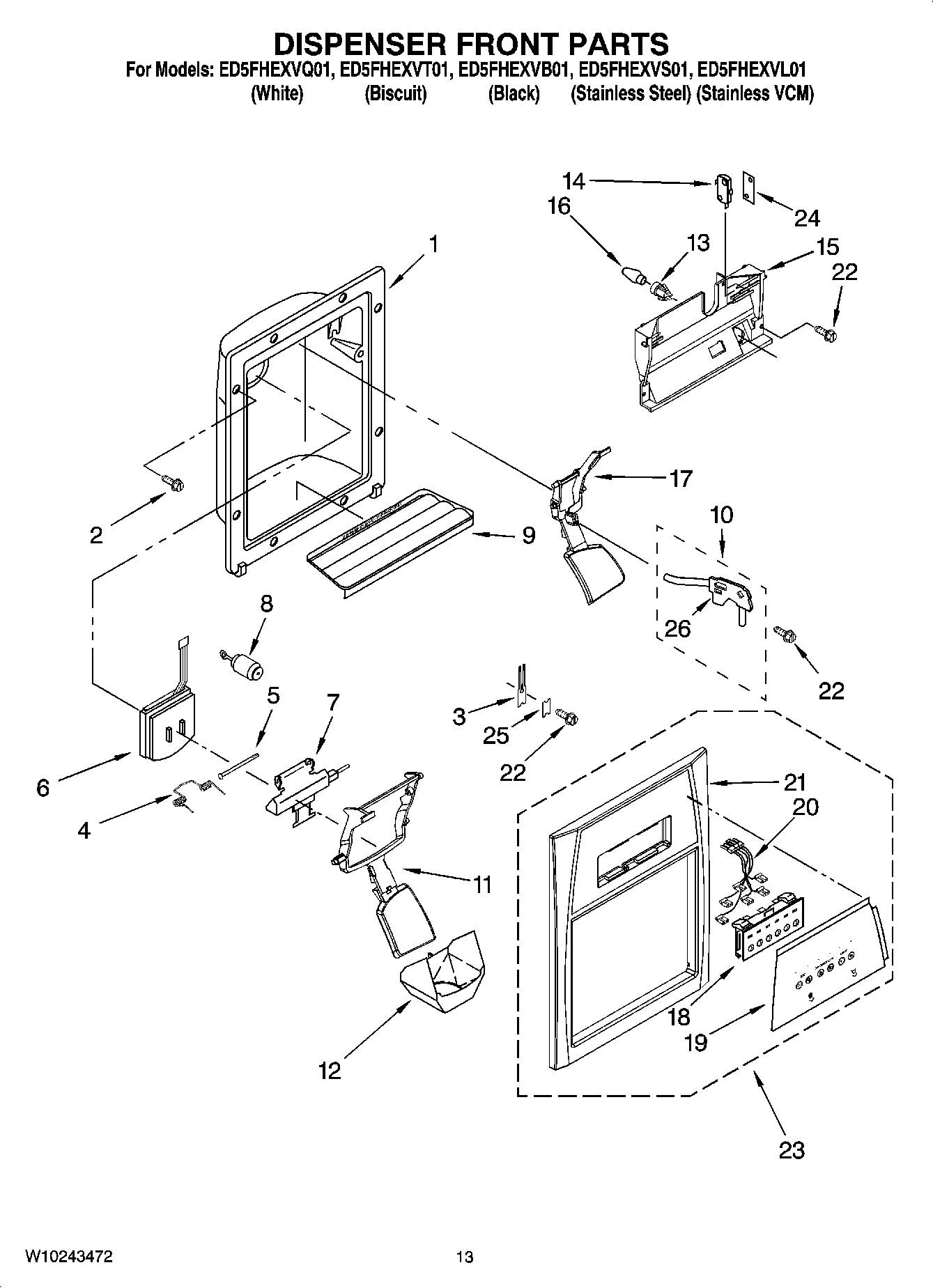

Model Whirlpool ED5FHEXVT01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

Liner (Not A Seviceable Part) WPL ARI34164A7 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Black) WPL 2256786B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2256786L Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2256786S Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2256786T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2256786W Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI34163A7 Contact Us For Availability

2

W10175967 Whirlpool Refrigerator Escutcheon Backorder WPL W10175967 $58.57

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.93

2

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $55.83

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

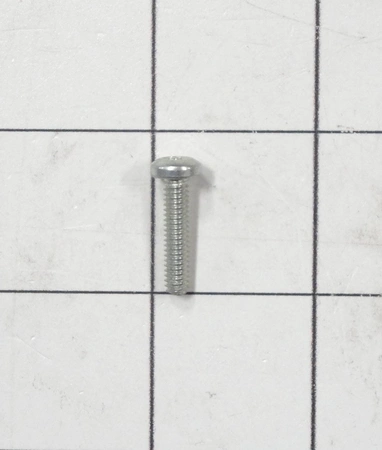

W10267047 Whirlpool Screw Backorder WPL W10267047 $8.89

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $58.58

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

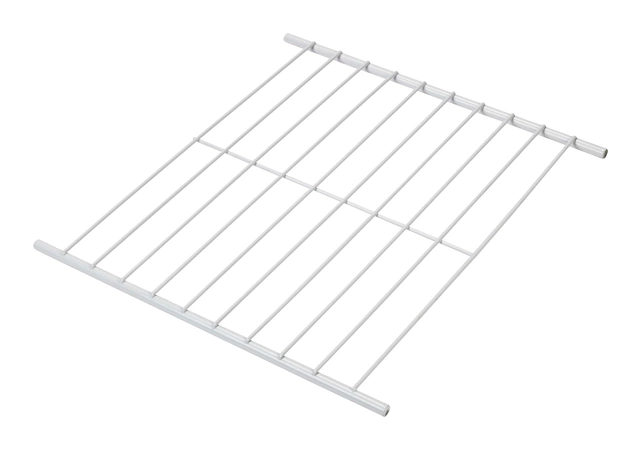

WPW10318948 Whirlpool Wire Shelf Backorder WPL WPW10318948 $110.88

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $30.99

4

Louver WPL 2257741 Contact Us For Availability

5

W10127813 Whirlpool Refrigerator Handle Endca Backorder WPL W10127813 $53.63

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

5

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $64.80

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $69.81

5

Endcap (Black) WPL W10127814 Contact Us For Availability

5

Endcap (Nickel Alloy) WPL W10152864 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $51.84

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $244.60

6

WPW10144409 Whirlpool Refrigerator Freezer Bi In Stock WPL WPW10144409 $112.99

6

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

7

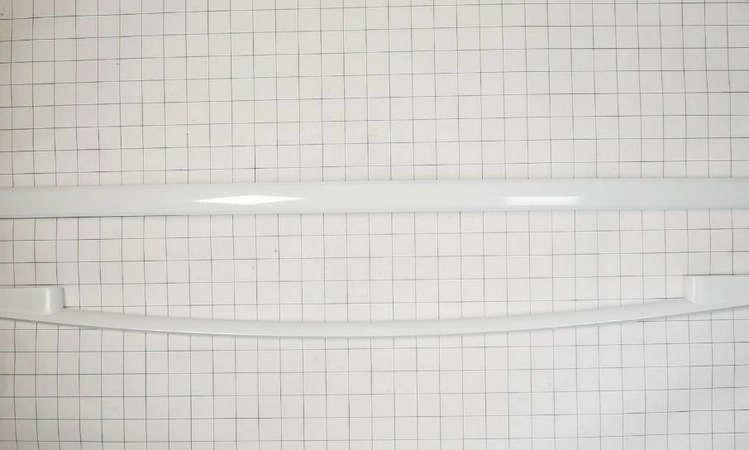

W10210942A Whirlpool Refrigerator Handle Backorder WPL W10210942A $88.12

7

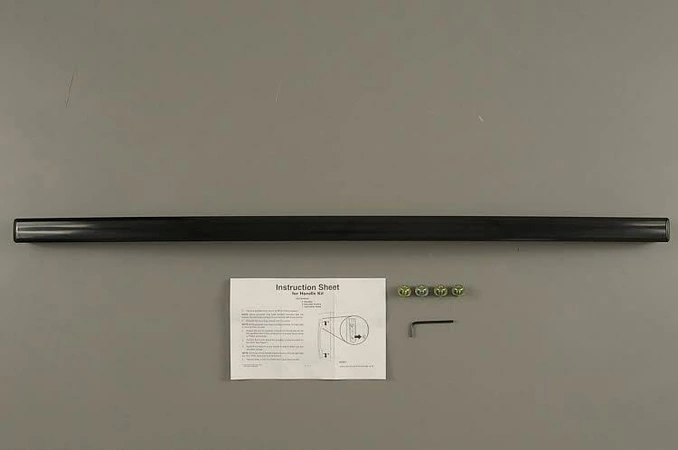

W10210943A Whirlpool Refrigerator Handle Backorder WPL W10210943A $88.12

7

W10210944A Whirlpool Refrigerator Handle M Backorder WPL W10210944A $80.10

7

W10273556 Whirlpool Refrigerator Handle Backorder WPL W10273556 $203.08

7

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

7

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $58.99

8

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $234.99

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $228.51

8

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $70.97

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

9

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $44.34

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $21.99

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.85

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Shim WPL 2209697 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $64.64

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

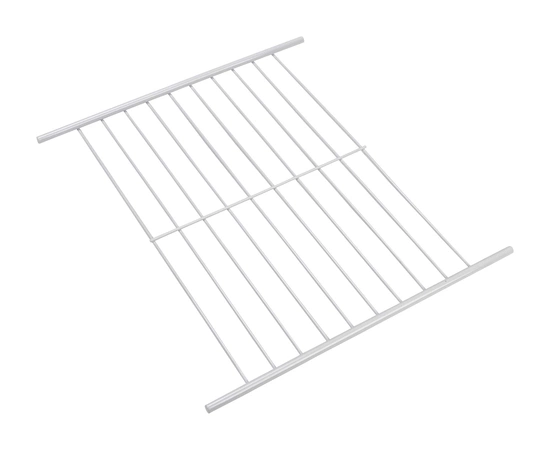

WPW10318947 Whirlpool Wire Shelf Backorder WPL WPW10318947 $76.99

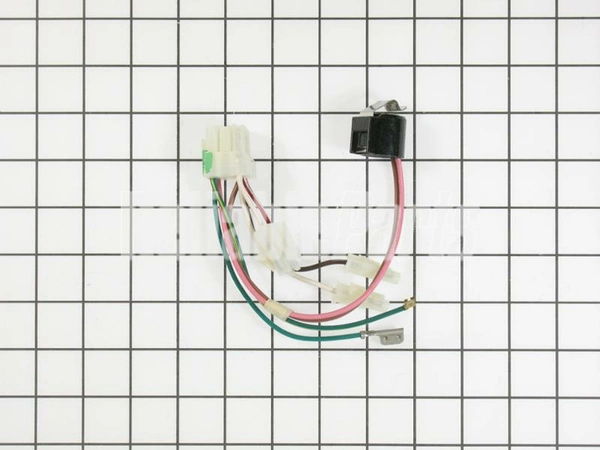

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $75.44

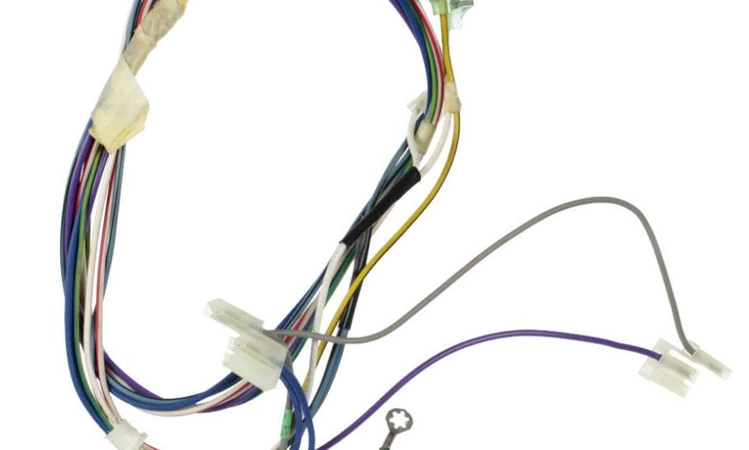

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $152.63

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

W10152855 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152855 $65.33

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $61.47

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $64.64

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

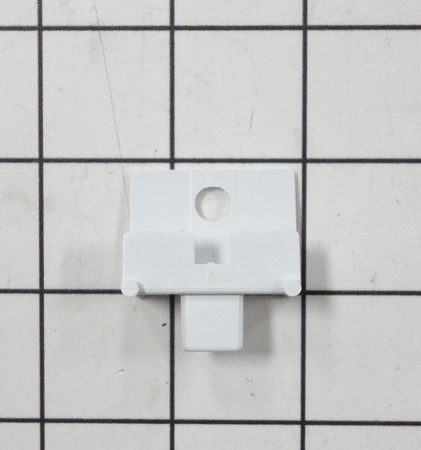

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.86

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $69.99

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $57.77

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $5.82

Light Bar (RC) WPL 2179920 Contact Us For Availability

Screw (2) WPL 488280 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.10

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $58.99

WPW10130299 Whirlpool Refrigerator Cup In Stock WPL WPW10130299 $9.70

TUBE, SUCTION WPL 2205765 Contact Us For Availability

16

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

16

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

16

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $8.89

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10152860 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152860 $63.26

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $63.15

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $189.29

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $121.71

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

Shelf, Wire WPL 2309522 Contact Us For Availability

20

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

21

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

23

Front Cover Assembly (Includes Items 18, 19, WPL W10153726 Contact Us For Availability

24

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

24

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

24

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

25

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

26

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $91.15

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

27

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

29

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.63

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

30

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

31

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

Extension Tube WPL 2304937 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Clip WPL 2161324 Contact Us For Availability

35

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

35

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

36

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

38

Air Baffle WPL W10163483 Contact Us For Availability

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

43

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24
