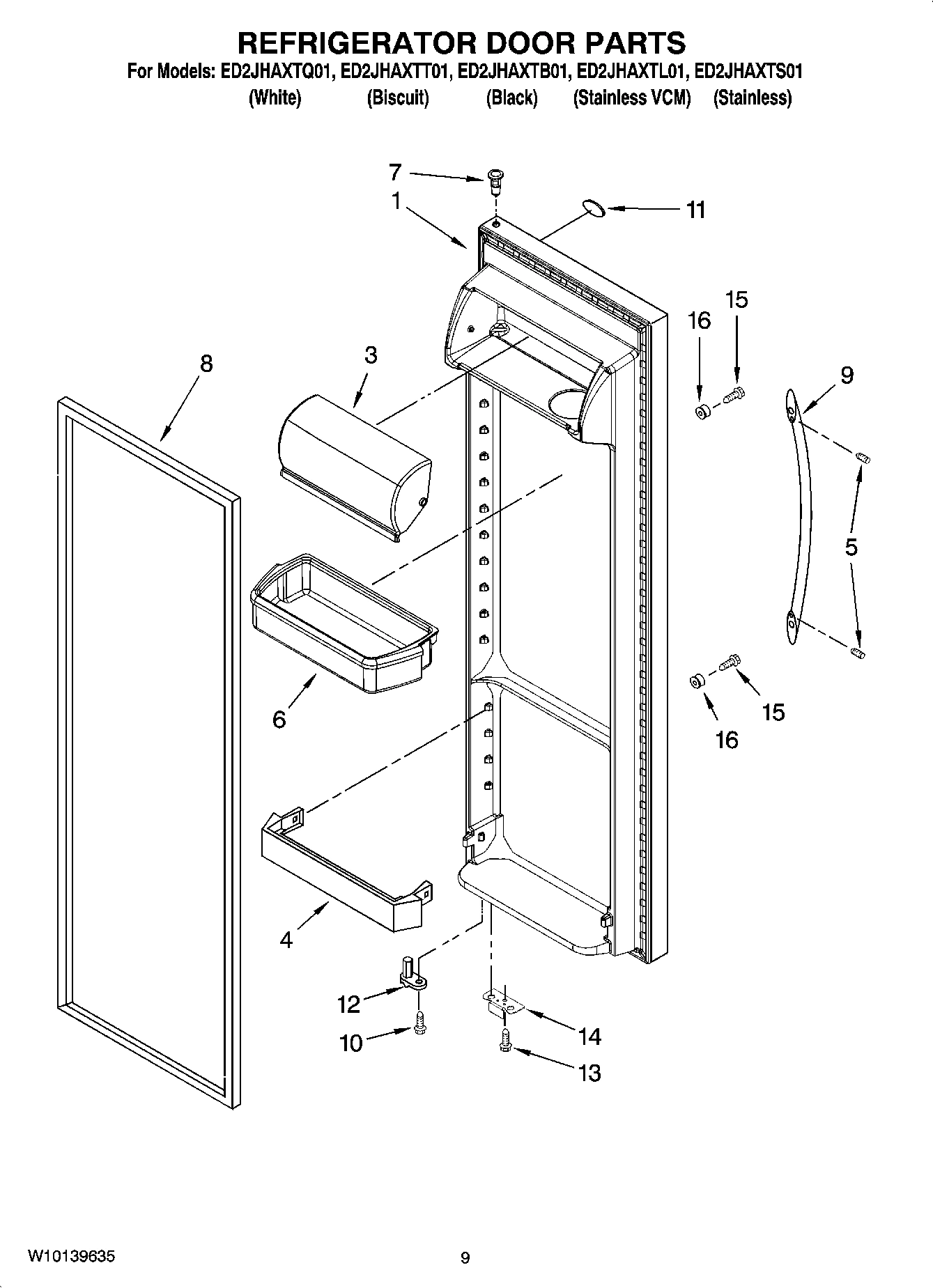

Model Whirlpool ED2JHAXTL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

W10134625 Whirlpool Refrigerator Touch-Up Pai Backorder WPL W10134625 $12.92

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

1

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.99

1

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $210.57

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2327942B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2327942LG Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2327942S Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2327942T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2327942W Contact Us For Availability

2

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $13.99

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

2

WP2254600B Whirlpool Refrigerator Handle Backorder WPL WP2254600B $151.04

2

WP2254600W Whirlpool Refrigerator Handle Backorder WPL WP2254600W $170.10

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL 2317246 Contact Us For Availability

2

Handle (Stainless) WPL 2254600S Contact Us For Availability

2

Handle (Biscuit) WPL 2254600T Contact Us For Availability

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $208.07

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

3

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $71.47

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $57.99

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

4

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

4

Washer WPL 2258220 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.84

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $6.83

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Freezer Bin WPL 2216111 Contact Us For Availability

6

Trim, Door (3) WPL 2313198K Contact Us For Availability

7

2217195 Whirlpool Refrigerator Shield Backorder WPL 2217195 $109.36

7

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

7

Endcap (6) WPL 2195917 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $134.99

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $219.73

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

9

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $53.99

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $54.49

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $69.81

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shim (2) WPL 2209697 Contact Us For Availability

9

Frame, Shelf (2) WPL 2195975 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $64.64

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.18

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $57.77

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $66.51

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $66.84

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Wire Harness (Not Serviceable) WPL ARI30914A8 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $99.46

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Cover, Indicator Light WPL 2200096 Contact Us For Availability

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $57.82

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.10

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Relay (Service Only) WPL 2183454 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $121.71

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.99

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

Slide, Ice Maker WPL 2212321 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $65.65

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $65.92

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $65.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.63

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.90

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $64.24

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.75

20

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

20

W11115203 Whirlpool Control Panel Backorder WPL W11115203 $353.07

20

Extension Tube WPL 2304937 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

Light Lens WPL 2209769 Contact Us For Availability

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.62

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

Screw WPL 488280 Contact Us For Availability

23

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

26

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $209.77

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

27

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.56

28

W10139462 Whirlpool Refrigerator Compressor In Stock WPL W10139462 $435.91

28

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

28

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

29

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $59.85

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $166.45

31

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

31

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $50.80

32

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $81.01

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

33

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $7.27

34

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

35

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

35

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

36

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

37

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

38

Clip, Heat WPL 2155547 Contact Us For Availability

39

Unit Mounting Rail WPL 2149718 Contact Us For Availability

40

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

41

Guard, Fan WPL 2260516 Contact Us For Availability

42

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

43

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

44

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

45

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI30919A6 Contact Us For Availability

REFRIGERANT CHAR WPL ARI30920A2 Contact Us For Availability
